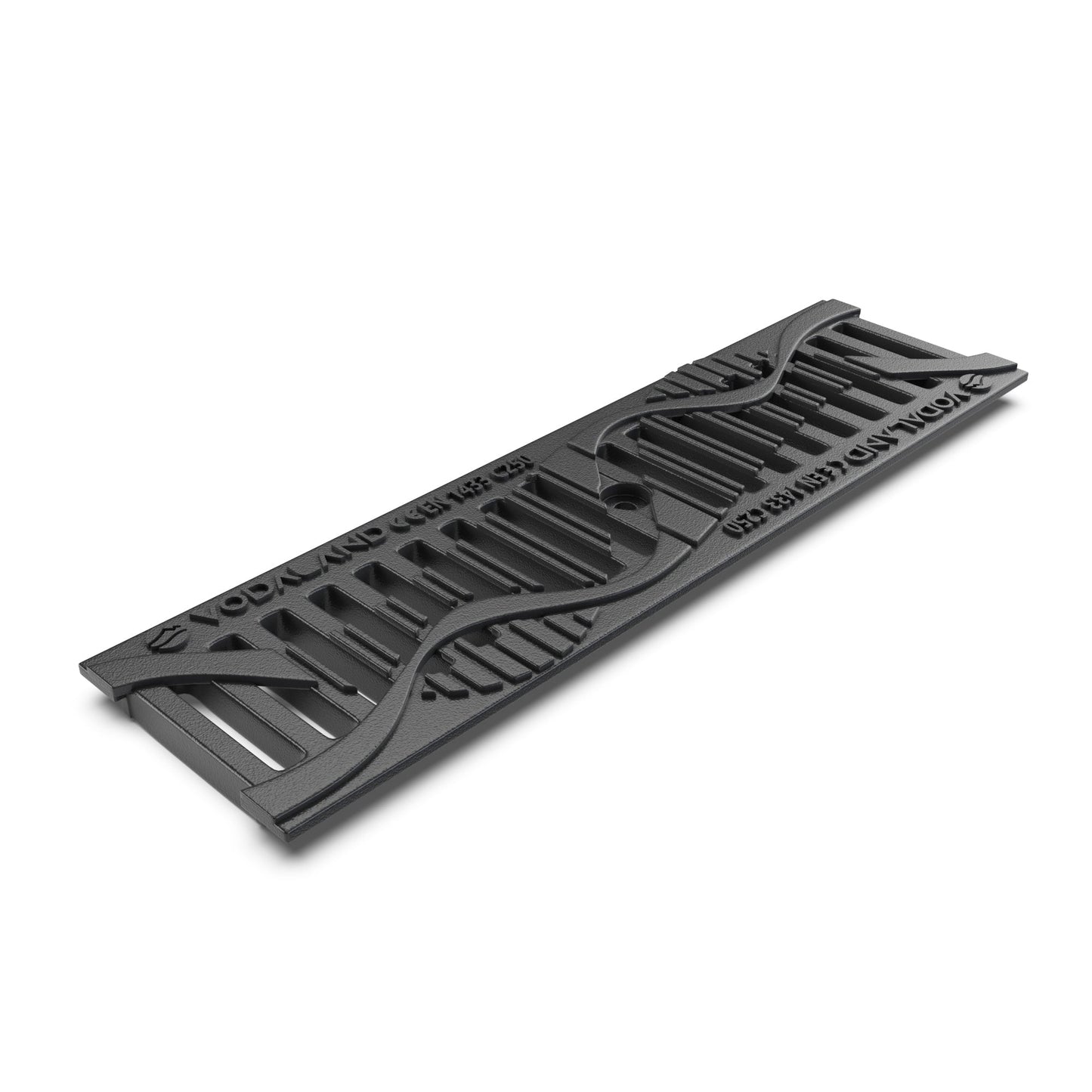

4" Cast Iron WAVE Grate
4" Cast Iron WAVE Grate
- Ductile Cast Iron
- 19.7 Inches - Length
- C - Load Class
- 168 GPM (per meter)
- More Product Information Below
Couldn't load pickup availability
FAQ’s

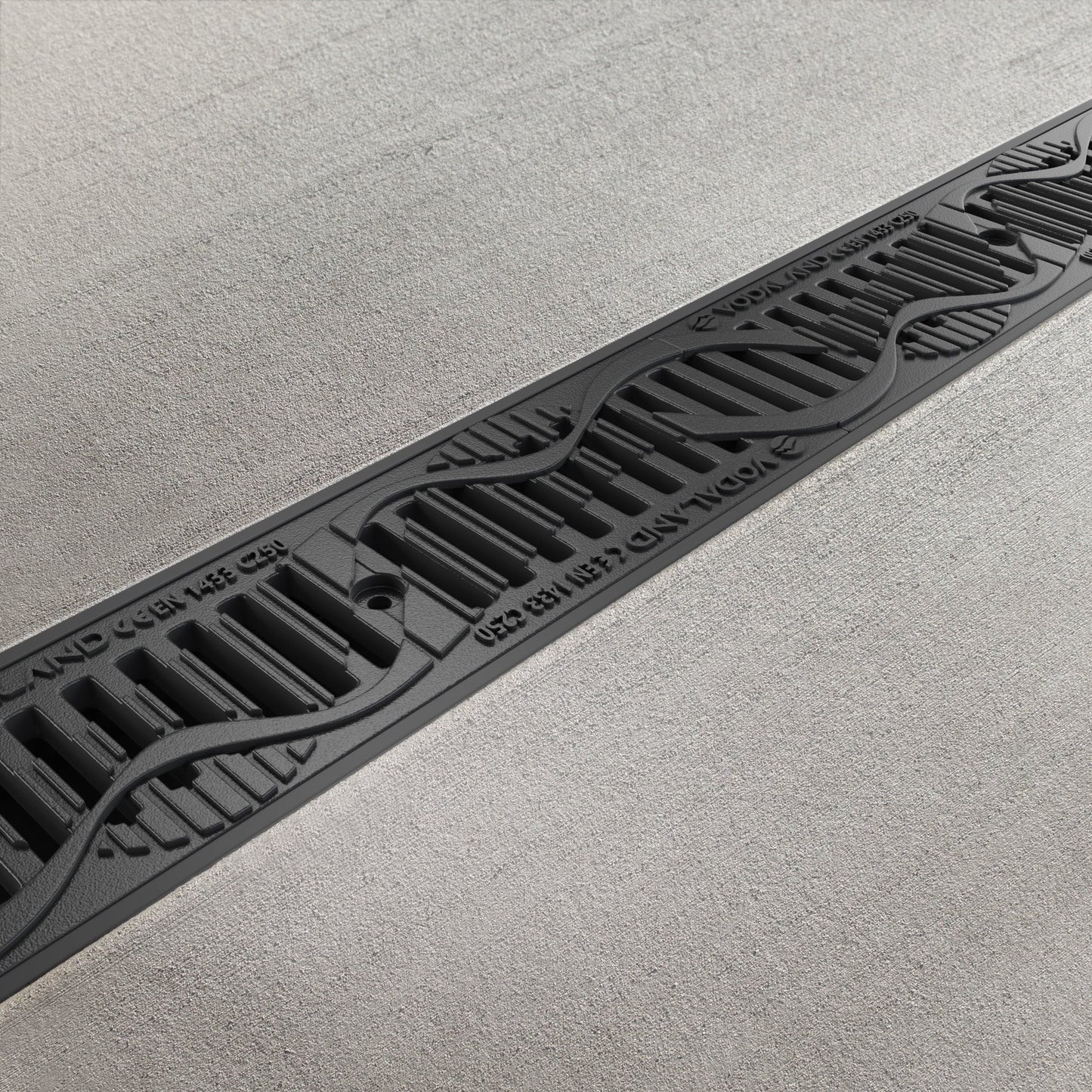

3D Model of our 4" Cast Iron Wave Grating
Zoom in and out to get a better look at this grating system. You can use AR on your compatible phones to even place on your ground for a nice example of what it will look like in your installation!



- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
- Fits a 4 inch trench drain channel system
- New Wave Design - Decorative Cast Iron Pattern
- Heavy duty vehicle load rated
FEATURES
- Great Look and Design
- Installed With grating fasteners if needed for tight lock
- C Class - 55,000 LBS
- Flow Rate: 168 GPM (per meter)
For more product information please see product description tab above

Product Description
Product Description
Our 4" Ductile cast iron WAVE slotted grate is the gold standard that you see every day, but at an incredible price and with a brand new design. Painted to outlast our competition, and look great, will withhold 55,000 LBS of force. Can be secured using our grating fasteners. Decorative wave design pattern, that sets it apart from all others!
PARAMETERS
Article .......................... 2030351
Material ....................... Ductile Cast Iron
Dimensions ................. 19.7" L x 5.4" W x 1.0" H
Weight ......................... 6.0 LBS
Load Class .................. C - 55,000 LBS
FEATURES
- Great Look and Design
- Installed With grating fasteners if needed for tight lock
- C Class - 55,000 LBS
- Flow Rate: 168 GPM (per meter)
