Regular price $147.00 $0.00 Unit price per
free shipping over $999
FEDEX 3-5 days delivered

Specifications and Downloads

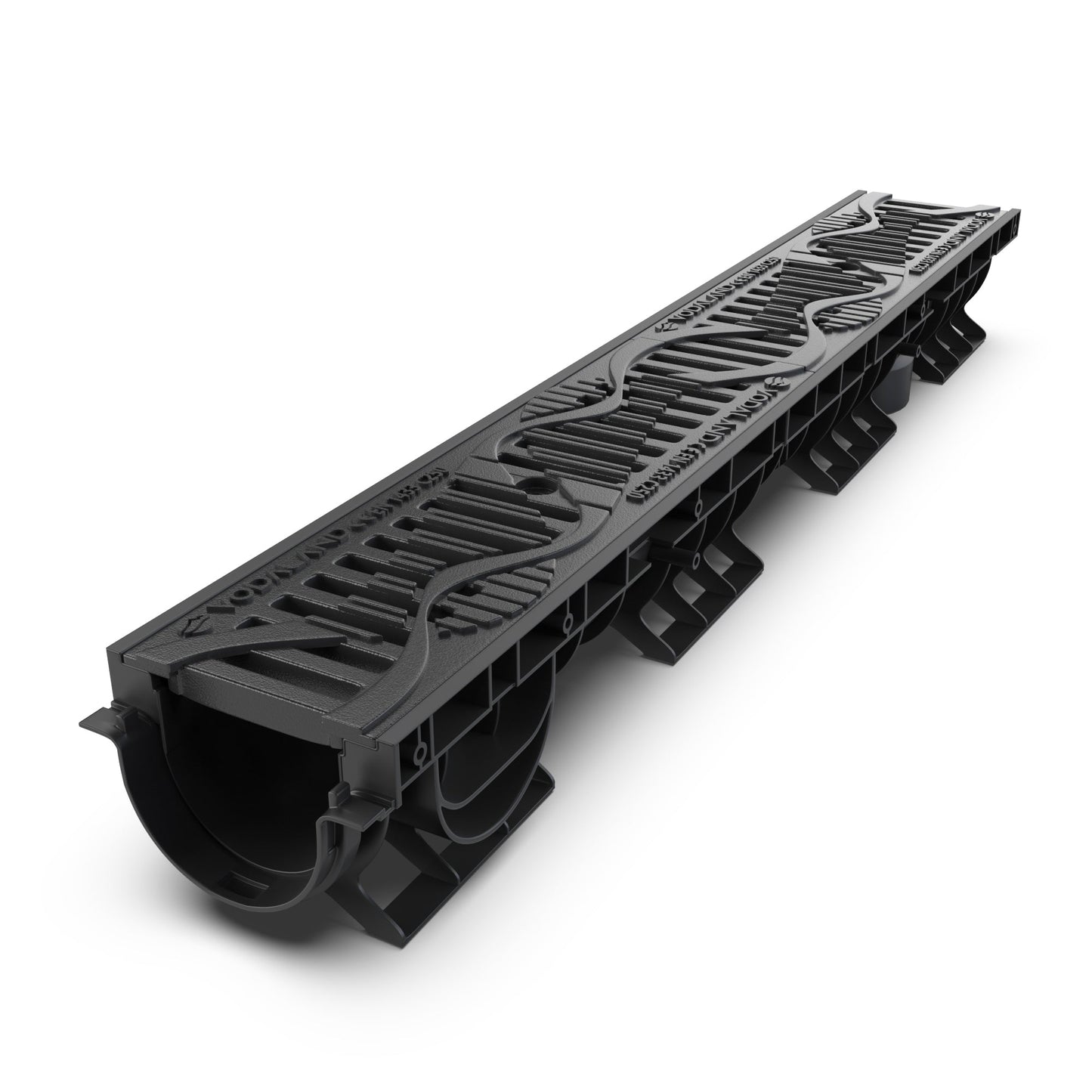

  • 4" Internal width ductile cast iron WAVE package

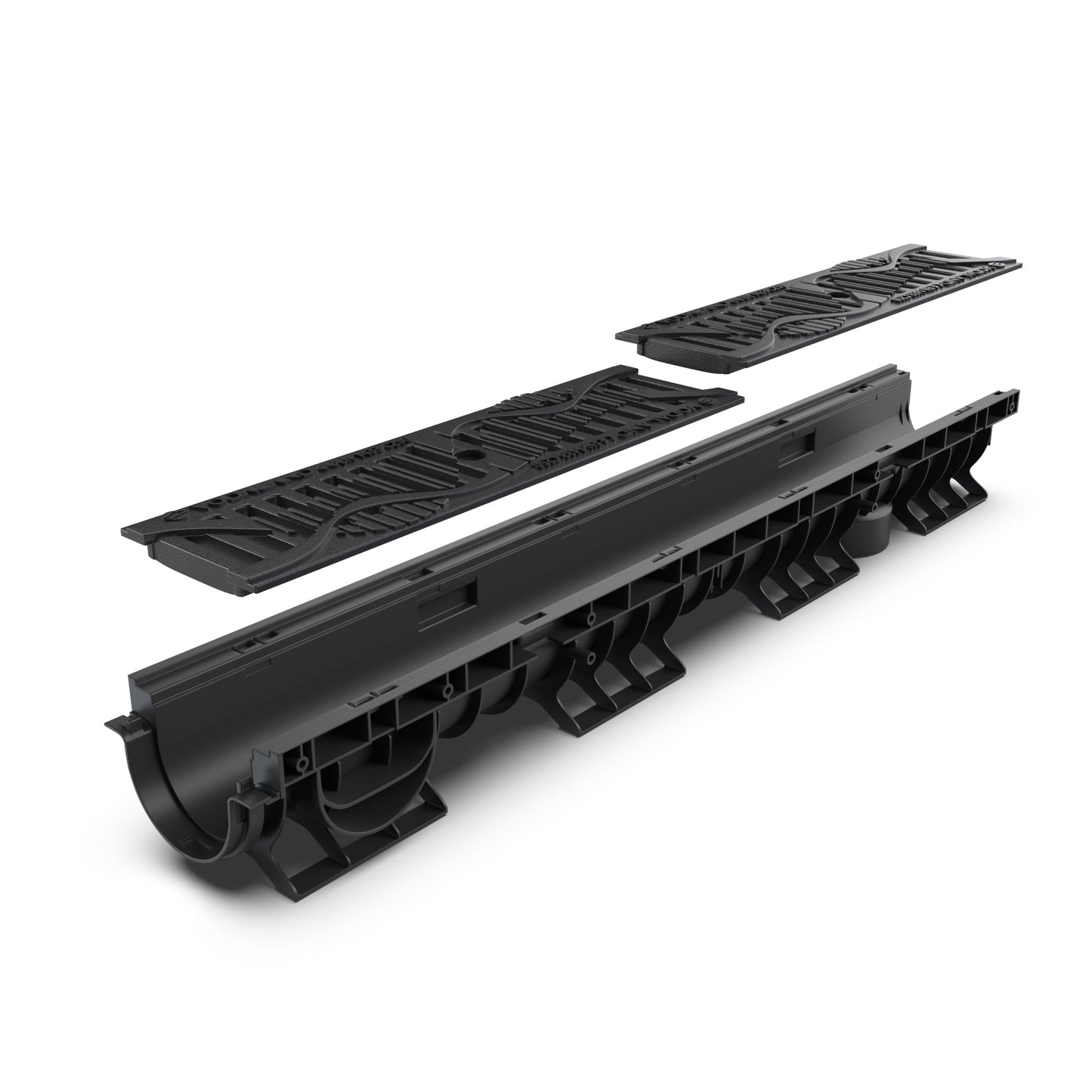

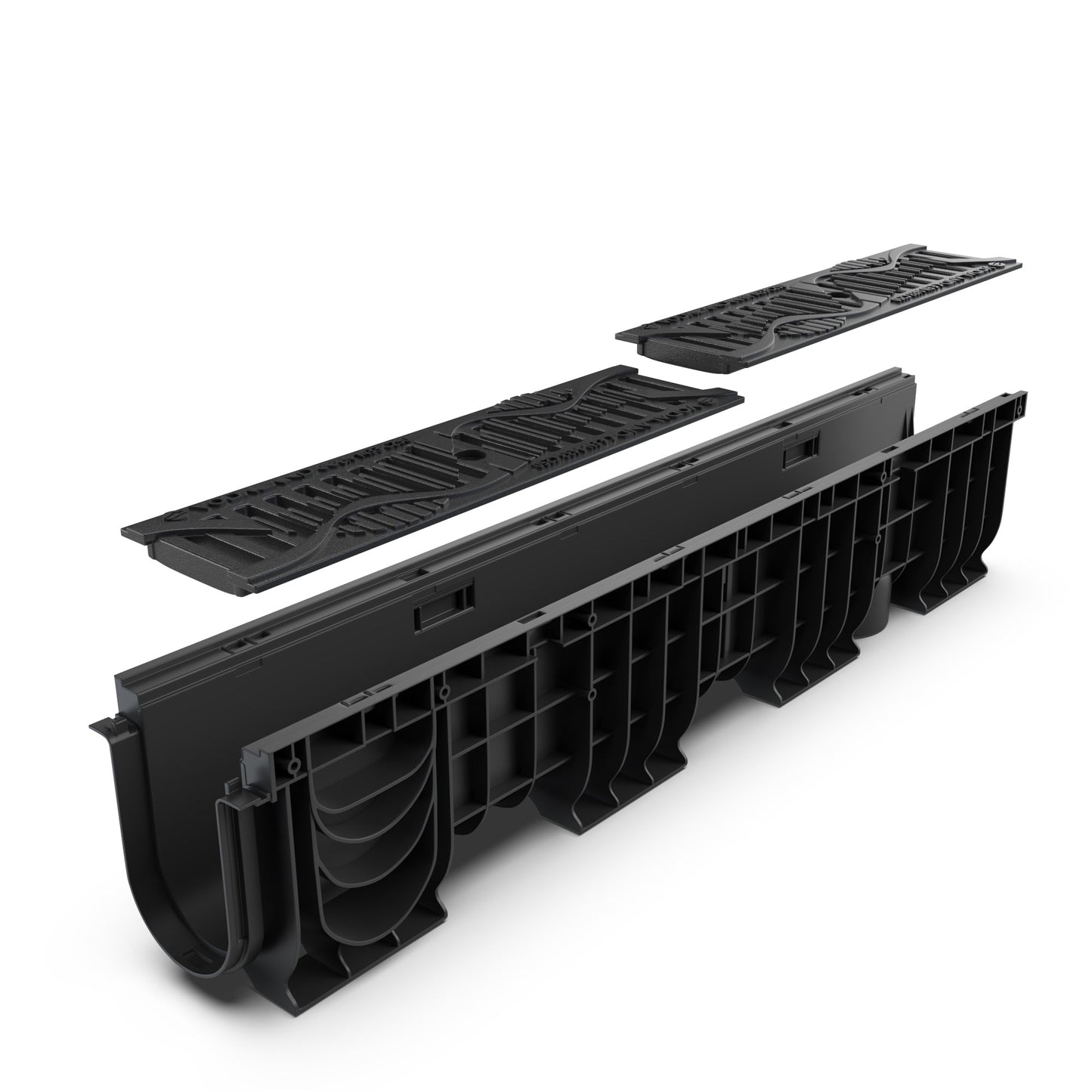

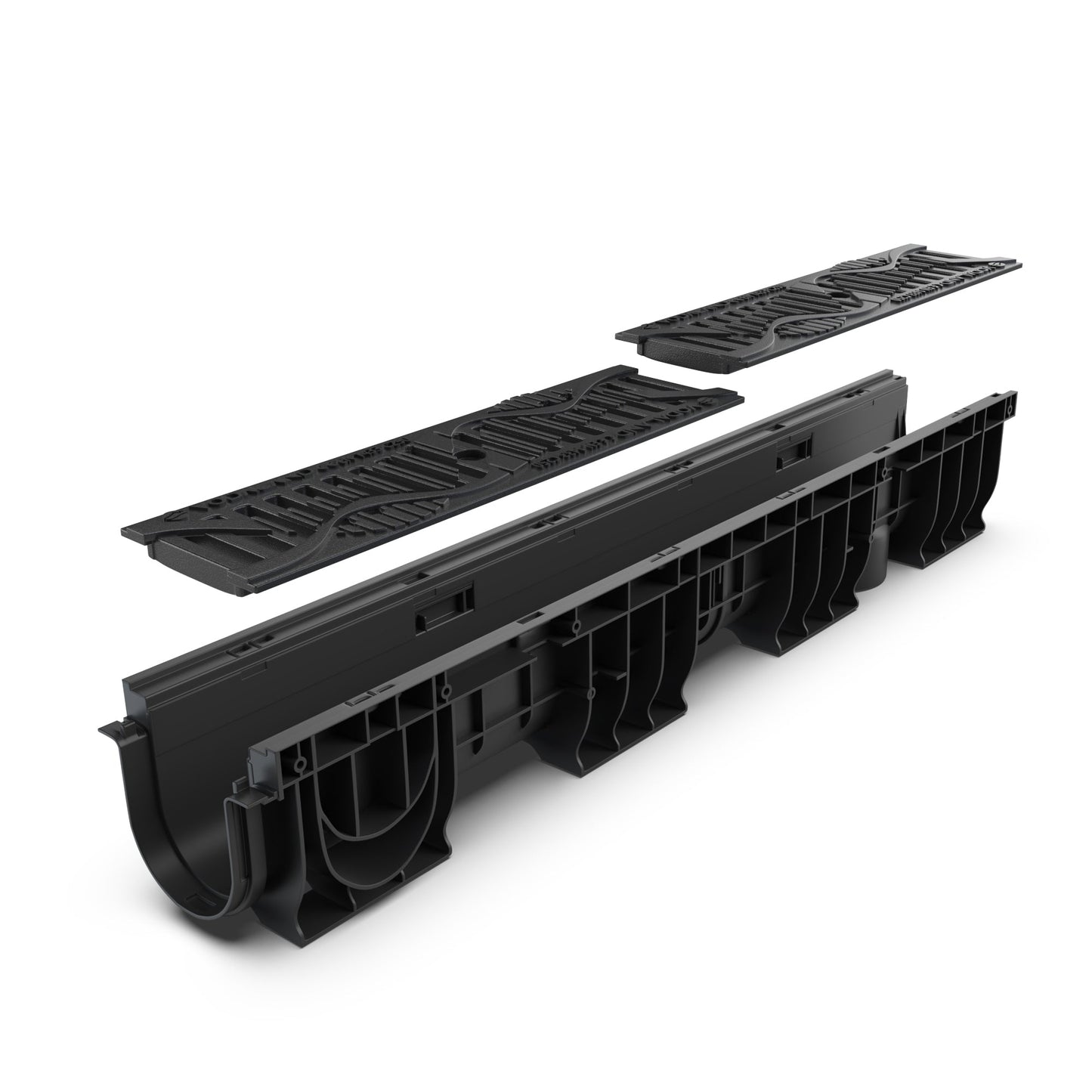

  • Comes with cast iron grate, channel, fasteners and end caps
  • Vehicle load rated
  • Connect multiple channels for longer run
  • 4" PVC or corrugated pipe bottom outlet option on each channel with schedule 40 adapter
  • 4" PVC or corrugate pipe outlet option out of end caps (on the 6" and 8" channel depth options)
  • For our Pre Slope Packages all end caps have a 4" outlet

  • More product details below
  • Pre Slope Specification PDF
  • Grating pdf
  • 2 inch channel depth pdf
  • 2 inch channel depth cad
  • 3 inch channel depth pdf
  • 3 inch channel depth cad
  • 4 inch channel depth pdf
  • 4 inch channel depth cad
  • 6 inch channel depth pdf
  • 6 inch channel depth cad
  • 8 inch channel depth pdf
  • 8 inch channel depth cad
  • installation brochure

Product Description

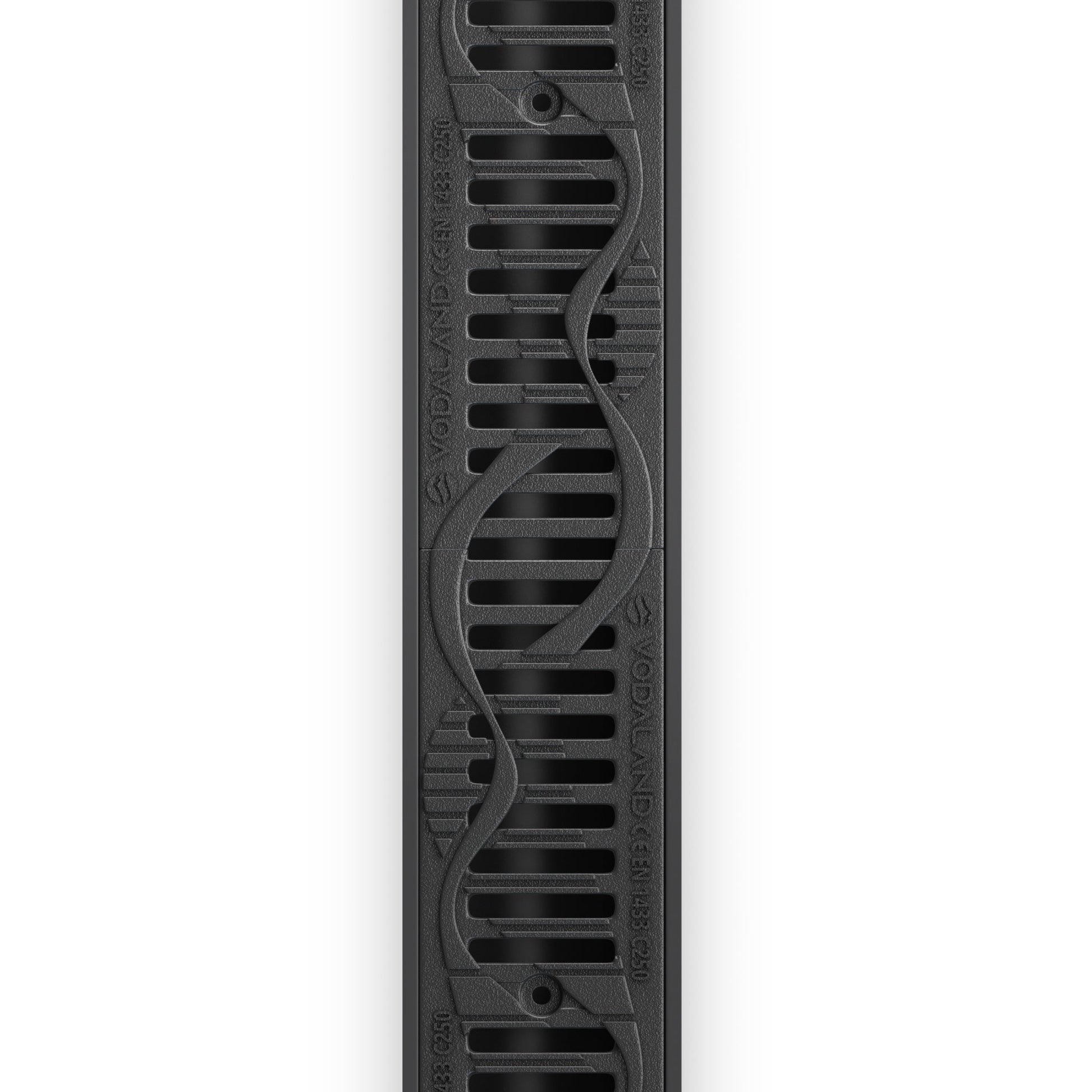

Our Cast Iron WAVE package is perfect for any mid - heavy duty load class needed. System is rated at C Class - 55,000 LBS and fitted with a powder coated ductile cast iron grating for longevity and durability.

Each channel is 3.3 ft in length, with a Snap and Lock connection so you can attach end to end to create a longer and custom size run. In addition, each channel has a 90 degree turn already within the system - no adapters needed! Please see below for outlet specs per channel depth. See below for channel depth outlet configurations.

With our new Pre Slope system you can create a run up to 33 ft in length with a 1% slope.

Neutral Channel Articles

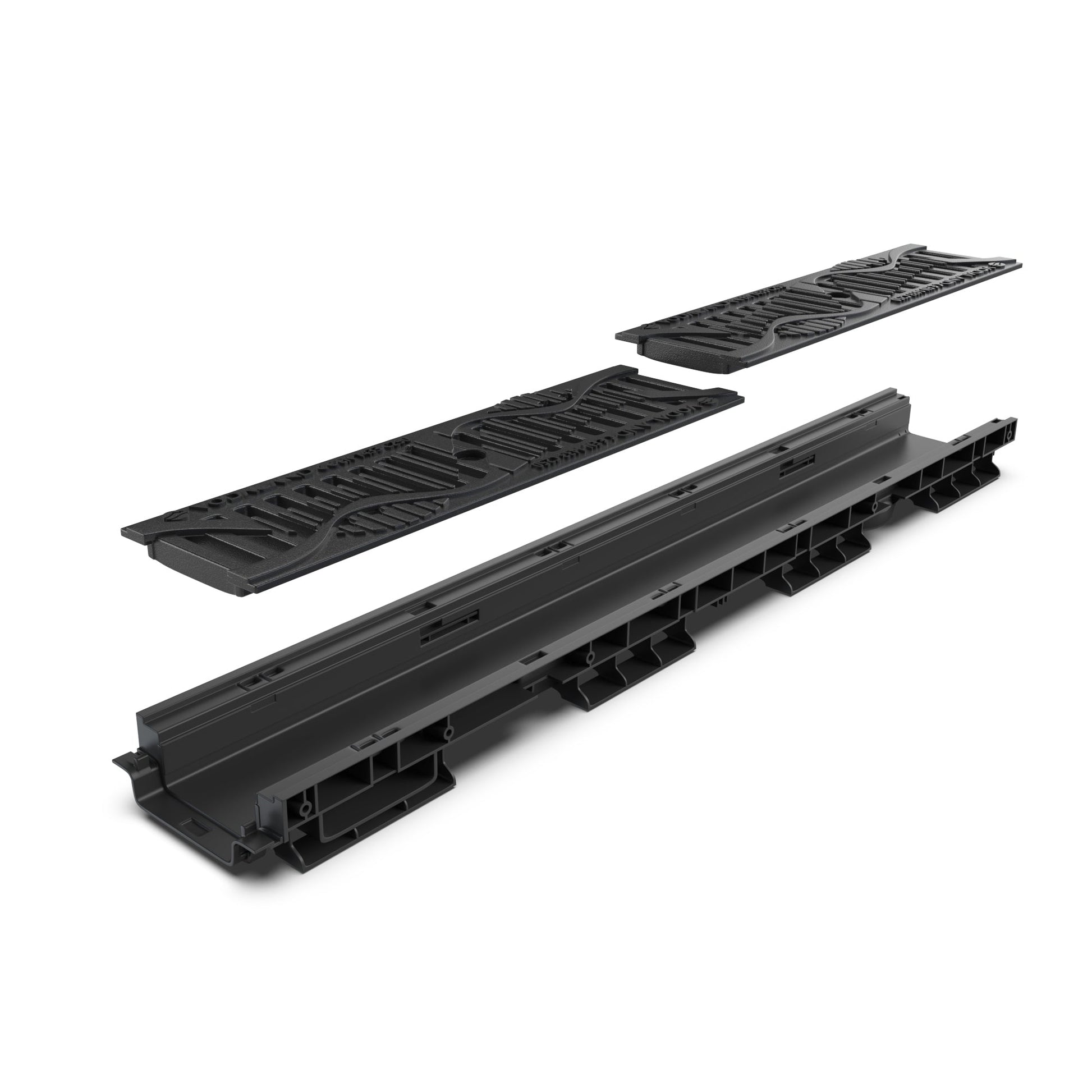

2" Depth - 8050-M1 - 4" End Cap Outlet Option

3" Depth - 8010-M - 3" End Cap Outlet Option

4" Depth - 8020-M1 - 3" End Cap Outlet Option

6" Depth - 8000-M - 4" bottom outlet - 4" end cap outlet

8" Depth - 8040-M - 4" bottom outlet - 4" end cap outlet

For Pre Slope Channel articles please see the Pre Slope Specification Sheet

Material ............. PPE Plastic

Dimensions ....... 39.4"L x 5.8"W

Load Class ....... C Class - 55,000 LBS

INCLUDED IN PACKAGE

- Channel Depth of Choice

2 - Units of C Class Ductile Cast Iron Gratings

2 - Grating Fasteners

2 - End Caps  (Per Order) - Additional end caps at checkout.

For Slope Channels – packages include 2 End Caps Per Order (one closed and one outlet)
