4" Channel Galvanized ADA / HEEL PRO Package

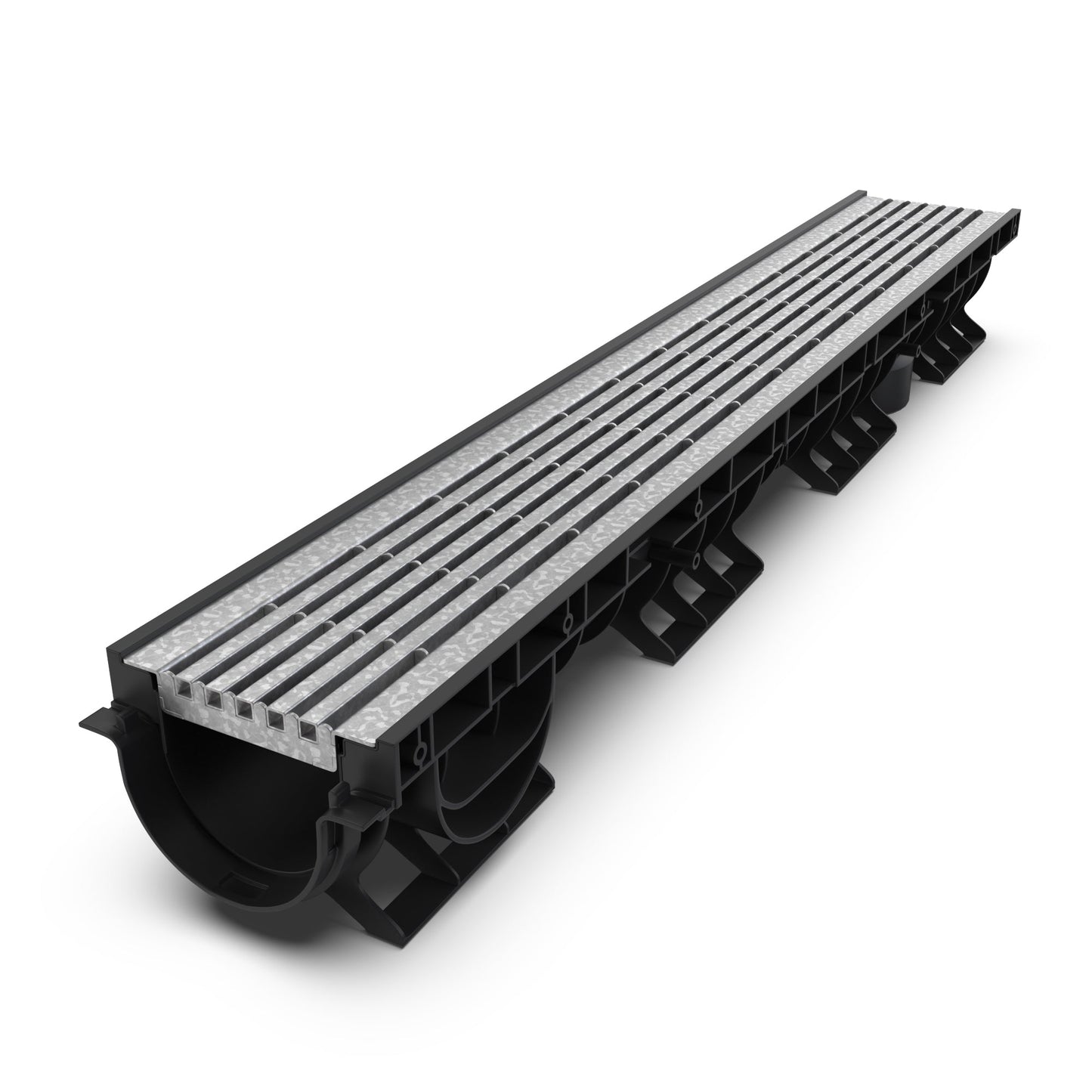

4" Channel Galvanized ADA / HEEL PRO Package
- PPE Plastic / Galvanized Steel
- 3.3' (39 Inches) - Length
- A - Load Class

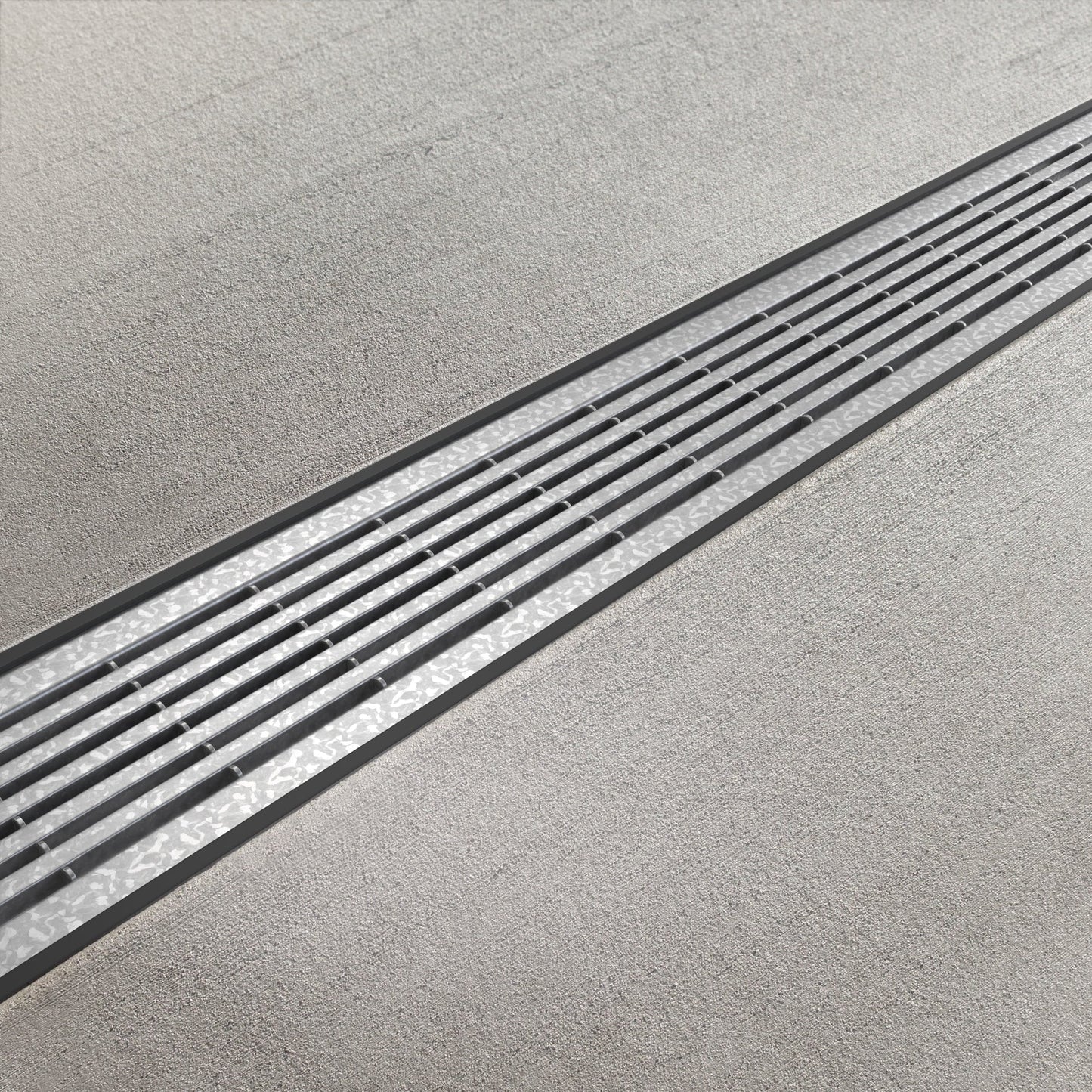

- Patios, Porches, Walkways and more
- End Cap Options Available Below
- PPE Plastic / Galvanized Steel
- 3.3' (39 Inches) - Length
- A - Load Class
- Patios, Porches, Walkways and more
- End Cap Options Available Below
FAQ’s

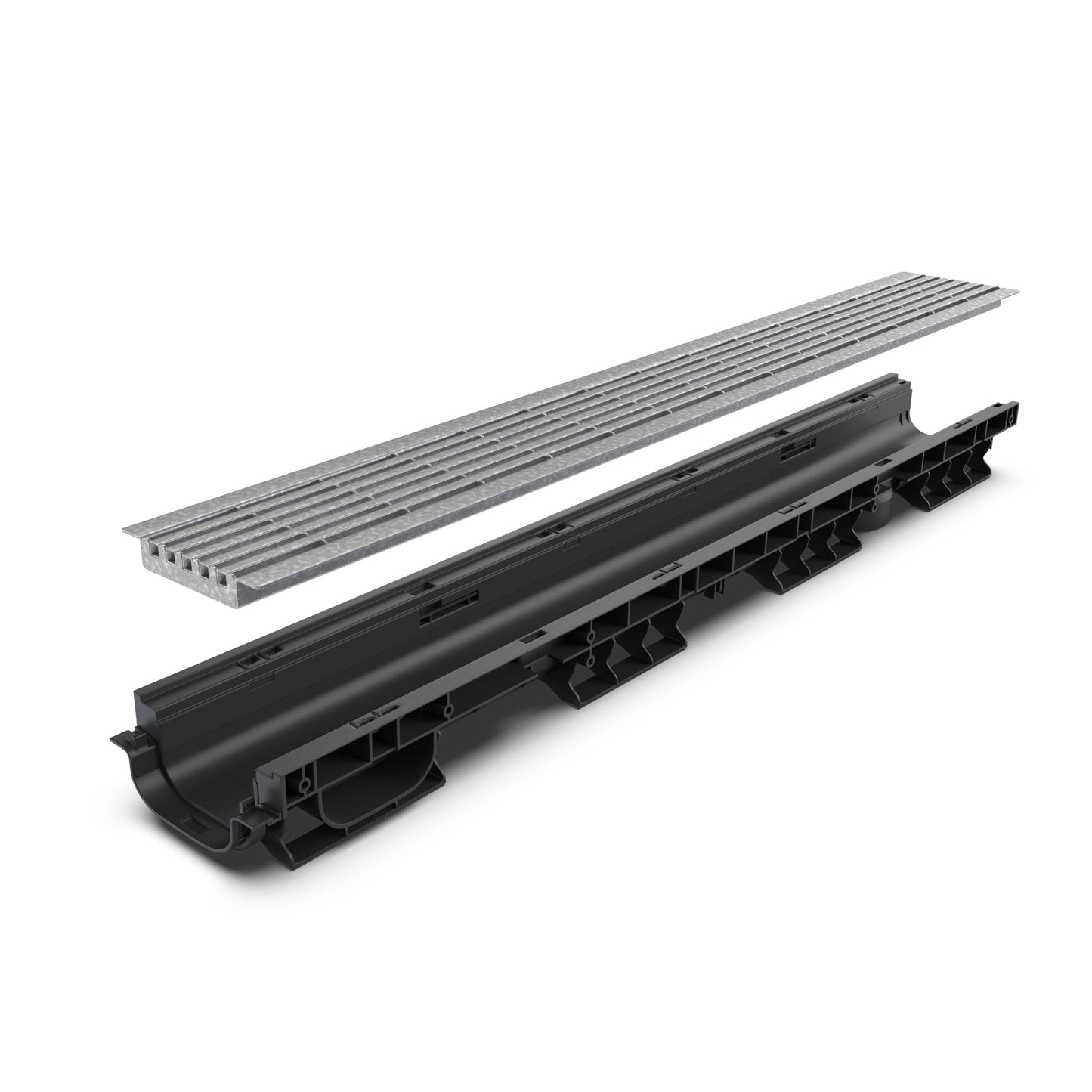

3D Model of our 4" Galvanized Steel ADA / HEEL Proof PRO Package
Zoom in / out and rotate to get a full 360 view of our 4" Stainless Steel ADA / HEEL Proof Pro package
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads

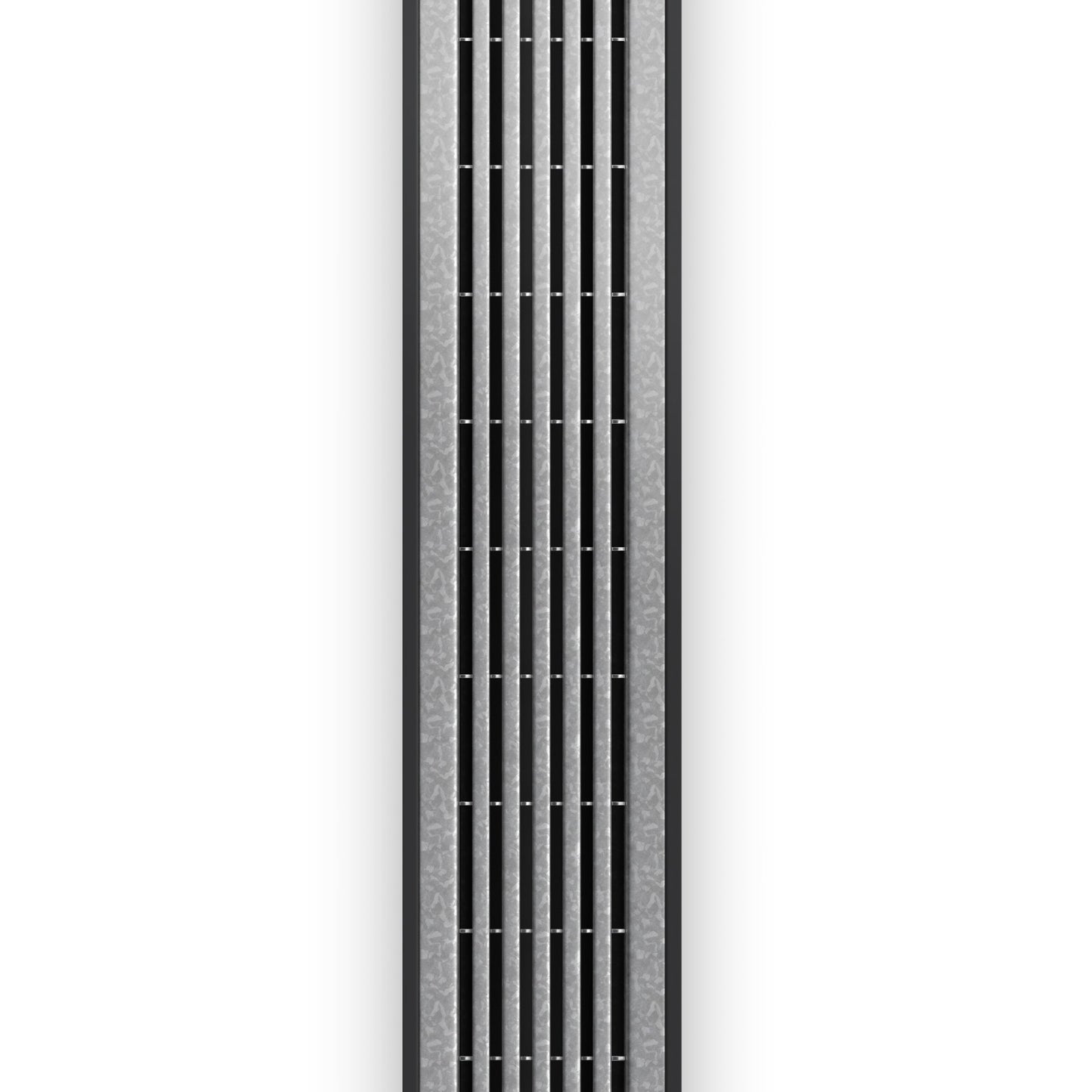

- 4" Internal width galvanized steel ADA / heel proof package
- Comes with galvanized grate and channel
- Pedestrian load rated
- Connect multiple channels for longer run
- 4" PVC or corrugated pipe bottom outlet option on each channel with schedule 40 adapter
INCLUDED IN PACKAGE

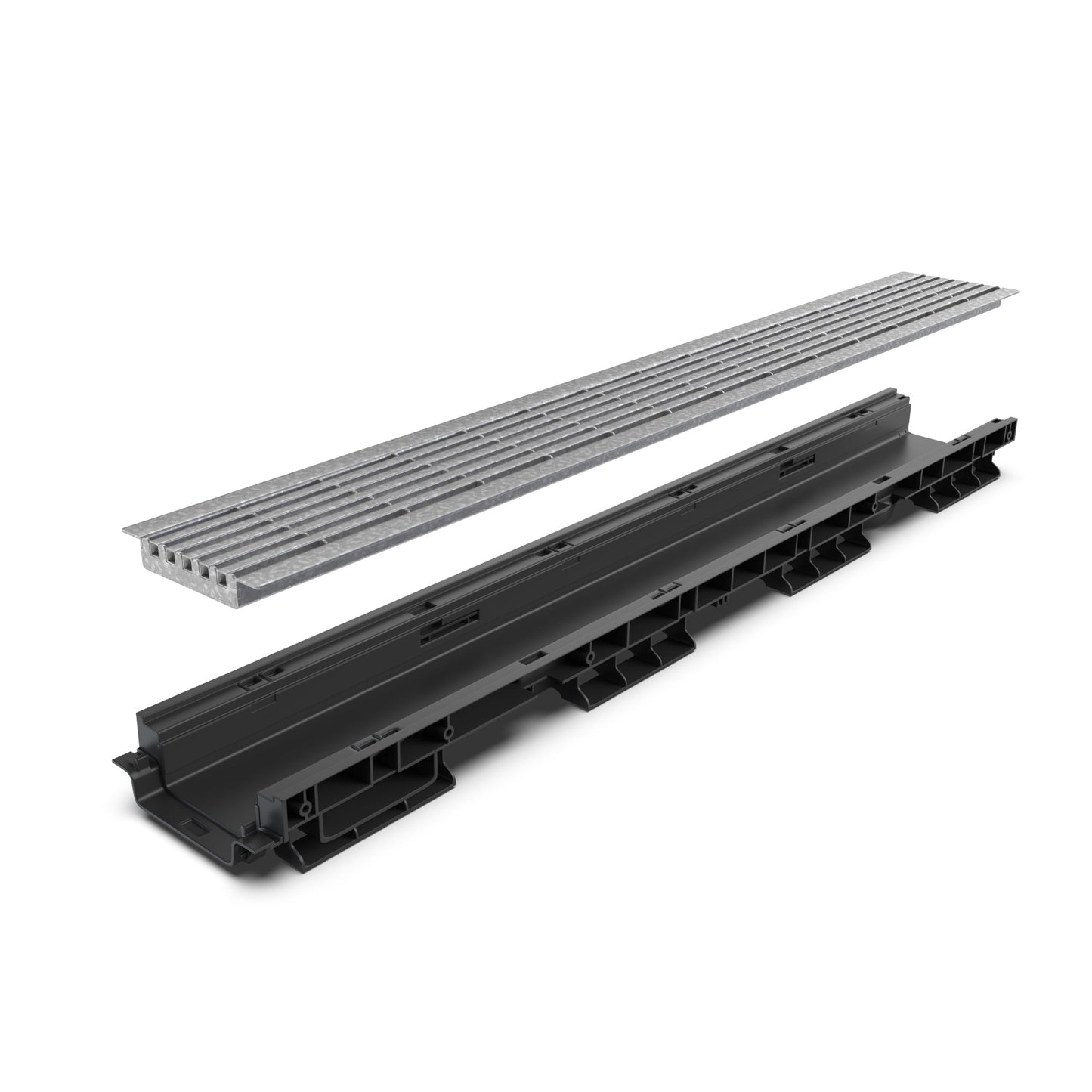

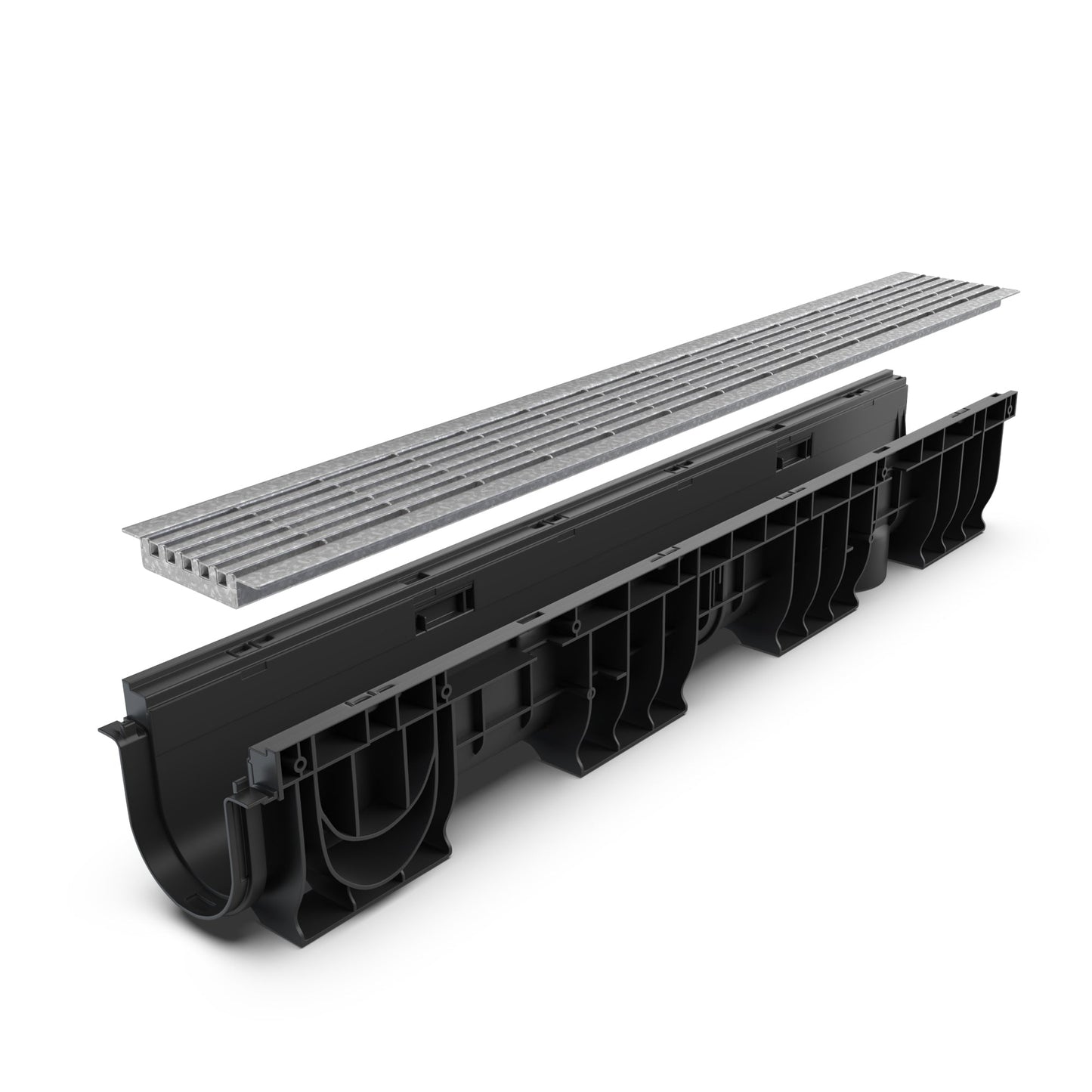

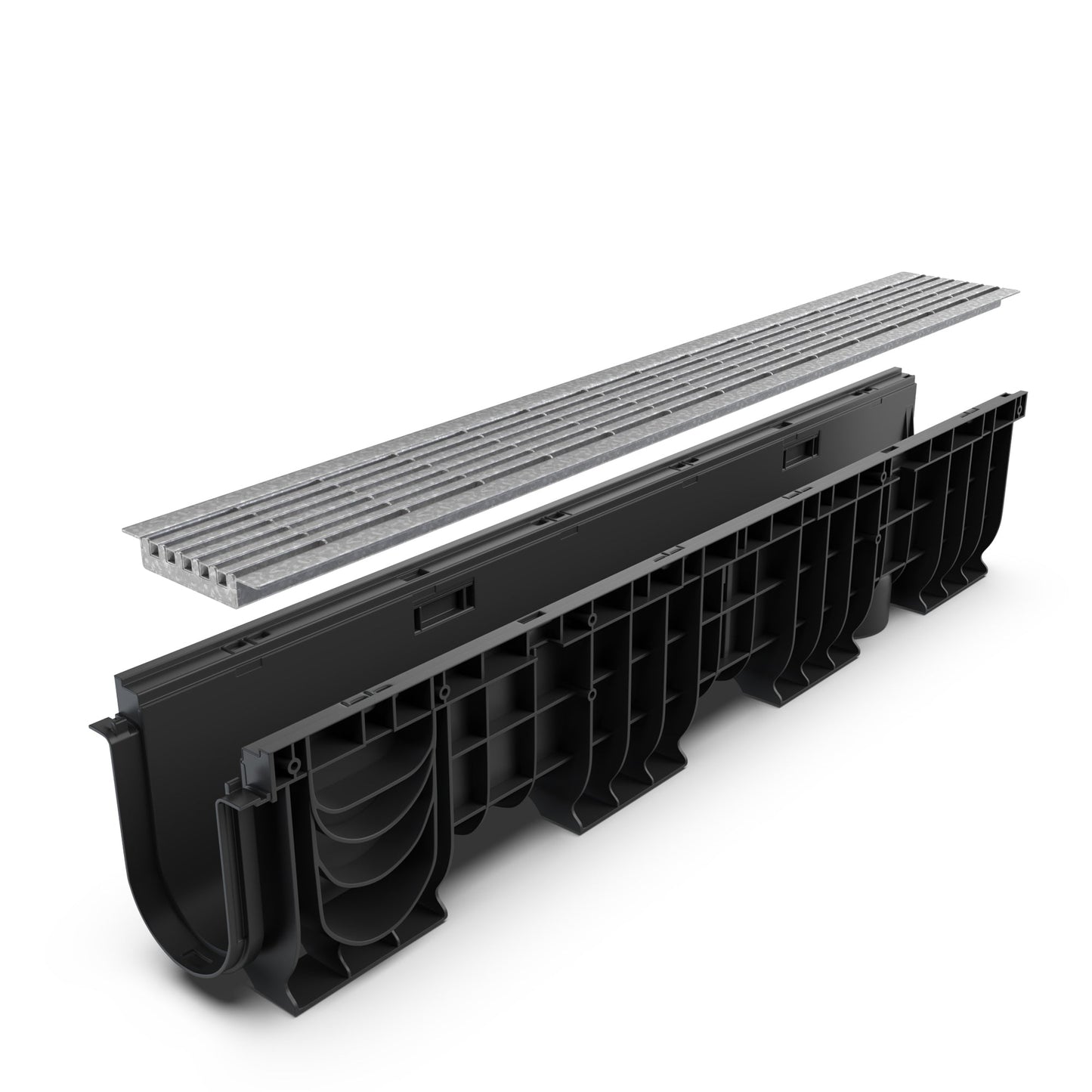

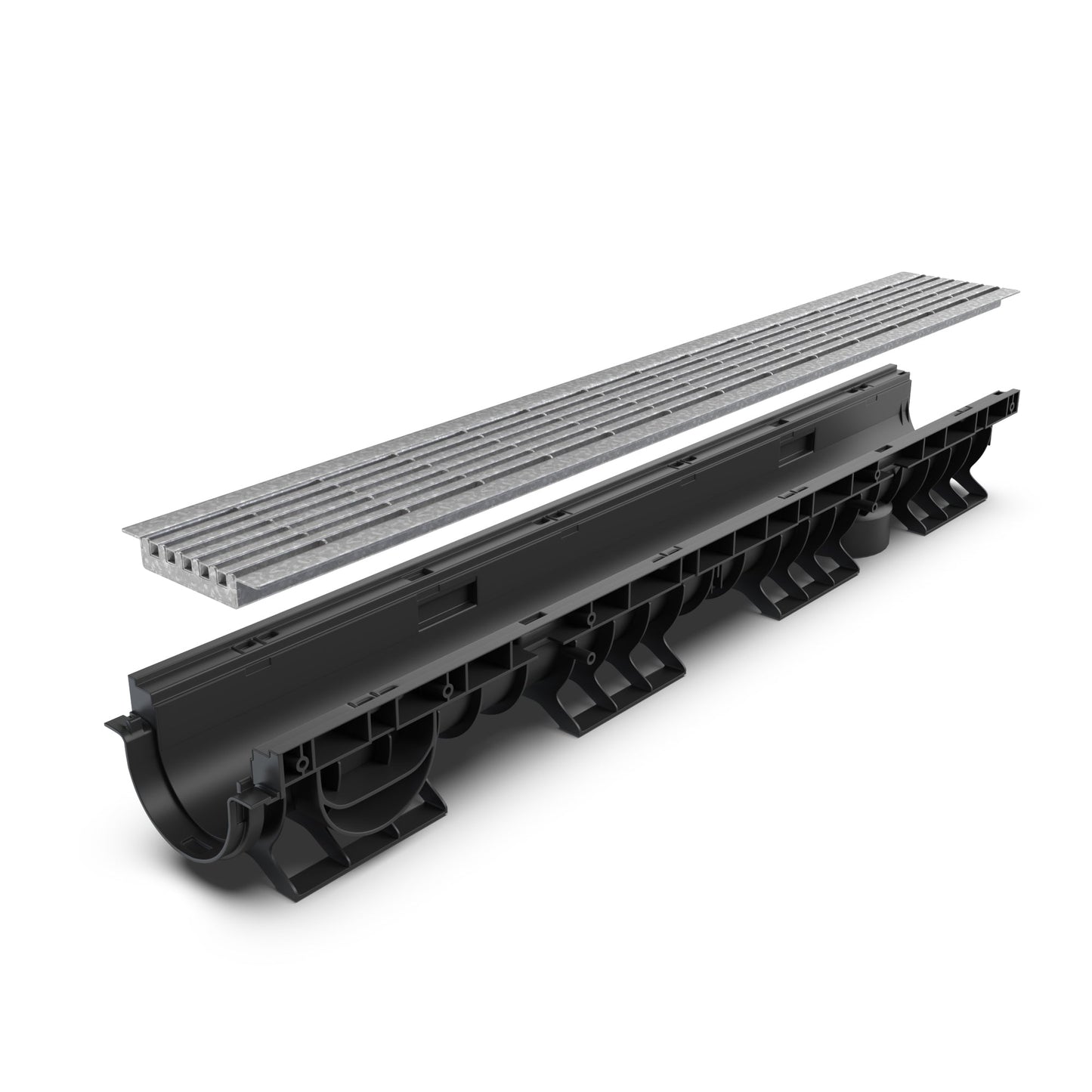

1 - Channel Depth of Choice
1 - Galvanized Steel ADA / Heel Proof Grating
For more product information please see product description tab above
- Pre Slope Specification PDF
- grating pdf
- 2 inch channel depth pdf
- 2 inch channel depth cad
- 3 inch channel depth pdf
- 3 inch channel depth cad
- 4 inch channel depth pdf
- 4 inch channel depth cad
- 6 inch channel depth pdf
- 6 inch channel depth cad
- 8 inch channel depth pdf
- 8 inch channel depth cad
- Installation Brochure
Product Description
Product Description

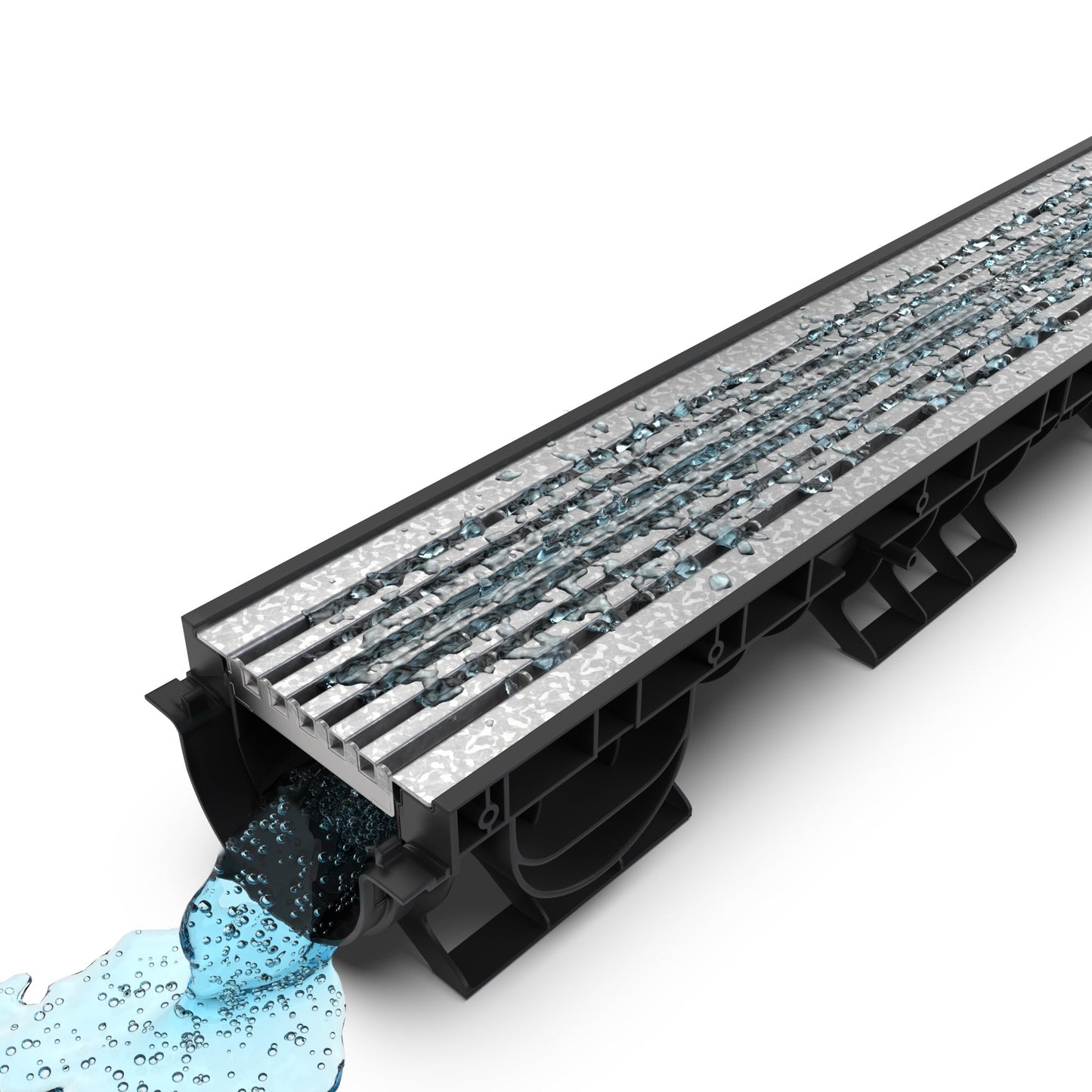

Our 4" Channel Galvanized Steel ADA / Heel Proof PRO Package is loaded with a multitude of customization and options. Each package includes the channel depth of choice (or length) and gratings. Each channel is 3.3 ft in length, with a snap and lock connection so you can attach end to end to create a longer and custom size run. In addition, each channel has a 90 degree turn already within the system - no adapters needed! Please see below for outlet specs per channel depth.
With our Pre Slope system you can create a run up to 50 ft in length with a 1% slope. With an option of a 4" outlet on the end no matter the channel run length.
Neutral Channels;
The 2", 3", 4", 6", and 8" Depth channels have bottom outlet option available with 4" Pipe connection.
Each of these systems will also have end cap outlet options available as well.
The 2", 6", and 8" Depth option will use a 4" end cap outlet pipe, while the 3" and 4" Depth option will use a 3" end cap outlet pipe.
For Pre Slope Channel articles, please see the Pre Slope Specification Sheet
Material ............. PPE Plastic / Galvanized Steel
Dimensions ....... 39.4"L x 5.8"W
Load Class ....... A Class - 3,300 LBS
INCLUDED IN PACKAGE
1 - Channel Depth of Choice
1 - Galvanized Steel ADA / Heel Proof Grating
