8" Channel Cast Iron Mesh Package

8" Channel Cast Iron Mesh Package

$299.00
$328.00 $299.00
Sale Sold out
  • PPE Plastic / Ductile Cast Iron
  • 3.3' (39 Inches) - Length
  • C - Load Class
  • Driveways, Garages, Parking lots and more
  • More Product Information Below
  • PPE Plastic / Ductile Cast Iron
  • 3.3' (39 Inches) - Length
  • C - Load Class
  • Driveways, Garages, Parking lots and more
  • More Product Information Below
free shipping over $999
3-5 days delivered
View full details
  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • 8" Internal width cast Iron Slotted Package
  • Comes with cast iron grate, channel, brackets and end caps
  • Heavy duty load rated

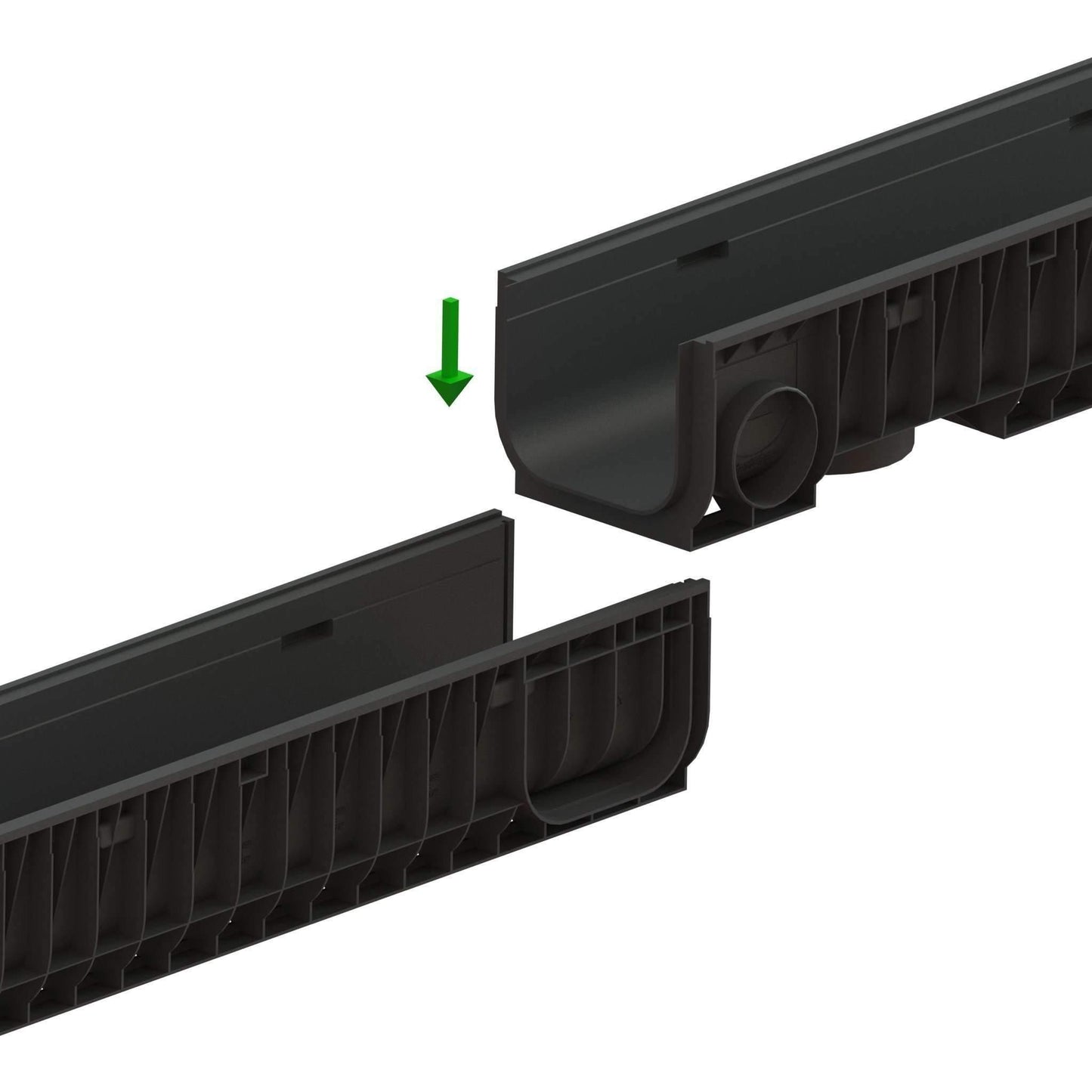

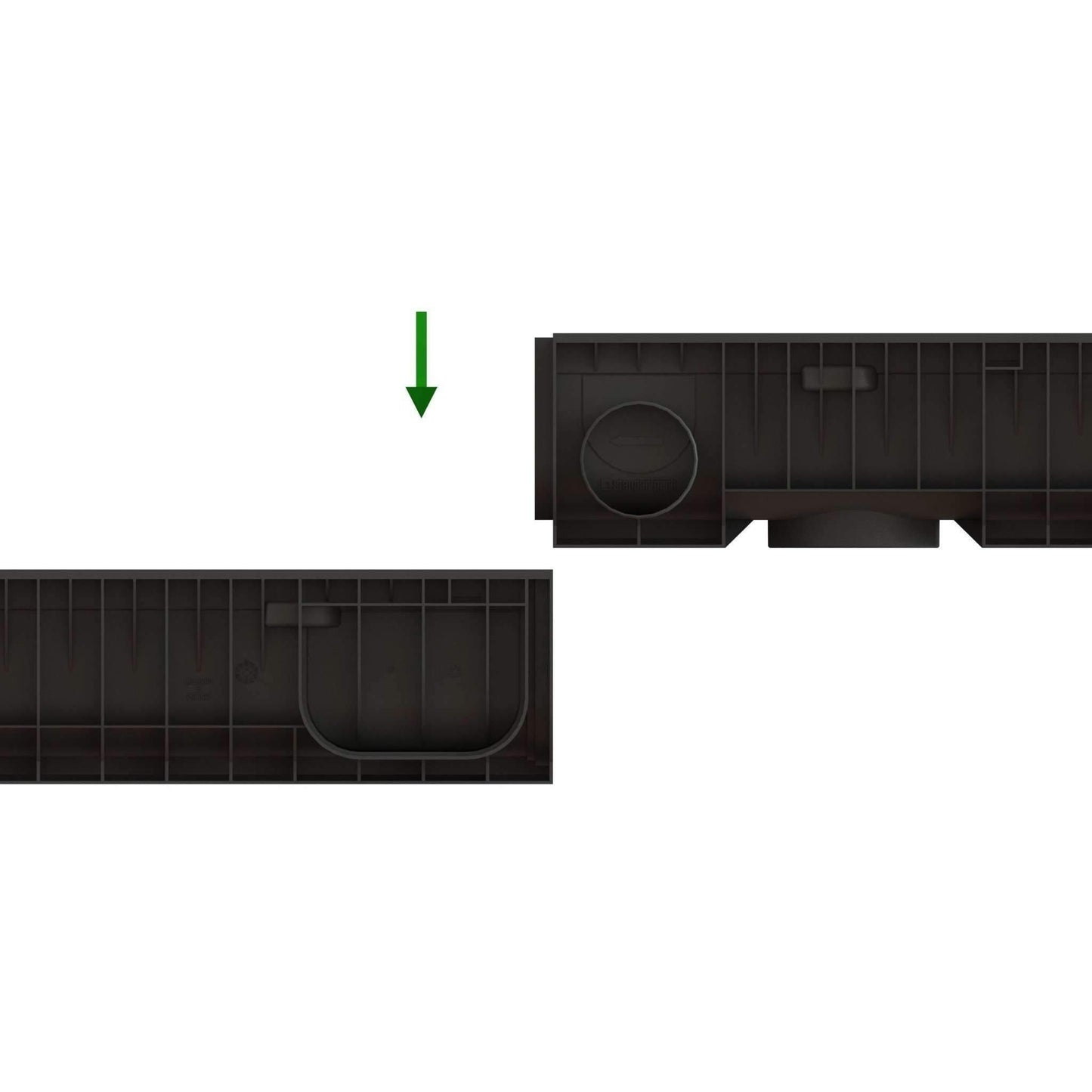

  • Connect multiple channels for longer run

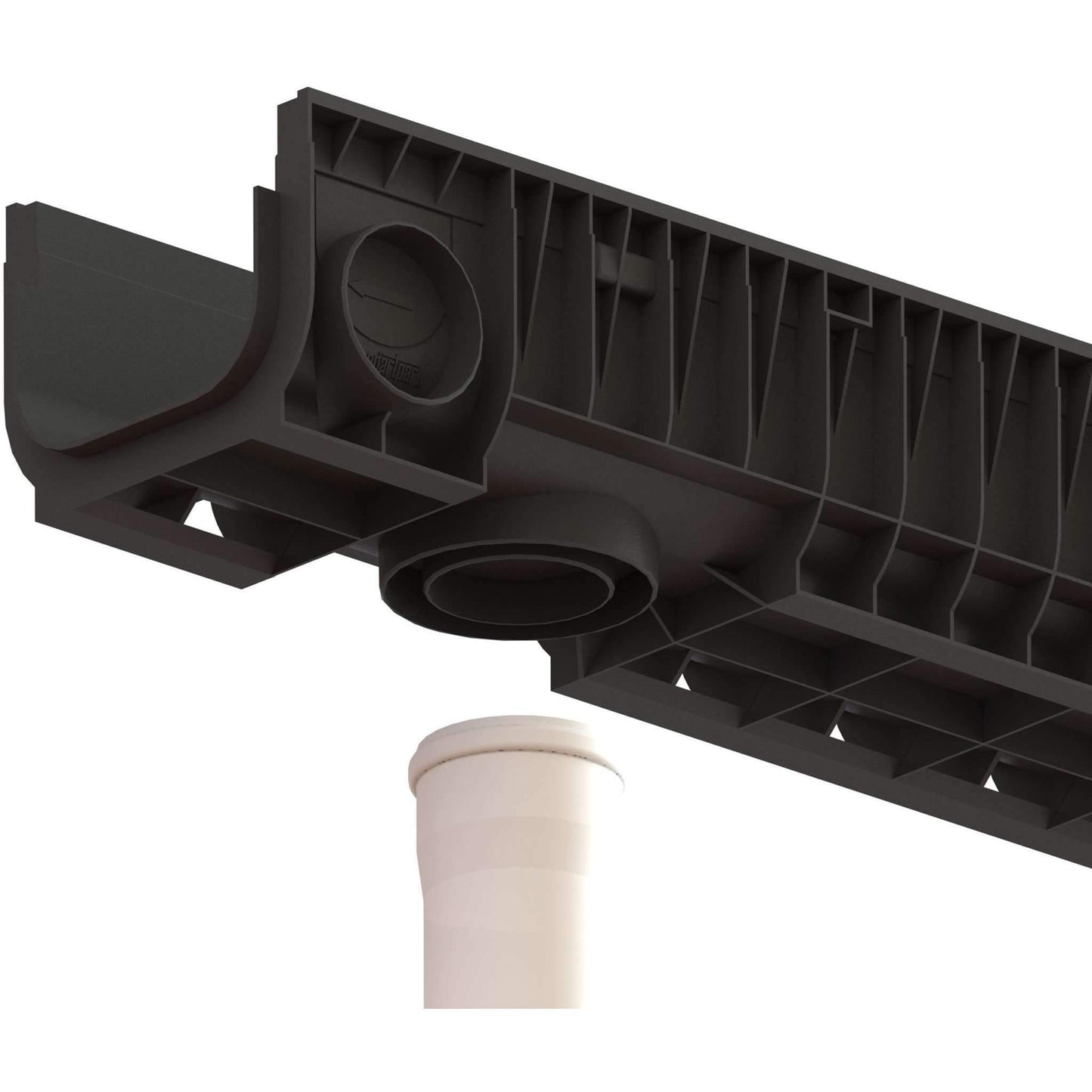

  • 4" and 6" PVC or corrugated pipe bottom outlet options

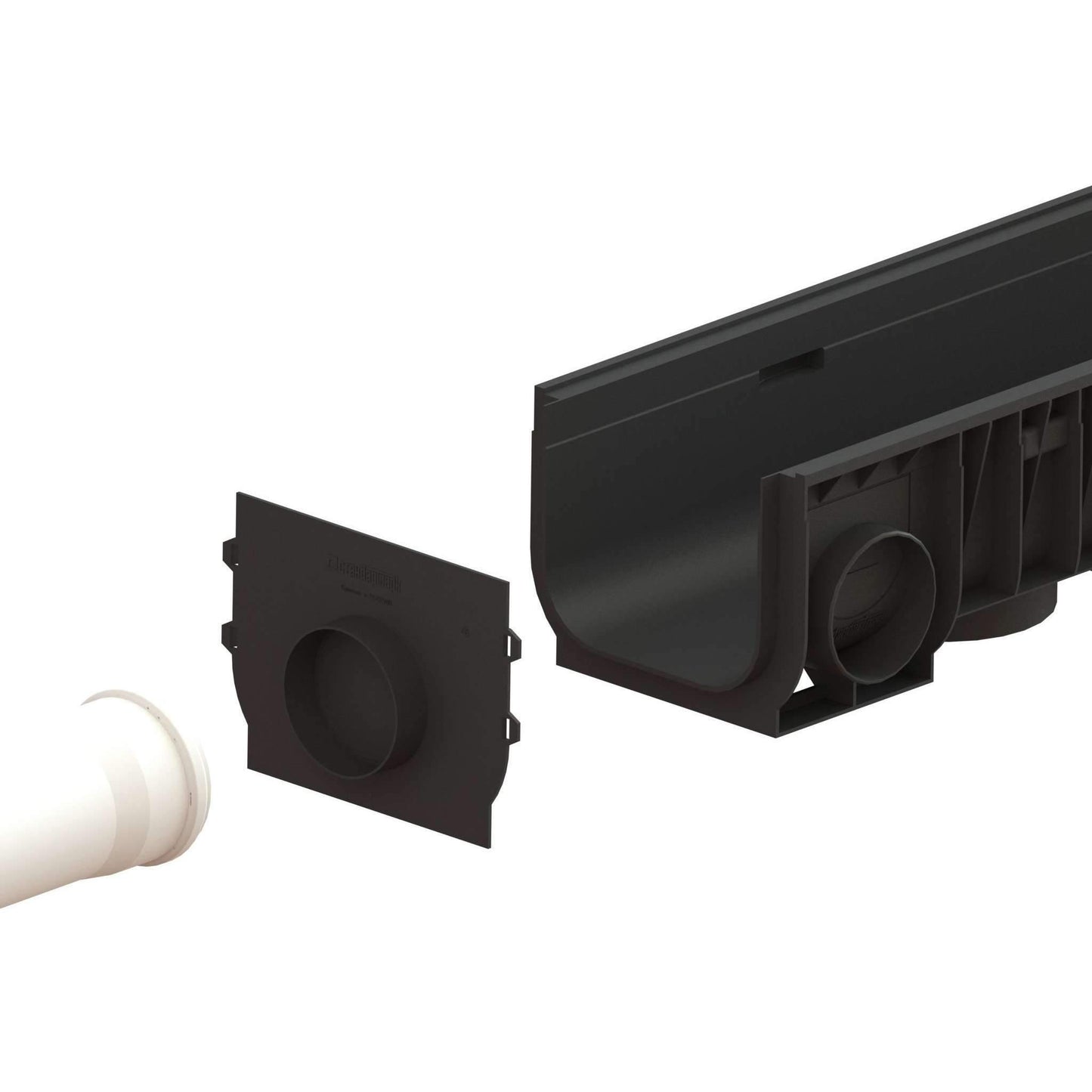

  • 4" PVC or corrugated pipe options out of the included end caps on the 8" depth option

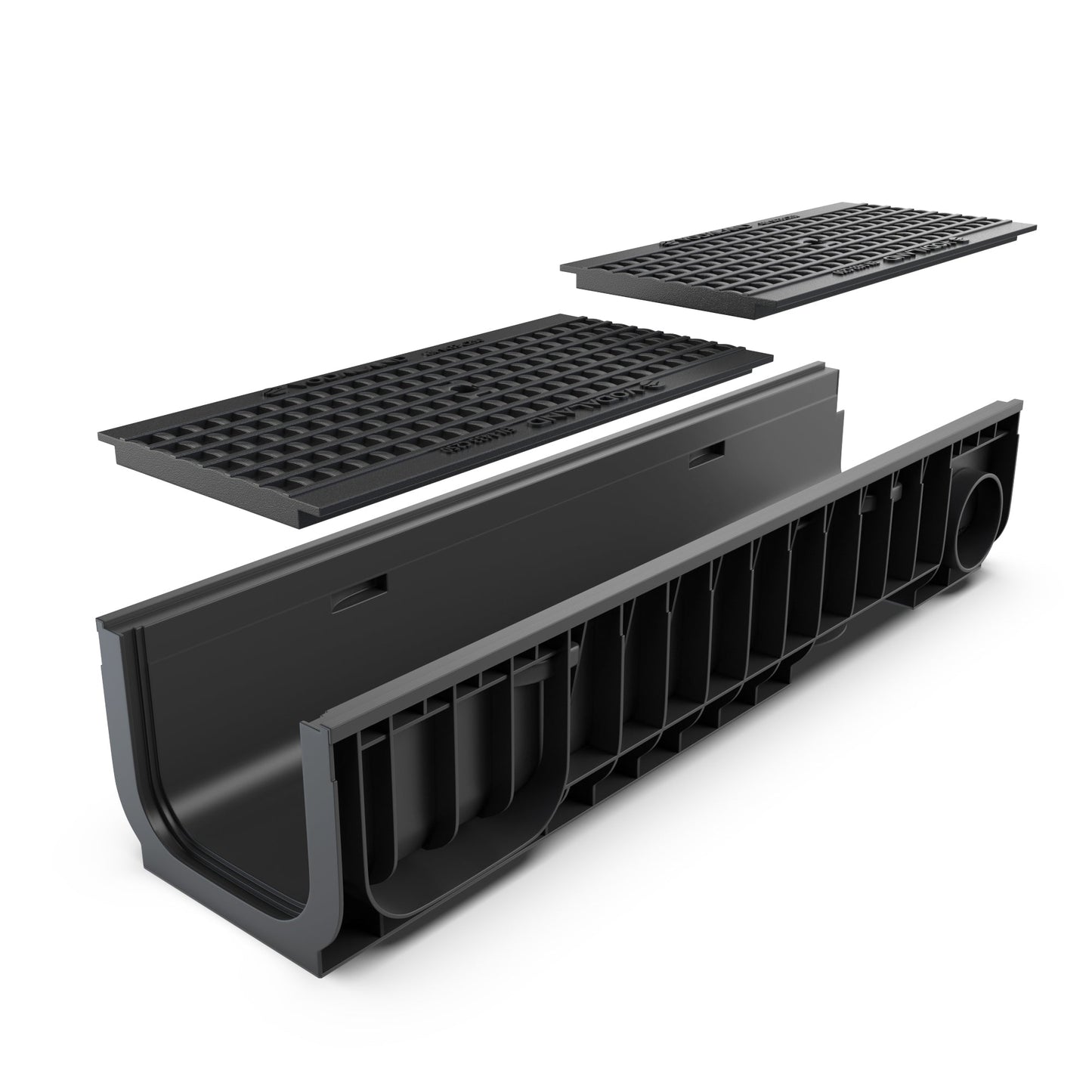

INCLUDED IN PACKAGE

1 Unit - Channel 8" Depth

2 Units - Ductile Cast Iron Grates

2 Units - Grating Fasteners

2 - End Caps (Per Order) - Additional end caps at checkout.

For more product information please see product description tab above

  • grating specification pdf
  • 3 Inch channel depth pdf
  • 3 inch channel depth cad
  • 8 inch channel depth pdf
  • 8 inch channel depth cad
  • installation brochure

Product Description

Product Description

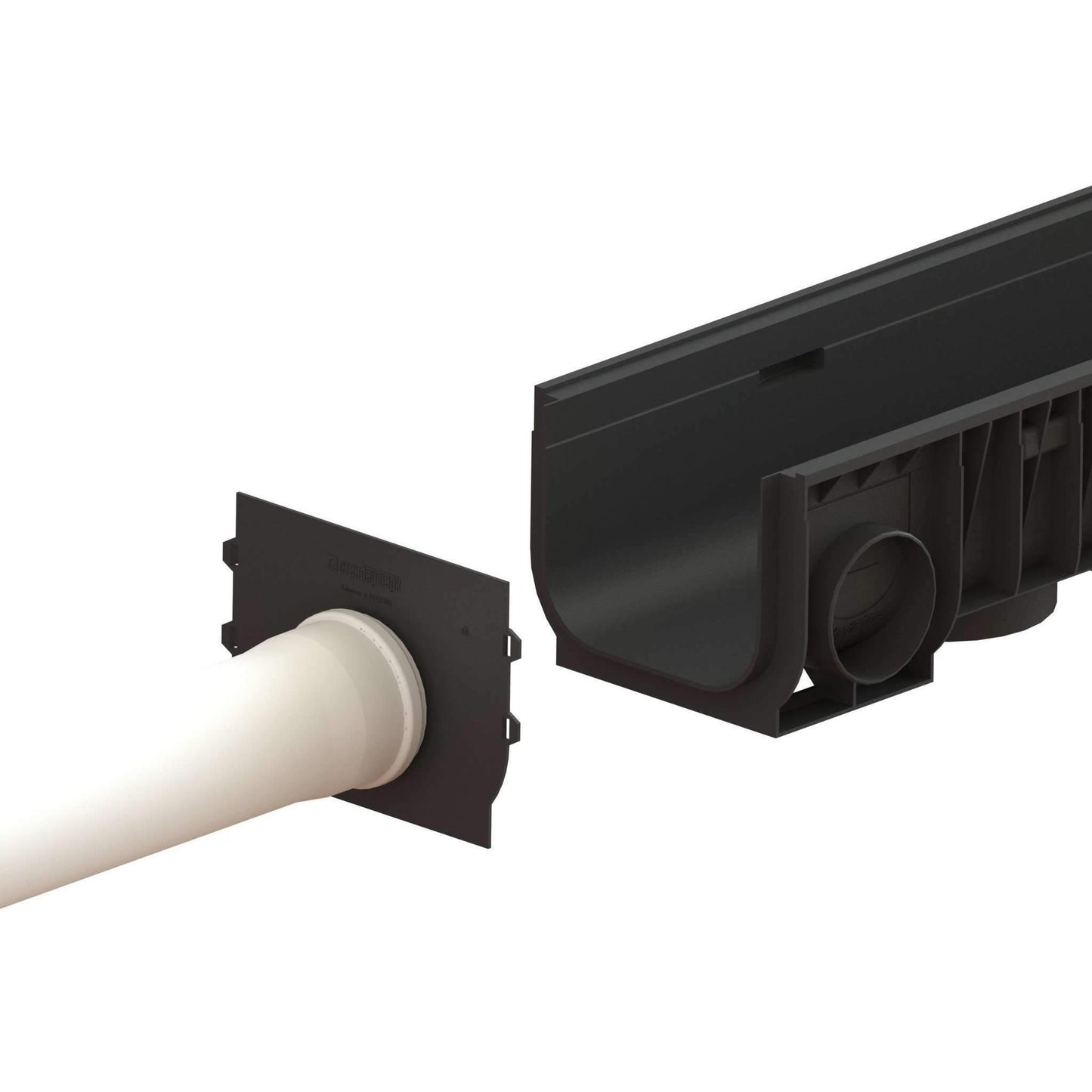

8 inch internal cast iron mesh channel package comes with one channel with the depth of your choice. Two units of our C Class cast iron mesh grating, grating fasteners and end caps. The channel is fitted with a 4" out of the end cap, 4 and 6 inch out of the bottom, as well as a 4" out of the side of the system. 90 degree turns are already fitted on to the channel itself as well, so no adapters are needed.

PARAMETERS

Article Numbers........8" Depth - 8540-UA

                                    Cast Iron Grate - 25403

Material ................... PPE PLASTIC / Ductile Cast Iron

Load Class .............. C Class - 55,000 LBS

INCLUDED IN PACKAGE

1 Unit - Channel 8" Depth

2 Units - Ductile Cast Iron Grates

2 Units - Grating Fasteners

2 - End Caps (Per Order) - Additional end caps at checkout.
