Specifications and Downloads

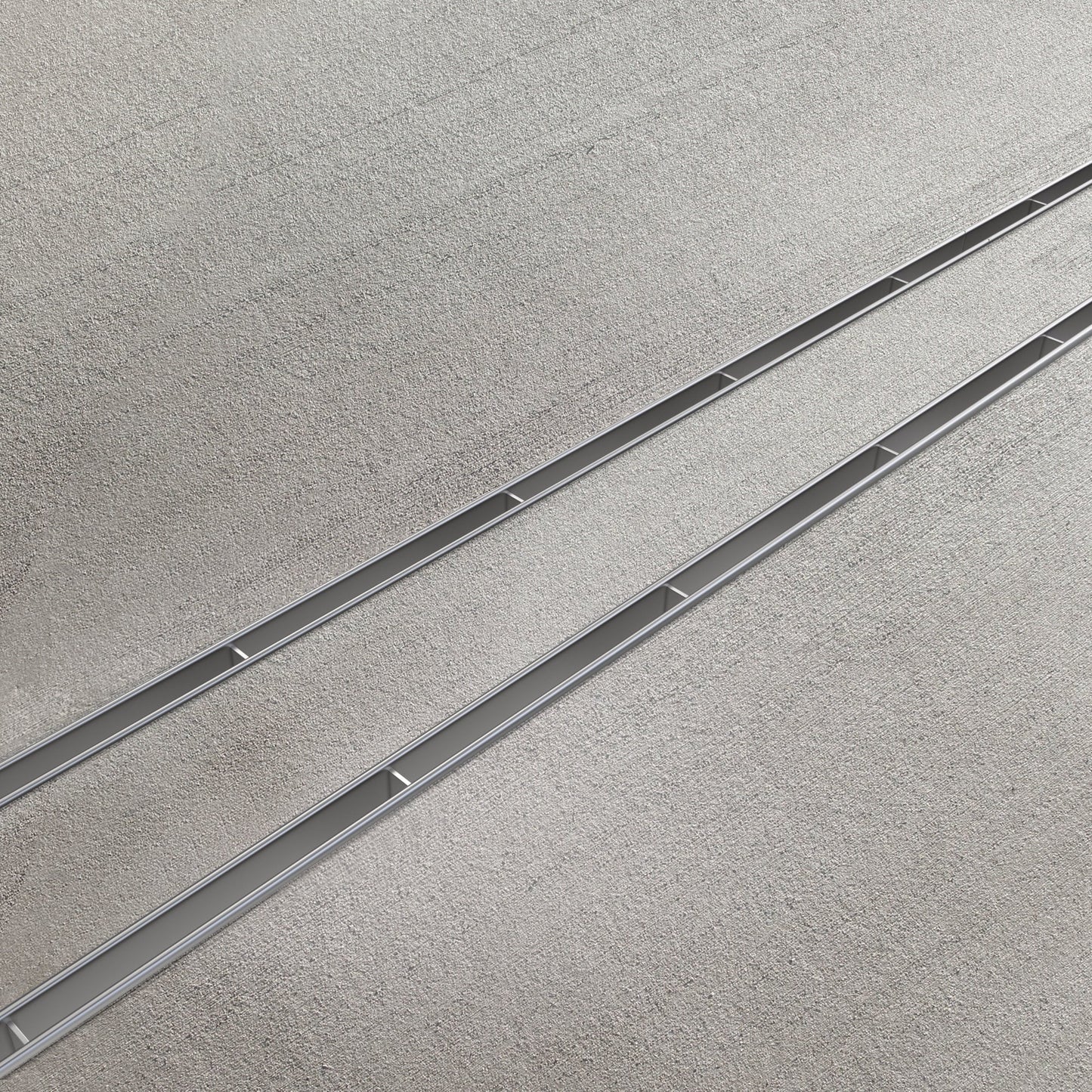

- 8" Internal width stainless steel Twin Slot Drain system

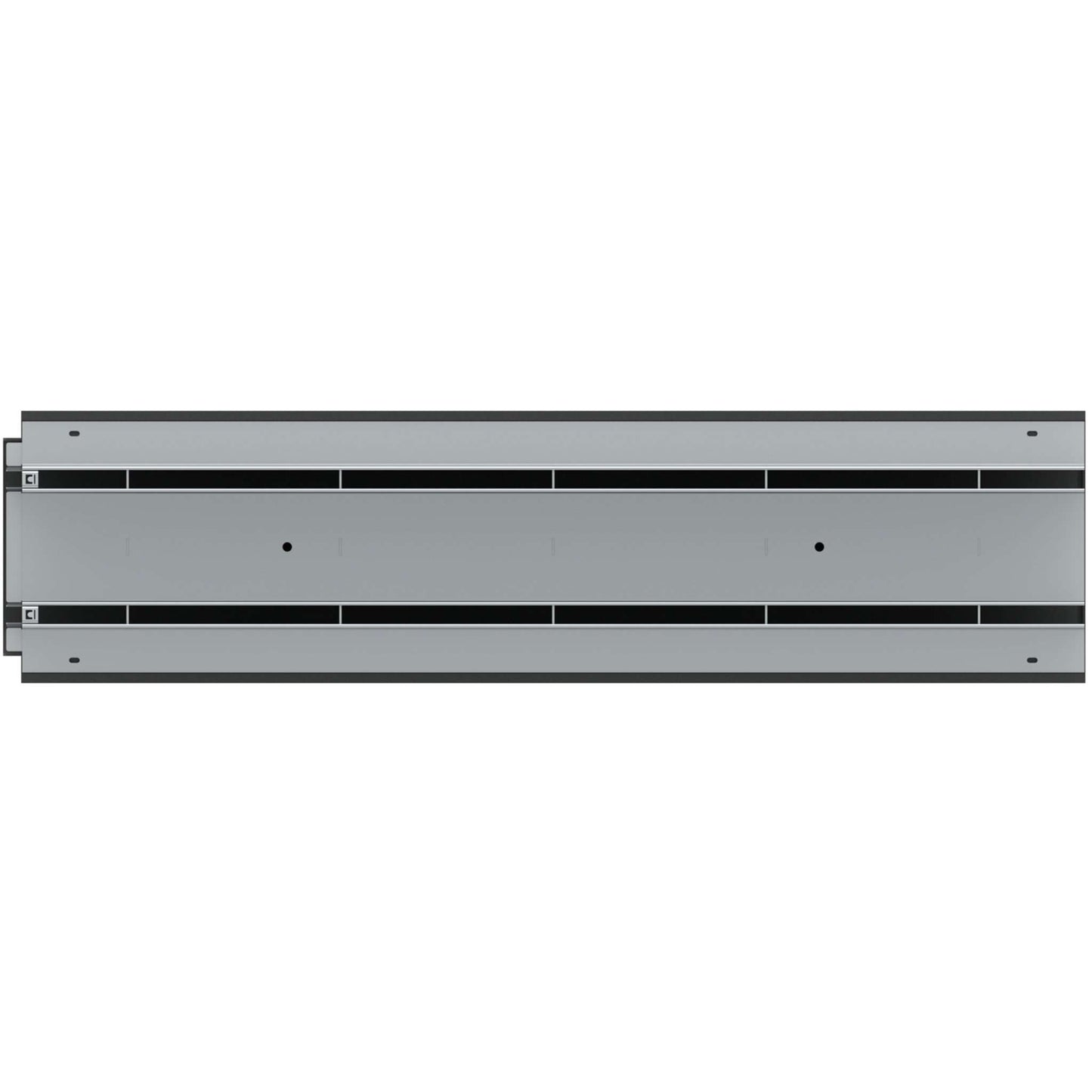

- 5/8" opening with multiple channel depth options
- 4" Height of slot grate in addition to channel depth
- Stainless steel is chemical and corrosion resistant

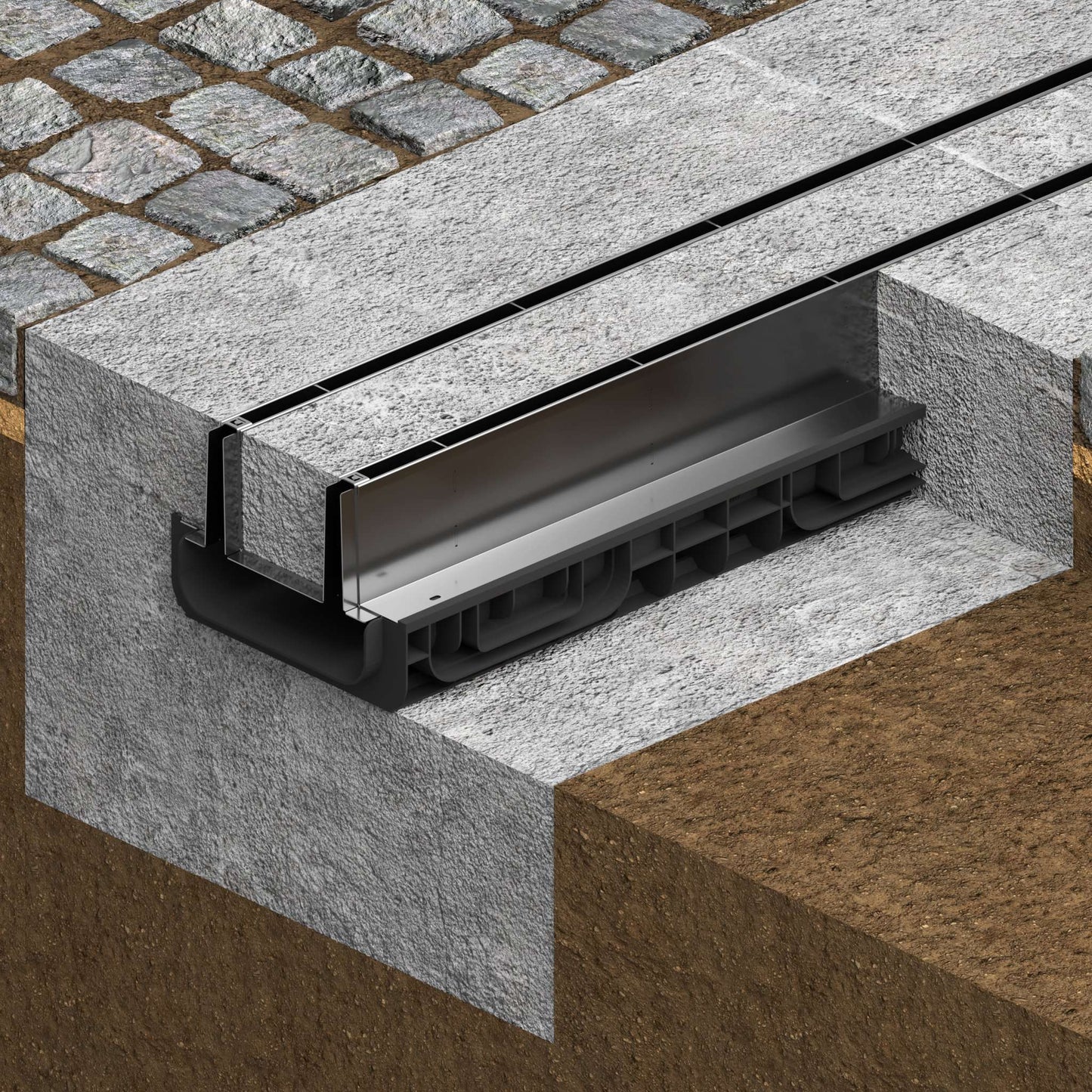

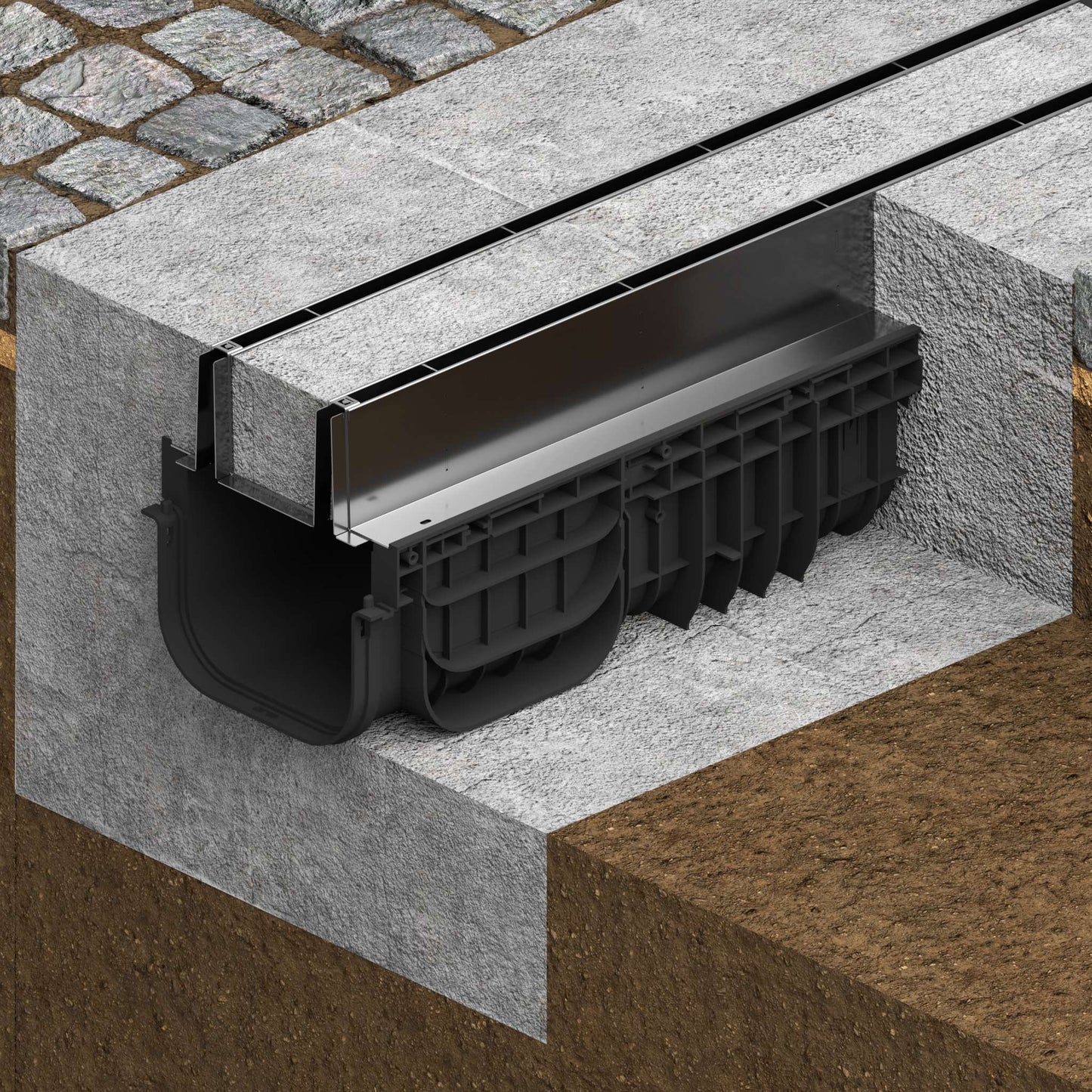

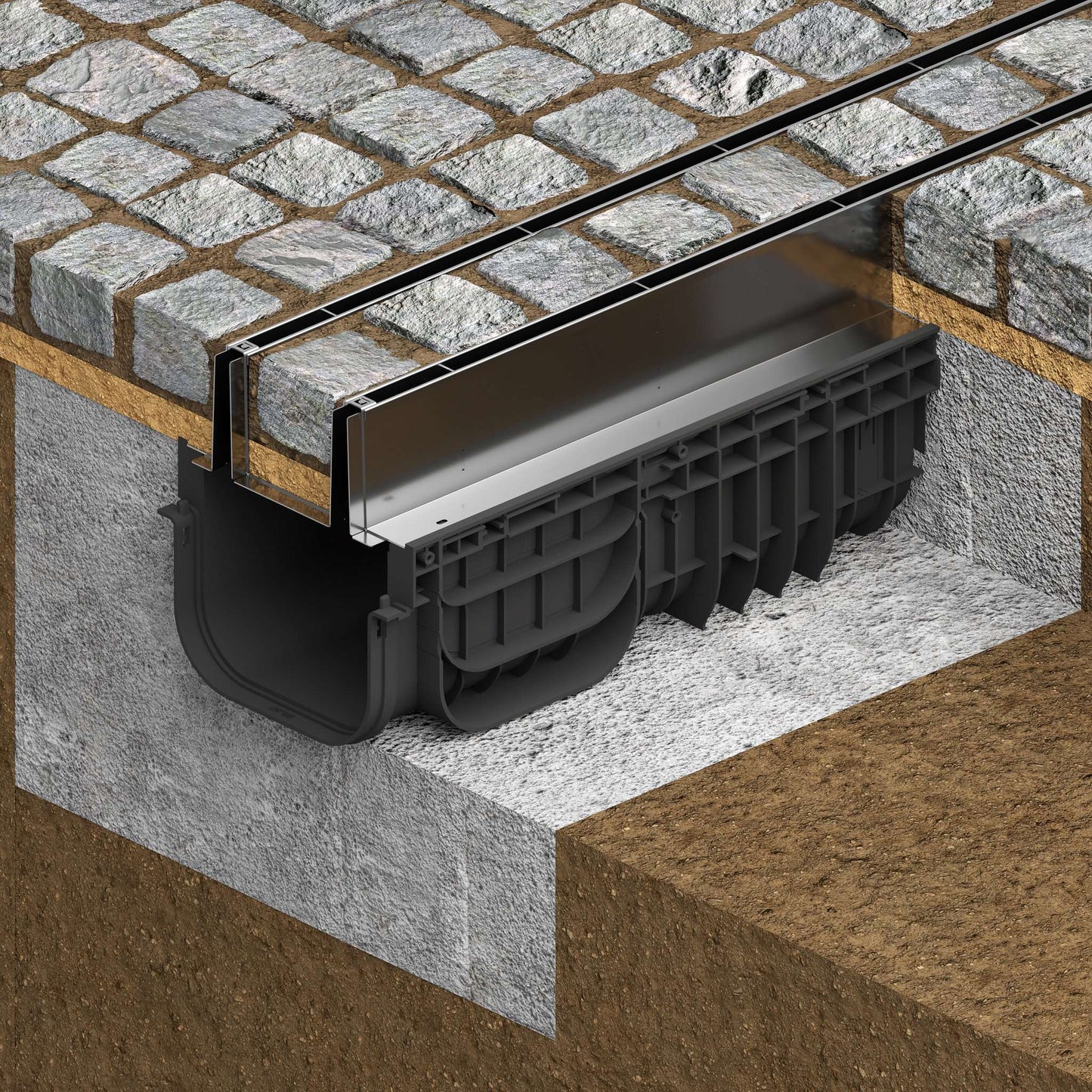

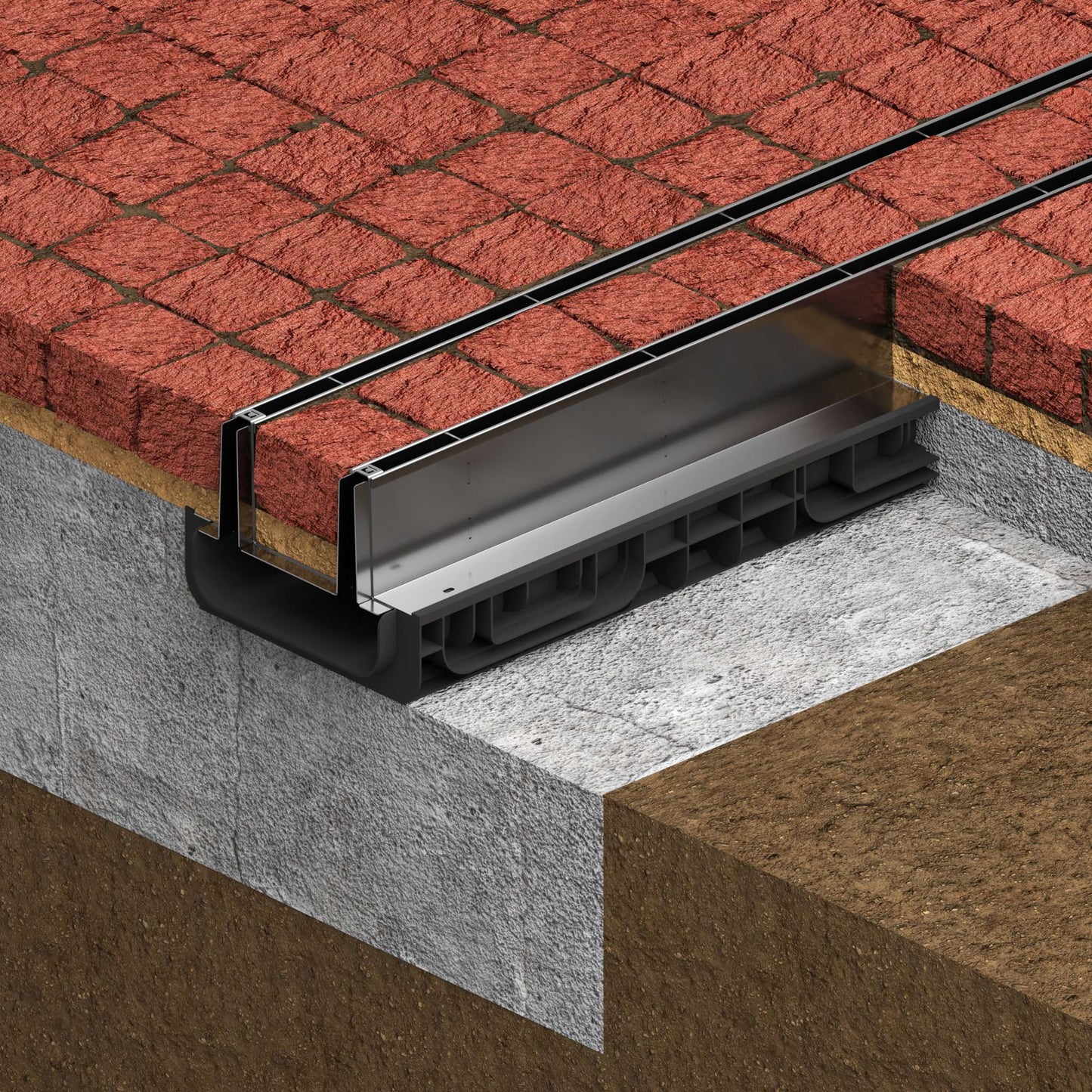

- Excellent for paver, tile, and concrete pour installations
- Used in driveways, pools, patios, and heavy traffic areas
- ADA / Heel Proof cap available as addition for debris protection
- #1 Rated Slot Drain system on the market

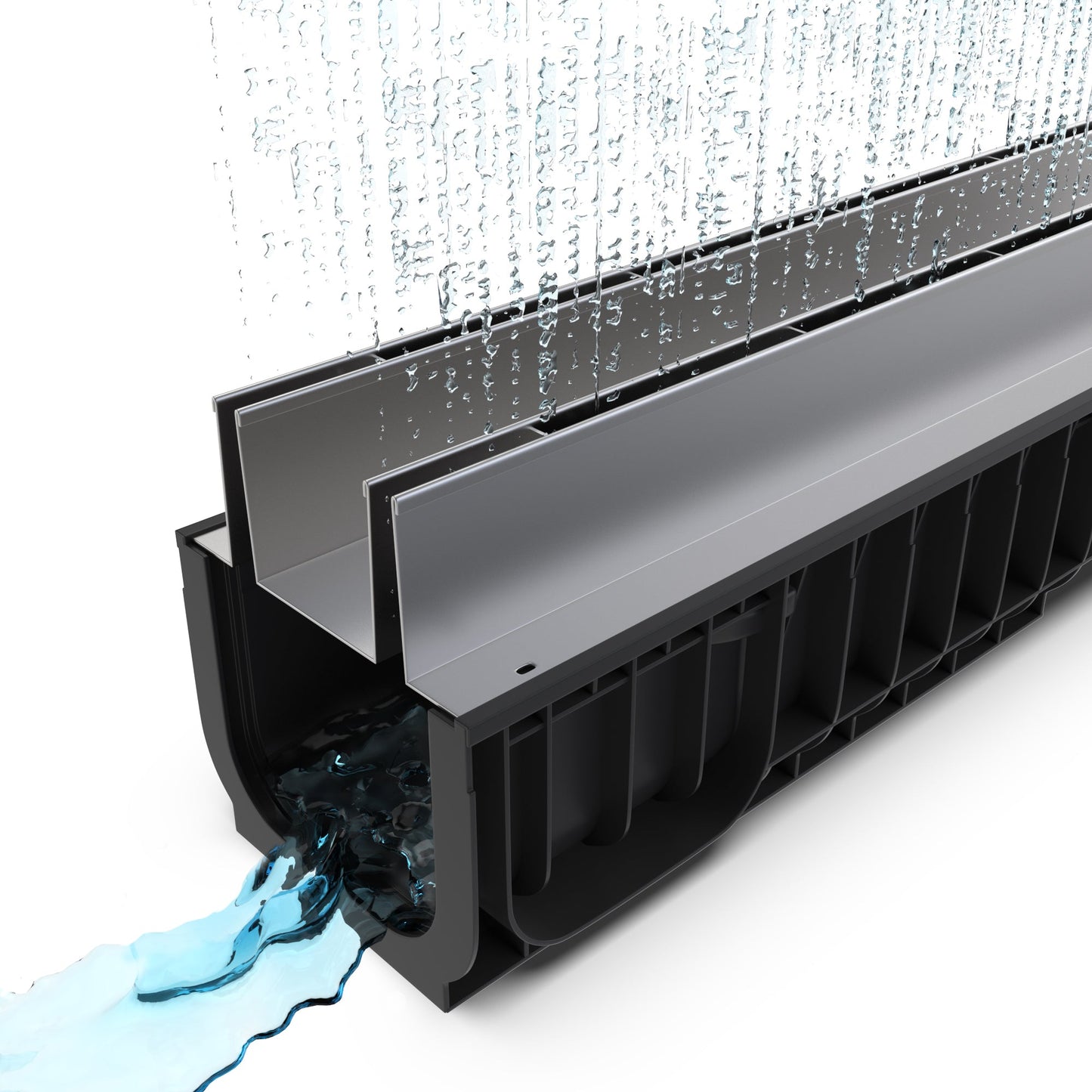

- Perfect for high water volume with little surface area coverage
- More product details below
Product Description

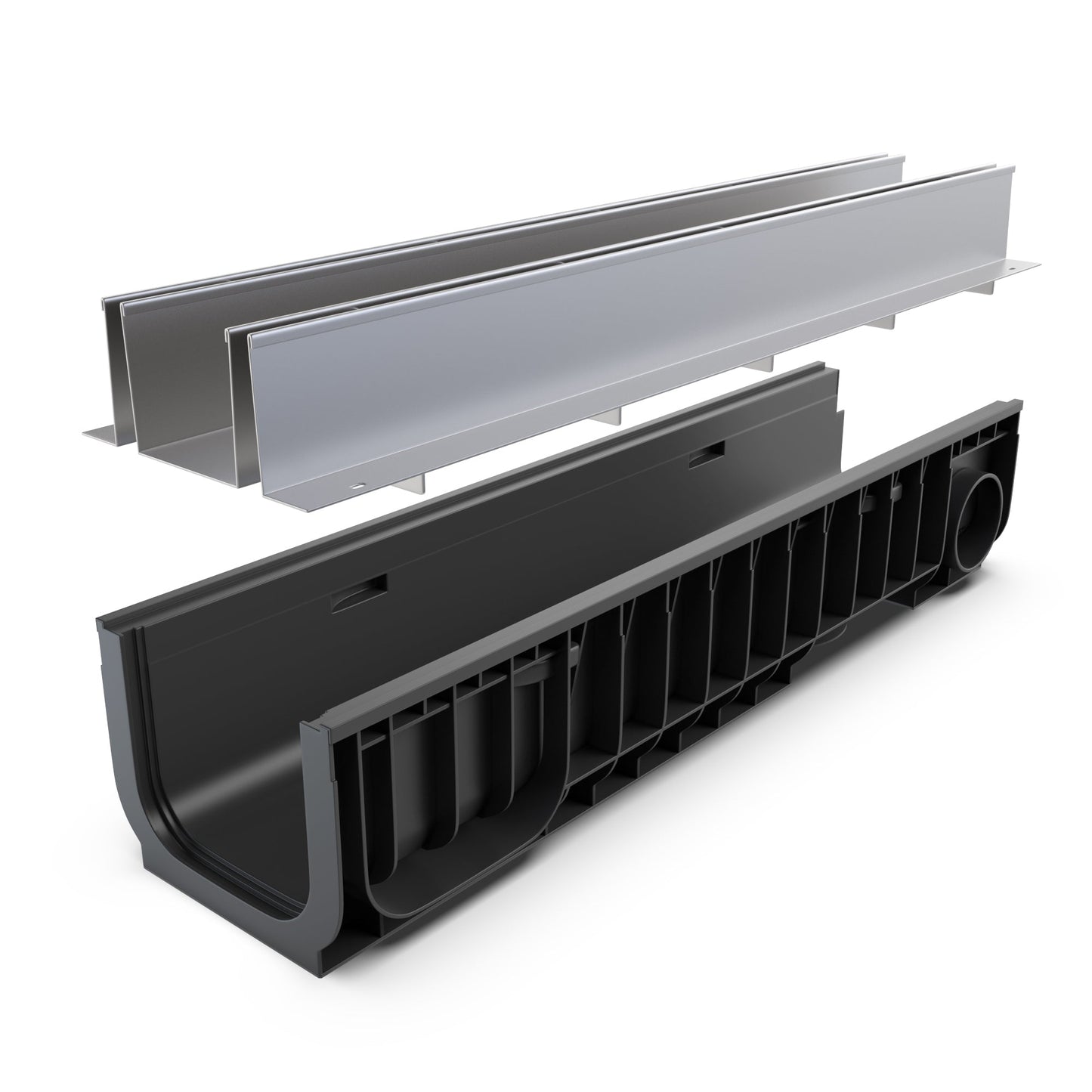

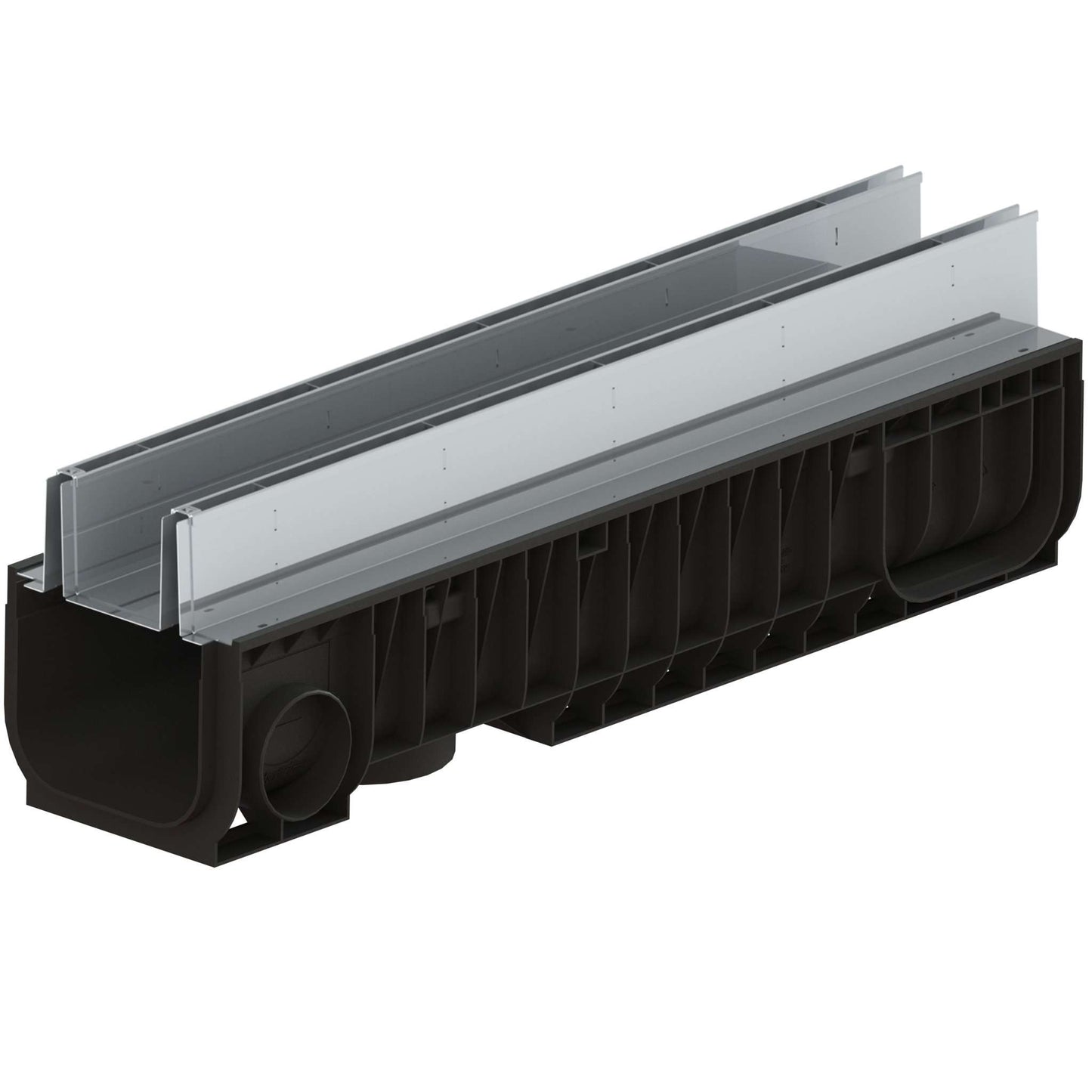

Our Slot Drains systems are the leading in the market currently. And now we introduce our TWIN slot series. Coming with our 8" internal width channels, with channel depth options of 8 inch depth, or 3 inch depth. Twin slots are perfect for low profile drainage that will accept DOUBLE the flow and volume of the normal slot drain system. The openings in the Twin Slot system are 5/8 inch which widens towards the channel. This patent feature allows debris to pass throw the slot and never get stuck. Perfect for pools, porches, and any situation where grating is not necessary. The Heel Proof slot grate options are also compatible with the Twin Slot System. This is made out of our 316 highest rated stainless steel!
The 8 inch depth channel option has 4 inch outlet on the end cap, and a 4 and 6 inch outlet option out of the bottom.
The 3 inch depth channel option has a 4 and 6 inch bottom outlet out of each channel.
PARAMETERS
Channel Length - 3.3 Feet (39 inches) - Connect end to end for longer run
Material ............. PPE Plastic / Heavy Duty Stainless Steel
Load Class ....... Heavy Duty Load
INCLUDED IN PACKAGE
1 - Channel Depth of choice
1 - Heavy Duty Stainless Steel Slot Grating
2 - End Caps (Per Order) - Additional end caps at checkout.
