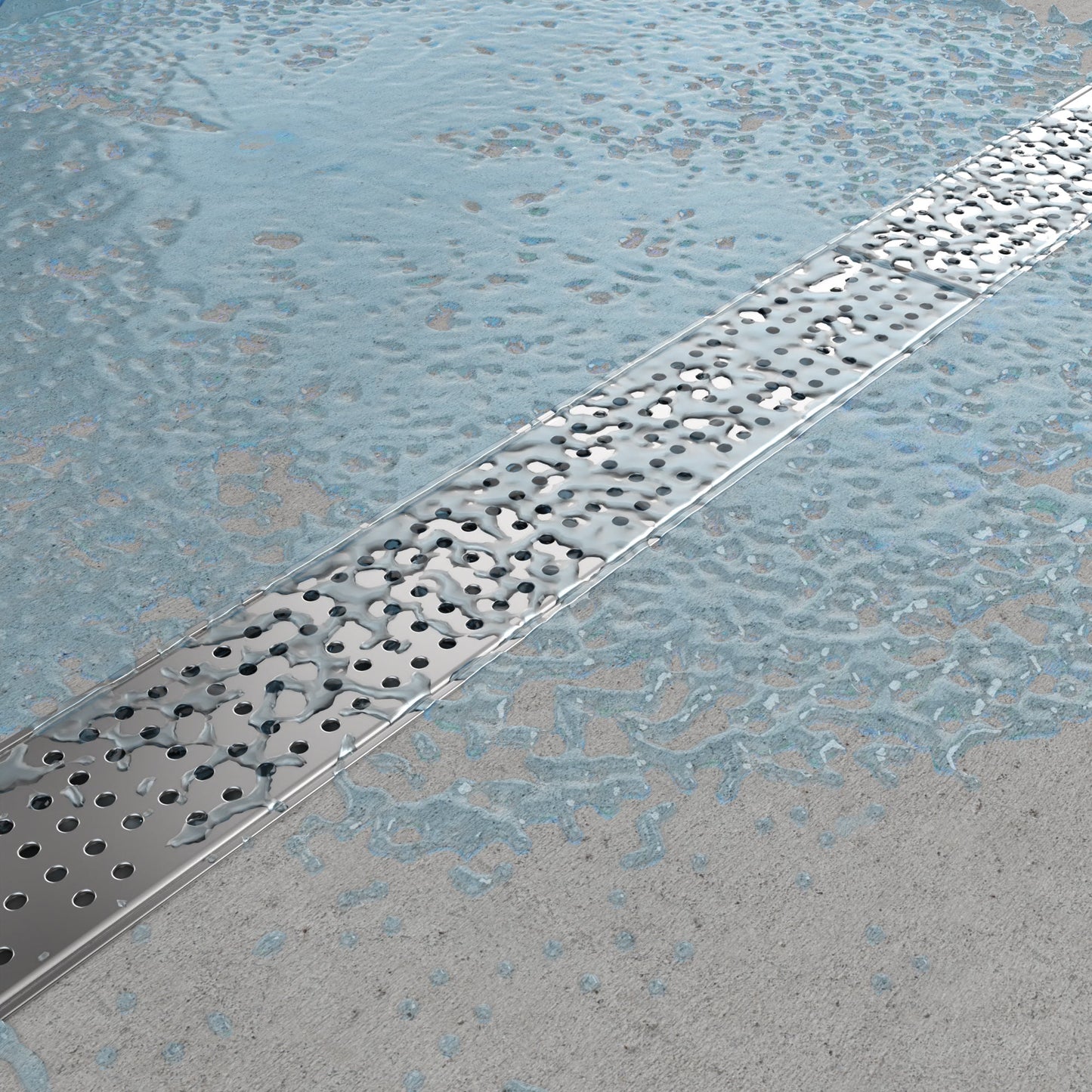

Ultra Thin Channel - Balcony & Deck System

This 304 Stainless Steel and ADA Compliant/Heel Proof Channel is designed to be an A Load Class Balcony and Deck drainage solution.

Key Features:
● A Load Class - Withstand load capacities up to 3,300 lbs.
● High Durability - 304 quality stainless steel
● ADA Compliant/Heel Proof - Safe for pedestrian zones with narrow slot openings
● Ultra Thin - Compatible with majority of depth restrictive applications
● Outlet Options - No Outlet, Center Outlet, Side Outlet

Expanded Product Overview:
The 4” Width Ultra Thin Channel - Balcony & Deck System is made from 304-grade stainless steel, is ADA Compliant/Heel Proof, and made specifically for depth restrictive balcony and deck applications. This system has a slim profile for an effective and aesthetically pleasing balcony and deck application. The load rating meets A load class requirements and provides safe, effective, and durable drainage while being pedestrian traffic rated.

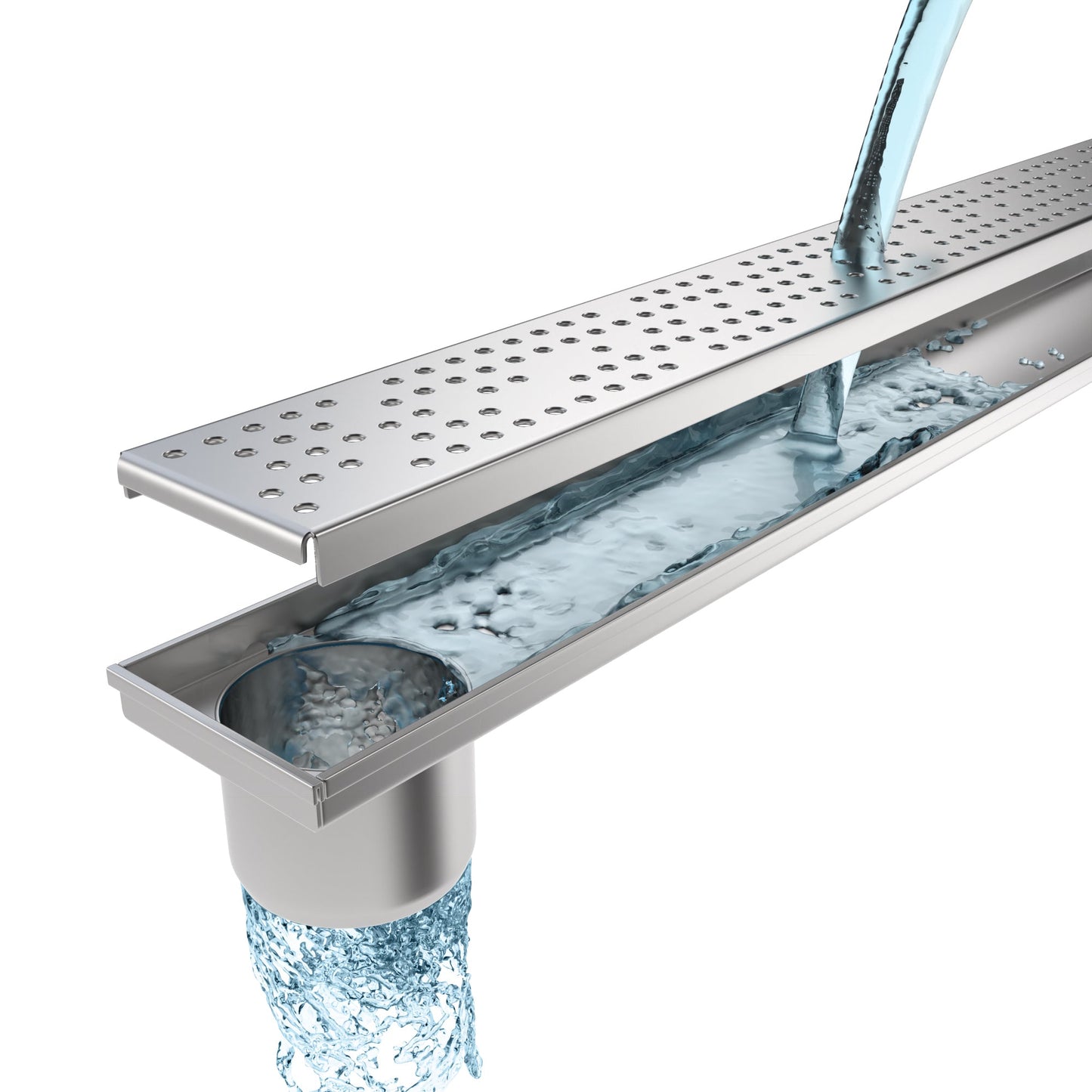

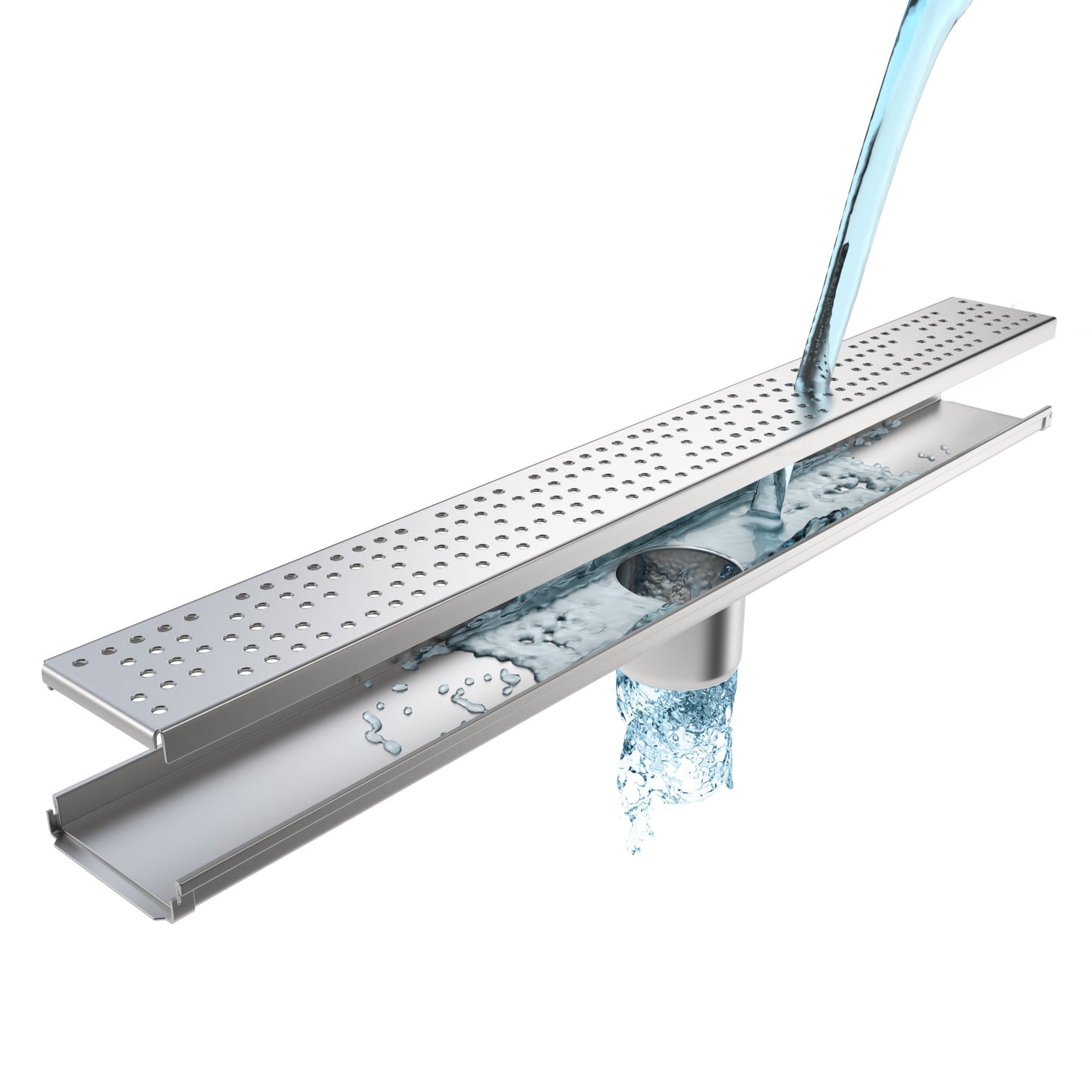

The system comes in three different channel types - No Outlet, Center Outlet, and Side Outlet. Both the Center Outlet Channel and the Side Outlet Channel type will have a built in 4” diameter outlet running vertically off of the bottom of the channel where the No Outlet Channel will have no built in outlet.

Common Applications:

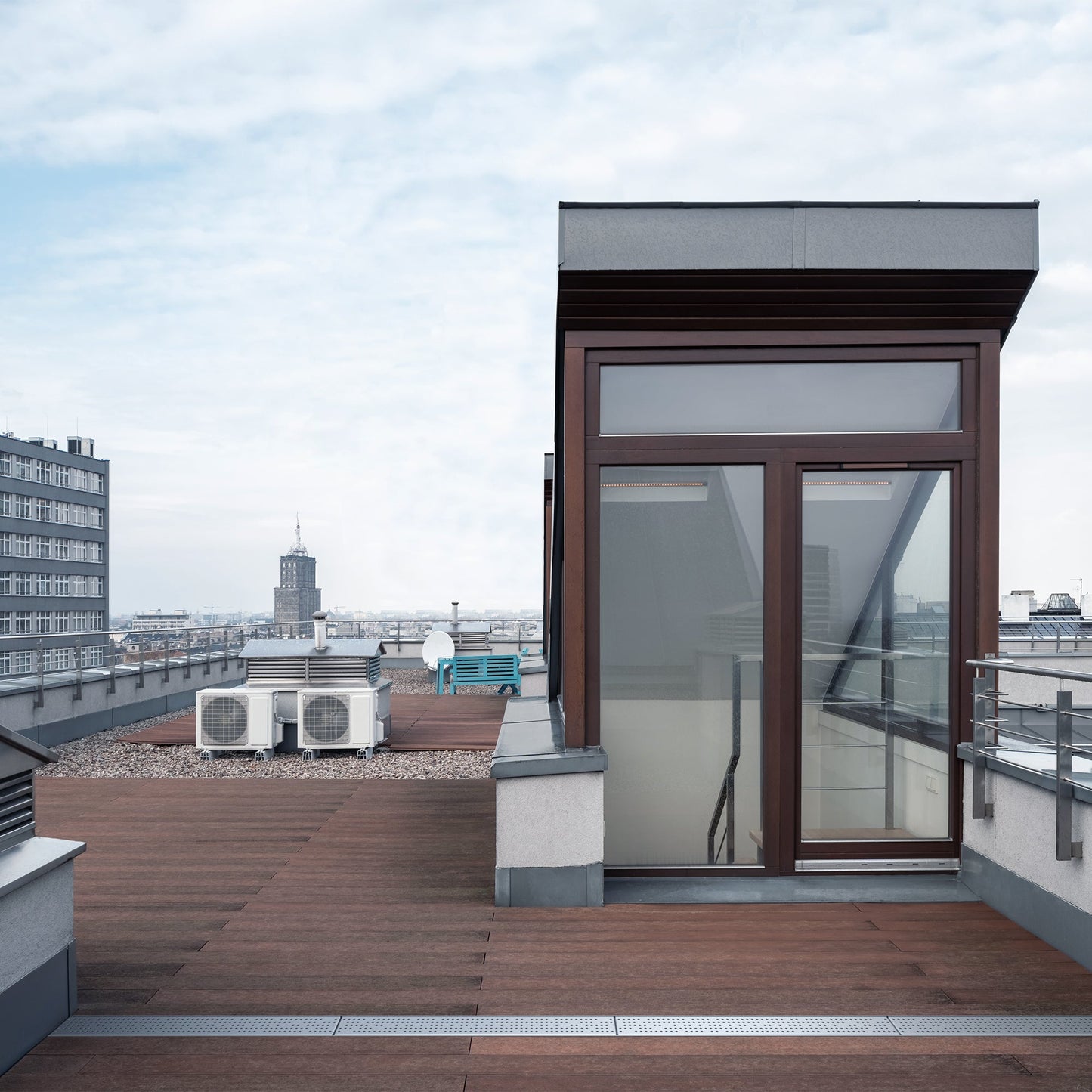

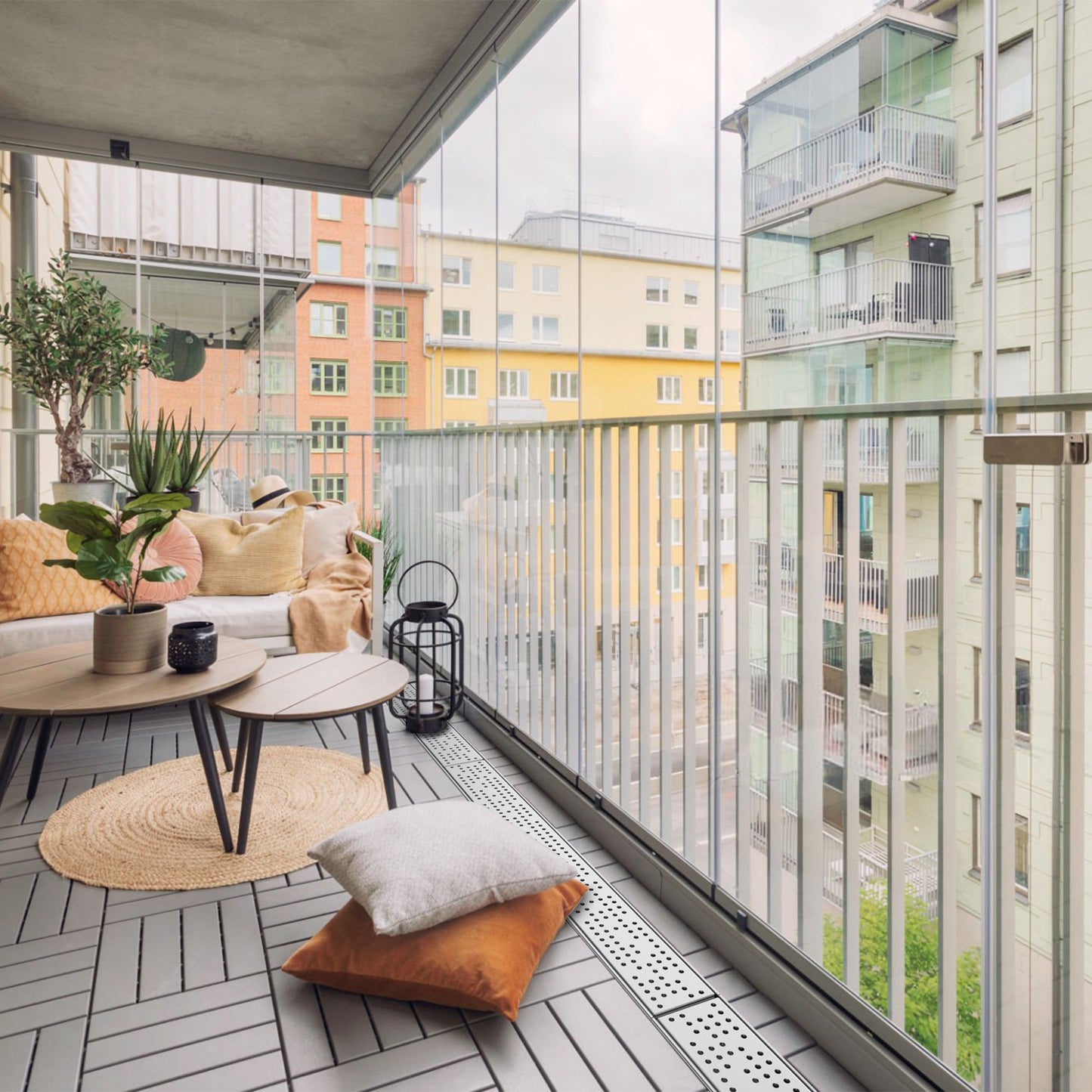

● Balconies

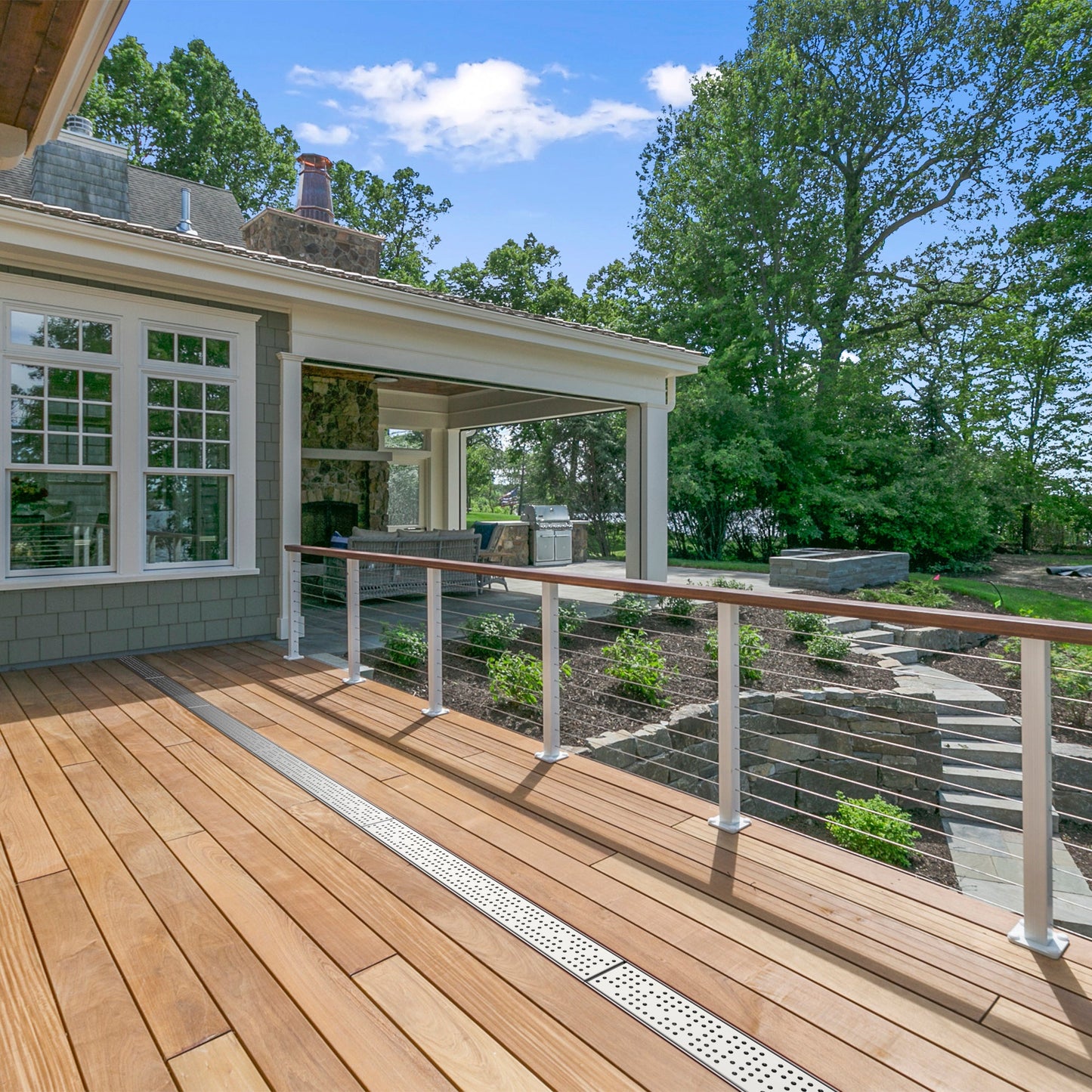

● Decks
● Pool Installations

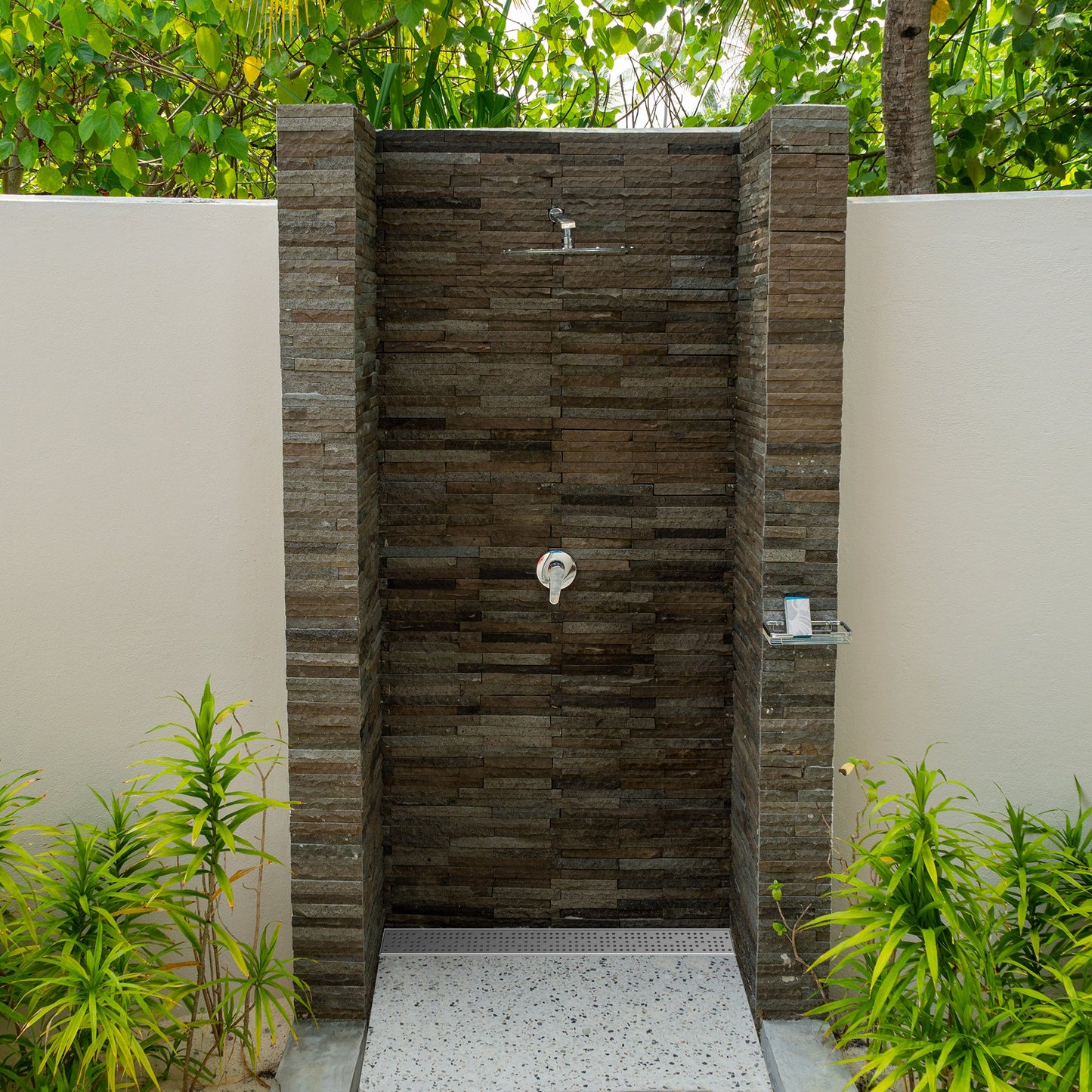

● Showers and rinse areas

Technical Specifications:
● Material - 304 Stainless Steel
● Length - 39 ⅞” L
● Width - 4 ⅞” W
● Load Class - A (Light, Pedestrian Traffic)
● Article Number -

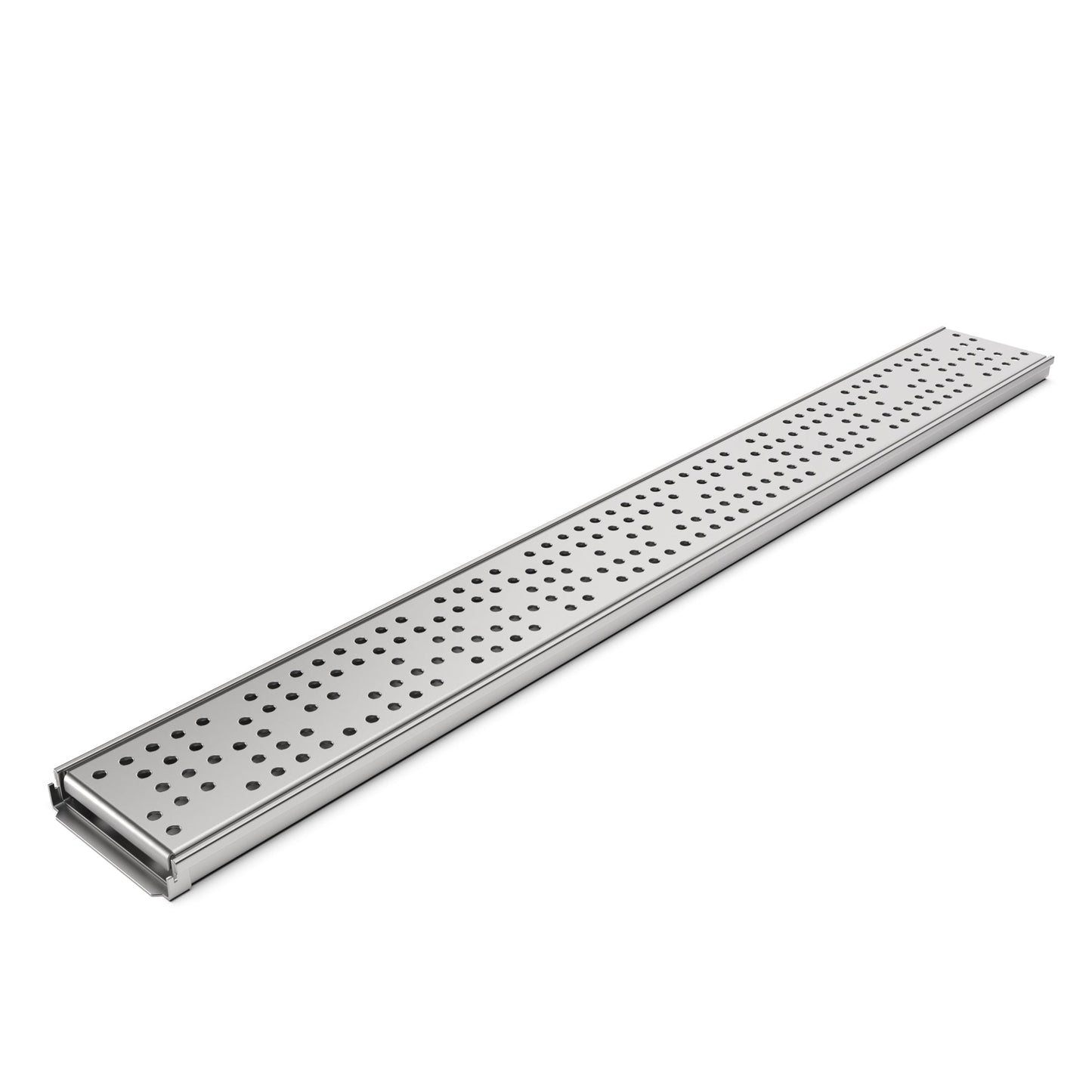

   a. No Outlet - 994501

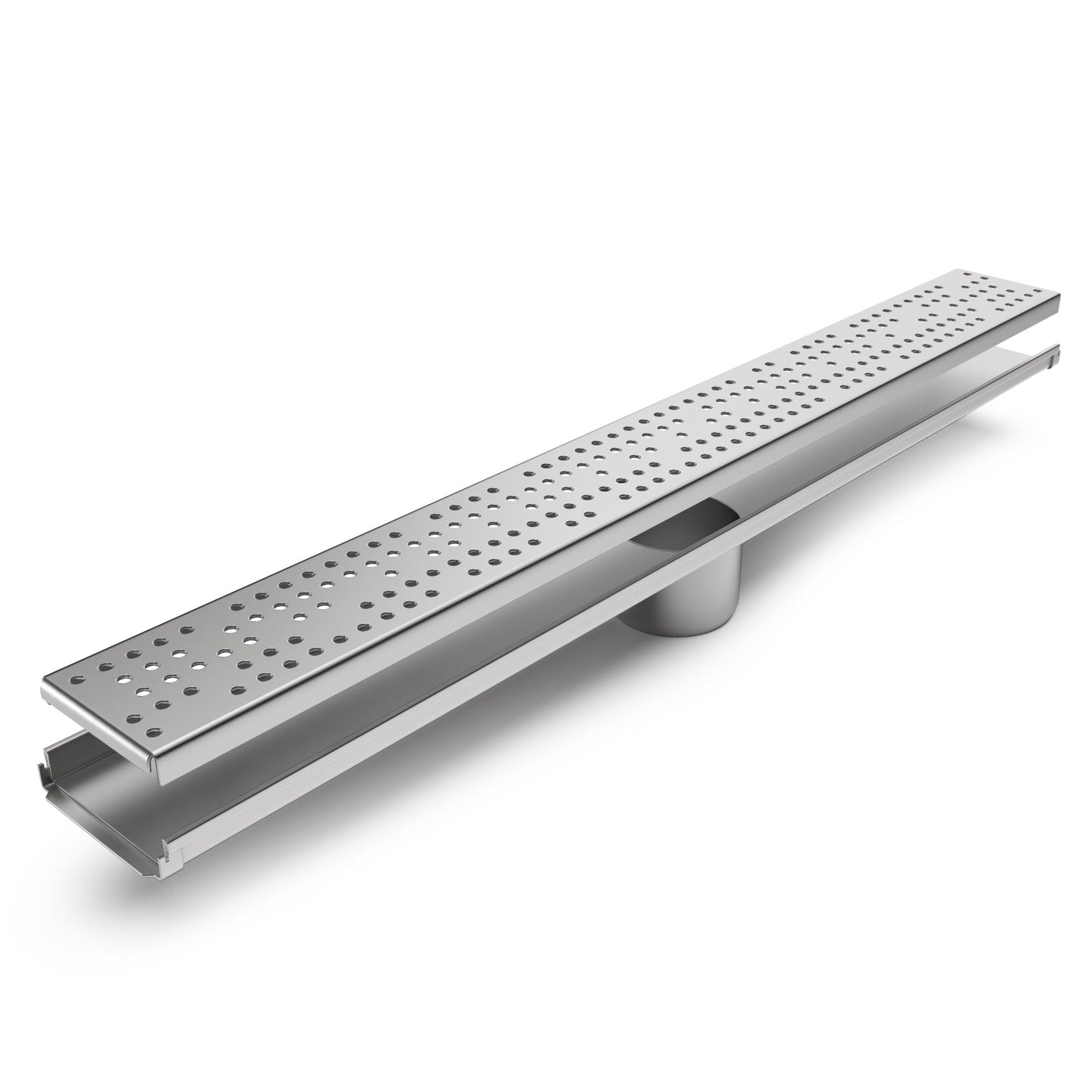

   b. Center Outlet -994502

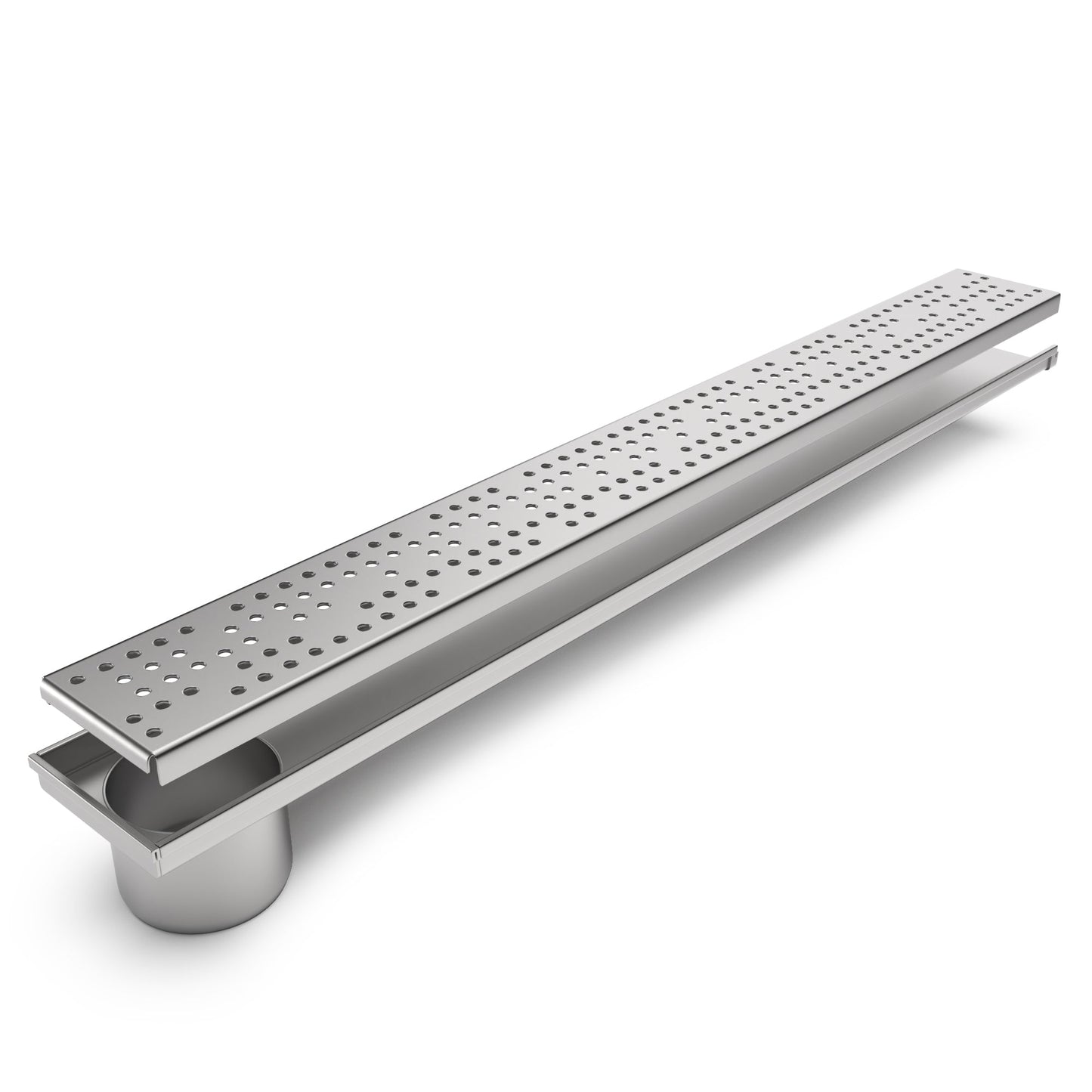

   c. Side Outlet - 994503
