Fiber Concrete Catch Basin 15x20
Fiber Concrete Catch Basin 15x20
- 04770
- Connects to 6, 8, 10, & 12 inch PVC or Corrugated Pipe
- Fiber Reinforced Concrete / Cast Iron / Galvanized Steel
- Includes Sediment Basket to Remove Debris
- Spec Sheets Available Under Downloads
Couldn't load pickup availability
FAQ’s

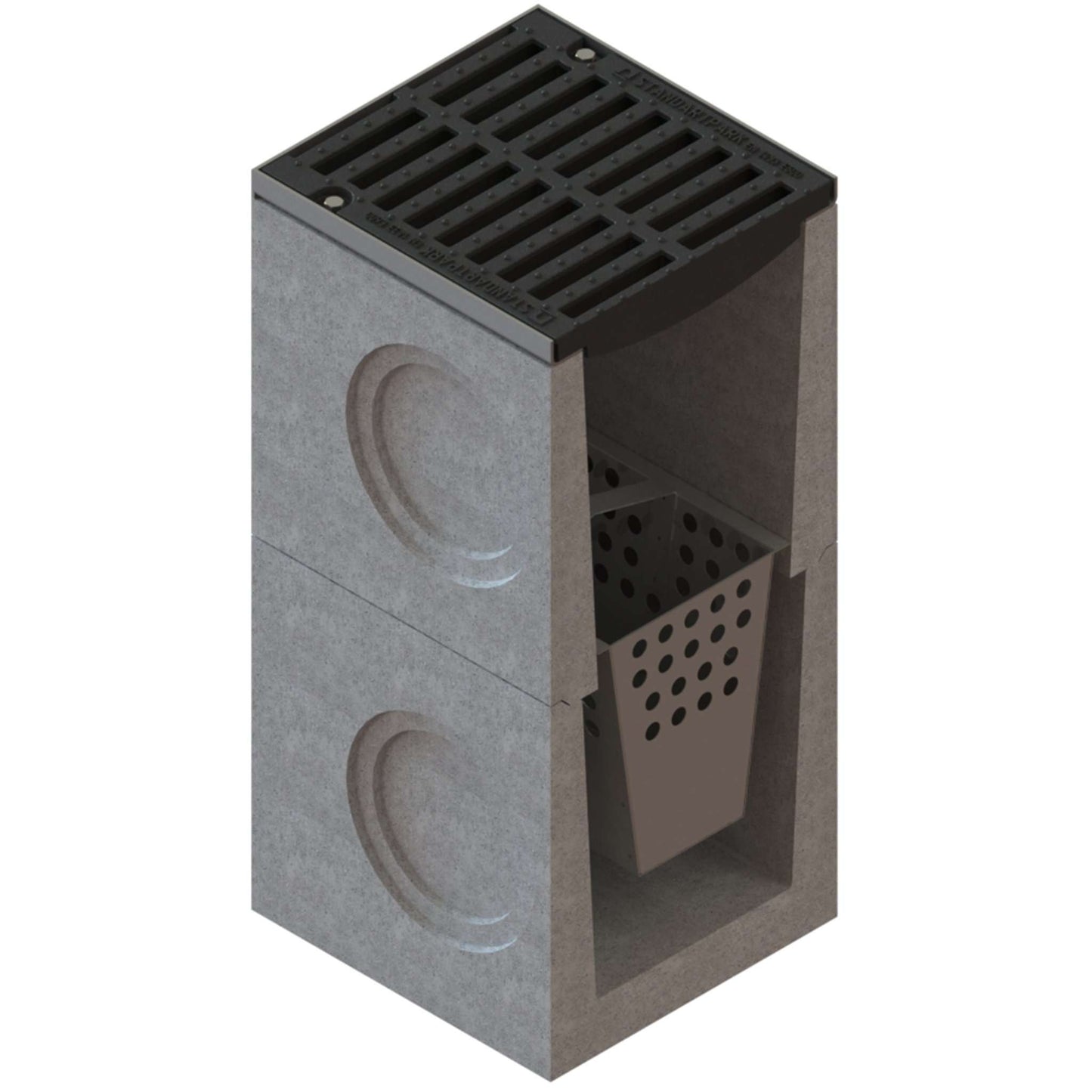

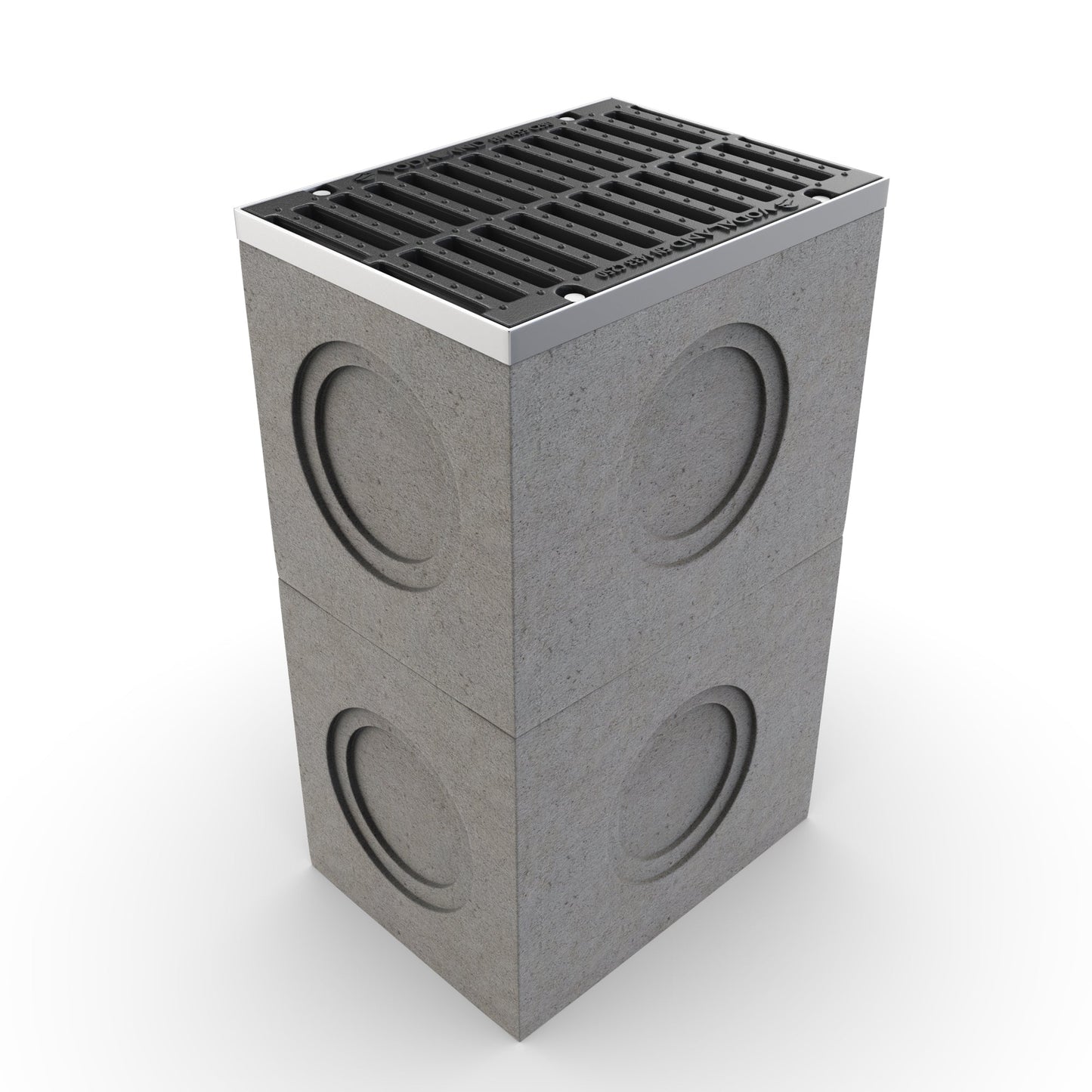

3D Model of our Concrete Basin
Zoom in and out to get a better look at this concrete basin system. You can use AR on your compatible phones to even place on your ground for a nice example of what it will look like in your installation!
![Fiber Concrete Catch Basin 15x20 - Vodaland](http://vodaland-usa.com/cdn/shop/products/fiber-concrete-catch-basin-15x20-390933.jpg?v=1684989547&width=1445)
![Fiber Concrete Catch Basin 15x20](http://vodaland-usa.com/cdn/shop/products/fiber-concrete-catch-basin-15x20-956788.jpg?v=1684949882&width=1445)
![](http://vodaland-usa.com/cdn/shop/t/82/assets/wav_white_sep_01.png?v=80715241014042071711706097273)
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
- 15" x 20" x 36" Concrete Catch Basin with Sediment Trap
- Connects to 6, 8, 10, and 12 inch PVC or Corrugated pipe
- Heavy Duty Grating and Steel Reinforcements
- Sediment basket included
- Perfect for no concrete installation if needed
For more product information please see product description above
![](http://vodaland-usa.com/cdn/shop/t/82/assets/gray_hill.png?v=45520486675280221671706097274)
Product Description
Product Description
Our new 15x20 inch, two tier Fiber Concrete Catch Basin is perfect for a quick one time installation for an extremely durable solution without the need for a concrete pour. Excellent solution for a gravel driveway, retrofit, or a deep solution. The basin is 15x20 inches edge to edge perimeter and 36 inches depth. Includes a sediment basket as well as grating, frame and comes fully assembled. Outlet connection to be cut and attached to any pipe size up to 8 inches.
PARAMETERS
Article ............................... 04770
Material ............................. Fiber Reinforced Concrete - Cast Iron - Galvanized Steel
Dimensions ....................... 20" L x 15" W x 36" H
Load Class ....................... E - 132,000 LBS
INCLUDED IN PACKAGE
1 - Two Tier Catch Basin
1 - Ductile Cast Iron Grate
1 - Debris Basket
