How Do Trench Drains Work?

Water drainage plays a vital role in upholding the integrity and safety of residential and commercial spaces. The repercussions of water accumulation are significant, ranging from structural harm to safety hazards.

At Vodaland, we specialize in providing innovative drainage solutions that effectively manage water flow and prevent potential damage. In this article, we will delve into the world of trench drains – a versatile and efficient system that addresses drainage challenges.

Understanding Water Drainage Challenges

Inadequate water drainage can cause a myriad of issues. Pooled water not only damages surfaces but also creates breeding grounds for pests and microorganisms. Surface water accumulation, especially after heavy rainfall, poses a risk of erosion and foundation damage, which can cost thousands to rectify in severe cases. This is where trench drains come into play. These drainage systems are designed to swiftly and effectively redirect water away from critical areas, preventing water-related problems.

What Are Trench Drains?

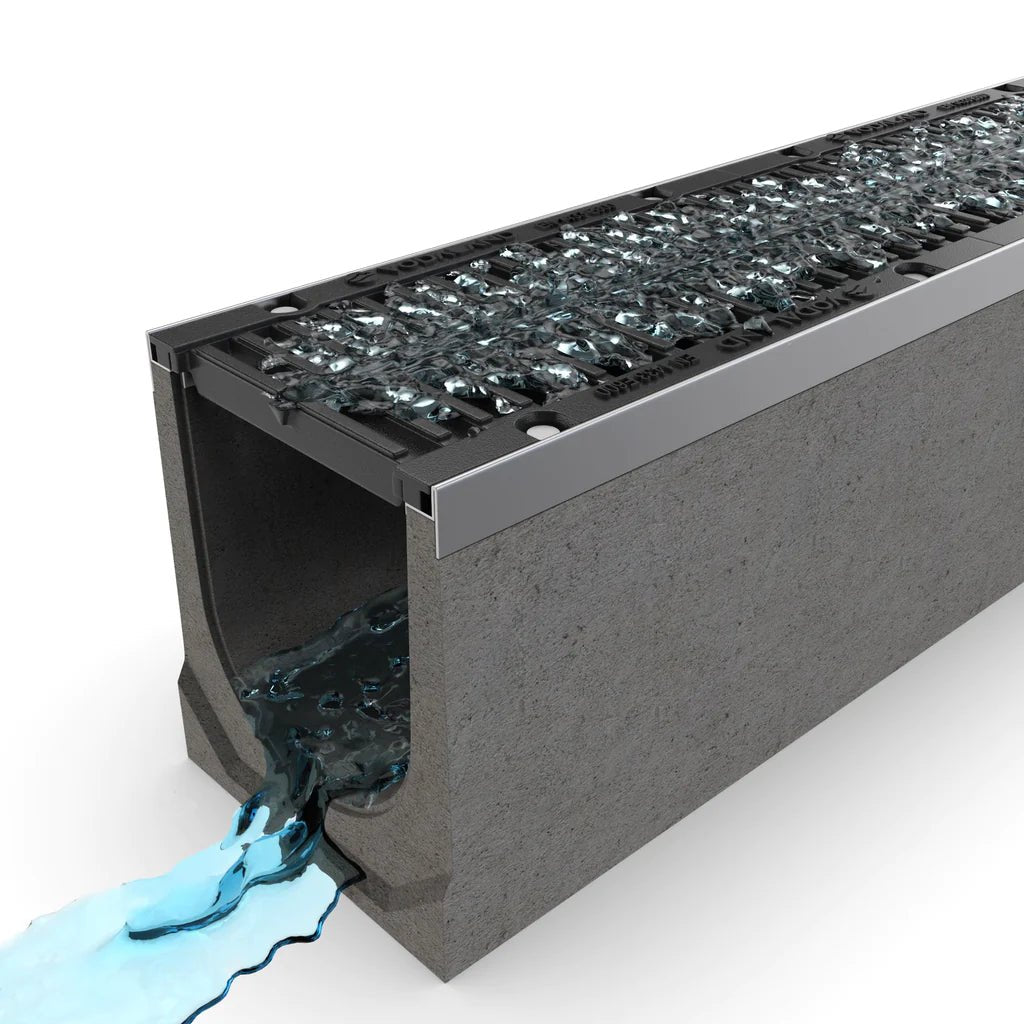

Trench drains, also known as channel drains or linear drains, are a type of drainage system that consists of a narrow trench covered with a grate. Their primary purpose is to collect and channel surface water to prevent flooding and water damage. These systems are installed at ground level, making them inconspicuous while efficiently managing water flow. A typical trench drain system comprises a channel, a grate covering the channel, and additional accessories like end caps.

How Does a Trench Drain Work?

Trench drains operate on a simple yet effective principle. The trench, usually made of materials like concrete, captures surface water. The water then flows into the channel and is directed away from the area, preventing water accumulation. The grated cover ensures that debris and sediment do not clog the system, allowing water to flow freely. This efficient drainage mechanism helps avoid water stagnation and its associated issues.

Benefits of Trench Drains

The linear form of trench drains allows them to effectively collect water over a wider surface area compared to conventional drains, significantly reducing the risk of water accumulation and potential damage.

These systems also play a pivotal role in enhancing safety by eliminating the hazard of standing water, which often leads to slips and falls.

Trench drains also offer environmental benefits by preventing water runoff that can carry pollutants into natural water bodies. By intercepting surface water and channeling it to proper disposal systems, trench drains contribute to water conservation and help maintain the ecosystem's health.

Another benefit is that the process to install trench drains is relatively straightforward, involving excavation, placement of the drain, and proper backfilling. This ease of trench drain installation saves both time and resources, making trench drains a practical solution for various drainage needs. Check out our installation guide for more details!

Different Types of Trench Drain Systems

Vodaland 4" Channel Brass Grating Package

Within the category of trench drains, a great degree of variance exists based on the size and material construction of the trench drainage system. These characteristics by extension inform what application a particular trench drain is suited for.

For example, industrial trench drains, which generally includes concrete trench drains and other durable metal options, are engineered to handle heavy loads and demanding applications. These robust systems are designed for high point-per-pressure requirements, making them ideal for areas with frequent heavy traffic, such as industrial spaces and loading docks.

The load classes for these trench drain systems, ranging from C to F, determine their load-bearing capacity and suitability for different uses. At Vodaland, we offer a wide range of load classes, ensuring that you can find the perfect match for your specific drainage needs.

Load Classes

Load classes play a crucial role in the functionality and durability of trench drain systems. They define the maximum weight a trench drain can support without compromising its structural integrity. The weight-bearing capacity of each load class is detailed in the list below:

  • A - 3300 LBS
  • B - 27500 LBS
  • C - 55000 LBS
  • D - 88000 LBS
  • E - 132000 LBS
  • F - 198000 LBS

In addition to load classes, grating types are another critical consideration. Grates cover the trench drain and prevent debris from entering the system while allowing water to flow freely. The relationship between grating type and load class cannot be overlooked.

Versatile Grating Options

At Vodaland, we understand the importance of choosing the right grating type for your trench drain system. Our grating options include:

  • Brass
  • Copper
  • Ductile Cast Iron
  • Galvanized Stamped Steel
  • Plastic
  • Stainless Steel

Each grating material offers unique advantages in terms of strength, corrosion resistance, and aesthetic appeal. By pairing the appropriate grating type with the corresponding load class, you can ensure that your trench drain system not only effectively manages water flow but also withstands the demands of its environment.

For instance, in areas with heavy traffic or where heavy equipment like forklifts is present, opting for a higher load class with durable grating materials like galvanized steel or ductile cast iron is best. For residential applications where the trench drain grate will only be subject to pedestrian traffic, a plastic grate (Load class A) is most suitable. By selecting the appropriate load class and grating type for your application, you promote both the functionality and longevity of your drainage system.

Vodaland's Trench Drain Solutions

At Vodaland, we offer a range of high-quality trench drain solutions and grating options like our heel proof grates that cater to specific needs. Our trench drain systems are engineered for efficiency, durability, and seamless integration.

Whether it's a residential driveway or an industrial facility, we have the right trench drain system to manage water drainage effectively. With our commitment to innovation and customer satisfaction, we provide solutions that stand the test of time.

With our expertise, quality materials, and dedication to customer needs, we provide a comprehensive range of drainage solutions that ensure your space stays safe and dry. Don't let water woes dampen your property – partner with Vodaland for effective and reliable drainage solutions.
