Elevate Your Drainage System with the 10" Polymer Concrete Pre-Slope Channel

Upgrade your trench drain system with Vodaland's 10" Polymer Concrete Pre-Slope Channel. Experience efficient water drainage, durable construction, and easy installation. Enhance your project with our high-quality solution. Order now and elevate your drainage capabilities.

10" Polymer Concrete Pre-Slope Channel Specifications and Downloads

The specifications for the 10" Polymer Concrete Pre-Slope Channel are the following:

  • 10" Internal - 12" External 1% Pre Slope Trench System
  • D Class Rated For Heavy Duty Loads

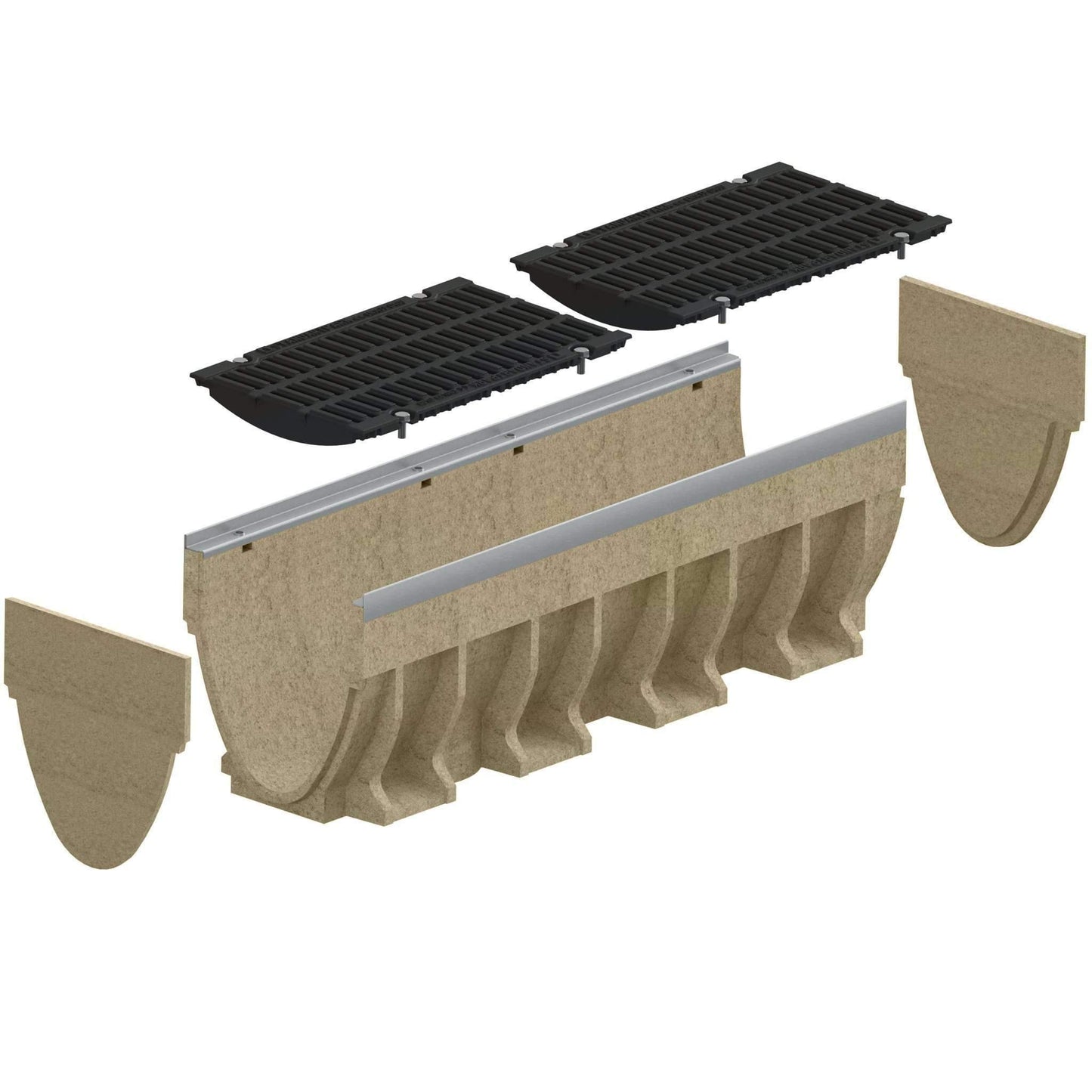

  • Comes with channel, grating and installation brackets (Product Details Below)
  • Price per system decreases with channel length.
Downloads
PDF
DWG
BIM

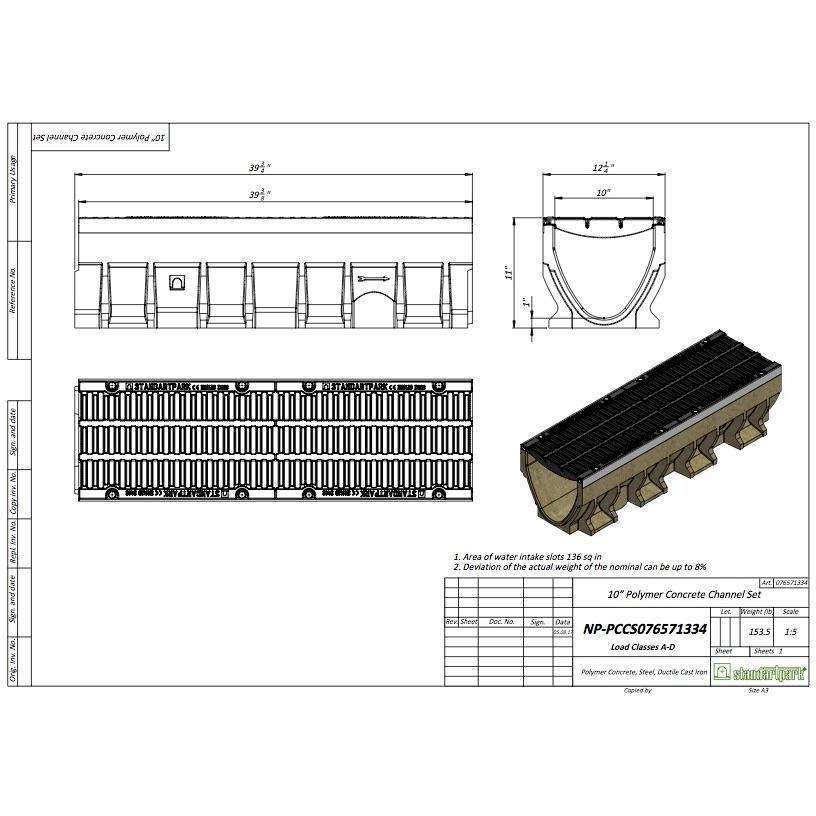

CHANNEL SPECIFICATION
PDF :
DWG :

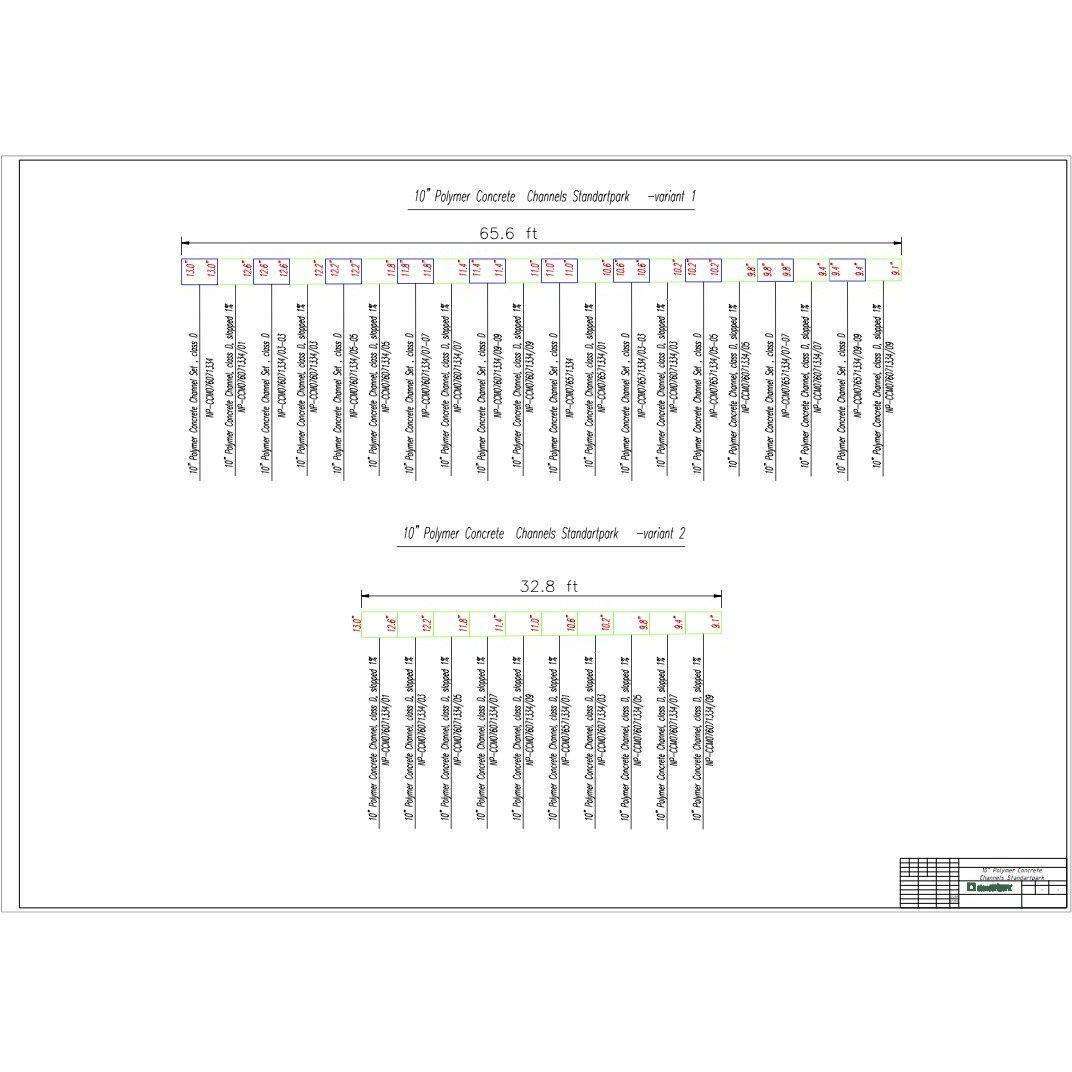

CHANNEL SLOPE LINEUP CHART
PDF :
INSTALLATION BROCHURE
PDF :

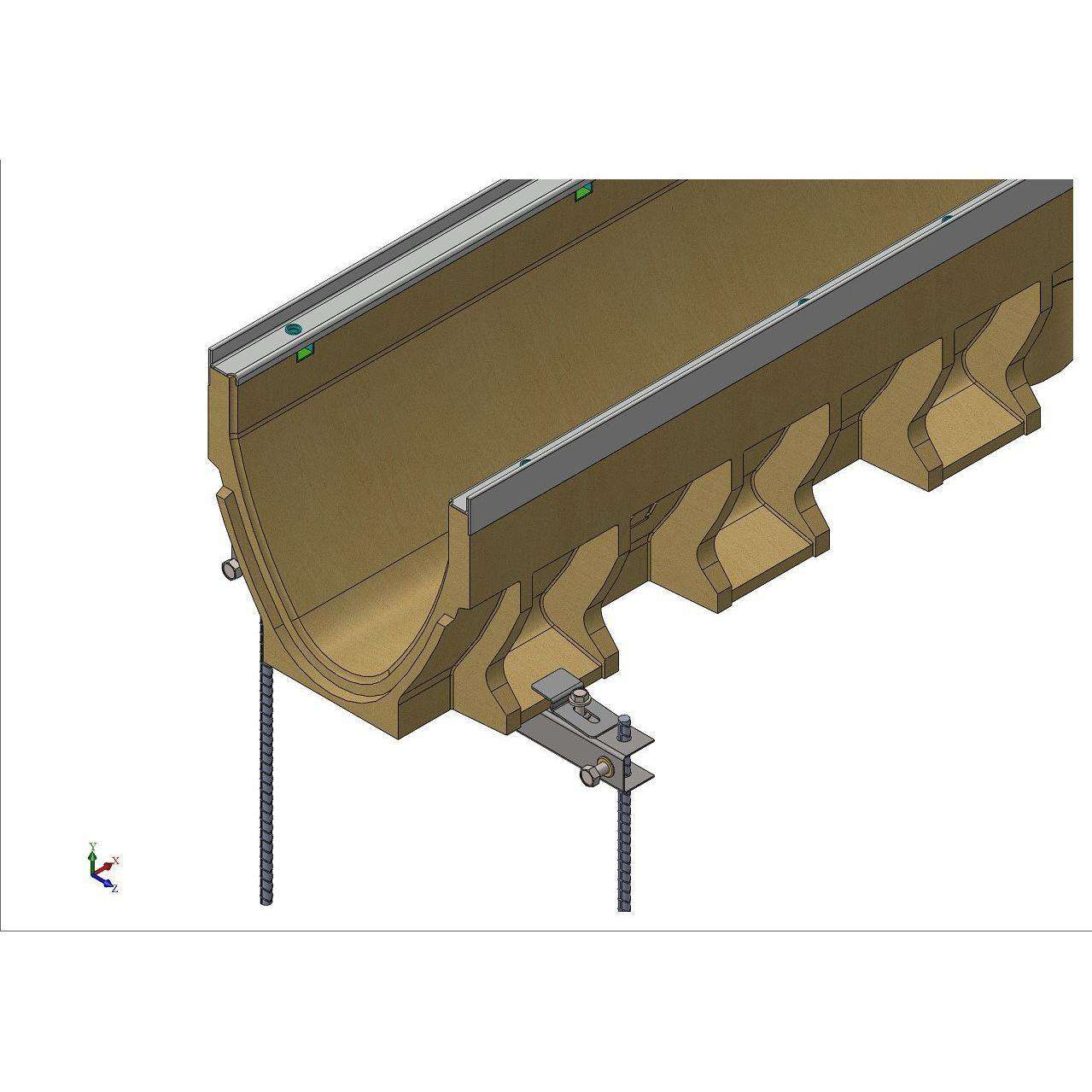

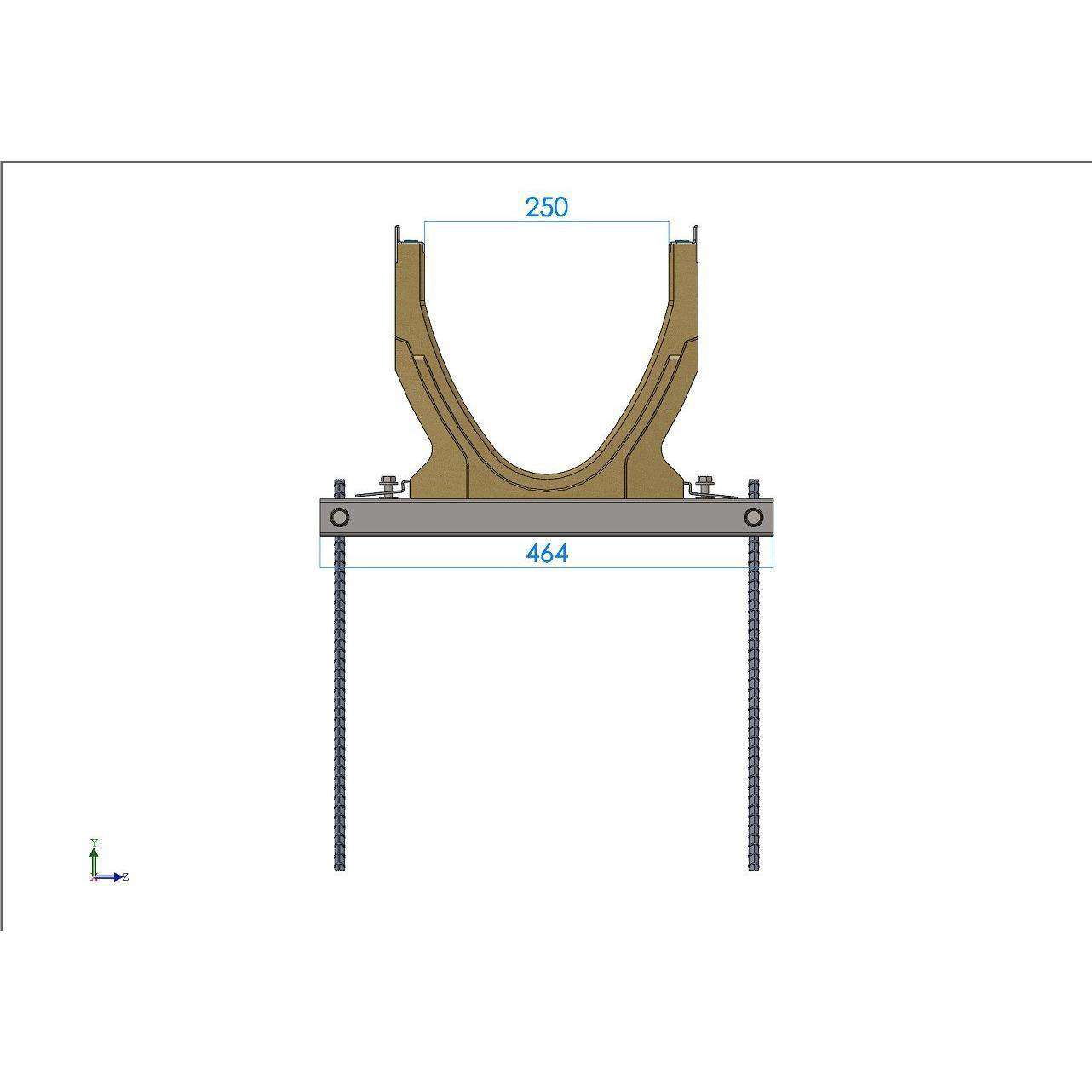

Installation Mounting Bracket
PDF :

Product Description

Product Description

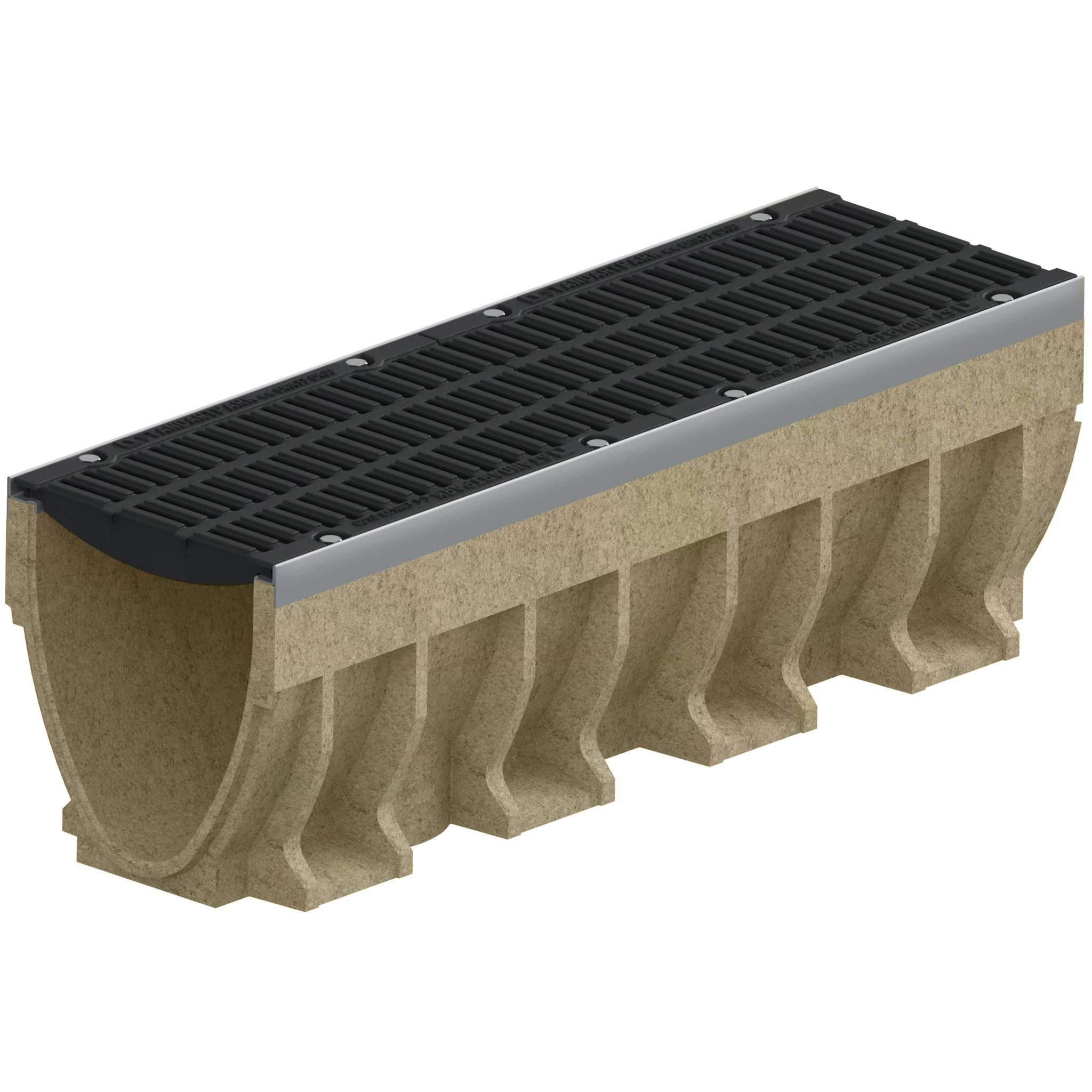

10” Polymer Concrete Pre Slope Channel 1% Slope

This Heavy Duty trench drain system is designed to provide adequate drainage for larger commercial or industrial spaces.

Key Features:
Supports up to 88,800 LBS per sq. ft. - Provides exceptional strength for roads, parking
lots, garages, and heavy duty traffic areas.
ADA Compliant Design - Ensures safe, trip-free walking surfaces
Temperature Resistant - The fiber reinforced concrete will help maintain the water
temperature to help prevent freezing and overheating
Installation Brackets INCLUDED - Package will come with correct quantity of
installation brackets to ensure an easy installation
Bulk Orders Discounted - The price per linear foot decreases as the run gets longer
V Shaped Channel Body - Allows for faster drainage

Expanded Product Overview:

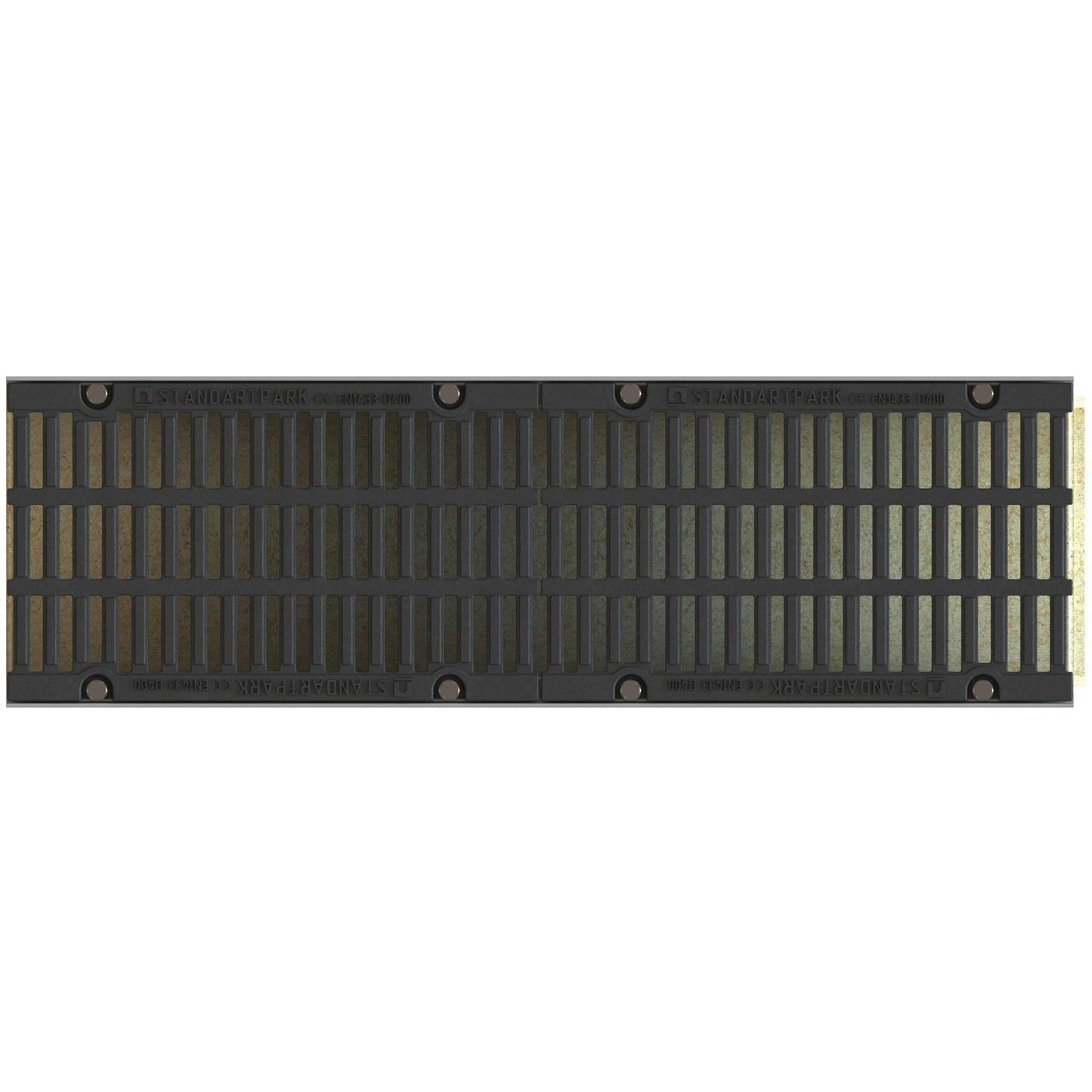

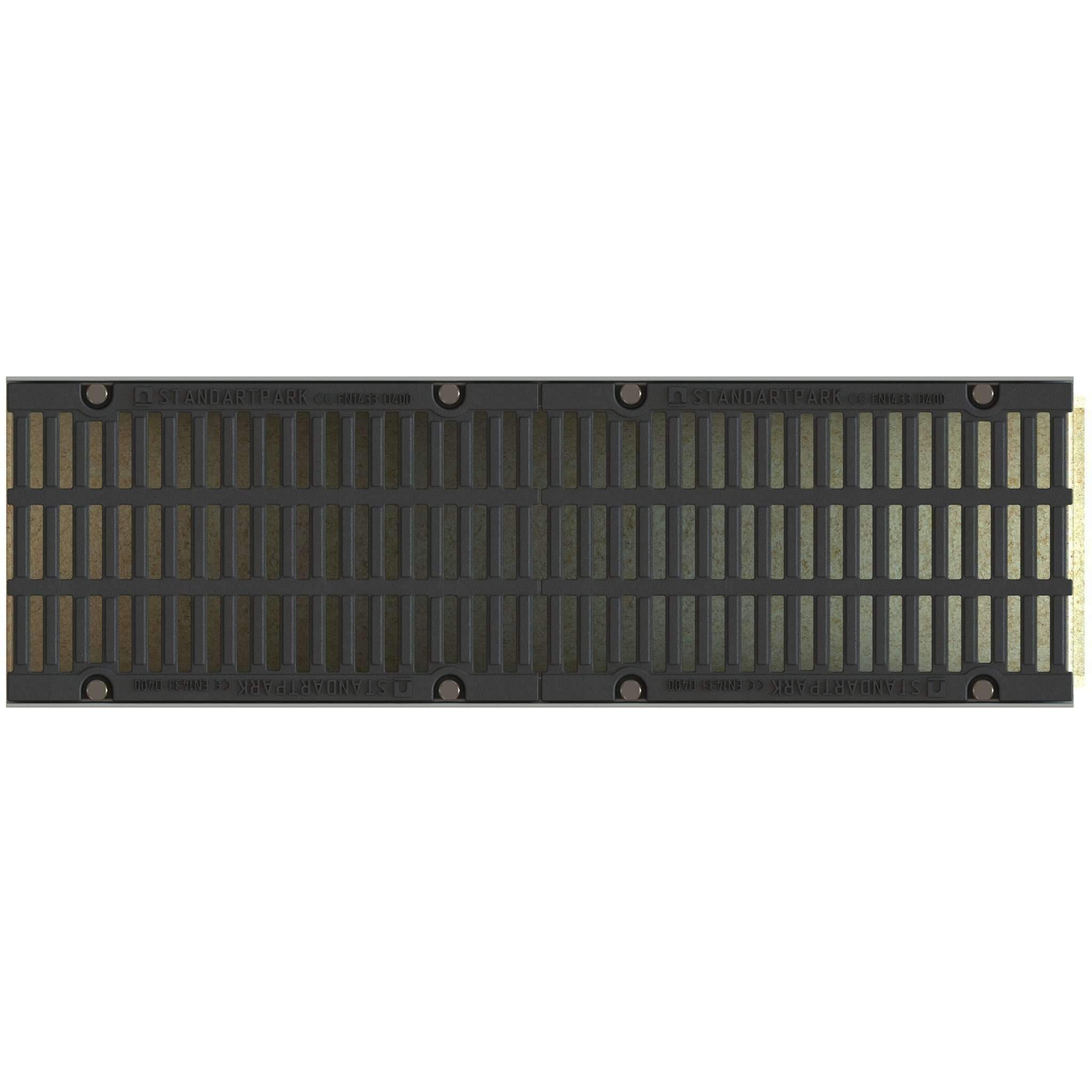

Our 10" Internal Polymer Concrete channel comes with a Class D Ductile Cast Iron Grating. The Fiber Reinforced concrete will withstand varying temperatures to help maintain the water from overheating or freezing. The system has a reinforced steel edge to support heavy duty traffic whether it is needed for a large parking lot, warehouse, or large commercial area. This system is a product that provides a highly durable drainage solution made to support sizable amounts of water at a quicker rate considering its 1% built in pre slope and V Convex Shaped Channel Body. With the built in pre slope, the worry of adequate drainage can be put to ease.

Common Applications:
Roads
Parking Garages
Warehouses
Parking Lots
Body Shop

Technical Specifications:
Material - Length - 3.3 Feet (39.4”)
Width - 10” internal (12” External Width)
Load Class - D (Heavy Duty)
Article Number - 76071

Like all Vodaland products this concrete system is designed to provide a long lasting, highly durable drainage solution.
