Load Classification
Below are load classifications for your project. Please read carefully to make sure your installation weight will be what you need.
![](http://vodaland-usa.com/cdn/shop/t/82/assets/merge_sep.png?v=84791569812566698671706097271)
DIN 19580 / EN 1433
Grates and top rims shall be designed to meet the following loading classifications in a static condition.
![](http://vodaland-usa.com/cdn/shop/files/load-class-a_medium.png?v=1672750883)

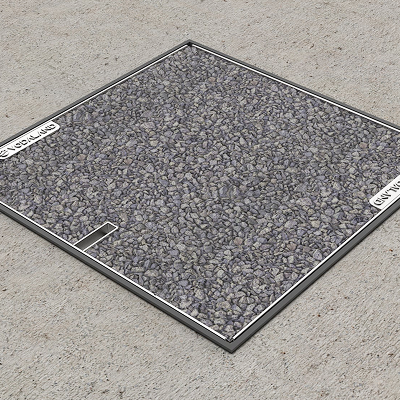

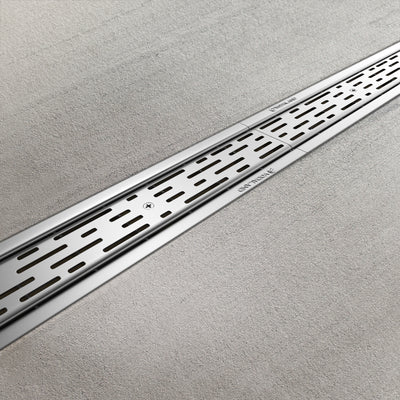

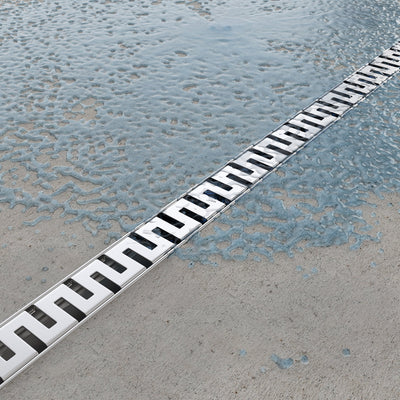

Load Class A
Light Duty Grate design load up to or exceeding 3,372 lbs per foot. (15 KN). For pedestrian foot traffic only.
![](http://vodaland-usa.com/cdn/shop/files/load-class-b_medium.png?v=1672750894)

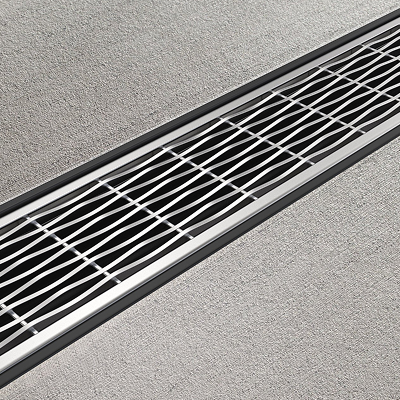

Load Class B
Medium Duty Grate design load of at least 28,100 lbs per foot. (125 KN). For light pneumatic tire traffic only. Sidewalks and residential parking.
![](http://vodaland-usa.com/cdn/shop/files/load-class-c_medium.png?v=1672750906)

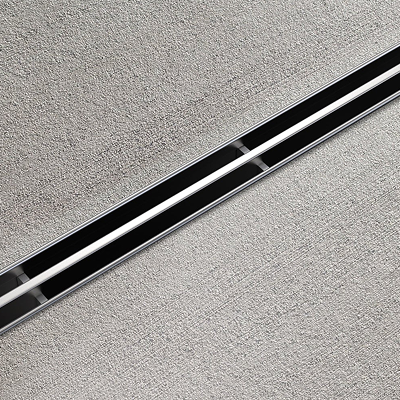

Load Class C
Heavy Duty Grate design load of at least 56,200 lbs per foot. (250 KN). Commercial applications.
![](http://vodaland-usa.com/cdn/shop/files/load-class-d_medium.png?v=1672750922)

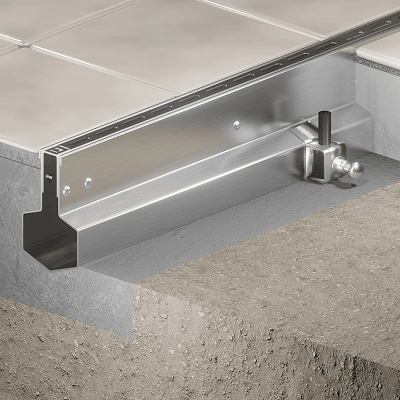

Load Class D
Grate design load of at least 89,920 lbs per foot. (400 KN). For pneumatic forklift traffic. Extra Heavy Duty. Roads and highways. H-20 load rated.
![](http://vodaland-usa.com/cdn/shop/files/load-class-e_medium.png?v=1672750937)

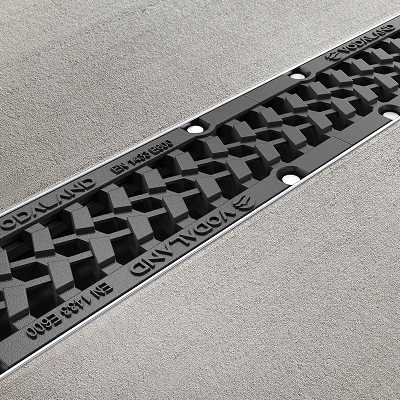

Load Class E
Grate design load of at least 134,800 lbs per foot. (600 KN). For commercial solid tire traffic patterns, and impacts from steel struts or metal wheels (forklifts).
![](http://vodaland-usa.com/cdn/shop/files/load-class-f_medium.png?v=1672750950)
Load Class F
Grate design load of at least 202,320 lbs per foot. (900 KN). For airport traffic. Requires Engineer designed system, please call for additional information.
