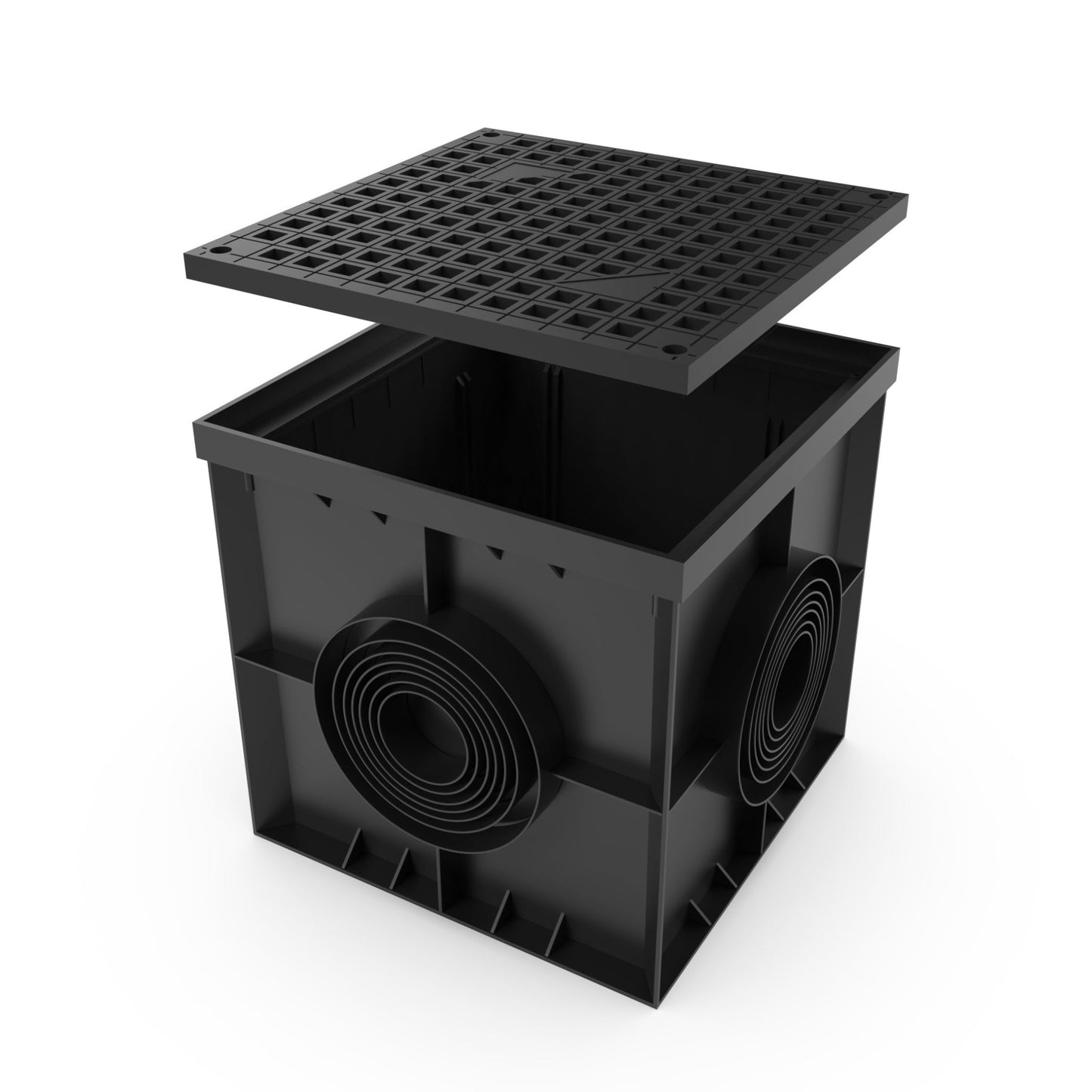

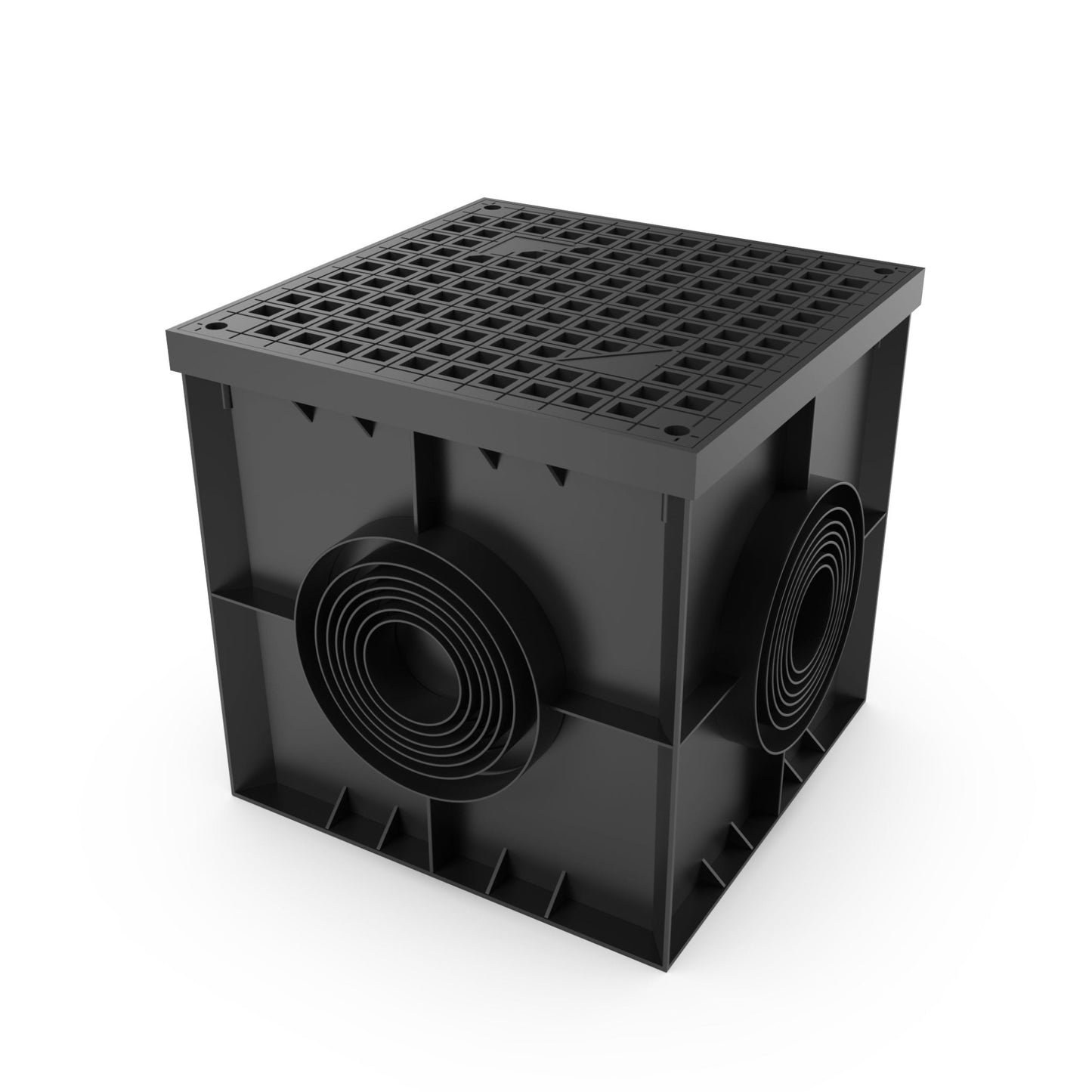

16x16 Catch Basin Plastic Grate Package / A Load Class

A Catch Basin Package designed to provide a one point drainage catch basin solution in patios, porches, walkways and more while being ADA Compliant.

Key Features:
● A load Class - Supports up to 3,372 LBS per foot
● ADA Compliant- Ensures a safe, trip free surface

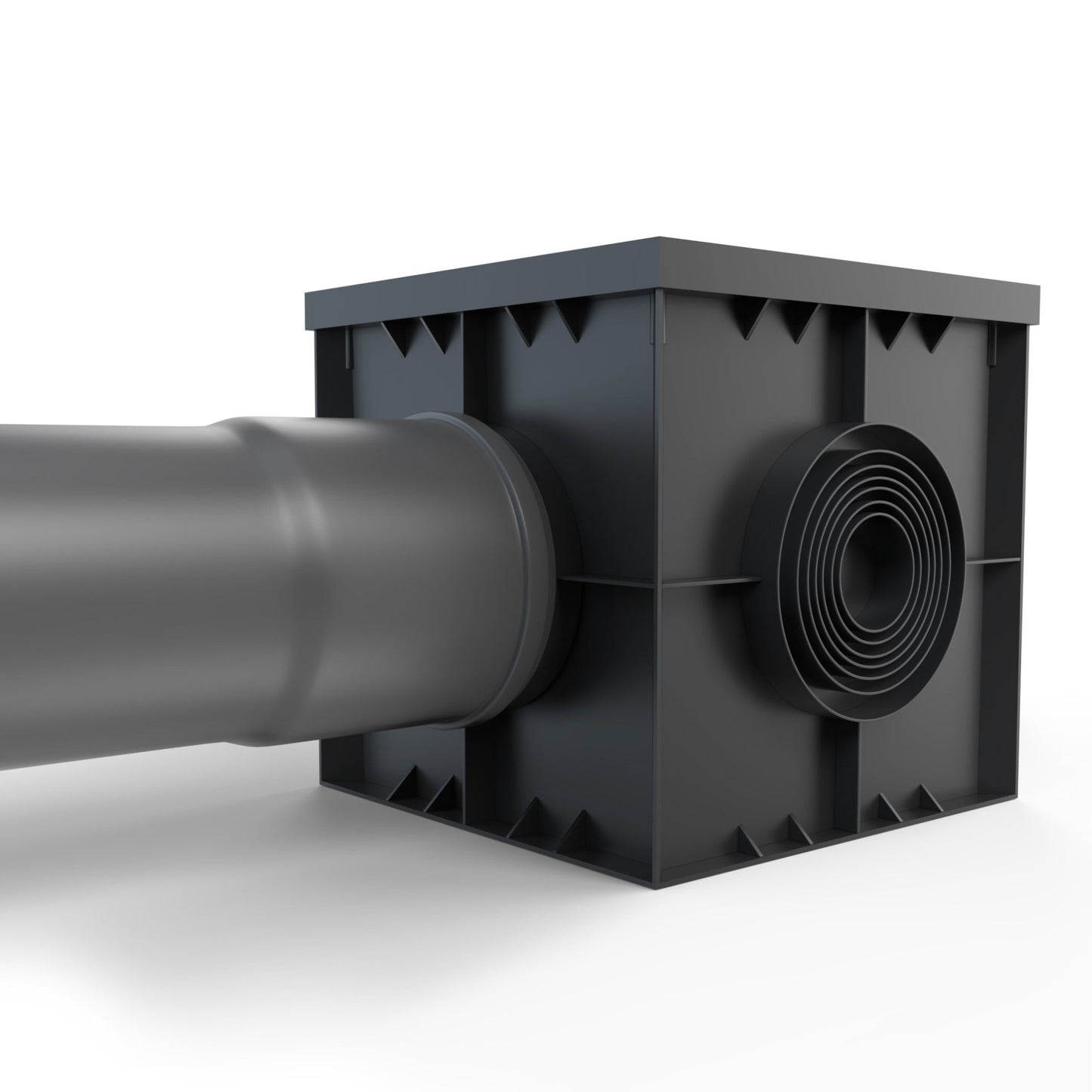

● Multiple Connection Sizes- Connects to 4,6 and 8 inch piping on all 4 sides

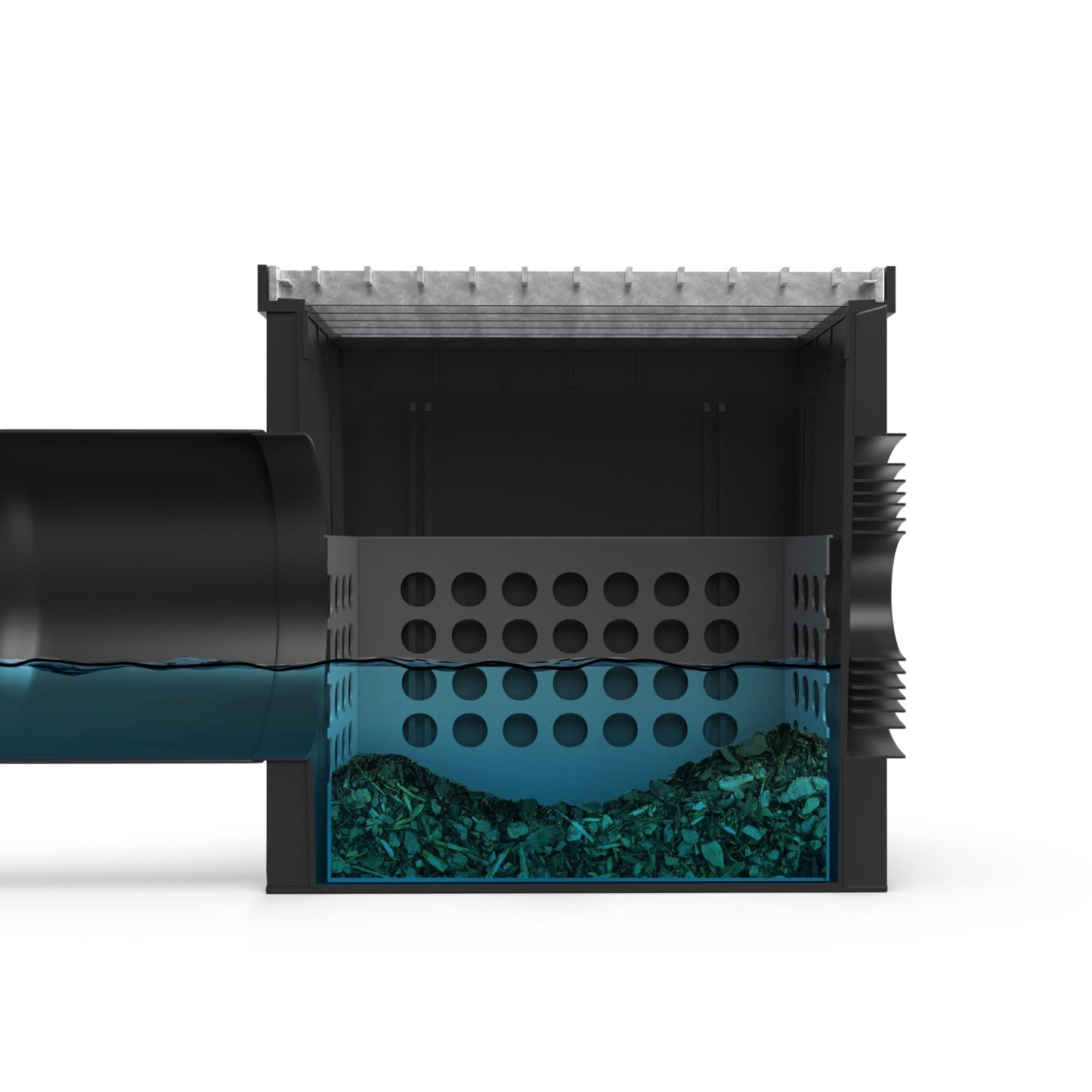

● Debris Basket- Galvanized Debris basket to catch leaves and debris
● Removable Grate- Easy access to debris basket

Expanded Product Overview:
The 16x16 Catch Basin Plastic Grate Package is designed to fit and work with all your drainage needs. In addition to 4,6 and 8 inch pipe outlet connections, the 16x16 Catch Basin Plastic Grate Package will come with two partitions and a galvanized debris basket to catch those leaves and debris from getting into your system. We pride ourselves with our unique grating options and style.

Common Installations:
● Patios
● Porches
● Walkways

Technical Specifications:
● Size- Basin:16" L x 16" W x 16" H, Grate: 15”x15”
● Material- PPE Plastic Basin w/ Galvanized Debris Basket / PPE Plastic Grate
● Load Class- A-Load Class
● Outlet Size- 4,6 and 8 inch

Technical Resources: Load Class Compliance
