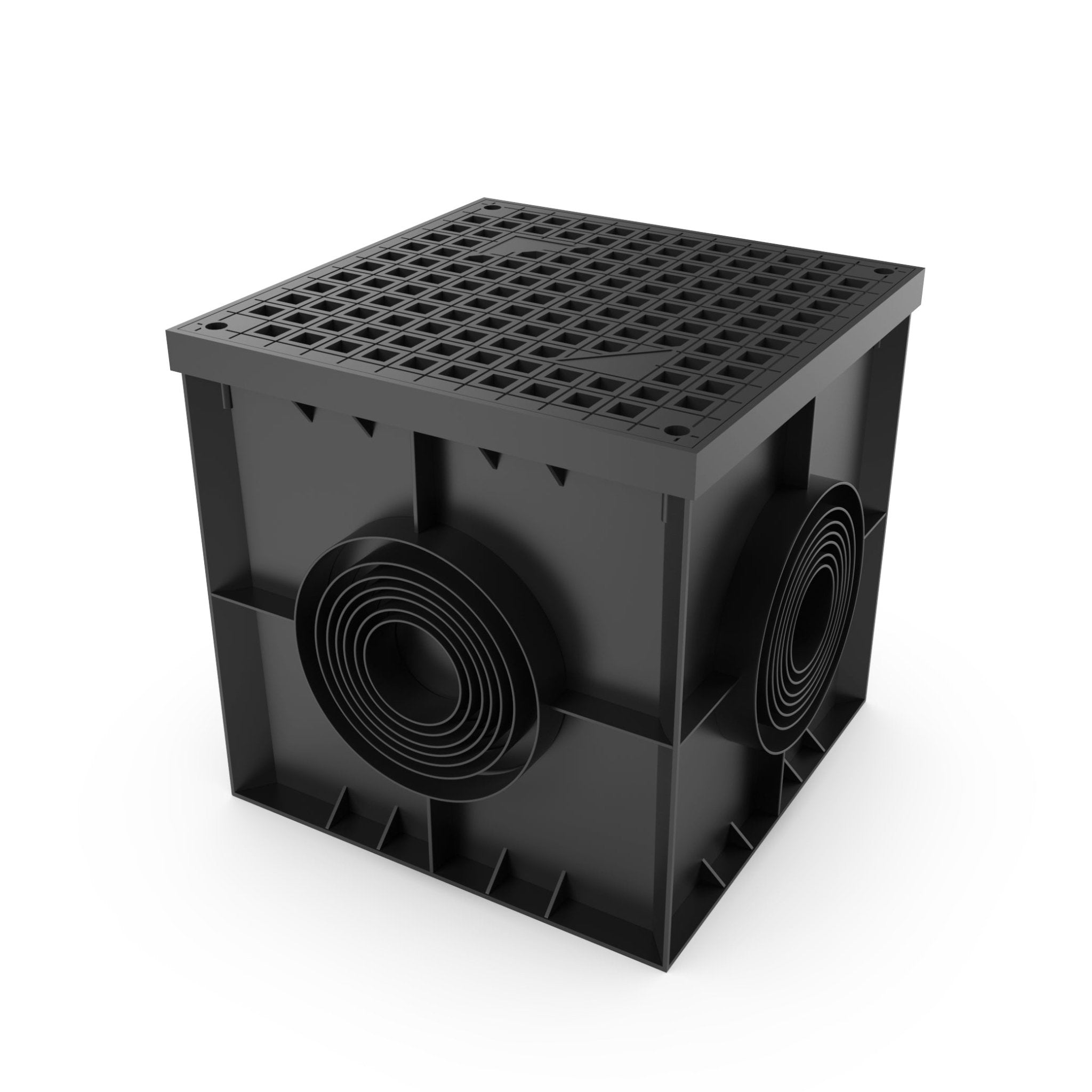

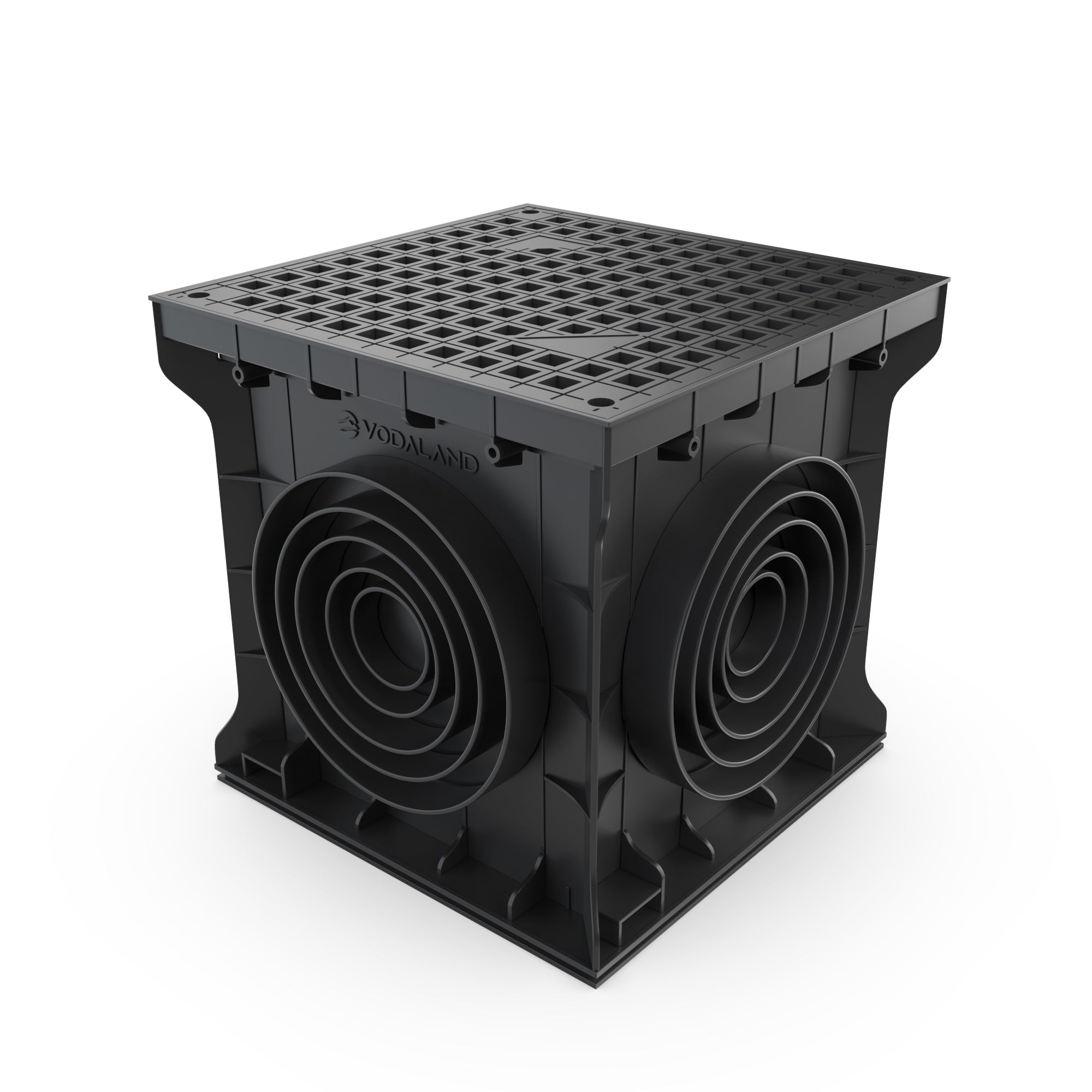

16x16 Catch Basin Plastic Grate Package
16x16 Catch Basin Plastic Grate Package
16x16 Catch Basin Plastic Grate Package
16x16 Catch Basin Plastic Grate Package
- PPE Plastic
- 16"x16"x16"
- A - Load Class
- Porches, Patios, Walkways and more
- More Product Information below
- Trusted by 10,000+ contractors!
Regular price
$281.00
Regular price
Sale price
$281.00
Unit price
per
free shipping over $999
3-5 days delivered
×
Product Details
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
- Available with right angle pipe connections or straight through
- Connects to 4,6 and 8 inch PVC or Corrugated piping.
- ADA Compliant Grating
INCLUDED IN PACKAGE
1 - 16x16 Catch Basin
1 - Plastic Grating
1 - Debris Basket - Galvanized Stamped Steel
For more product information please see product description tab above
Downloads
PDF
DWG
BIM
Specification Sheet
Grate Specification Sheet
Installation Guide
Product Description
Product Description
16x16 Catch Basin Plastic Grate Package / A Load Class
A Catch Basin Package designed to provide a one point drainage solution in patios, porches, walkways and more while being ADA Compliant.
Key Features:
● A load Class - Supports up to 3,372 LBS per foot
● ADA Compliant- Ensures a safe, trip free surface

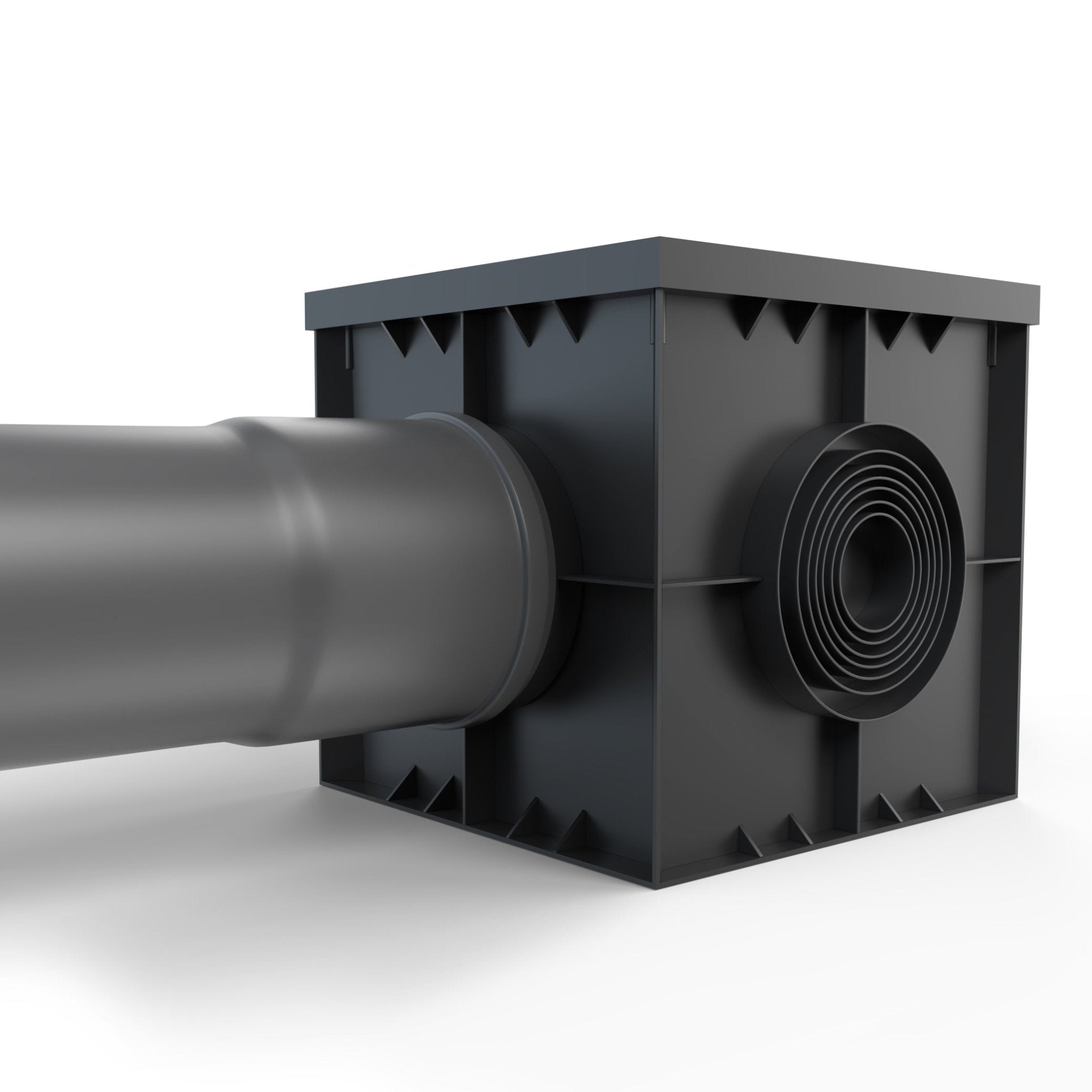

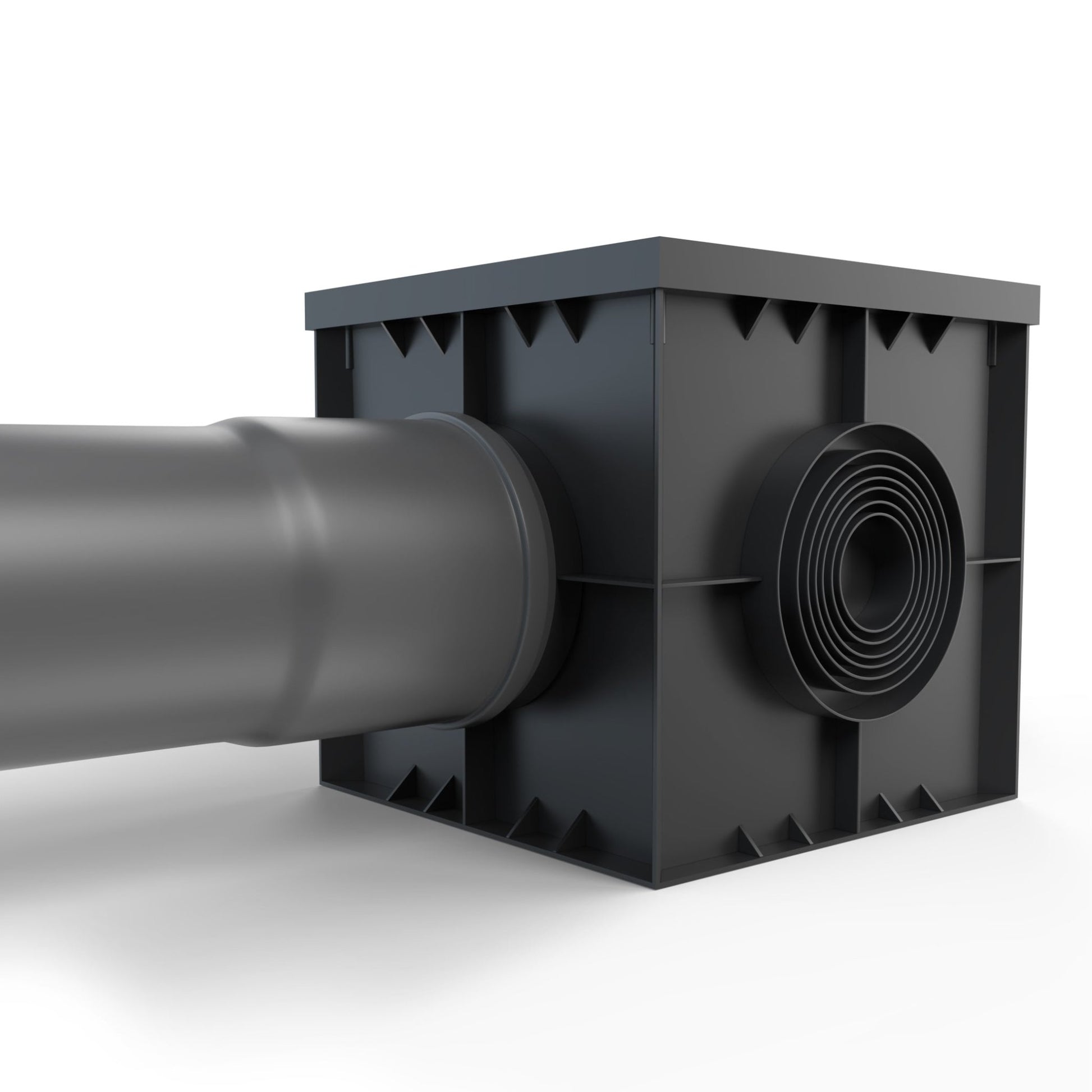

● Multiple Connection Sizes- Connects to 4,6 and 8 inch piping on all 4 sides

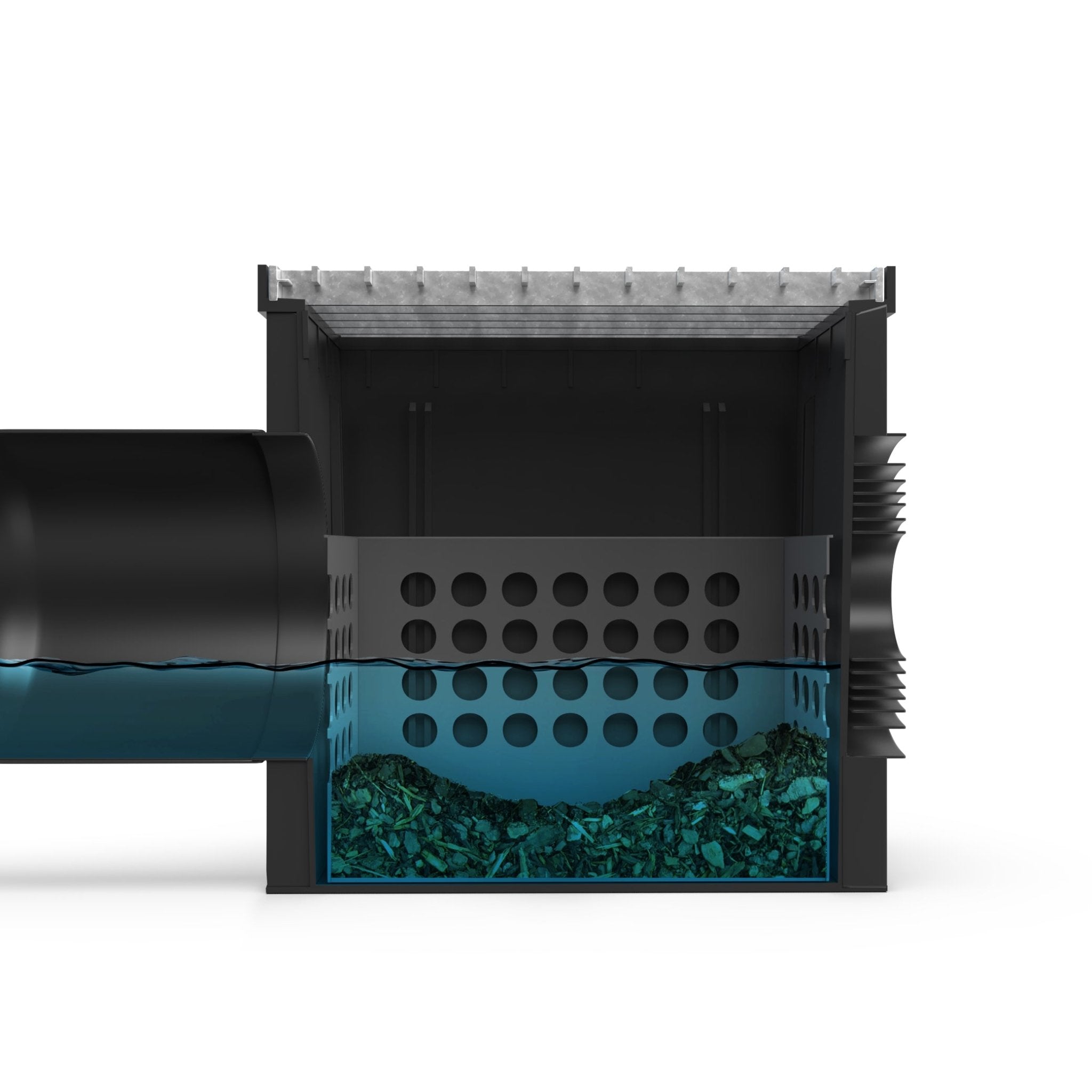

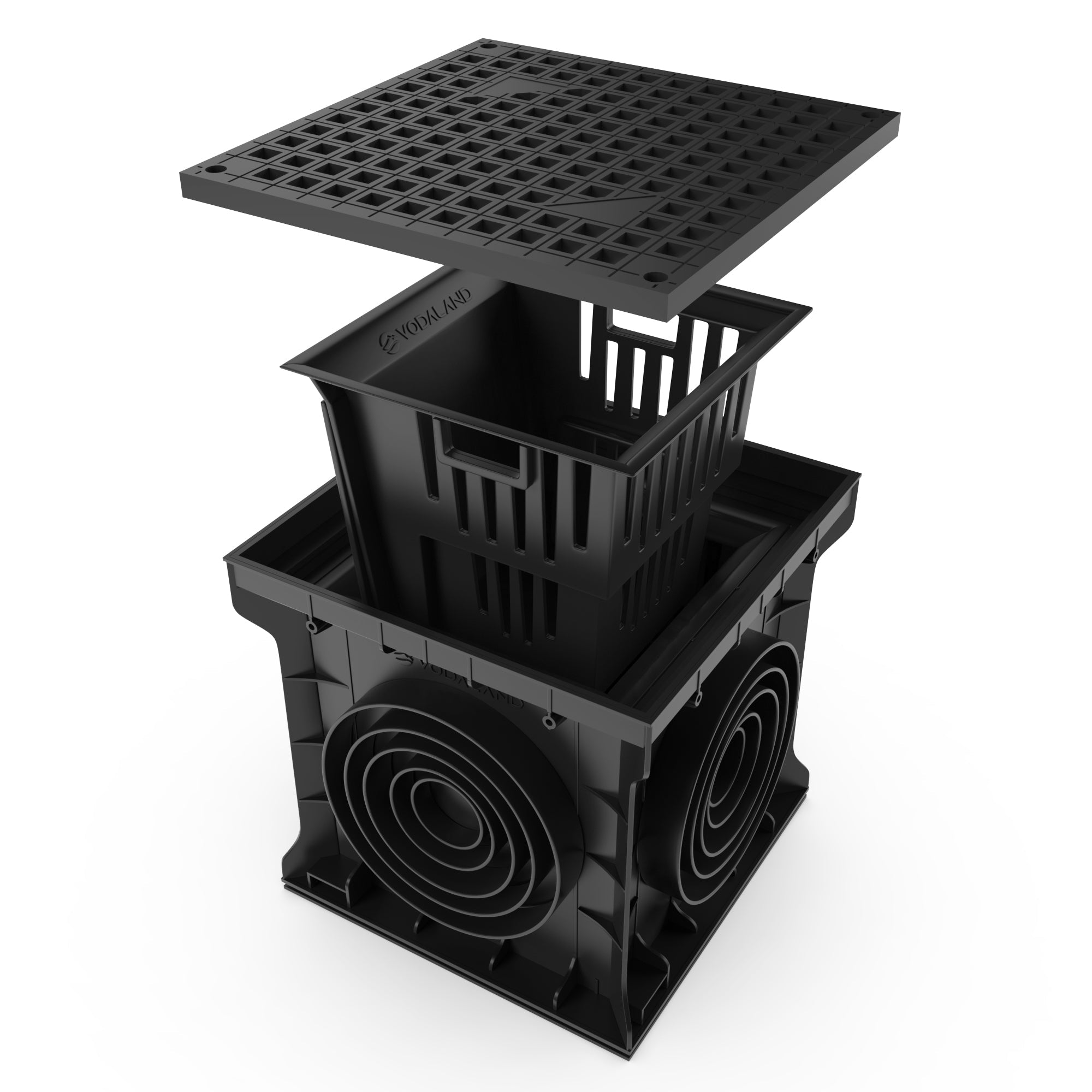

● Debris Basket- Galvanized Debris basket to catch leaves and debris

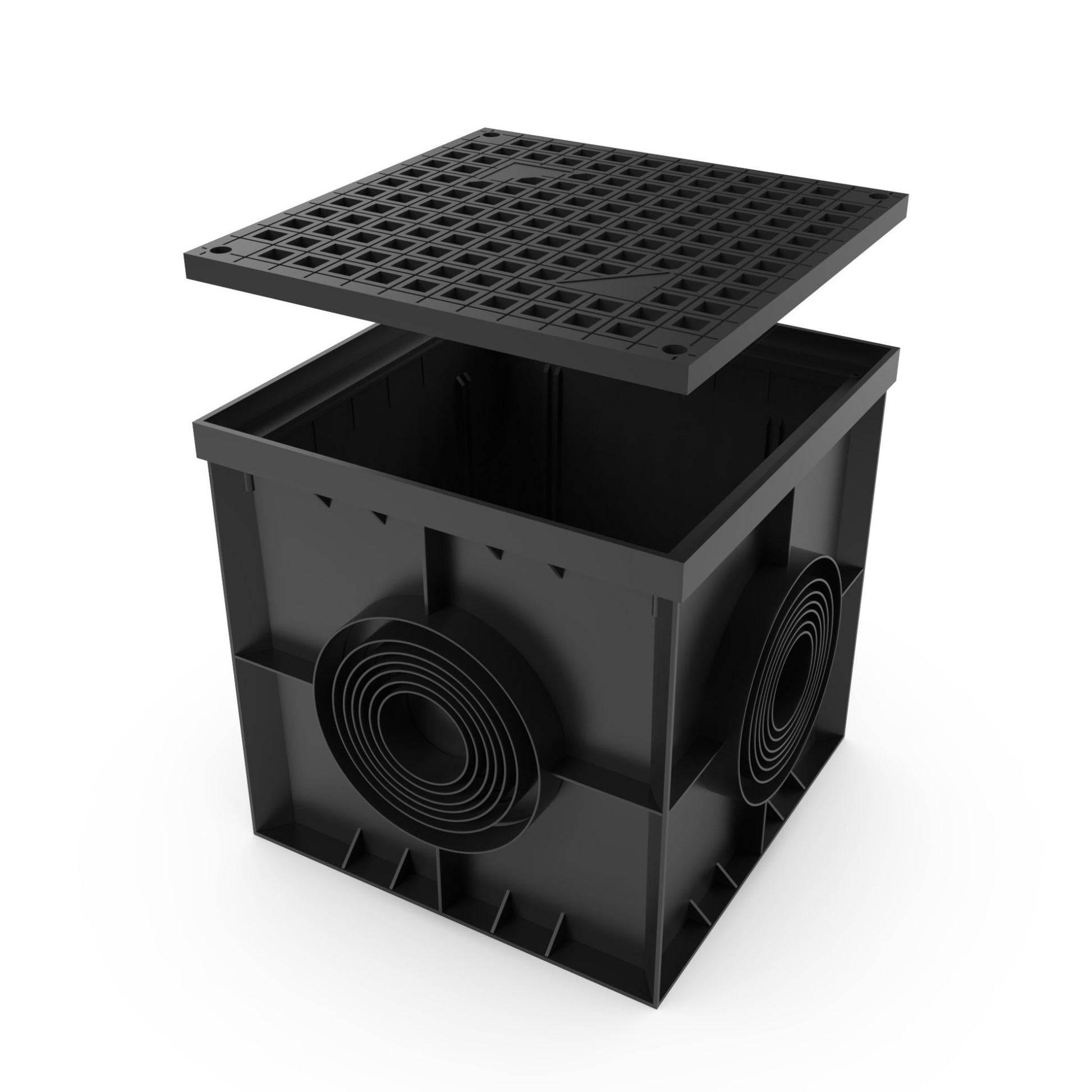

● Removable Grate- Easy access to debris basket
The 16x16 Catch Basin Plastic Grate Package is designed to fit and work with all your drainage needs. In addition to 4,6 and 8 inch pipe outlet connections, the 16x16 Catch Basin Plastic Grate Package will come with two partitions and a galvanized debris basket to catch those leaves and debris from getting into your system. We pride ourselves with our unique grating options and style.
Common Installations:
● Patios
● Porches
● Walkways
Technical Specifications:
● Size- Basin:16" L x 16" W x 16" H, Grate: 15”x15”
● Material- PPE Plastic Basin w/ Galvanized Debris Basket / PPE Plastic Grate
● Load Class- A-Load Class
● Outlet Size- 4,6 and 8 inch
