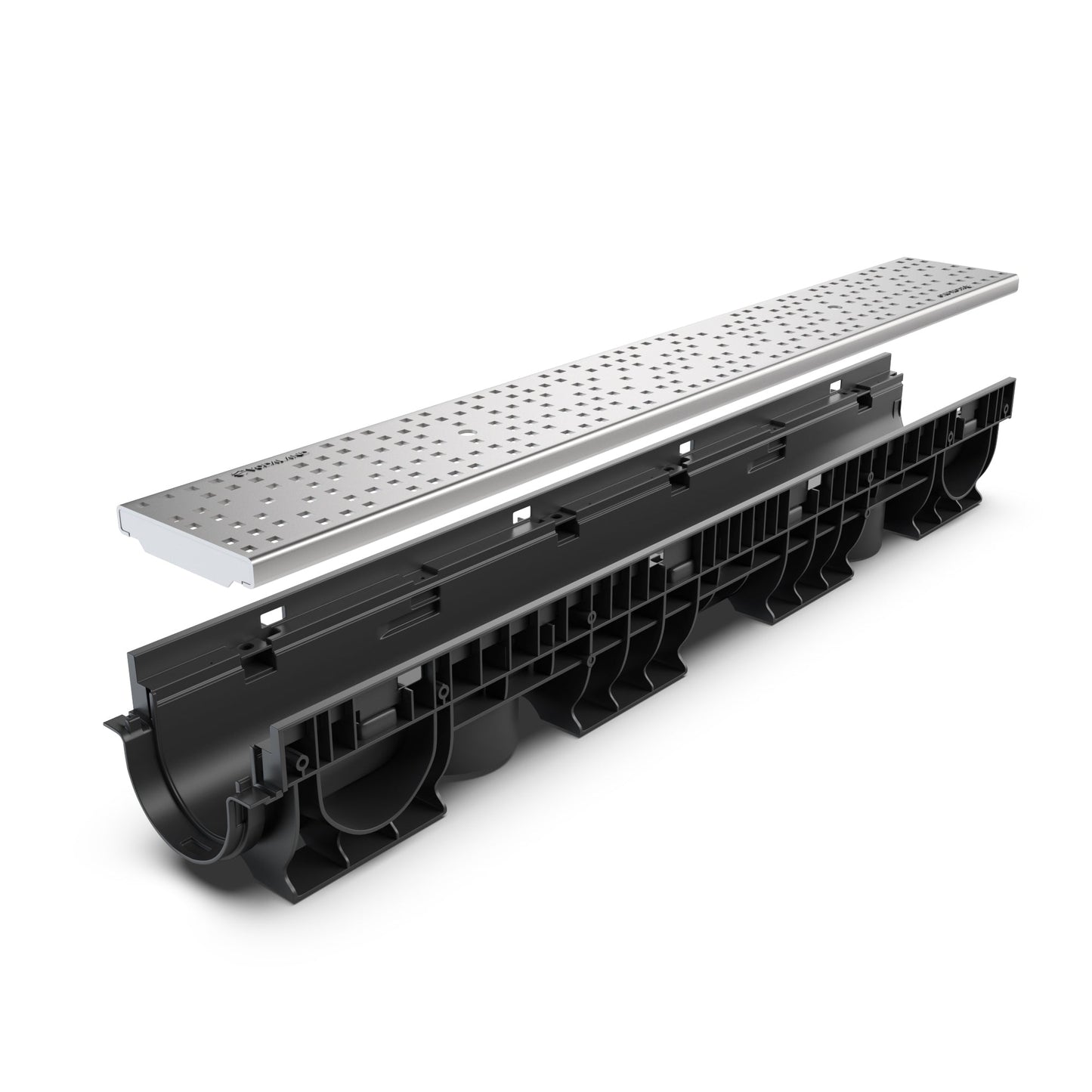

4” Stainless ADA / Heel Proof Edgeless Package - Maximum durability and safety

The 4” Stainless ADA/Heel-Proof Edgeless Package offers an ideal water drainage solution for areas with foot or light-to-medium vehicle traffic, where both performance and aesthetics are important.

Key Features
● B/C Load Class – Square top design is made for light traffic areas, and the circle top design is suitable for medium load vehicles
● Pre-sloped – Built in slope, as the run gets longer the channels will continuously get deeper in depth
● ADA/Heel Compliant – Built to keep walkways safe and accessible for everyone
● Edgeless – Provides a smooth, clean appearance from above

Expanded Product Overview: Ideal Applications:

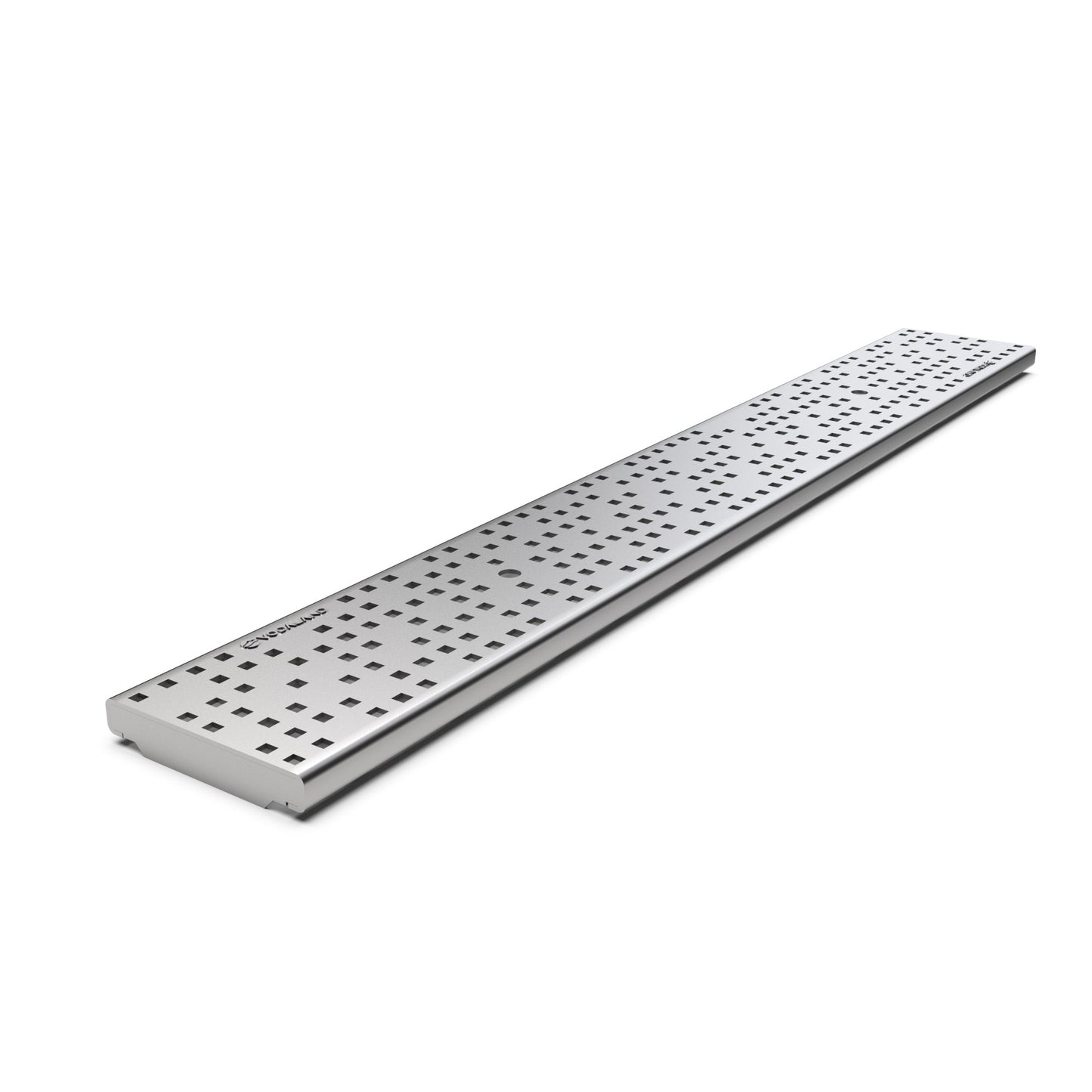

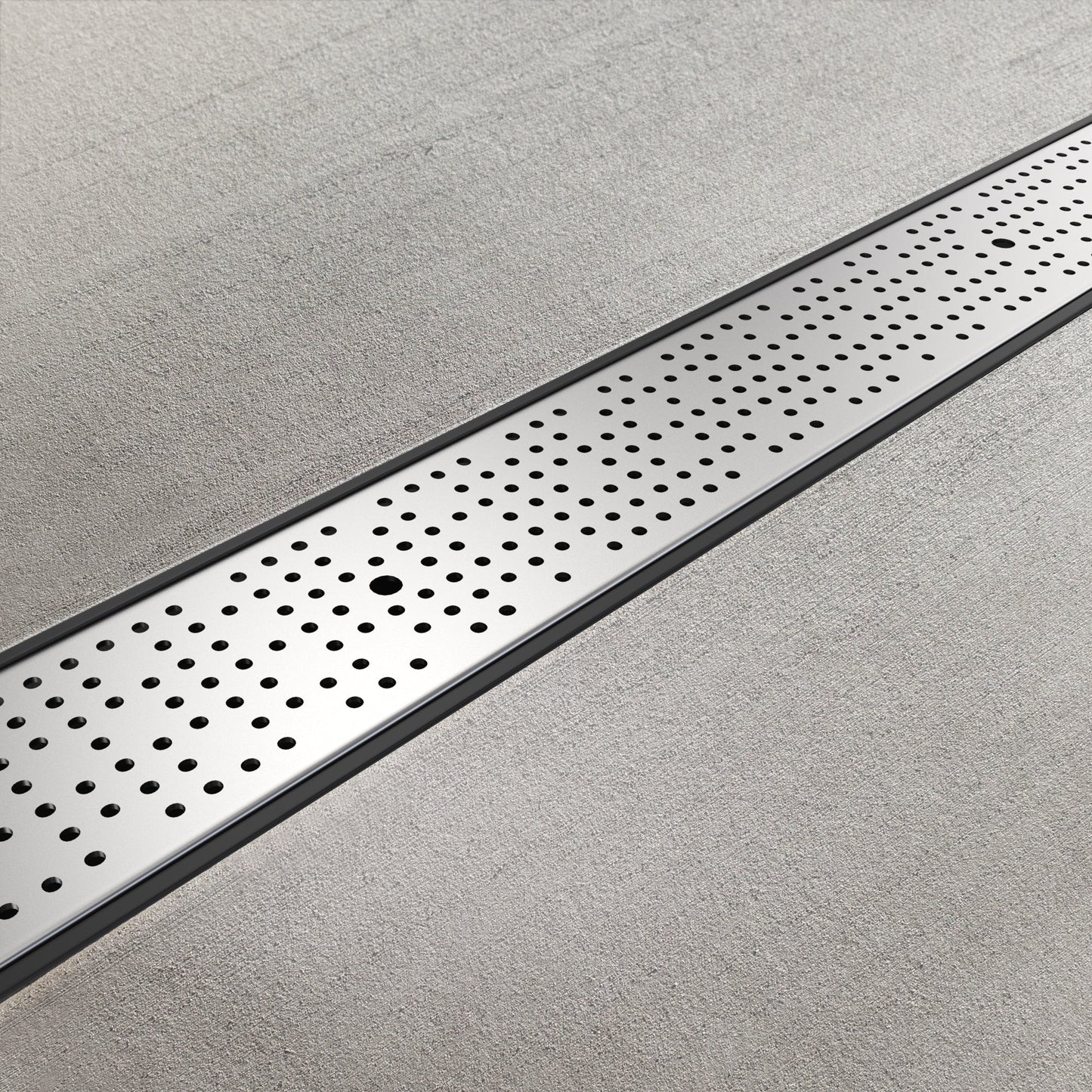

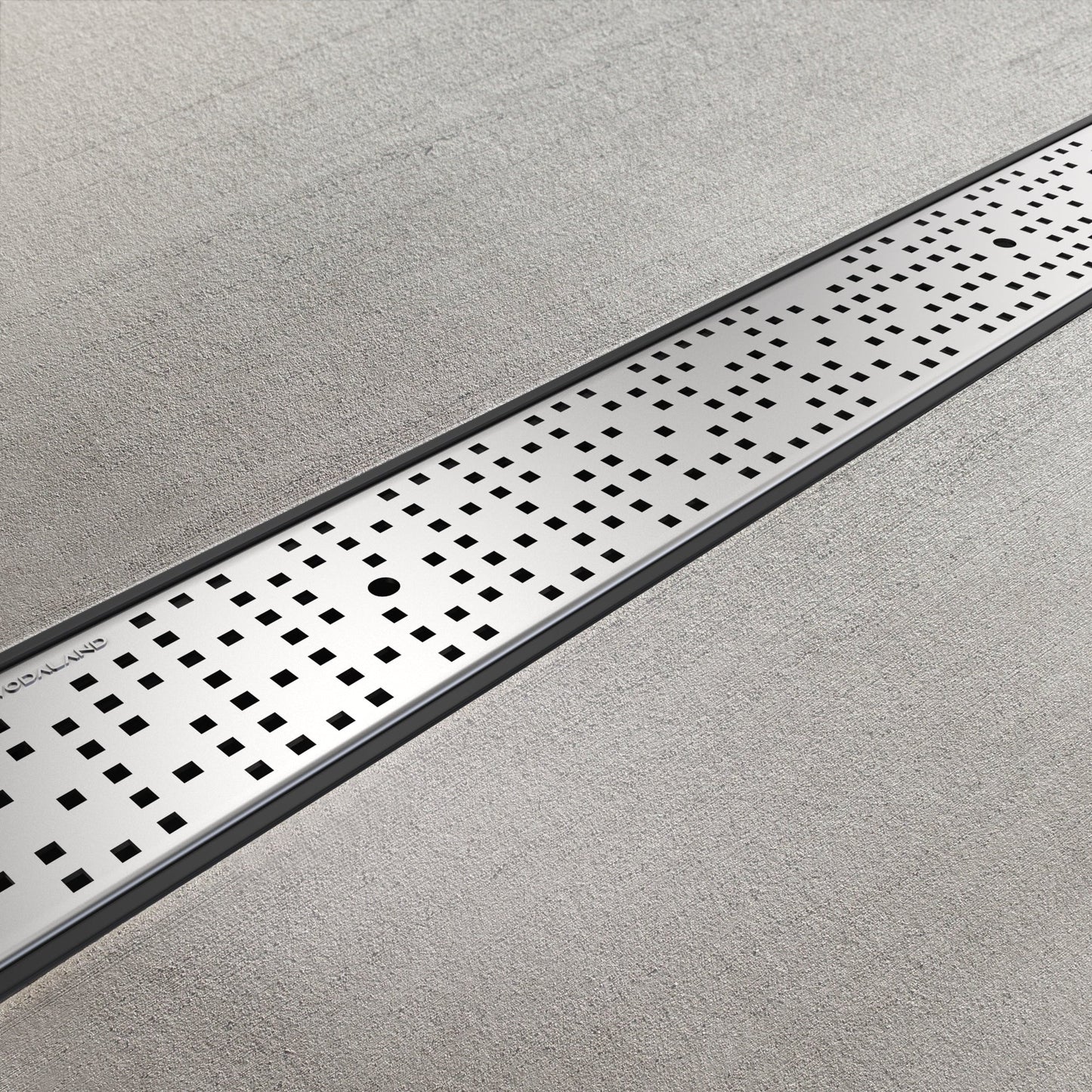

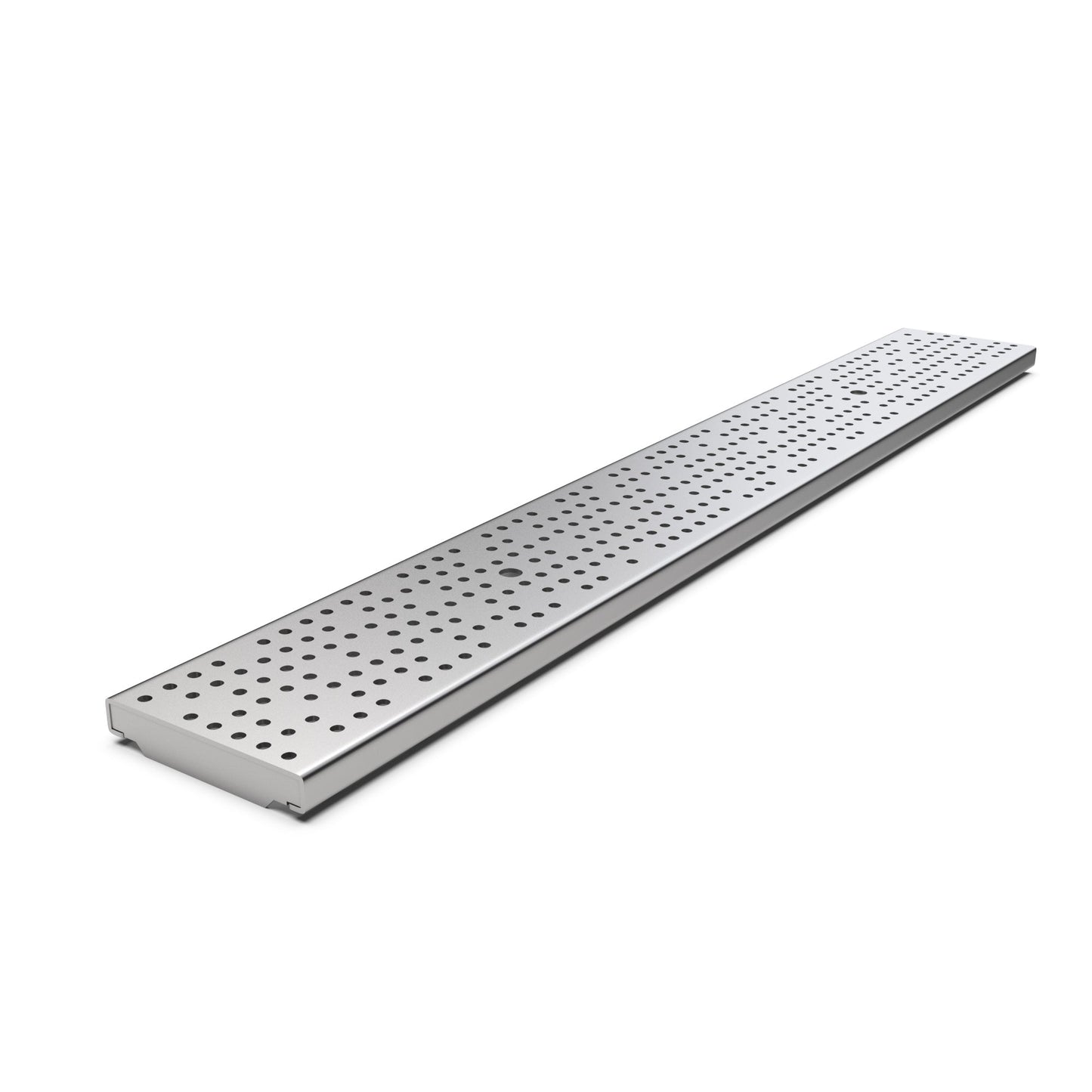

The Vodaland 4” Stainless Steel ADA/Heel-Proof Edgeless Package comes with two great grate options to choose from. You can go with the Load Class B grate with square holes, perfect for foot traffic or light vehicles, or the Load Class C grate with circular holes for areas that need a bit more strength. Both options are ADA-compliant, heel-proof, and made from durable, corrosion-resistant 304 stainless steel, so they’re built to last even in wet or humid conditions.

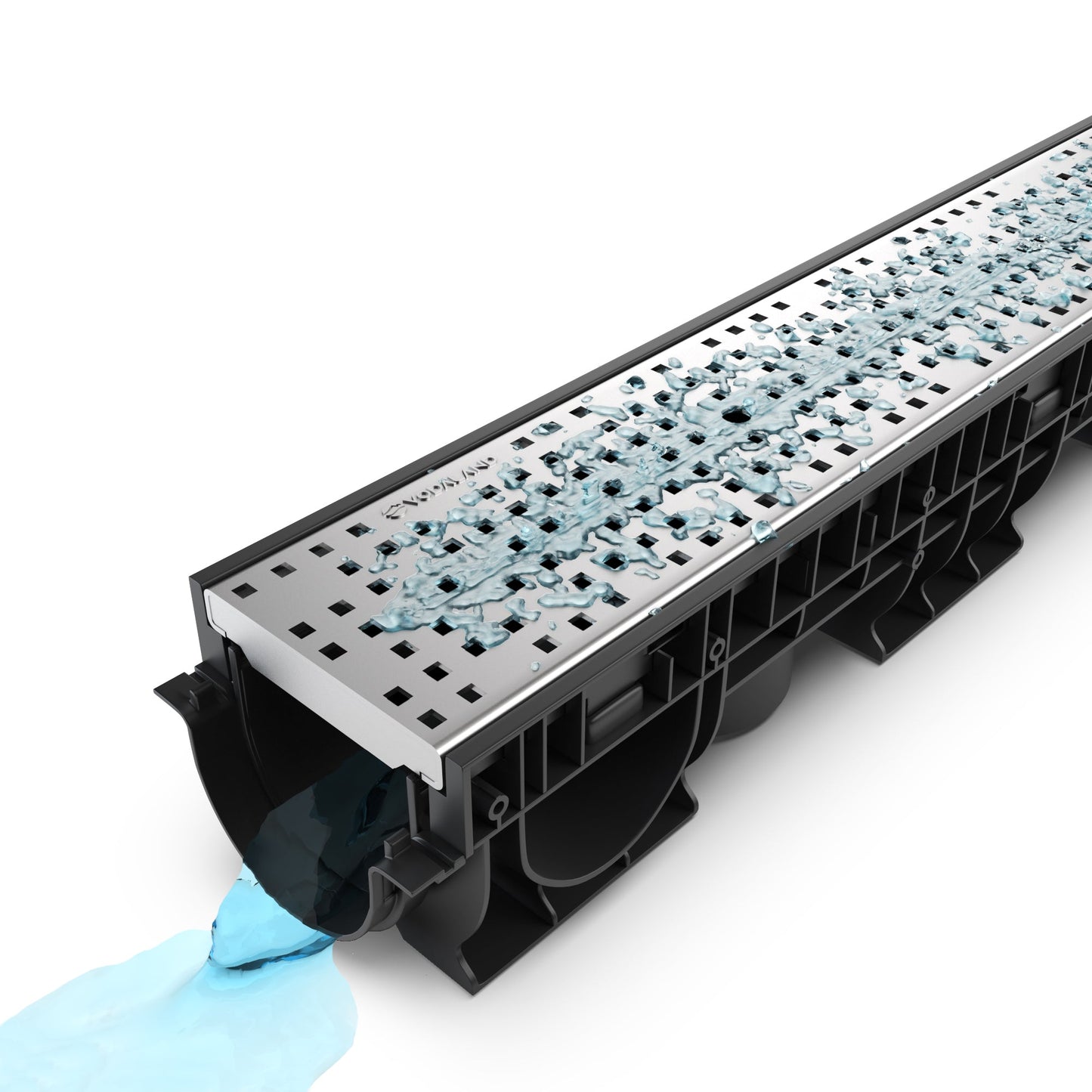

This system features an internal slope to promote efficient water flow. Optional 90-degree cutouts allow for flexible layout configurations, making the 4” Stainless ADA / Heel Proof Edgeless Package an ideal choice for high-performance drainage with ADA-compliance surface ensures safe access for pedestrians, wheelchairs, and carts, making it a versatile solution for both public and commercial spaces.

Common Applications:
● Pools
● Driveways
● Warehouse
● Shops
● Sidewalks

Technical Specifications:
●Material: PPE Plastic – 304 Stainless Steel (Grating)
● Dimensions: 39.5” L X 5.8” W
● Load Capacity: B Load Class – 27,500 LBS / C Load Class 55,000 LBS
● Internal Width: 4”
● Connection Type: Snap and Lock
● Grating Color: Stainless Steel
