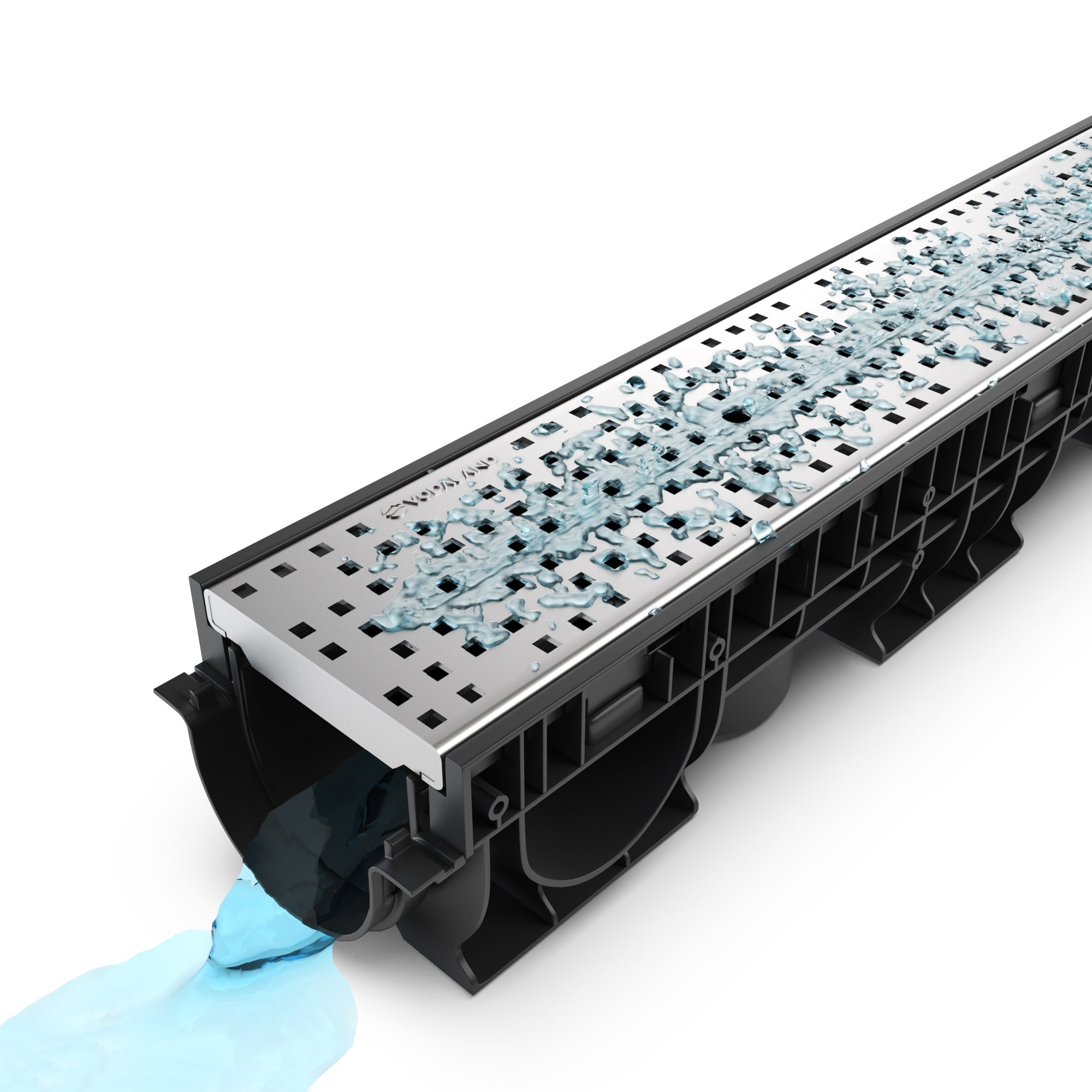

4" Stainless ADA / Heel Proof Edgeless Package

4" Stainless ADA / Heel Proof Edgeless Package

Regular price $275.00
Regular price Sale price $275.00
Sale Sold out
free shipping over $999
3-5 days delivered
View full details
  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • 4" Internal width stainless steel B class or C Class ADA and heel proof Package

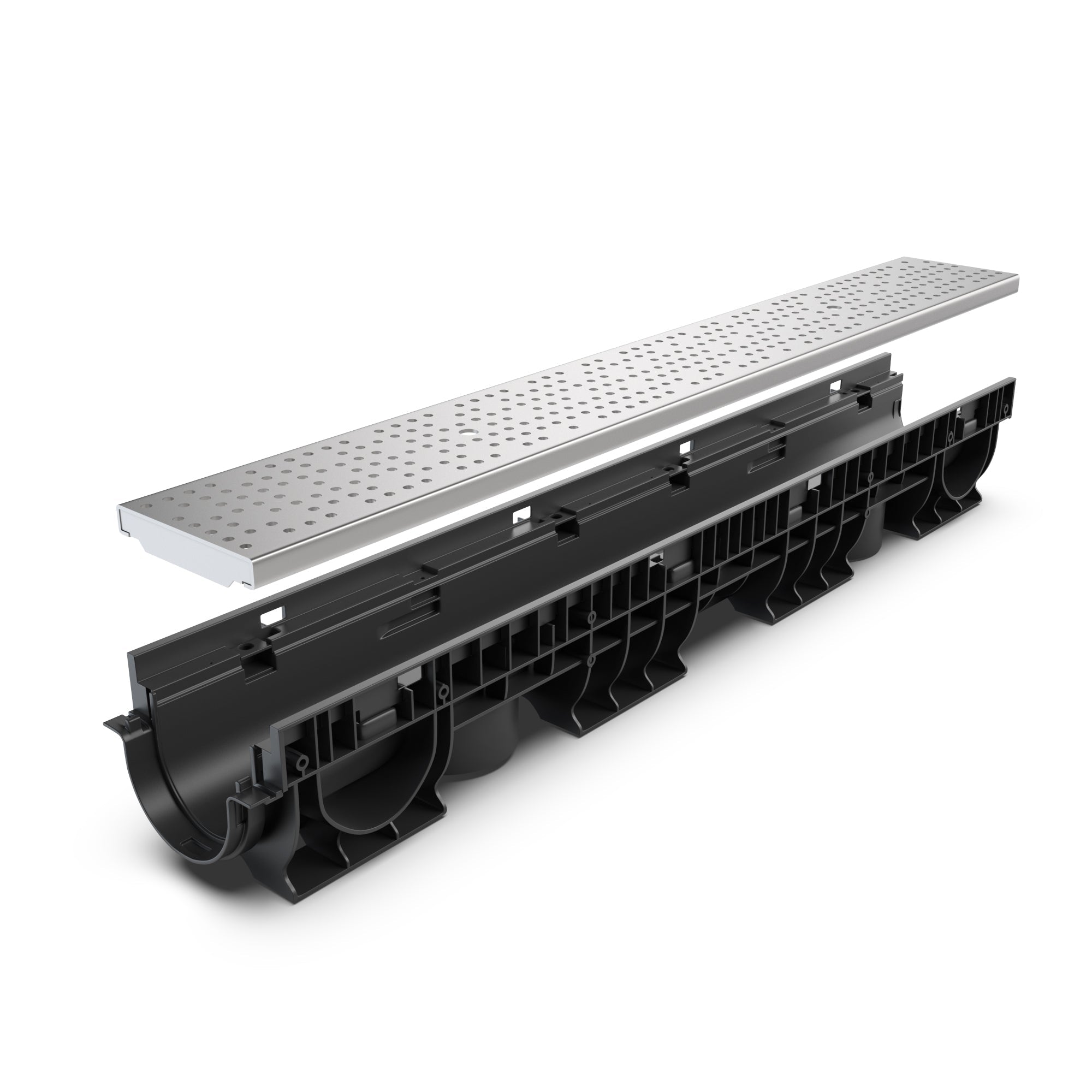

  • Comes with stainless steel grate, channel and fasteners
  • Vehicle load rated, ADA Compliant
  • Connect multiple channels for longer run
  • 4" PVC or corrugated pipe bottom outlet option on each channel with schedule 40 adapter

INCLUDED IN PACKAGE

- Channel Depth of Choice

1 - Unit of Stainless Steel B or C Class Grating

2 - Grating Fasteners

For more product information please see product description tab above

Downloads
PDF
DWG
BIM
Channel Specification Sheet
PDF :
B Class Grating Specification Sheet
PDF :
DWG :
C Class Grating Specification Sheet
PDF :
DWG :
Installation Guide
PDF :

Product Description

Product Description

This package is fitted with our ADA and heel proof Stainless Steel with either a B Class grating with square holes which has a weight load rating at 27,500 lbs or a C Class grating with circular holes in it. Either is perfect for around a pool or a warehouse. Comes with channel brackets for fastening grating down tight, and the channel itself.

Each channel is 3.3 ft in length, with a snap and lock connection so you can attach end to end to create a longer and custom size run.  In addition, each channel has a 90 degree turn already within the system - no adapters needed! Please see below for outlet specs per channel depth.

Made with our thicker high-board grates and channels.

With this Pre Slope system you can create a run up to 43 ft in length with a 1% slope. With an option of an option of a 4" outlet on the end no matter the channel run length.

Each of these systems will also have end cap outlet options available as well.

For Pre Slope Channel articles please see the Pre Slope specification sheet.

Material ............. PPE Plastic & 304 Stainless Steel

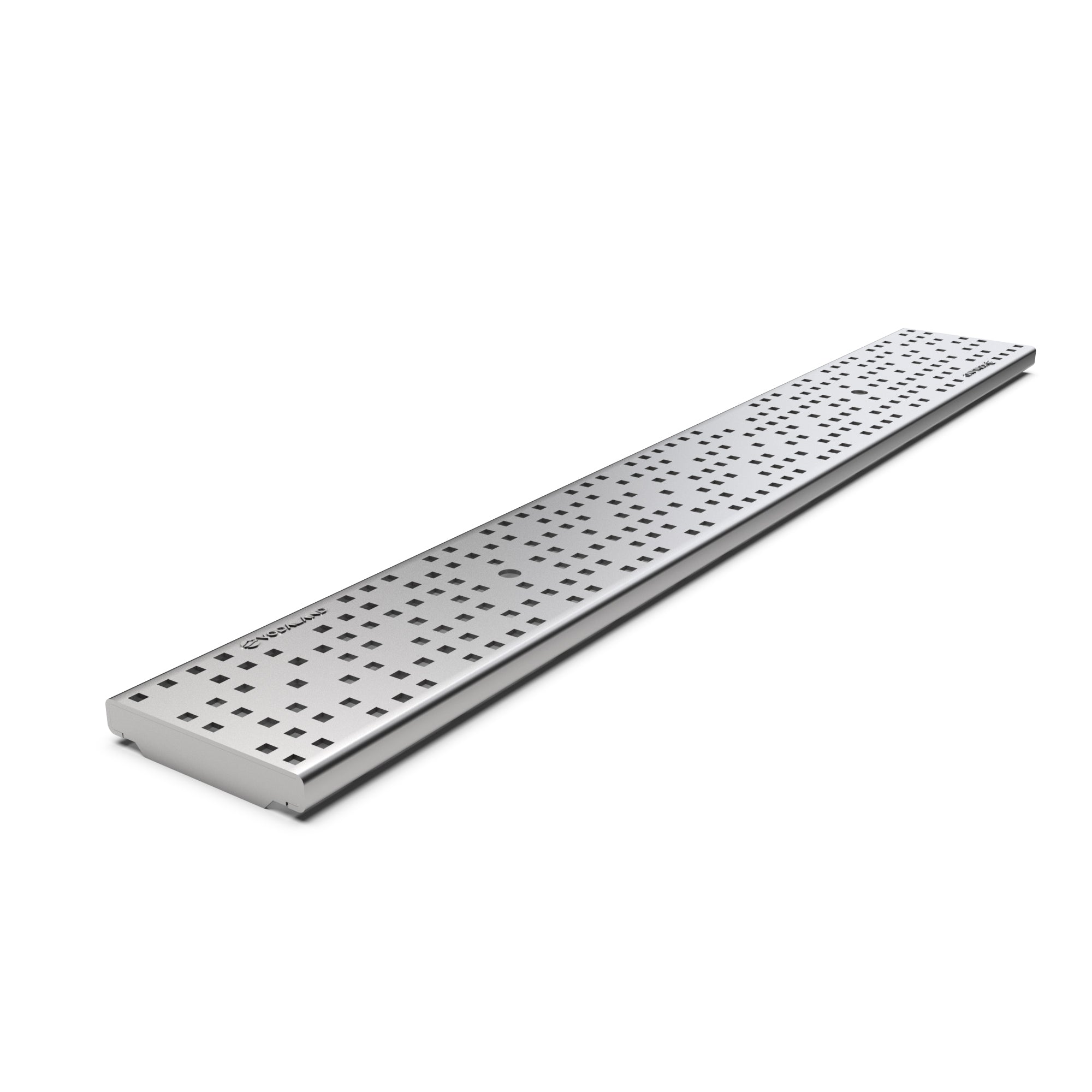

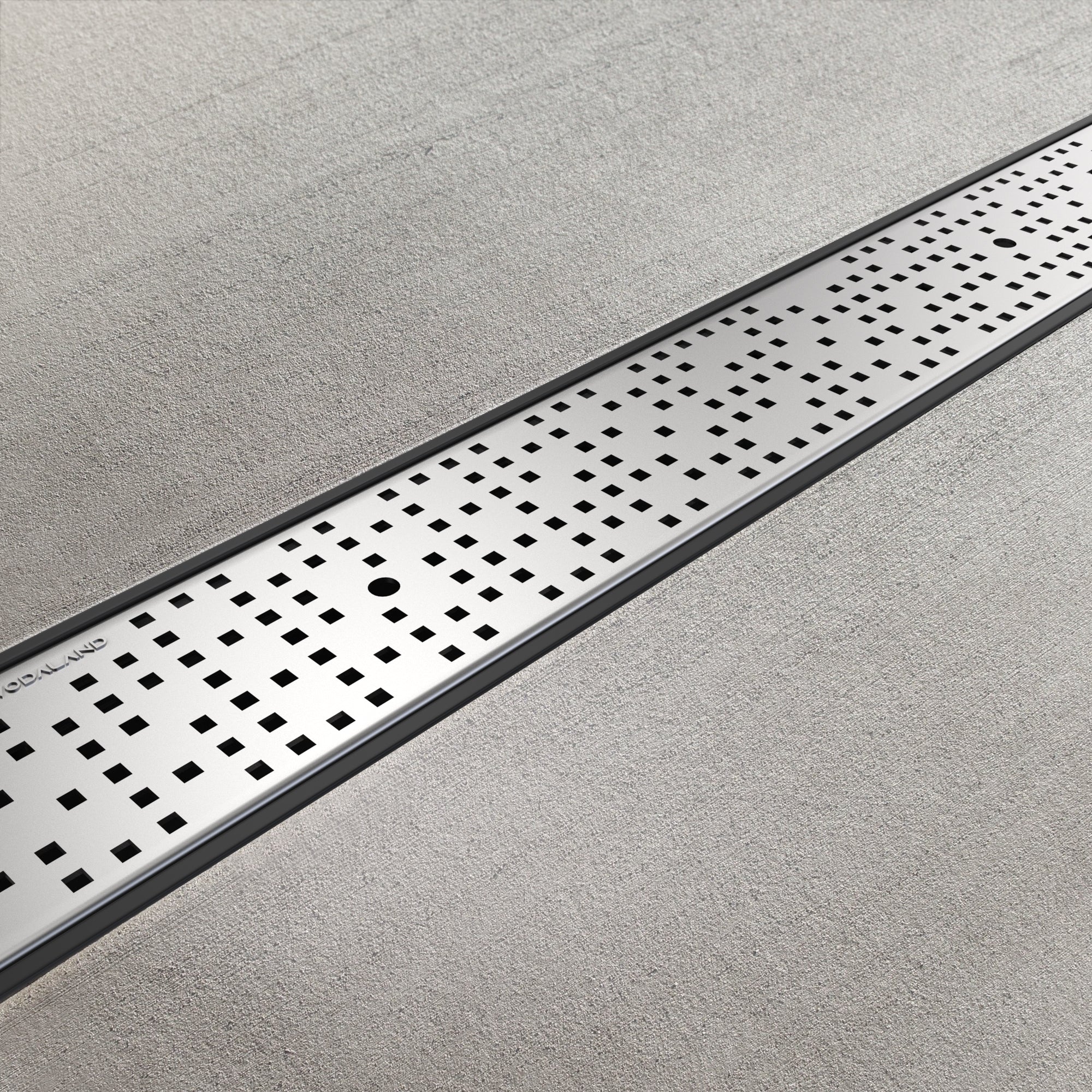

Grating Article....205020.22 - Square B-Class

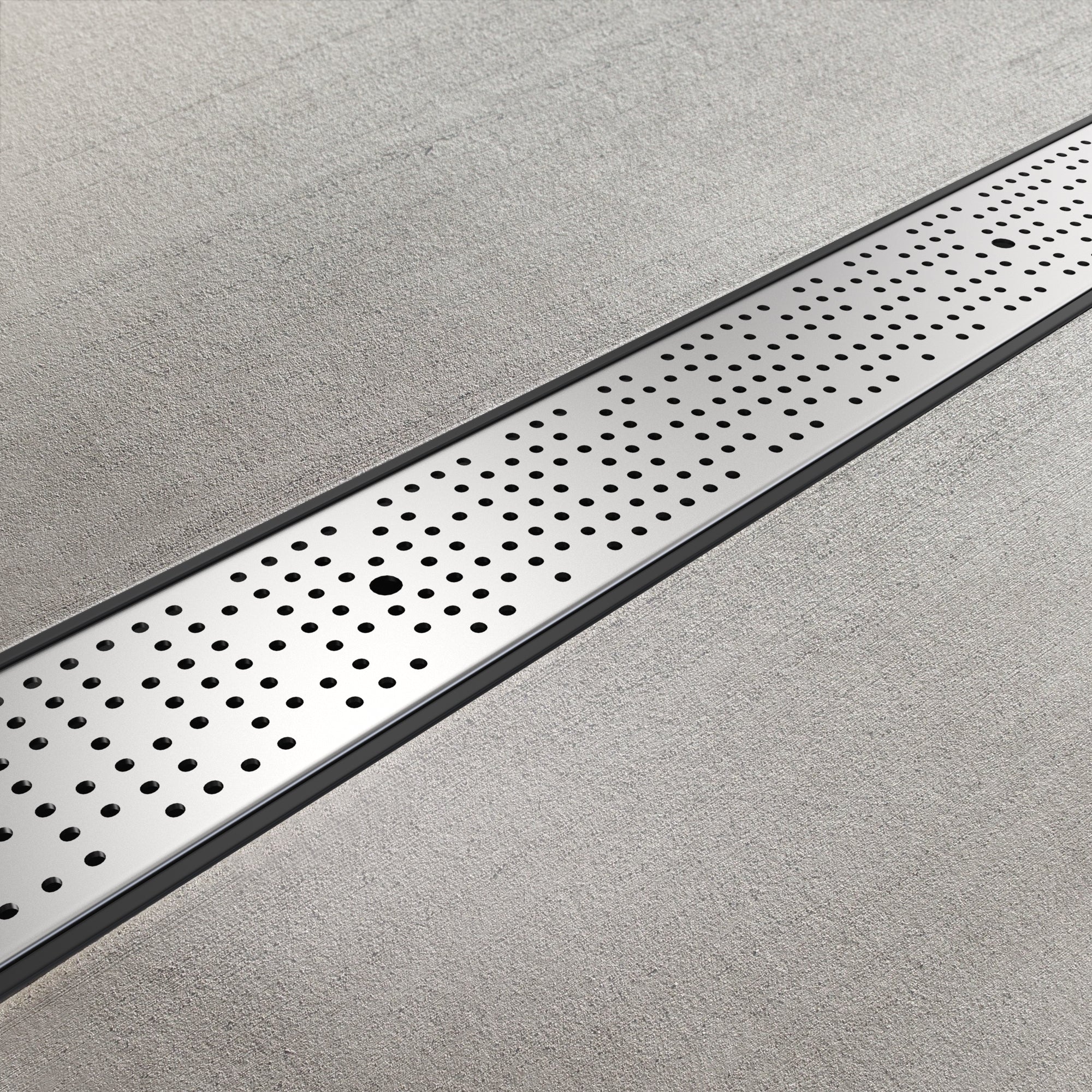

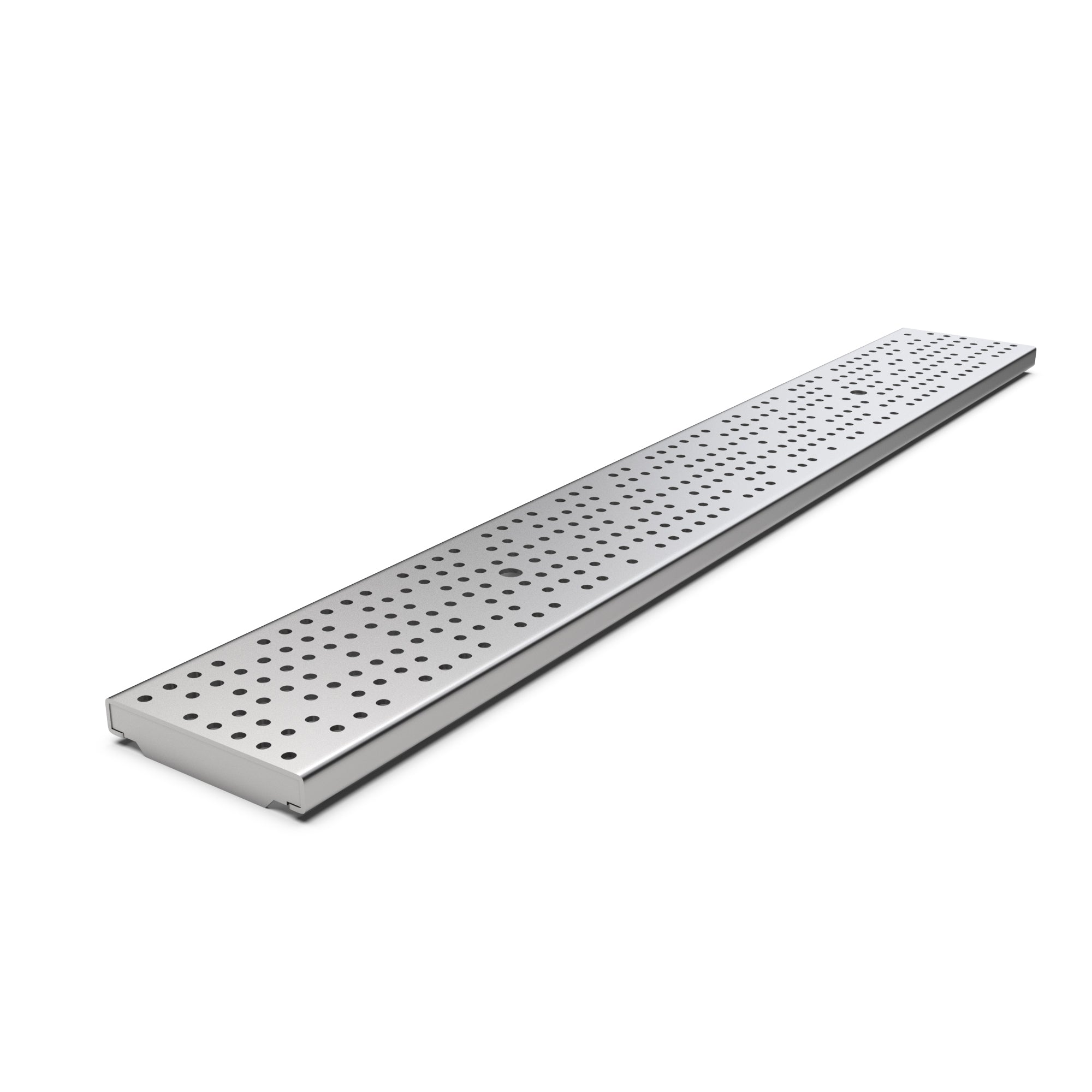

                        ....205030.2 - Circular C-Class

Dimensions ....... 39.4"L x 5.8"W

Load Class ....... B Class - 27,500 LBS

INCLUDED IN PACKAGE

1 - Channel

1 - Unit of Stainless Steel B Class Grating

2 - Grating Fasteners
