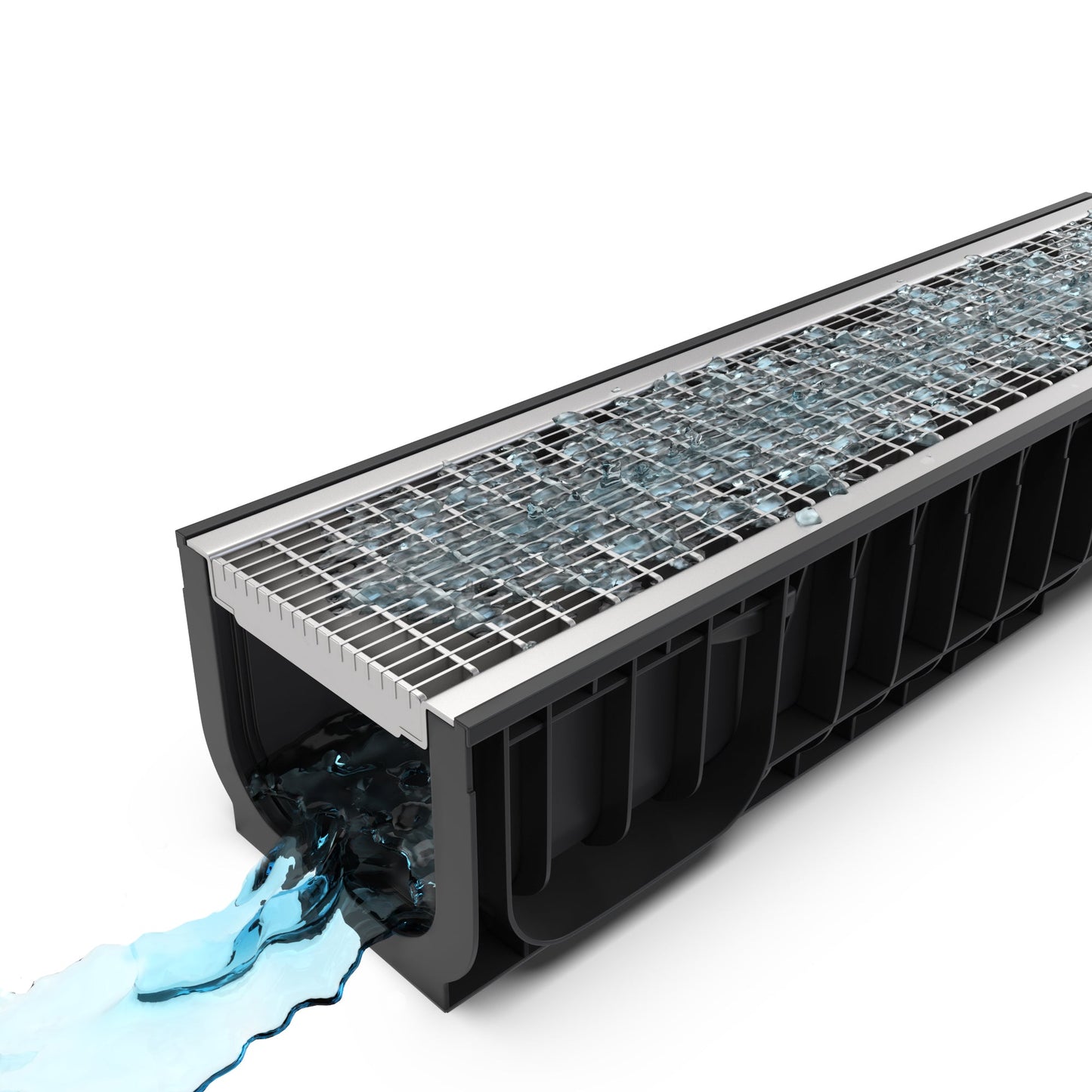

8" Channel Stainless B Class ADA Package

8" Channel Stainless B Class ADA Package

Regular price $545.00
Regular price $577.00 Sale price $545.00
Sale Sold out
free shipping over $999
3-5 days delivered
View full details
  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • 8" Internal width stainless steel ADA package
  • Two channel depth options - 3 inch and 8 inch

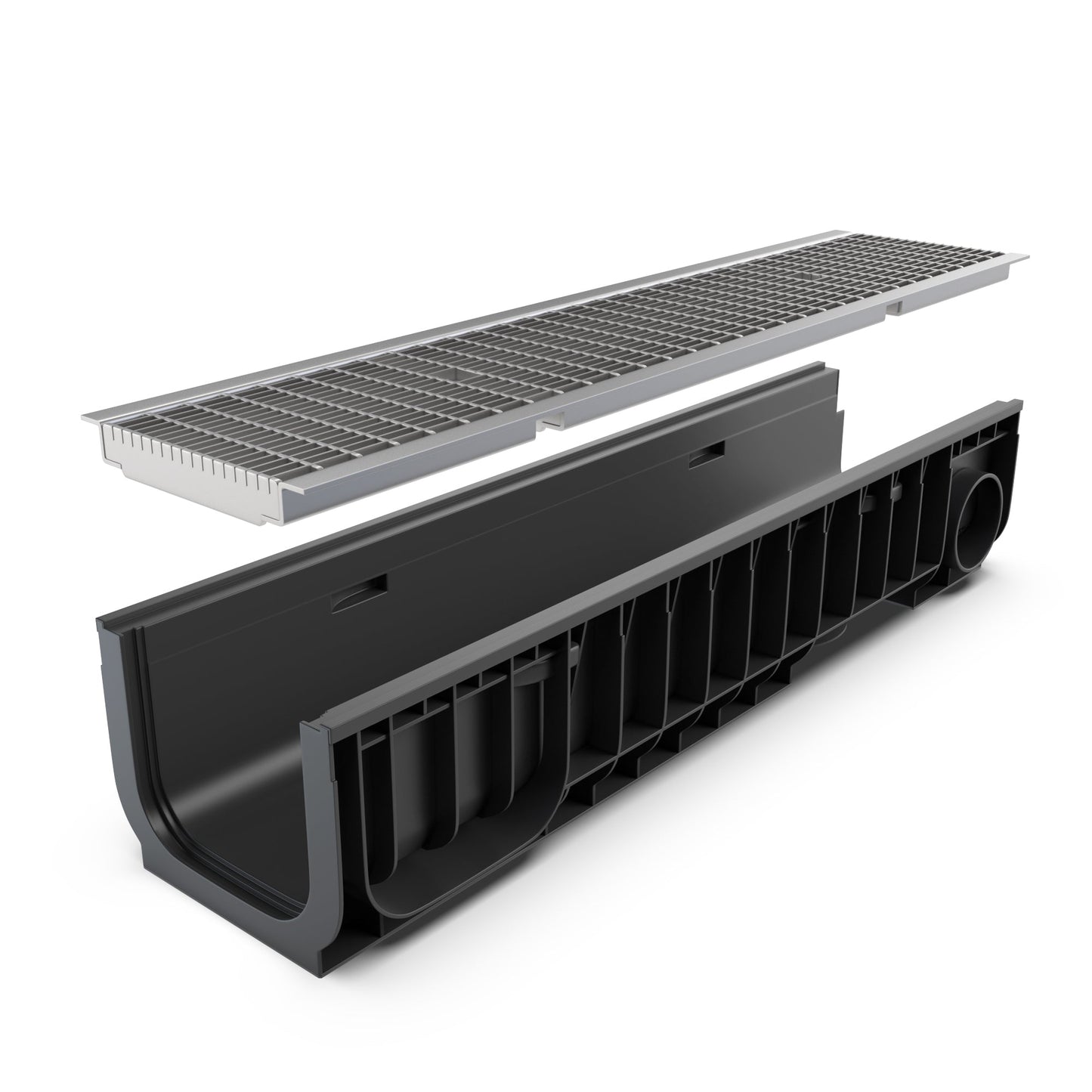

  • Comes with stainless grate, channel, brackets and end caps
  • Heavy duty load rated
  • Connect multiple channels for longer run
  • 4" and 6" PVC or corrugated pipe bottom outlet options
  • 4" PVC or corrugated pipe options out of the included end caps on the 8" depth option
  • More product details below
  • grating specification pdf
  • 3 inch channel depth pdf
  • 3 inch channel depth cad
  • 8 inch channel depth pdf
  • 8 inch channel depth cad
  • installation brochure

Product Description

Product Description

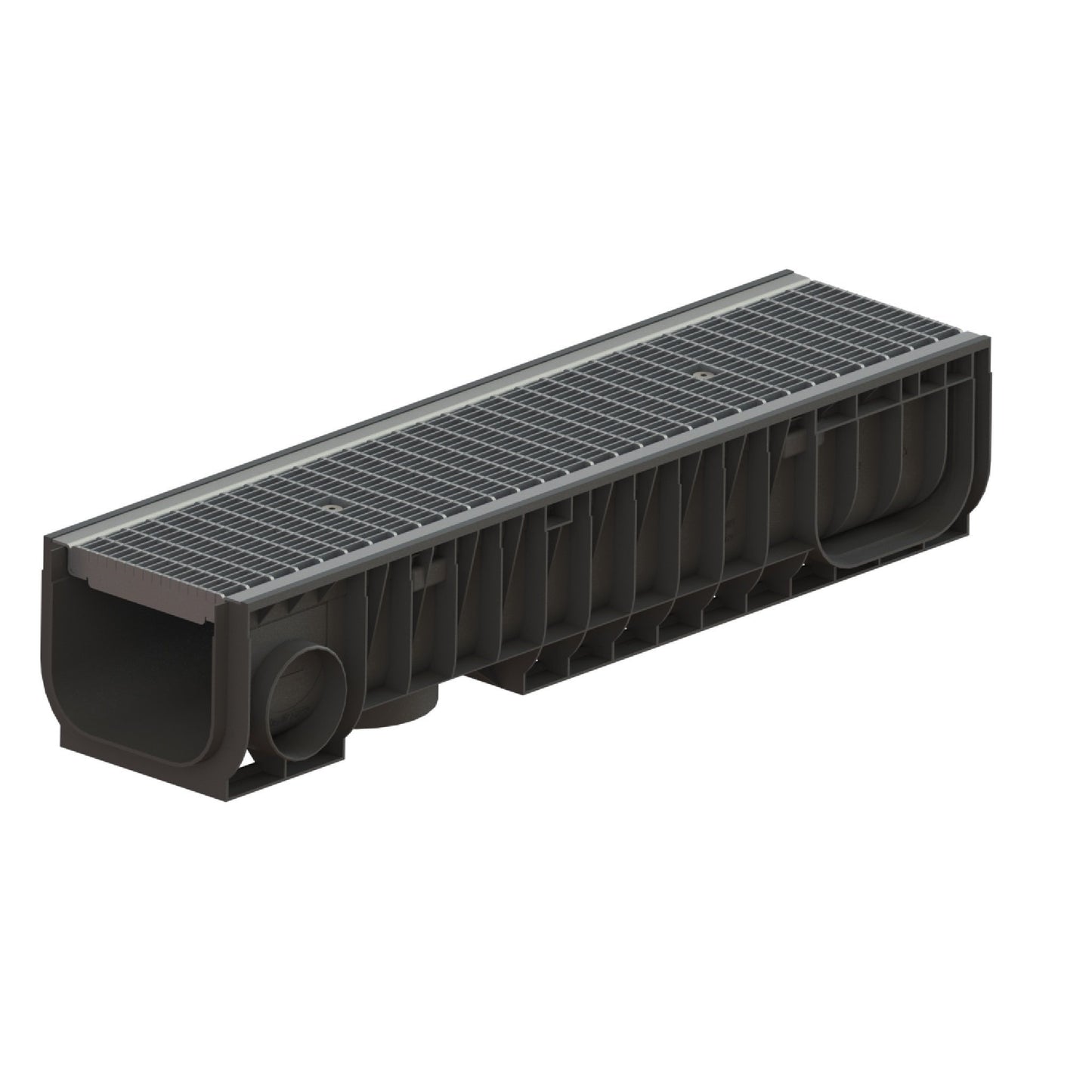

8 inch Stainless Steel B Class ADA channel package comes with one channel with the depth of your choice. Our high end B Class Stainless Steel ADA Grating, fasteners and end caps. The channel is fitted with a 4" out of the end cap, 4 and 6 inch out of the bottom, as well as a 4" out of the side of the system. 90 degree turns are already fitted on to the channel itself as well, so no adapters are needed. This system is rated at 27,500 lbs after installation so you are able to drive small to midsized vehicles over this.

 PARAMETERS

Article Numbers;

8" Depth - 8540-UA

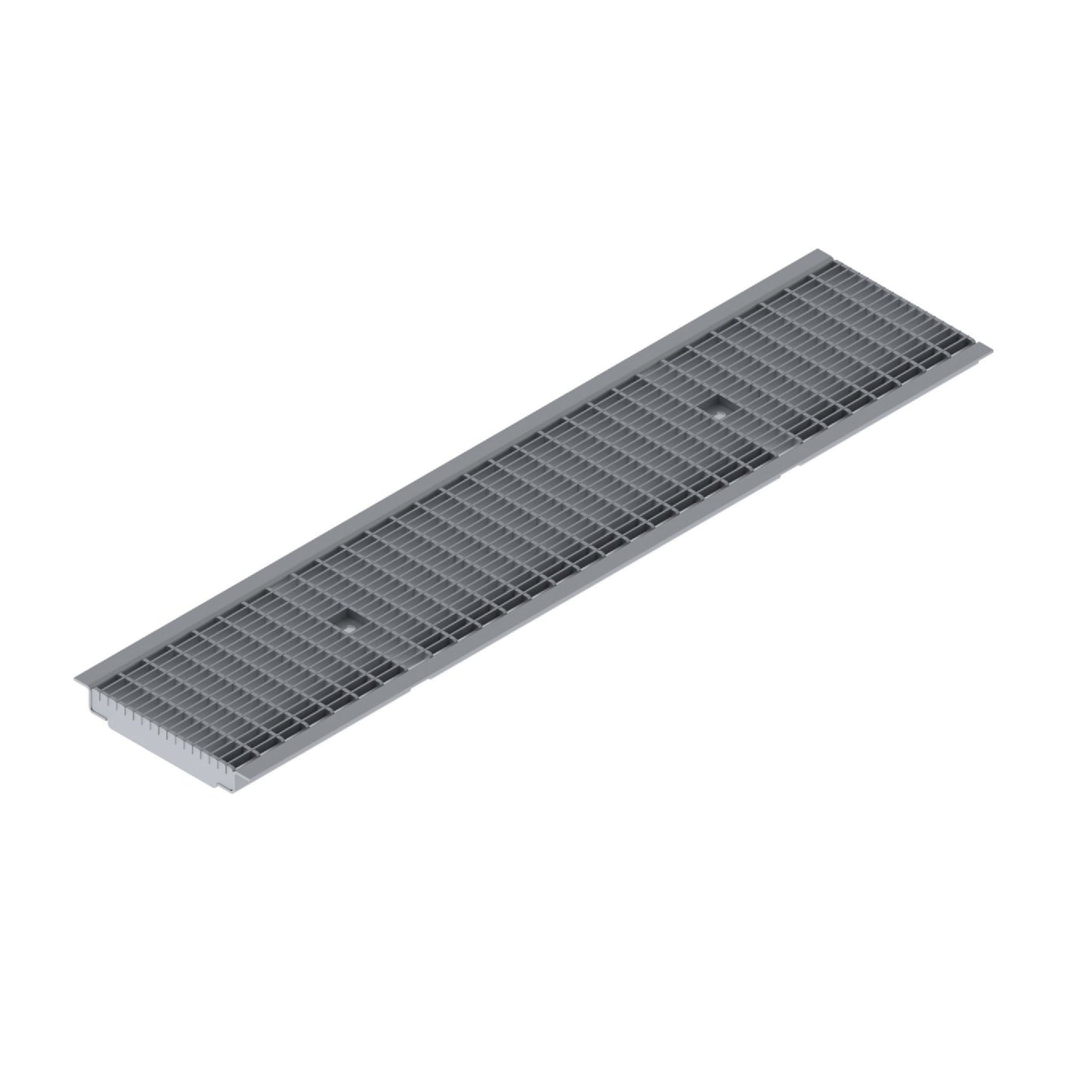

Stainless B Class Grate - 25902.31

Material ................... PPE PLASTIC / Stainless Steel

Load Class .............. B Class - 27,500 lbs - Midsized Vehicle Load Class

INCLUDED IN PACKAGE

1 Unit - Channel 8" Depth

1 Unit - Stainless Steel Grating

2 Units - Grating Fasteners

- End Caps (Per Order) - Additional end caps at checkout.
