Stainless Steel Pre Slope Channel System 8 Inch

Stainless Steel Pre Slope Channel System 8 Inch

Regular price $935.00
Regular price Sale price $935.00
Sale Sold out
free shipping over $999
3-5 days delivered
View full details
  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • 8" internal 100% stainless steel pre slope trench drain system
  • Composed of highest grade 304 stainless steel
  • Reversible ADA gratings for anti-slip option on entire system
  • Chemical, acid, and corrosion resistant

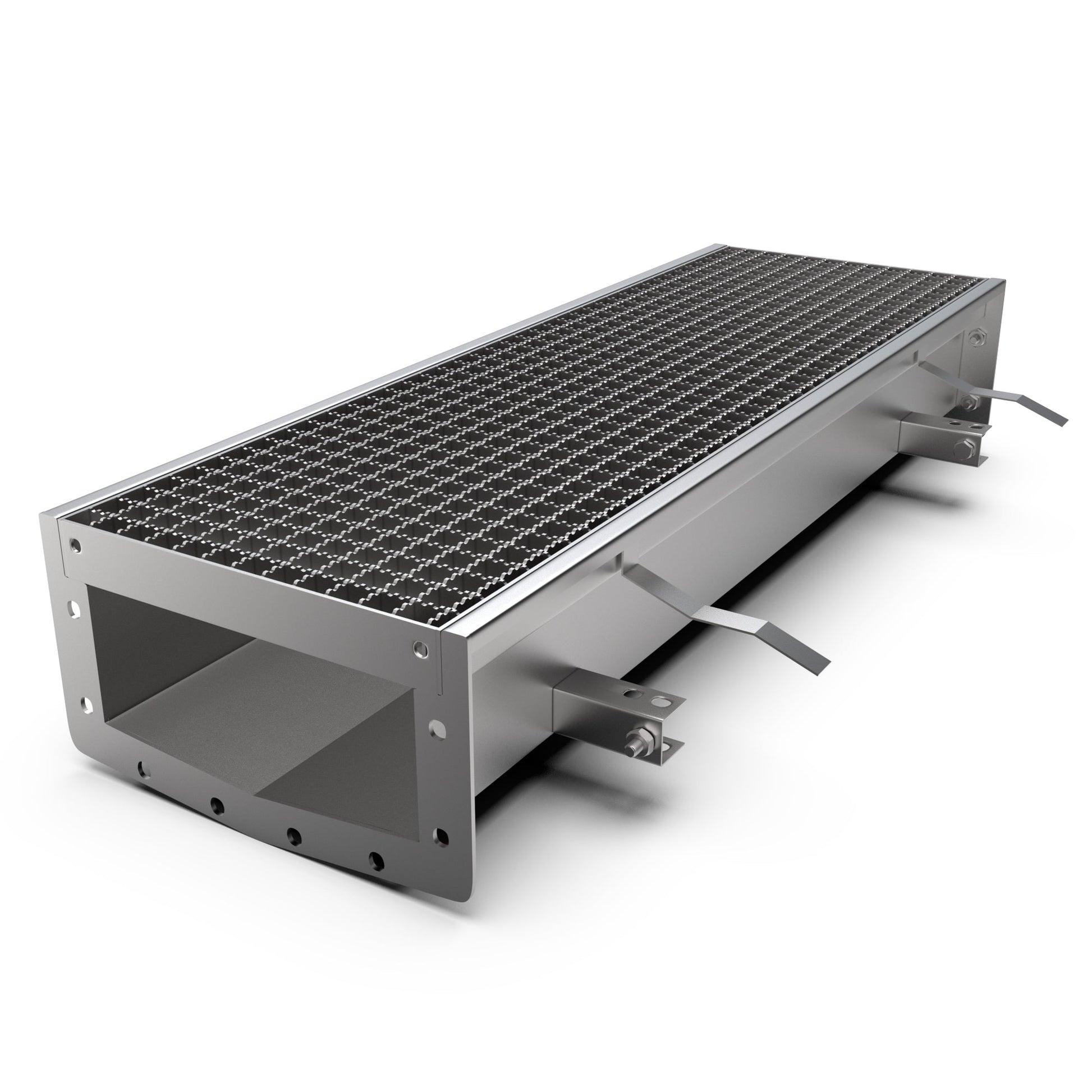

  • Equipped with leveling rebar brackets already on the system

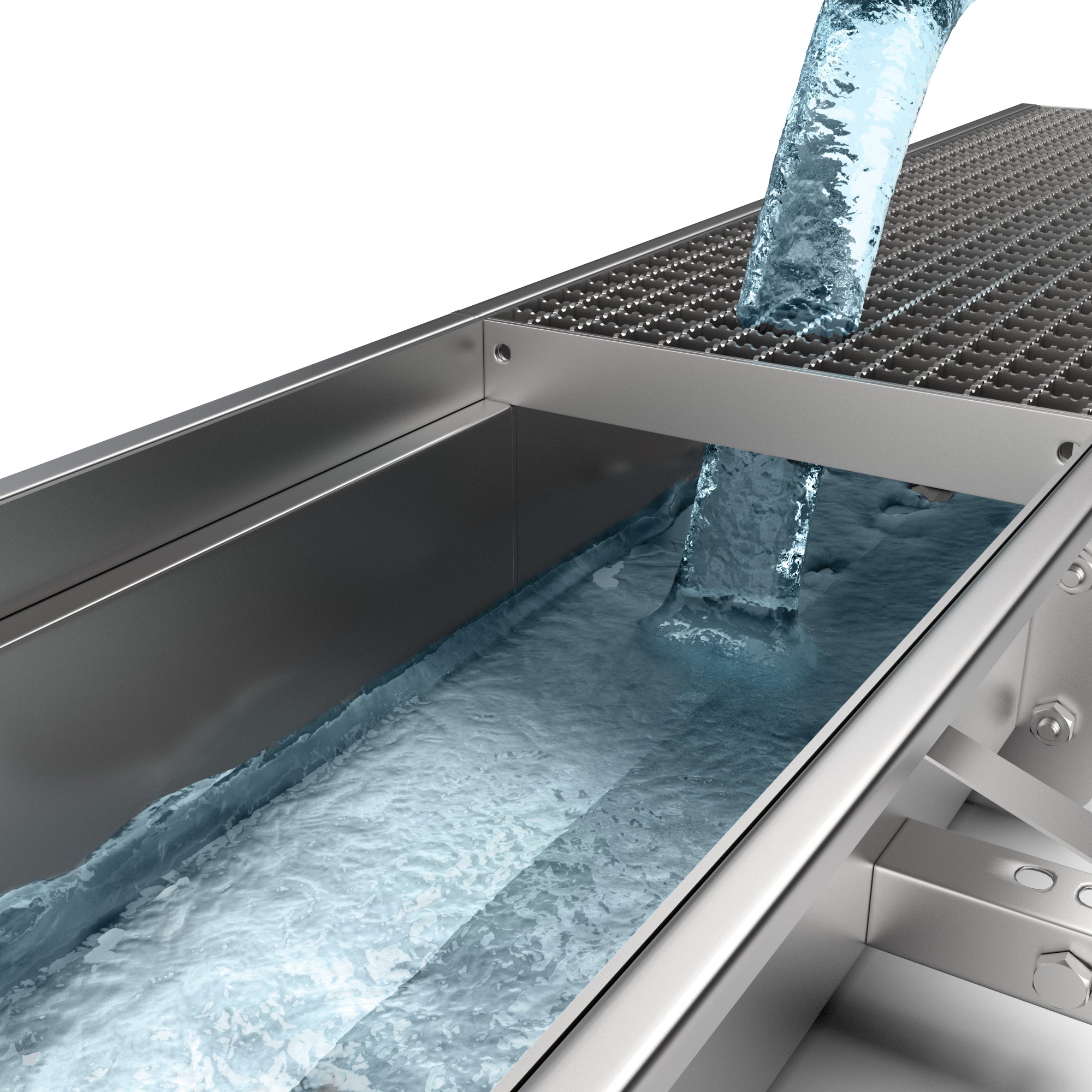

  • V-Convex bottom enables faster water movement
  • Perfect for kitchens, plants, wineries, and sanitary locations
  • C Class load rated for heavy duty load
  • Can be used with our 100% Stainless steel inline basin

INCLUDED IN PACKAGE

1 - Number of Channels needed for length

- 100% Stainless Steel Bolts and fasteners for connections

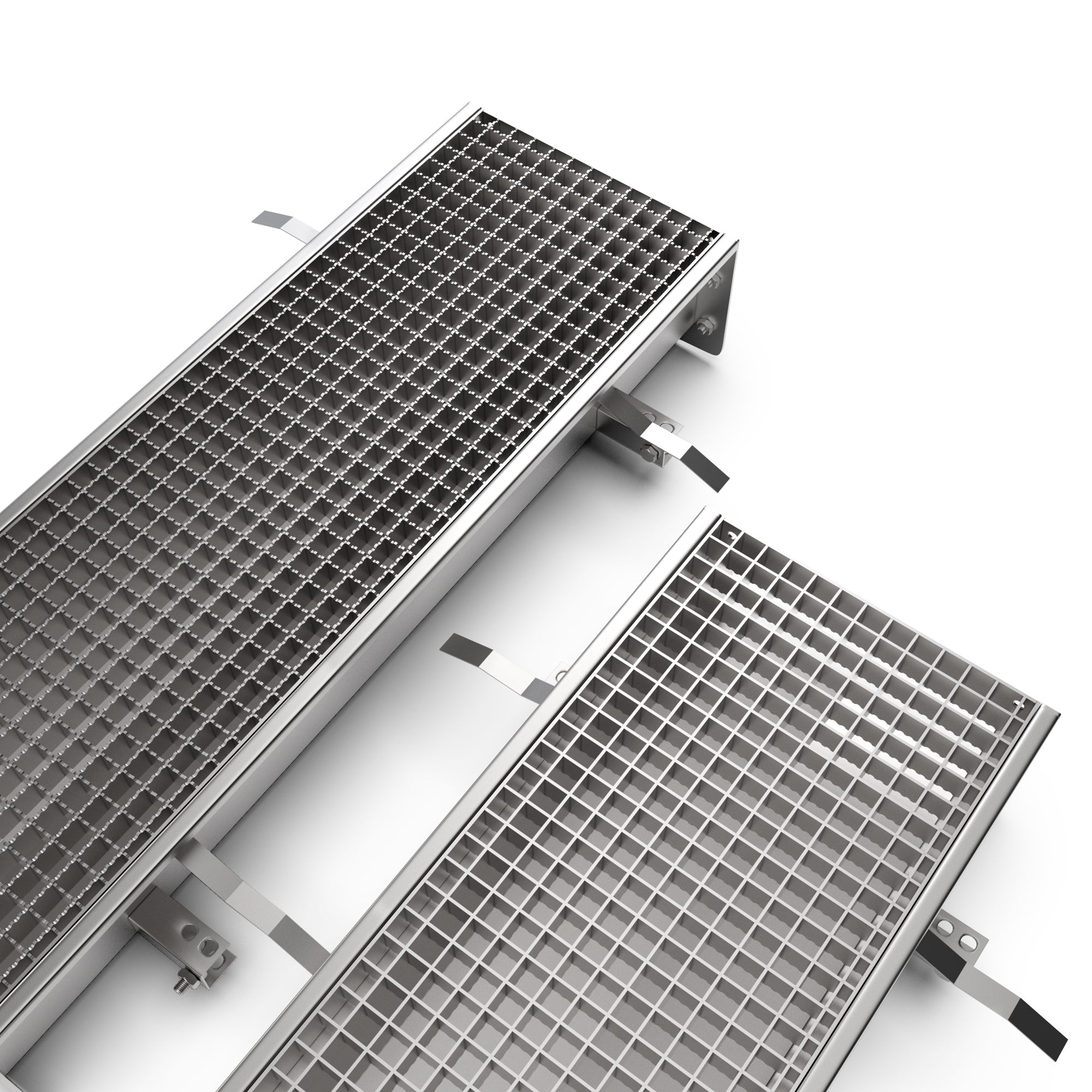

3 - 1 Unit per channel of reversible grating (100% Stainless steel - one side is anti-slip , other side is mesh pattern as per specification sheets below)

** if any requests are to be made, please contact us directly, or specify in notes during checkout, we are here to completely accommodate you**

For more product information please see product description tab above

  • channel specification pdf
  • grating specification pdf
  • channel specification cad
  • Flow Rates
  • Basic Installation Brochure

Product Description

Product Description

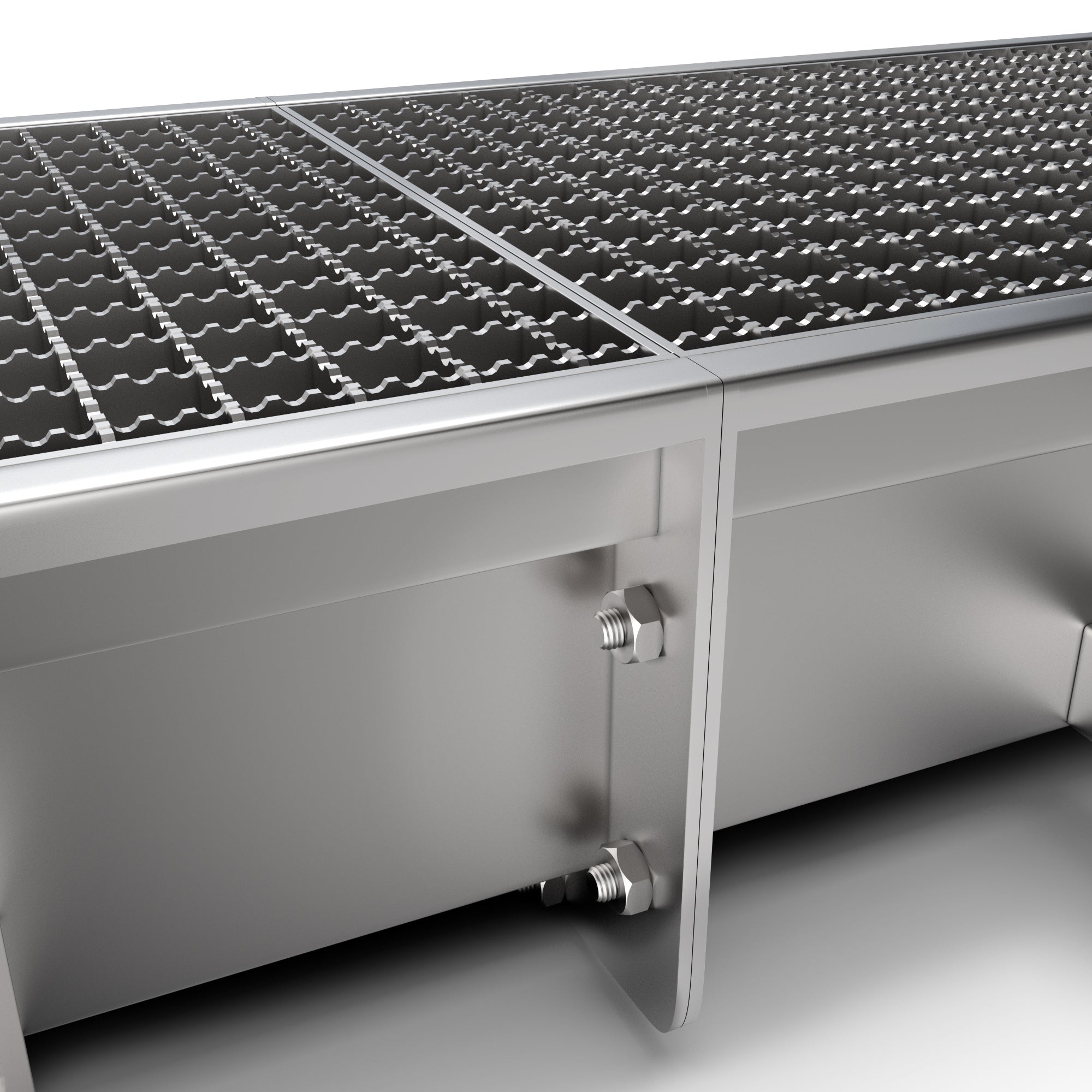

100% Stainless Steel Pre Sloped Channel System. 8" Internal width, a reversible grating (one side is a non slip pattern, the other side is a mesh ADA pattern). These are a C class system which also is acceptable to heavy loads such as forklifts, and narrow tires. Made with highest grade 304 Stainless Steel. All units are 1% Pre slope per your linear run choice. Any slope length can be used in accordance with our inline 100% Stainless Steel Basin as well! The system bolts together for a water tight connection. We also suggest utilizing our Professional Channel Sealant as well. These are top of the line, at a fraction of the price as all others.

Perfect for kitchen, sanitary plants, food plants, wineries, and much more!

Free shipping on all units. As always if you have any additional questions. Feel free to contact us.

PARAMETERS

Article ...................... 9924 (Channel) 990428 (GRATE - Reversible)

Material ................... 100% 304 Stainless steel (SS bolts also)

Dimensions ............. 8" (ID) - 10 1/4" (OD) Depth Varies as per pre slope length

Weight .................... 30 LBS each unit with grating

Load Class .............. C Class - 55,000 LBS

INCLUDED IN PACKAGE

1 - Number of Channels needed for length

- 100% Stainless Steel Bolts and fasteners for connections

3 - 1 Unit per channel of reversible grating (100% Stainless steel - one side is anti-slip , other side is mesh pattern as per specification sheets below)

** if any requests are to be made, please contact us directly, or specify in notes during checkout, we are here to completely accommodate you**
