Worn and Torn - 4" Driveway Premium Channel B Class System (Copy)

Worn and Torn - 4" Driveway Premium Channel B Class System (Copy)

Regular price $55.00
Regular price Sale price $55.00
Sale Sold out
free shipping over $999
3-5 days delivered
View full details
  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • 4" Internal width - 6.5" Depth B class complete driveway system

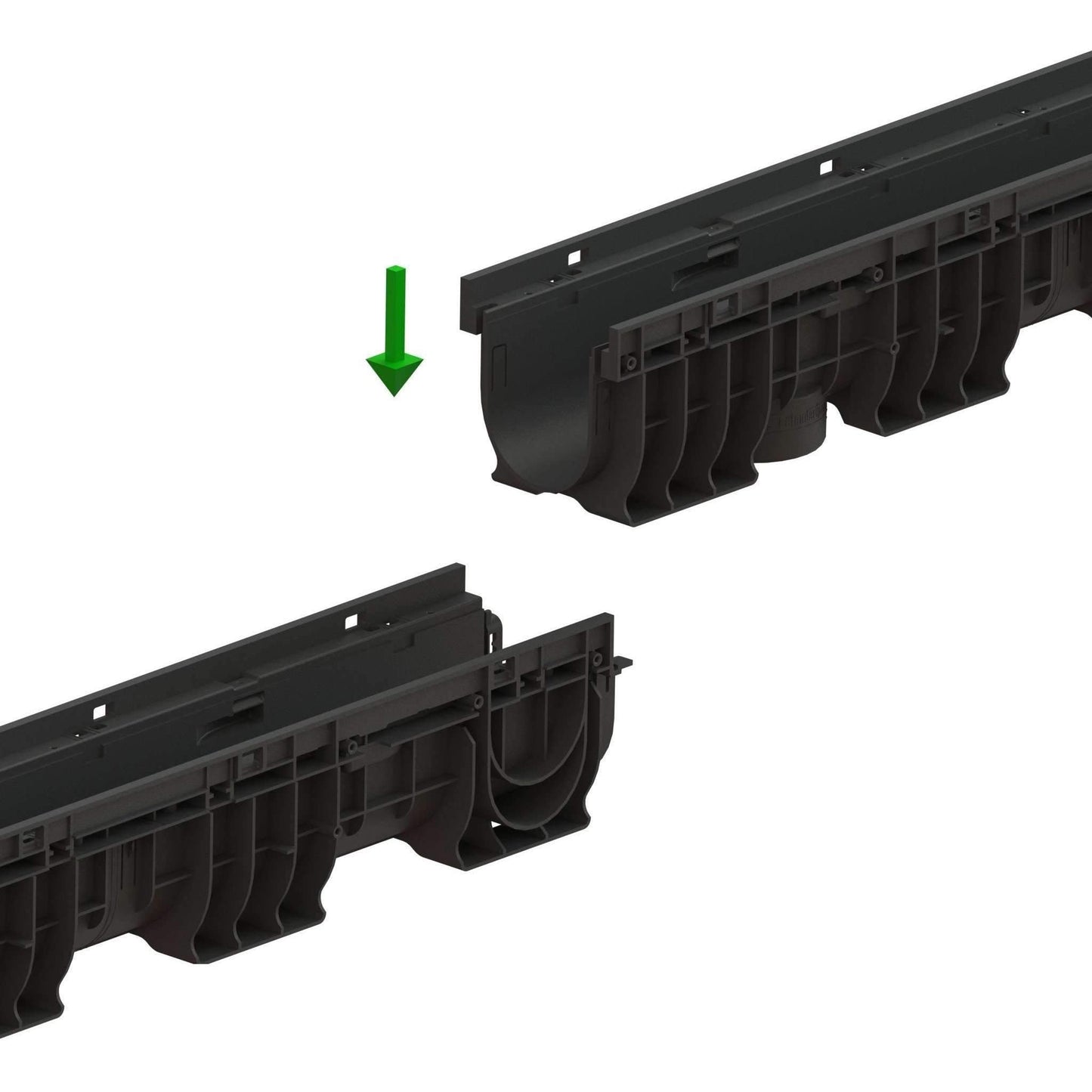

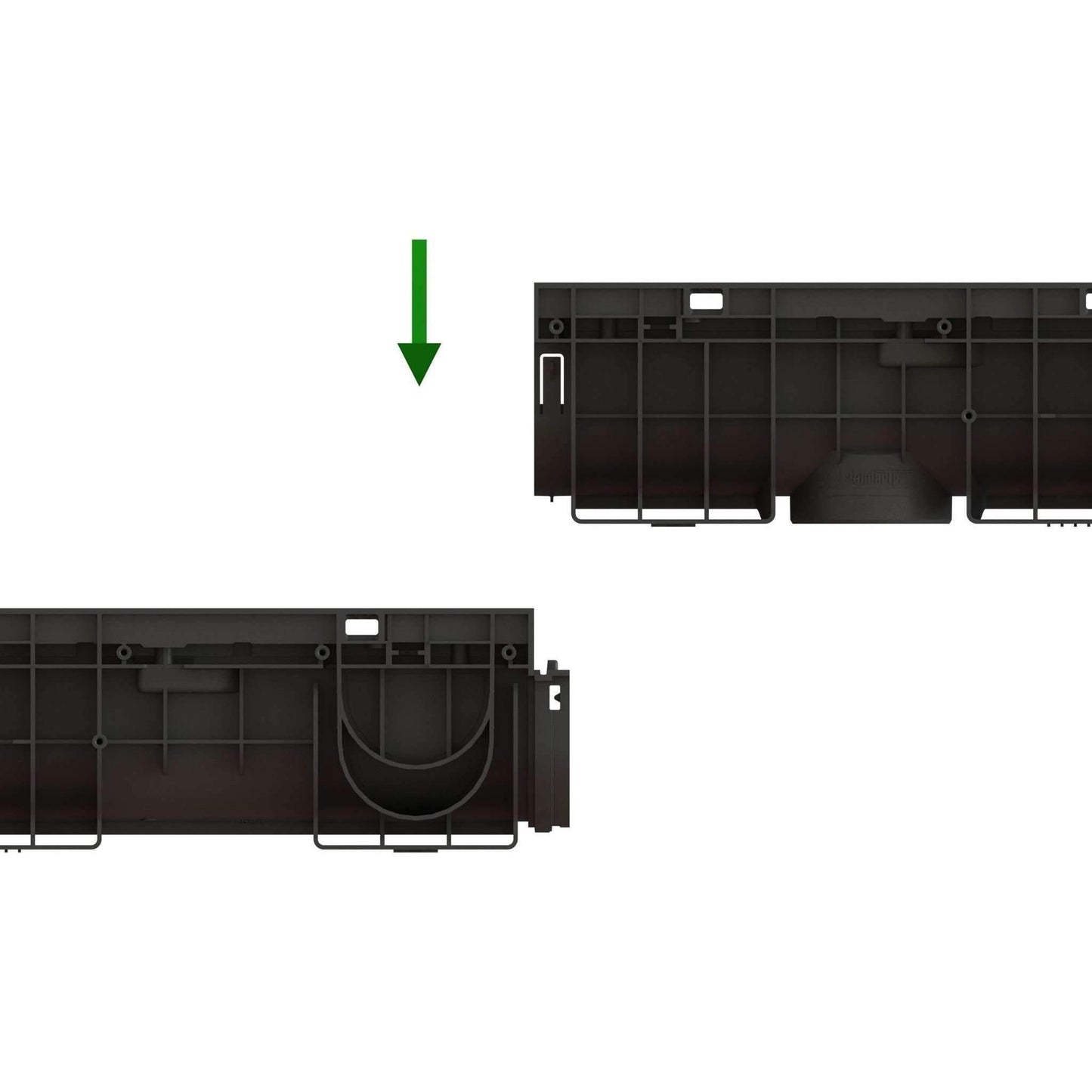

  • Snap and lock connections for channel to channel lock

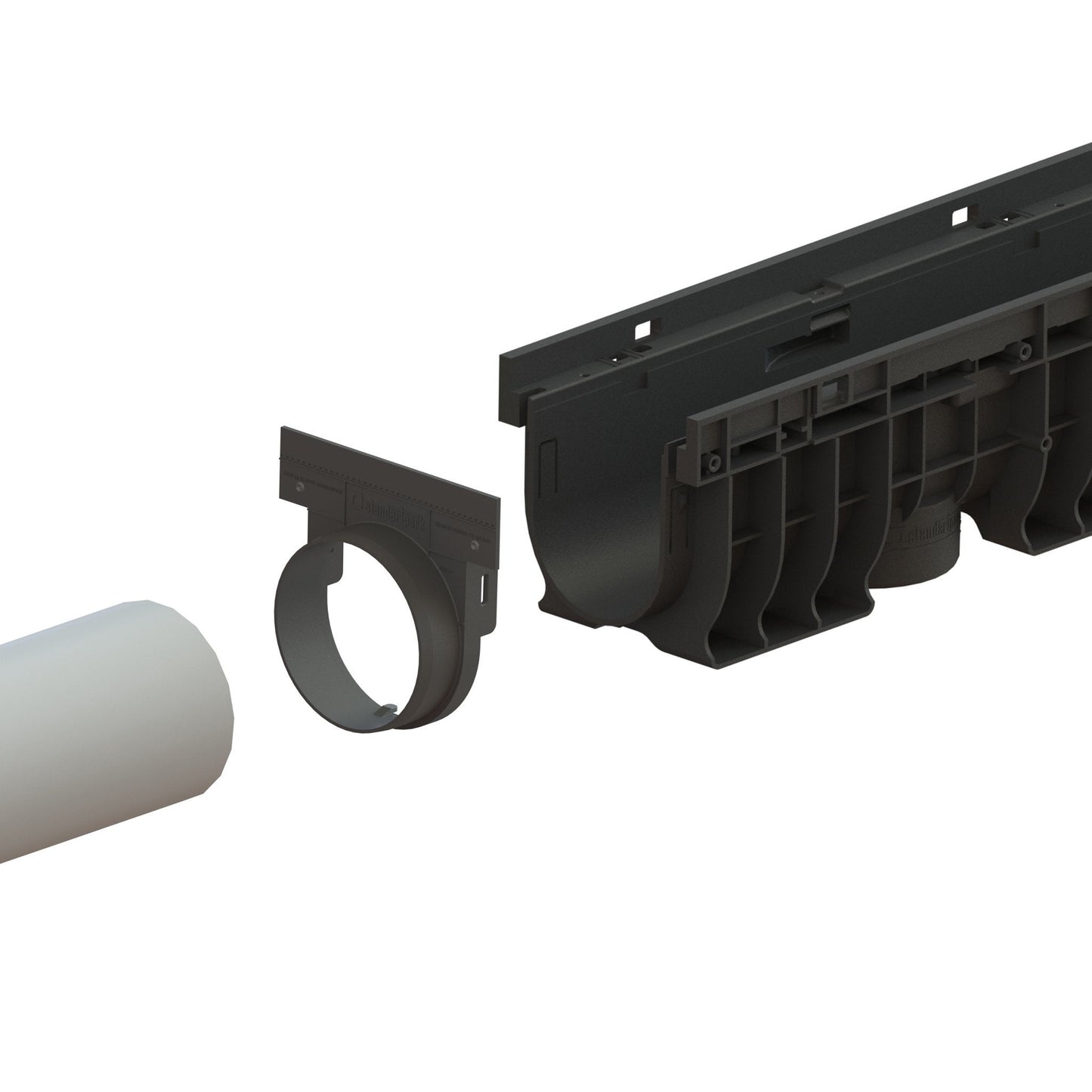

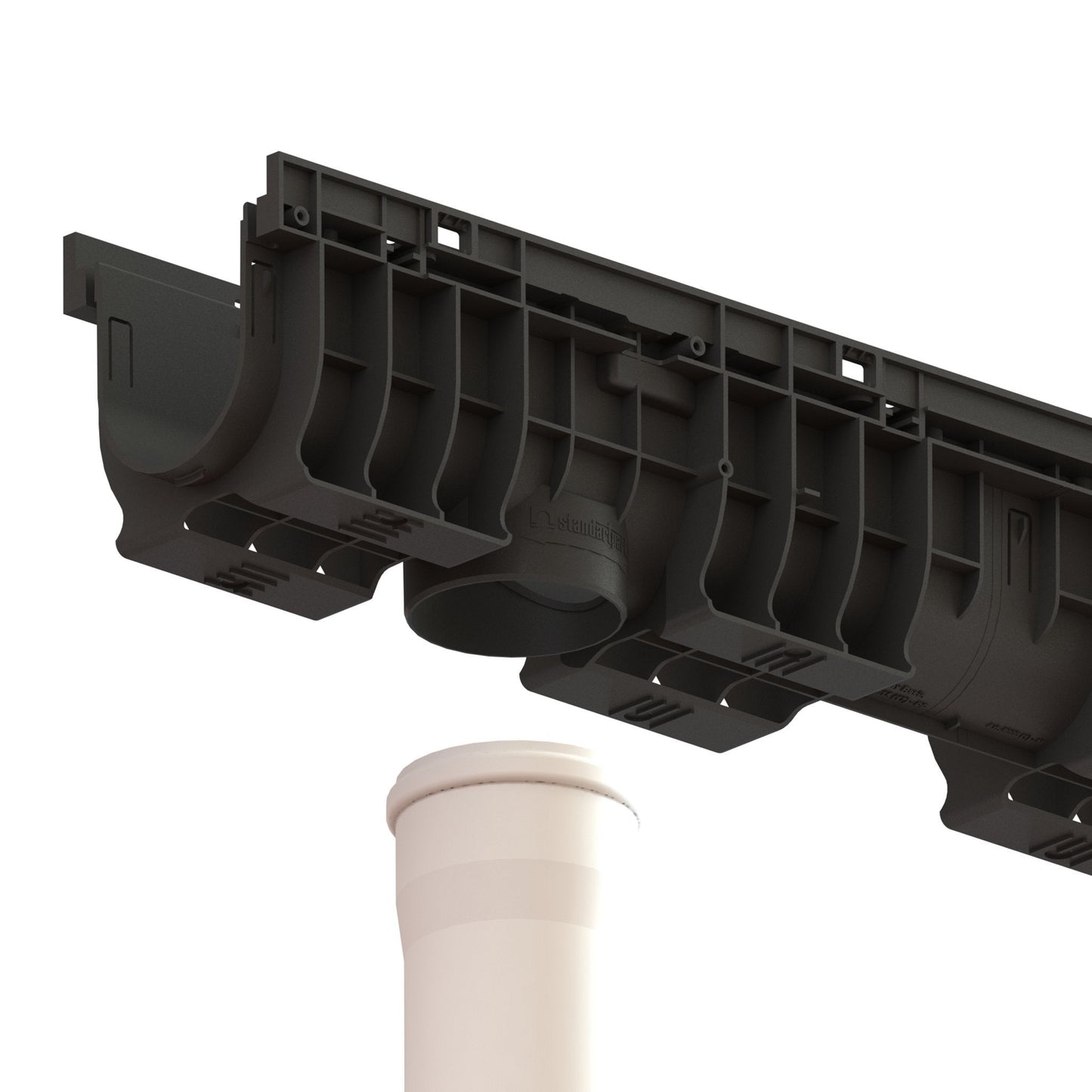

  • 4 inch PVC or corrugated pipe outlet option out of the bottom
  • B Class HDPE plastic grating with snap and lock connections

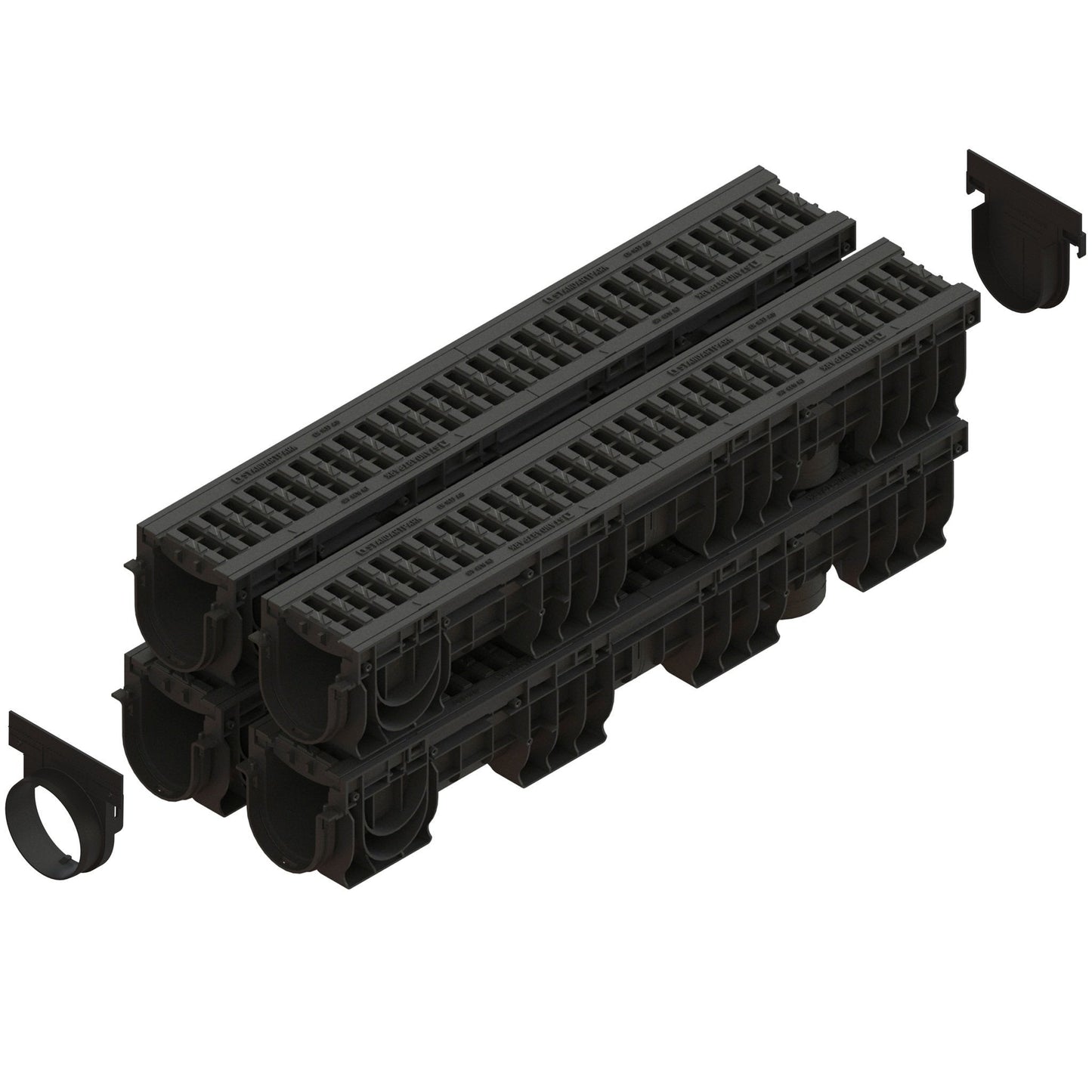

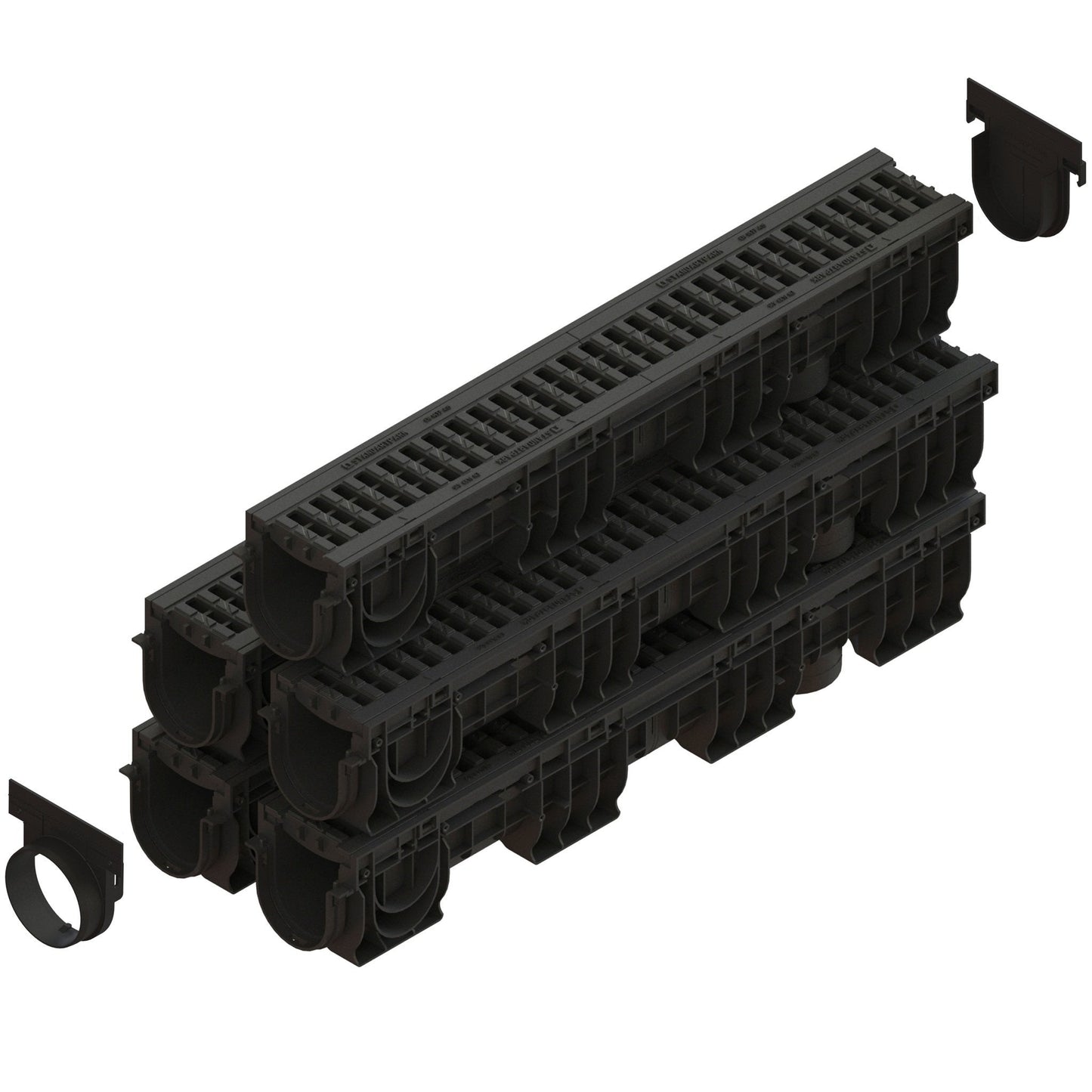

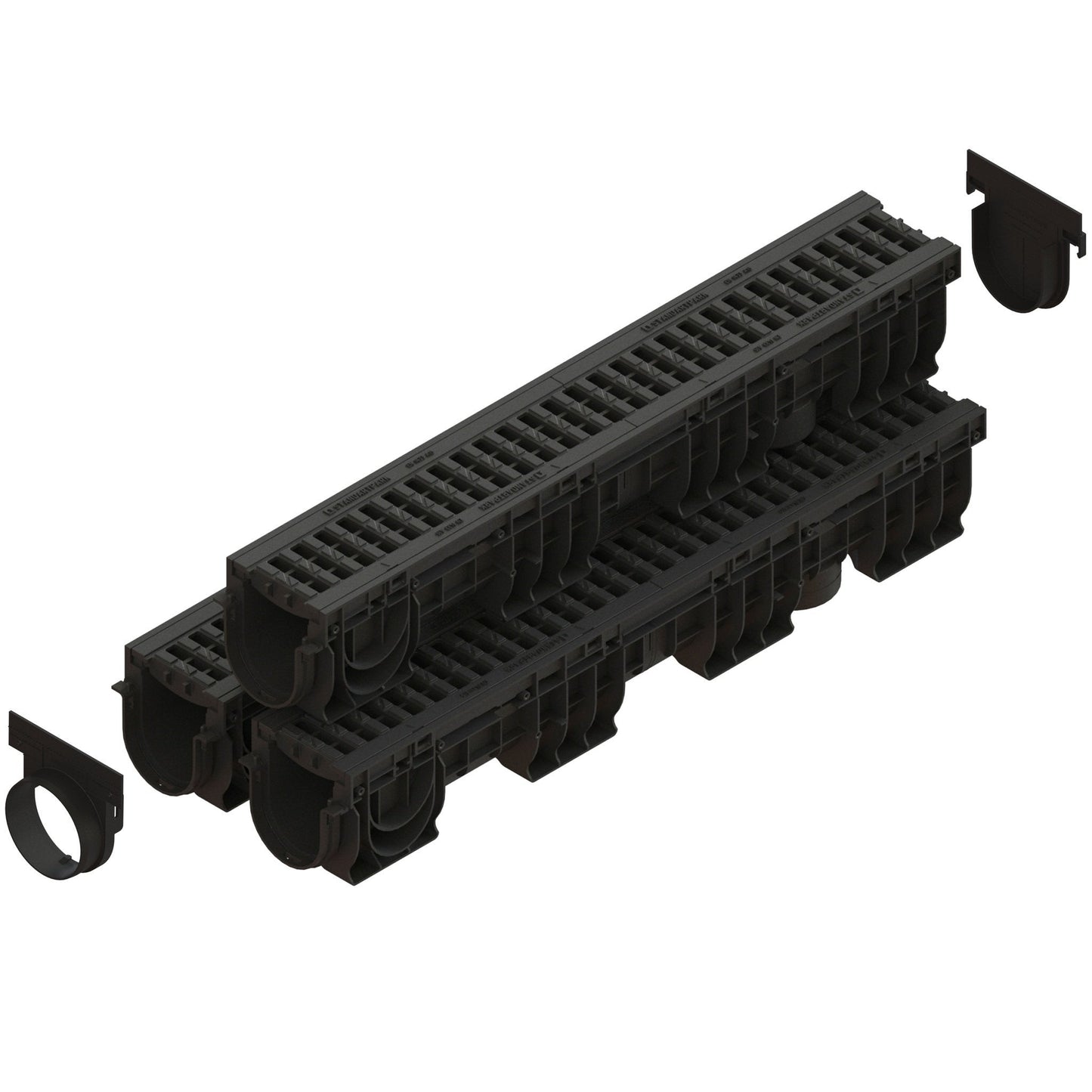

INCLUDED IN PACKAGE:

PC8000-M Channel(s)

2 - Units of Plastic B Class Grating (Per Channel)

2 - Grating Fasteners

2 - End Caps (Per Order) - Additional end caps at checkout.

For more product information please see product description tab above

Downloads
PDF
DWG
BIM

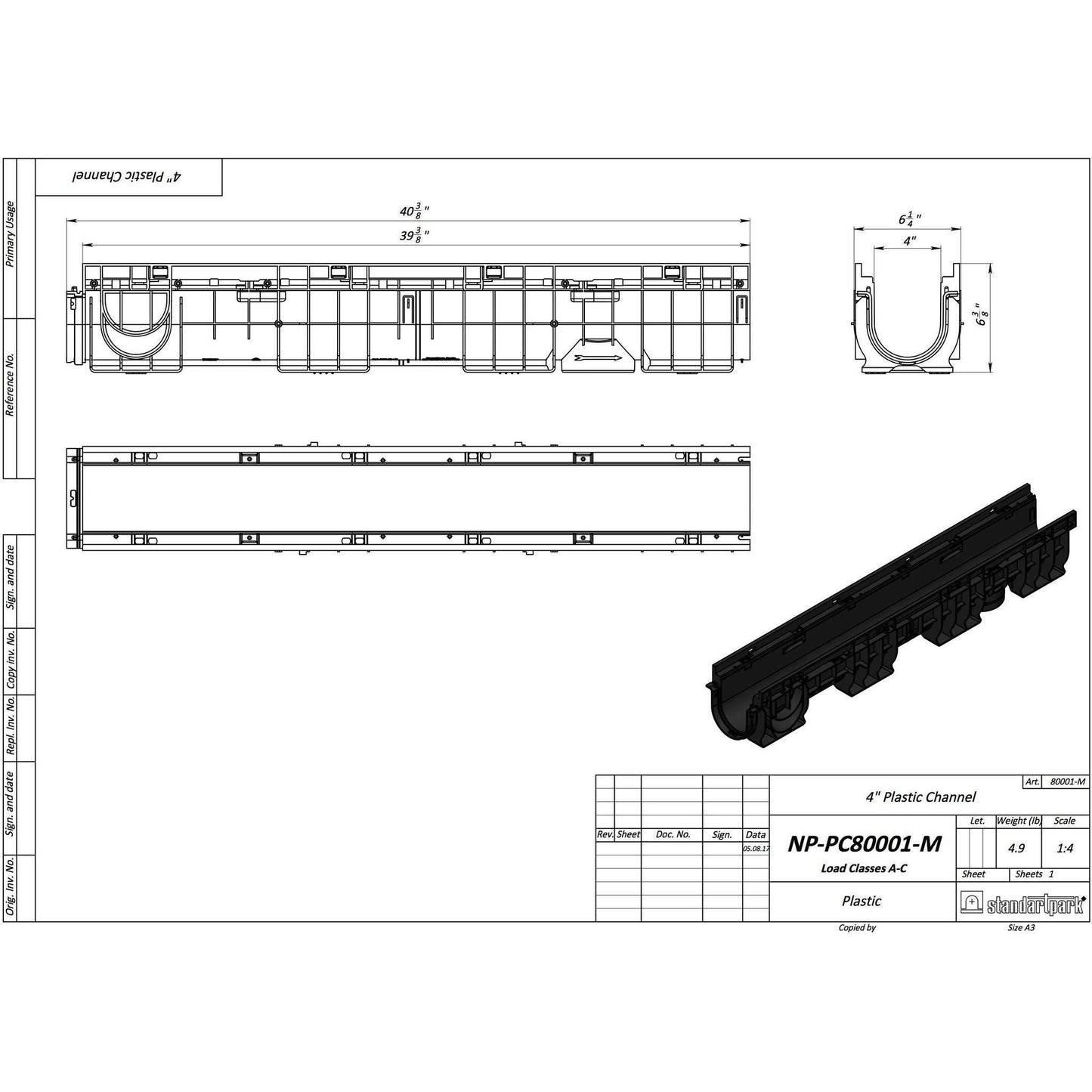

Channel Specification Sheet
PDF :
DWG :
Installation Guide
PDF :

Product Description

Product Description

Attention customers: Please be advised that the products available for sale in this area may exhibit signs of damage, dirt, scratches, or previous use, but remain fully functional and usable. These items are being sold at a discounted rate and are offered on an "as is" basis with no exceptions. Kindly note that these products are non-returnable. We appreciate your understanding

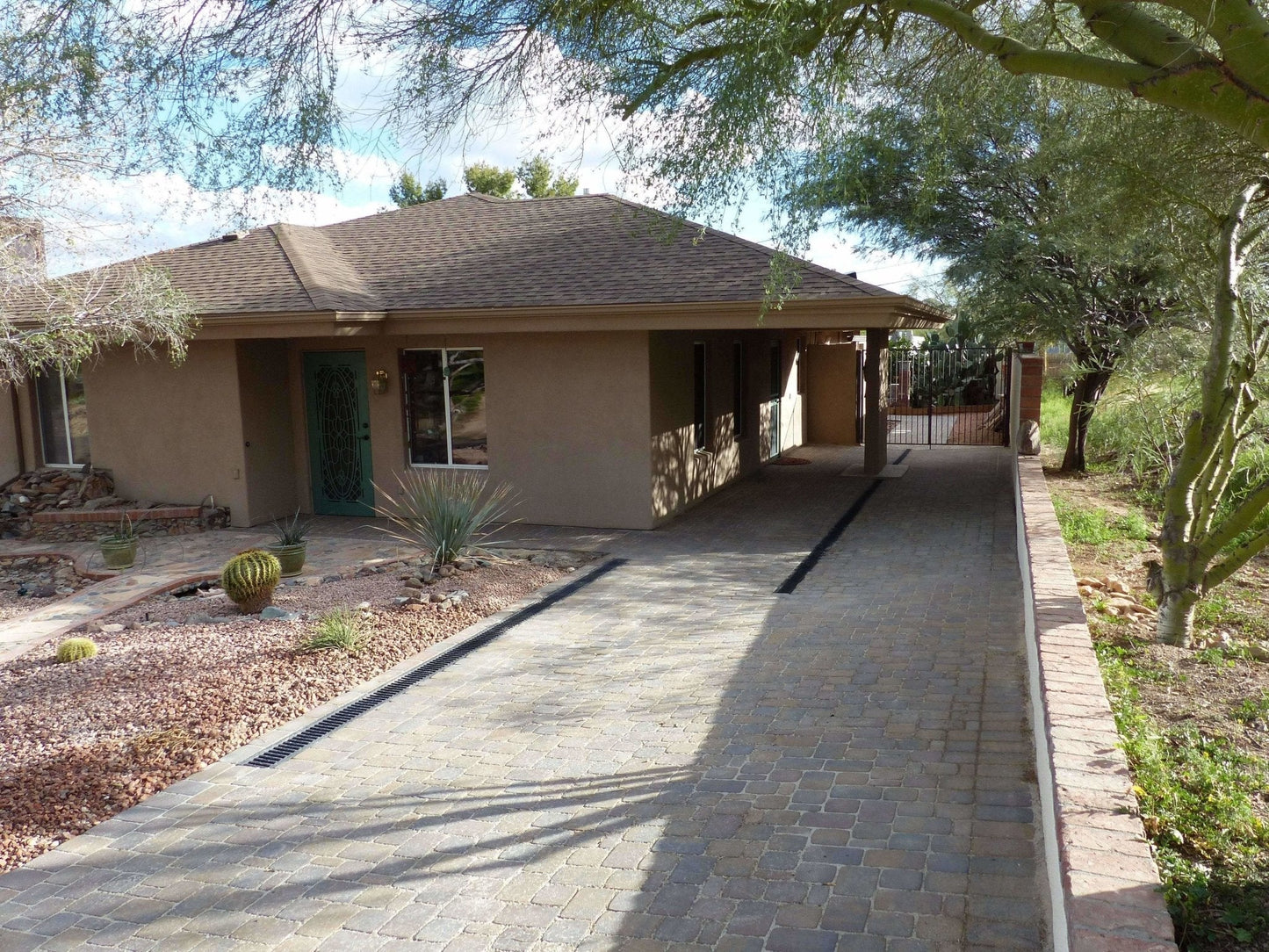

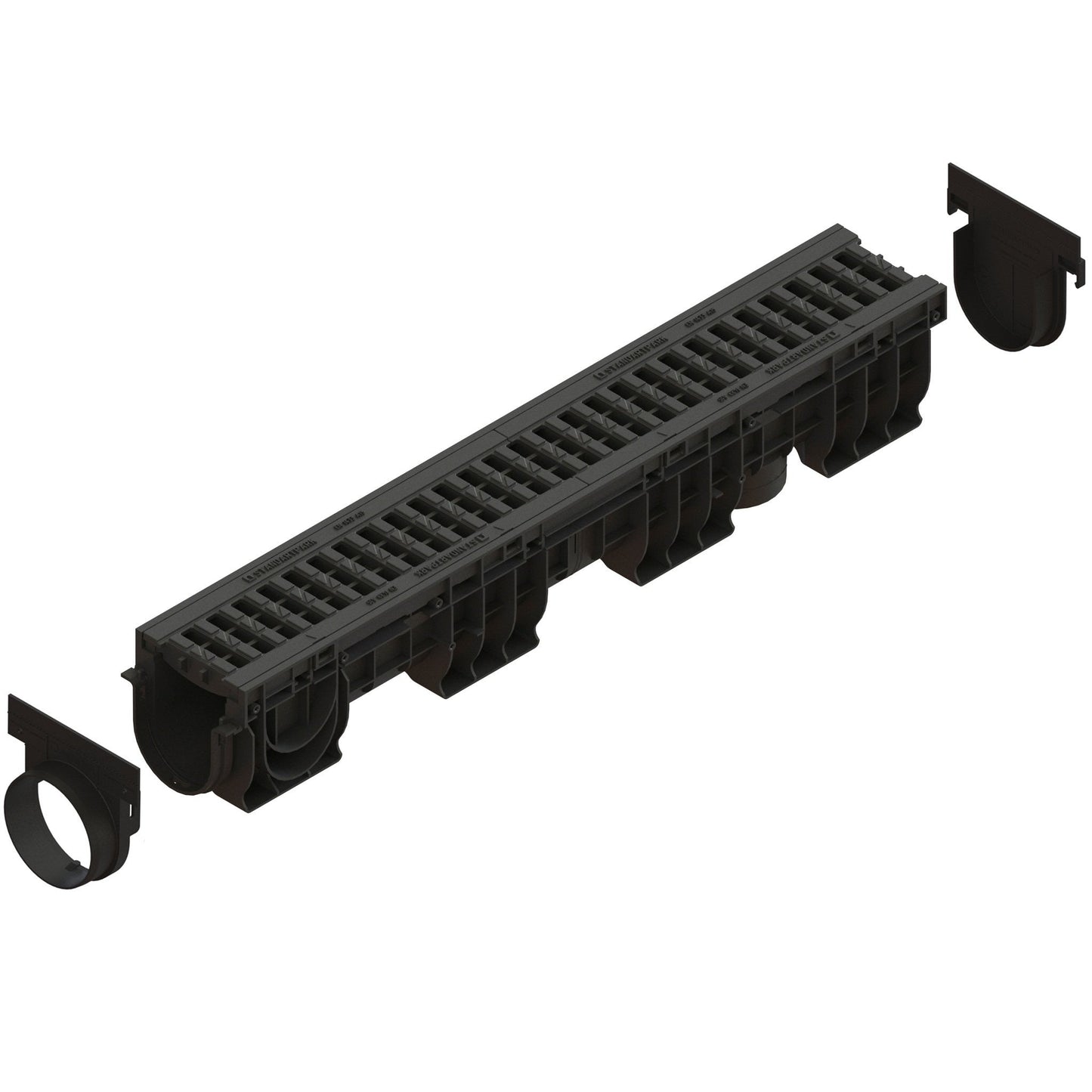

Our  4" internal driveway system is perfect for your driveway, but for many of your jobs. It comes with our B class high density poly grating. Which withholds 27,500 LBS. UV protected so the Grating will not fade in the sun. Channels are 39 inches in length, 4 inch interior width, 6 inch exterior width, and 6 inch interior depth. The channels snap and lock together end to end with not problem. 90 degree right turn connection option is on EVERY channel (which also has snap and lock connection). Comes with end caps that have pipe knockout connection, bottom knockout connection on each channel as well. Also comes with grating fasteners.

PARAMETERS

Article ................ 0801518021

Material ............. PPE Plastic - HDPE GRATE

Dimensions ....... 39.4"L x 6.4"W x 6.4"H

Load Class .......  B Class - 27,500 LBS

INCLUDED IN PACKAGE:

PC8000-M Channel(s)

2 - Units of Plastic B Class Grating (Per Channel)

2 - Grating Fasteners

2 - End Caps (1 Outlet and 1 Closed) (Per Order) - Additional end caps at checkout.
