Elevator Drain System

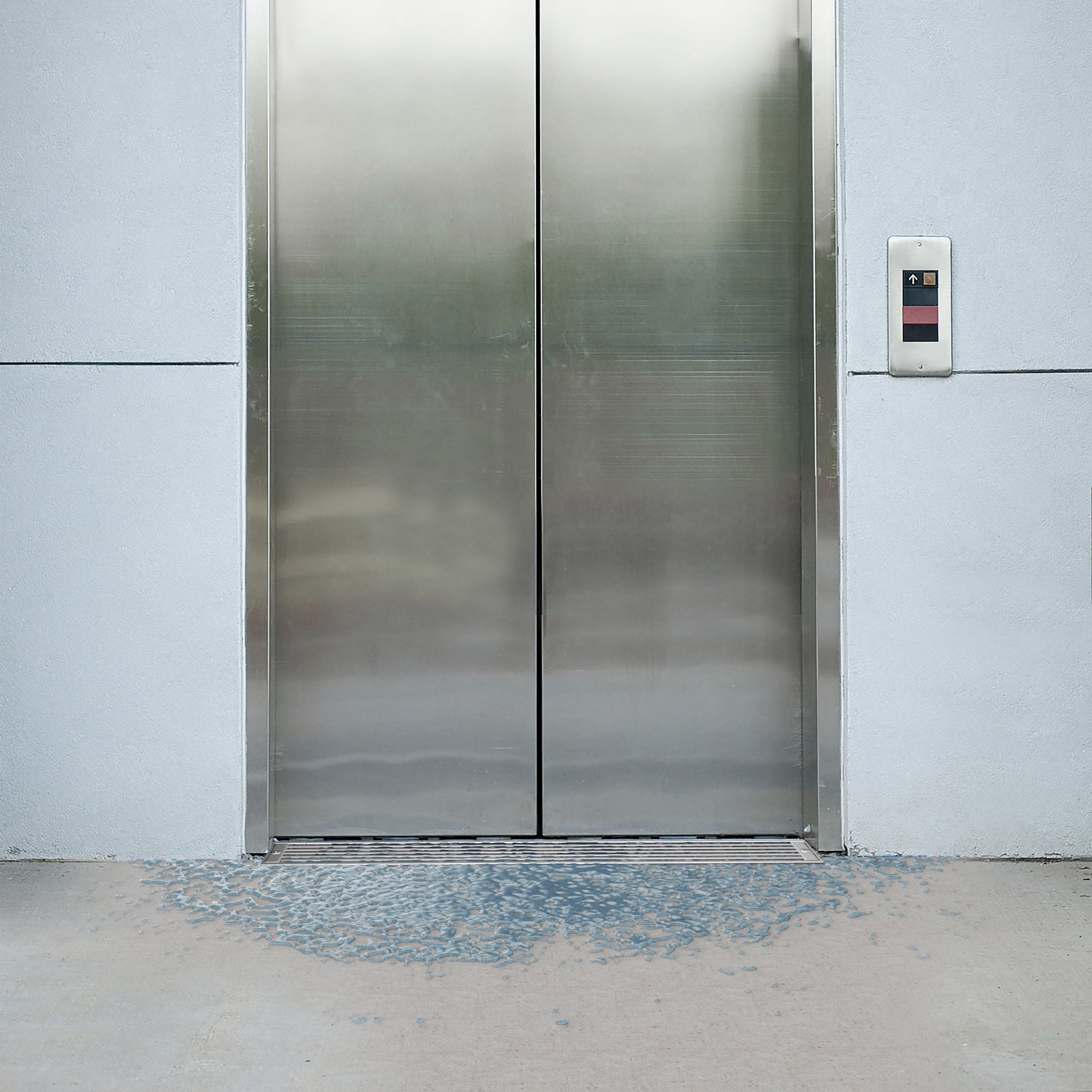

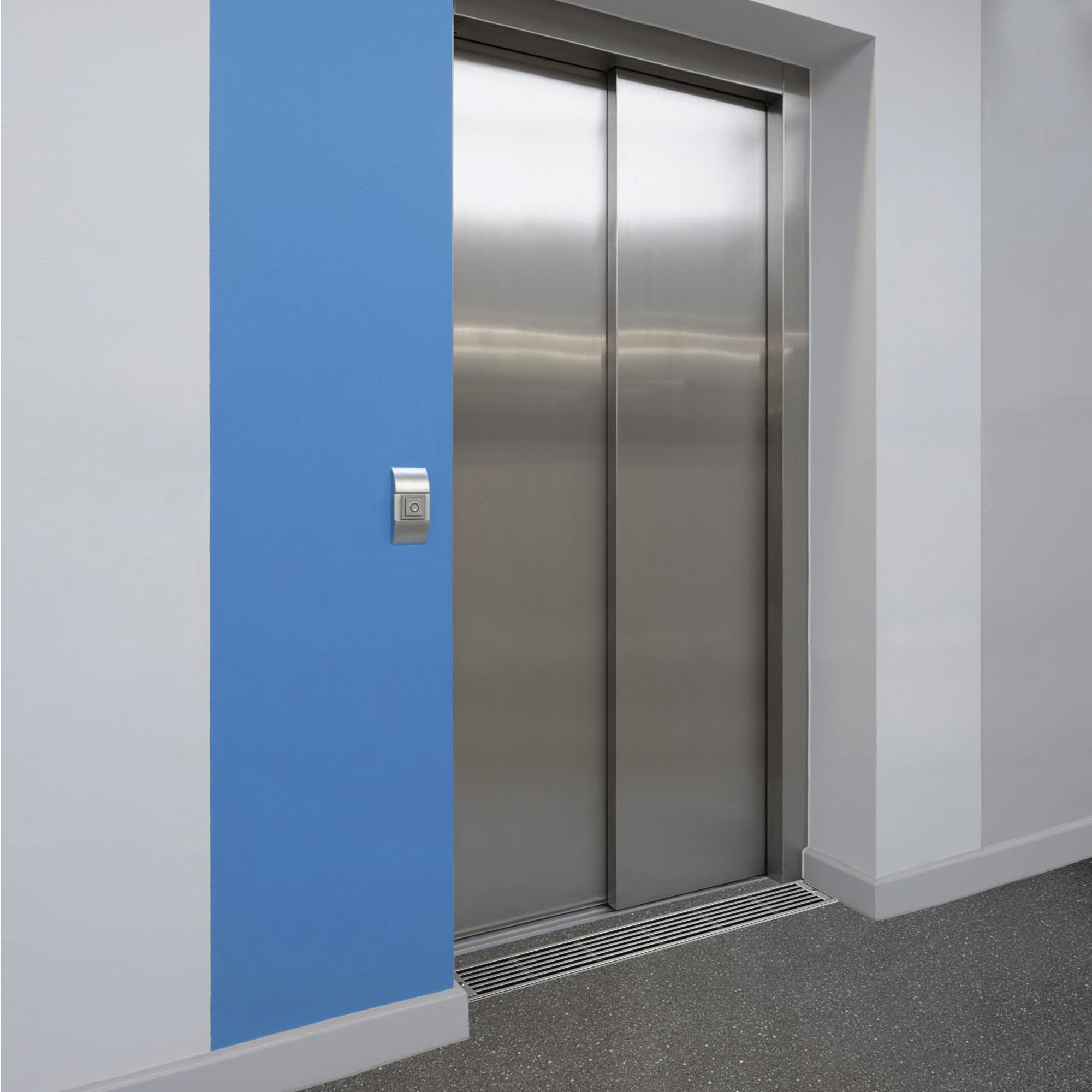

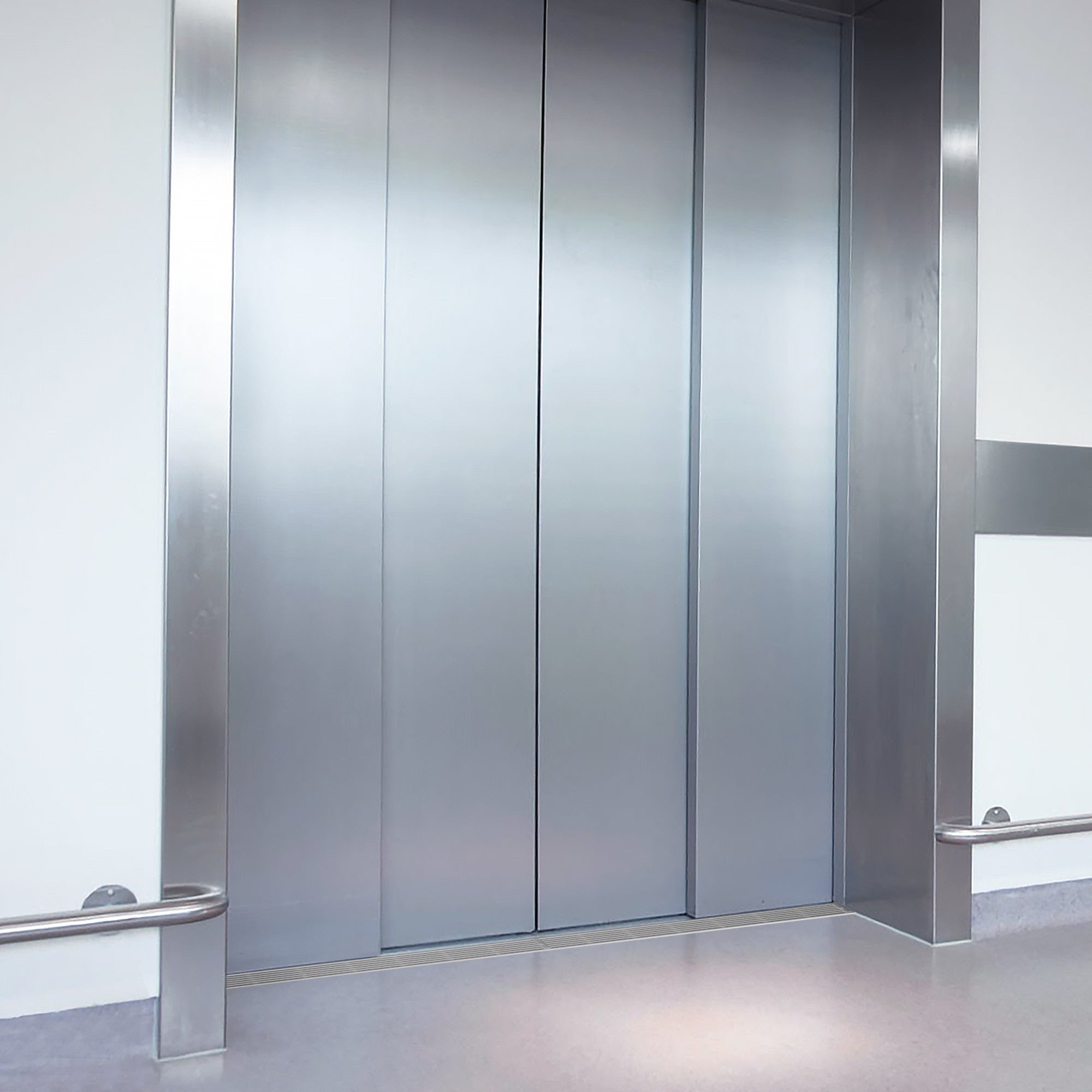

This Elevator Drain System is designed to provide drainage for public and commercial spaces in front of elevator door openings.

Key Features:
● Made from 304 Stainless Steel - Rust and corrosion resistant for long lasting
performance
● ADA Compliant - Ensures safe and trip-free walking surfaces.
● Supports up to 3,372 LBS per sq. ft. - Provides strength for pedestrian foot traffic.
● Optimized Drainage - effectively channels water away from elevator entrances.

Expanded Product Overview:

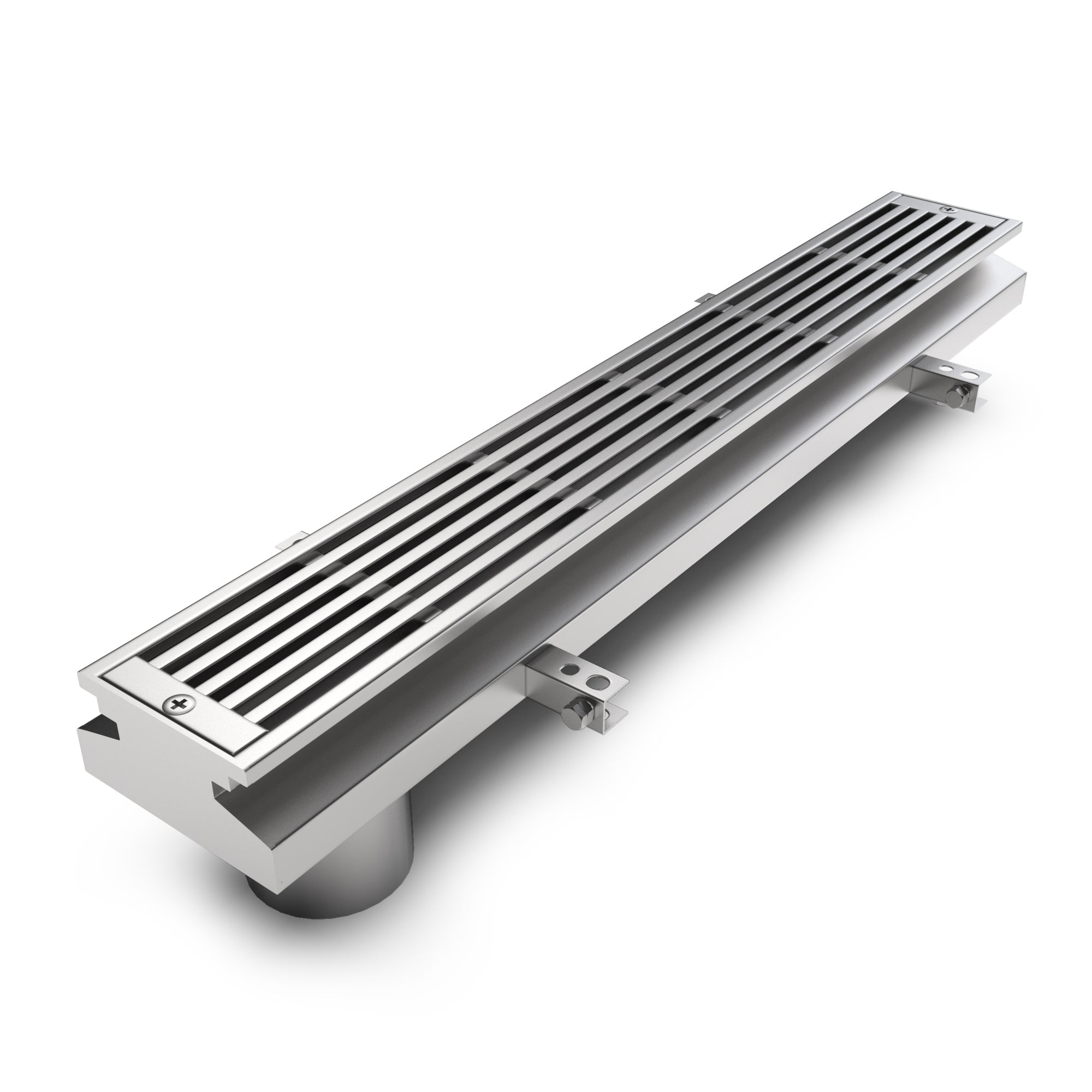

Built to withstand lightweight, pedestrian foot traffic, this stainless steel Elevator Drain System is manufactured from 304-grade stainless steel. This is a neutral channel system (non-pre sloped) that is physically lightweight, ensures efficient drainage, prevents costly water damage and reduces slip hazards. It is designed for single or double door elevators, this system is low profile, providing both functionality and aesthetics. It has ⅜” inch slot openings, providing a compliant, corrosive resistant drainage solution.

Common Applications:
● Single and Double Door Elevators
● Commercial Buildings
● Parking Garages
● High-Rise Structures

Technical Specifications:
● Material - 304 Stainless Steel

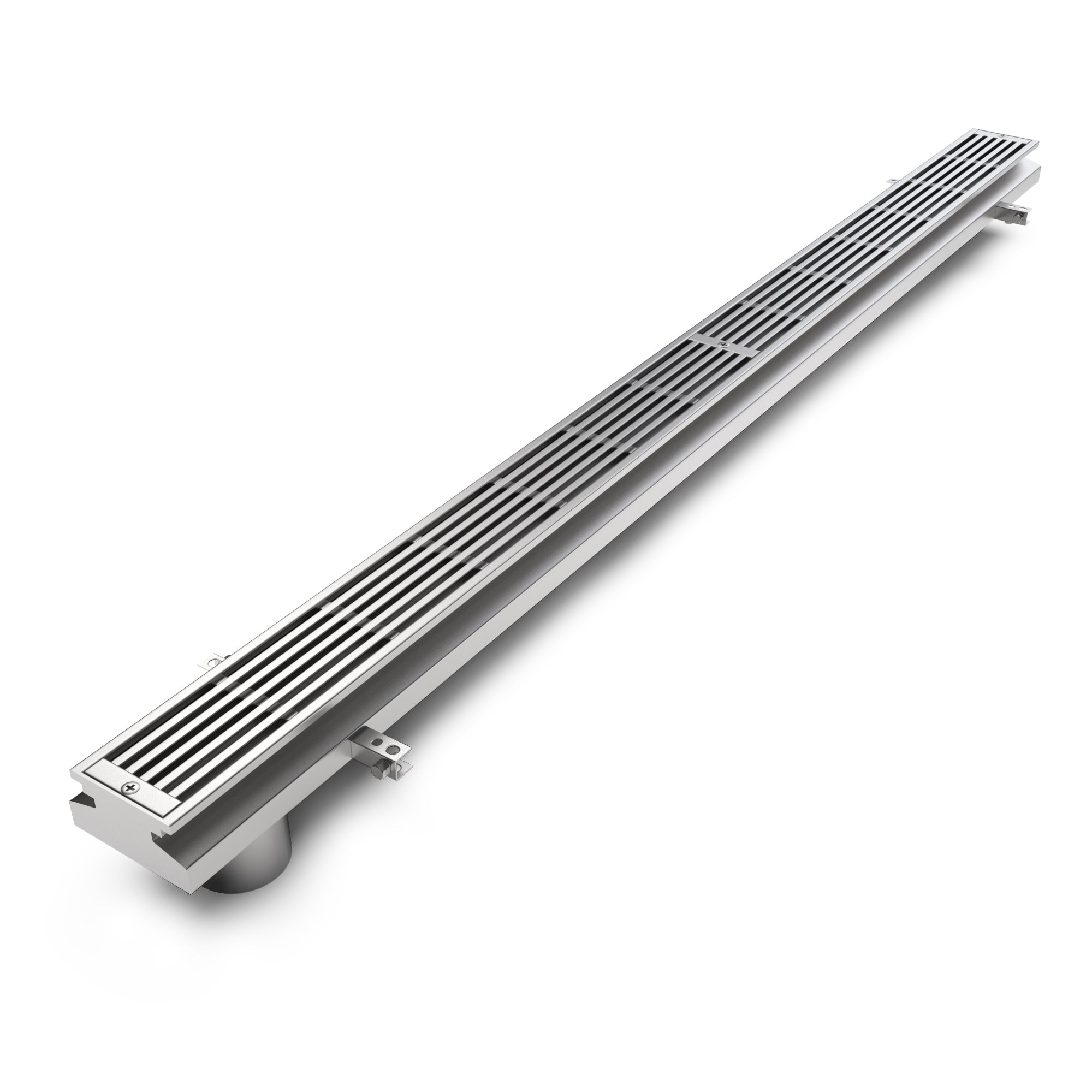

● Length - 3 Feet or 7 Feet
● Width - 5” Width
● Load Class - A (Foot Traffic)
● Article Number -
○ 3FT - 999901-3F
○ 7 FT - 999901-7F
