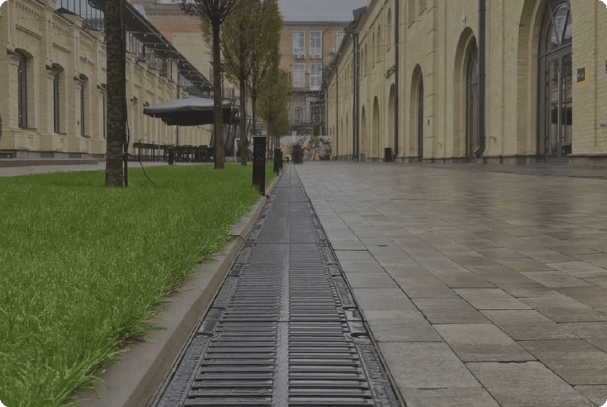

ADA Compliant vs. Heel Proof Grating: What's the Difference?

Key Takeaways:

1. ADA compliant grating allows openings up to ½ inch. Heel proof grating allows ¼ inch maximum.

2. Heel proof grating meets ADA standards, but ADA grating is not automatically heel proof.

3. The right choice comes down to what kind of footwear will people be wearing in the space

4. Specifying the wrong grating type is one of the most common mistakes in drain installation.

ADA compliant and heel proof grating treated as the same thing on a lot of projects. They're not. Both exist for safety. Both show up in similar settings. But they solve different problems, and using one where you need the other creates either a liability issue, a compliance gap, or both.

Here's what each standard actually means and how to know which one your project needs.

What Makes a Grate ADA Compliant?

ADA compliant grating has openings no wider than ½ inch. That spec comes directly from the Americans with Disabilities Act, and it exists to keep wheelchair wheels, cane tips, and mobility aids from catching or dropping into the drain.

The ½ inch maximum is the accessibility baseline and the minimum standard for any publicly accessible space. It covers the most common mobility device dimensions without being so tight that it restricts drainage performance or limits material and style options.

Where ADA Compliant Grating Belongs:

• Public parks and recreation areas

• Pedestrian walkways and shared paths

• Residential driveways

• Bike paths and outdoor community spaces

What Makes a Grate Heel Proof?

Heel Proof Grating has openings no wider than ¼ inch, which is half the maximum of standard ADA grating. That tighter opening is designed to stop a narrow heel from catching in the drain, which is a trip hazard in settings where dress shoes and heeled footwear are the norm.

Because ¼ inch is smaller than the ½ inch ADA maximum, heel proof grating automatically satisfies ADA requirements too. It's the stricter standard, so it covers both bases at once.

Where Heel Proof Grating Belongs:

• Restaurant patios and outdoor dining areas

• Shopping malls and retail plazas

• Hotel entrances and lobbies

• Urban commercial walkways

• Any space where dress shoes or heels are part of the everyday foot traffic picture

How to Pick the Right Grating for Your Project

If you're unsure which spec to go with, start here:

Use ADA Compliant (½ inch) grating when:

• The space is primarily outdoors and publicly accessible

• Mobility device access is the main safety concern

• Footwear is generally flat — parks, paths, driveways, recreational areas

Use Heel Proof (¼ inch) grating when:

• The space sees regular foot traffic in dress shoes or heels

• You're working on a commercial or hospitality project

• You need to satisfy both ADA and heel safety in a single product

• You're not sure about the footwear profile and want to cover both standards

When there's any doubt, the ¼ inch spec is the safer call. It satisfies both standards and removes the guesswork entirely.

The Cost of Specifying the Wrong Grating

Get this wrong in a heel-heavy environment and you've left a safety gap that a standard ADA grate won't close. A heel catches, someone falls, and the property owner is liable. Retrofitting grating after a safety incident is more disruptive and more expensive than getting the spec right the first time.

If you install heel proof grating where only ADA compliance was needed, you haven't created a safety problem. But you may have limited your product options or added cost where it wasn't necessary.

Neither outcome is ideal. The fix is simple: Match the grating to the actual use environment before the pour, not after.

Get the Spec Right Before the Concrete Goes Down

Grating is a small decision with real consequences when it's wrong. ADA compliant covers the accessibility baseline. Heel proof covers that plus footwear safety for commercial and hospitality settings.

Know the space, know the users, and match the spec accordingly. It's one of the easier calls in a drainage project when you know what you're looking at.
