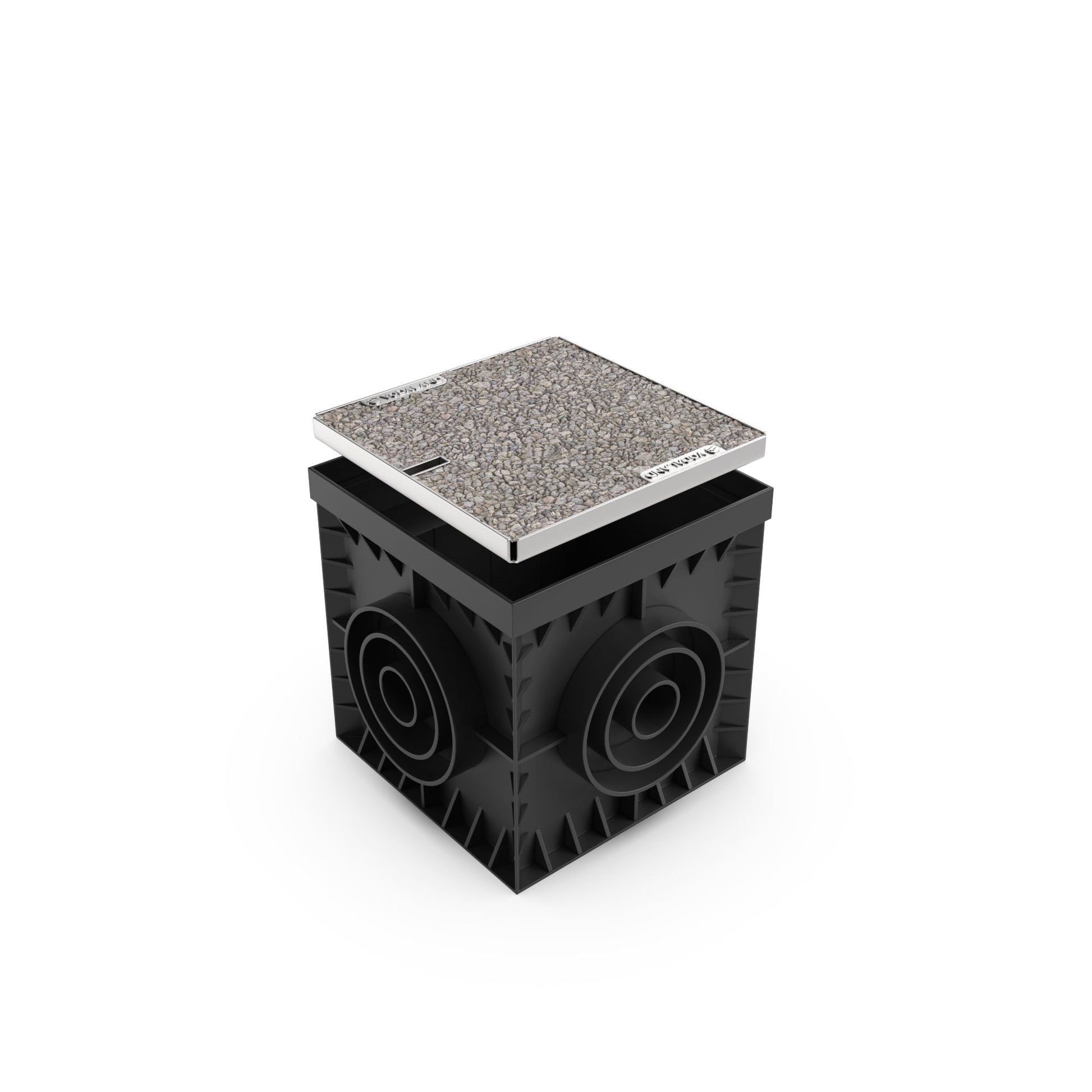

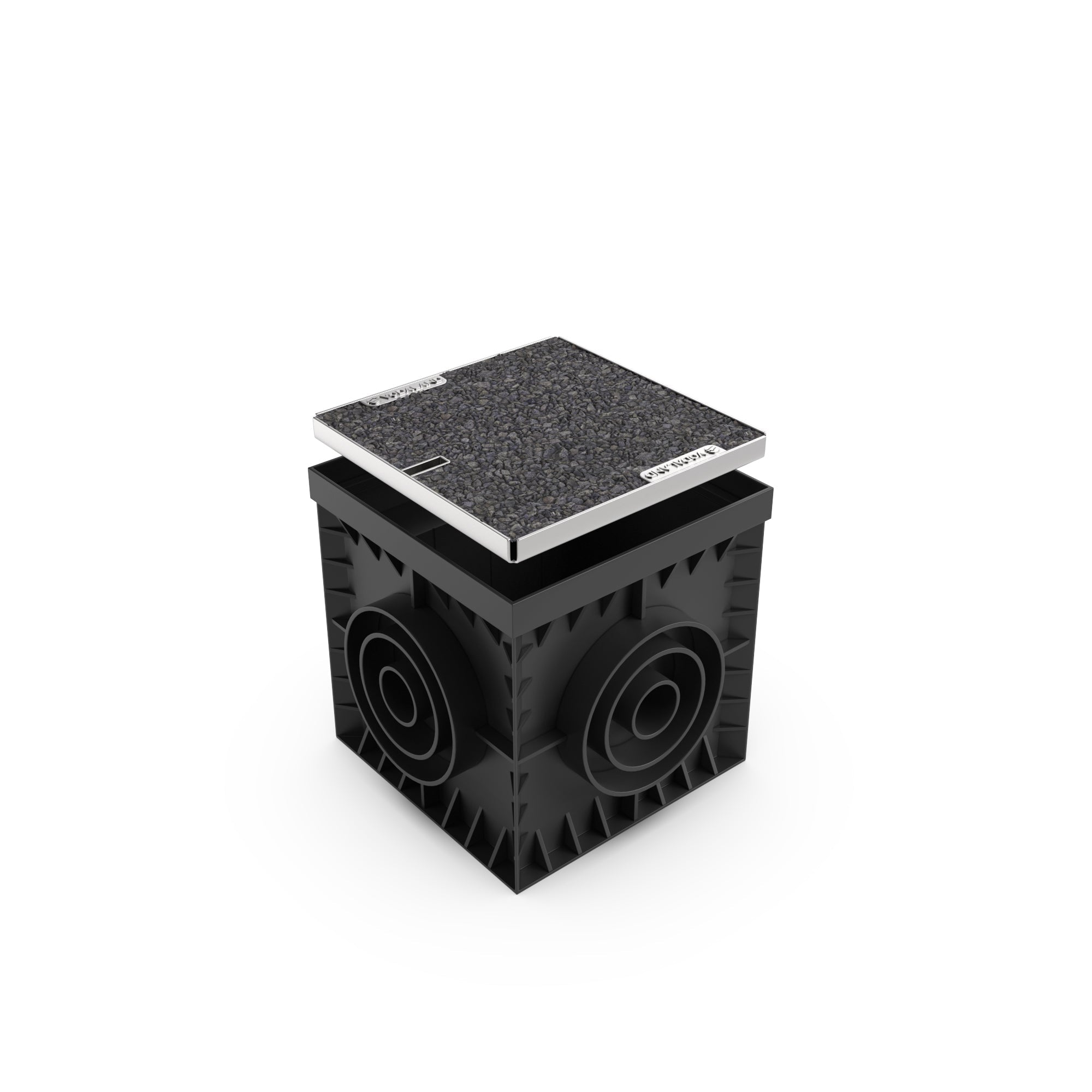

12x12 Catch Basin Gravel Grate Package
12x12 Catch Basin Gravel Grate Package
12x12 Catch Basin Gravel Grate Package
12x12 Catch Basin Gravel Grate Package
- PPE Plastic / Stainless Steel / Gravel
- 12"x12"x12"
- A - Load Class
- Driveway, Garage, Porch and more
- More Product Information Below
- Trusted by 10,000+ contractors!
Regular price
$200.00
Regular price
Sale price
$200.00
Unit price
per
free shipping over $999
3-5 days delivered
×
×
Product Details
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
- Heel proof
- A class rated system
- Outlet options for 2,3,4 and 6 inch outlets on all four sides
- Optional riser available if needed
- Grating is rated for vehicle traffic (when surrounded by concrete)
- ADA and Heel Proof Compliant
INCLUDED IN PACKAGE
1 - 12x12 Catch Basin

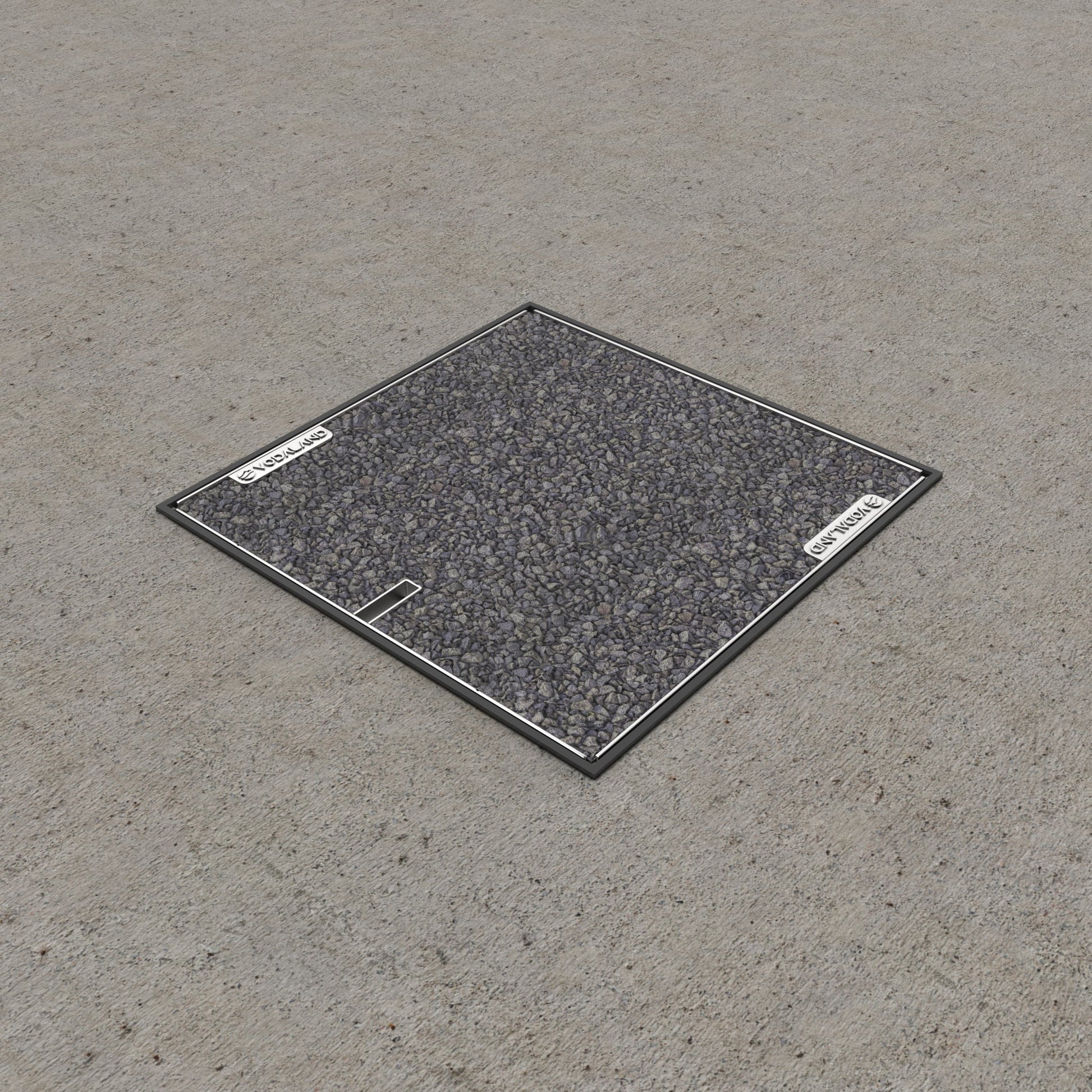

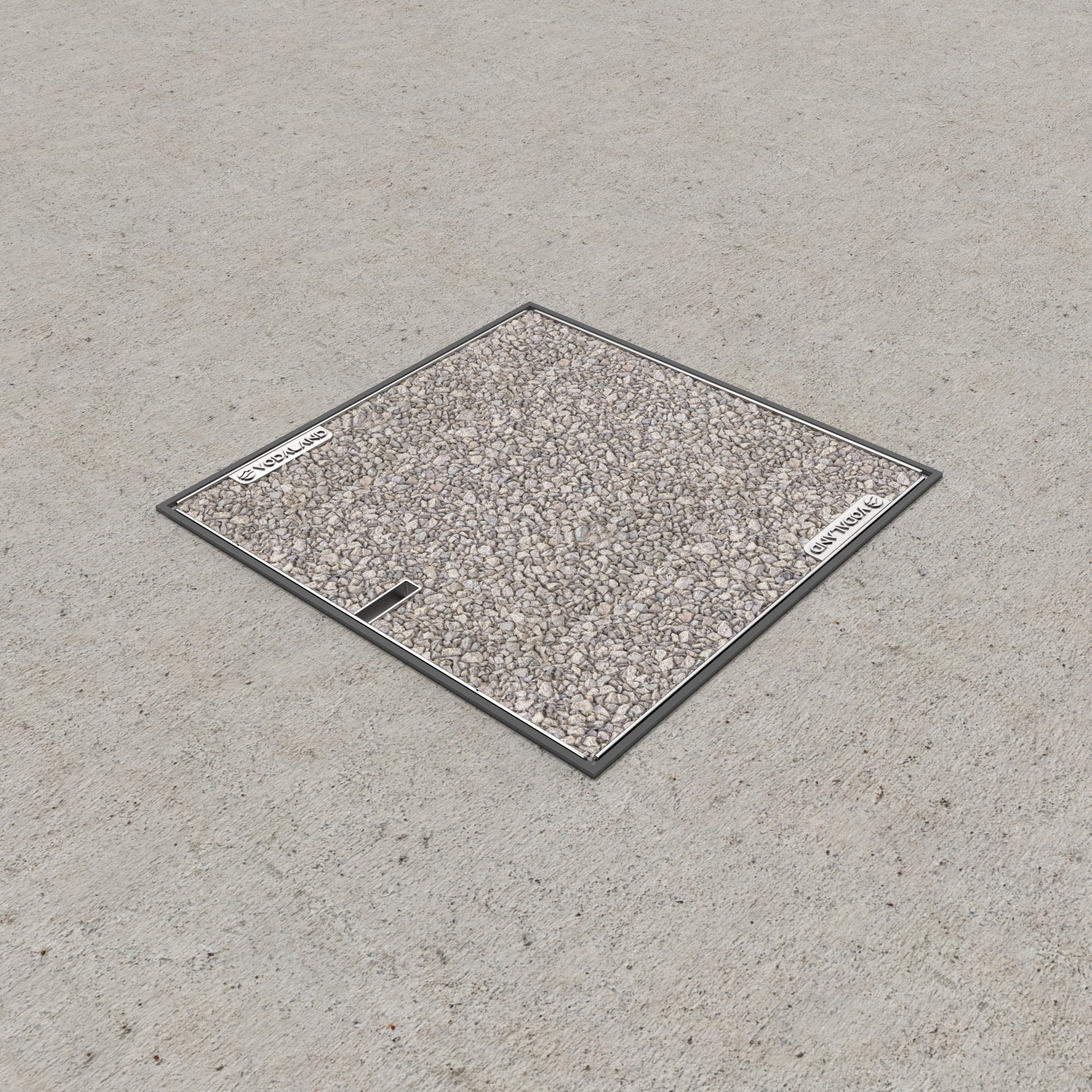

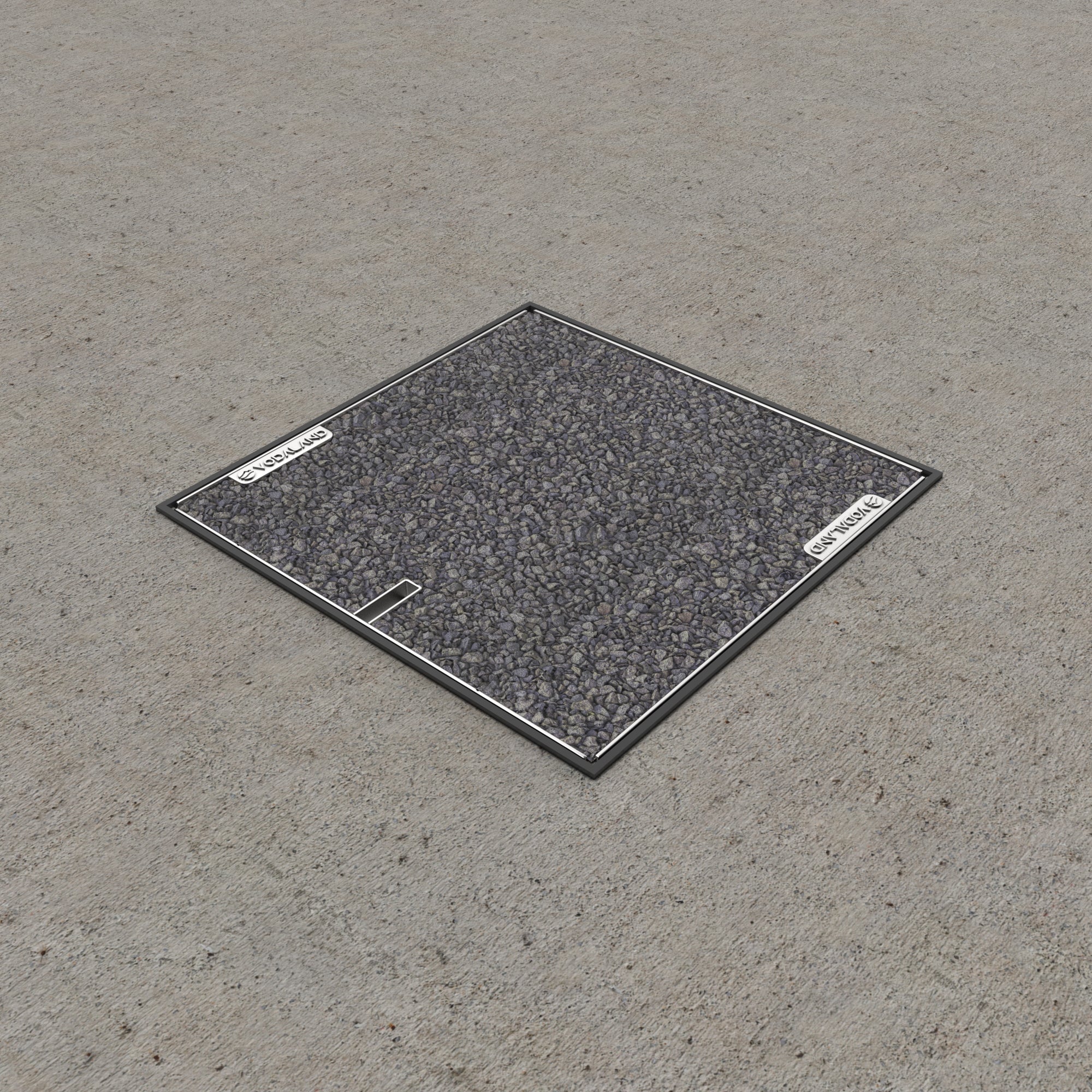

1 - Epoxy Gravel ADA / Heel Proof Grate
1 - Debris Basket
2 - Partitions
For more product information please see product description tab above
Downloads
PDF
DWG
BIM
Basin Specification Sheet
Dark Gravel Grate Specification Sheet
Gray Gravel Grate Specification Sheet
Installation Guide
Product Description
Product Description
12x12 Catch Basin Gravel Grate Package
A Catch Basin Package designed to provide a one point drainage solution in patios, porches, walkways and more while being ADA Compliant and Heel Proof
Key Features:
● A load Class - Supports up to 3,372 lbs per foot
● ADA Compliant/Heel Proof - Ensures a safe, trip free surface
● Multiple Connection Sizes- Connects to 2,3,4, and 6 inch piping on all 4 sides

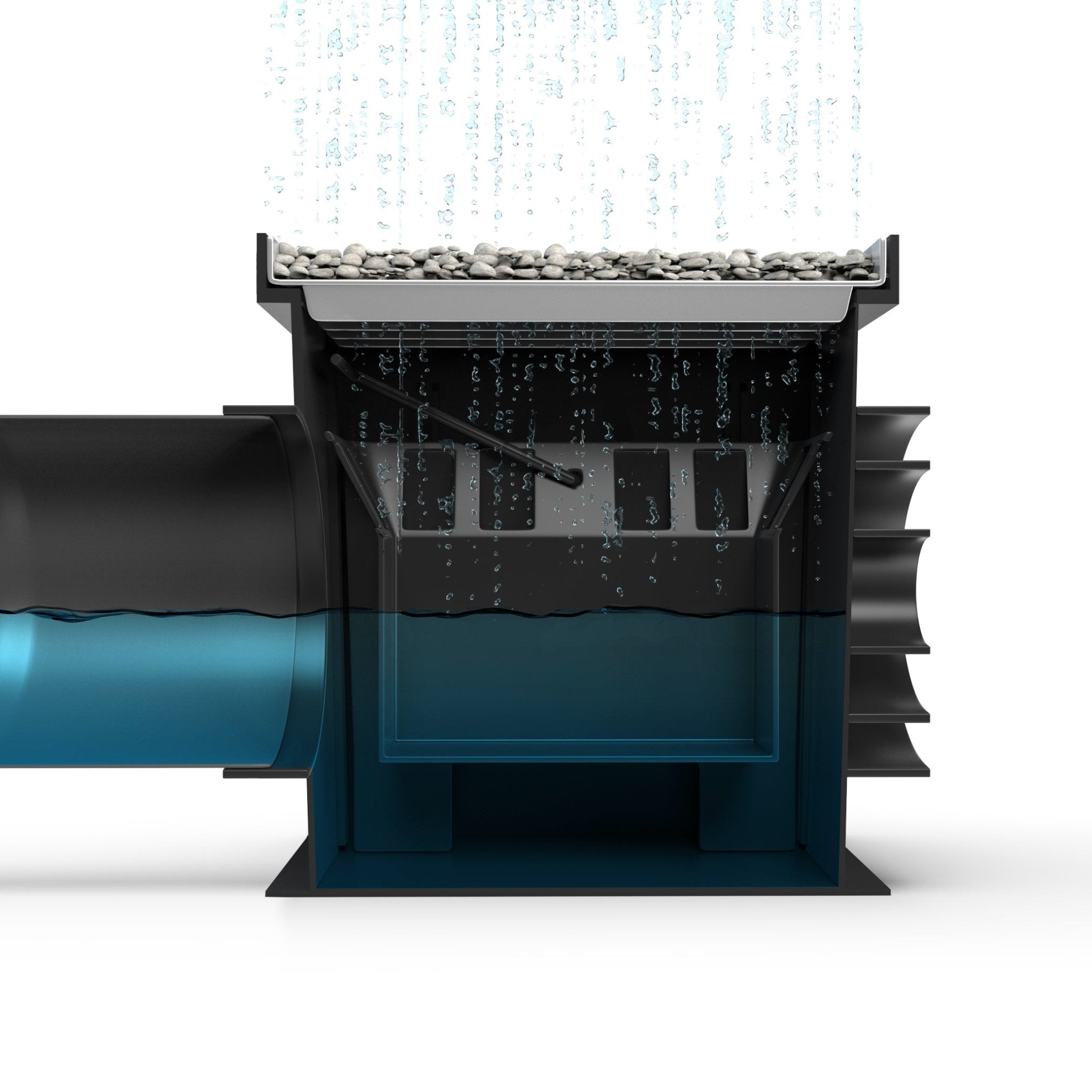

● Debris Basket- Plastic Debris basket to catch leaves and debris
● Removable Grate- Easy access to debris basket
● A load Class - Supports up to 3,372 lbs per foot
● ADA Compliant/Heel Proof - Ensures a safe, trip free surface
● Multiple Connection Sizes- Connects to 2,3,4, and 6 inch piping on all 4 sides
● Debris Basket- Plastic Debris basket to catch leaves and debris
● Removable Grate- Easy access to debris basket

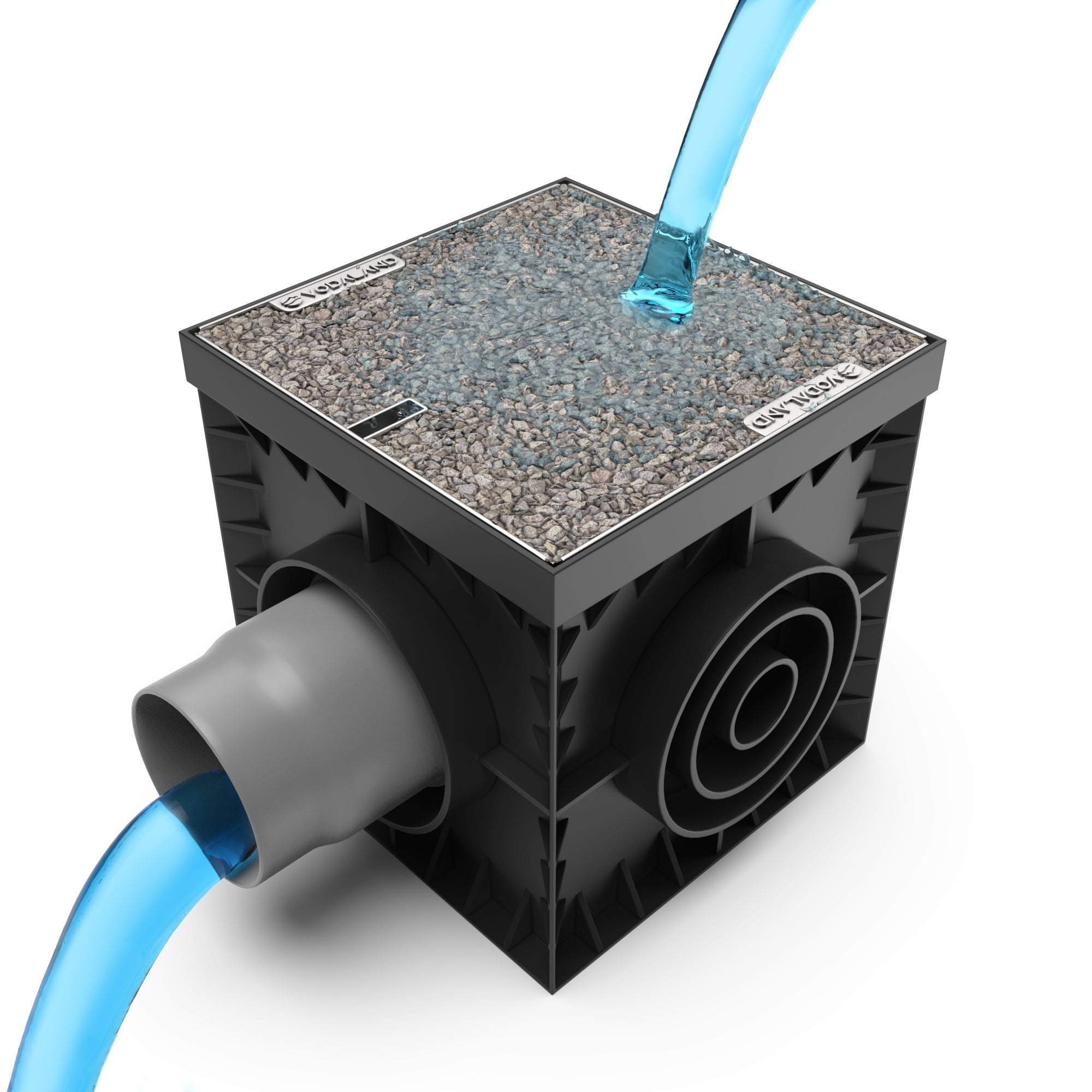

The 12x12 Catch Basin Gravel Grate Package is designed to fit and work with all your drainage needs. In addition to 2", 3",4" and 6" pipe outlet connections, the 12x12 Catch Basin Gravel Grate Package will come with two partitions and a debris basket to catch those leaves and debris from getting into your system. We pride ourselves with our unique grating options and style.
Common Installations:
● Patios
● Porches
● Walkways
Technical Specifications:
● Size- 12" L x 12" W x 12" H
● Material- PPE Plastic Basin/Epoxied Gravel & Stainless Steel Grate
● Load Class- A-Load Class
● Outlet Size- 2", 3",4" and 6"
