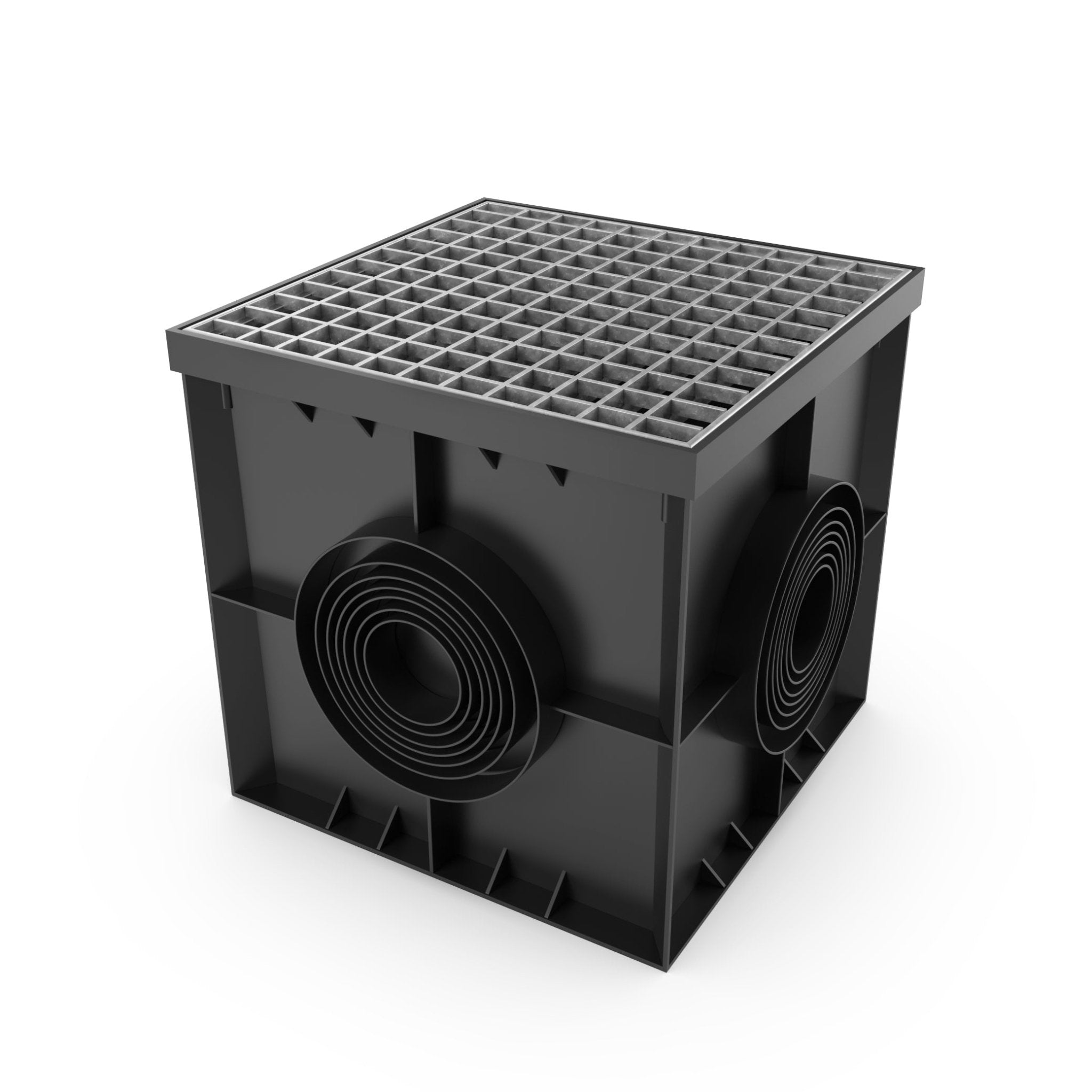

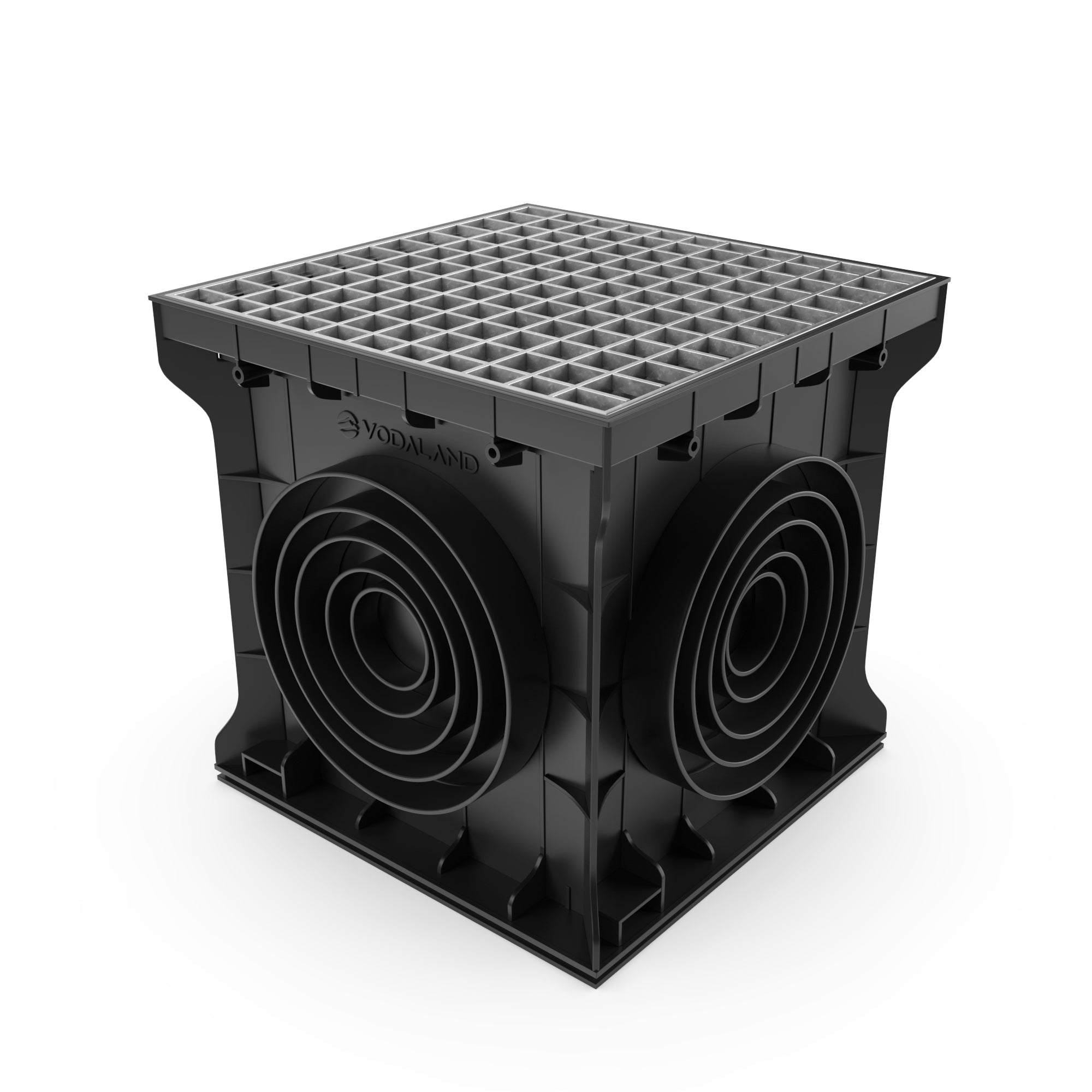

16x16 Catch Basin Galvanized Stamped Steel Package

16x16 Catch Basin Galvanized Stamped Steel Package

Skip to product information
1 of 4
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • Pipe connections on all four sides
  • Connects to 4,6 and 8 inch piping
  • ADA Compliant Grating - Pedestrian load rated

INCLUDED IN PACKAGE

1 - 16x16 Catch Basin

- Galvanized Stamped Steel Grate

- Debris Basket - Galvanized Stamped Steel

For more product information please see product description tab above



Downloads
PDF
DWG
BIM
Specification Sheet
PDF :
DWG :
Grate Specification Sheet
PDF :
DWG :
Installation Guide
PDF :

Product Description

Product Description

16x16 Catch Basin Galvanized Stamped Steel Package / A Load Class

A Catch Basin Package designed to provide a one point drainage solution in patios, porches, walkways and more.

Key Features
A load Class - Supports up to 3,372 LBS per foot
ADA Compliant - Ensures a safe, trip free surface

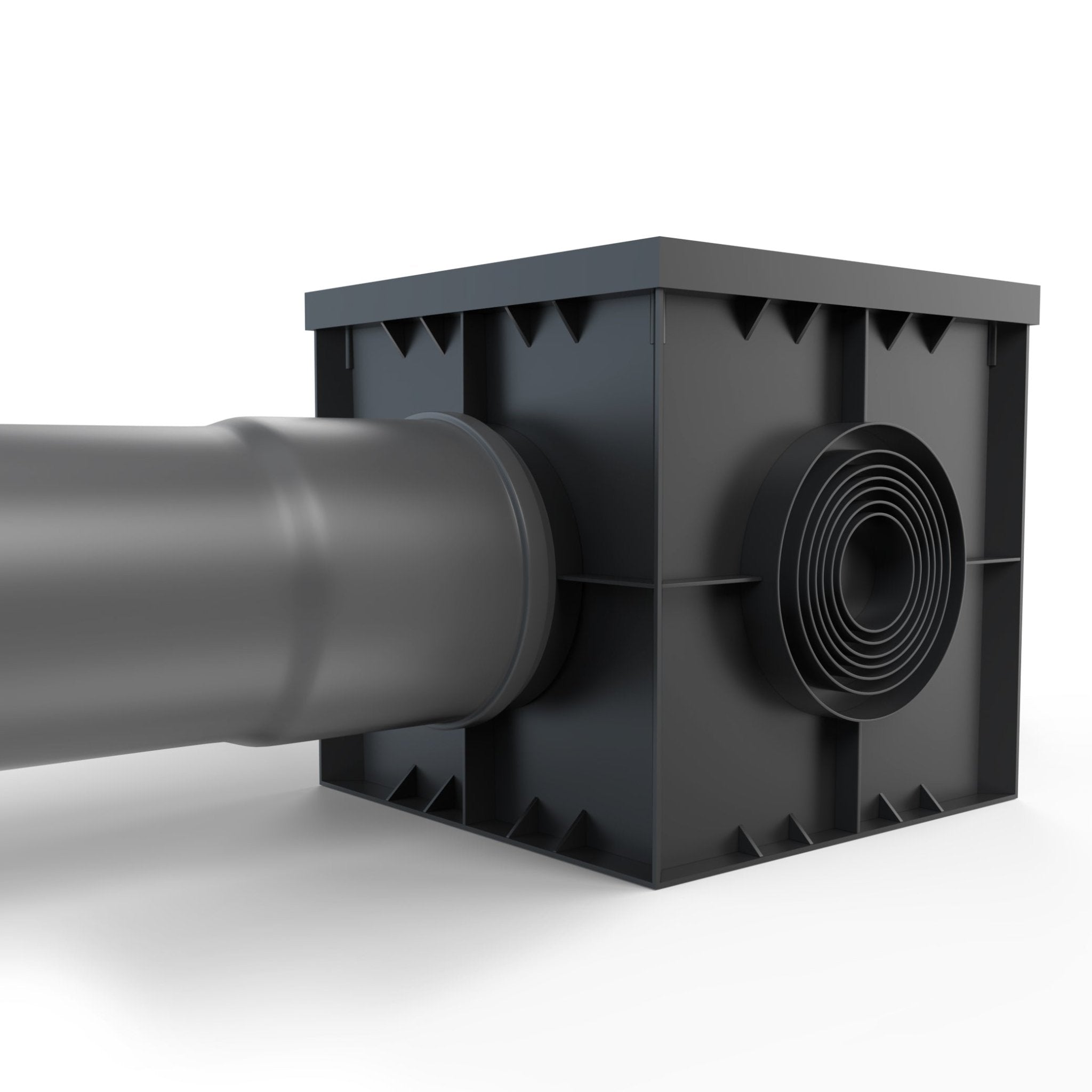

Multiple Connection Sizes- Connects to 4,6 and 8 inch piping on all 4 sides

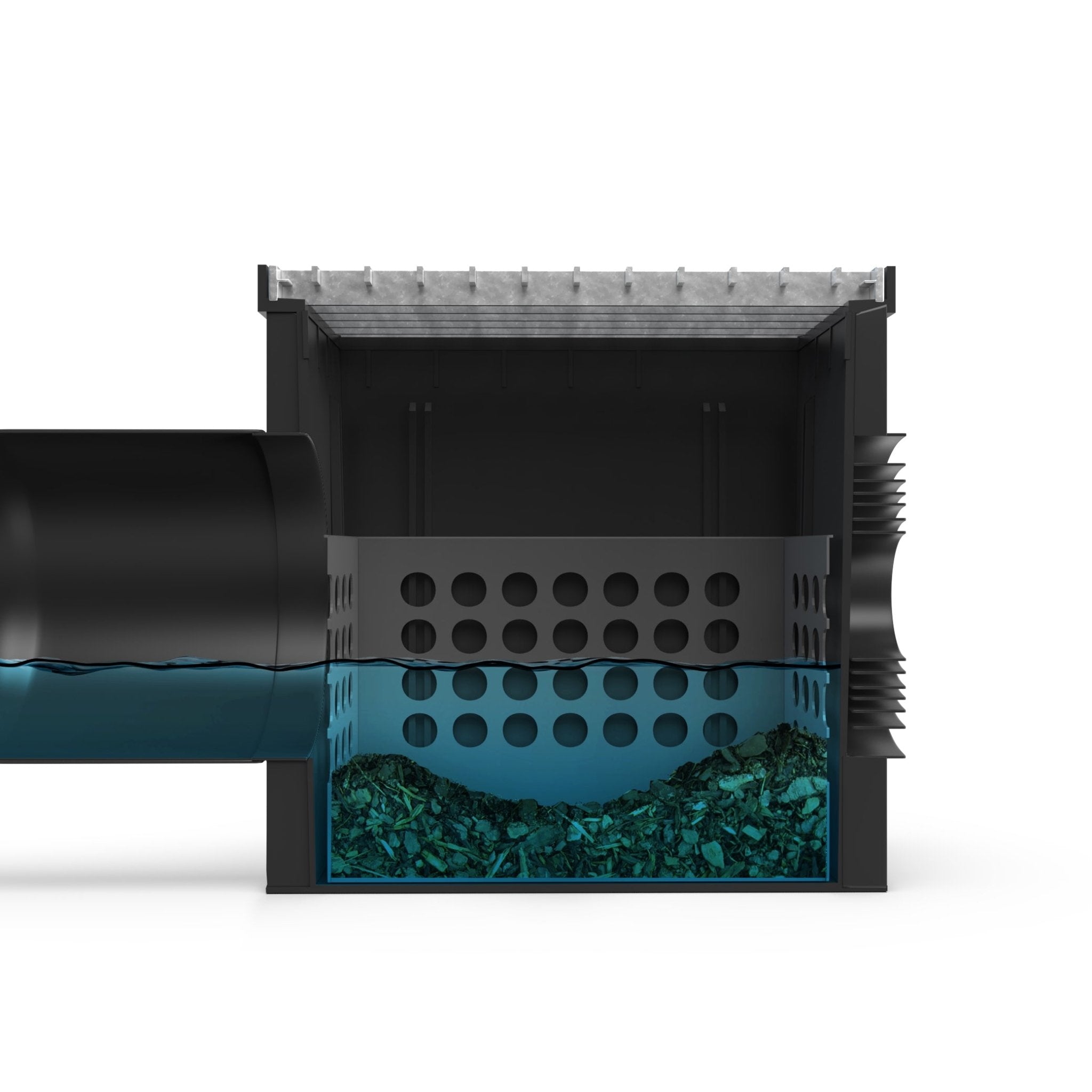

Debris Basket- Galvanized Debris basket to catch leaves and debris

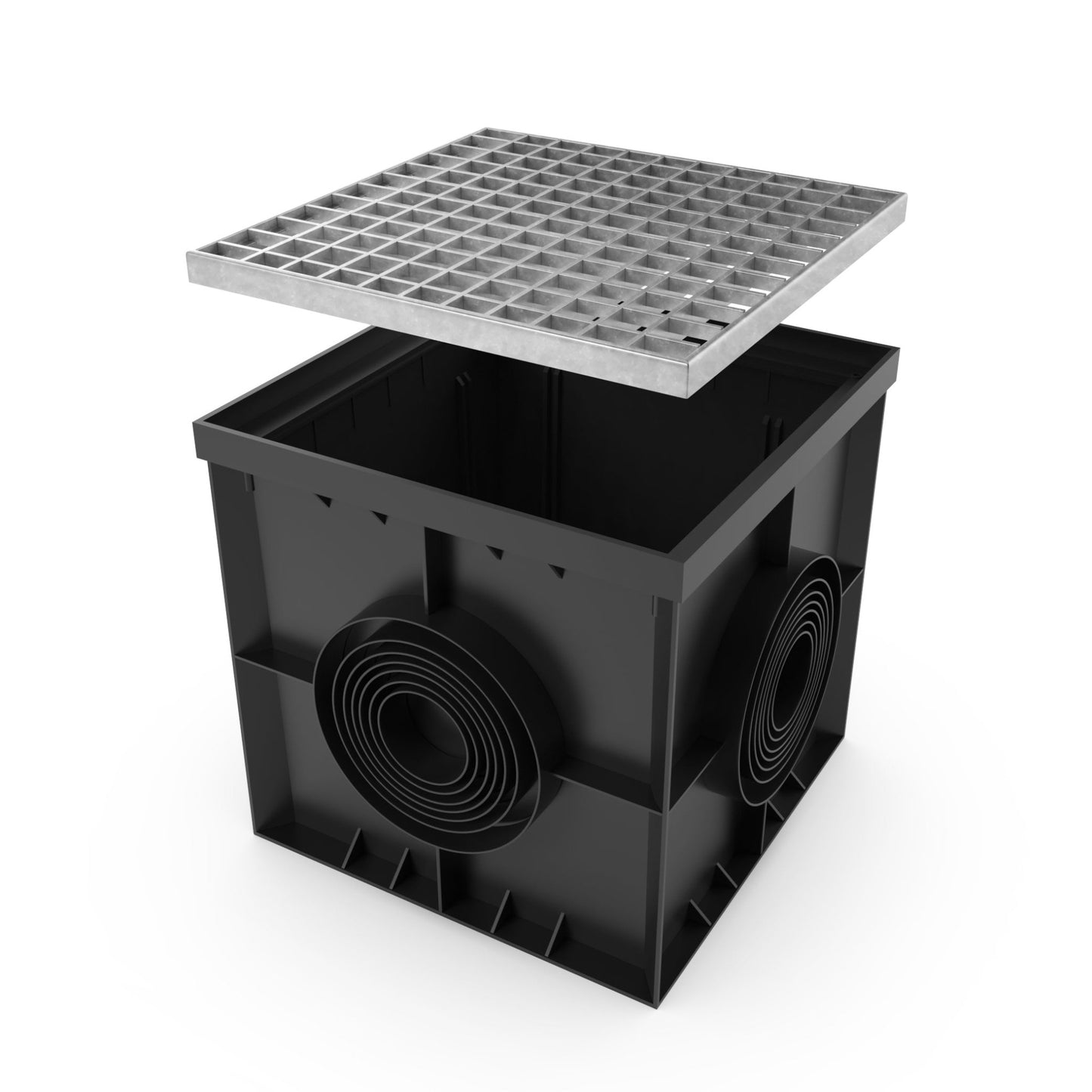

Removable Grate- Easy access to debris basket

The 16x16 Catch Basin Galvanized Stamped Steel Package is designed to fit and work with all your drainage needs. In addition to 4,6 and 8 inch pipe outlet connections, the 16x16 Catch Basin Galvanized Stamped Steel Package will come with two partitions and a galvanized debris basket to catch those leaves and debris from getting into your system. We pride ourselves with our unique grating options and style.

Common Installations:
Patios
Porches
Walkways

Technical Specifications:
Size- Basin: 16" L x 16" W x 16" H Grate:15”x15”
Material- PPE Plastic Basin w/Galvanized Debris Basket / Galvanized Stamped Steel Grate
Load Class- A-Load Class
Outlet Size- 4,6 and 8”
Flow Rate- 664 GPM

Technical Resources: Load Class Compliance
