16X16 Catch Basin Stainless Steel ADA / HEEL Proof Grate Package
16X16 Catch Basin Stainless Steel ADA / HEEL Proof Grate Package
16X16 Catch Basin Stainless Steel ADA / HEEL Proof Grate Package
16X16 Catch Basin Stainless Steel ADA / HEEL Proof Grate Package
- PPE Plastic / Stainless Steel
- 16"x16"x16"
- B - Load Class
- Driveways, Garages, Patios and more
- More Product Information Below
- Trusted by 10,000+ contractors!
Couldn't load pickup availability
FAQ’s
3D Model of our 16x16 Stainless Steel Package
Zoom in and out of our 16x16 stainless steel package, note the debris basket and outlets on 2 sides of the system.

Product Details
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Product Description
Product Description
16x16 Catch Basin Stainless Steel ADA / HEEL Proof Grate Package - A Load Class
A Catch Basin Package designed to provide a one point drainage catch basin solution in patios, porches, walkways and more while being ADA Compliant and Heel Proof.
Key Features:
● A load Class - Supports up to 3,372 LBS per foot
● ADA Compliant/Heel Proof - Ensures a safe, trip free surface

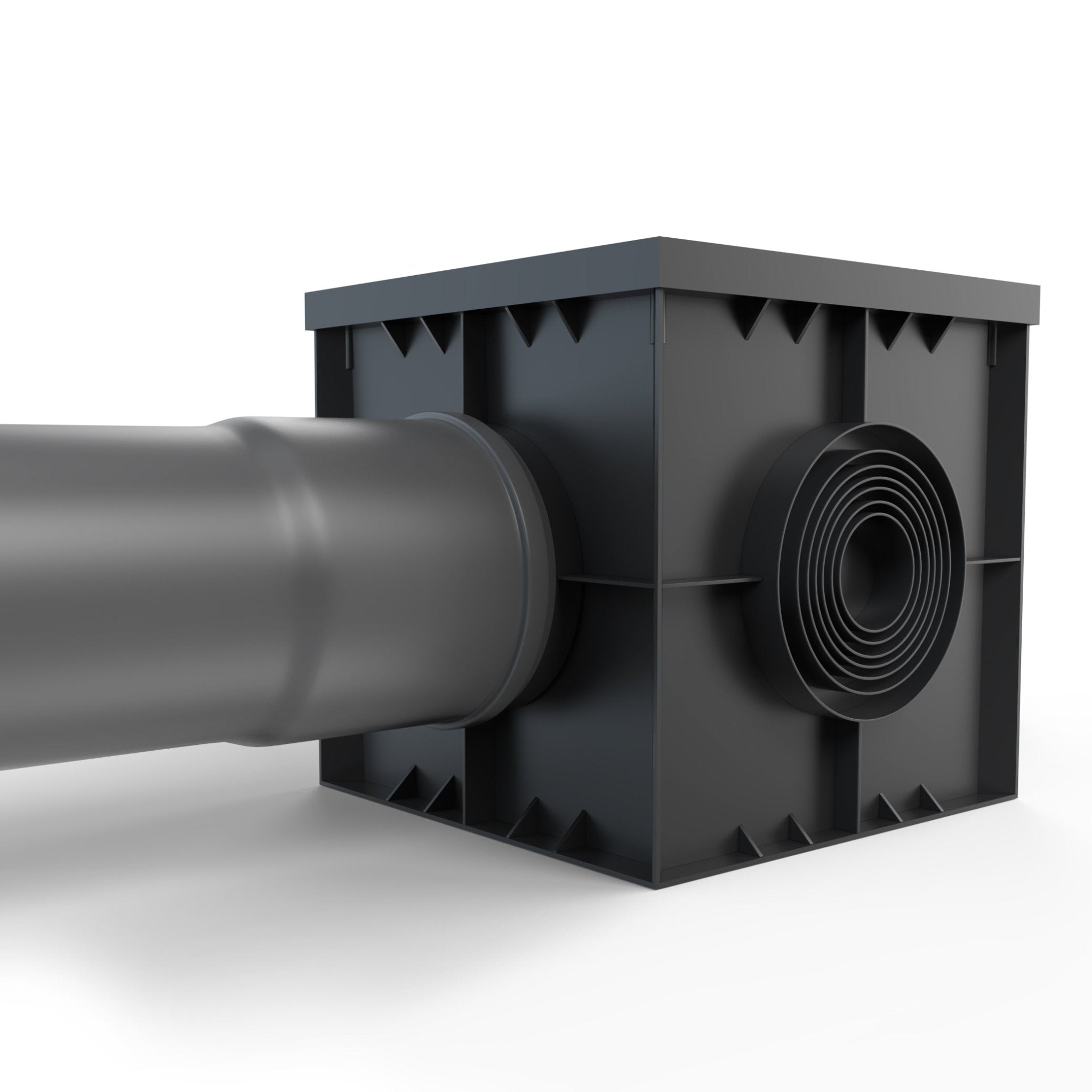

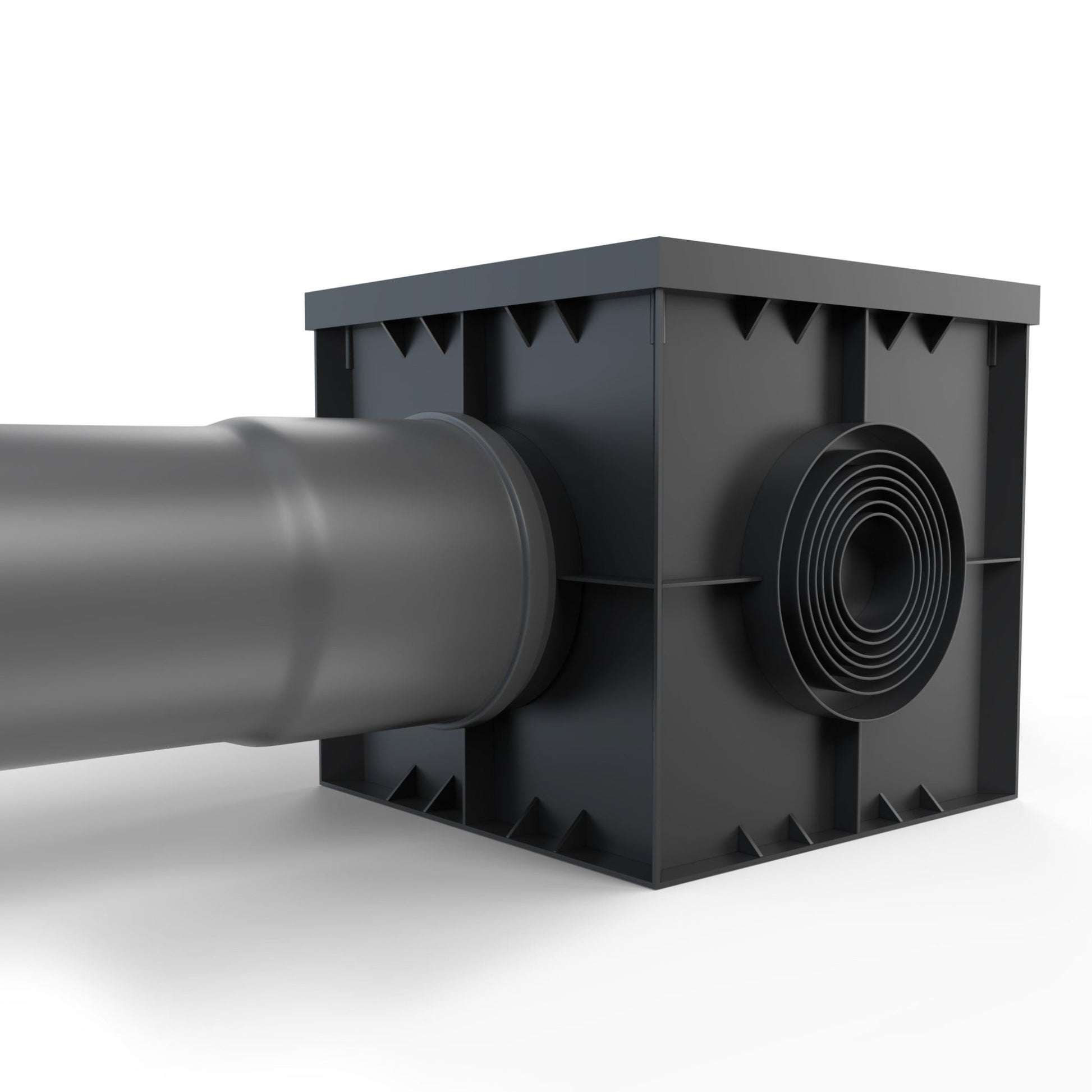

● Multiple Connection Sizes- Connects to 4, 6 and 8 inch piping on all 4 sides

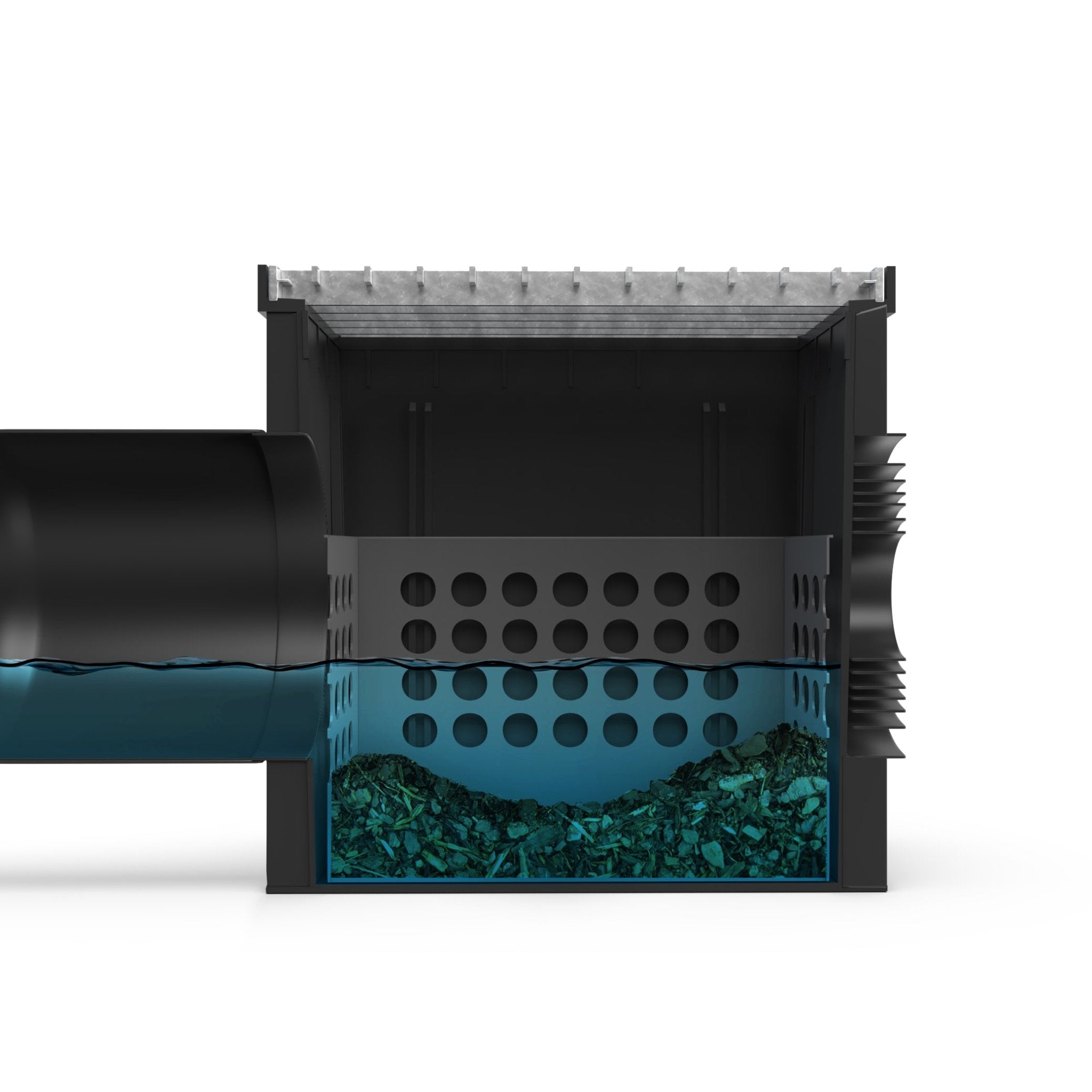

● Debris Basket- Galvanized Debris basket to catch leaves and debris

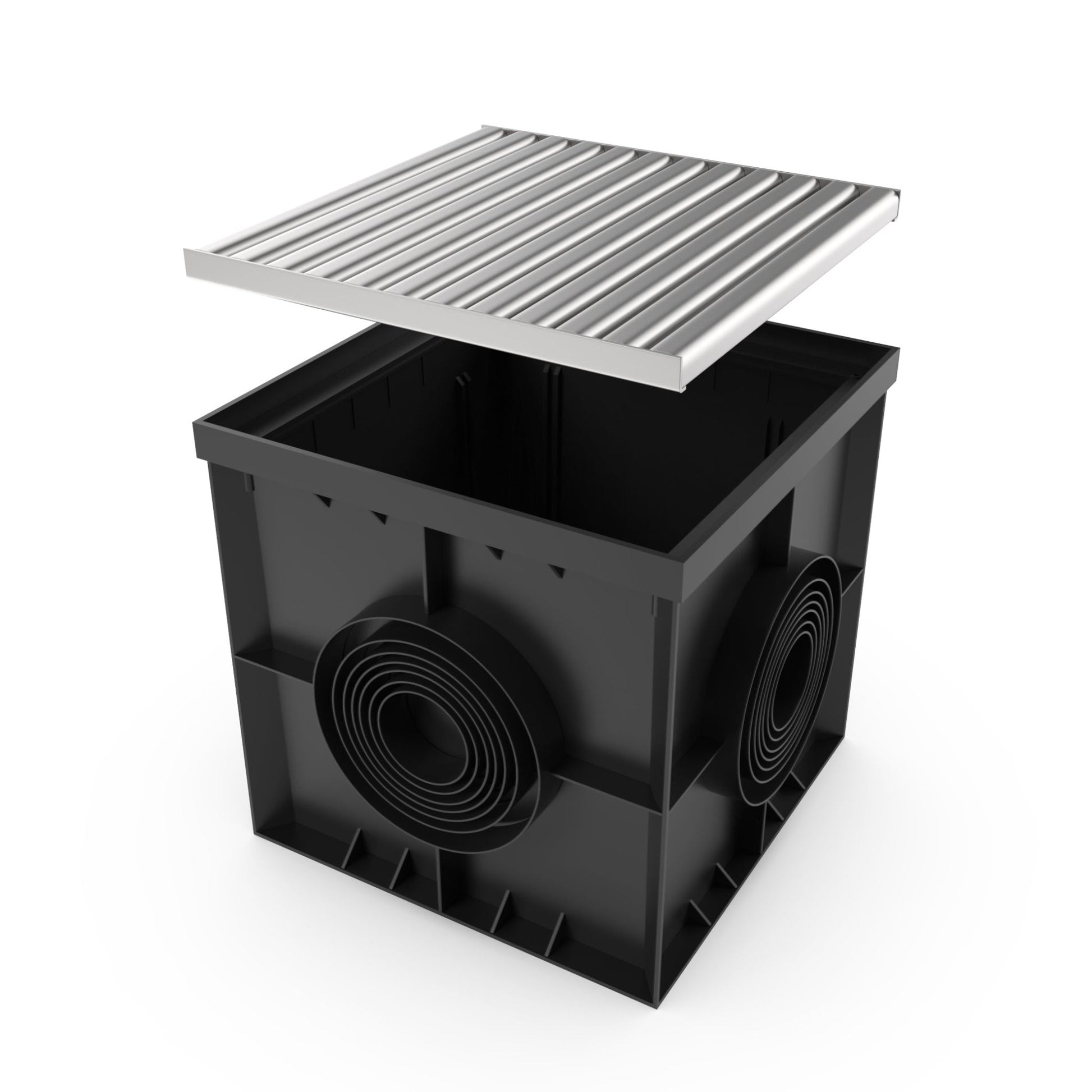

● Removable Grate- Easy access to debris basket
Expanded Product Overview:
The 16x16 Catch Basin Stainless Steel ADA / HEEL Proof Grate Package is designed to fit and work with all your drainage needs. In addition to 4, 6 and 8 inch pipe outlet connections, the 16x16 Catch Basin Stainless Steel ADA / HEEL Proof Grate Package will come with two partitions and a galvanized debris basket to catch those leaves and debris from getting into your system. Please note that a Schedule 40 adapter is recommended for the outlet connections. We pride ourselves with our unique grating options and style.
Common Installations:
● Patios
● Porches
● Walkways
Technical Specifications:

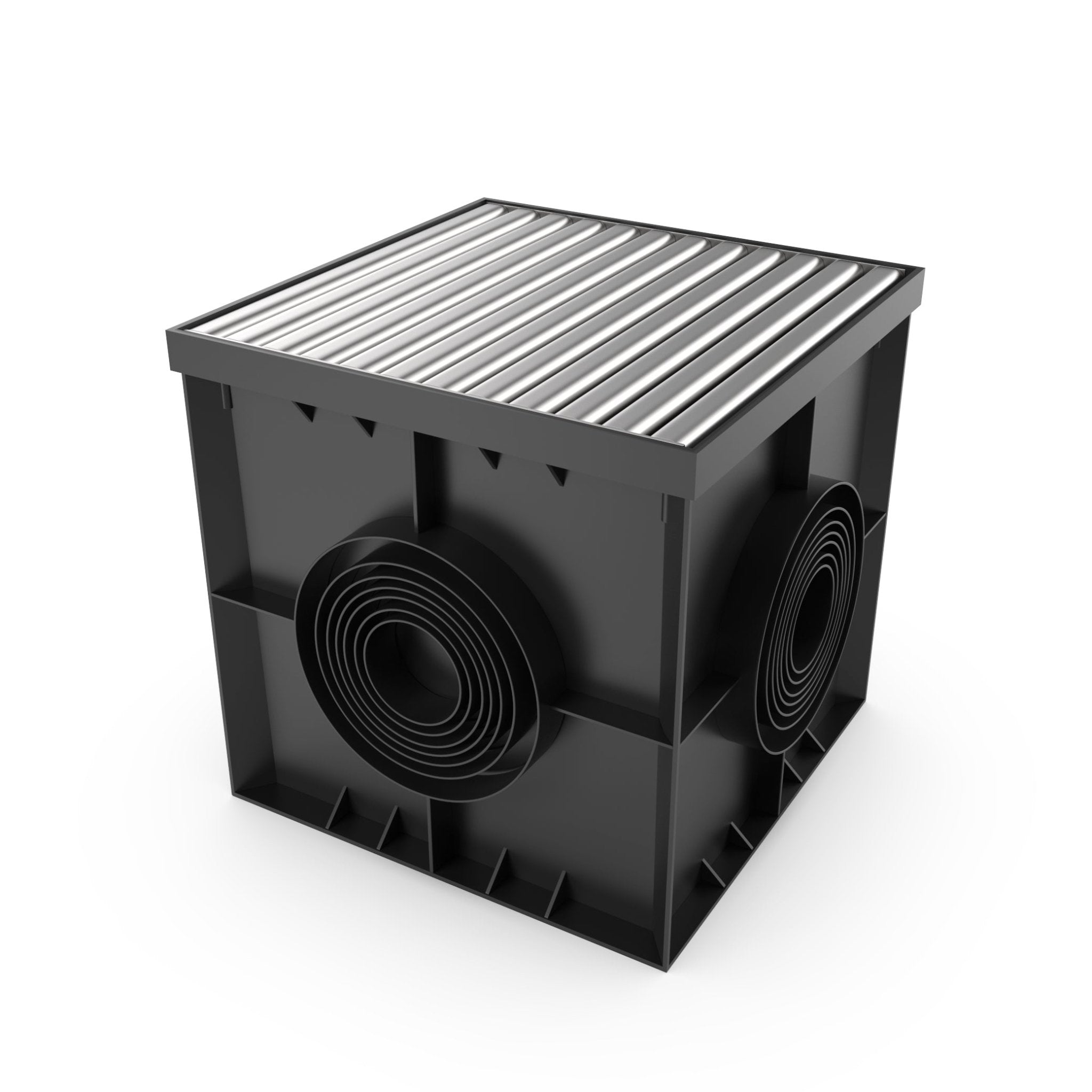

● Size- 16" L x 16" W x 16" H, Grate- 15”x15”
● Material- PPE Plastic Basin w/ Galvanized Debris Basket/304 Stainless Steel Grate
● Load Class- A-Load Class
● Outlet Size- 4, 6 and 8 inch
● Flow Rate- 128 GPM
Technical Resources: Load Class Compliance
Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.
