22x22 Traffic Rated Catch Basin Stainless Steel ADA / Heel Proof Type C-Class Package

22x22 Traffic Rated Catch Basin Stainless Steel ADA / Heel Proof Type C-Class Package

Skip to product information
1 of 2
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • ADA and Heel Proof Complaint
  • Vehicle load rated - Heavy duty
  • Connects to 6, 8, 10, and 12 inch PVC or corrugated pipe
  • Sediment basket available as optional purchase
  • INCLUDED IN PACKAGE

    1 - 22x22 Catch Basin

    - 100% Stainless Steel Grating - C Class ADA / Heel Proof

  • For more product information please see product description tab above



Downloads
PDF
DWG
BIM
Specification Sheet
PDF :
DWG :
Grate Specification
PDF :
DWG :
Installation Guide
PDF :

Product Description

Product Description

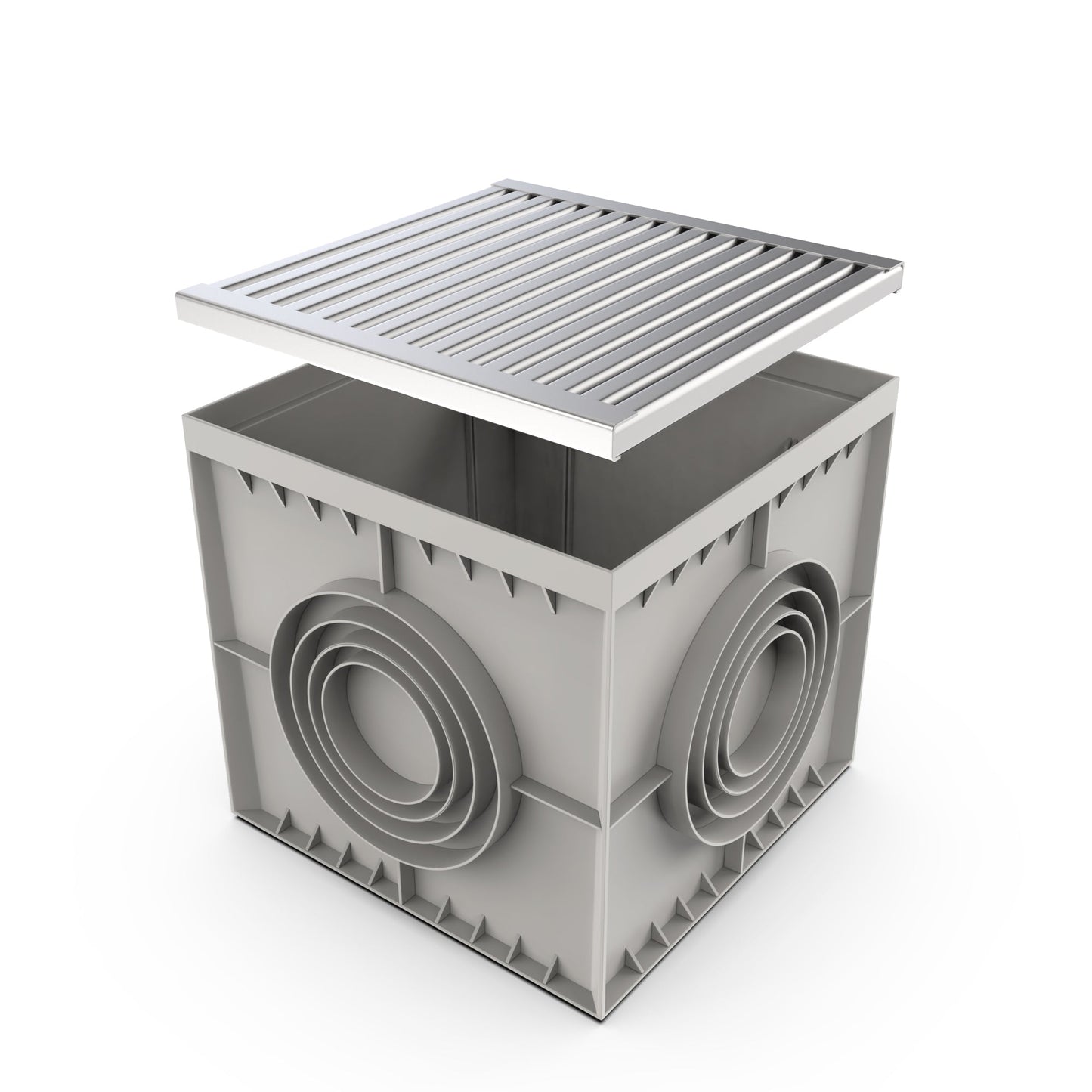

22x22 Catch Basin Stainless Steel ADA / Heel Proof Type C-Class Package

This traffic rated Catch Basin Stainless Steel ADA / Heel Proof Type C-Class Package
Catch Basin Package designed to provide a single point drainage solution in driveways, garages, roads and more.

Key Features:
C load Class - Supports up to 56,200lbs per foot
ADA Compliant / Heel Proof - Ensures a safe, trip free surface

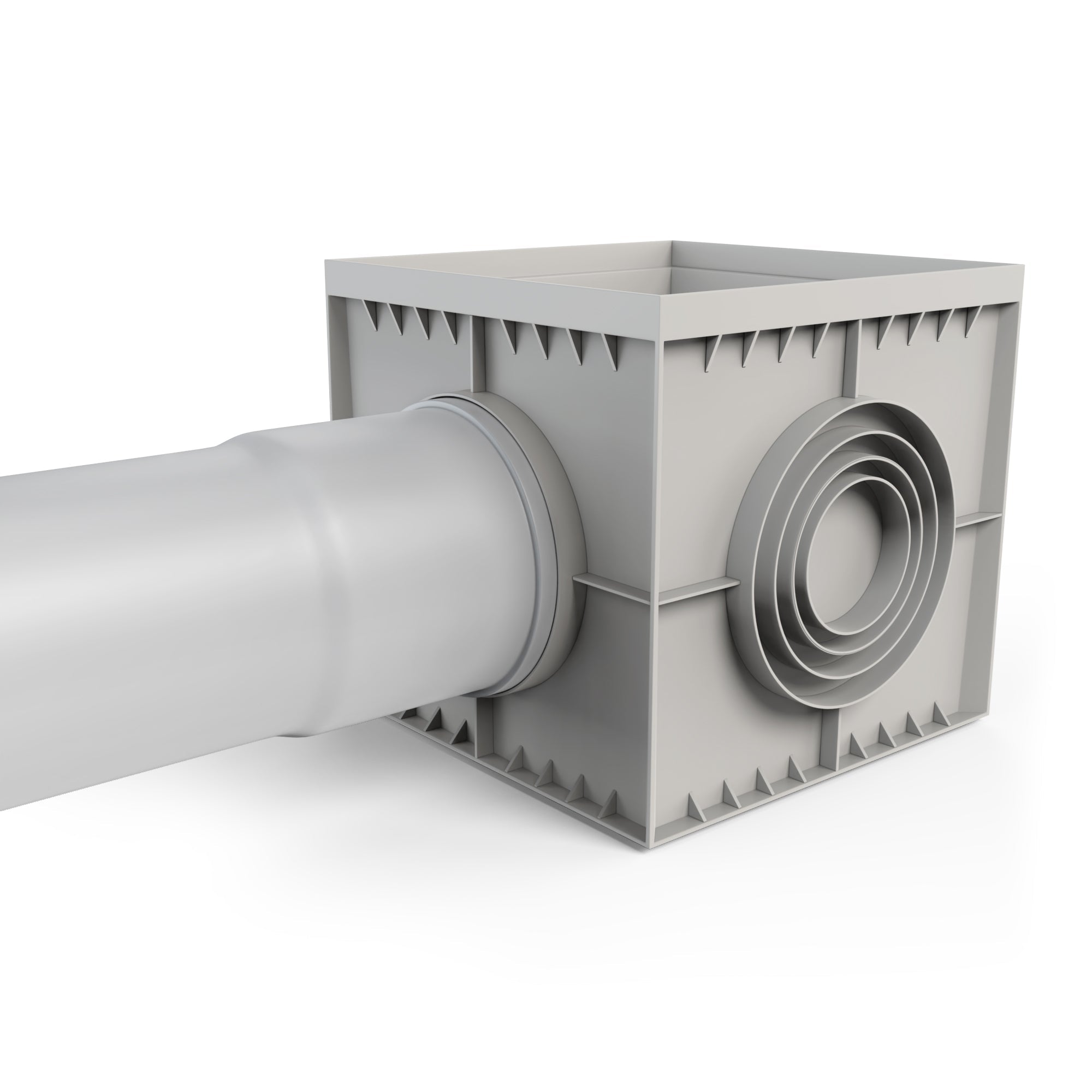

Multiple Connection Sizes- Connects to 6,8,10, and 12 inch piping on all 4 sides
Removable Grate

The 22x22 Traffic Rated Catch Basin Stainless Steel ADA / Heel Proof Type C-Class Package is designed to fit and work with all your drainage needs. In addition to 6,8,10, and 12 inch pipe outlet connections, his traffic rated catch basin is C Class road rated, making it ideal for vehicles and heavy-duty traffic. We pride ourselves with our unique grating options and style.

Common Installations:
Driveways
Garages
Roads

Technical Specifications:
Size- Basin: 22" L x 22" W x 22" H Grate: 21”x21"
Material- PPE Plastic Basin / 304 Stainless Steel Grating
Load Class- C-Load Class
Outlet Size- 6,8,10, and 12 inch

Technical Resources: Load Class Compliance
