Specifications and Downloads
- 4" Internal width galvanized steel B Class ADA Package
- Comes with galvanized steel grate, channel, fasteners and end caps
- Vehicle load rated, ADA compliant
- Connect multiple channels for longer run
- 4" PVC or corrugated pipe bottom outlet option on each channel with schedule 40 adapter
- 4" PVC or corrugate pipe outlet option out of end caps (on the 6" and 8" channel depth options)
For our Pre Slope Packages all end caps have a 4" outlet
- More product details below
- Pre Slope Specification PDF
- Grating pdf
- 2 inch channel depth pdf
- 2 inch channel depth cad
- 3 inch channel depth pdf
- 3 inch channel depth cad
- 4 inch channel depth pdf
- 4 inch channel depth cad
- 6 inch channel depth pdf
- 6 inch channel depth cad
- 8 inch channel depth pdf
- 8 inch channel depth cad
- installation brochure

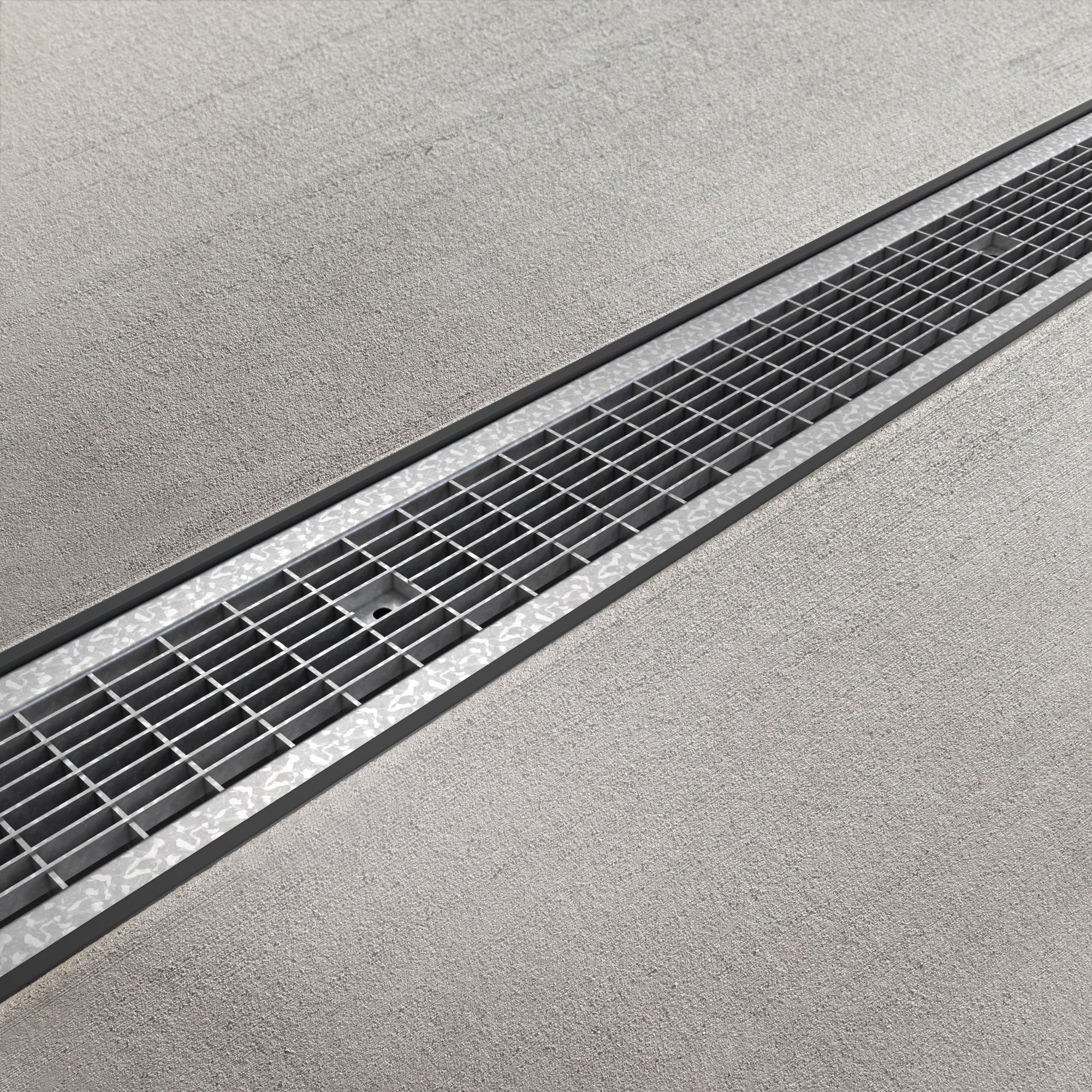

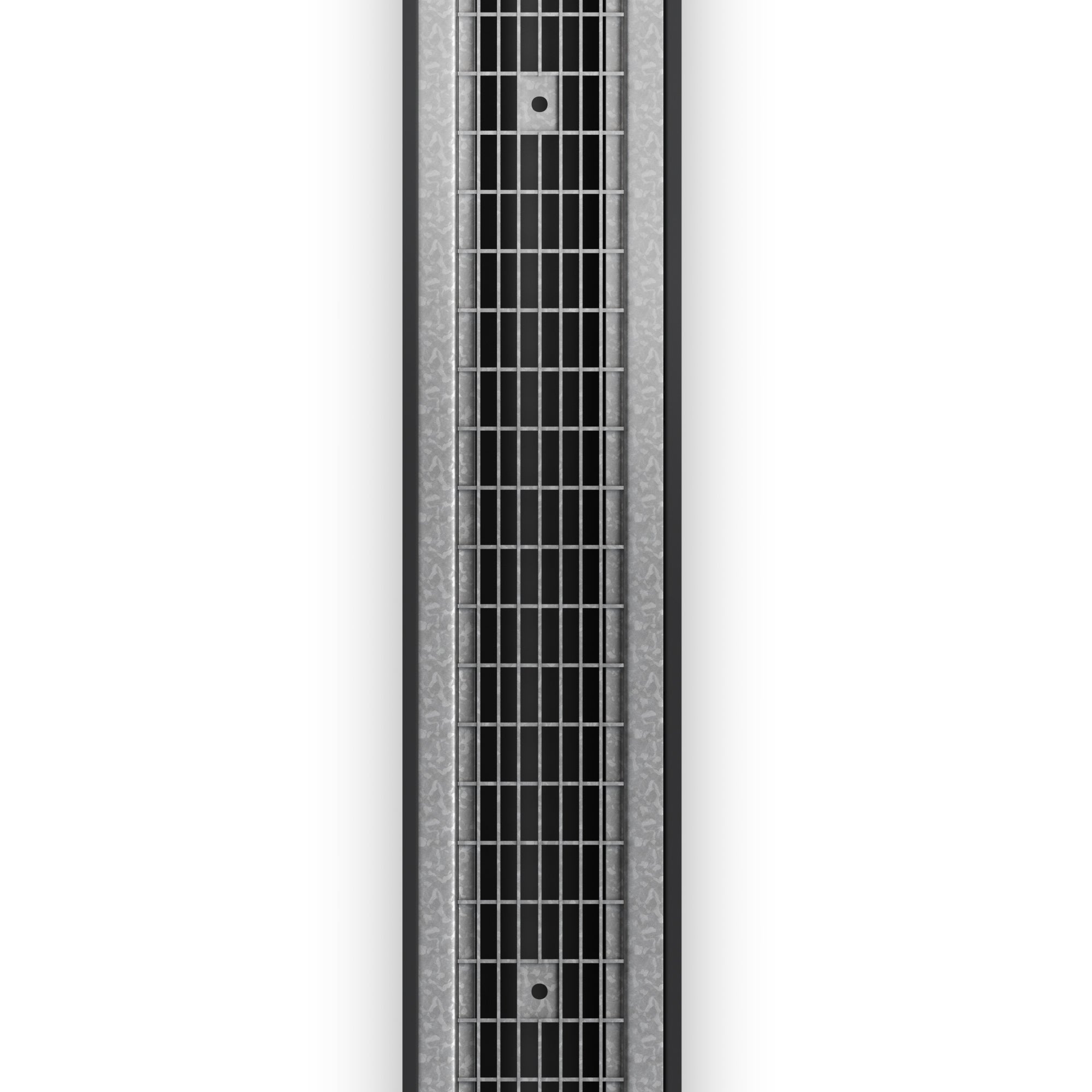

This package is fitted with our ADA approved Galvanized Steel B CLASS grating which has a weight load rating at 27,500 lbs. Making it available to drive over as well as forklift rated as well. Nice rich look / feel as well. Comes with end caps, channel brackets for fastening grating down tight, and of course the channel itself.

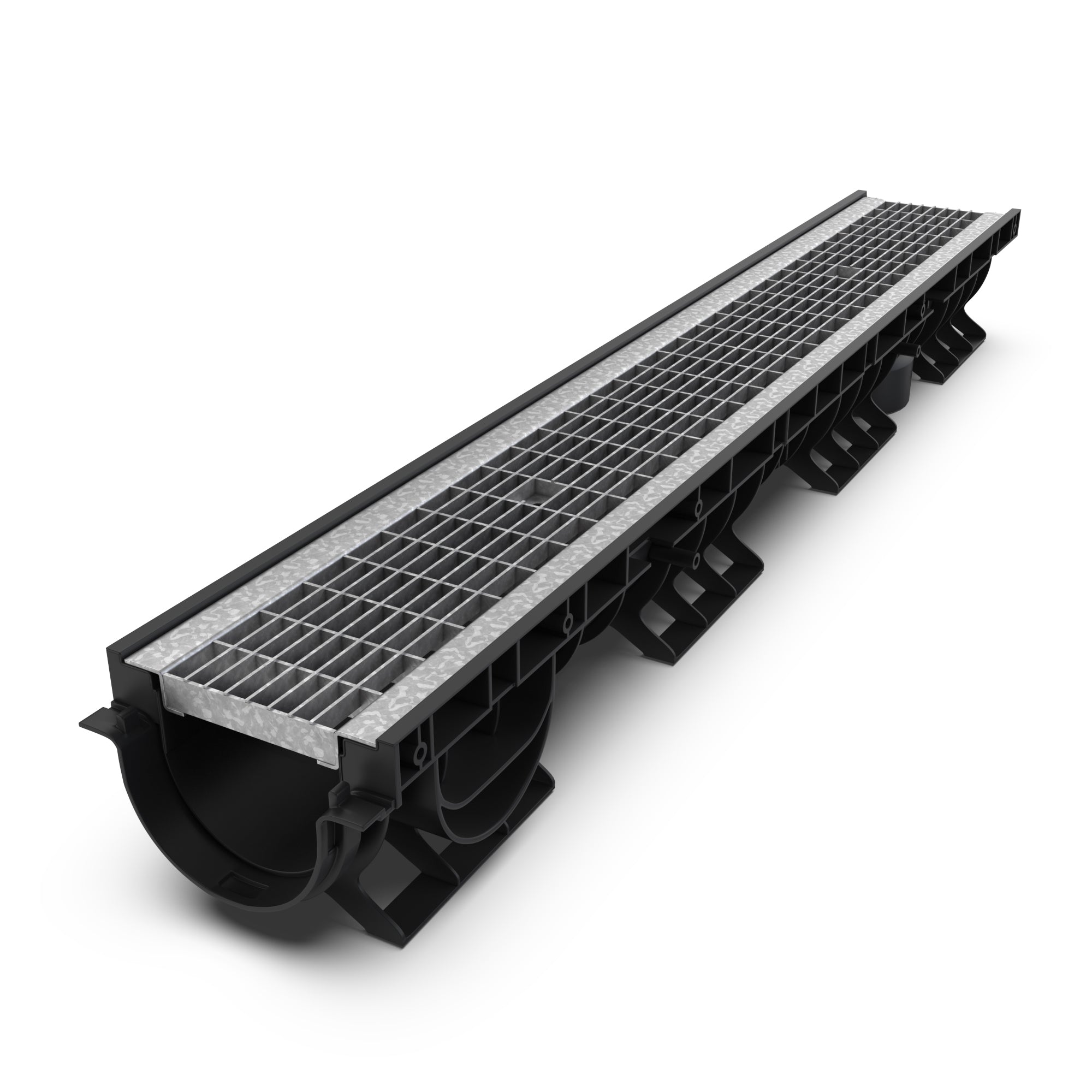

Each channel is 3.3 ft in length, with a snap and lock connection so you can attach end to end to create a longer and custom size run. In addition, each channel has a 90 degree turn already within the system - no adapters needed! Please see below for outlet specs per channel depth.
With our new Pre Slope system you can create a run up to 33 ft in length with a 1% slope. With a 4" outlet on the end no matter the channel run length.

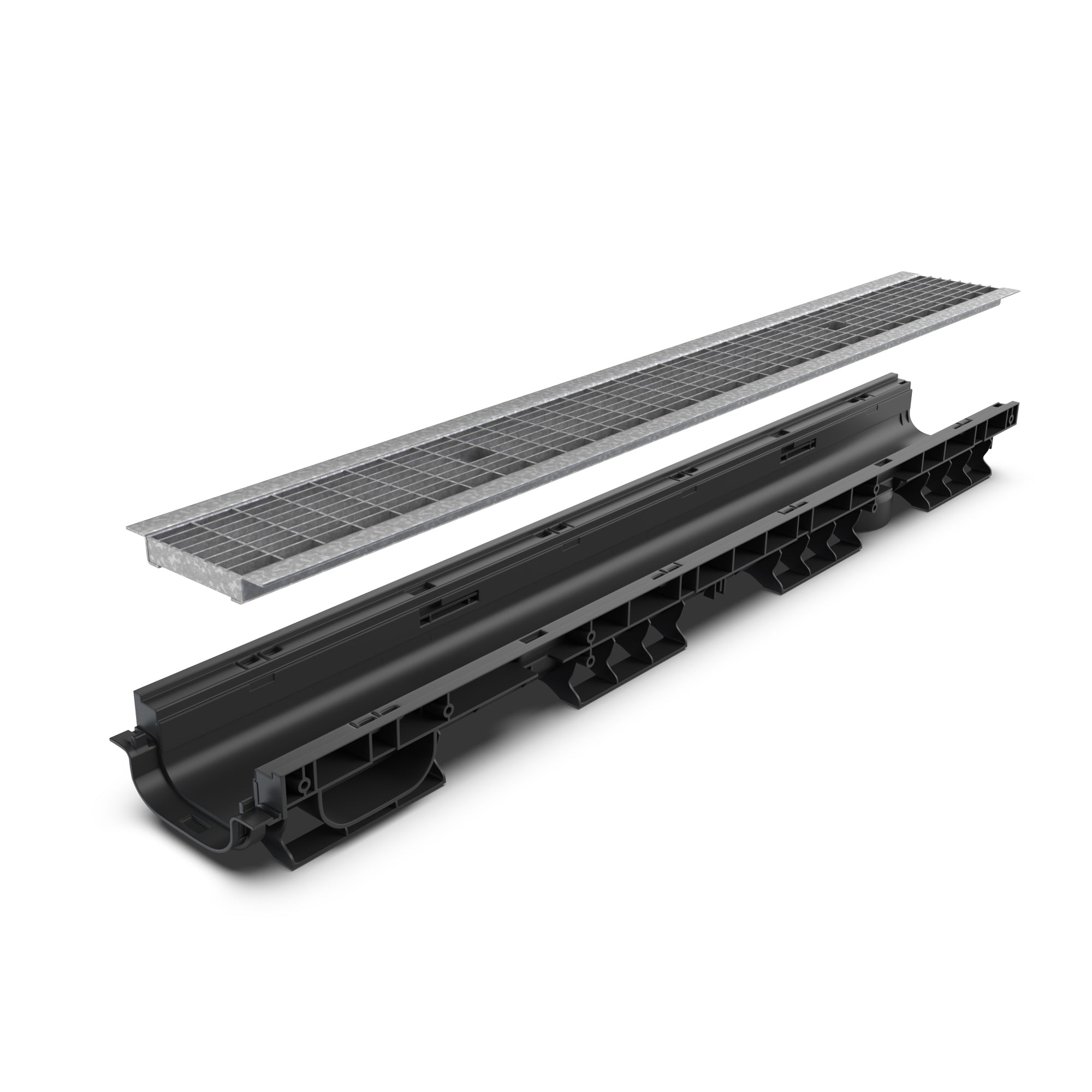

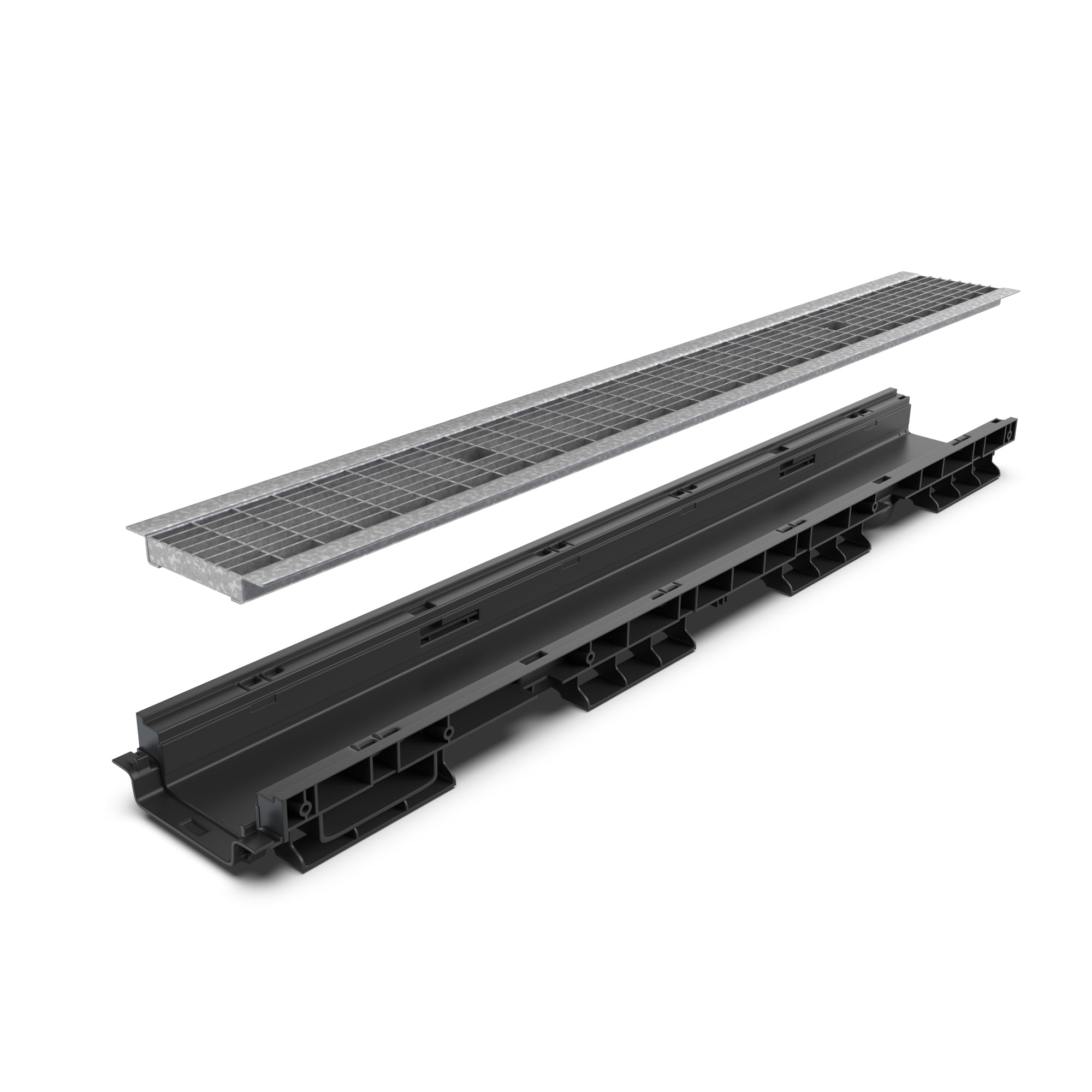

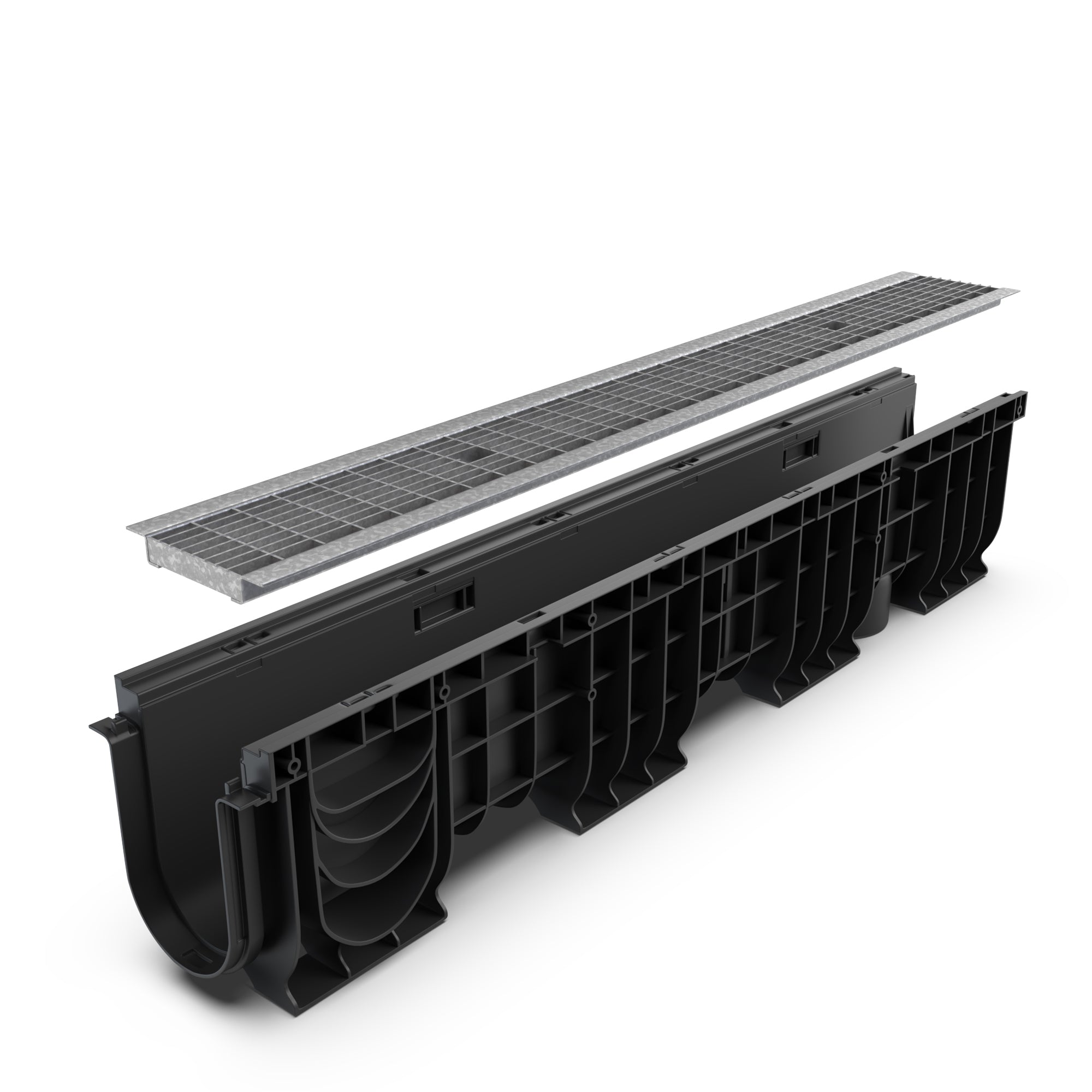

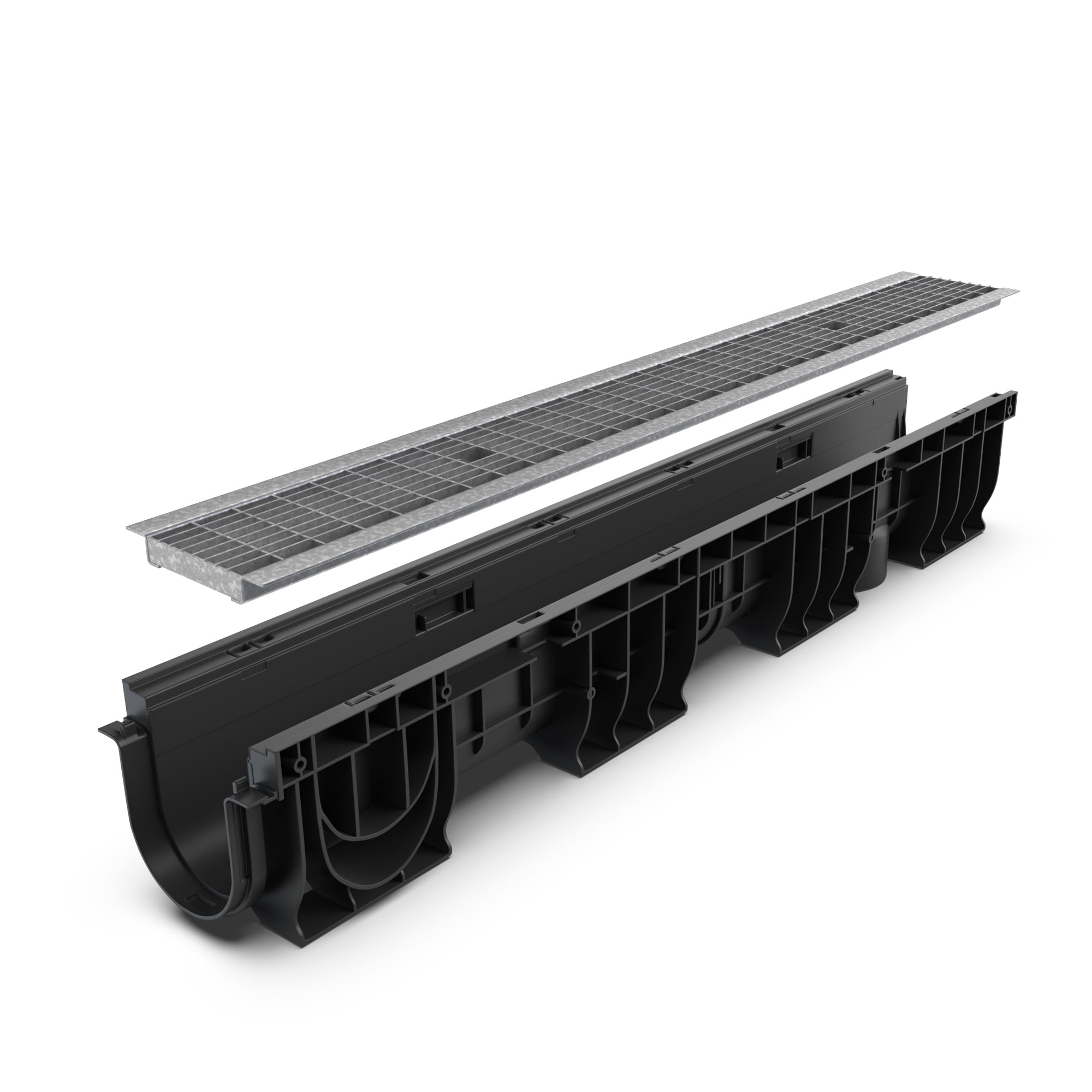

The 2", 3", 4", 6", and 8" Depth channels have bottom outlet option available with 4" Pipe connection.

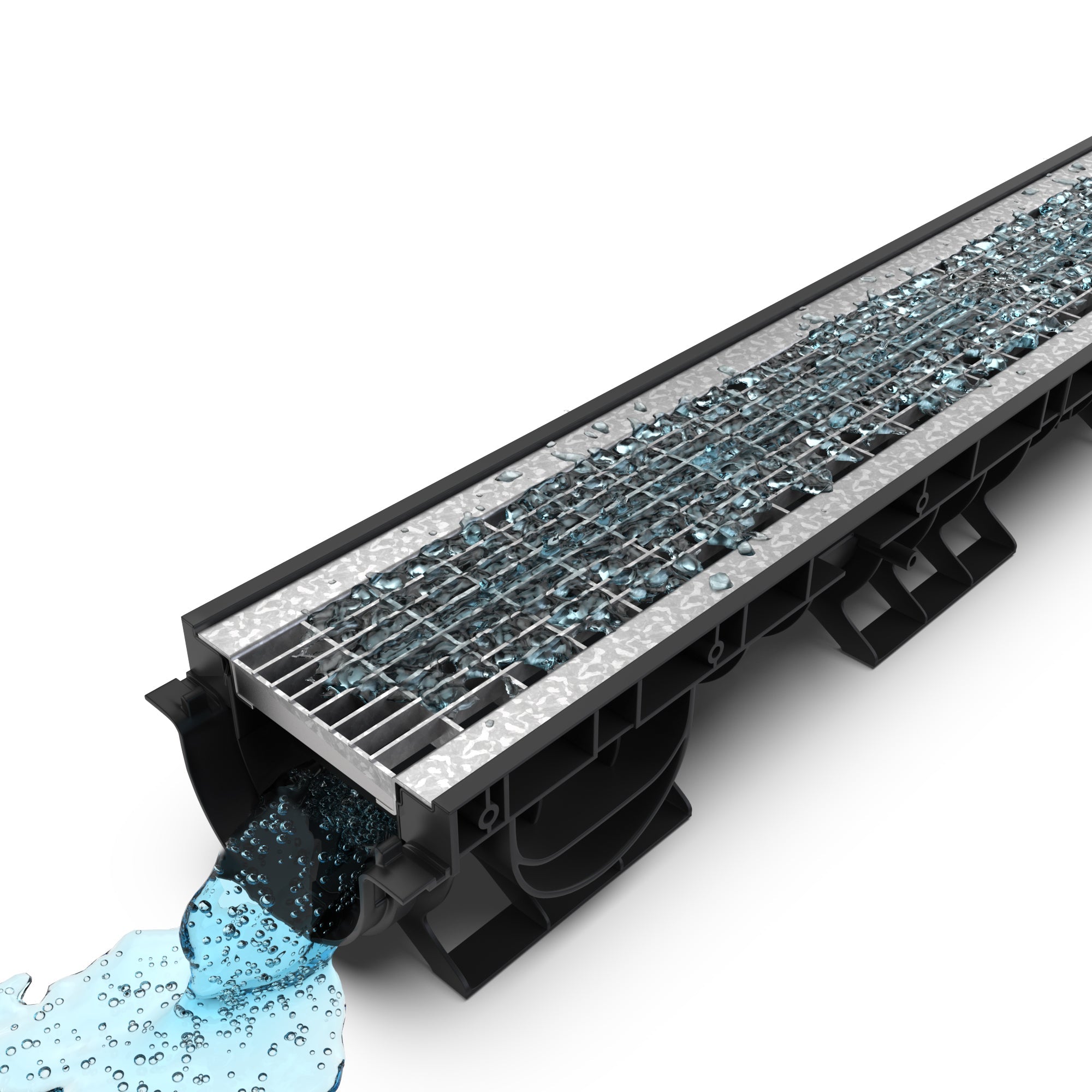

Each of these systems will also have end cap outlet options available as well.
The 2", 6", and 8" Depth option will use a 4" end cap outlet pipe, while the 3" and 4" Depth option will use a 3" end cap outlet pipe.
For Pre Slope Channel articles please see the Pre Slope Specification Sheet
Material ............. PPE Plastic
Dimensions ....... 39.4"L x 5.8"W
Load Class ....... B Class - 27,500 LBS
INCLUDED IN PACKAGE
1 - Channel Depth of Choice
1 - Unit Galvanized Steel B Class Grating
2 - Grating Fasteners
2 - End Caps (Per Order) - Additional end caps at checkout.
For Slope Channels – packages include 2 End Caps Per Order (one closed and one outlet)
