Specifications and Downloads
- 4" Internal width stainless steel B class ADA Package
- Comes with stainless steel grate, channel, fasteners and end caps
- Vehicle load rated, ADA Compliant
- Connect multiple channels for longer run
- 4" PVC or corrugated pipe bottom outlet option on each channel with schedule 40 adapter
- 4" PVC or corrugate pipe outlet option out of end caps (on the 6" and 8" channel depth options)
- For our Pre Slope packages all end caps have a 4" outlet
- More product details below
- Pre Slope Specification PDF
- Grating pdf
- 2 inch channel depth pdf
- 2 inch channel depth cad
- 3 inch channel depth pdf
- 3 inch channel depth cad
- 4 inch channel depth pdf
- 4 inch channel depth cad
- 6 inch channel depth pdf
- 6 inch channel depth cad
- 8 inch channel depth pdf
- 8 inch channel depth cad
- installation brochure

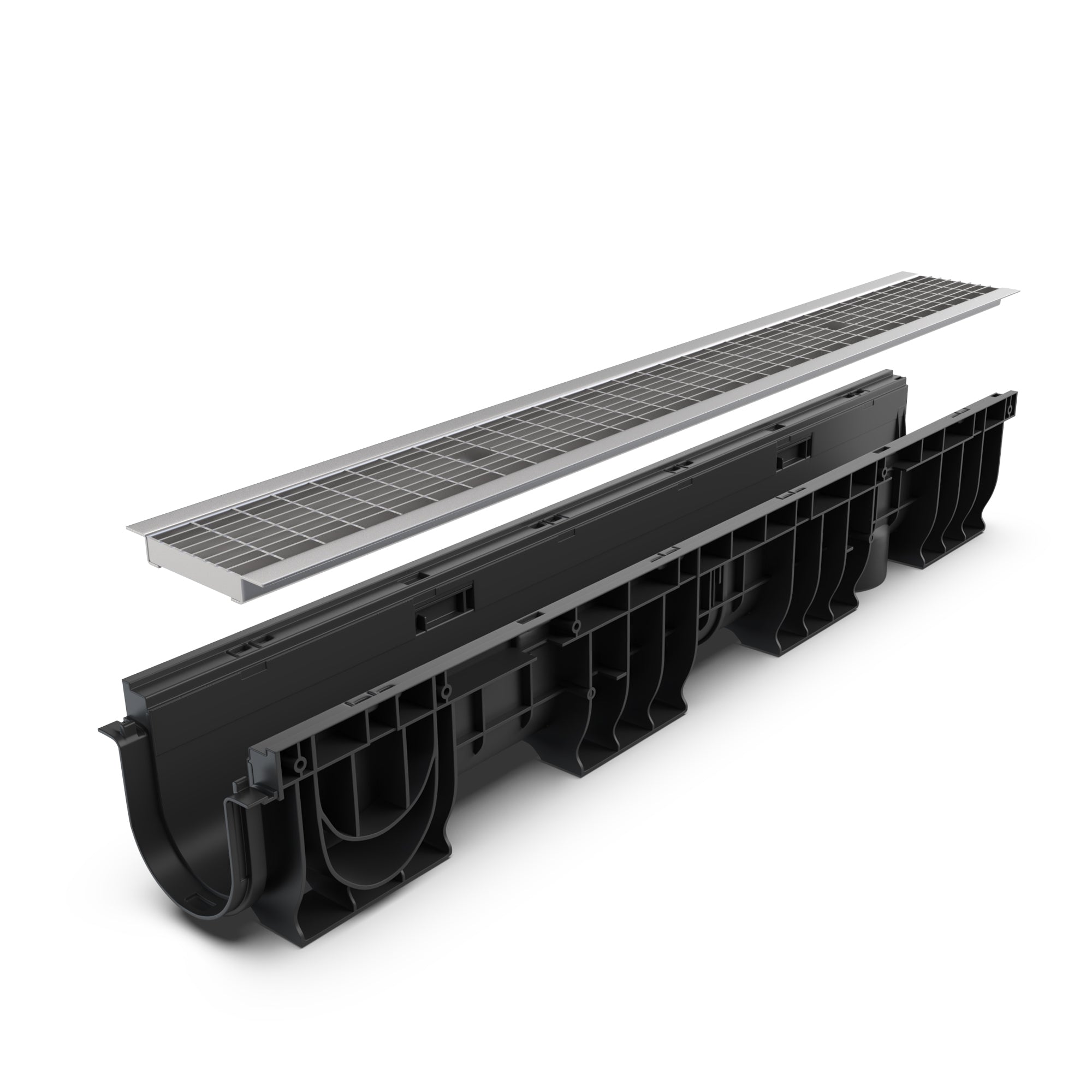

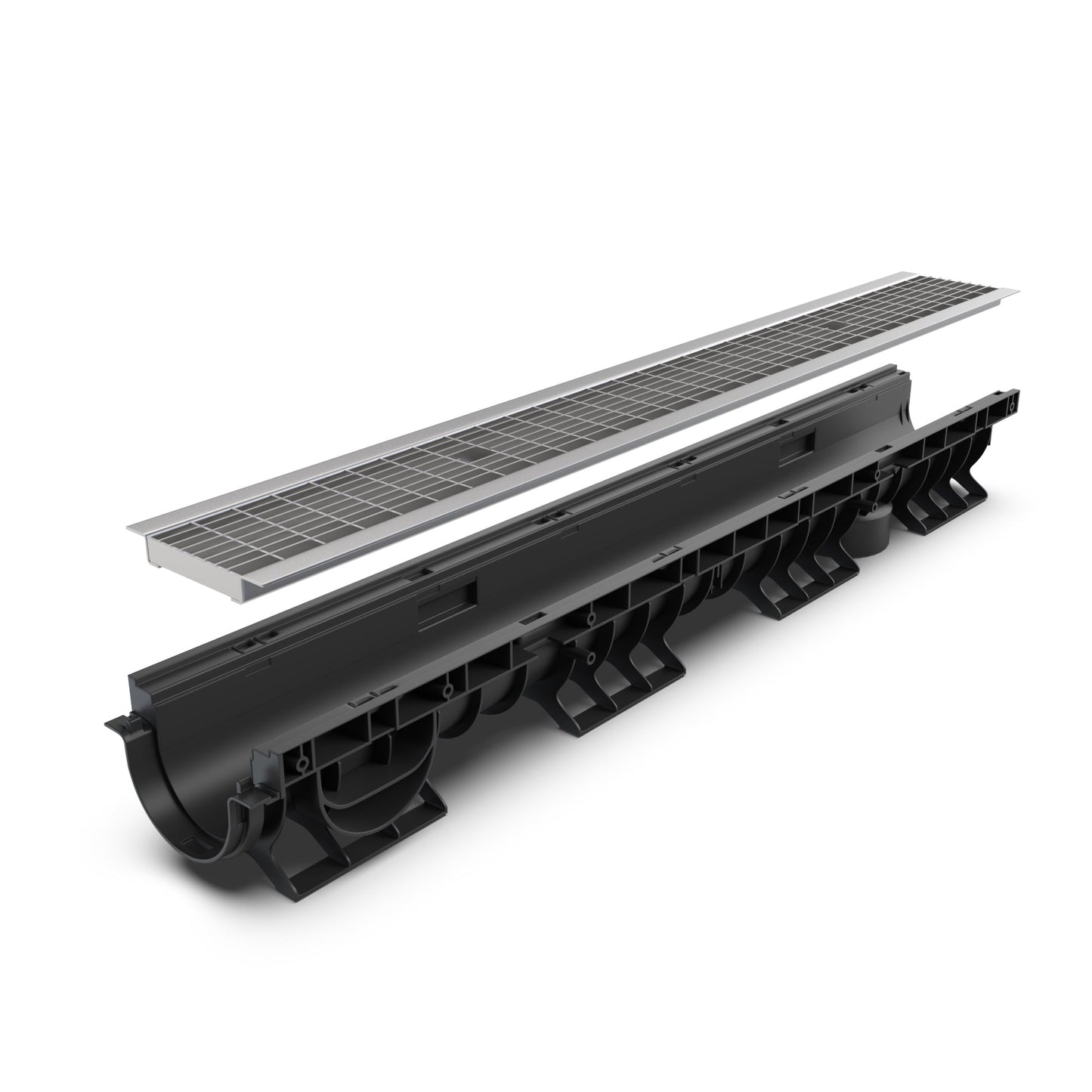

This package is fitted with our ADA approved Stainless Steel B CLASS grating which has a weight load rating at 27,500 lbs. Making it available to drive over as well as forklift rated as well. Perfect for around a pool / chemical plant / or where you want to make sure you receive NO corrosion ever on your gratings. The stainless steel is a matte finished polish - not a shine. Nice rich look / feel as well. Comes with end caps, channel brackets for fastening grating down tight, and of course the channel itself.
Each channel is 3.3 ft in length, with a snap and lock connection so you can attach end to end to create a longer and custom size run. In addition, each channel has a 90 degree turn already within the system - no adapters needed! Please see below for outlet specs per channel depth. With our new Pre Slope system you can create a run up to 33 FT in length with a 1% slope.
Neutral Channel Articles
2" Depth - 8050-M1 - 4" bottom outlet
3" Depth - 8010-M - 4" bottom outlet
4" Depth - 8020-M1 - 4" bottom outlet
6" Depth - 8000-M - 4" bottom outlet - 4" end cap outlet
8" Depth - 8040-M - 4" bottom outlet - 4" end cap outlet
For Pre Slope Channel articles please see the Pre Slope specification sheet.
Material ............. PPE Plastic
Dimensions ....... 39.4"L x 5.8"W
Load Class ....... B Class - 27,500 LBS
INCLUDED IN PACKAGE
1 - Channel Depth of Choice
1 - Unit of Stainless Steel B Class Grating
2 - Grating Fasteners
2 - End Caps (Per Order) - Additional end caps at checkout.
For Slope Channels - packages include 2 end caps per order. One closed end cap for start of the run, another 4" outlet end cap for the end of the run.
