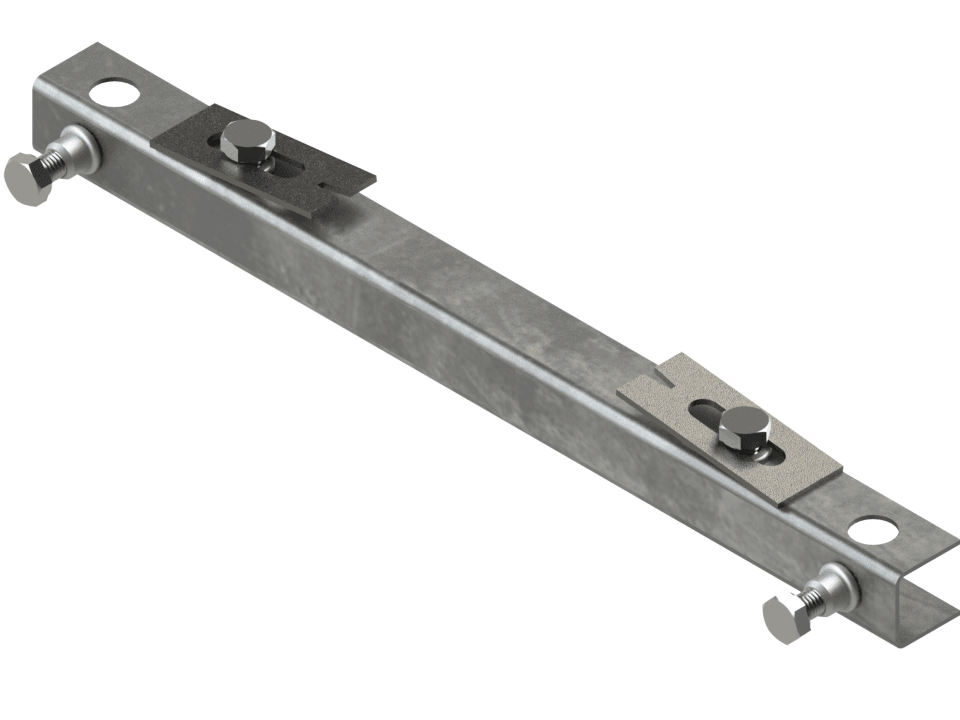

4" Channel Installation Mounting Bracket
4" Channel Installation Mounting Bracket
Regular price
$10.00
Regular price
$0.00
Sale price
$10.00
Unit price
/
per
- 6104
- Used with 4” Channel Systems
- Galvanized Steel
- Makes Installation Simple

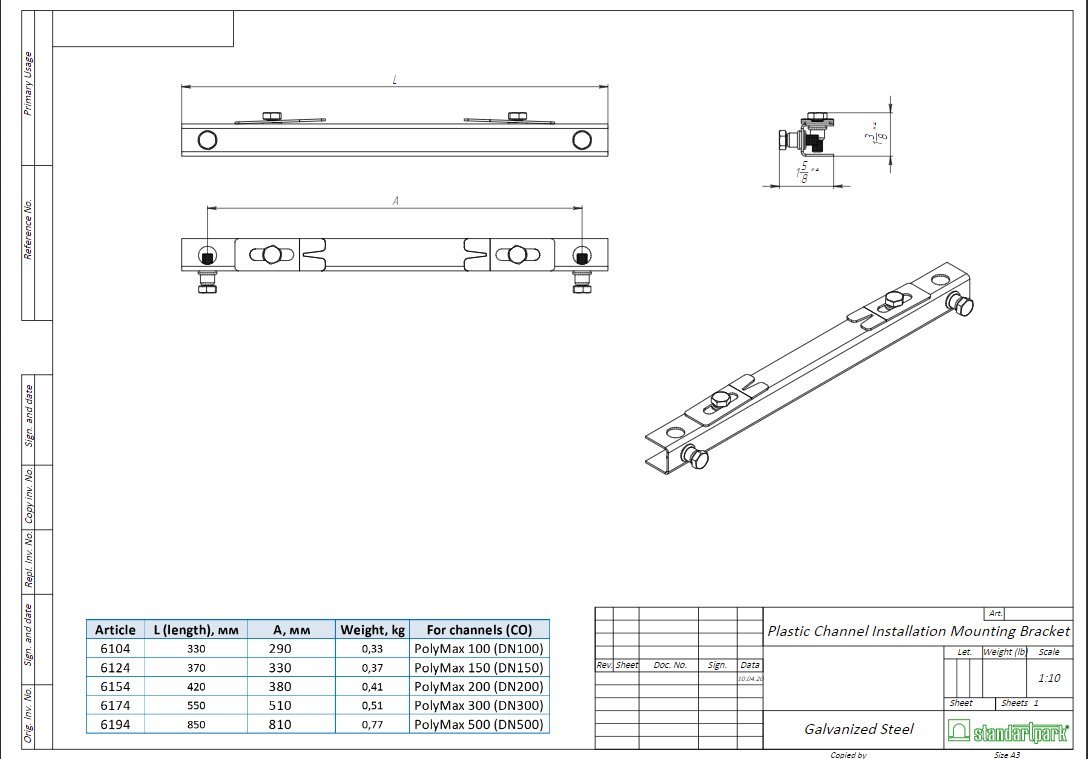

- Spec Sheets Available Under Downloads
free shipping over $999
3-5 days delivered
×
FAQ’s
How many brackets do I need?
You need 2 brackets per channel.
How do they attach to the channels?

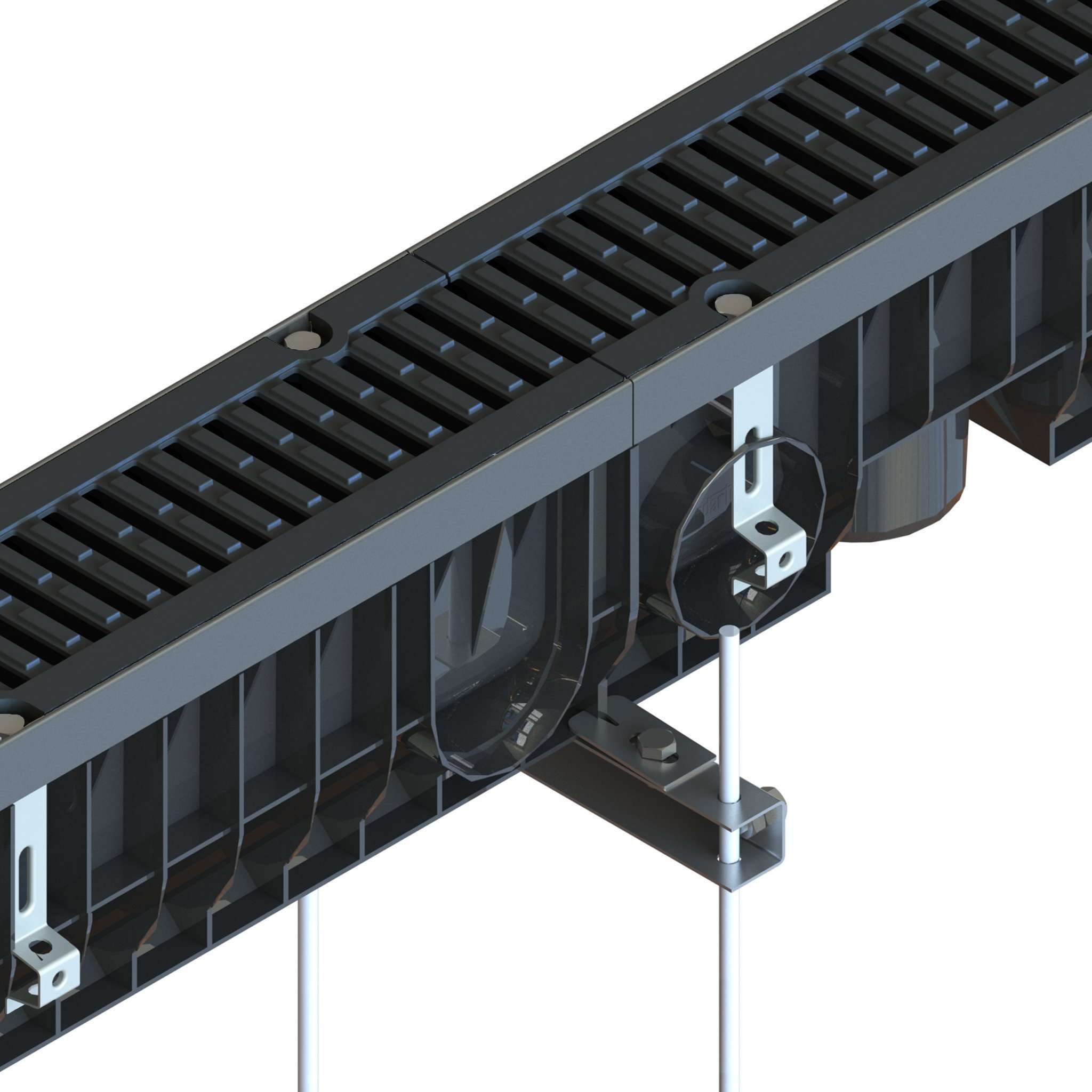

You will loosen the V Clips on the bracket and insert them into the sides of the channel. At this point you tighten back the V clip bolts. This will secure the channel into place. Put 1/2 inch rebar on both sides of the brackets for your leveling and then you can do your one pour!
Can I use more than is requested?
Yes, unlike other trench drain systems, you can have the option of utilizing the installation mounting brackets anywhere on the channel, which sometimes is needed depending on your installation.
What size rebar do I use?
1/2 rebar works well, or #3 rebar is perfect. Just do not go larger than 1/2 inch. Anything larger will not fit into the rebar leveling side.
×
View full details
3D Model of our 4" Installation Mounting Bracket
Zoom in, out, and rotate to see our installation mounting brackets in full 360 view.
- Specifications and Downloads
- Product Description
Specifications and Downloads
Specifications and Downloads
- For use with our 4" Channel Systems
- Installation brackets raise channels for a singular pour installation
- Rebar to be used in correlation with leveling (rebar not included)
- Makes for a very simple / fast installation with concrete
For more product information please see product description above
Product Description
Product Description
Our installation brackets make things simple. "V" clips will connect to the ribs of the channel and channel connection points. You lock those down, then slip rebar into the side holes to level your system out before your concrete pour. These will work with ALL 4" Internal channels, including all Industrial channels as well. Great for major constructions or if you want to make things perfect.
Article Number............6104
