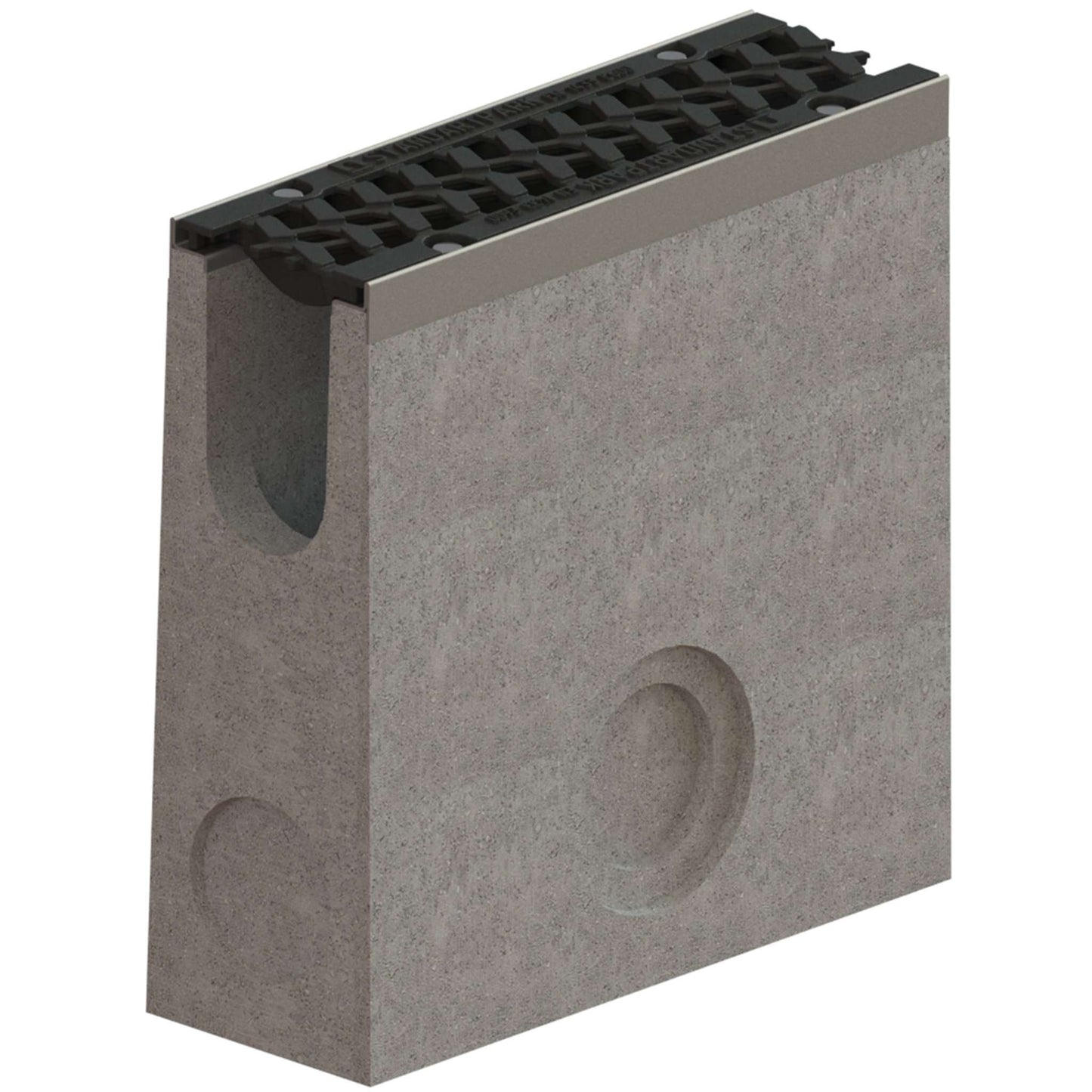

4" Fiber Concrete Inline Trap

4" Fiber Concrete Inline Trap

Regular price $495.00
Regular price Sale price $495.00
Sale Sold out
free shipping over $999
3-5 days delivered
View full details
  • Specifications and Downloads
  • Product Description

Specifications and Downloads

Specifications and Downloads

  • For use inline with the 4" concrete preslope system
  • Can also be used as a stand alone basin.
  • 19.7" L x 6" W x 20" H
  • Cut out any pipe size for your outlet
  • Sediment basket included (more details below)

For more product information please see product description above

Downloads
PDF
DWG
BIM
Specification Sheet
PDF :
DWG :

Product Description

Product Description

This unit is used in connection with our 4" Fiber Concrete Pre Slope System, or can also be used as a stand alone basin. Comes with a sediment basket for removal of debris at the end of your run. Has outlet connections on all four sides as well. Will come with end caps to cap the end or middle of your linear run.

PARAMETERS

Article ............................ CCST - 04180

Material ........................ Fiber Concrete - Cast Iron - Galvanized Steel

Dimensions ................. 19.7" L x 6" W x 20" H

Load Class ................. E Class - 132,000 LBS
