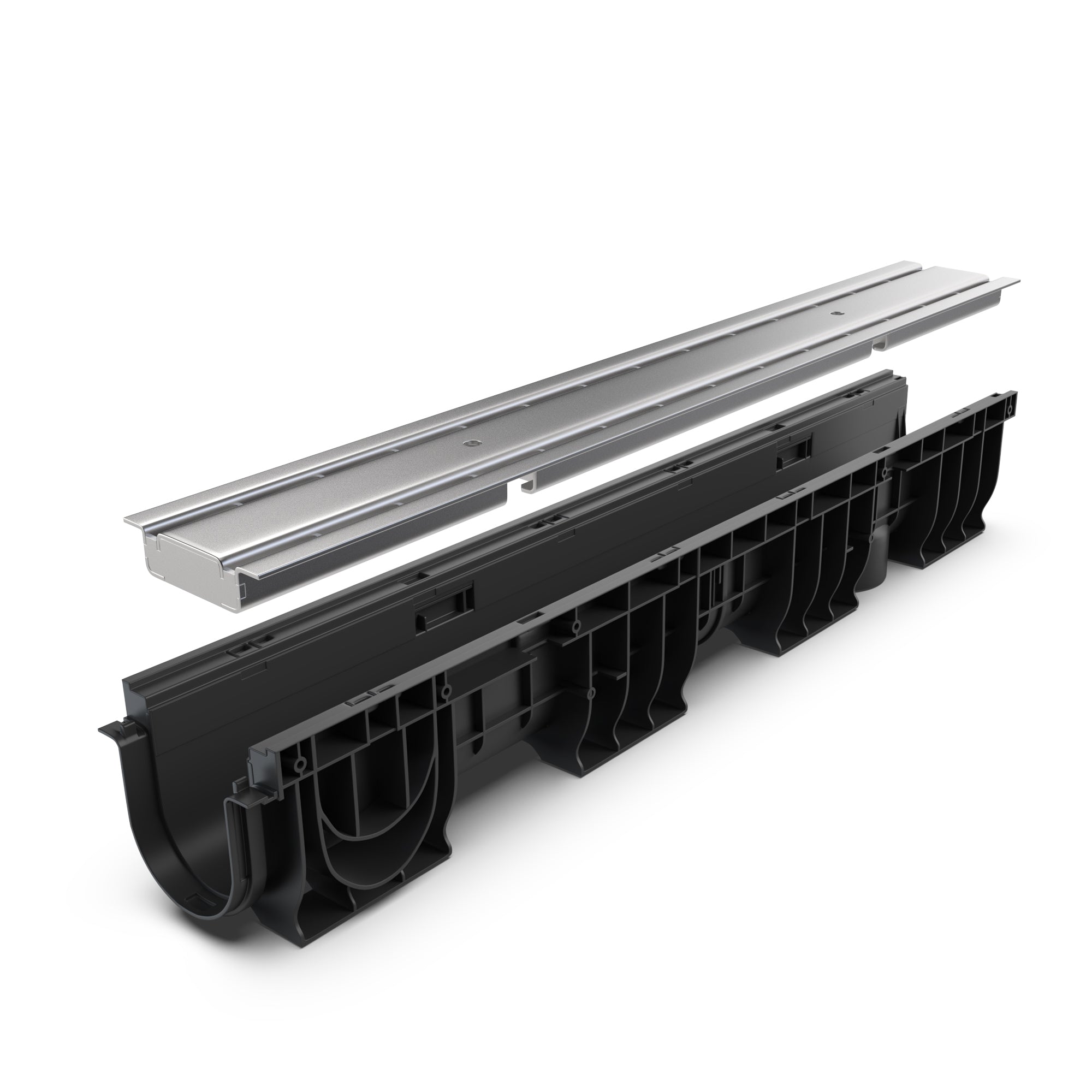

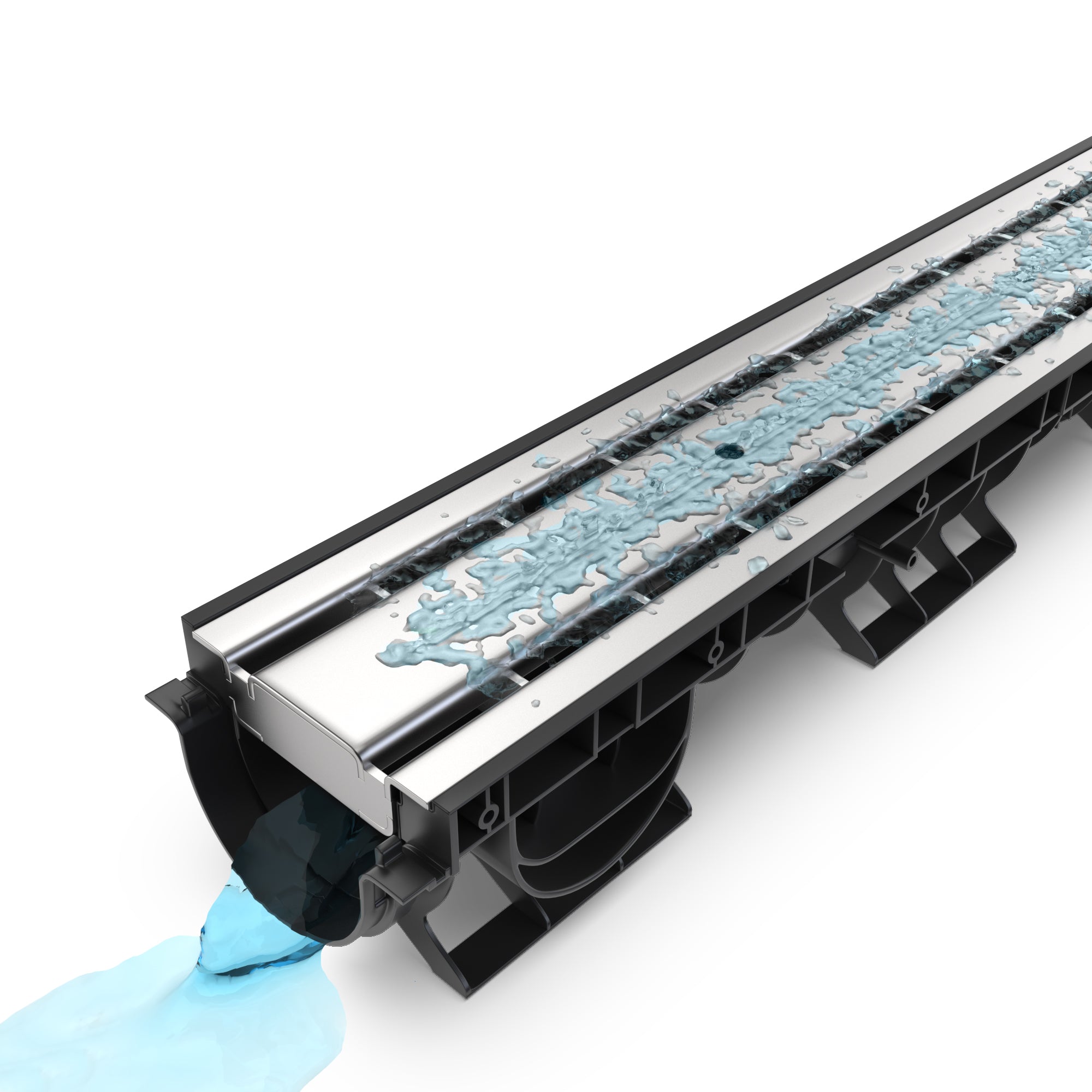

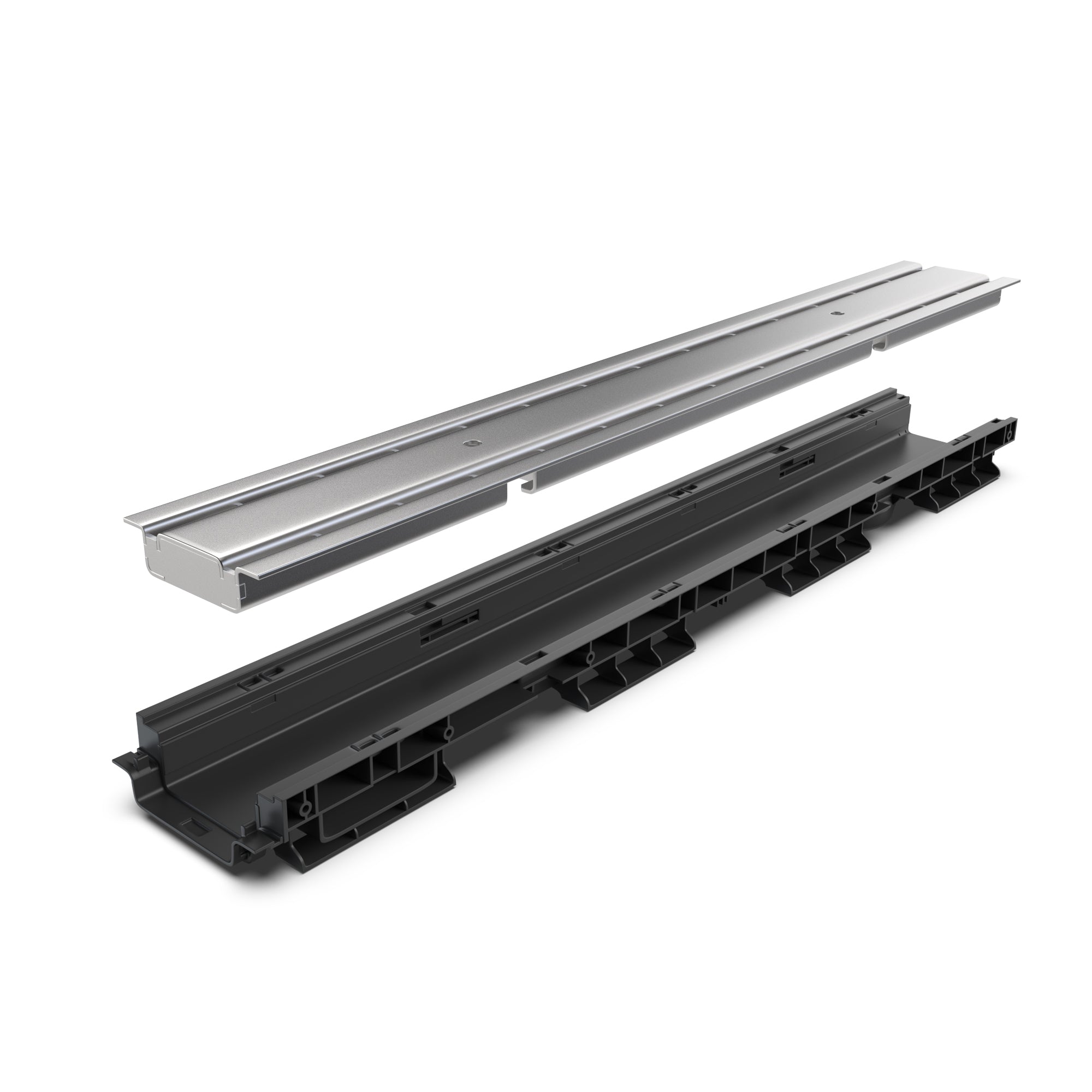

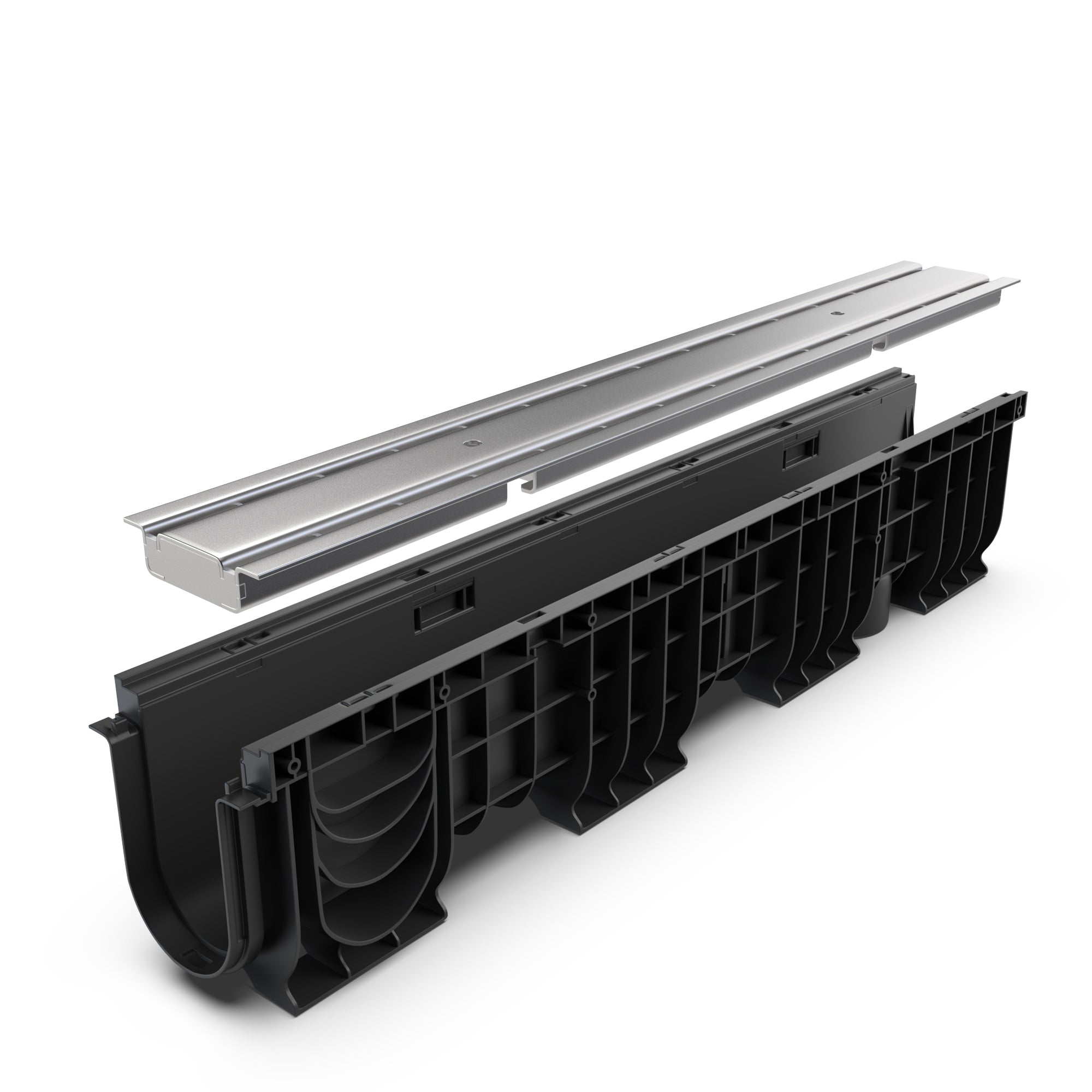

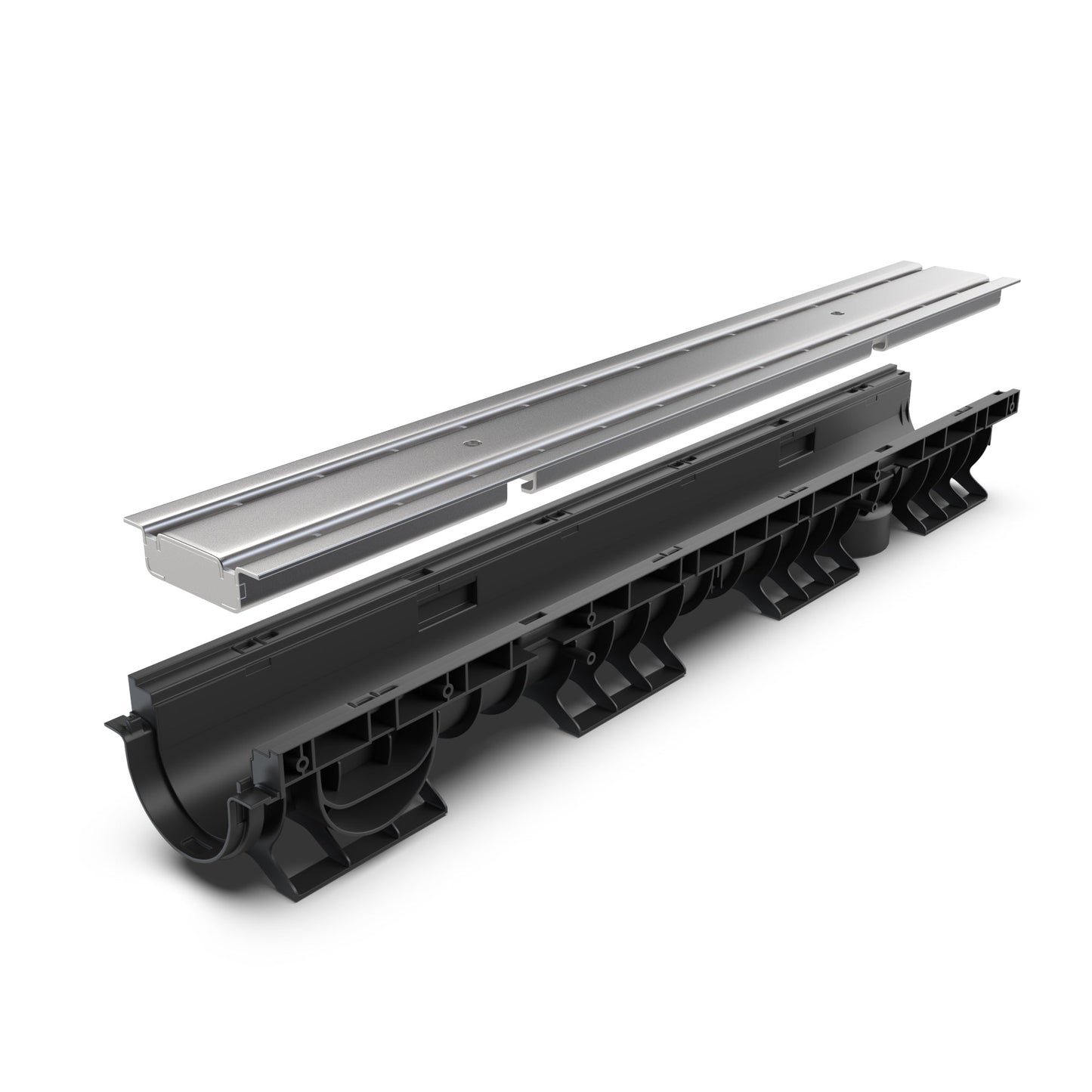

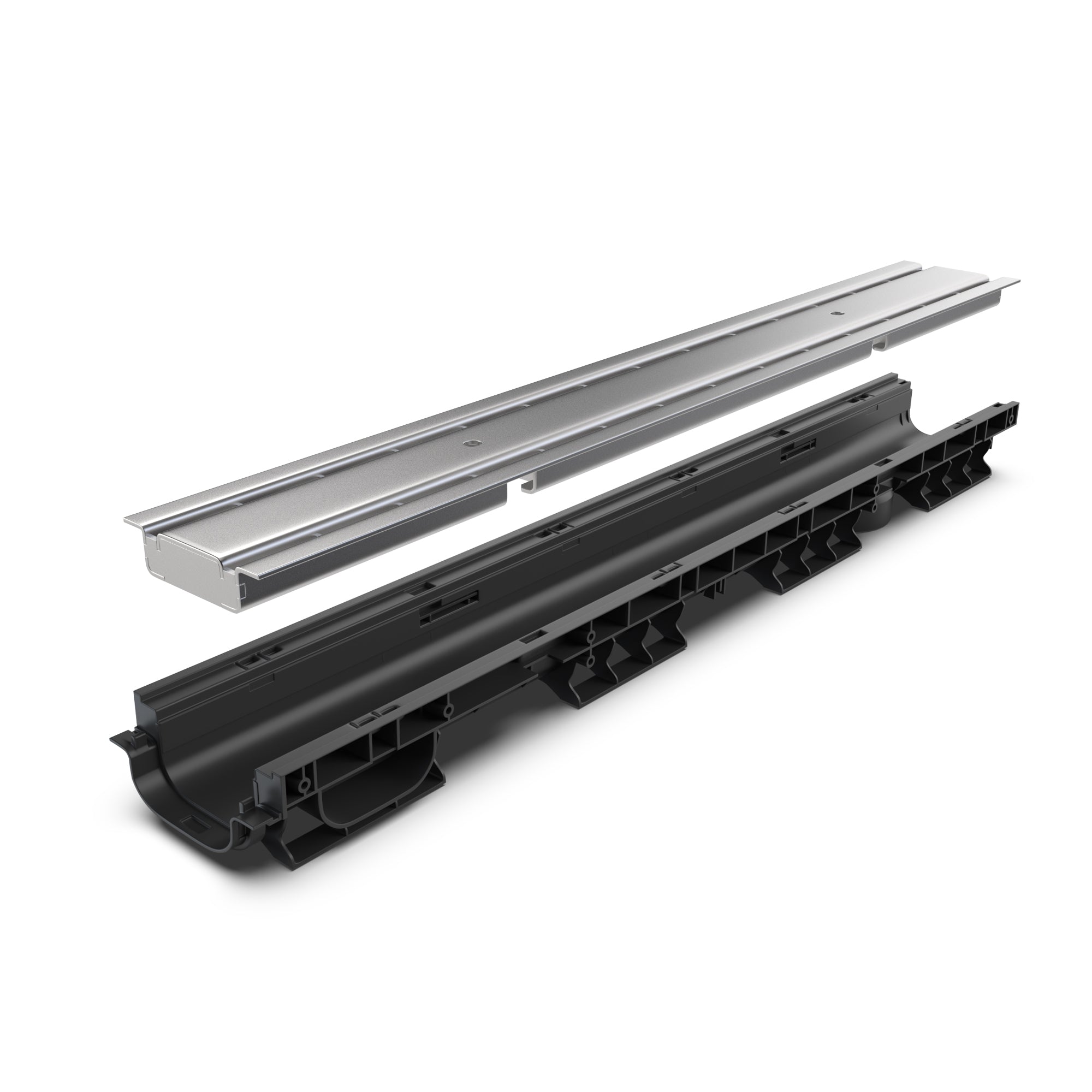

4" Stainless Crossover Package

Our 4" Channel Stainless Steel Crossover Package is loaded with a multitude of customization and options. Now with our Pre Slope Package options. Each package includes the channel depth of choice ,or channel run length and gratings. Each channel is 3.3 ft in length, with a snap and lock connection so you can attach end to end to create a longer and custom size run. In addition, each channel has a 90 degree turn already within the system - no adapters needed! Please see below for outlet specs per channel depth.

With our Pre Slope system you can create a run up to 50 ft in length with a 1% slope. With an option of a 4" outlet on the end no matter the channel run length.

Neutral Channels;

The 2", 3", 4", 6", and 8" Depth channels have bottom outlet option available with 4" Pipe connection.

Each of these systems will also have end cap outlet options available as well.

The 2", 6", and 8" Depth option will use a 4" end cap outlet pipe, while the 3" and 4" Depth option will use a 3" end cap outlet pipe.

For Pre Slope Channel articles, please see the Pre Slope Specification Sheet.

Material ............. PPE Plastic & 304 Stainless Steel

Dimensions ....... 39.4"L x 5.8"W

Load Class ....... B Class - 28,100 LBS

INCLUDED IN PACKAGE

1 - Channel Depth of Choice

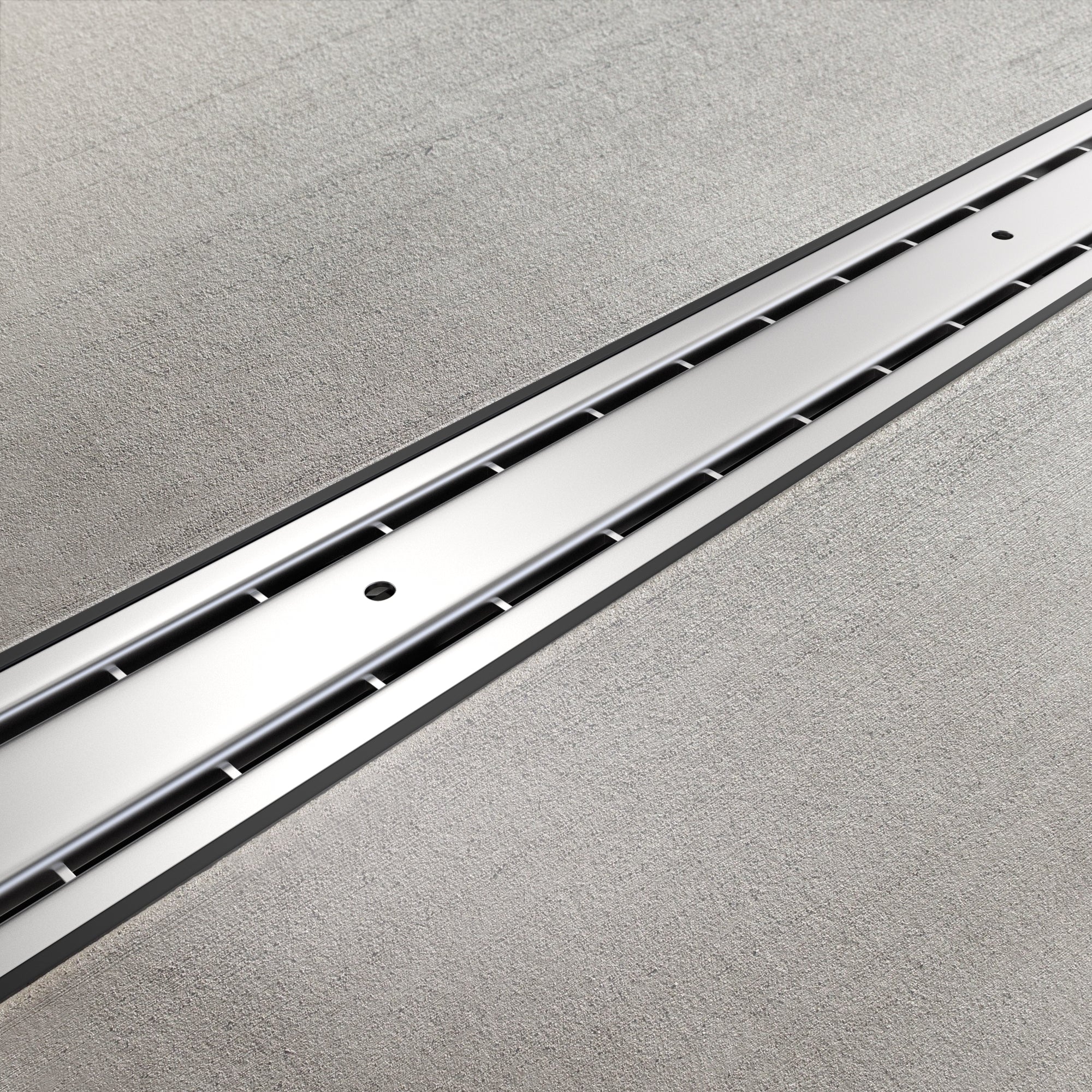

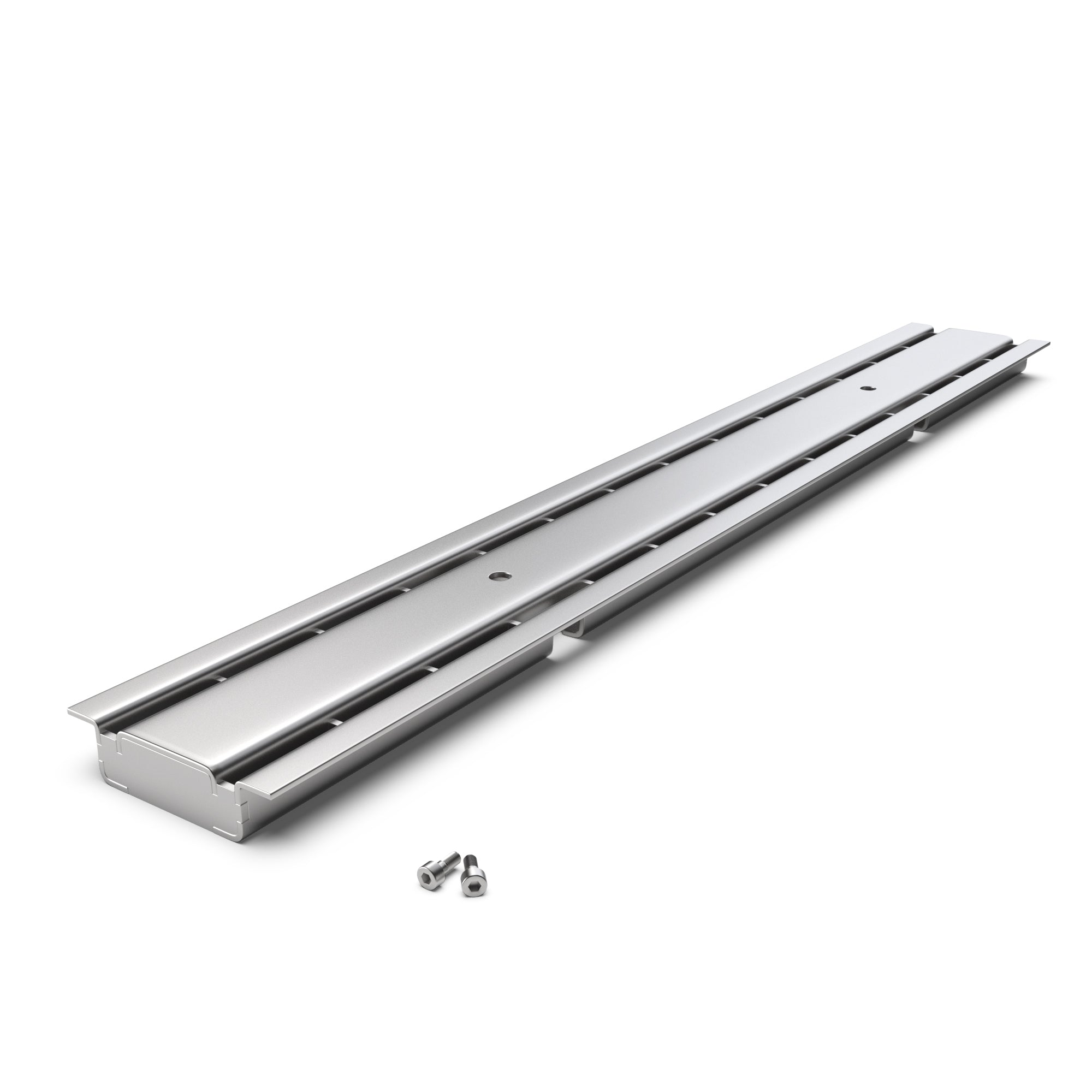

1 - Stainless Steel Crossover Grating

2 - Grating Fasteners
