4" Weave Edgeless Package

4" Weave Edgeless Package

Skip to product information
1 of 5
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • 4" Internal width stainless steel B class ADA and Heel Proof Package

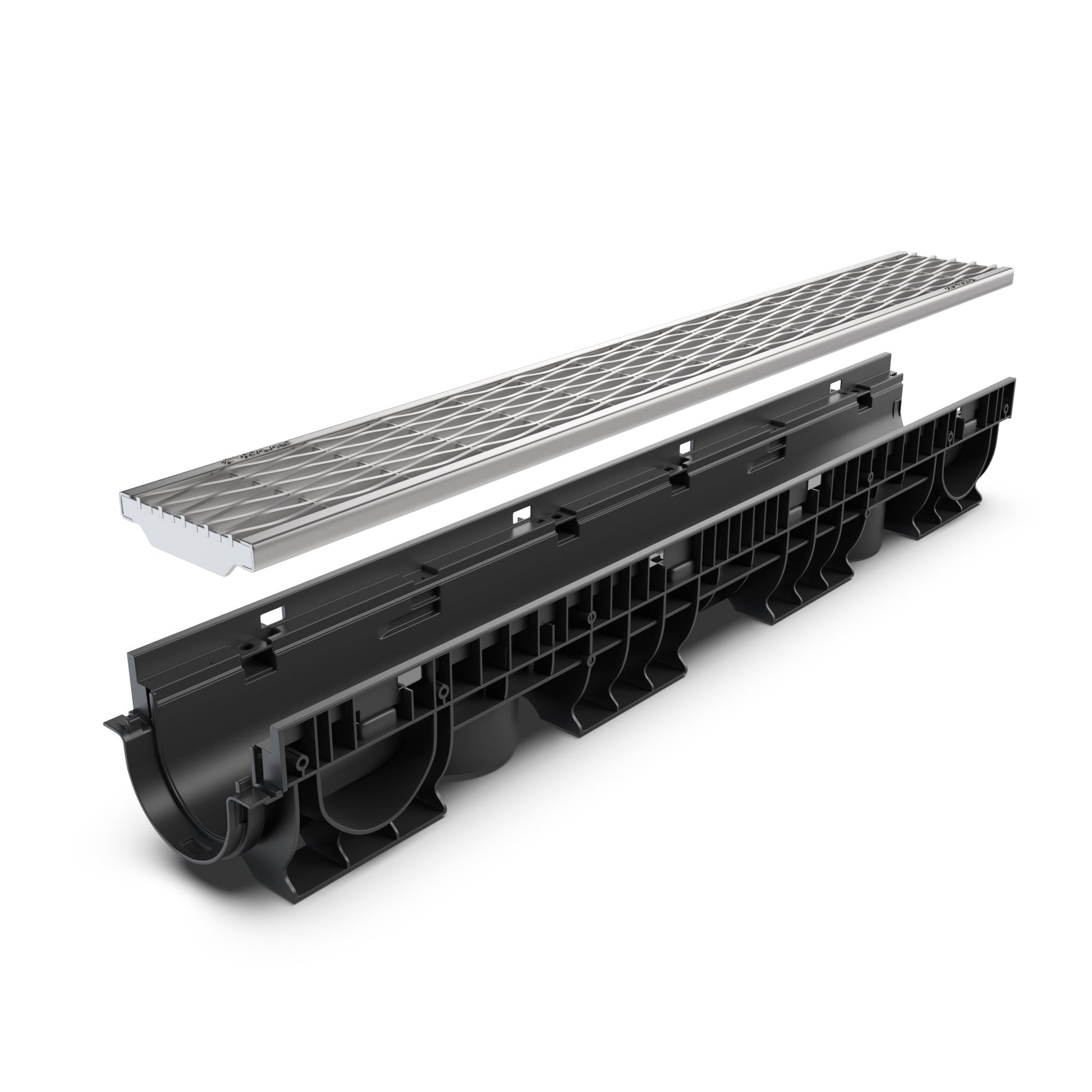

  • Comes with stainless steel grate, channel
  • Non-Slip
  • Vehicle load rated, ADA Compliant
  • Connect multiple channels for longer run
  • 4" PVC or corrugated pipe bottom outlet option on each channel with schedule 40 adapter

INCLUDED IN PACKAGE

- Channel Depth of Choice

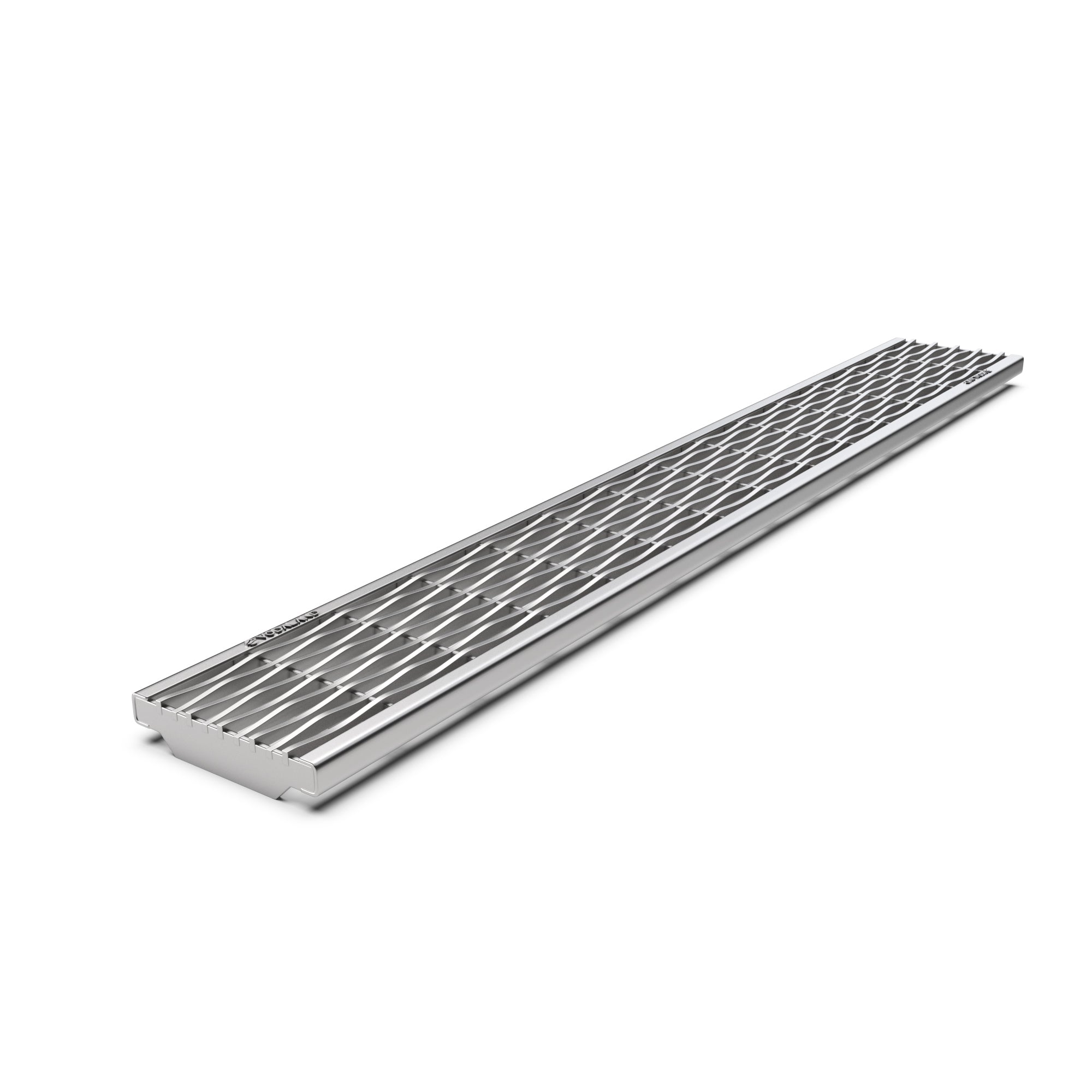

1 - Unit of Stainless Steel B Class Weave Grating

For more product information please see product description tab above

Downloads
PDF
DWG
BIM
Channel Specification Sheet
PDF :
BIM :
Grating Specification Sheet
PDF :
DWG :
Installation Guide
PDF :
System Layout
PDF :

Product Description

Product Description

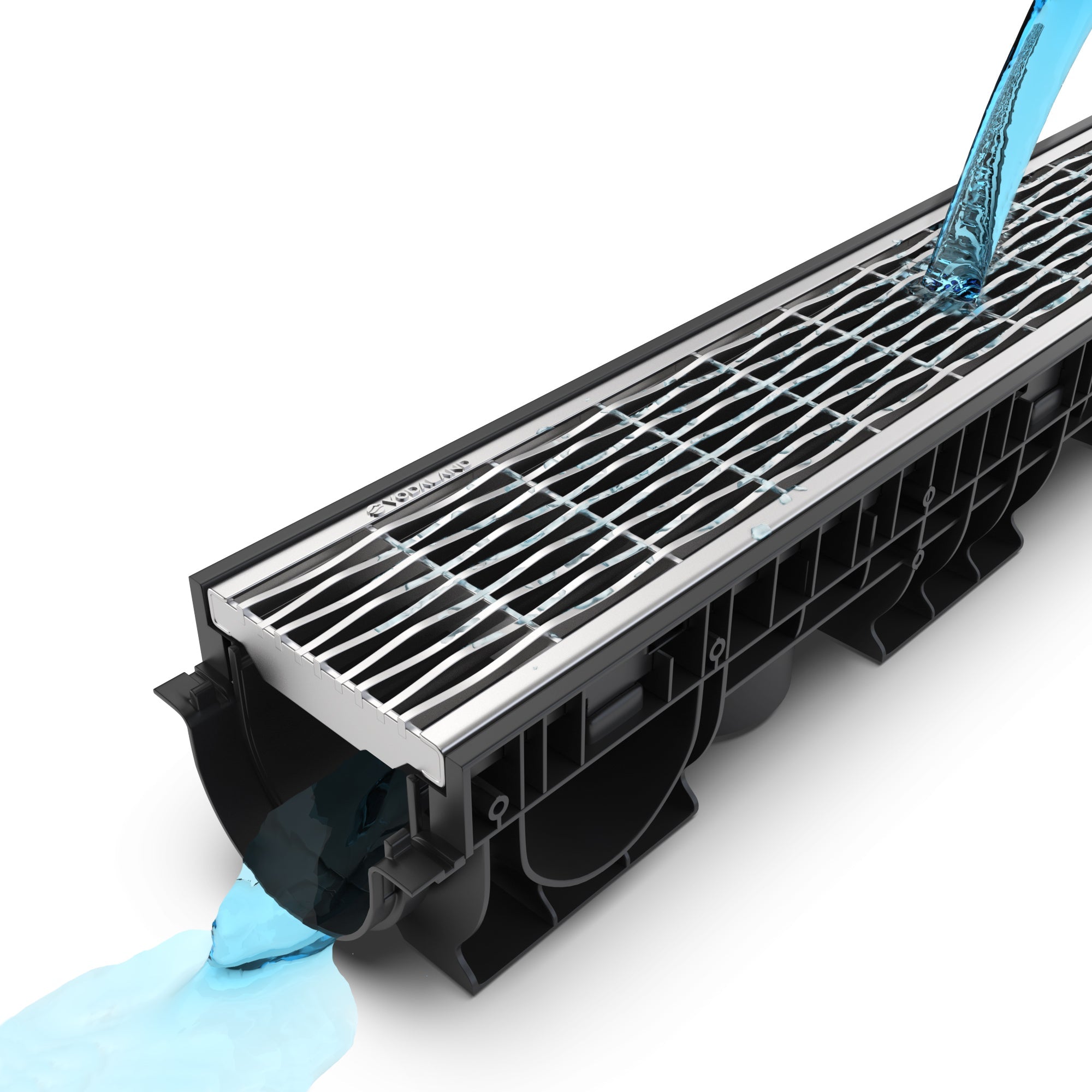

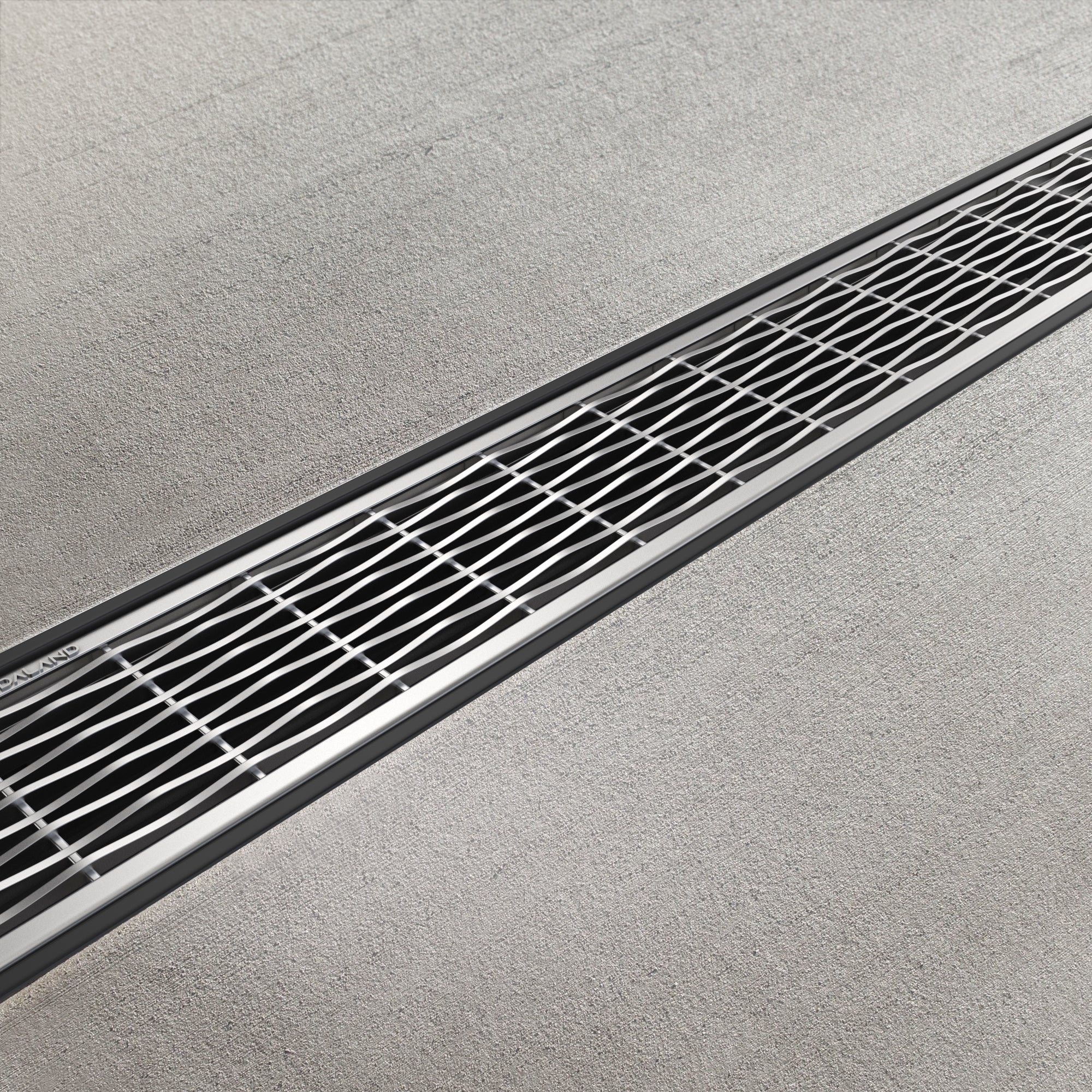

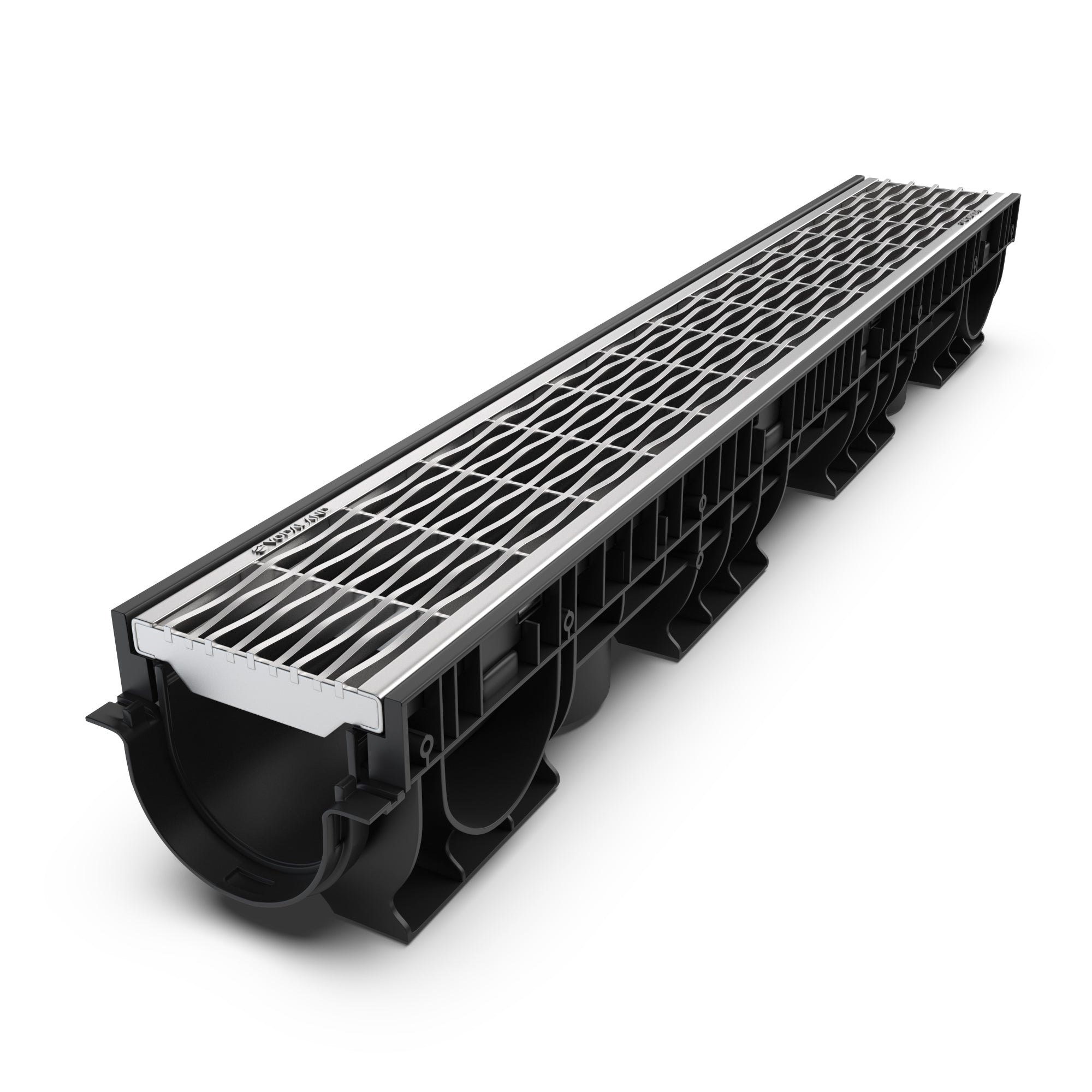

This package is fitted with our Edgeless Weave Grate an ADA approved Stainless Steel B Class grating which has a weight load rating at 27,500 lbs and non-slip. Perfect for a kitchen, sidewalk or a warehouse. Comes with channel fasteners for tightening down grating tight to the channel itself.

Each channel is 3.3 ft in length, with a snap and lock connection so you can attach end to end to create a longer and custom size run.  In addition, each channel has a 90 degree turn already within the system - no adapters needed! Please see below for outlet specs per channel depth.

Made with our thicker high-board grates and channels.

With this Pre Slope system you can create a run up to 43 ft in length with a 1% slope. With an option of an option of a 4" outlet on the end no matter the channel run length.

Each of these systems will also have end cap outlet options available as well.

For Pre Slope Channel articles please see the Pre Slope specification sheet.

Material ............. PPE Plastic & 304 Stainless Steel

Dimensions ....... 39.4"L x 5.8"W

Load Class ....... B Class - 27,500 LBS

INCLUDED IN PACKAGE

1 - Channel

1 - Unit of Stainless Steel B Class Weave Grating
