Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • 8" Internal width cast iron ADA Package
  • Comes with cast Iron grate, channel
  • Heavy duty load rated

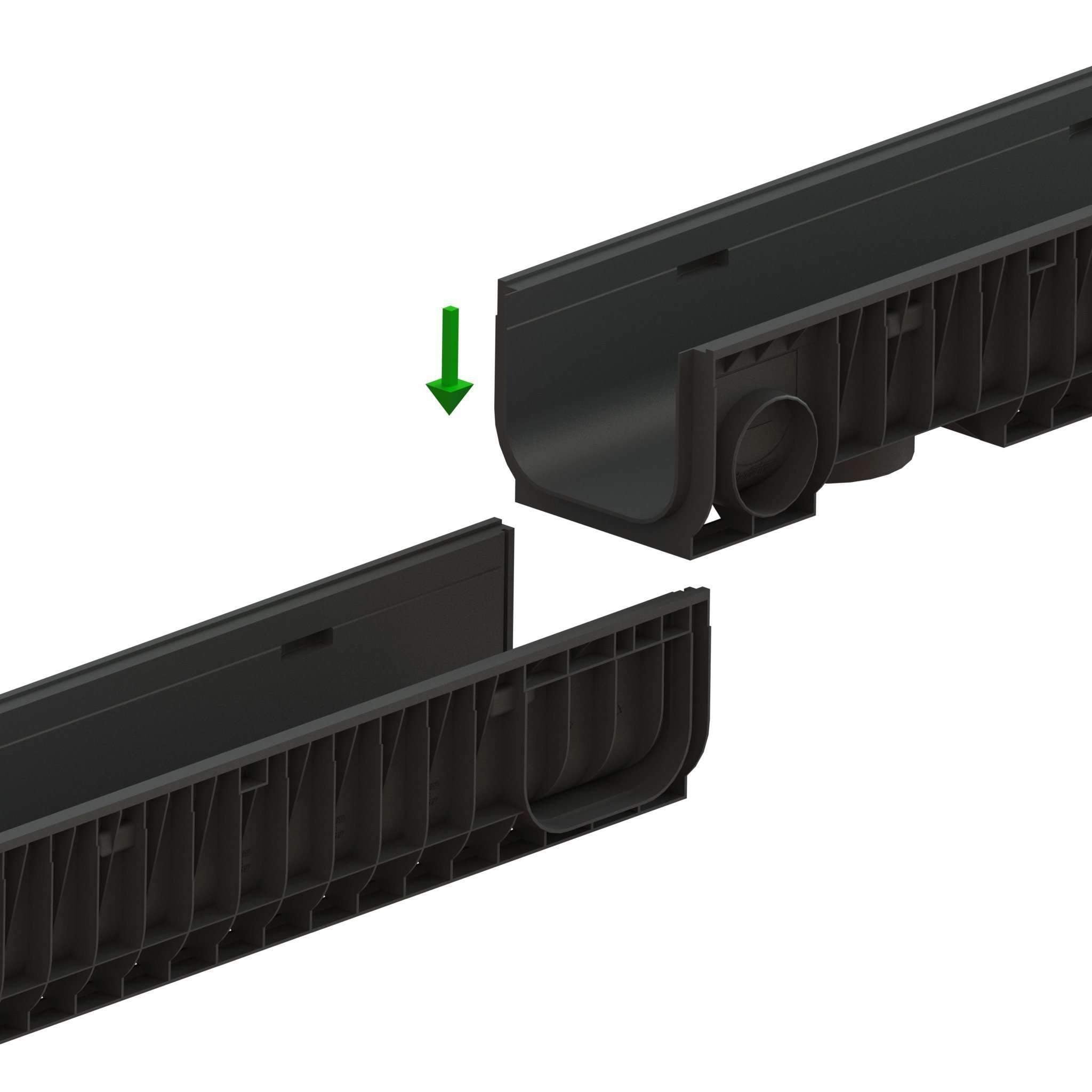

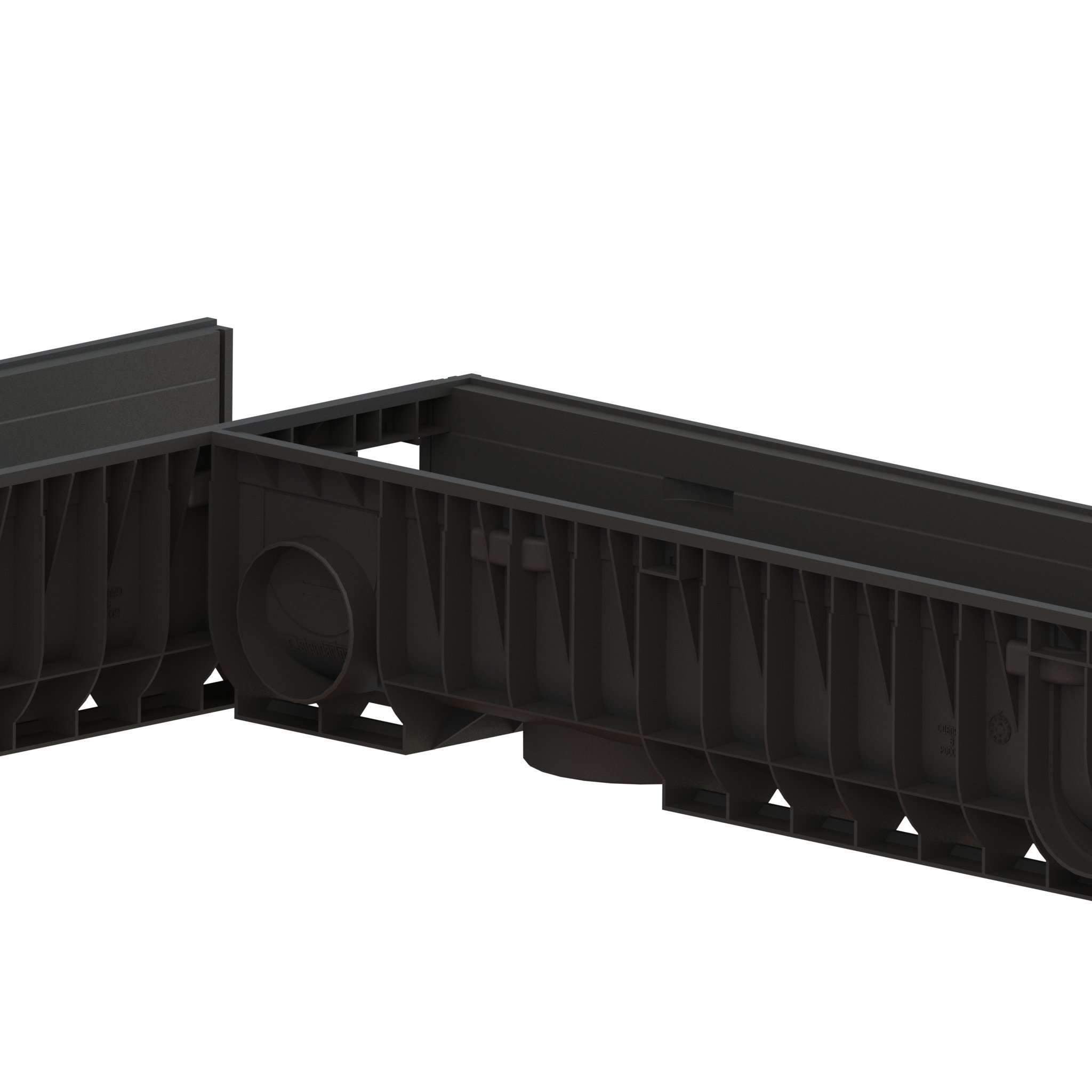

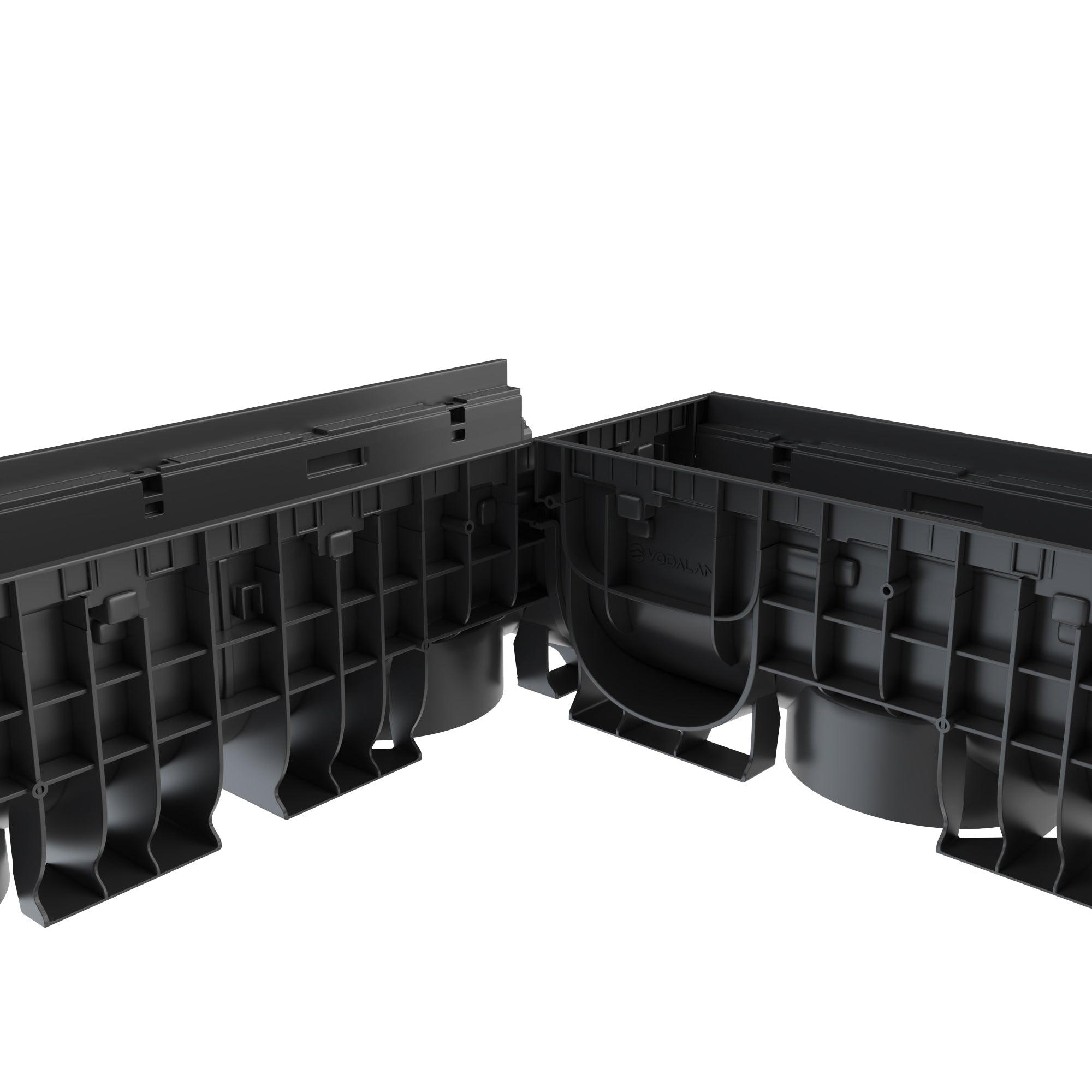

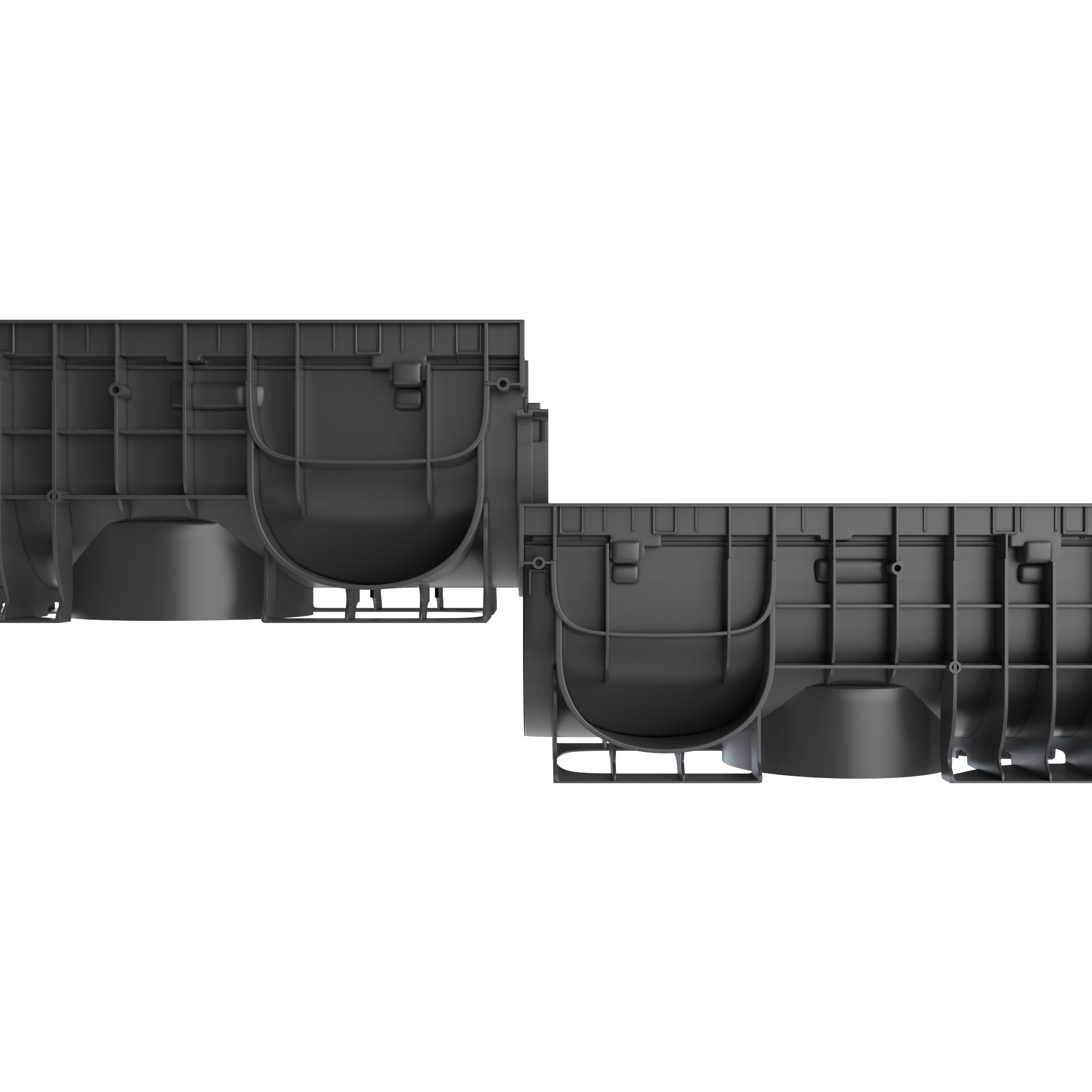

  • Connect multiple channels for longer run

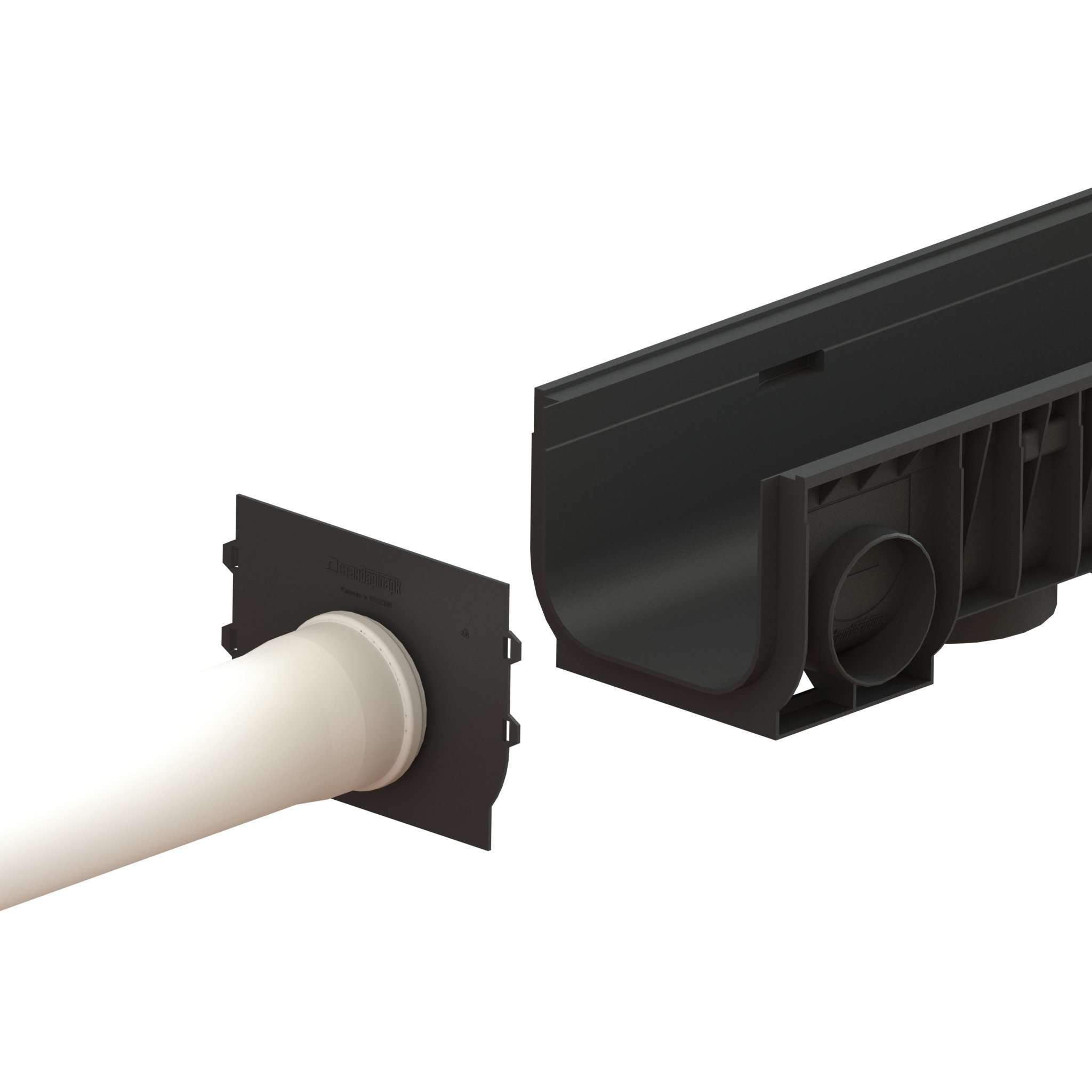

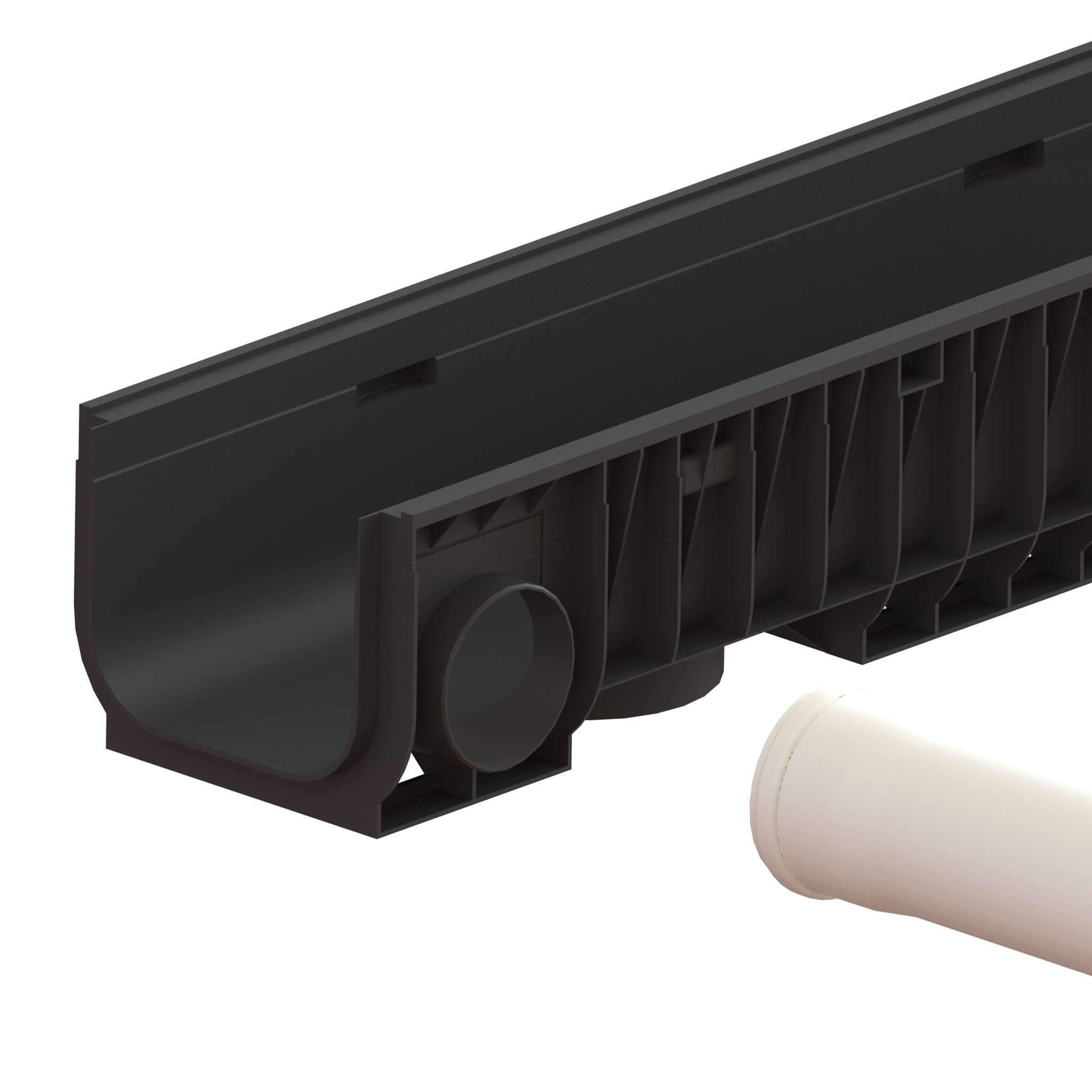

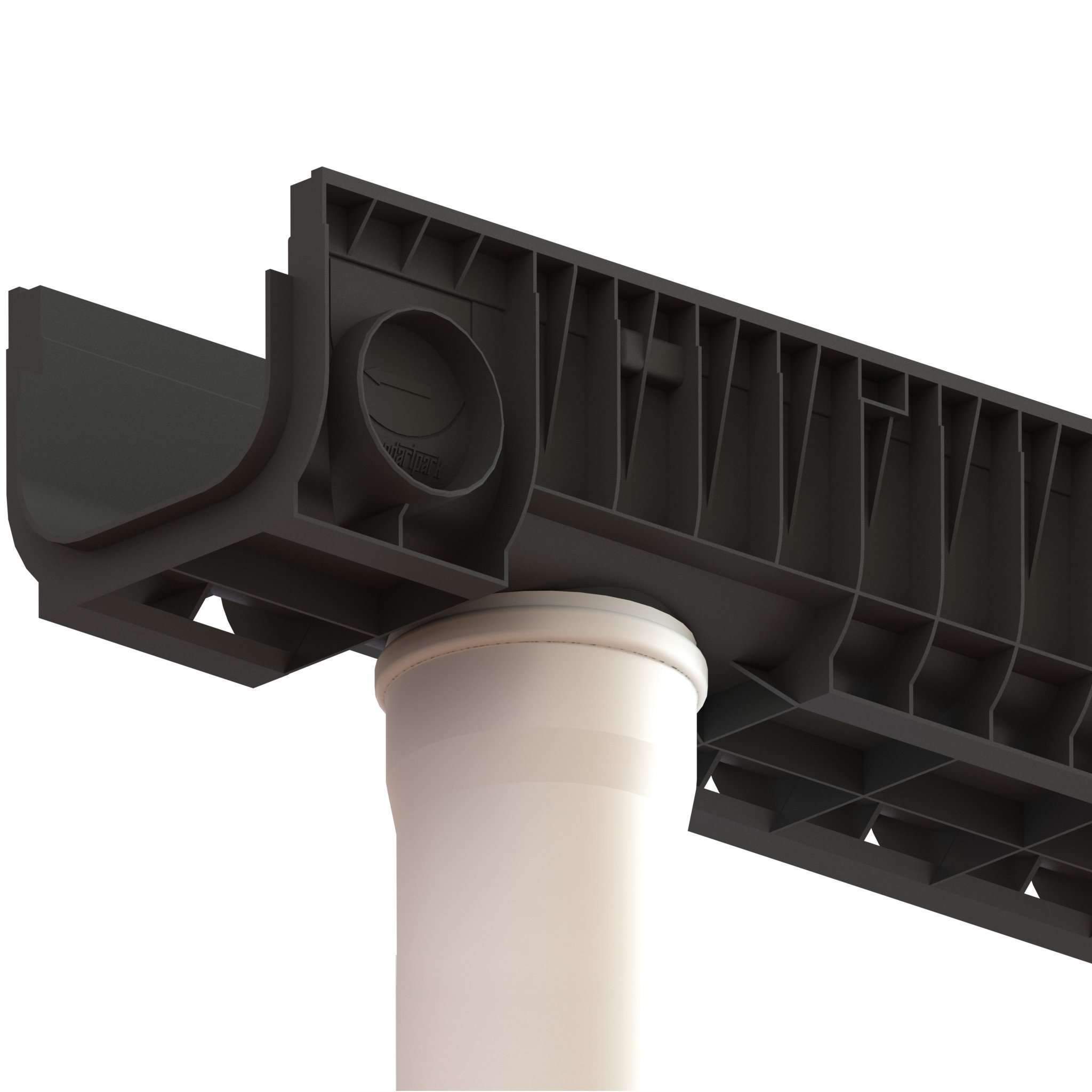

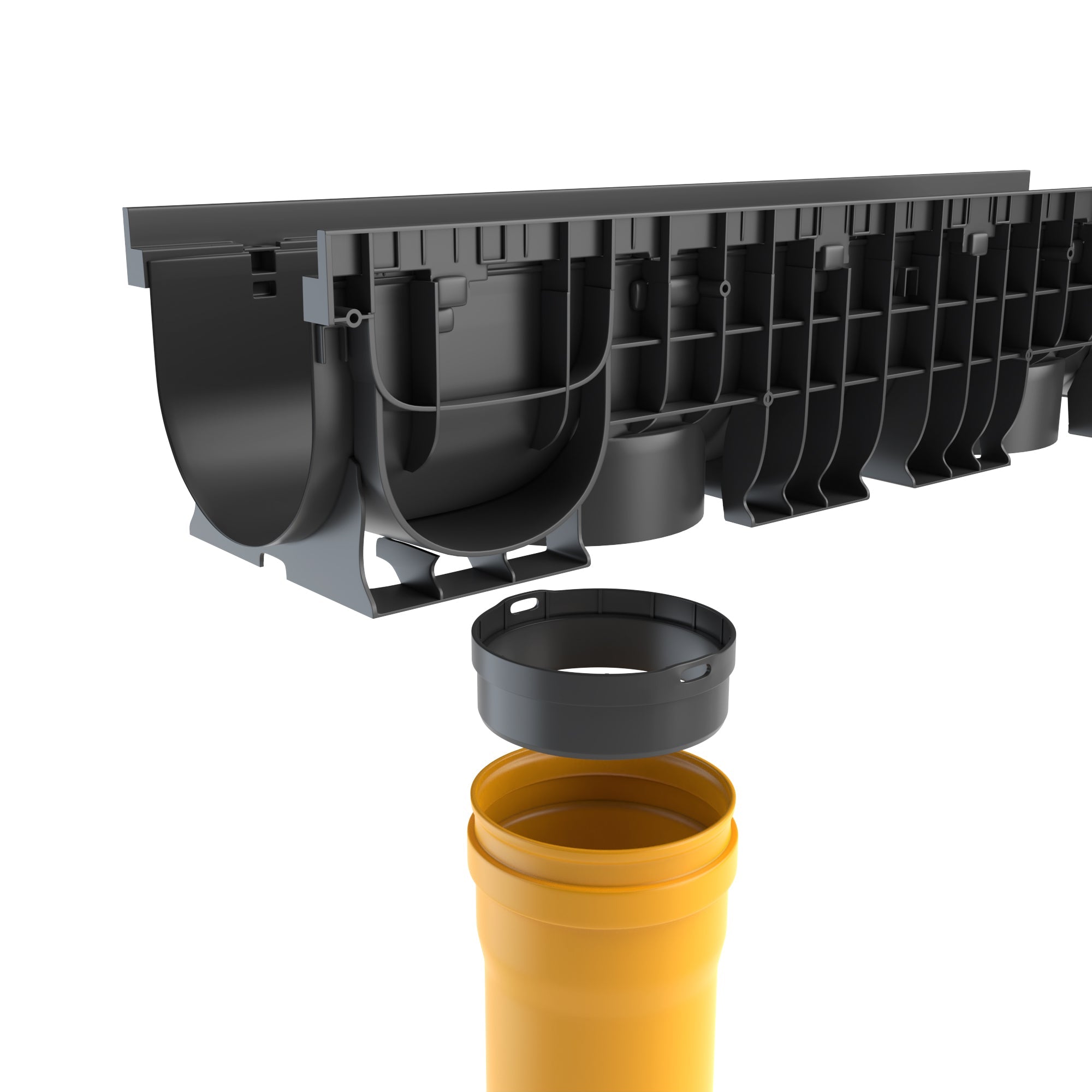

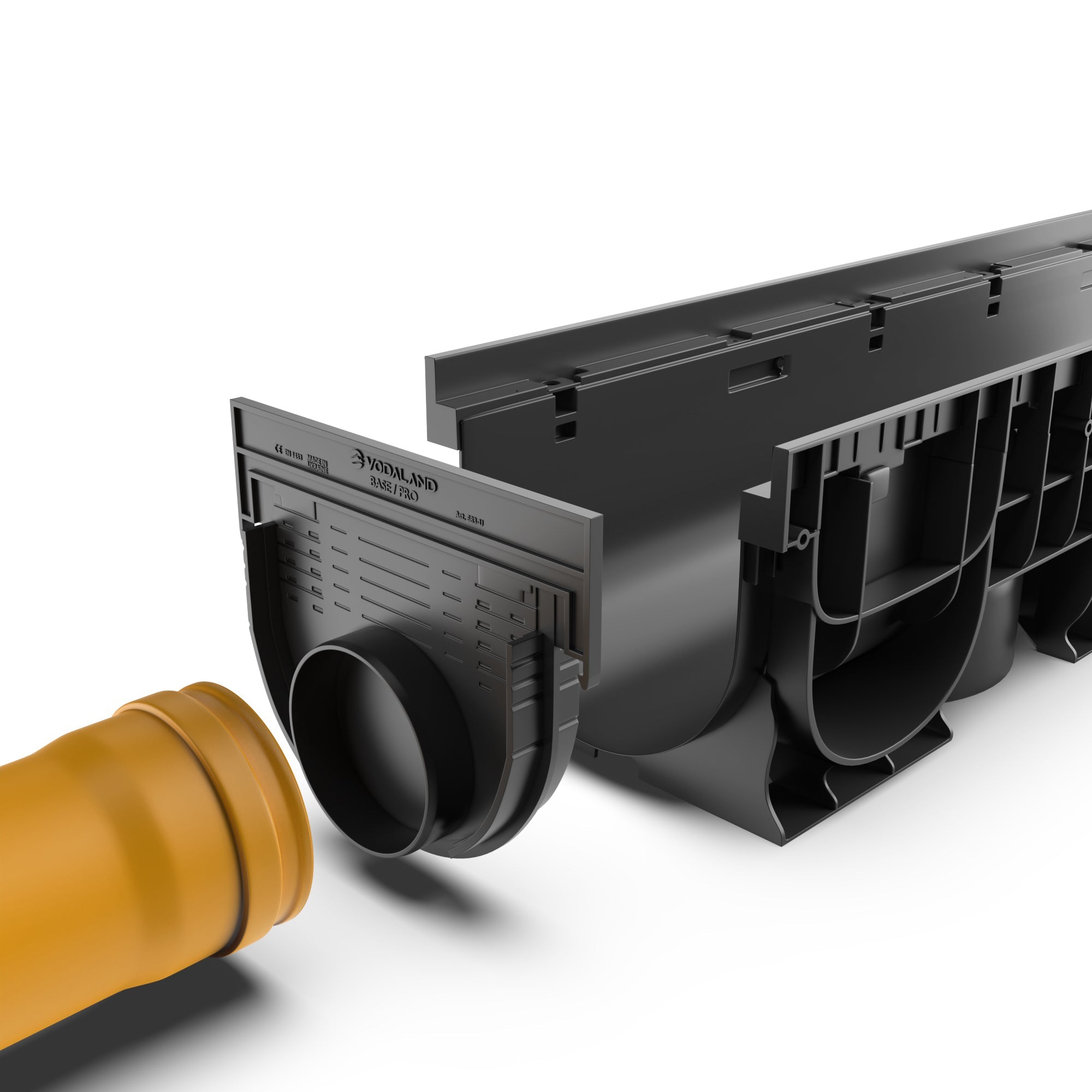

  • 4" and 6" PVC or corrugated pipe bottom outlet options

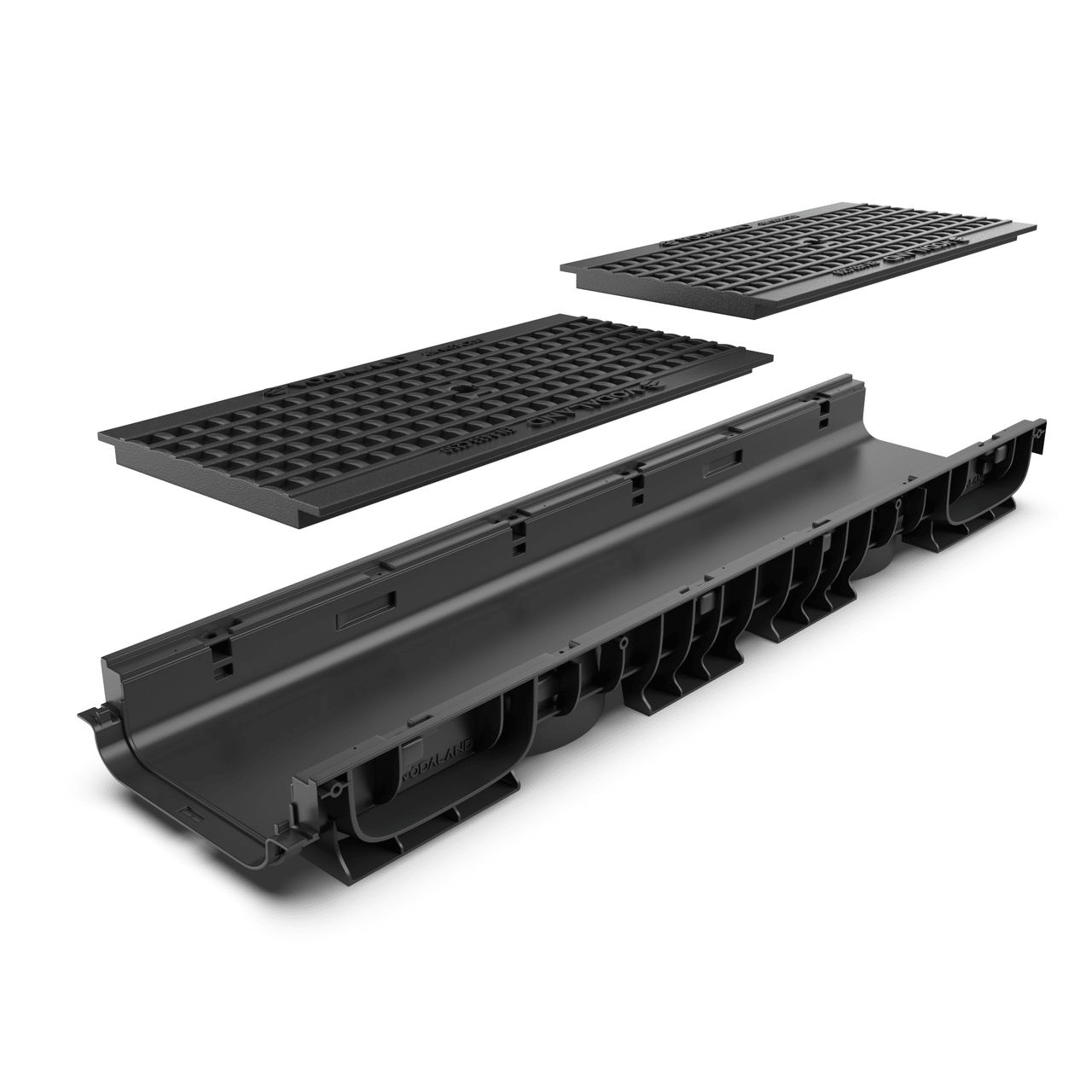

INCLUDED IN PACKAGE

1 Unit - Channel 8" Depth

2 Units - Ductile Cast Iron Grates - ADA

2 Units - Grating Fasteners

For more product information please see product description tab above

Downloads
PDF
DWG
BIM
Channel Specification Sheet
PDF :
DWG :
BIM :
Grating specification Sheet
PDF :
DWG :
Installation Guide
PDF :
Supplemental Installation Guide
PDF :

Product Description

Product Description

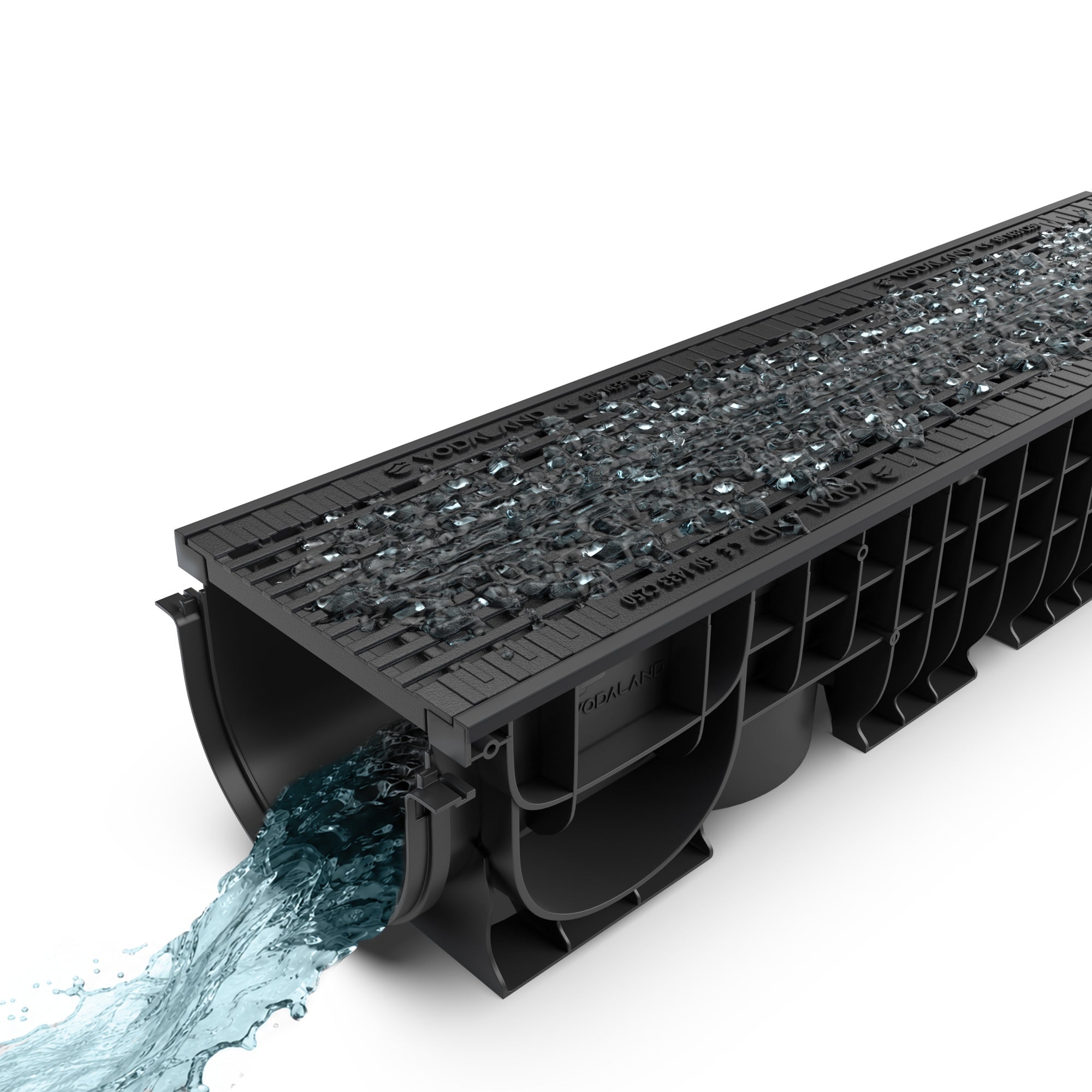

8" Ductile Cast Iron ADA Package | C - Load Class |

Vodaland designed and manufactured the 8” Ductile Cast Iron ADA Grate to provide a system that is ideal for not just heavy-load rated application but also suitable for both residential and commercial safety protocol compliance. A high performance and durable system, perfect for vehicle or forklift traffic.

Key Features:

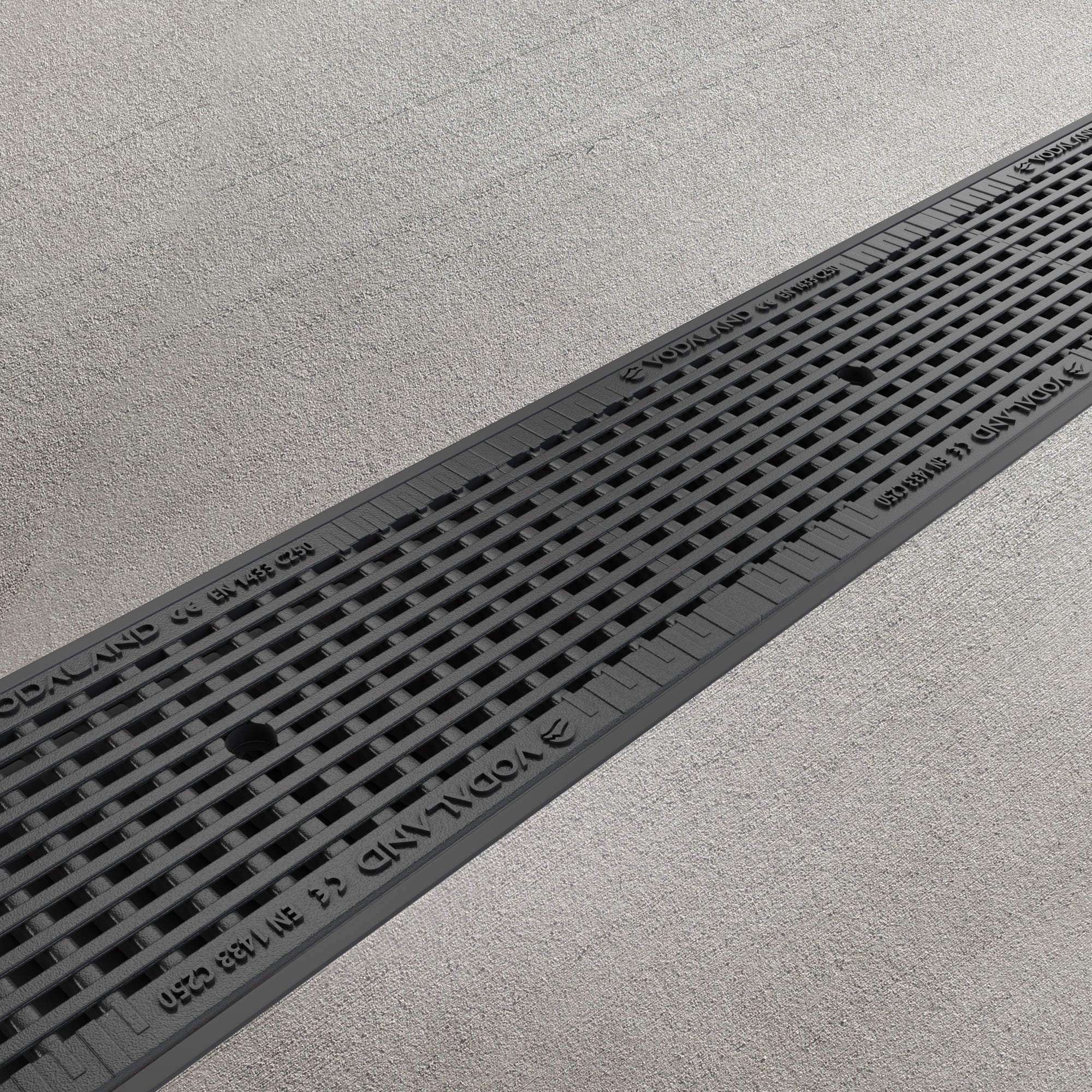

Ductile Cast Iron Steel Grate - Provides durability and stability in place.
C - Load Classification - Supporting up to 55,000 LBS.
ADA Complaint Design Grating - Ensures pedestrian accessibility and safety
Removable Grates - Easy access for maintenance.

Expanded Product Overview:
The 8” Ductile Cast Iron ADA Grate is a heavy duty load rate system, supporting up to 55,00 LBS of weight and a C-Load Classification (per EN1433). This system is perfect for driveway, garages, factories, parking lots, and more. A system that can handle a heavy duty application but also ensures the safety and security of both residential and commercial ADA (Americans with Disabilities Act) compliance. An excellent system to use for long runs and complex installation that provides a simple connection on
Vodaland’s 8” Channel Drain. Pairing with the grating fasteners, this ensures you have a tight and lock security system.

Common Application:
Driveways
Garages
Parking Lots
Driveways

Technical Specifications:
Material: Ductile Cast Iron Steel Grate
Grate Length: 3.3 FT (39 Inches)
Grate Width: 8” Internal & 9.4” External
Load Class: C Load Rate - 55,000 LBS (Forklift Rated)

Vodaland delivers reliable and high performance water solution systems. Backed by expert engineers and trusted by professionals nationwide. Systems that are designed and certified to meet the demands of every project so you can build with confidence.

INCLUDED IN PACKAGE

1 Unit - Channel 8" Depth

2 Units - Ductile Cast Iron Grates - ADA

2 Units - Grating Fasteners
