8" Channel Stainless Steel Package
8" Channel Stainless Steel Package
8" Channel Stainless Steel Package
8" Channel Stainless Steel Package
- PPE Plastic / Stainless Steel
- 3.3' (39 Inches) - Length
- A - Load Class
- Porches, Patios, Walkways and more
- End Cap Options Available Below
- Trusted by 10,000+ contractors!
Regular price
$287.00
Regular price
Sale price
$287.00
Unit price
per
free shipping over $999
3-5 days delivered
×
×
Product Details
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads

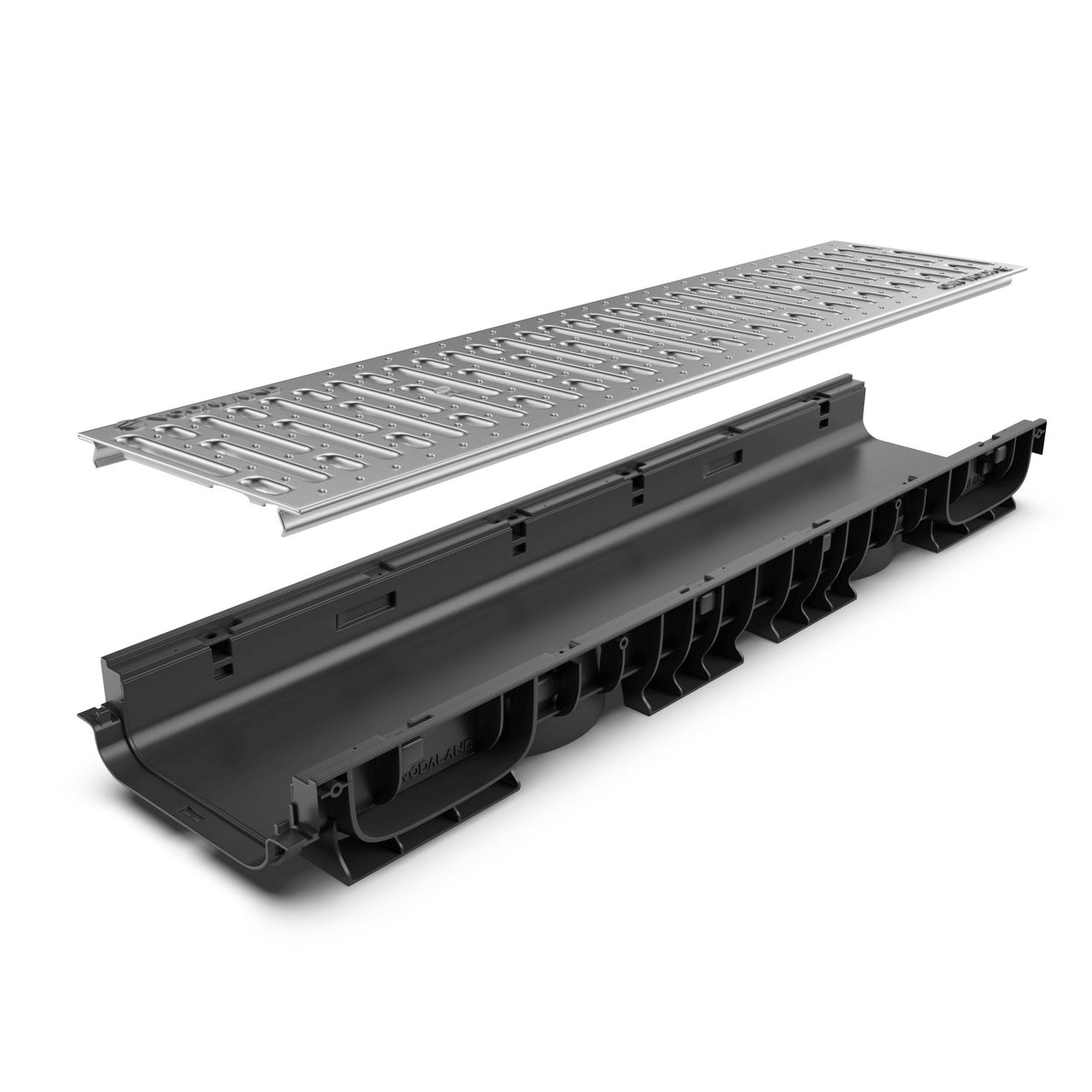

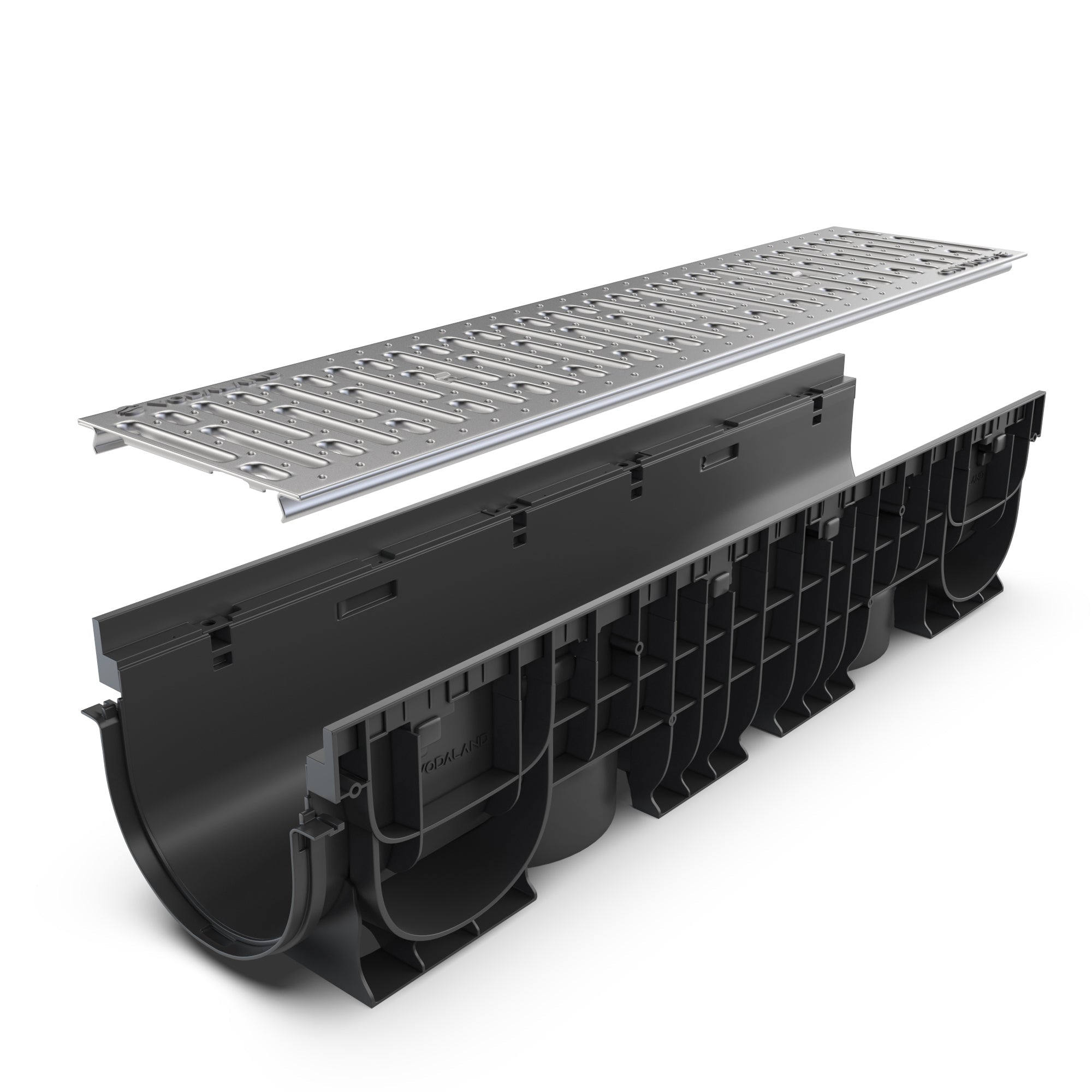

- 8" Internal width stainless steel package

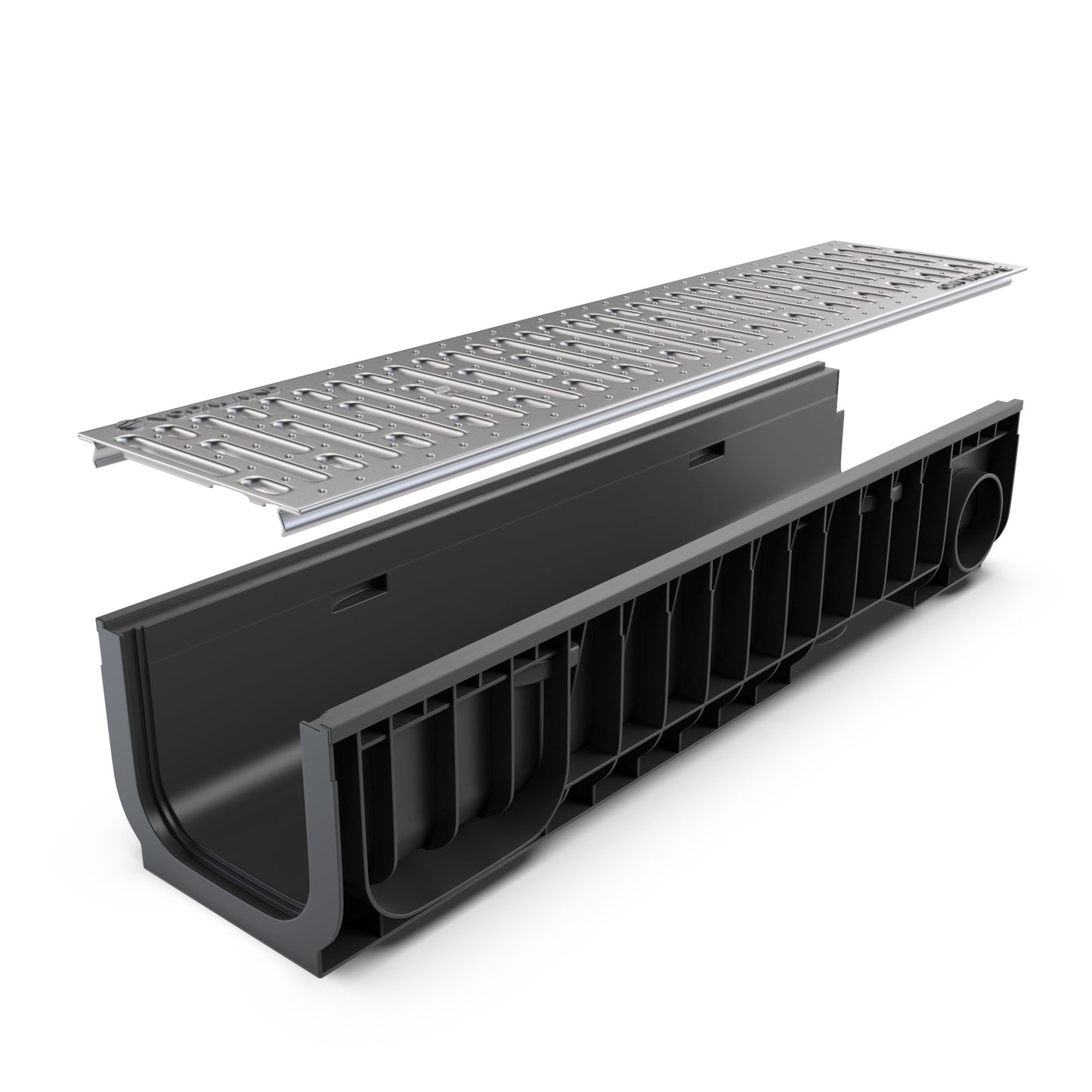

- Comes with stainless grate, channel and fasteners

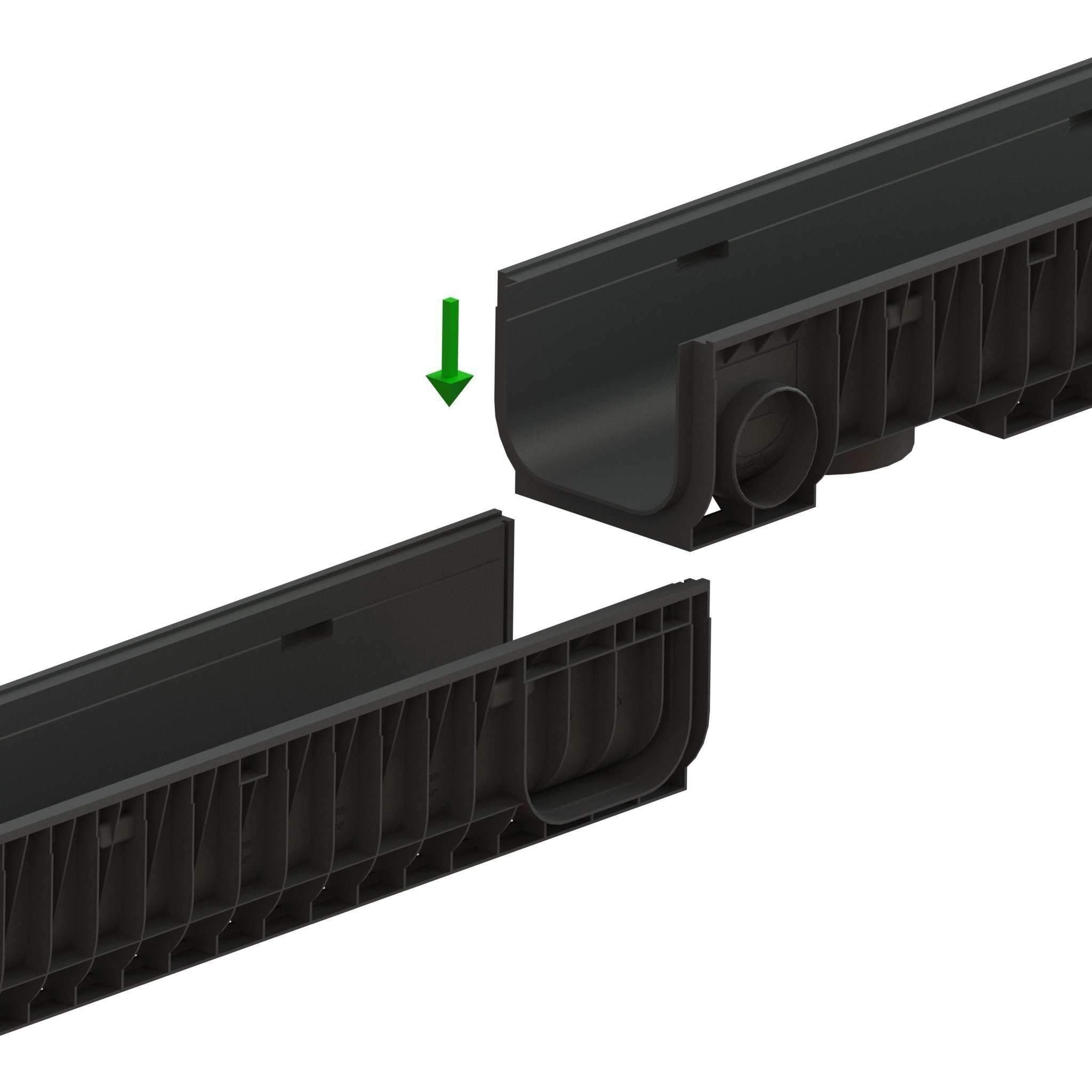

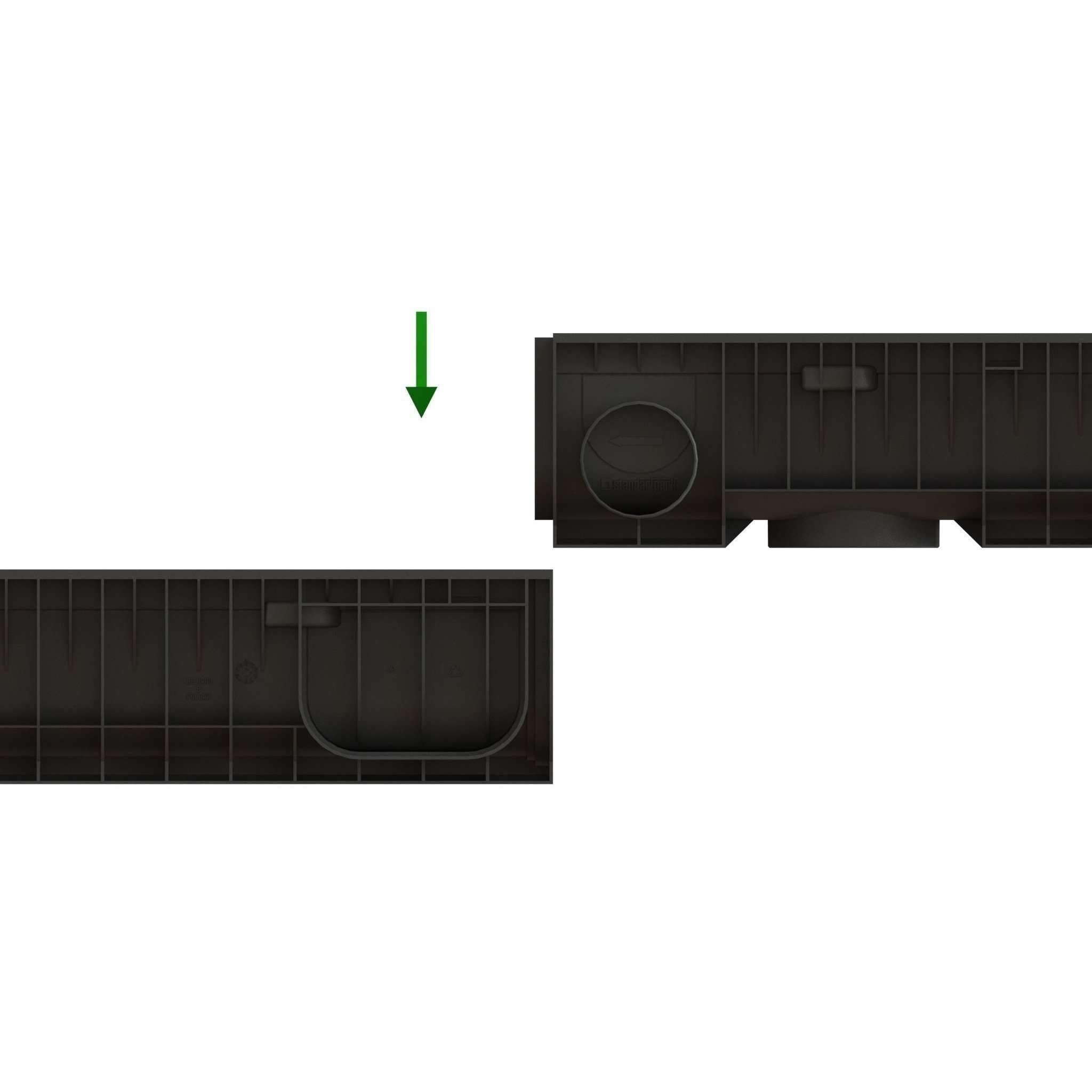

- Connect multiple channels for longer run

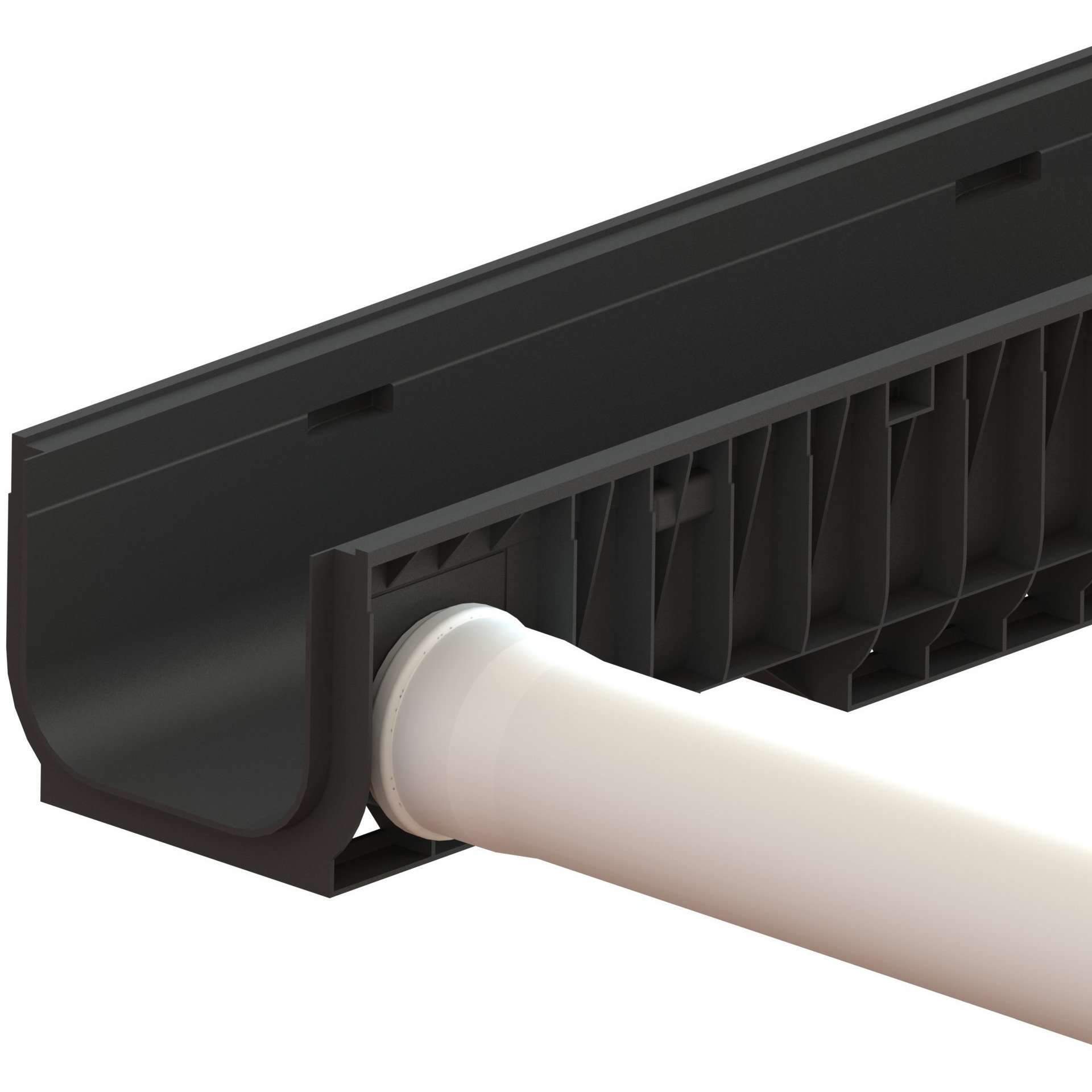

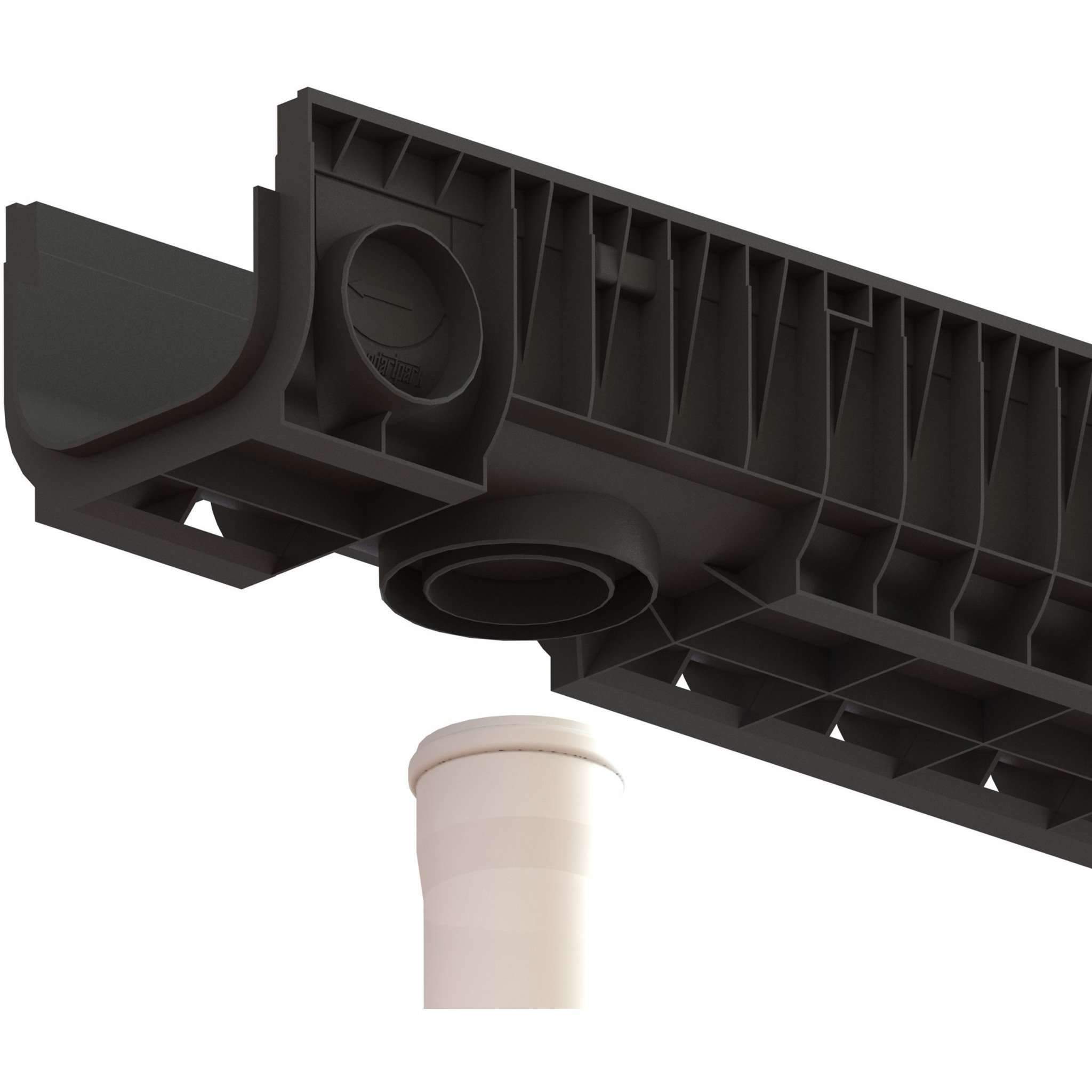

- 4" and 6" PVC or corrugated pipe bottom outlet options
INCLUDED IN PACKAGE
1 Unit - Channel 8" Depth

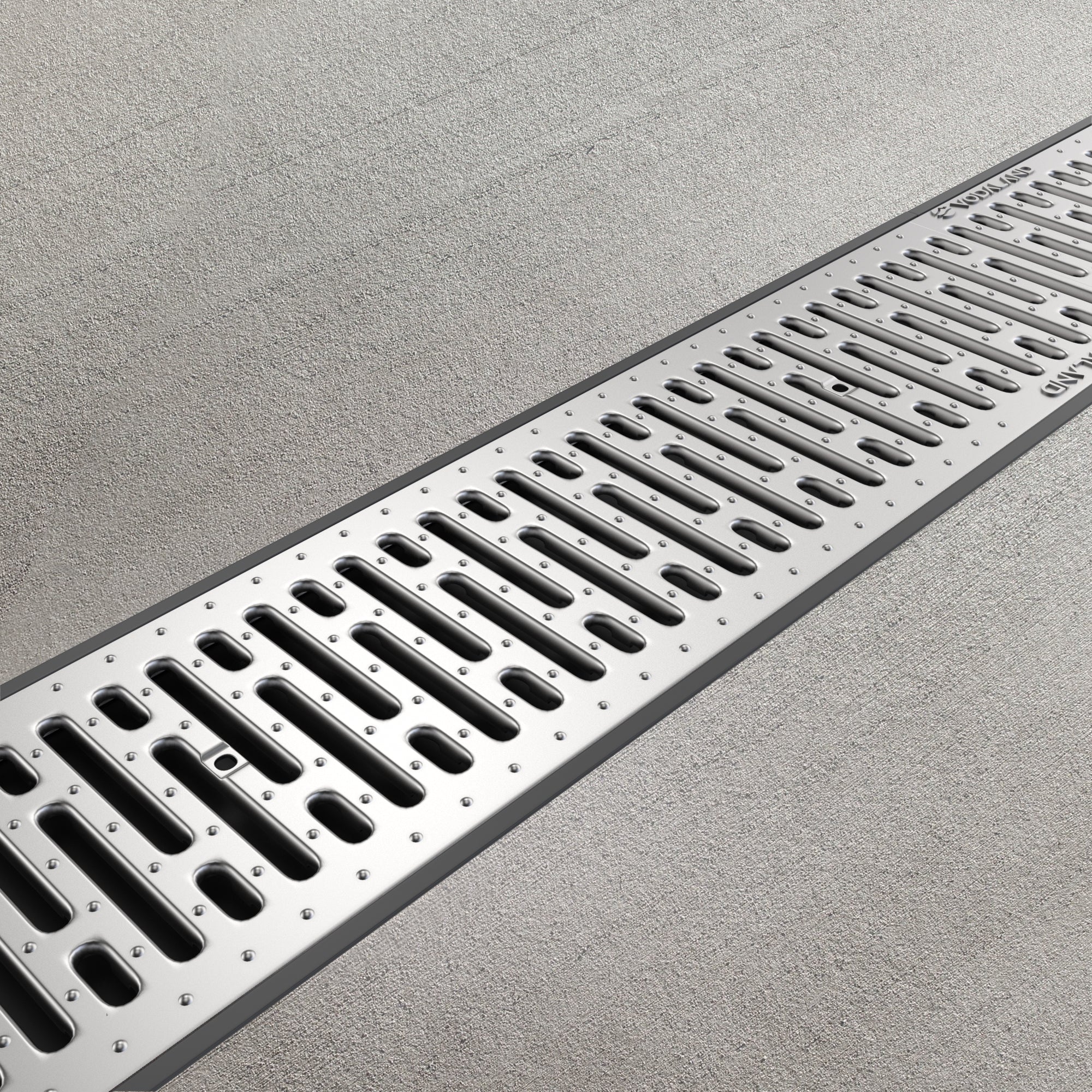

1 Unit - Stainless Steel Grating
2 Units - Grating Fasteners
For more product information please see product description tab above
Downloads
PDF
DWG
BIM
Channel Specification Sheet
Grating Specification Sheet
Installation Guide
Supplemental Installation Guide
Product Description
Product Description
8” Stainless Steel Standard Package | A - Load Class|

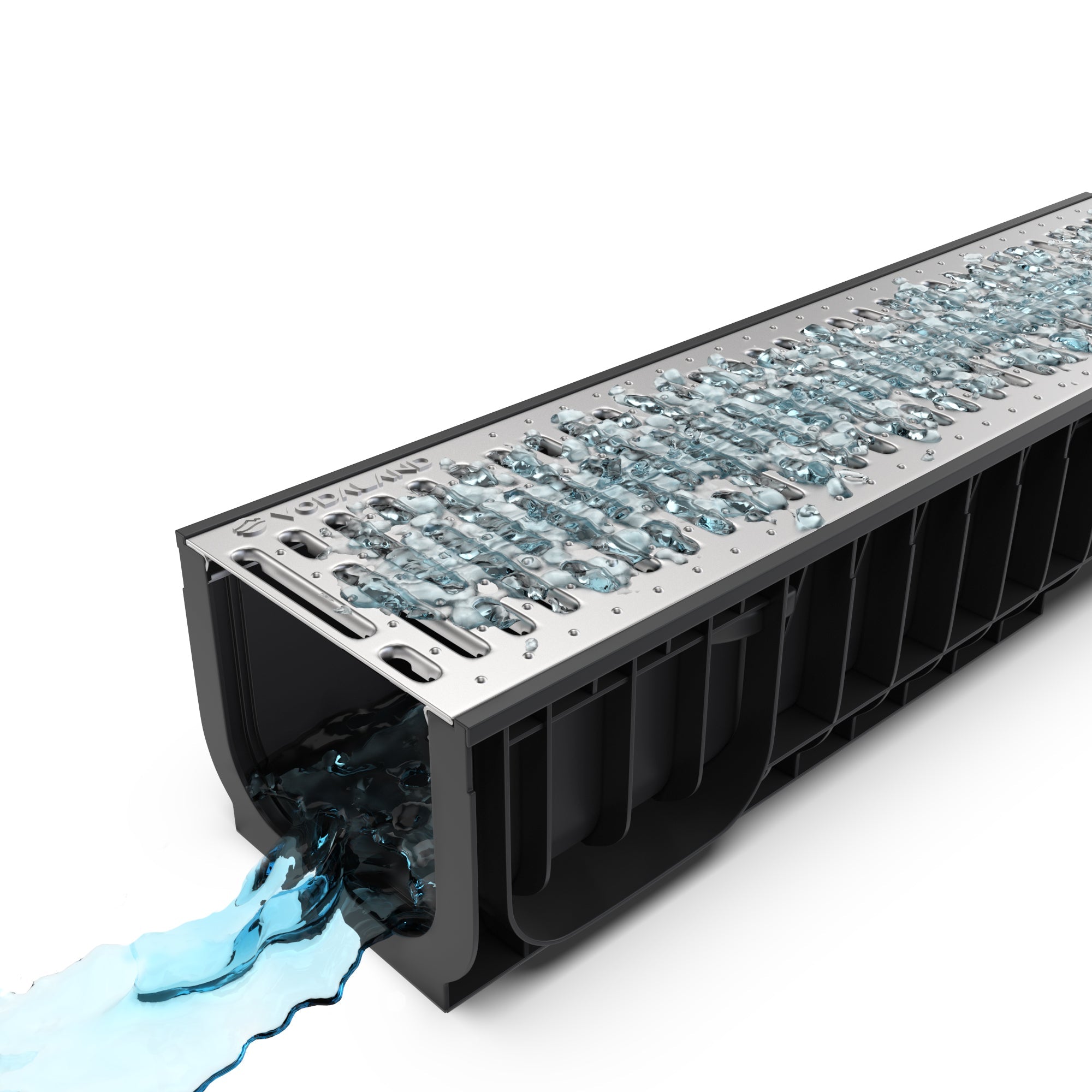

Vodaland designed and manufactured the 8” Stainless Steel Standard package to provide a system that can be suitable for both residential and commercial applications. This system is a foot traffic rated perfect for porches, patio, sidewalks, and more.
Key Features:
● PPE Plastic Channel with 304-Grade Stainless Steel Grate
● A - Load Classification - Suitable for pedestrian applications.
● Removable Grates - Easy access for maintenance.

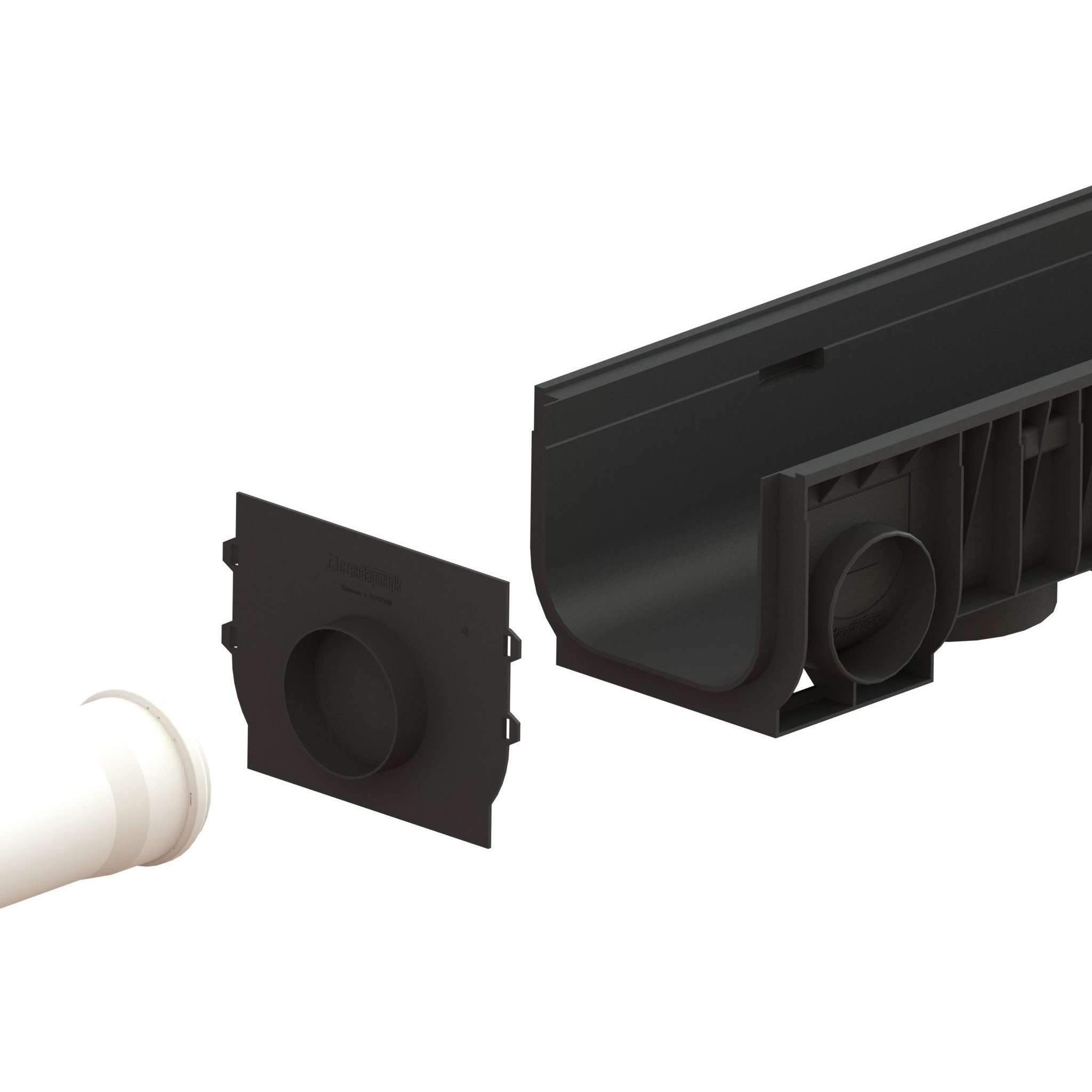

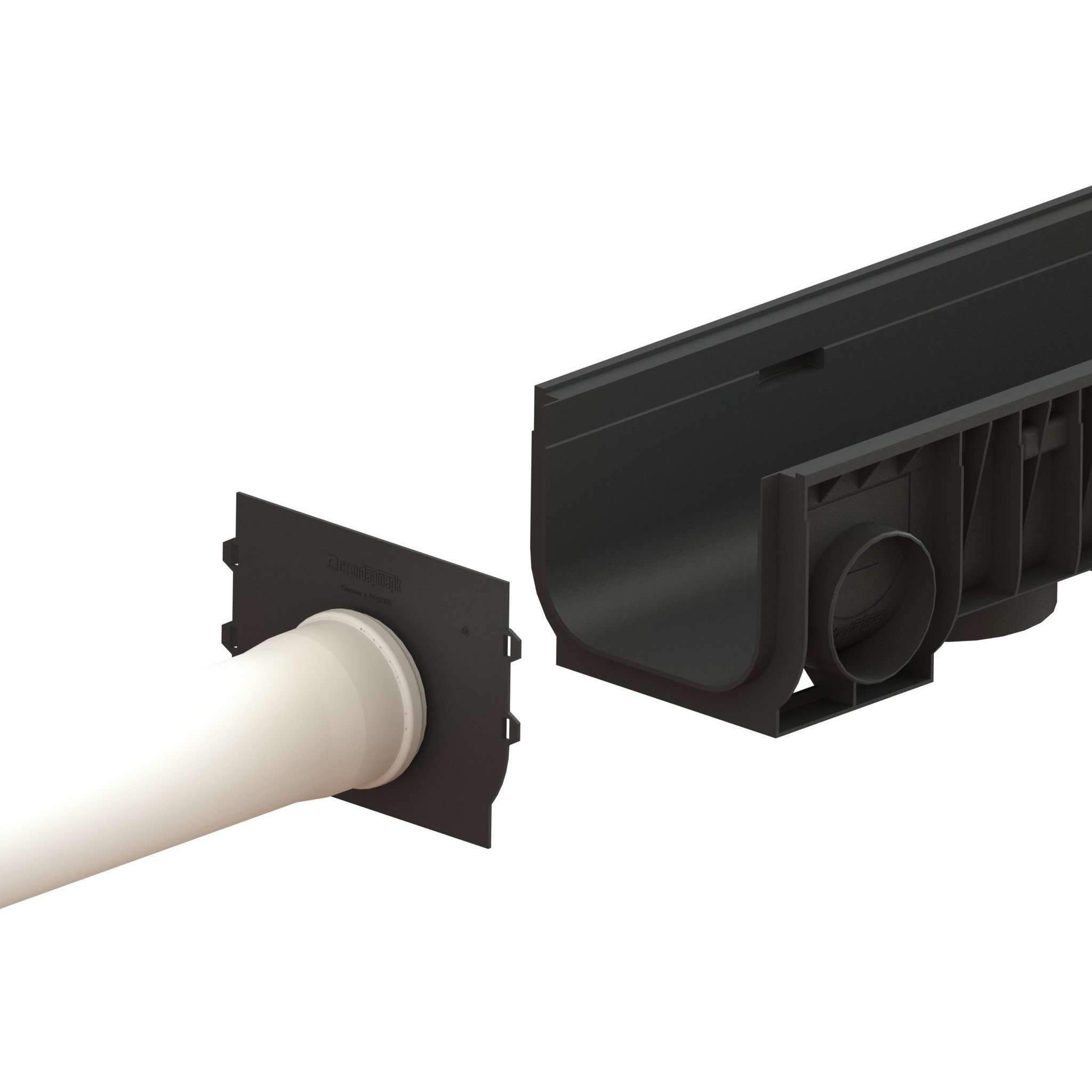

● Modular Outlets - Supports multiple pipe connections options at both ends, on either side, and bottom of the channel.
● PPE Plastic Channel with 304-Grade Stainless Steel Grate
● A - Load Classification - Suitable for pedestrian applications.
● Removable Grates - Easy access for maintenance.
● Modular Outlets - Supports multiple pipe connections options at both ends, on either side, and bottom of the channel.
Expanded Product Overview:
The 8” Stainless Steel Standard Package is an A-Load Classification, supporting a foot traffic weight rate making it suitable for quite a number of applications such as gardens, walkways, or porches. It is the ideal grate to use for long runs and complex installations that provide an easy connection with the 8” Channel Drain, and typically paired with the installation grating fasteners for tight lock and security. This system provides multiple outlet location and size options of 4” and 6” pipe connection for water distribution. A trench drain system that is made to be modular and allows you to create a 90 degree turn without needing any adapters making it perfect for all types of layout runs.
Common Application:
● Patios
● Gardens
● Porches
● Walkways
● Patios
● Gardens
● Porches
● Walkways
Technical Specifications:
● Material: PPE Plastic Channel with 304-Grade Stainless Steel Grate
● Channel Length: 3.3 FT (39 Inches)
● Channel Width: 8” Internal & 10.25” External
● Load Class: A Load Rate - 3,300 LBS (Pedestrian Rated)
Vodaland delivers reliable and high performance water solution systems. Backed by expert engineers and trusted by professionals nationwide. Systems that are designed and certified to meet the demands of every project so you can build with confidence.
INCLUDED IN PACKAGE
1 Unit - Channel 8" Depth
1 Unit - Stainless Steel Grating
2 Units - Grating Fasteners
