8" Channel Installation Mounting Bracket

8" Channel Installation Mounting Bracket

Skip to product information
1 of 2
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

Our installation brackets make things simple. "V" clips will connect to the ribs of the channel and channel connection points. You lock those down, then slip rebar into the side holes to level your system out before your concrete pour. These will work with ALL 8" Internal channels, including all Industrial Channels as well. Great for major constructions or if you want to make things perfect.

For more product information please see product description above

Downloads
PDF
DWG
BIM
Specification Sheet
PDF :

Product Description

Product Description

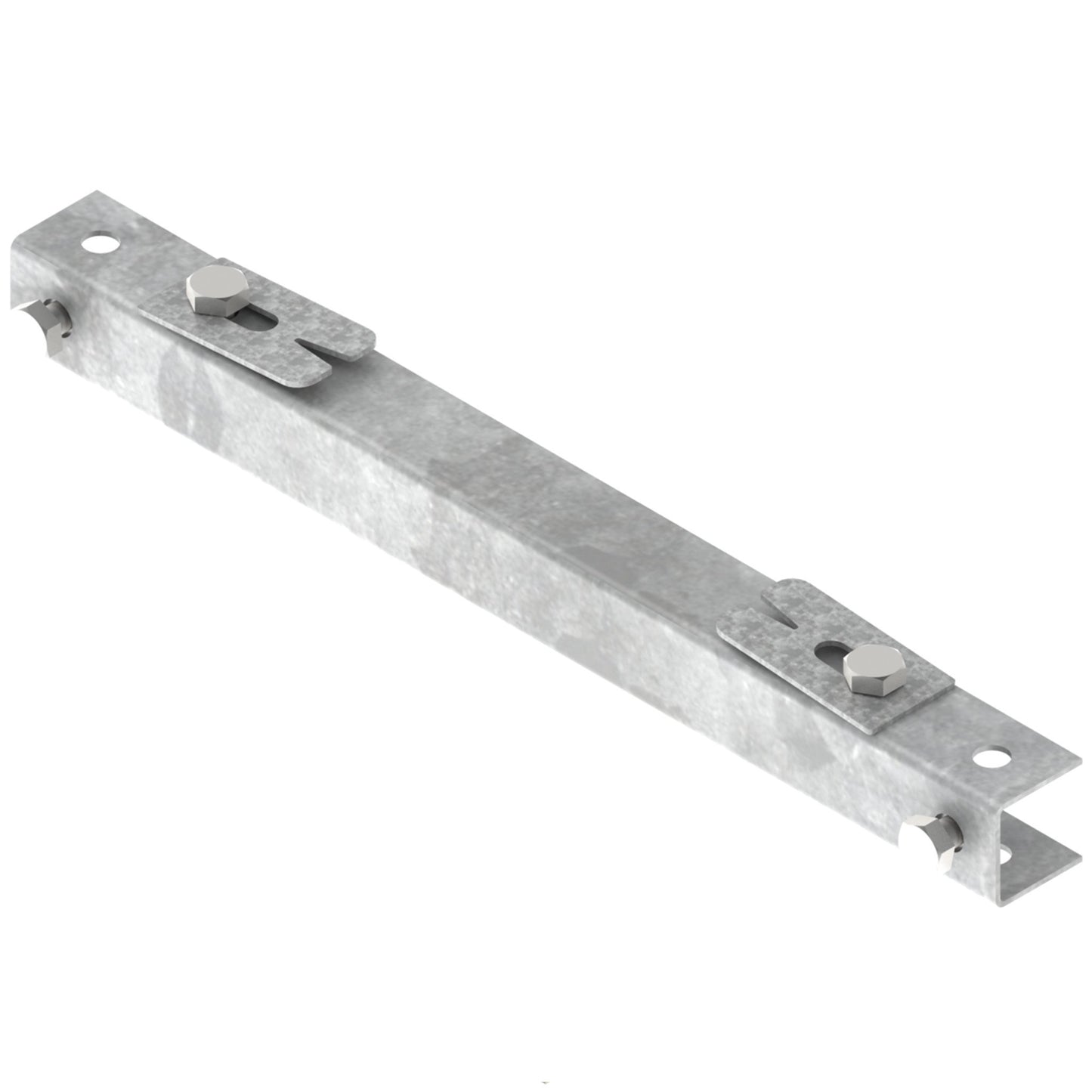

8” Channel Installation Mounting Bracket

Vodaland designed the Installation Mounting Bracket to provide ease and stability during installation. This system is not just perfect for leveling, but it allows you to have an option to have a mono pour for the embedment of the channel system with concrete.

Key Features:
100 percent Galvanized Steel - Provides durability for the drain system.
8” Internal Width Plastic Channel Drain - For stabilization during the concrete pour.
Helps with leveling the channel drain system during installation (requires two rebar rods).

Expanded Product Overview:
This 8” Channel Installation Mounting Bracket serves you the advantage of performing easy and simple installation processes. Providing you that mono pour of concrete, leveling, stabilizing, and security of the Channel Drain installation. Using this accessory, it allows you to avoid any shifting during the embedment of the channel and compatibility with Vodaland’s 8” Plastic Channel Drain.

Common Application:
8” Internal Width Plastic Channel Drain Installation
Including Industrial Channel
Makes Installation Simple
Mono Concrete Pour
Stabilization of the Channel & Leveling

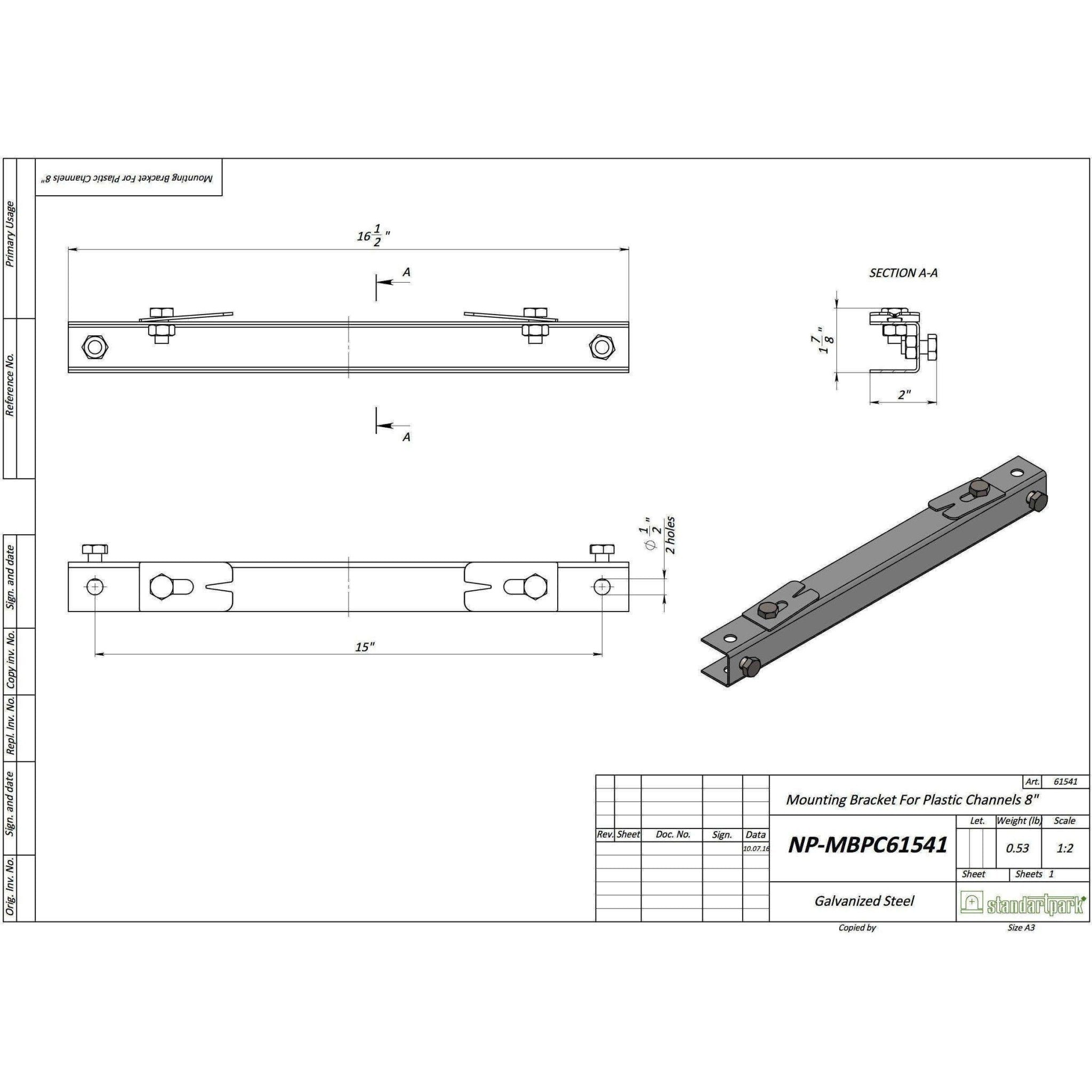

Technical Specifications:
Material: 100% Galvanized Steel
Unit Length: 16-½ Inches
Unit Width: 1-⅞ Inch

Vodaland delivers reliable and high performance products that provide safety and durability of your application. Backed by expert engineers and trusted by professionals nationwide. Systems that are designed and certified to meet the demands of every project so you can build with confidence.
