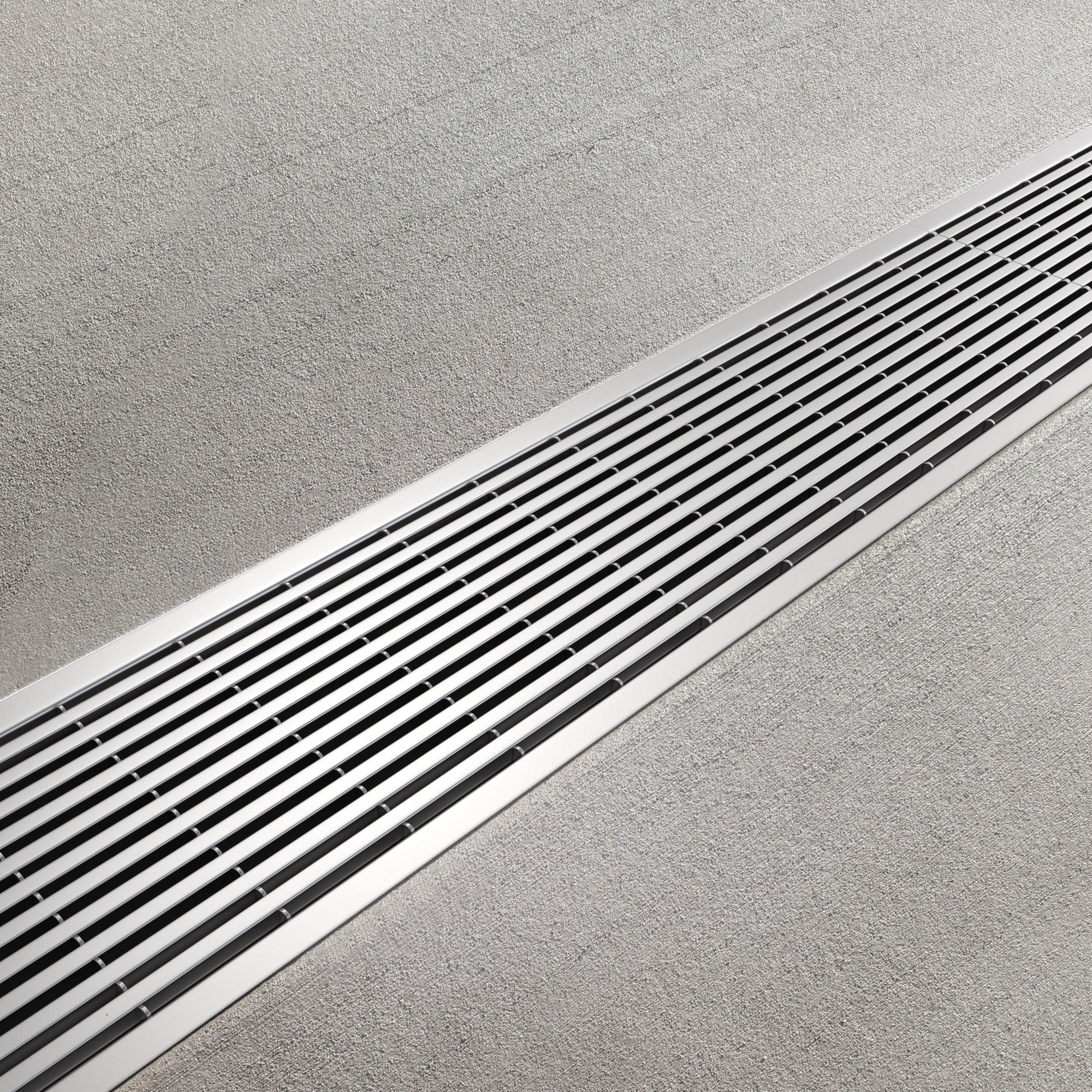

8" Channel Stainless ADA / HEEL PRO Package
8" Channel Stainless ADA / HEEL PRO Package
8" Channel Stainless ADA / HEEL PRO Package
8" Channel Stainless ADA / HEEL PRO Package
- PPE Plastic / Stainless Steel
- 3.3' (39 Inches) - Length
- A - Load Class
- Walkways, Patios, Porches and more
- End Cap Options Available Below
- Trusted by 10,000+ contractors!
Couldn't load pickup availability
FAQ’s
3D Model of our 8" Stainless ADA / HEEL Proof PRO Package
Zoom in / out and rotate to get a full 360 view of this 8" Stainless Steel ADA / HEEL proof PRO package





Product Details
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
- 8" Internal width stainless steel ADA package
- Comes with stainless grate and channel
- Connect multiple channels for longer run
- 4" and 6" PVC or corrugated pipe bottom outlet options

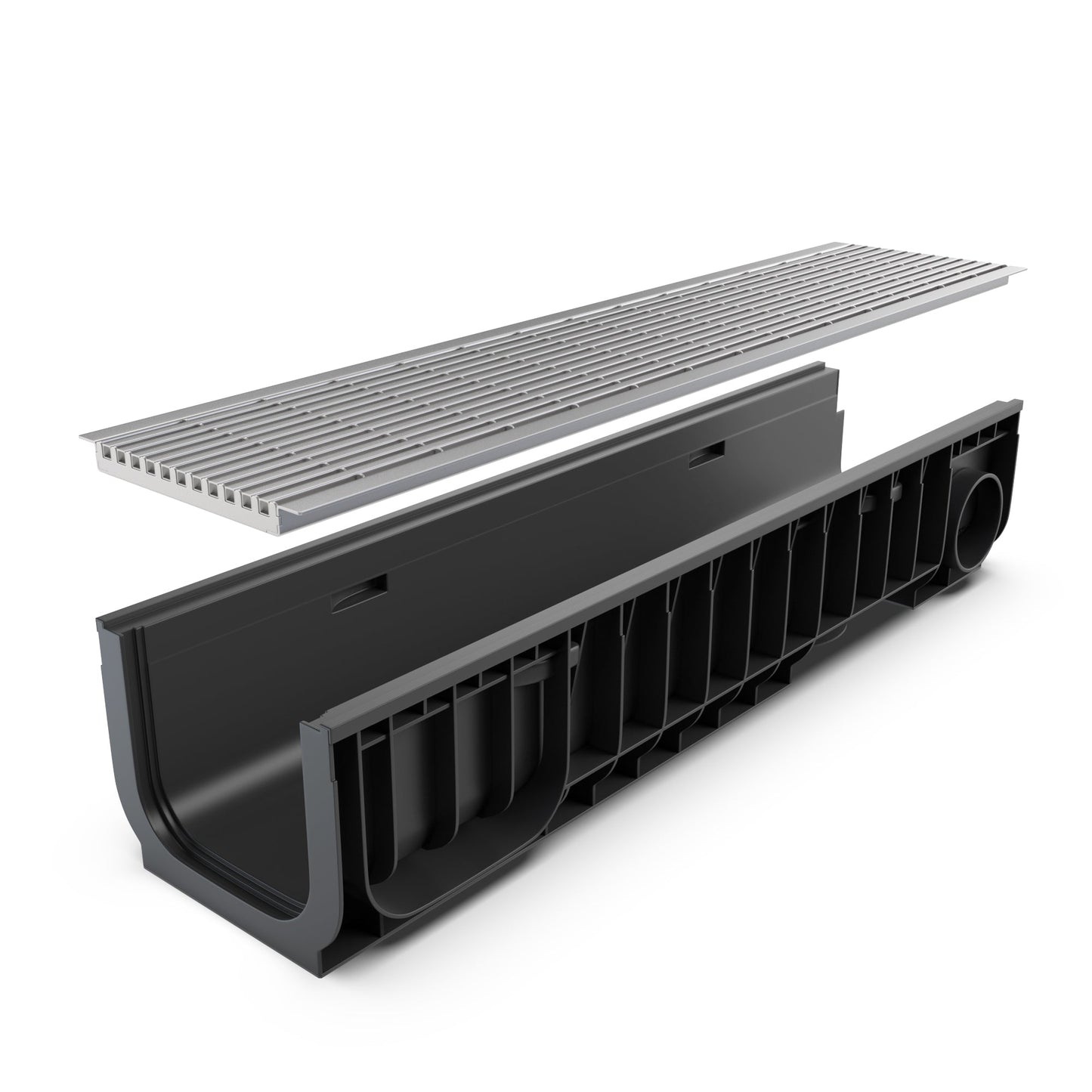

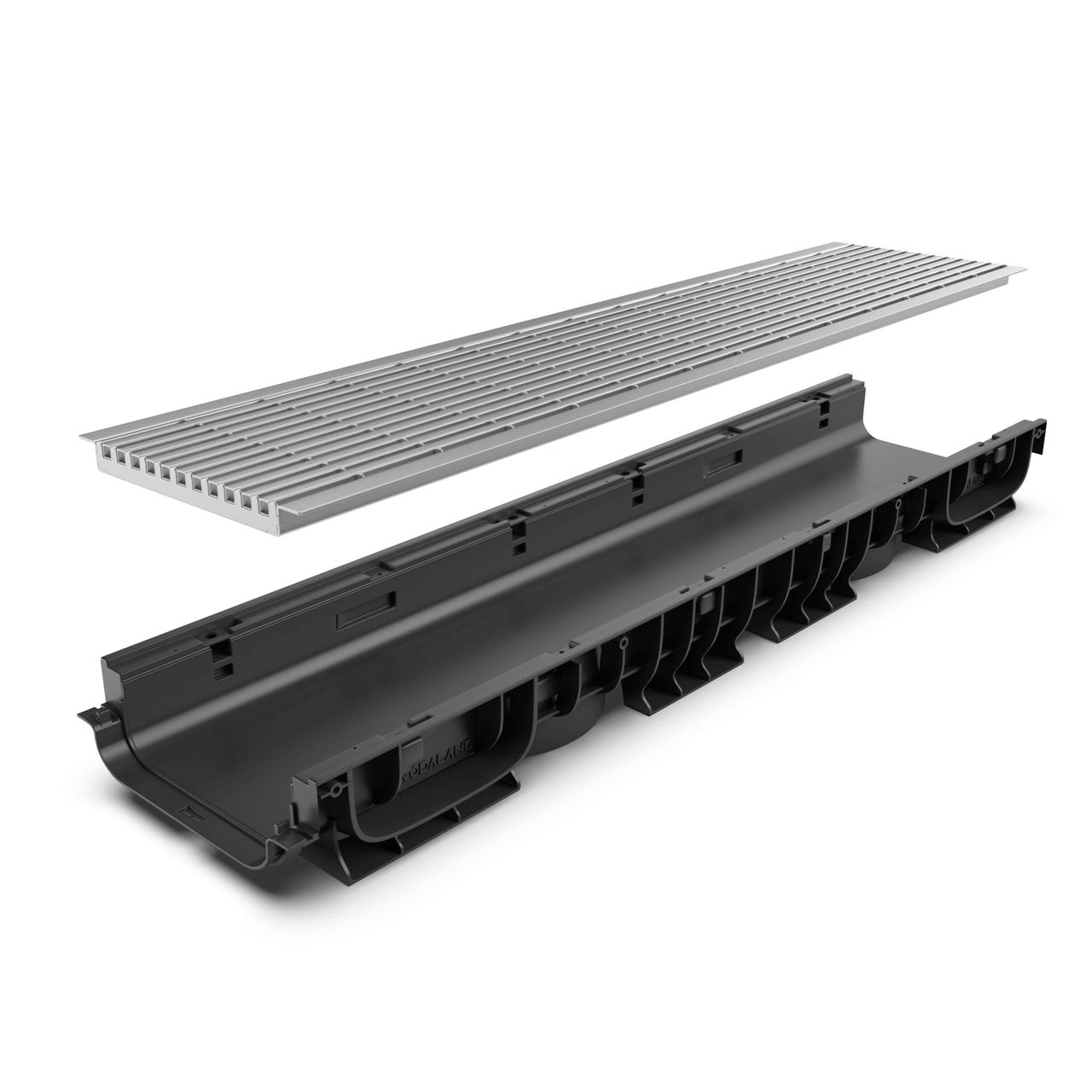

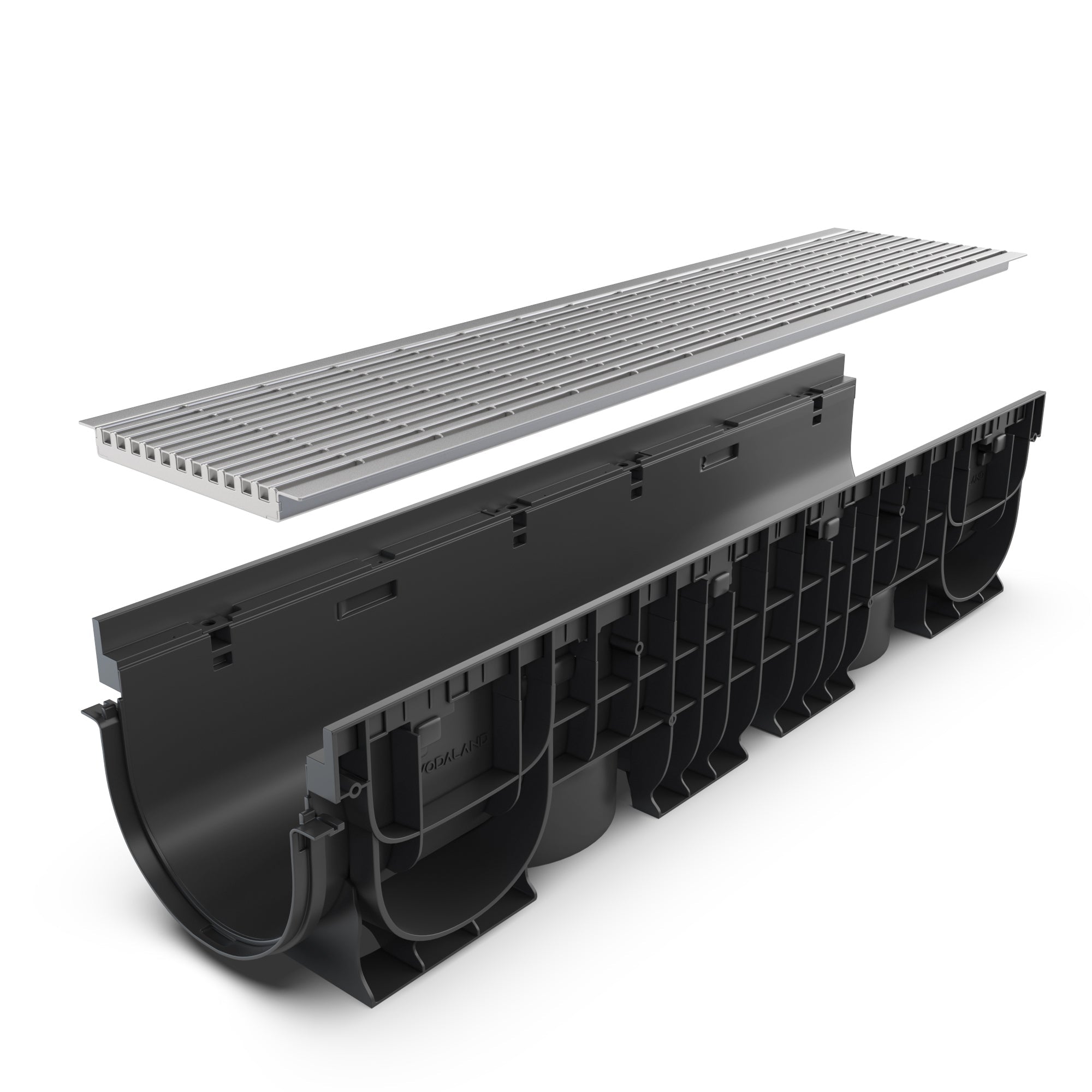

INCLUDED IN PACKAGE
1 Unit - Channel 8" Depth

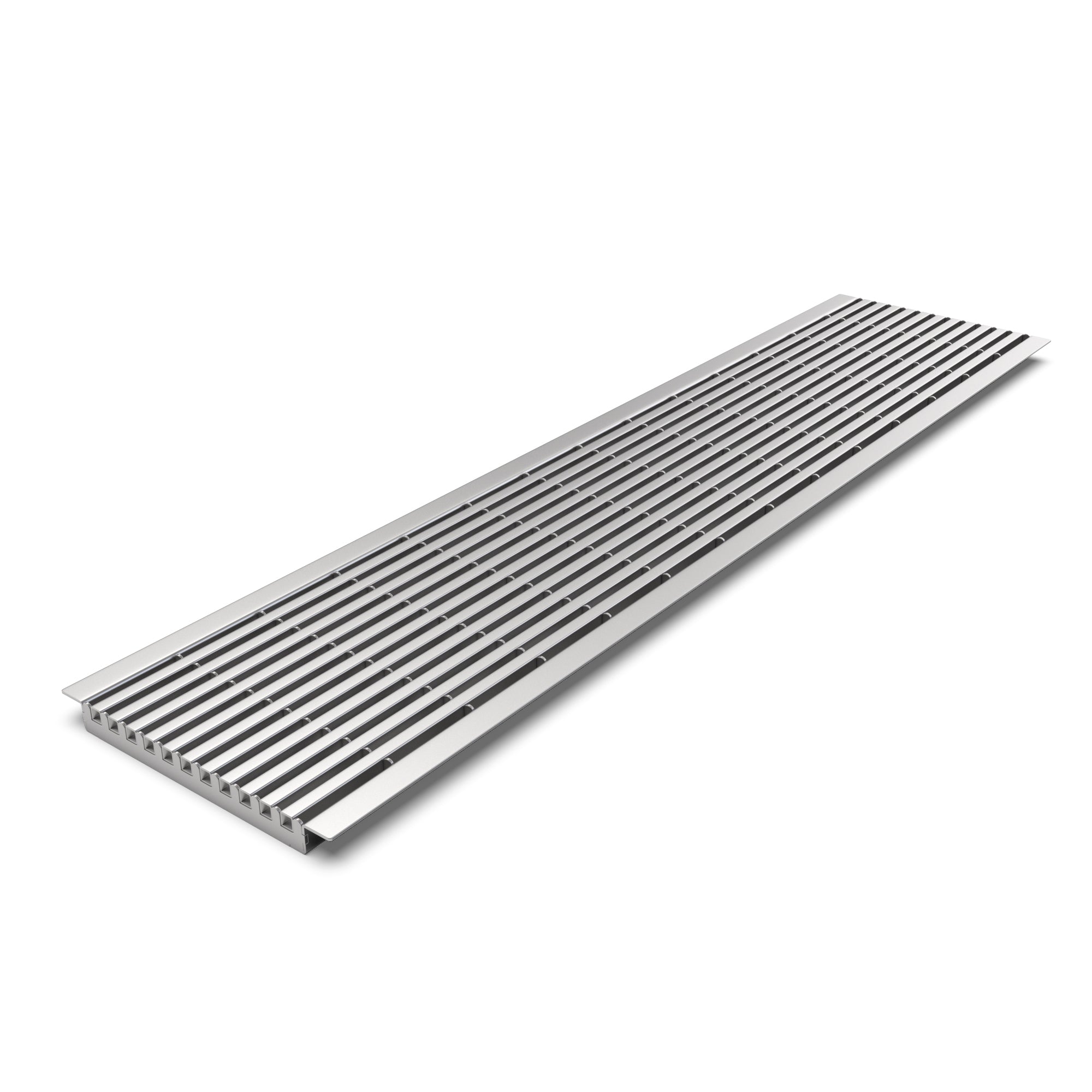

1 Unit - Stainless Steel Grating
For more product information please see product description tab above

Product Description
Product Description
8" Channel Stainless ADA/Heel Pro Package | A - Load Class |
Vodaland designed and manufactured the 8” Stainless Steel ADA/Heel Pro package to provide a system that can be suitable for both residential and commercial applications. This system is a foot traffic rated perfect for porches, patio, sidewalks, and more.
Key Features:

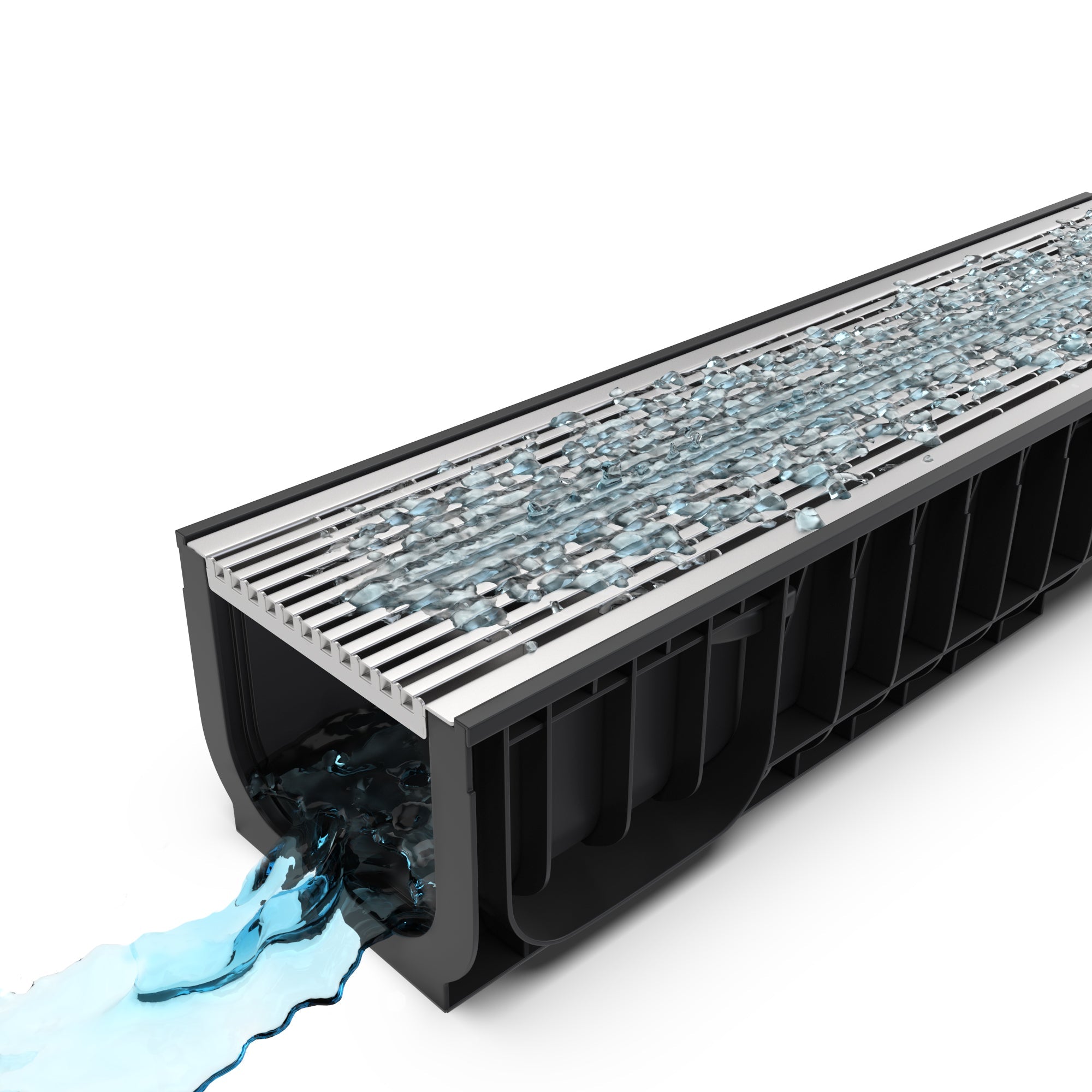

● PPE Plastic Channel with 304-Grade Stainless Steel Grate
● ADA/Heel Proof Complaint Design Grating - Ensures pedestrian accessibility and safety
● A - Load Classification - Suitable for pedestrian applications.
● Modular Outlets - Supports multiple pipe connections options at both ends, on either side, and bottom of the channel.
Expanded Product Overview:
The 8” Stainless Steel ADA/Heel Pro Package is an A-Load Classification, supporting a foot traffic weight rate making it suitable for quite a number of applications such as gardens, walkways, or porches. It is the ideal grate to use for long runs and complex installations that provide an easy connection with the 8” Channel Drain, and typically paired with the installation grating fasteners for tight lock and security. This system provides multiple outlet location and size options of 4” and 6” pipe connection for water distribution. A trench drain system that is made to be modular and allows you to create a 90 degree turn without needing any adapters making it perfect for all types of layout runs.
Common Application:
● Patios
● Gardens
● Porches
● Walkways
Technical Specifications:
● Material: PPE Plastic Channel with 304 Stainless Steel Grate
● Channel Length: 3.3 FT (39 Inches)
● Channel Width: 8” Internal & 10.25” External
● Load Class: A Load Rate - 3,300 LBS (Pedestrian Rated)
INCLUDED IN PACKAGE
1 Unit - Channel 8" Depth
1 Unit - Stainless Steel Grating
