8” Fiber Concrete Inline Trap
This Heavy Duty system is designed to connect directly to the last channel of the 8” Fiber Reinforced 1% Pre Slope Channel System and can also be used as a single point drainage solution that will prevent debris from entering drainage piping.
Key Features:
● Supports up to 132,000 LBS. - Provides exceptional strength for roads, parking lots,
garages, and heavy duty traffic areas.
● Prevents Corrosion - This system is chemical resistant and will help to prevent rusting
● Temperature Resistant - The fiber reinforced concrete will help maintain the water
temperature to help prevent freezing and overheating
● Inline Design- Engineered to have a seamless connection with the 8” Fiber Reinforced
1% Pre Slope System
● Multiple Outlet Options - Has outlet options on all four sides of the system
● Debris Basket Included - Allows for easy maintenance
Expanded Product Overview:

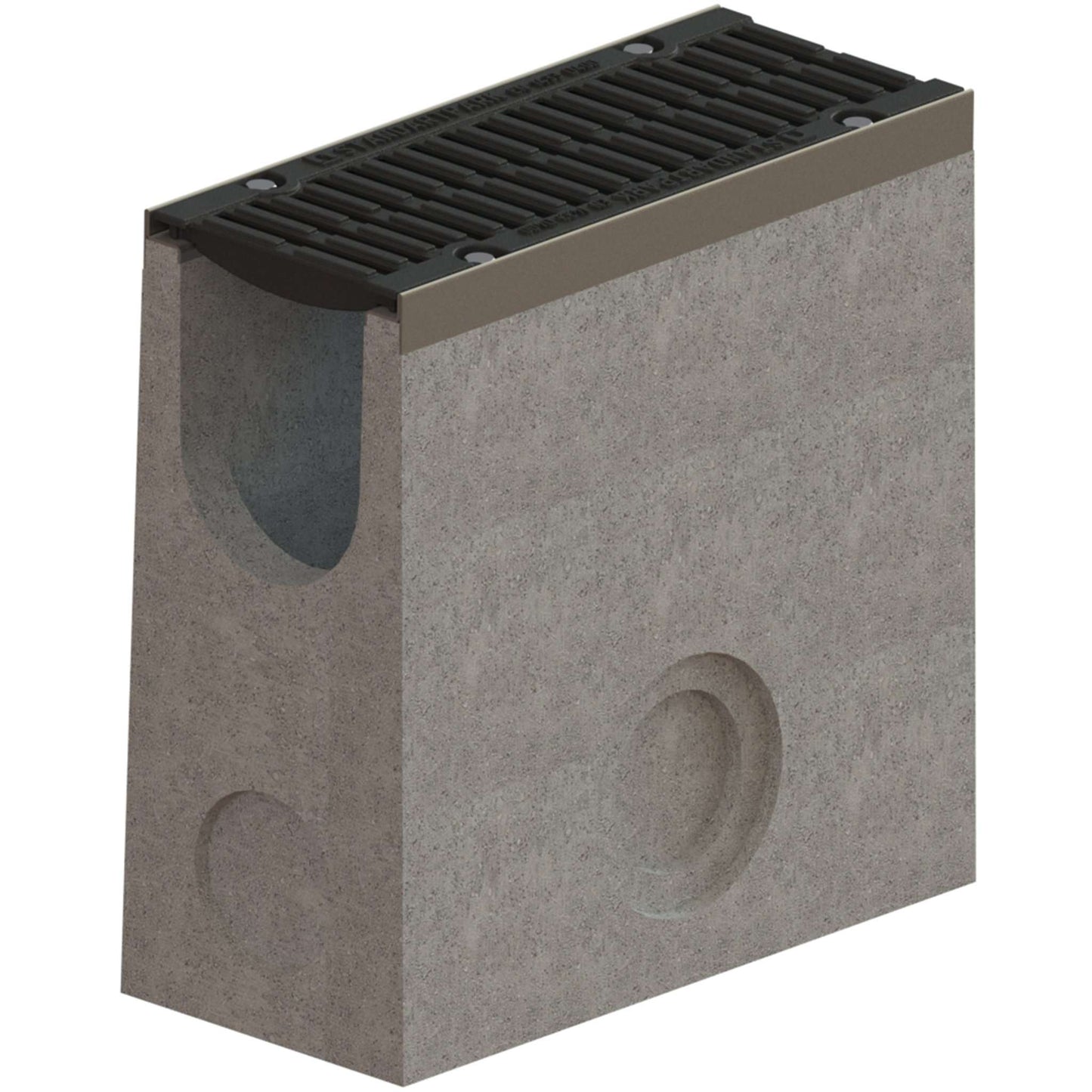

Our 8” Fiber Concrete Inline Trap is manufactured with a Ductile Cast Iron Grating and galvanized steel reinforcements to support extra heavy duty traffic. The Fiber Reinforced concrete will withstand ultra hot temps, as well as cold and is fitted with a galvanized stamped steel edge for cast iron bolt down mechanism and weight reinforcement. This system has outlet connection options on all four sides of the system to connect directly to 6” or 8” pipe. This system will connect seamlessly to channel #045071334/310 and is also able to be used as a single drainage point system.
Common Applications:
● Parking Lot
● Driveway
● Warehouse
● Industrial Settings
Technical Specifications:

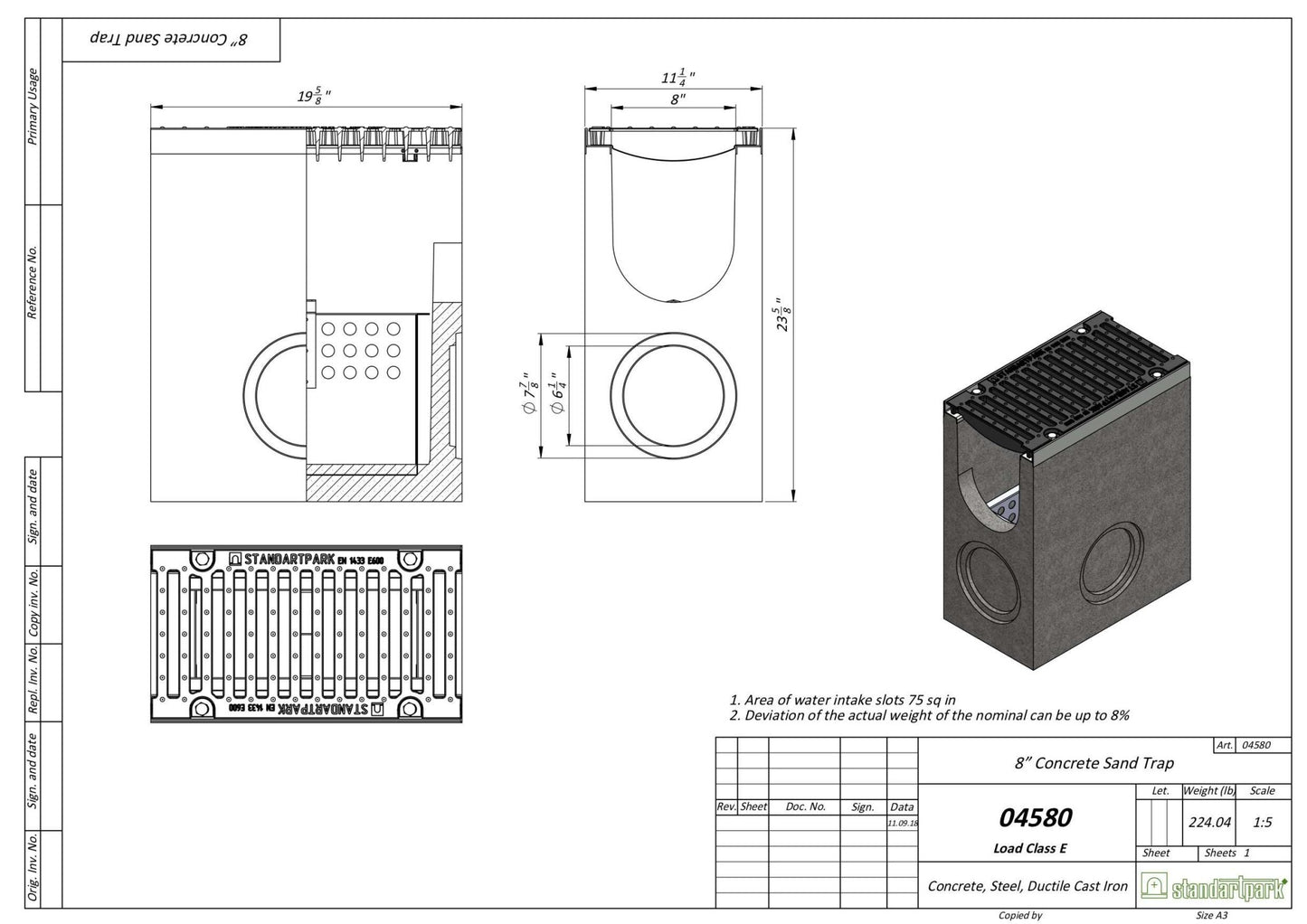

● Size - 19 ⅝” L x 10 ¼” W x 23 ⅝” H (7 ⅞” Internal Width)
● Material - Fiber Reinforced Concrete / Ductile Cast Iron Grating / Galvanized Steel
Reinforcement
● Load Class - E (Extra Heavy Duty, up to 132,000 LBS)
● Color - Black Grate
● Outlet Size - 6 ¼” or 7 ⅞”
● Article Number - 045871334-K-52/310
Like all Vodaland products this concrete system is designed to provide a long lasting, highly durable drainage solution.
