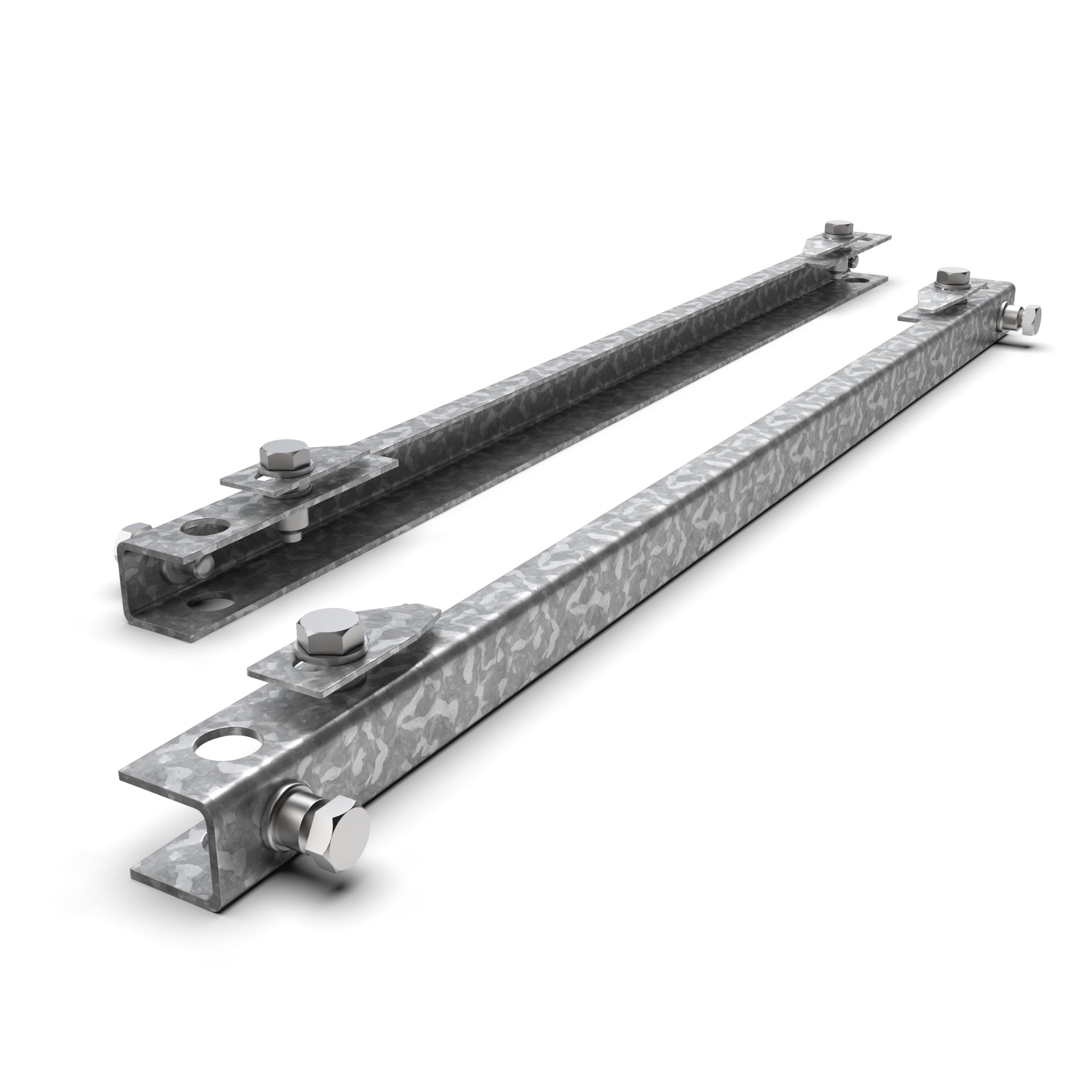

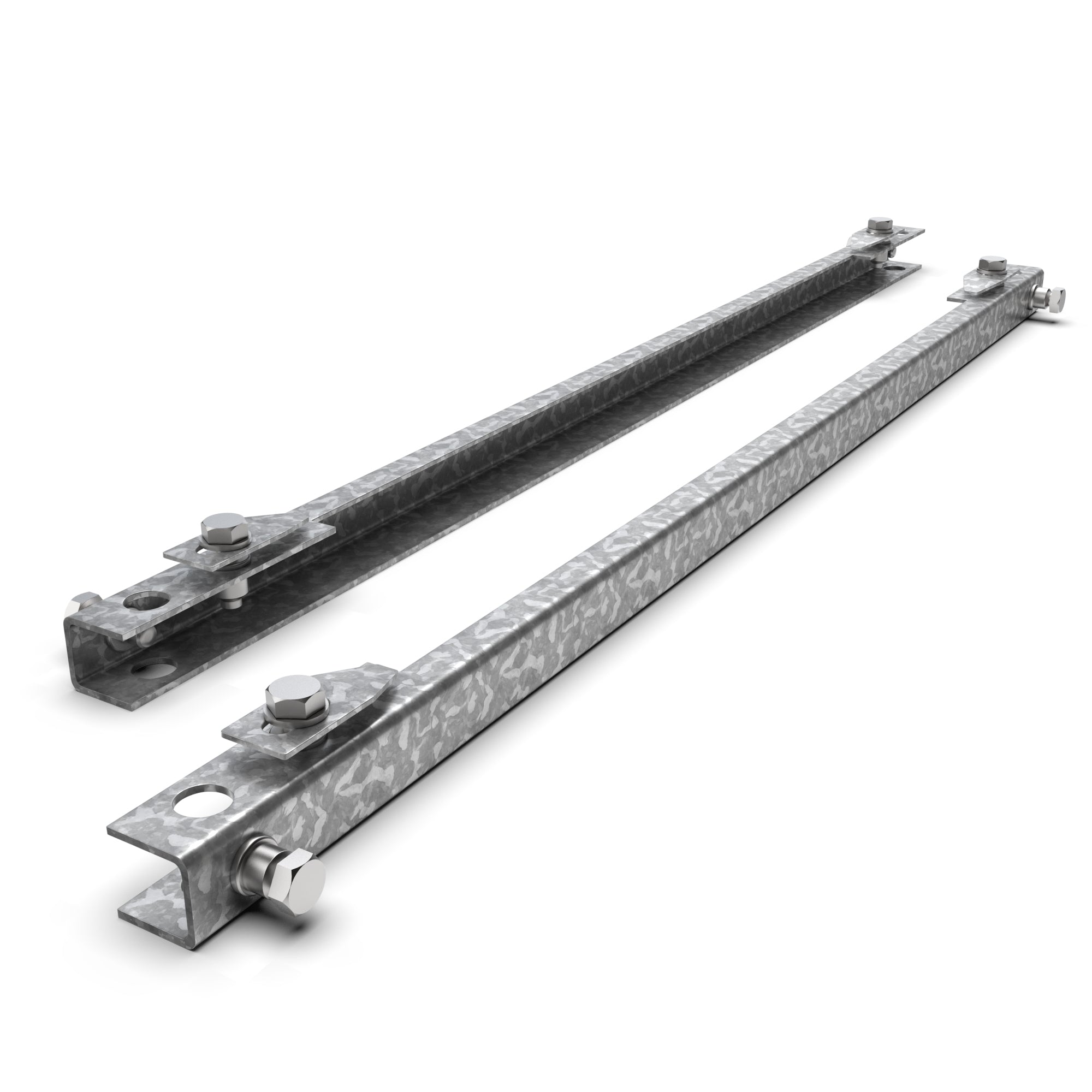

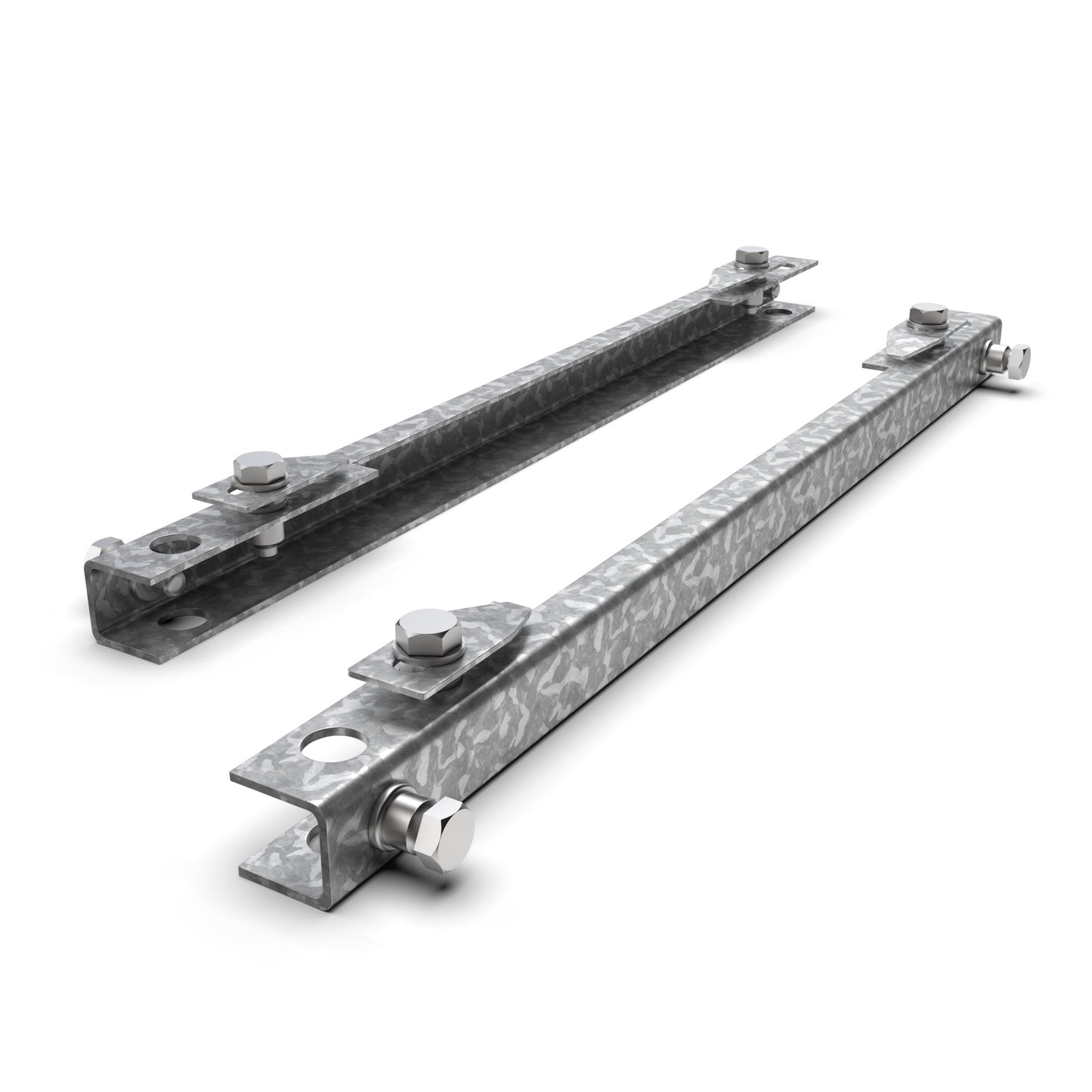

Catch Basin Installation Brackets

Installation Brackets designed specifically for our Catch Basins to assist in raising and leveling the system for a single pour installation.

Key Features:

For use with our 12x12, 16x16, and 22x22 Basins
Installation brackets raise basins for a single pour installation
Ensures a simple yet fast installation with concrete

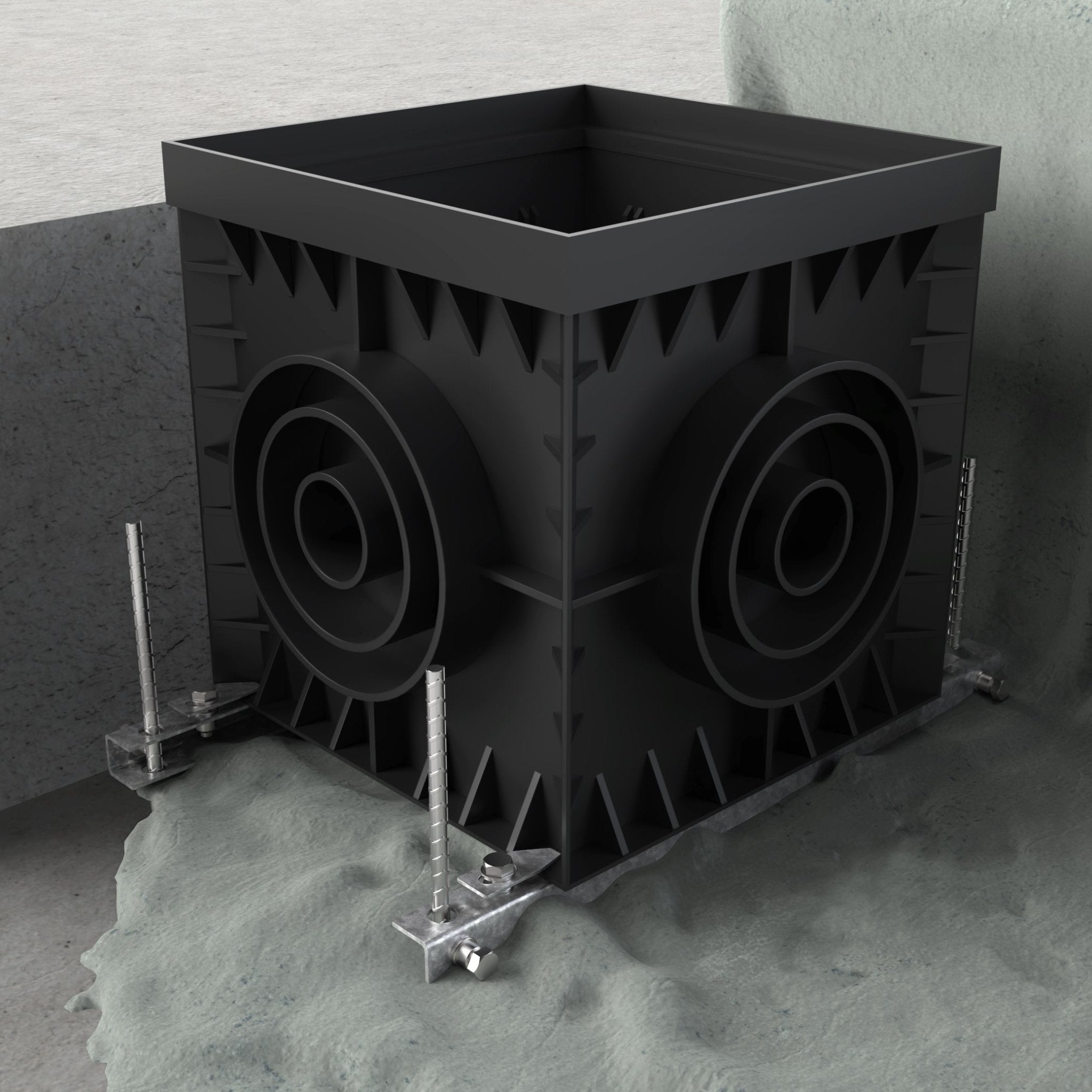

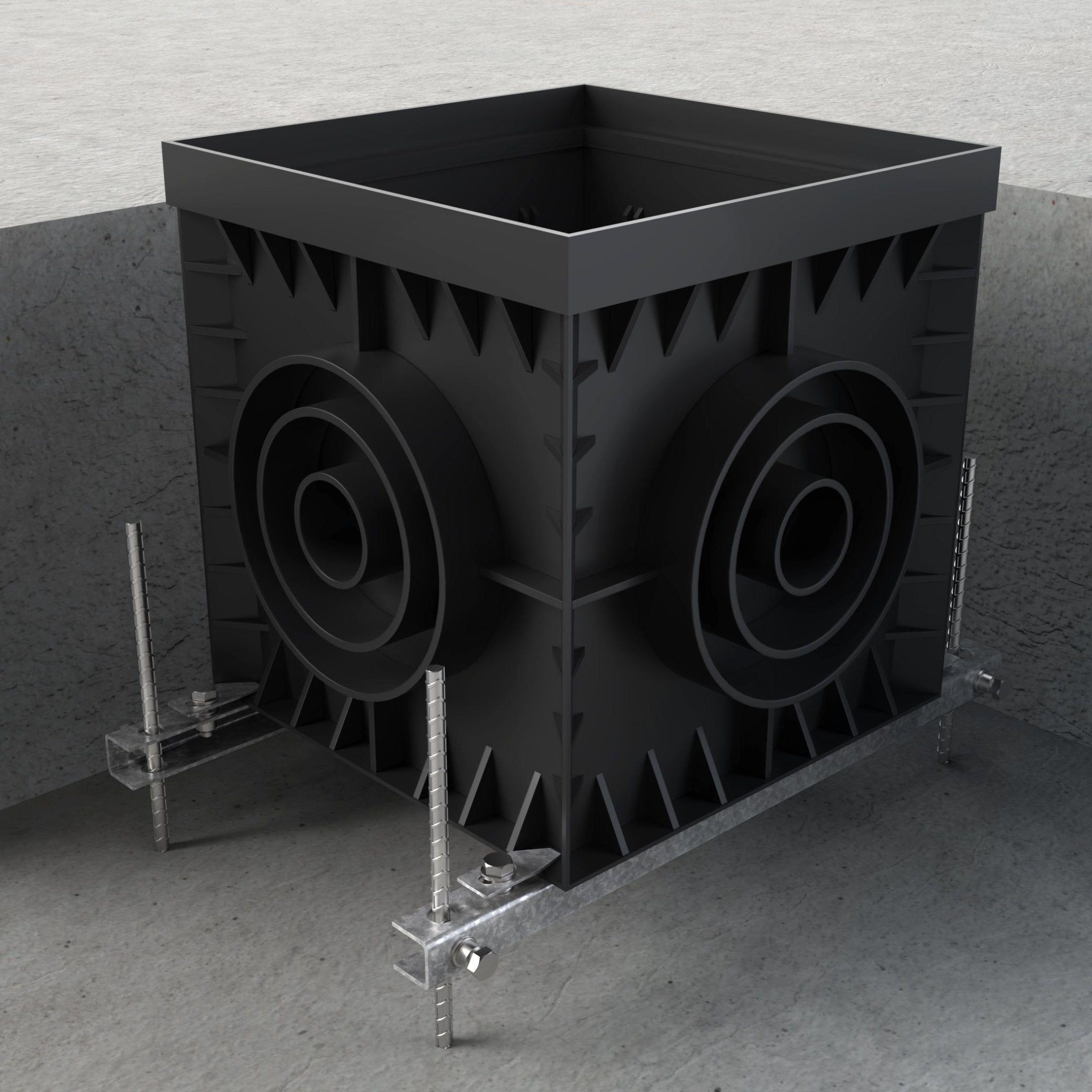

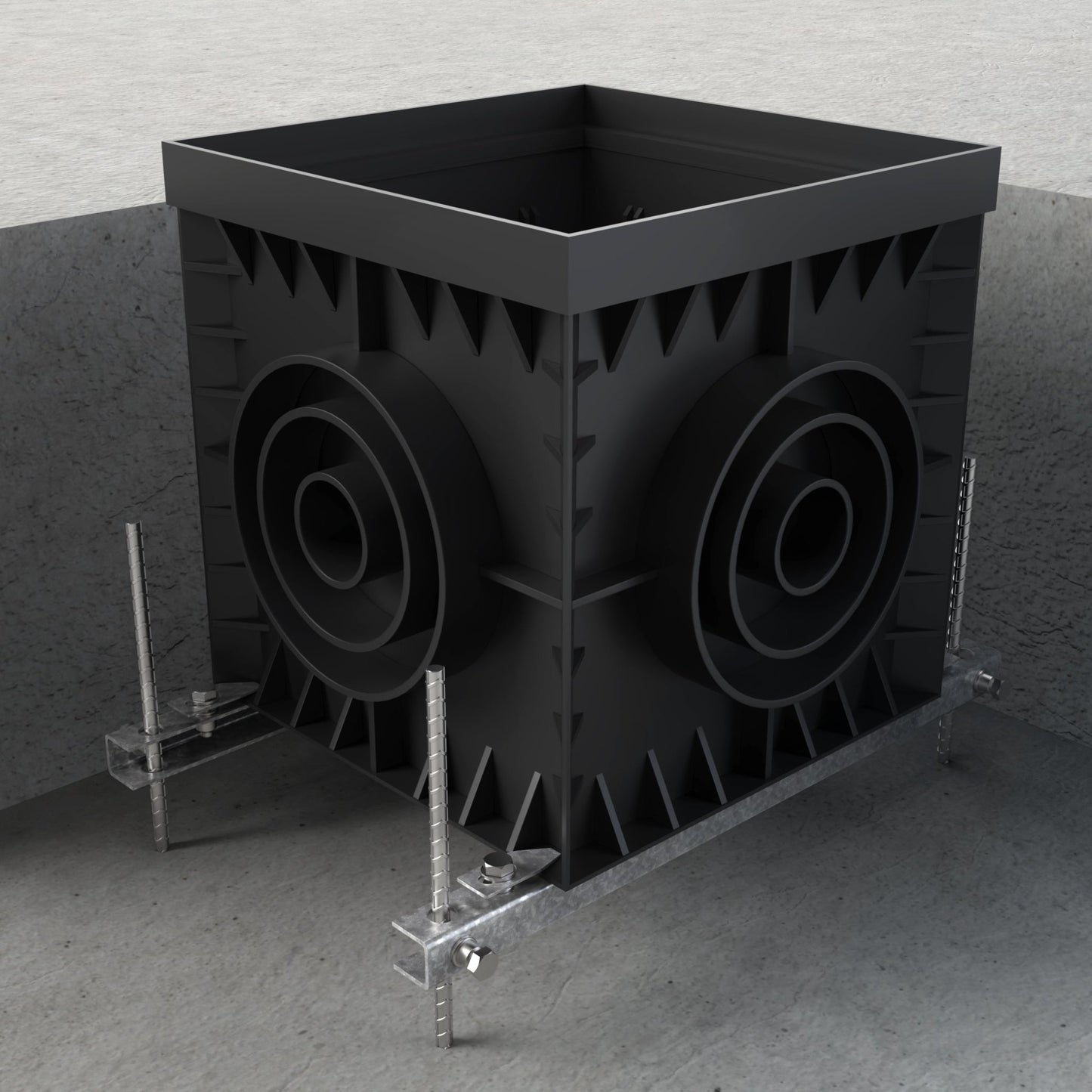

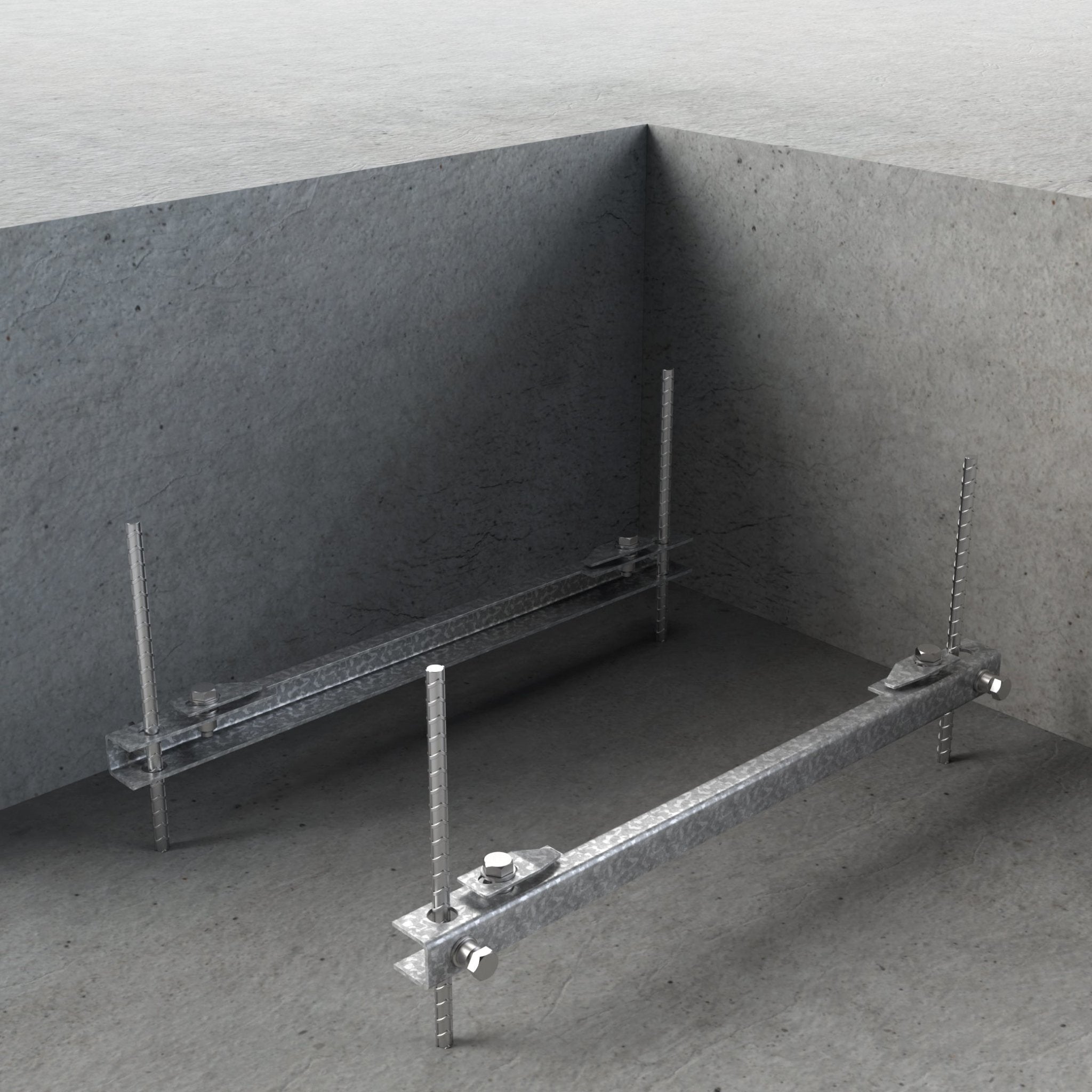

Vodaland's installation brackets simplify catch basin installations. Our Capture Clips securely connect to all four sides of the catch basin's ribs. Once locked down, rebar can be inserted into the side holes, allowing for easy leveling of your system before concrete is poured. These brackets are compatible with Vodaland's 12x12, 16x16, and 22x22 catch basins, making leveling straightforward, especially during pipe connections.

Common Installations:

12x12, 16x16, and 22x22 Basins

Technical Specifications:

Material: Galvanized Steel
Article Number: 12" Bracket 6174-CB
                                  16" Bracket 6184-CB
                                  22" Bracket 6194-CB
