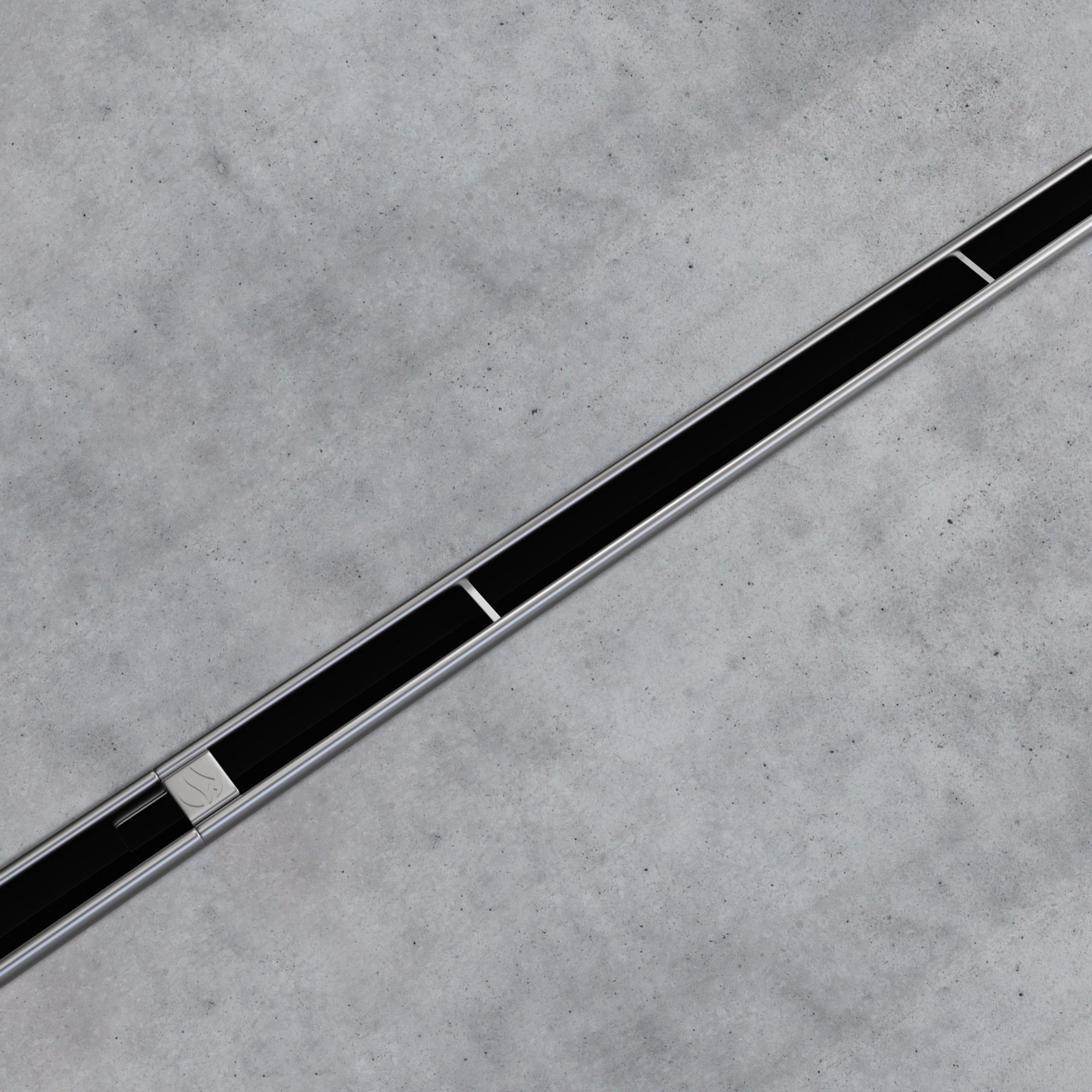

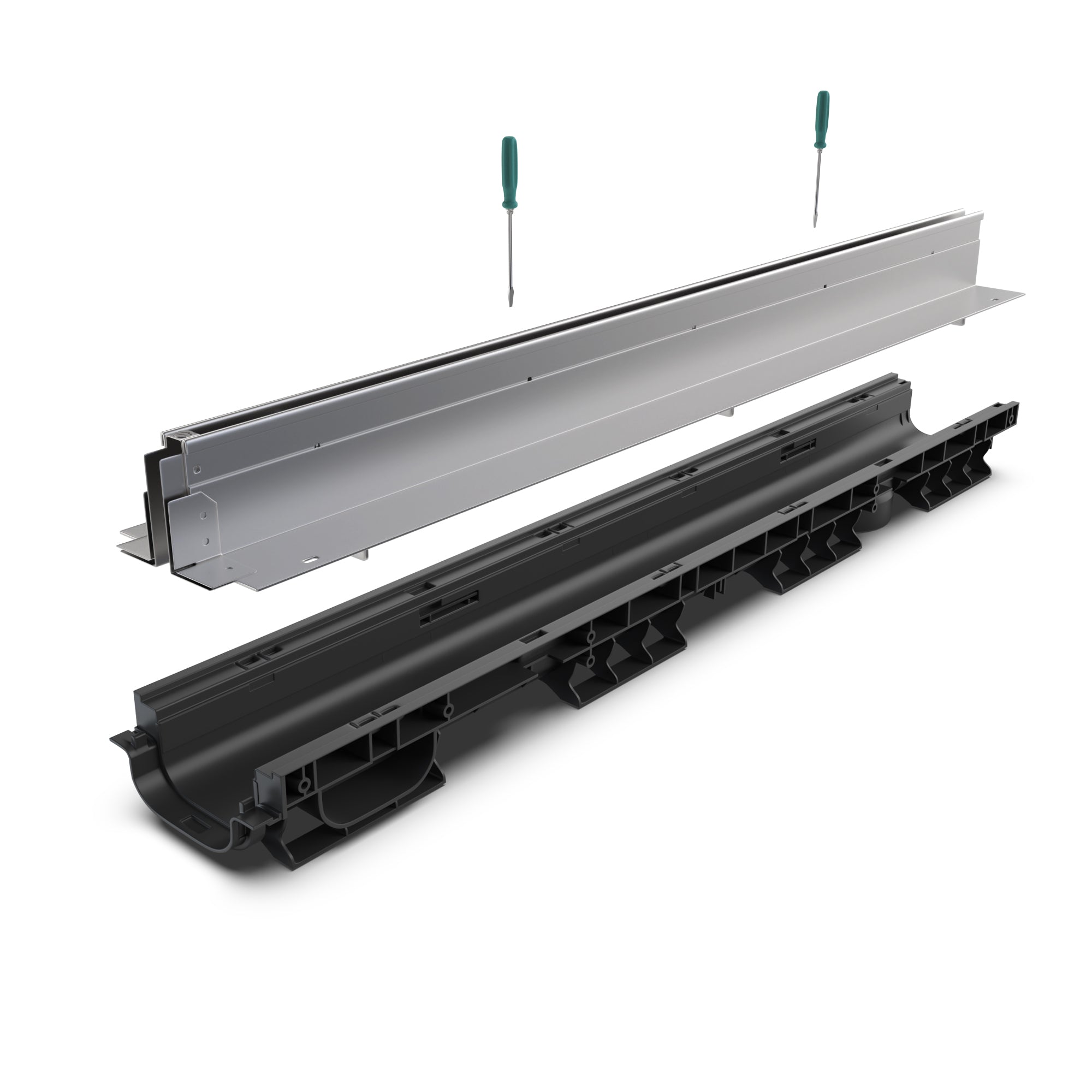

Custom Height Stainless Slot Drain

Custom Height Stainless Slot Drain

Regular price $289.00
Regular price Sale price $289.00
Sale Sold out
free shipping over $999
3-5 days delivered
View full details
  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • Adjustable height from 2 1/4 to 4 inches
  • 5/8" Opening with multiple channel depth options
  • Stainless steel is chemical and corrosion resistant
  • Excellent for paver, tile, and concrete pour installations
  • ADA / Heel Proof cap available as addition for debris protection
  • Perfect for high water volume with little surface area coverage
  • For our pre slope packages all end caps have a 4" outlet

INCLUDED IN PACKAGE

- Channel depth of choice

1 - Heavy duty custom height stainless slot drain

2 - End Caps (Per Order) - additional end caps at checkout.

For Slope Channels - packages include 2 end caps per order. One closed end cap and one end cap with 4" outlet included.

For more product information please see product description tab above

  • Pre Slope Specification PDF
  • grating specification pdf
  • 2 inch channel depth pdf
  • 2 inch channel depth cad
  • 3 inch channel depth pdf
  • 3 inch channel depth cad
  • 4 inch channel depth pdf
  • 4 inch channel depth cad
  • 6 inch channel depth pdf
  • 6 inch channel depth cad
  • 8 inch channel depth pdf
  • 8 inch channel depth cad
  • installation brochure

Product Description

Product Description

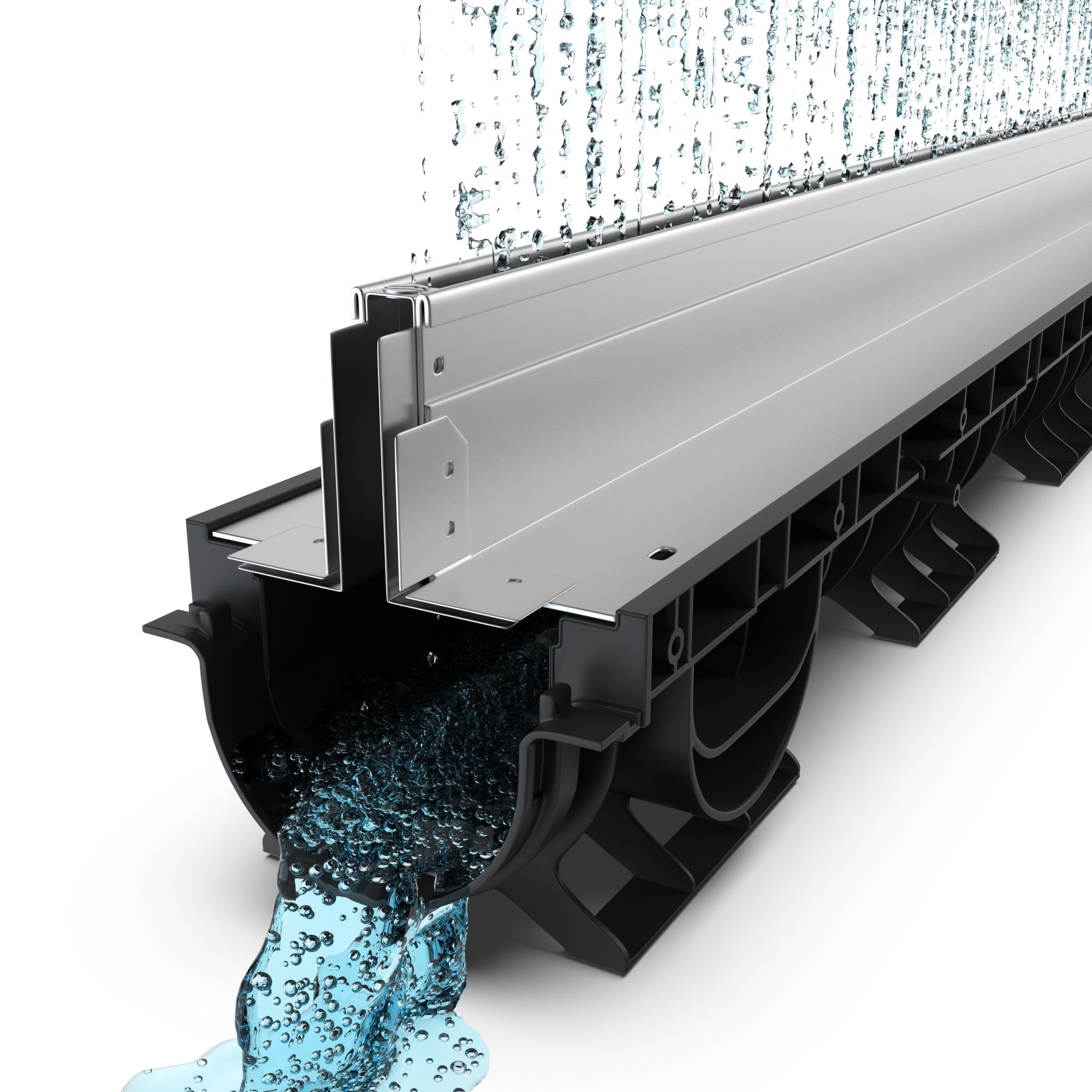

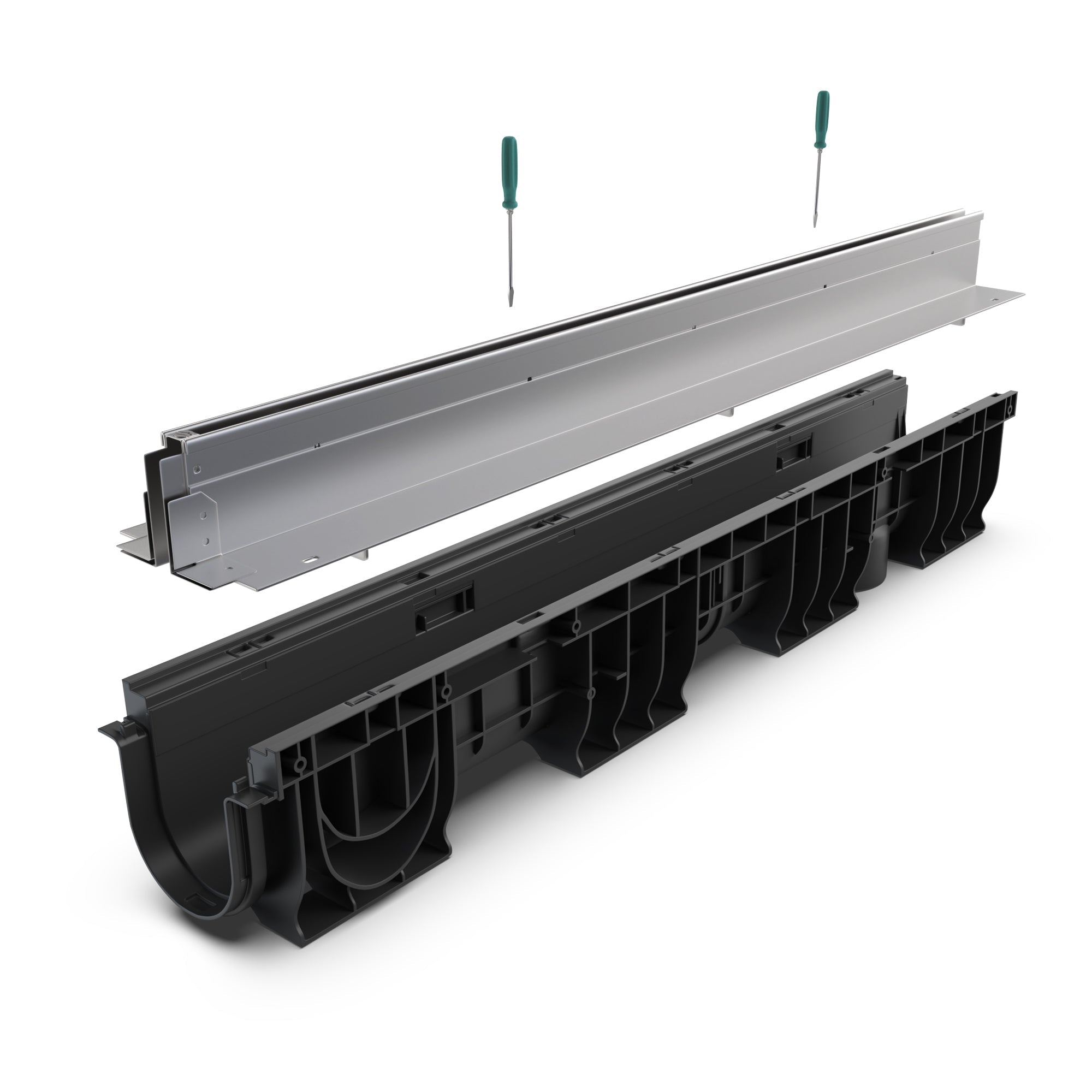

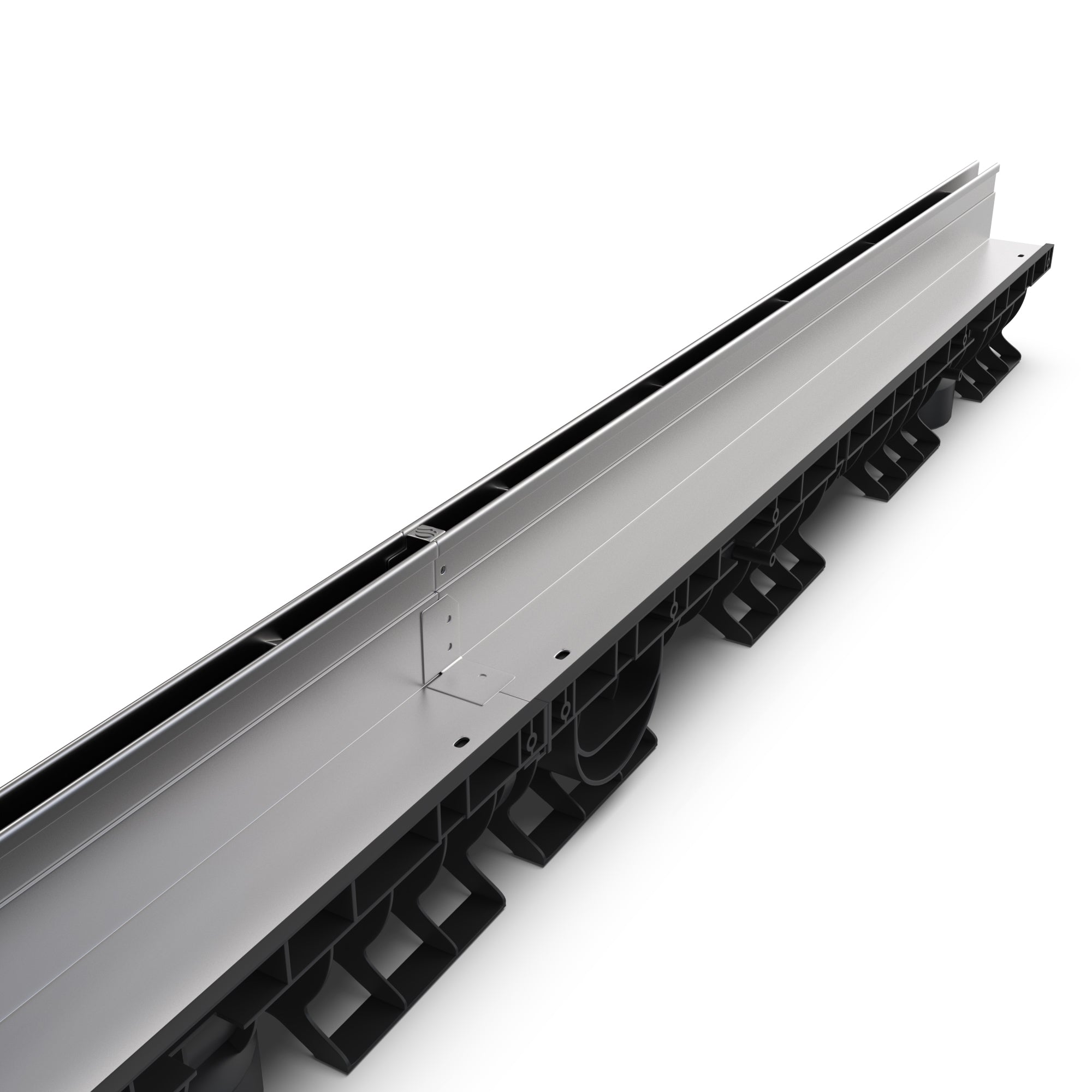

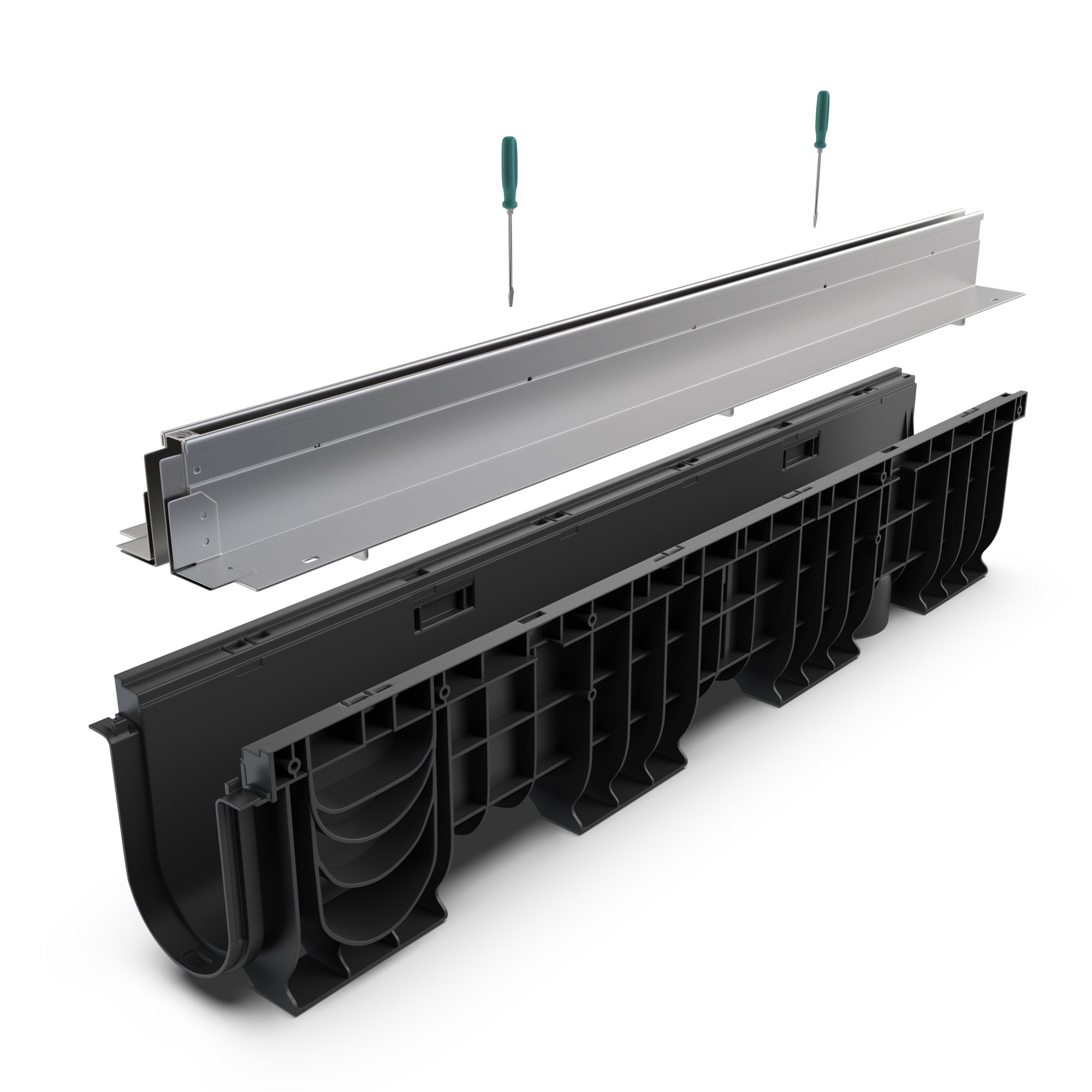

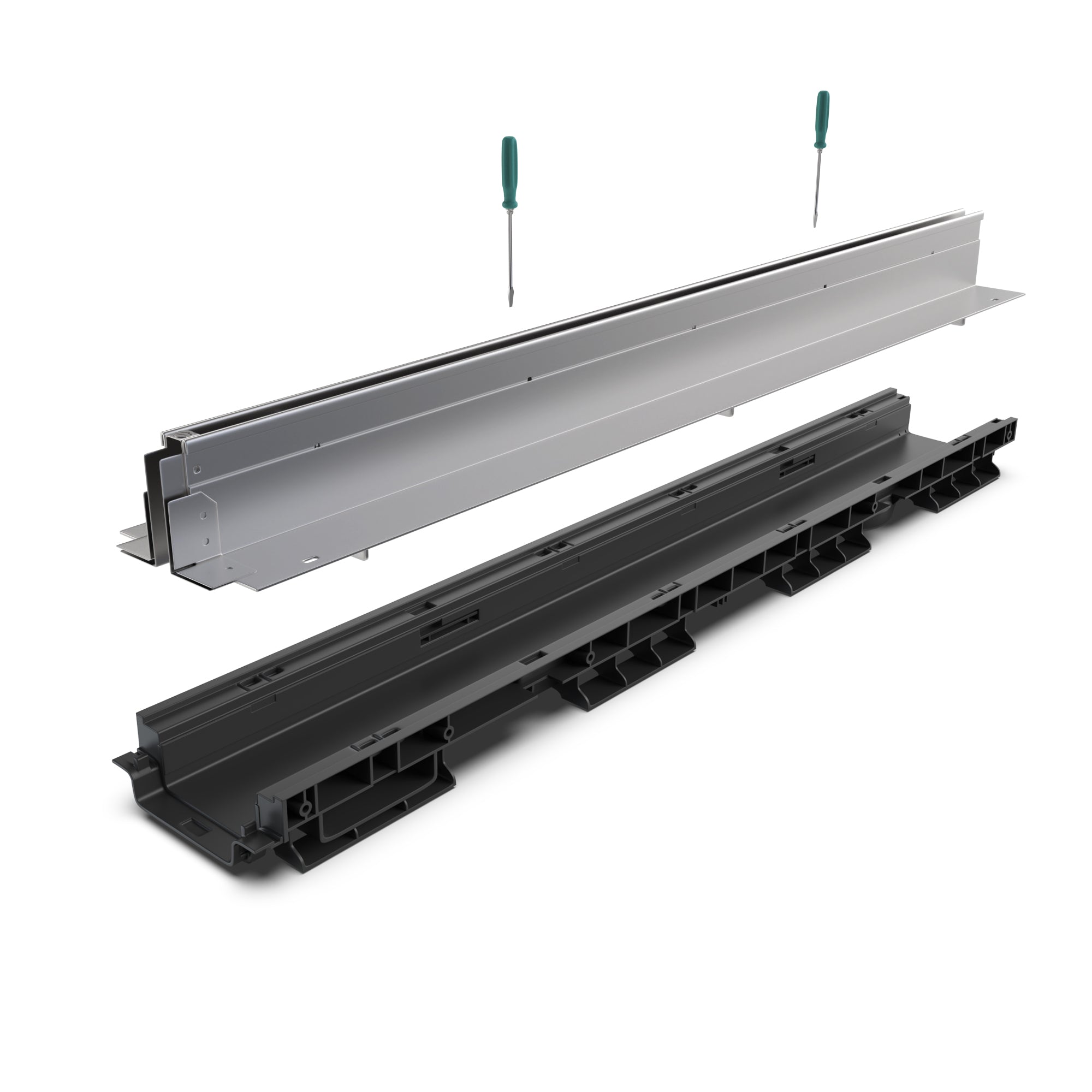

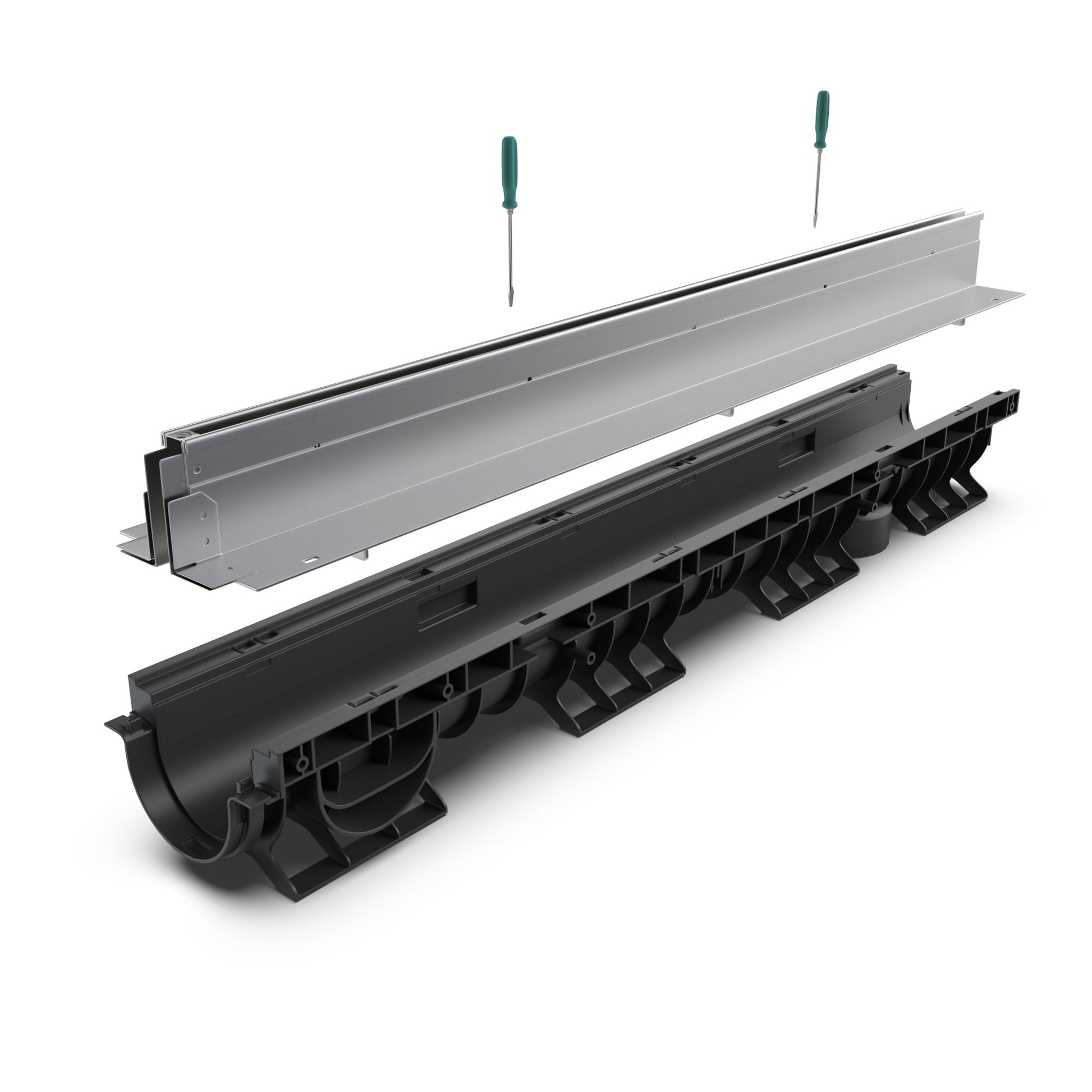

Our Custom Height Stainless Steel Slot Drain System is perfect for any type of installation with any type of pavers and tiles.  304 Stainless steel slot grate rests upon the 4" channel depth of your choice or channel length if you are choosing Pre Slope.  Connecting to each other with a snap and lock connection no matter the channel depth.... The slot grate has an opening of 5/8 inch and widens towards the channel, and height can be adjusted to your specific standards. This is a patent feature that allows debris to pass through the slot and not be stuck. Perfect for pools, porches, and any situation where grating is not necessary. Below are specifications. With our Pre Slope System you can create a run up to 33 FT length with a 1% Slope.

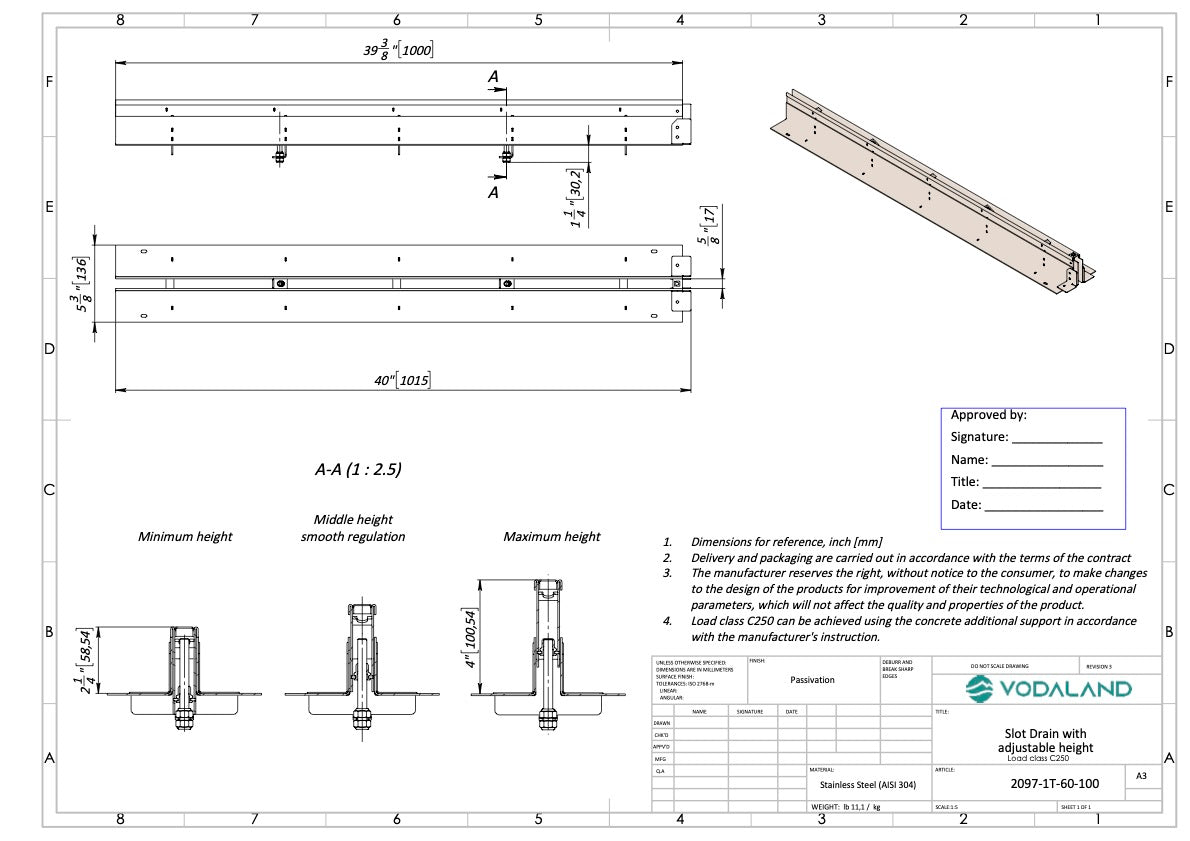

Article Number......2097-1T-60-100

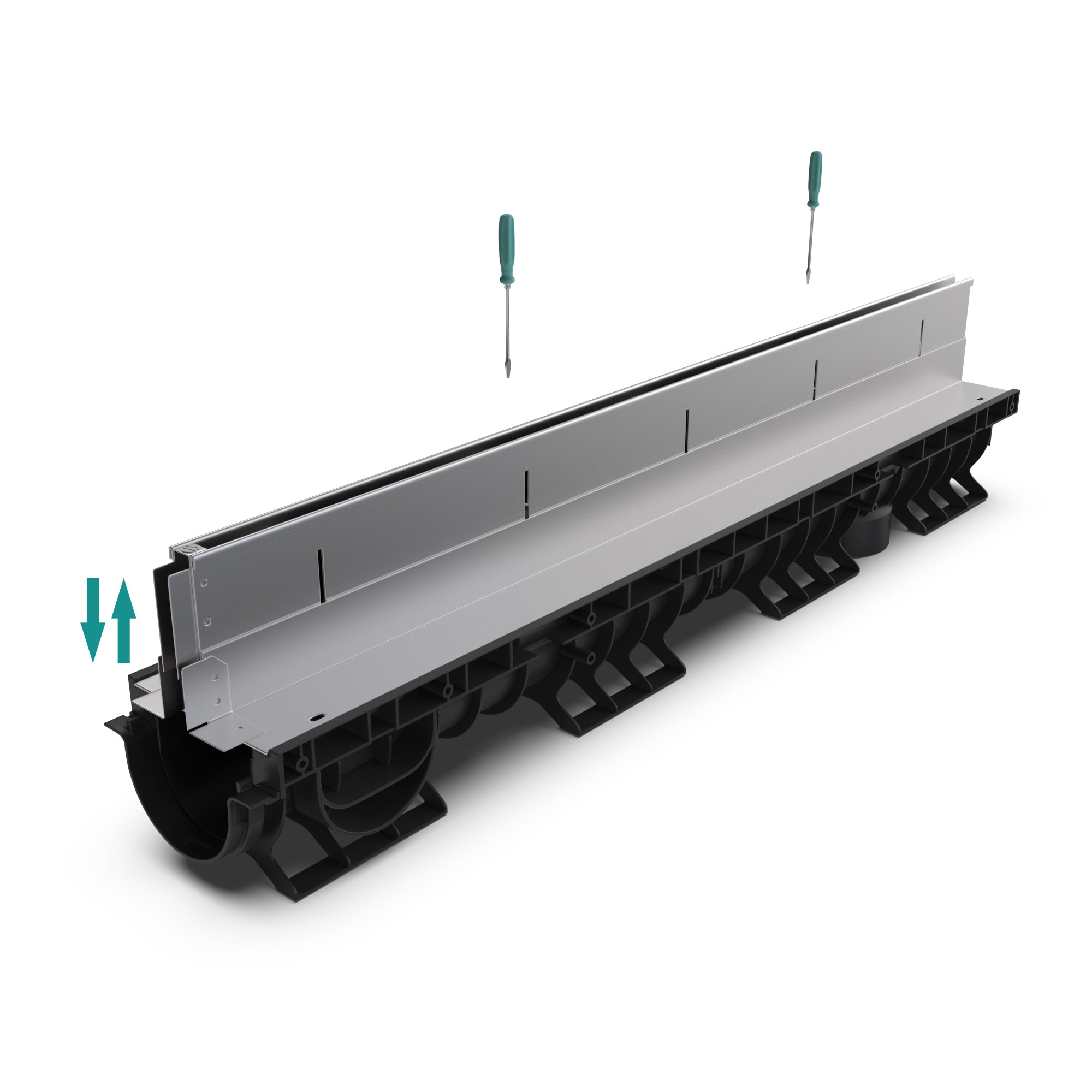

CUSTOM HEIGHT SLOT DRAIN ADJUSTMENTS

2 1/4" HEIGHT MIN

4" HEIGHT MAX

Slope Channel Packages -

Slope Channel Packages come with a closed end cap and an outlet end cap for each package.

Neutral Channel Packages -

The 2", 3", 4", 6" and 8" depth have 4" bottom outlets for pipe connection.

PARAMETERS

Channel Length - 3.3 Feet (39 inches) - Connect end to end.

Material ............. PPE Plastic / 304 Stainless Steel

Load Class ....... A-D Load Class

INCLUDED IN PACKAGE

- Channel depth of choice

1 - Heavy duty custom height stainless slot drain

2 - End Caps (Per Order) - additional end caps at checkout.

For Slope Channels - packages include 2 end caps per order. One closed end cap and one end cap with 4" outlet included.
