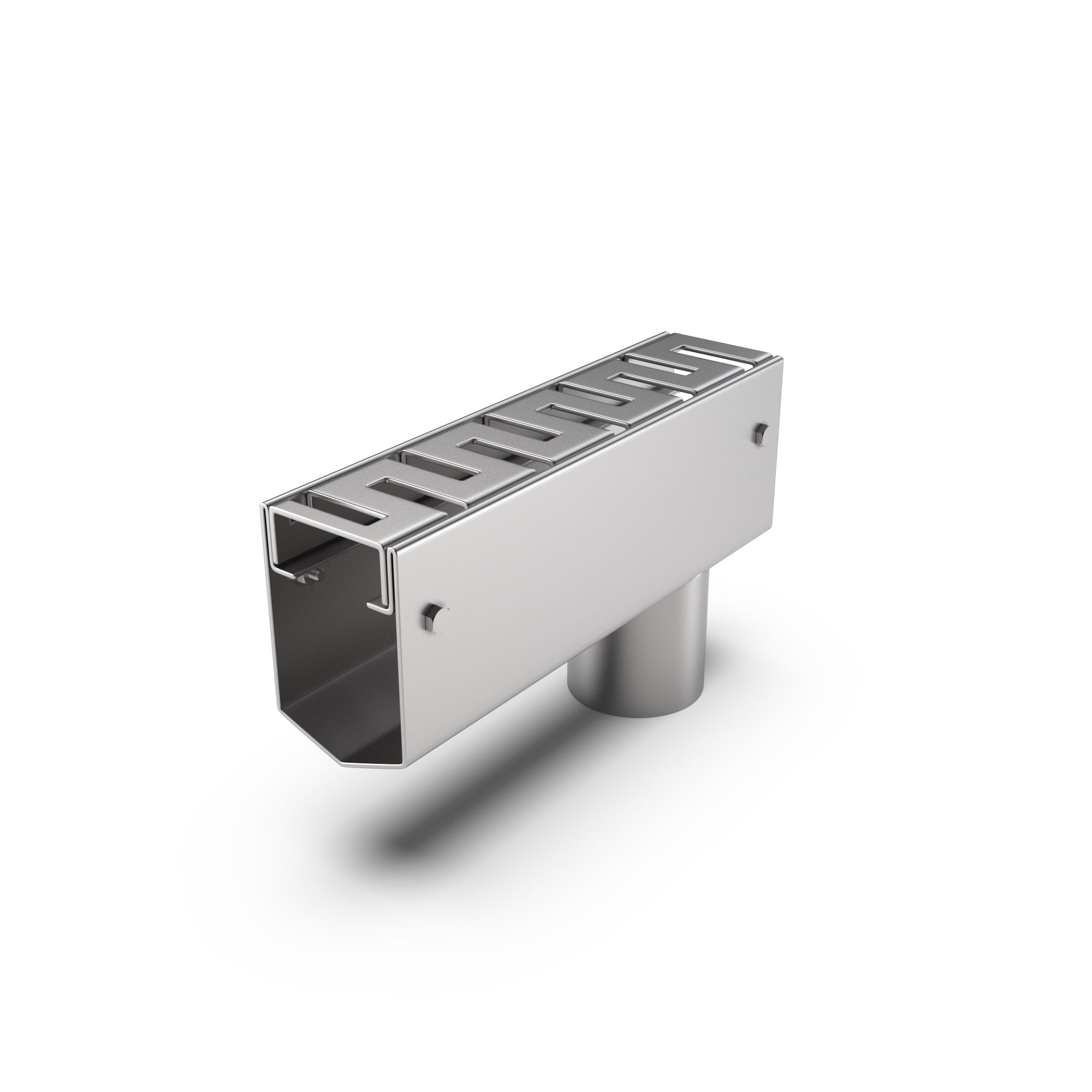

Deck Drain Vertical Outlet

This 304 Stainless Steel and ADA Compliant/Heel Proof vertical outlet with 2” outlet connection for the Deck Drain System. It is designed to integrate seamlessly with the System, allowing for a vertical bottom outlet.

Key Features:
Chemical Resistant - 304 stainless steel

Discrete Opening- 2” Width

Versatile Use - Compliant for residential and commercial applications

A-Class Rated - Safe for pedestrian use

Removable Grate - Easily accessible maintenance

ADA Compliant & Heel Proof - Ensures Safe, trip free walking zones

Expanded Product Overview:

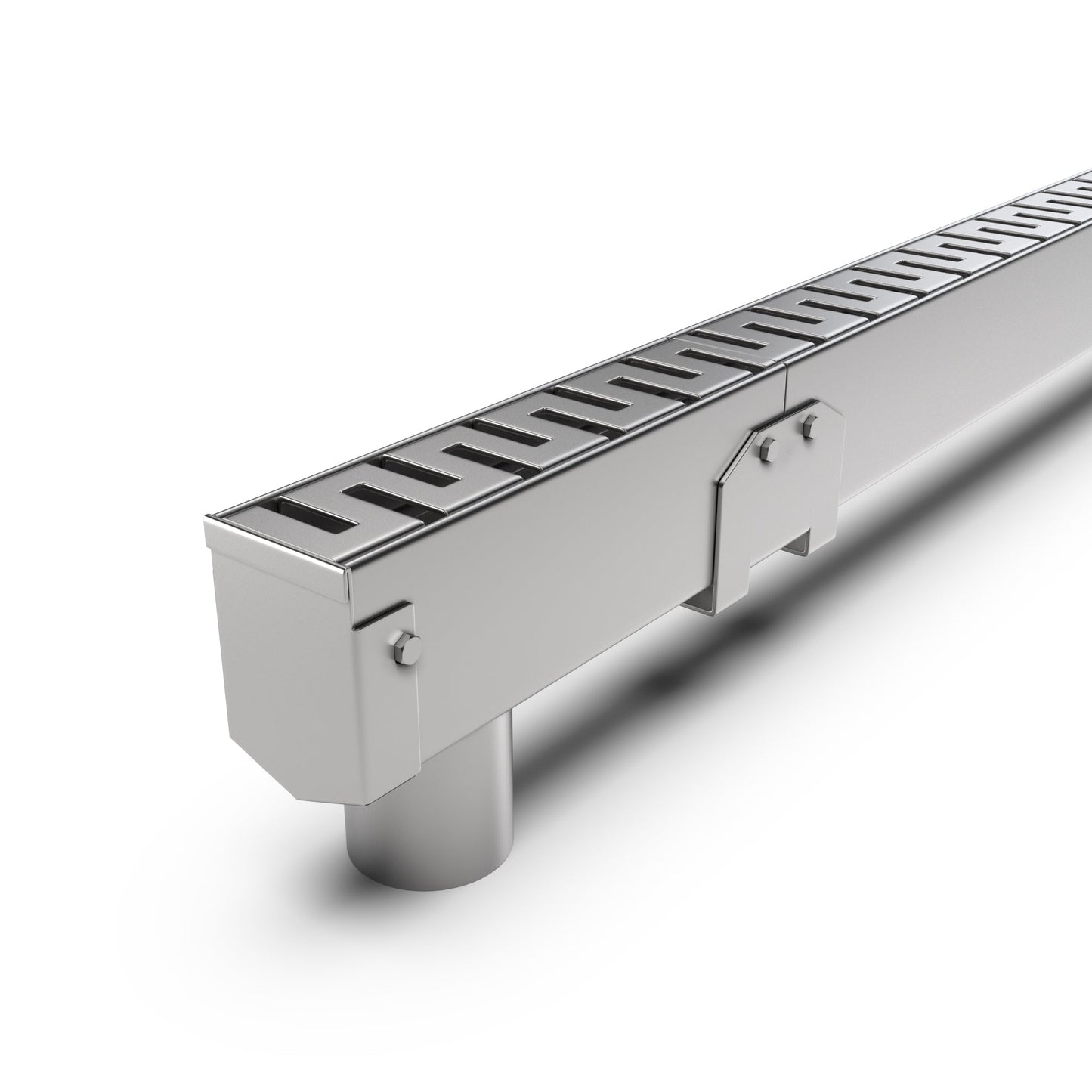

The Deck Drain System Vertical Outlet is made from 304-grade stainless steel while also being ADA Compliant and Heel Proof. This Deck Drain Vertical Outlet provides discrete vertical drainage while maintaining a clean and uninterrupted surface appearance.

This A Load class system can withstand up to 3,300 LBS and is ideal for pedestrian traffic. This Deck Drain Vertical Outlet comes in two different grating styles as well - Standard and Modern.

Ideal Applications: (Designed only to be used with Deck Drain System)
Deck Drain System

Technical Specifications:
Material - 304 Stainless Steel

Length - 7 ⅞” L

Width - 2” W

Load Class - A (Light, Pedestrian Traffic)

Article Number -

   a. Standard - 994054-P

   b. Modern - 994054-S

Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.
