Easy Custom Curve

Sale price$42.004.9

  • PPE Plastic
  • 13 ¾" x 4 ⅞" x 3"
  • A-Class
  • Walk ways, Patios, Gardens, etc.
  • More Product Information Below

At Vodaland, we ship all orders within one business day. Our team ensures your order is packed accurately and shipped quickly.

Shipping Information

Standard: 3–5 business days from St. Louis, MO.

Pallets: 5–7 business days, delivery scheduled by carrier.

Expedited: Next-day or 2-day shipping via FedEx Express (extra fee, weekends excluded).

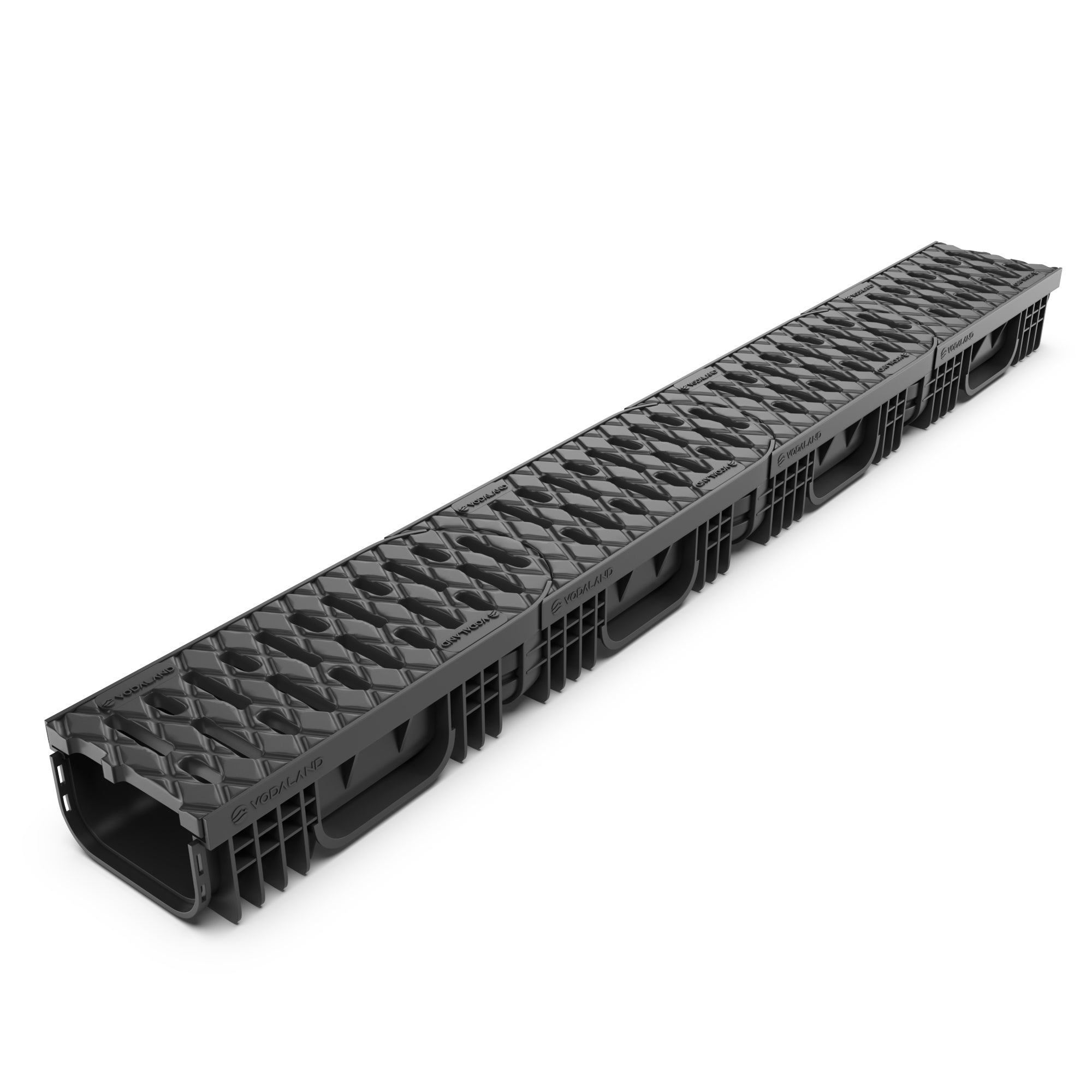

1 - 3.3 Foot Section of Easy Custom Curve - Beta

Product Details

  • PRODUCT OVERVIEW
  • SPECIFICATIONS
  • INSTALLATION VIDEOS
Class A
Corrosion Resistant
UV Resistant
ADA Compliant

SPECIFICATIONS

Description

Easy Custom Curve - Beta – User friendly and reliable

The Easy Custom Curve – Beta units are the main modular curve pieces in our Custom Curve System.

Key Features:
Snap and lock connection – Allows for a simple and fast installation.
Made from PPE plastic – Offers lightweight handling for easy one-person installation.
Removable grates – Gratings snap into place and are easy to remove for cleaning purposes.
A Load Classification – Suitable for pedestrian applications.
Compatible with Easy TWO Closed End Cap Allows the system to be securely closed when connection to the Easy TWO Channel System is not being used.

Expanded Product Overview:

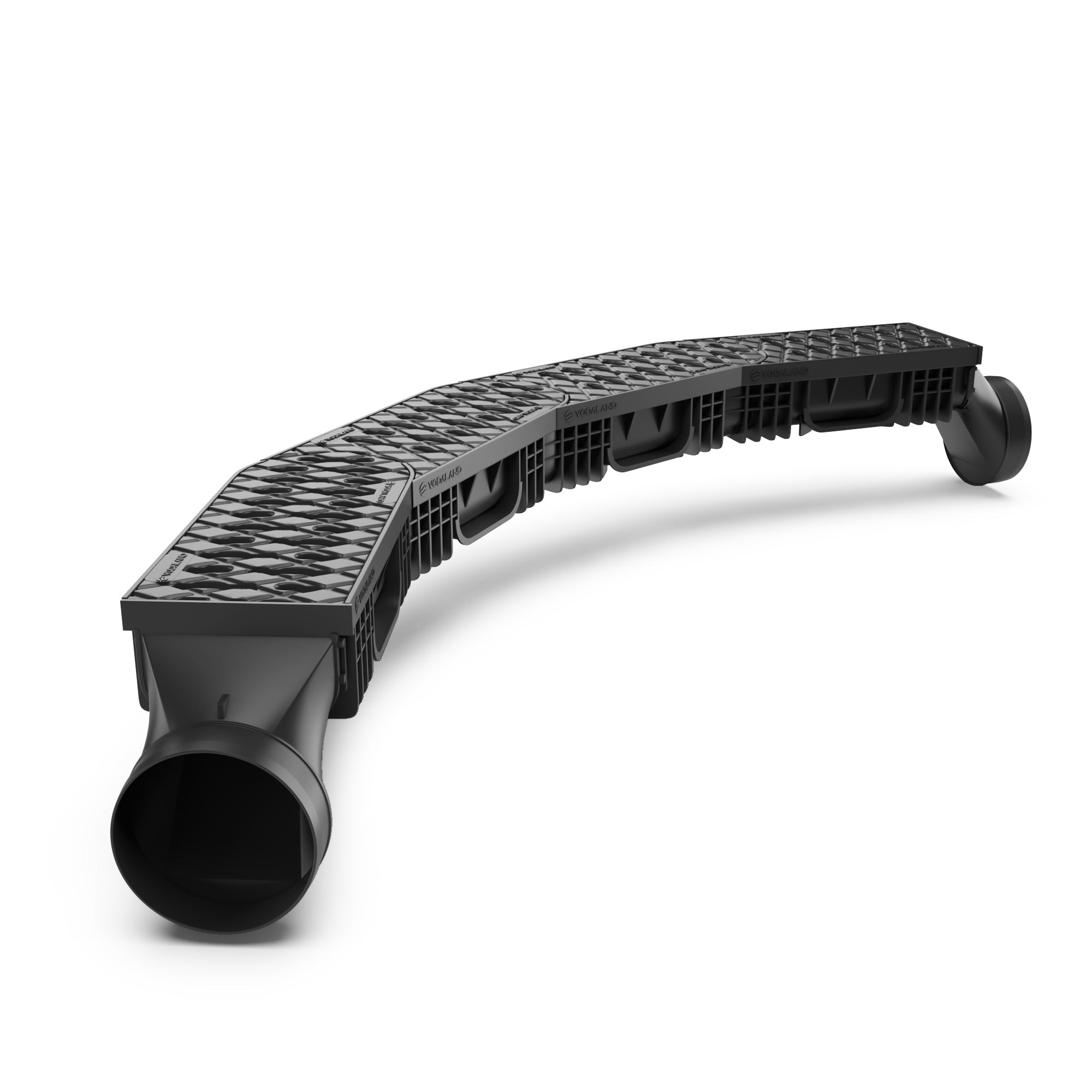

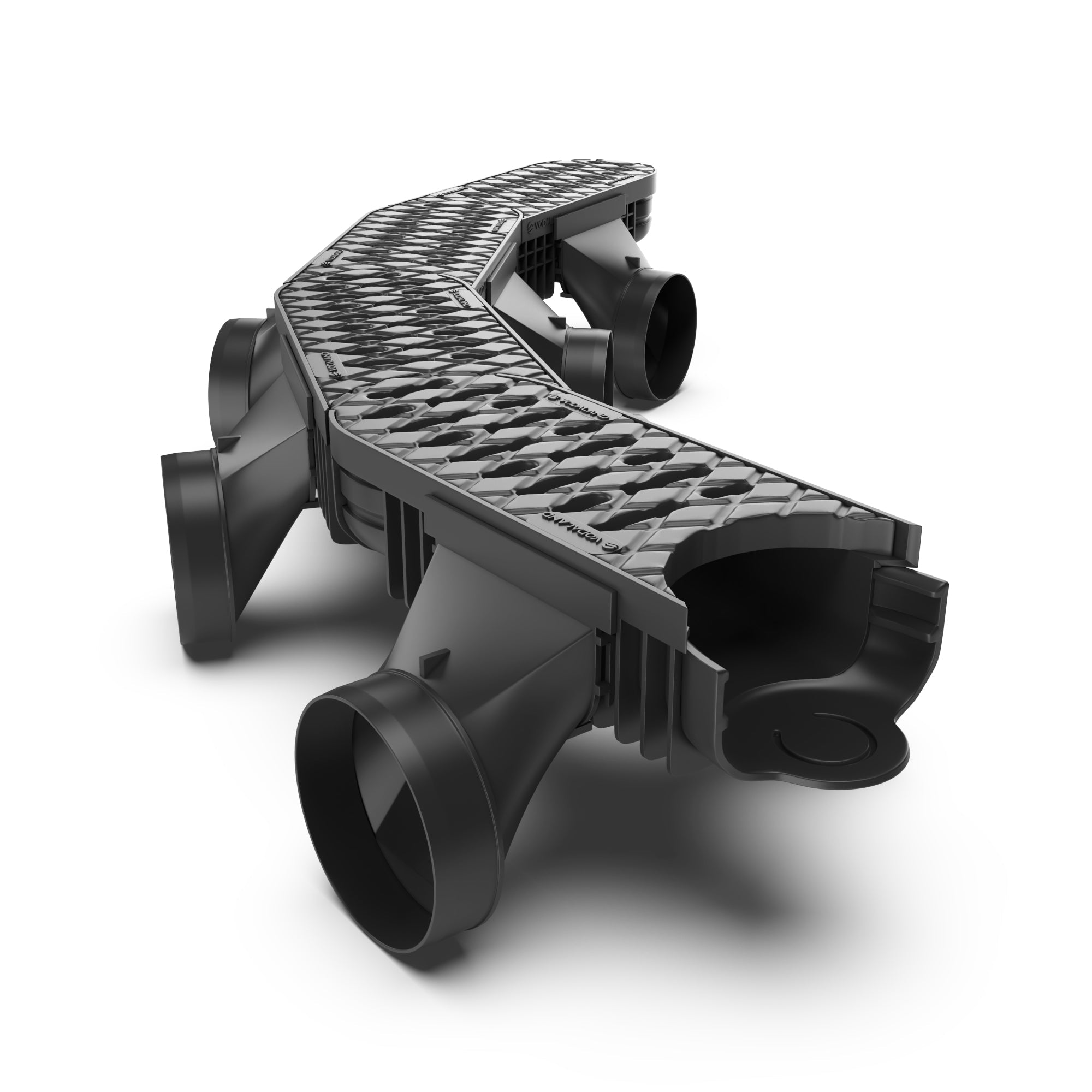

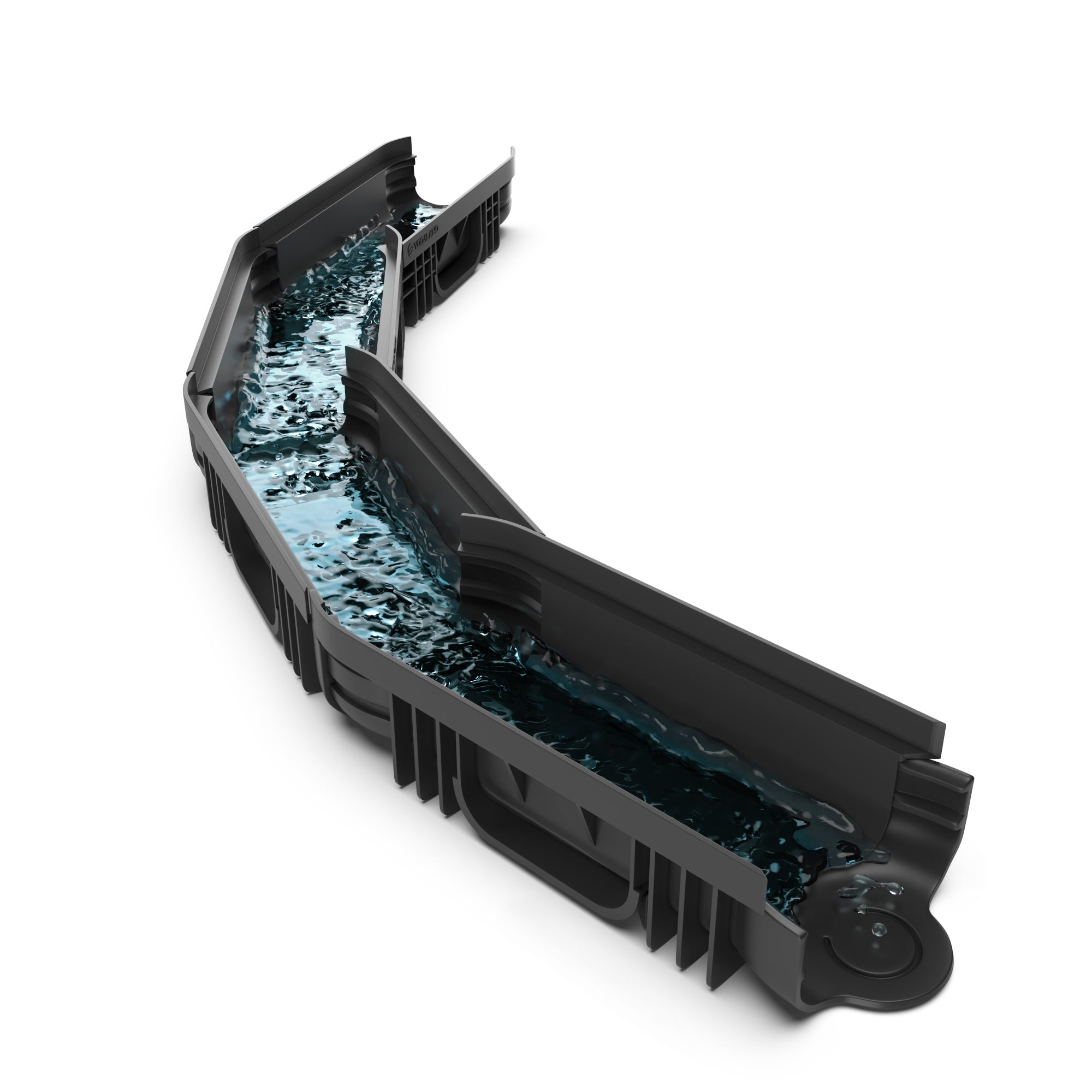

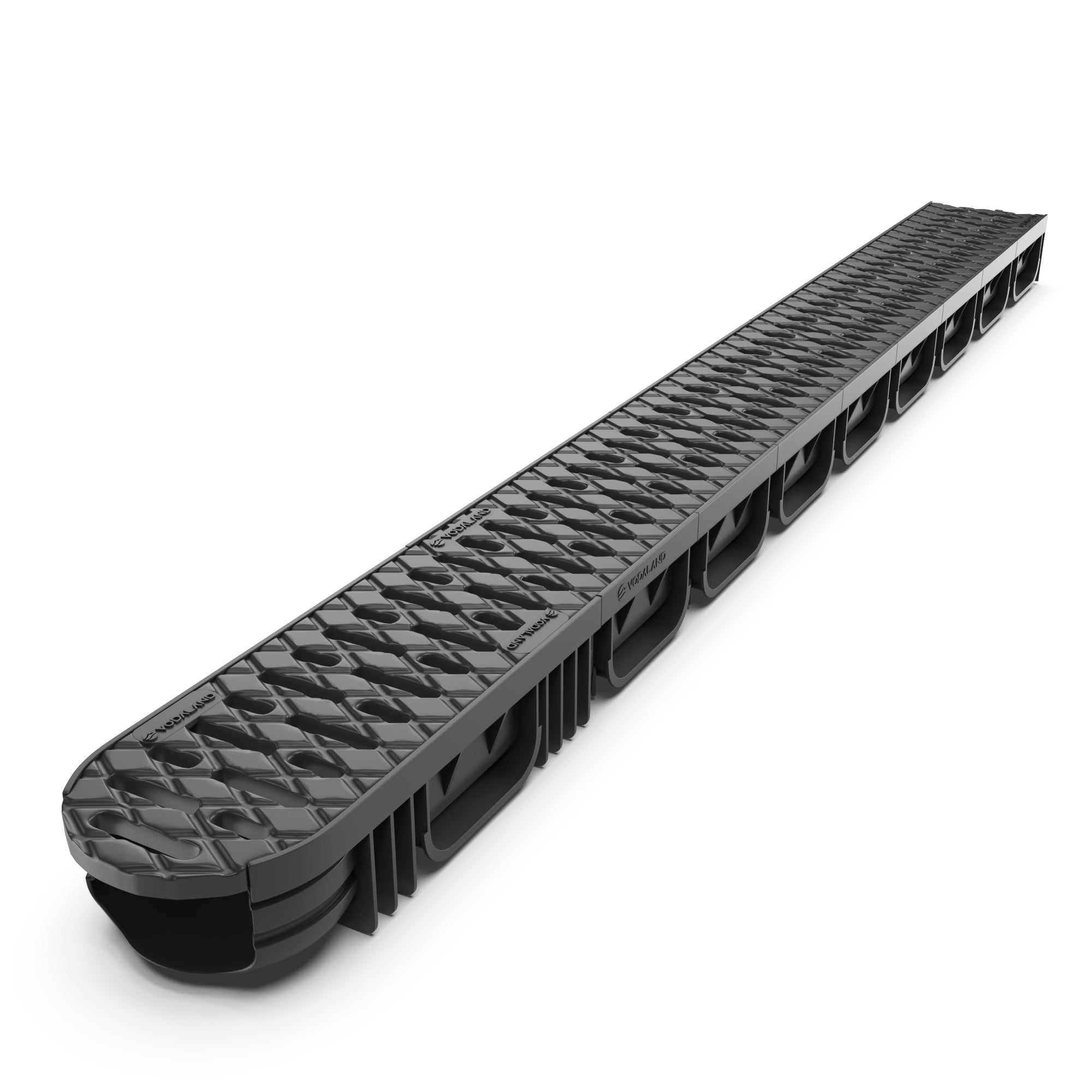

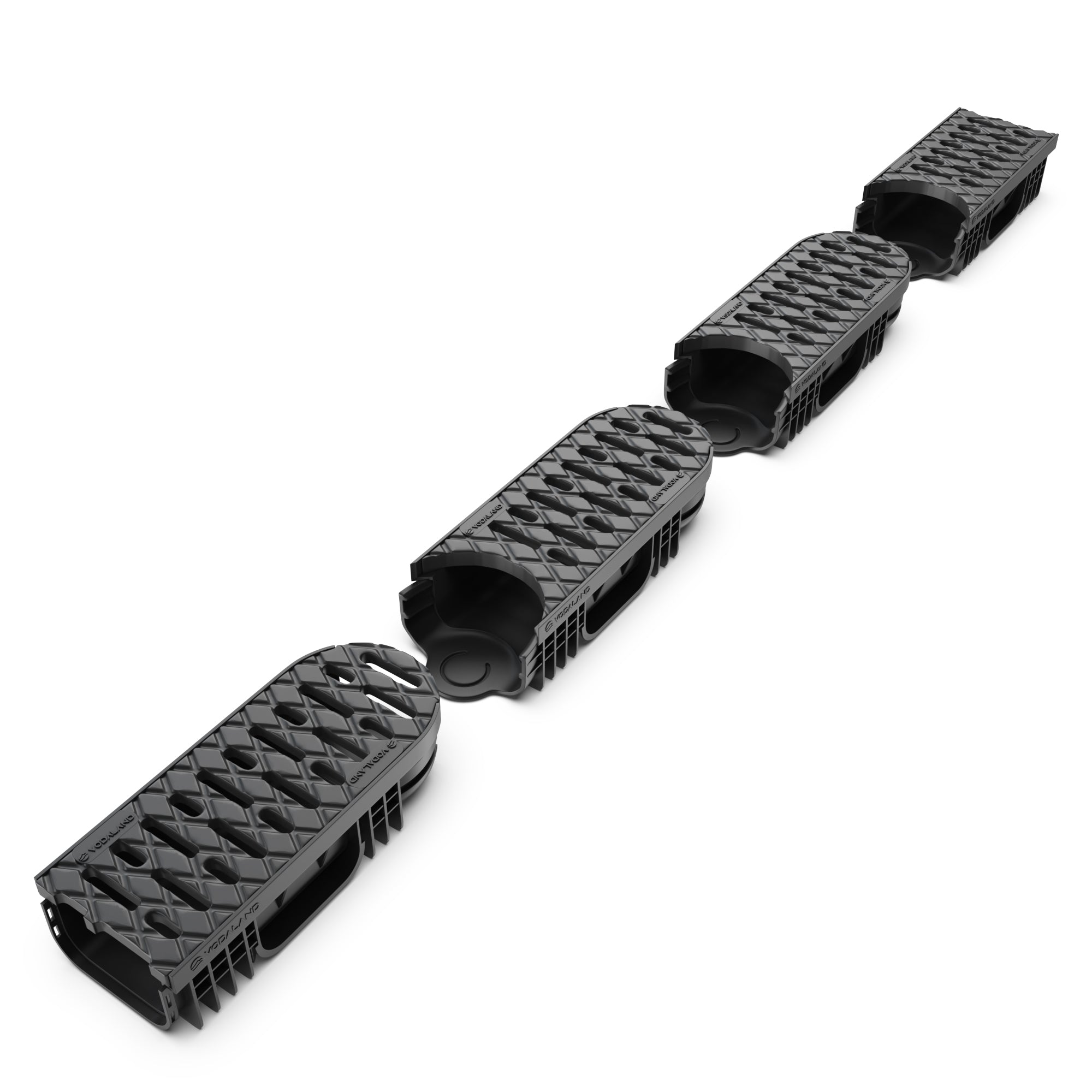

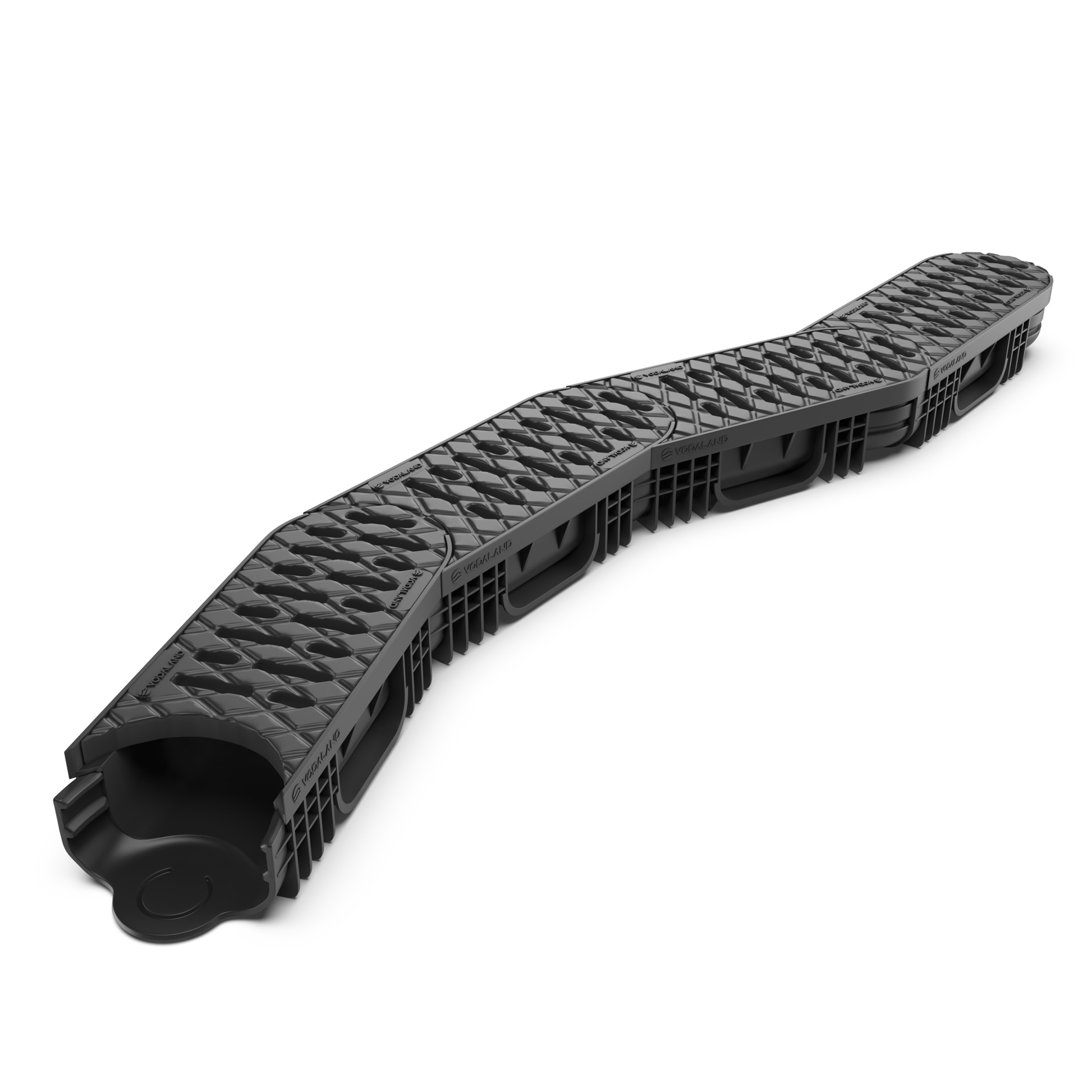

The Easy Custom Curve - Beta units are the primary building blocks of the Easy Custom Curve Vodaland trench drain system. Beta units snap together easily, allowing you to create smooth curves of up to 22 degrees in either direction for a layout that fits your project’s exact needs. Beta units can be connected to form curves around landscapes or even a full 360-degree circle. For layouts that require water flow to be closed off or extended, the Alpha (beginning piece) and Gamma (ending piece) provide seamless integration with end caps or connection to the Easy TWO-Channel system for longer linear runs. Each kit includes four pre-connected Beta units, giving you the flexibility to configure the system to suit your specific project needs.

Common Applications:
Walkways
Gardens
Patios
Court yards
Landscaping

Technical Specifications:
Material: PPE Plastic
Dimensions: 13 ¾" x 4 " x 3"
Weight: 1.4 LBS
Load Capacity: A Load Class – 3,300 LBS
Connection type: Snap and Lock
Color: Black
● Article: 08818-R2

Technical Resources: Load Class Compliance

Backed by expert engineering and trusted by professionals nationwide, Vodaland delivers reliable, high-performance solutions designed to meet the demands of every project so you can build with confidence.

DOWNLOADS

Downloads

Document
PDF
DWG
BIM
Easy Custom Curve Alpha Specification Sheet
PDF
DWG
BIM
Easy Custom Curve Beta Specification Sheet
PDF
DWG
BIM
Easy Custom Curve Gamma Specification Sheet
PDF
DWG
BIM

INSTALLATION VIDEOS

Installation Videos

Informational and Installation Video

Overall rating: 4.888889 / 5 from 9 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Really good product

"The design and quality of the curved gutters is impressive. Very strongly made and easy to install"

Steven Z. (5/5)

A good solution for our

"A good solution for our curved pool deck drain"

Anthony M. (5/5)

Great Solution to Our Problem

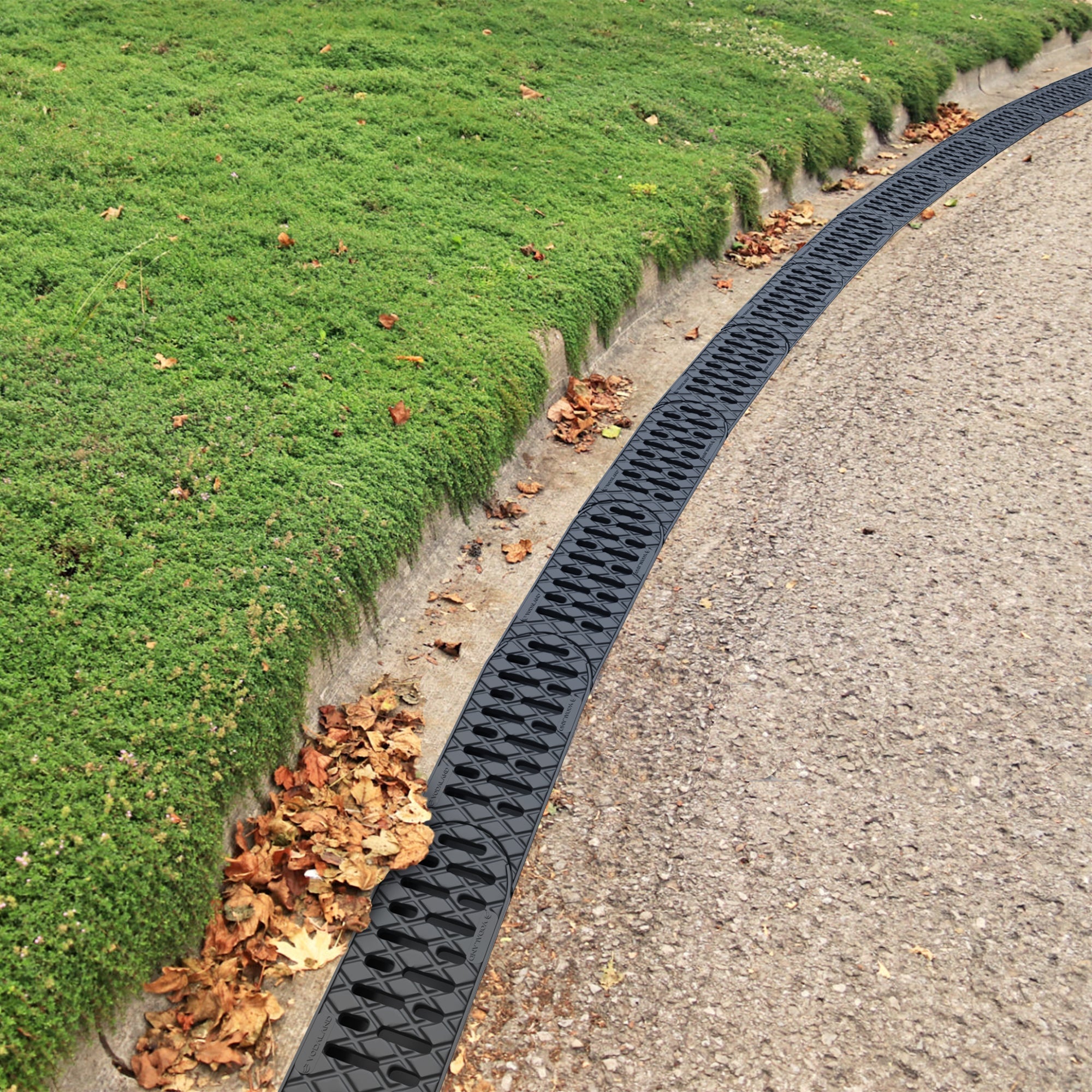

"We needed a water drainage system alongside our curved access road and parking lot. The Easy Custom Curve system worked perfectly."

Tim R. (5/5)

Thanks excellent product!!

"Thanks excellent product!!"

Eddy R. (5/5)

The Custom Curve solved the problem.

"The Easy Curve worked perfectly for my driveway. Once everything was in placed and secured with dirt the drainage problems I was experiencing was completely corrected."

Randy L. (5/5)

Terrific company, innovative quality product

"Called customer service to get information and they were terrific extremely helpful. Piece of shipped quickly and went together with ease. Everything is very solid and well made. This was the only good solution I was able to find for my curved drainage project and I'm very happy with the results."

Bradley B. (5/5)

Q&A

Hi, I'm considering the Easy Custom Curve Beta system for a patio drainage project. The patio edge is curved which is why this product caught my eye, however the channel drain installation will be essentially level. My concern is that without any slope inside the drain body, water may sit in the drain after rain stops rather than flowing out. Does this product have weep holes or any type of drainage on the bottom of the drain body that would allow residual water to seep out into the ground? Or is the bottom fully closed? Just want to make sure I'm spec'ing the right product before moving forward. Thanks.
Hi Jose, Thank you for reaching out. Regarding our Easy Custom Curve, you can create an outlet on the bottom, side, or end of the channel. The channel body does not have any pre-drilled holes, which ensures water is directed specifically to your chosen outlet. Depending on the total length of your installation, we do recommend incorporating outlets to maintain proper water flow within the channels. Please feel free to reach out if you have any further questions. You can also contact us at 314-717-1551.
are these strong enough for vehicular traffic
Hi George! Thank you for reaching out. Our Easy Customer Curve system is pedestrian rated only. It is not designed to support vehicular traffic. If you have any questions or need anything else, feel free to reach out.
Can these be used and installed? Where one side would be a concrete driveway in the other side and underneath would be the grass. If so, how is it attached? And installed?
Hi Monica, Thank you for reaching out. As with all of our drains, we recommend a concrete installation to fully secure the units and keep them in place. Please note that our Easy Custom Curve system is pedestrian-rated only. For soil applications, simply fill any openings around the channel with loose soil and compact it for your finished result. If you have any questions or need anything else, feel free to reach out.

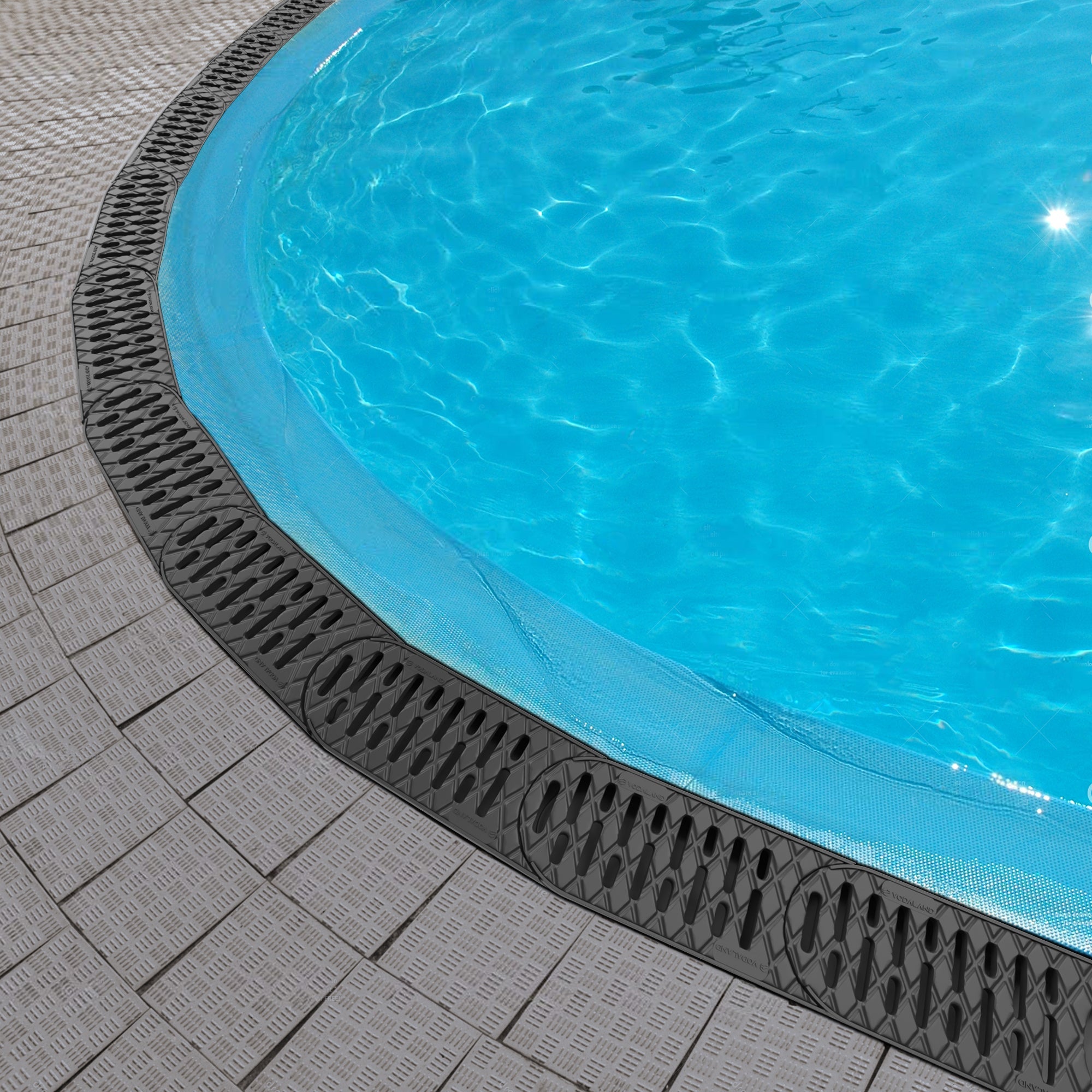

Renovating in-ground pool with curves. Does this system work with pool? If not, do you have one you can recommend?
The Easy Custom Curve can absolutely be installed for a round-the-pool application. This system is specifically designed for projects like yours, as well as other pedestrian and patio installations.
Does the top grate come off to clean the trough?
Hi Joe, Thank you for reaching out. With our Easy Custom Curve System, the grates can definitely be removed from the channel drain for maintenance. They can be easily popped out for quick access. If you have any further questions, please feel free to reach out to our Support Team. Thank you! VODALAND
>
