Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

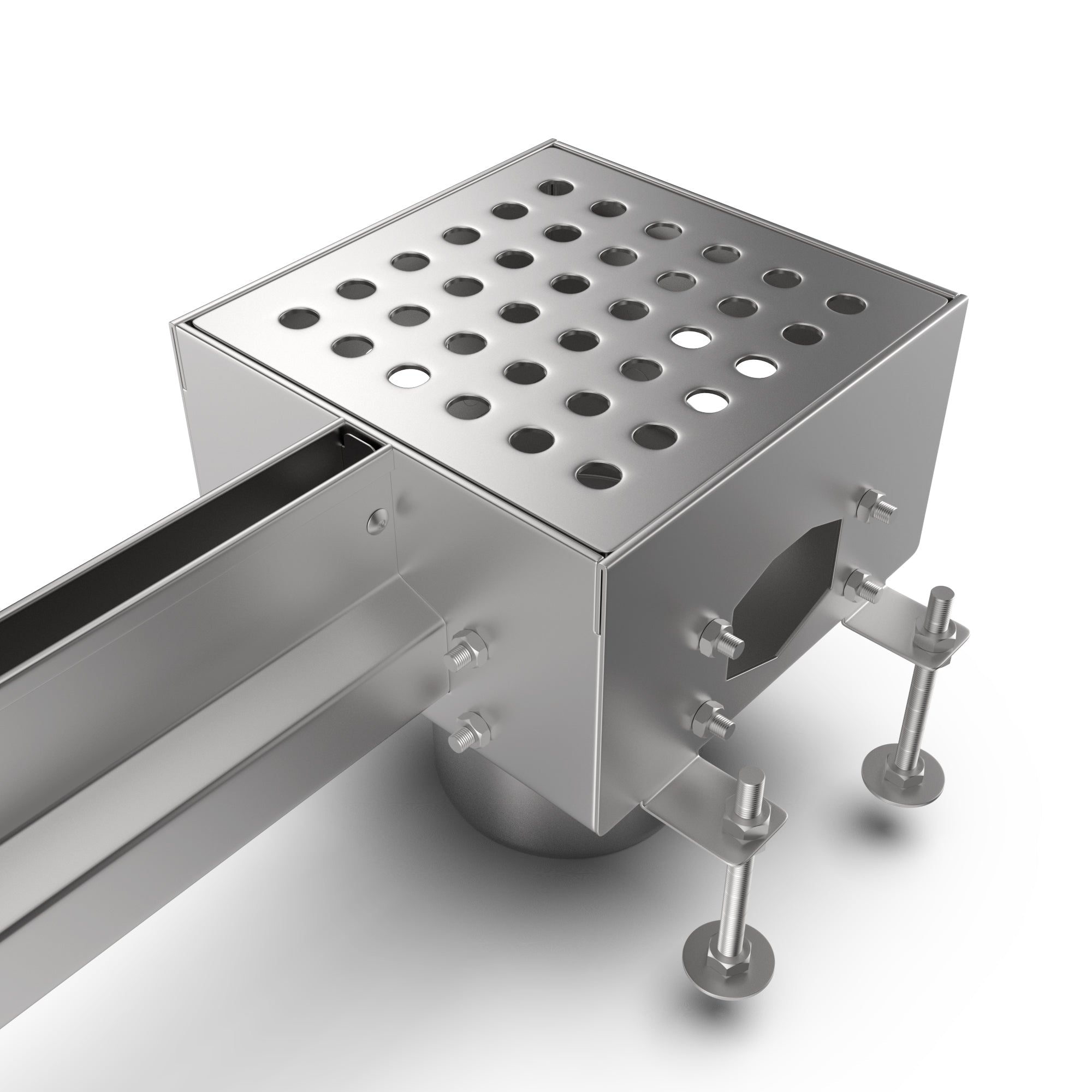

  • Connection with Mini Slot System
  • ADA Compliant Grating
  • Made with 304 grade stainless steel
  • 4" Bottom outlet

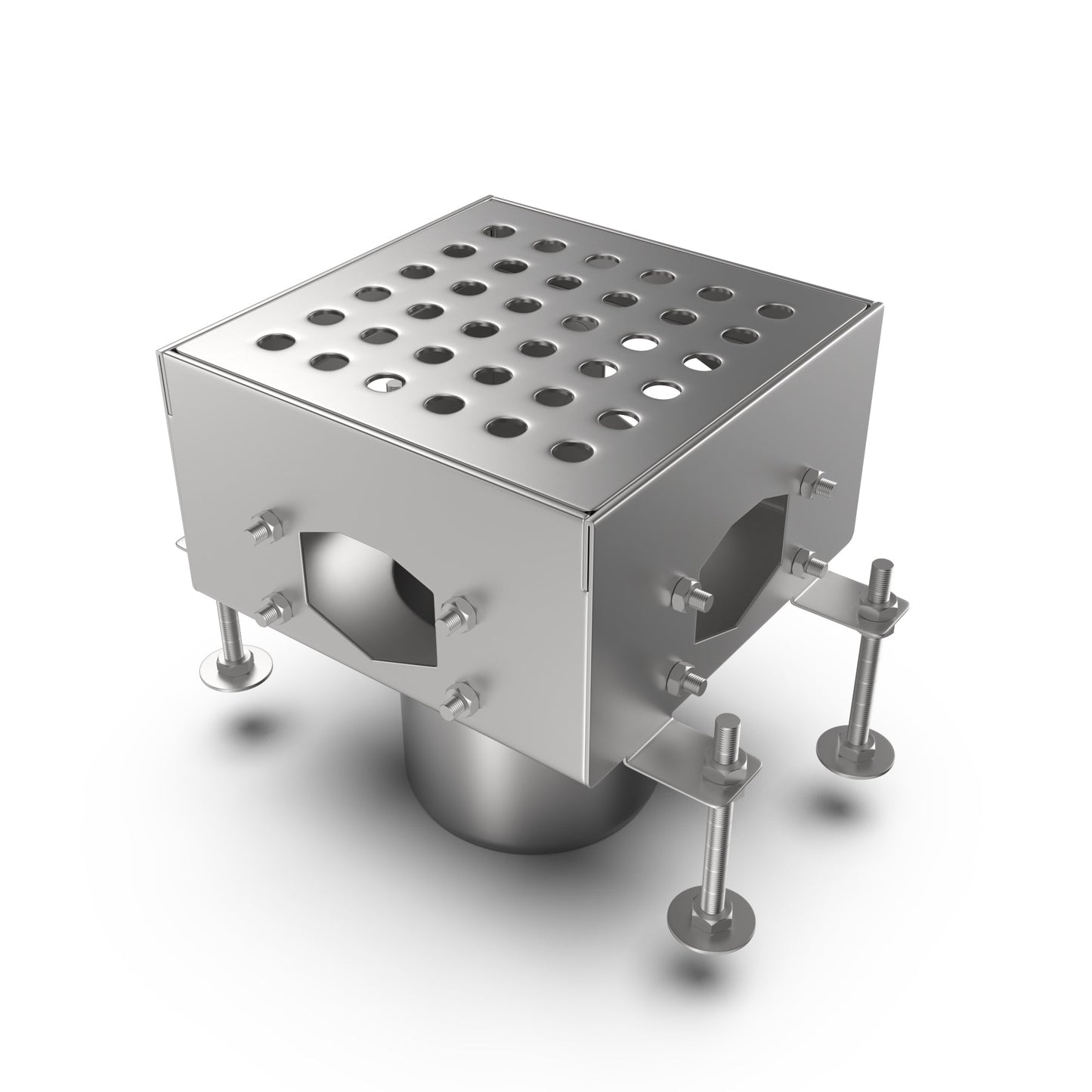

  • 90 degree and straight through option available
  • Removable grating for easy cleaning

For more product information please see product description above

Downloads
PDF
DWG
BIM
Basin Specification Sheet
PDF :
DWG :
Basin Grate Specification Sheet
PDF :
DWG :

Product Description

Product Description

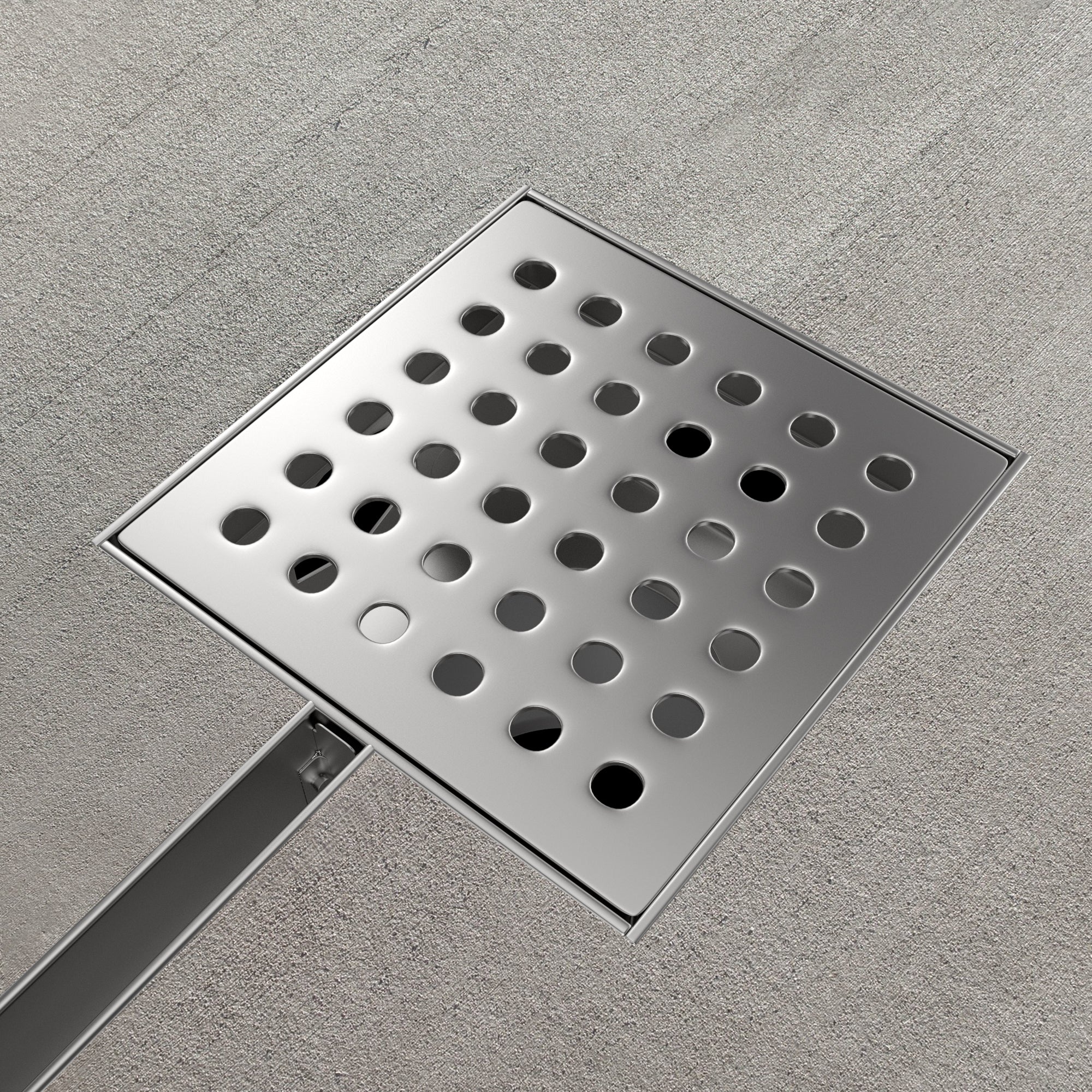

Mini Slot & Deck Drain Inline Basin

This Mini Slot & Deck Drain Inline Basin is designed to manage water while providing a
discreet and clean style making it ideal for pedestrian-friendly spaces.

Key Features:
Made from 304 Stainless Steel - Rust and corrosion-resistant for long-term outdoor use.
ADA Compliant Design - Ensures safe, trip-free walking surfaces.
Load Class A-D Rated - Light to heavy duty applications.
Chemical and Corrosion Resistant - Resists chemical damage and corrosion.
Outlet Size - Bottom 4” outlet

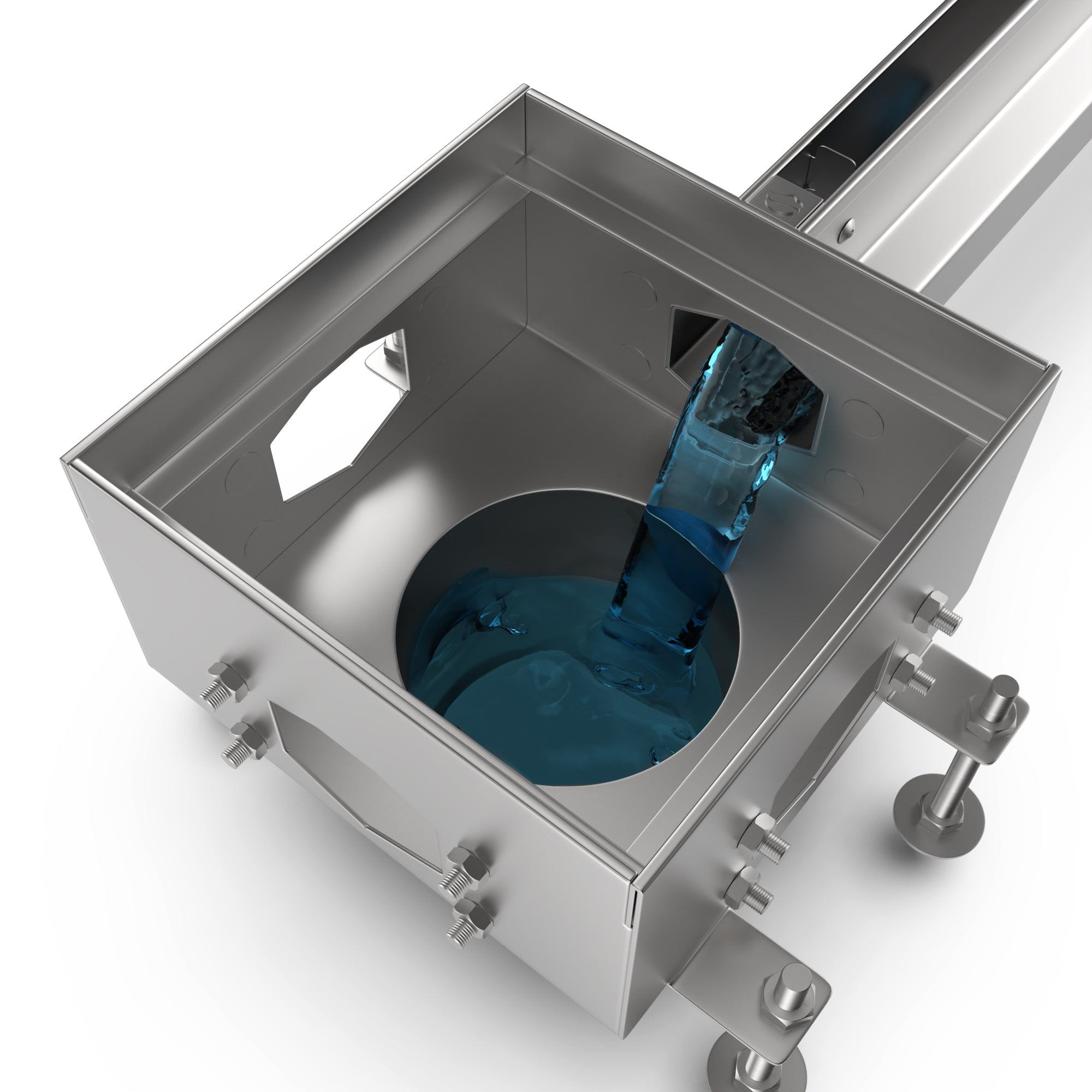

Removable Grate - Grate allows easy access inside the basin for maintenance

Expanded Product Overview:

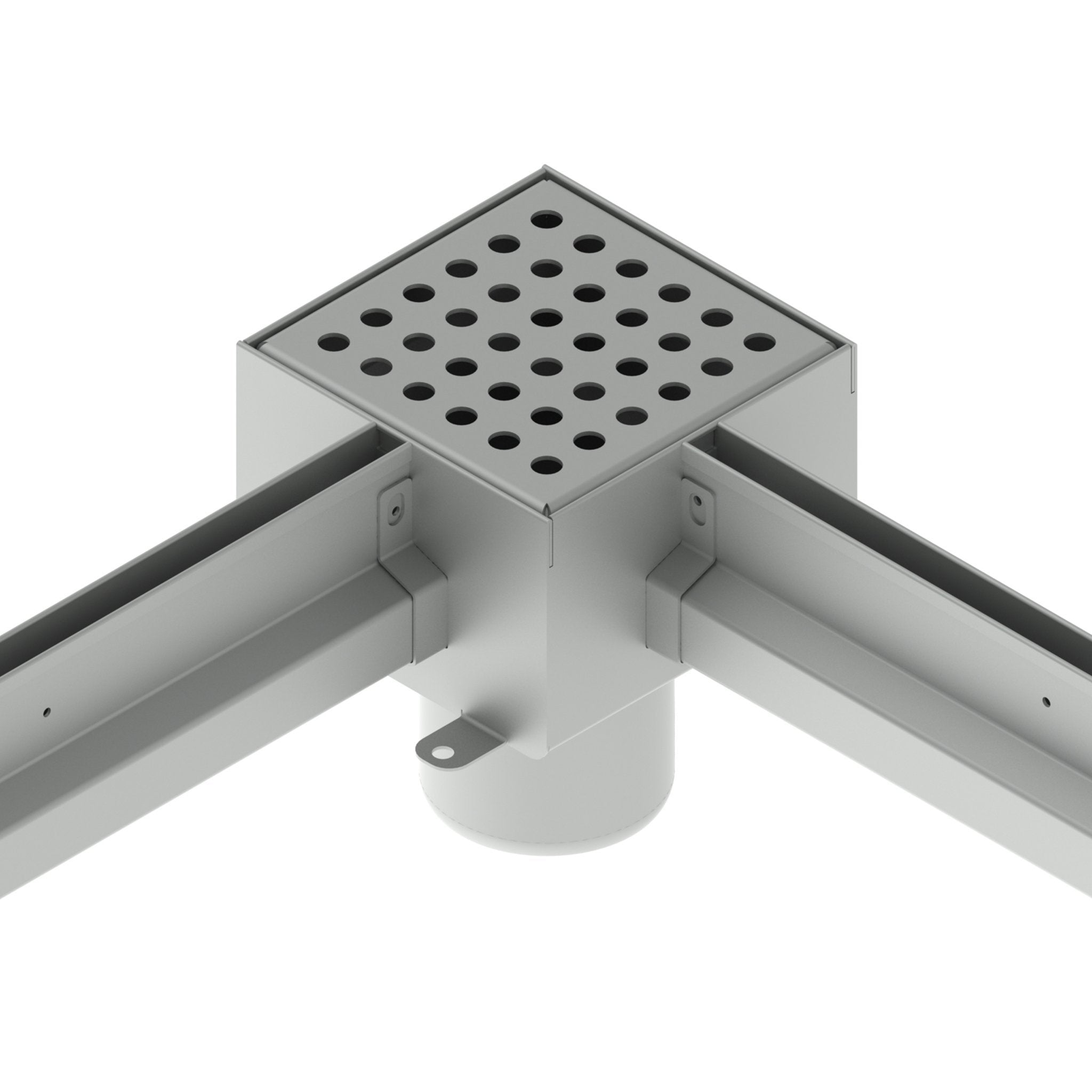

Smart, sleek, and built for tight spaces- the Mini Slot & Deck Drain Inline Basin delivers discreet drainage without sacrificing performance. This Basin will allow a run to split in multiple directions. Ideal for patios, pool decks, and outdoor living areas. Its narrow opening captures water efficiently while maintaining a clean, modern aesthetic. Made from high-quality materials for strength and durability, the Mini Slot System is the go-to solution for subtle surface drainage that lasts.

Common Applications:- (Designed only to be used with Mini Slot and Deck Drain System)
Residential and Commercial Pools
Sidewalks and Driveways
Patios and Walkways

Technical Specifications:
Material: 304 Stainless Steel
Length: 6.875”
Width: 6.875”
Load Rating: A-D Class (Light to Heavy Duty)
Compliance: ADA
Compatible Systems: Mini Slot System, Deck Drain System
