Omni Slot System

Omni Slot System

Skip to product information
1 of 5
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • 8" Internal width
  • Stainless steel is chemical and corrosion resistant

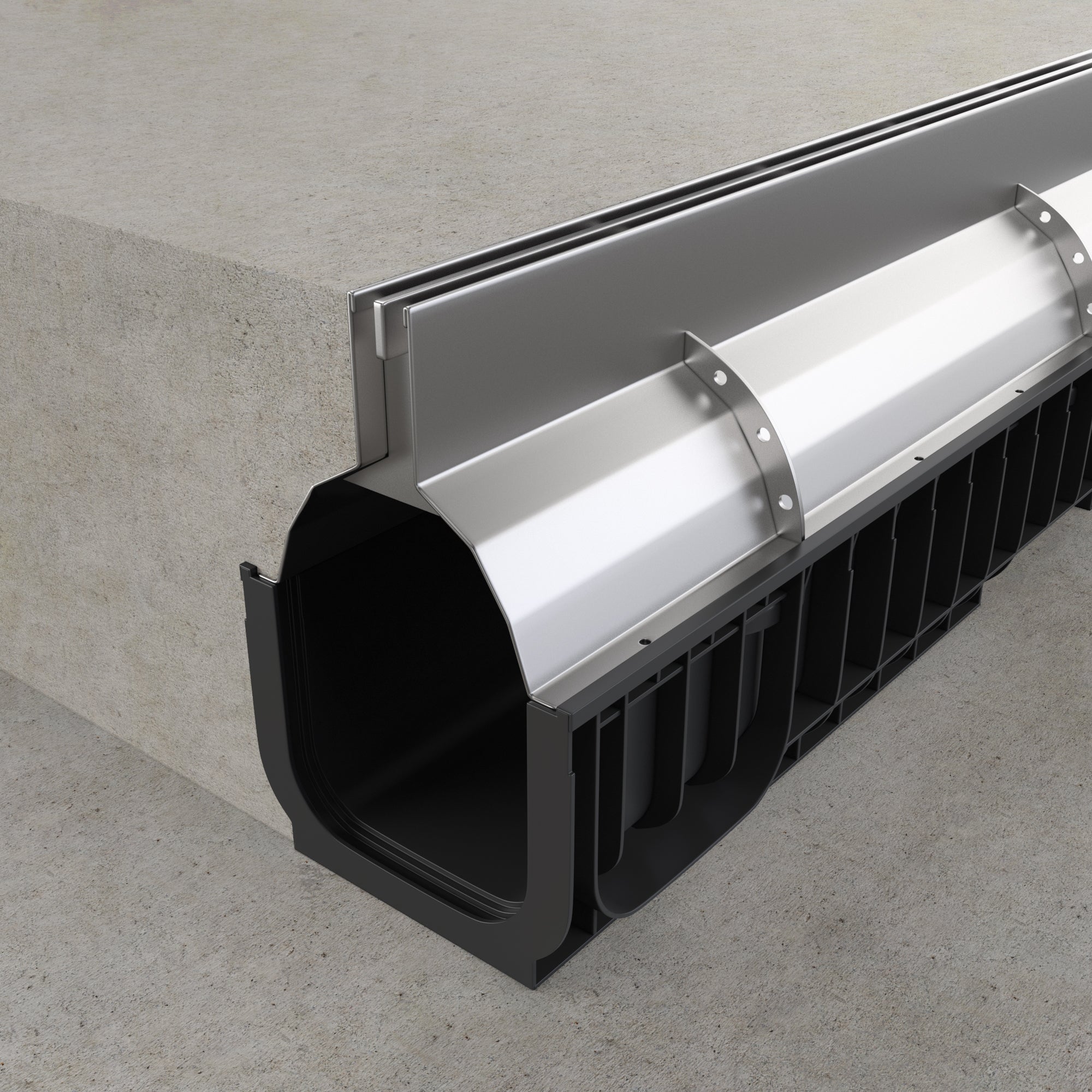

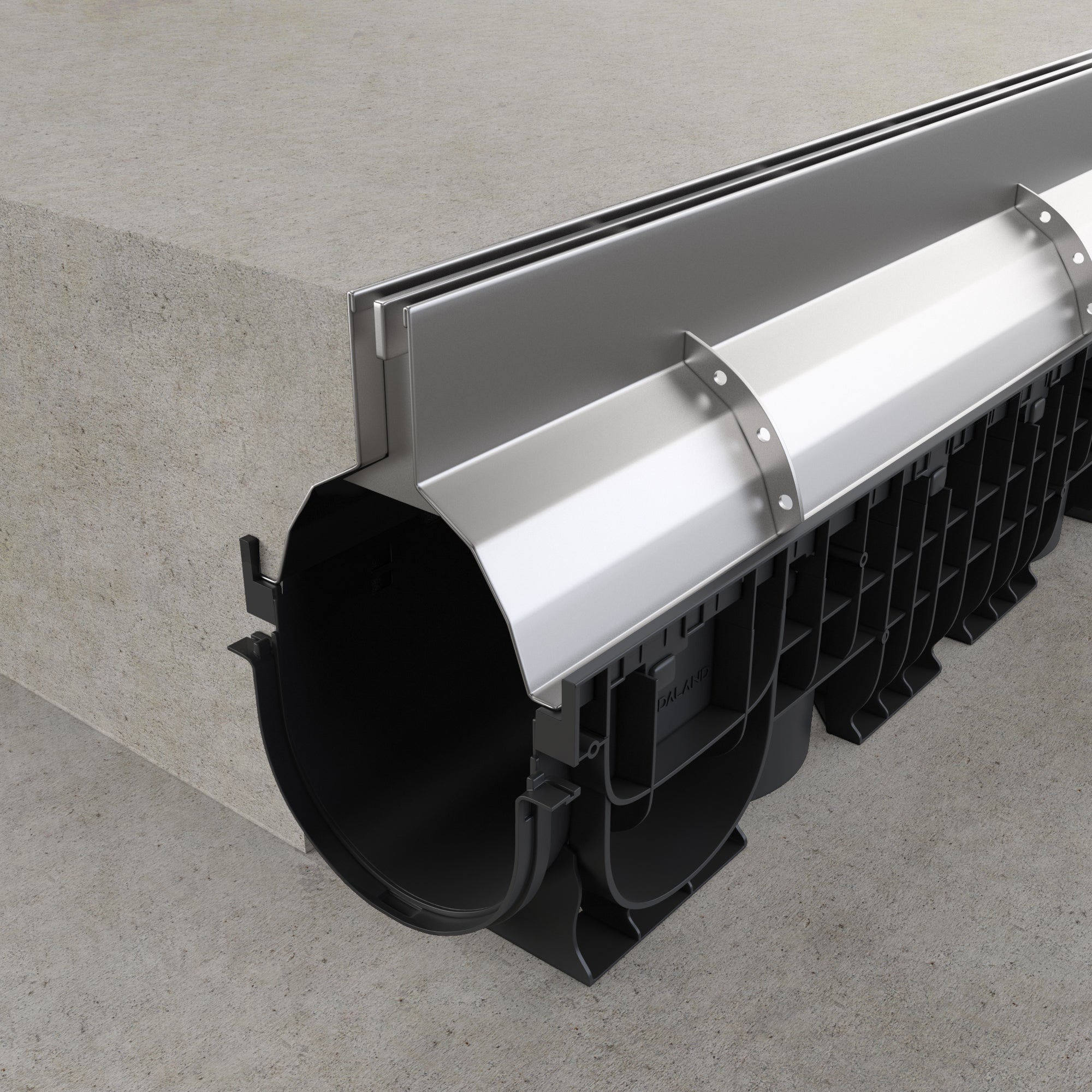

  • Excellent for paver, tile, and concrete pour installations
  • ADA compliance
  • Large capacity
  • Perfect for high water volume with little surface area coverage

INCLUDED IN PACKAGE

- 8"x8" Base Channel

1 - Omni Slot

Downloads
PDF
DWG
BIM
Grate Specification Sheet
PDF :
DWG :
Channel Specifications
PDF :
BIM :

Product Description

Product Description

Omni Slot System - large capacity slot drainage system for commercial lots and heavy run off

This large scale slot drain system is designed to have an increased flow rate for your stormwater drainage while maintaining a more discrete appearance.

Key Features:

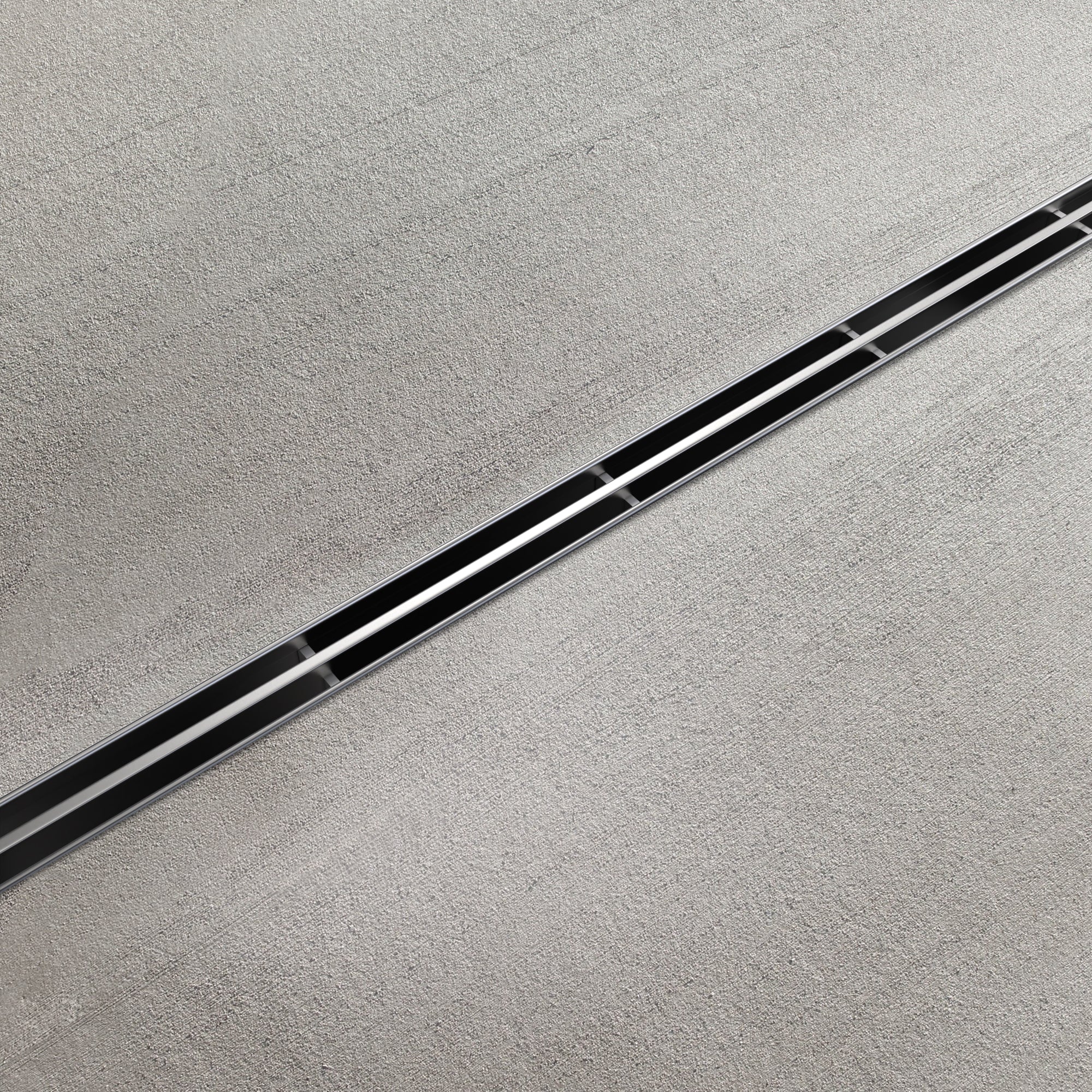

  • ADA Compliance - Small slot opening on surface for safety and aesthetic

  • Large Capacity - Maximized channel size for optimal water flow

  • Load Class - C-Class load class for supporting up to 55,000 lbs

  • Modular design - Designed to be changed to fit your design needs

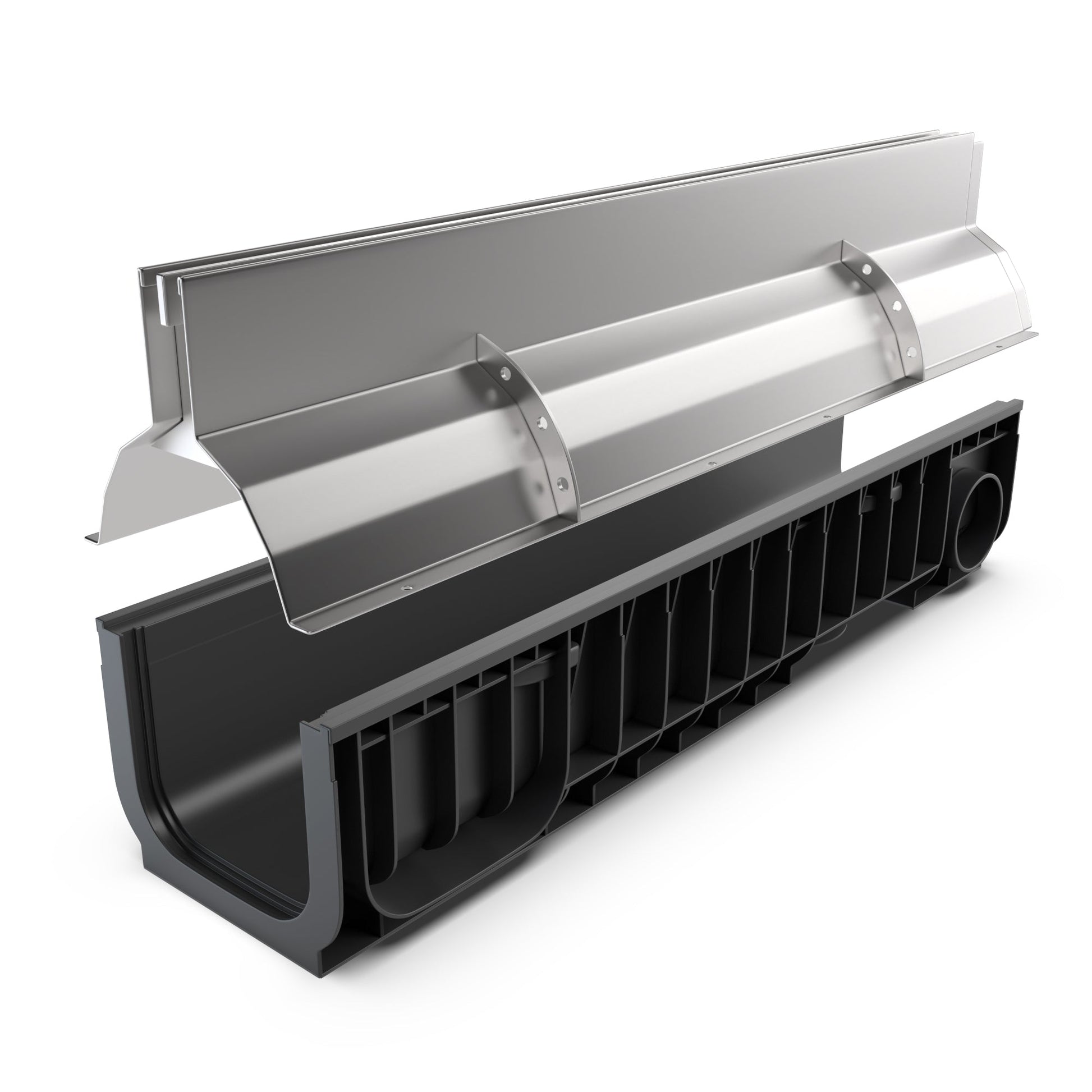

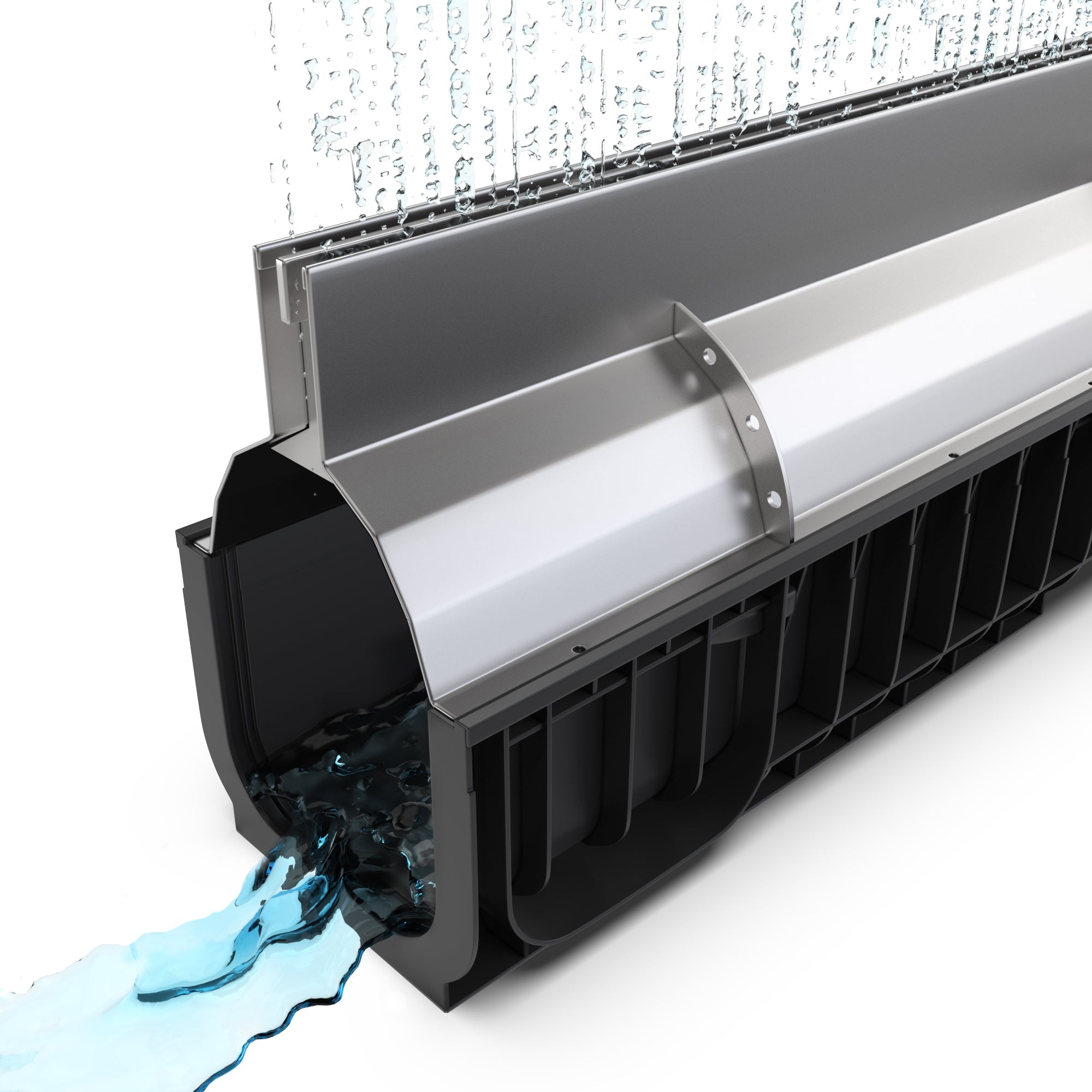

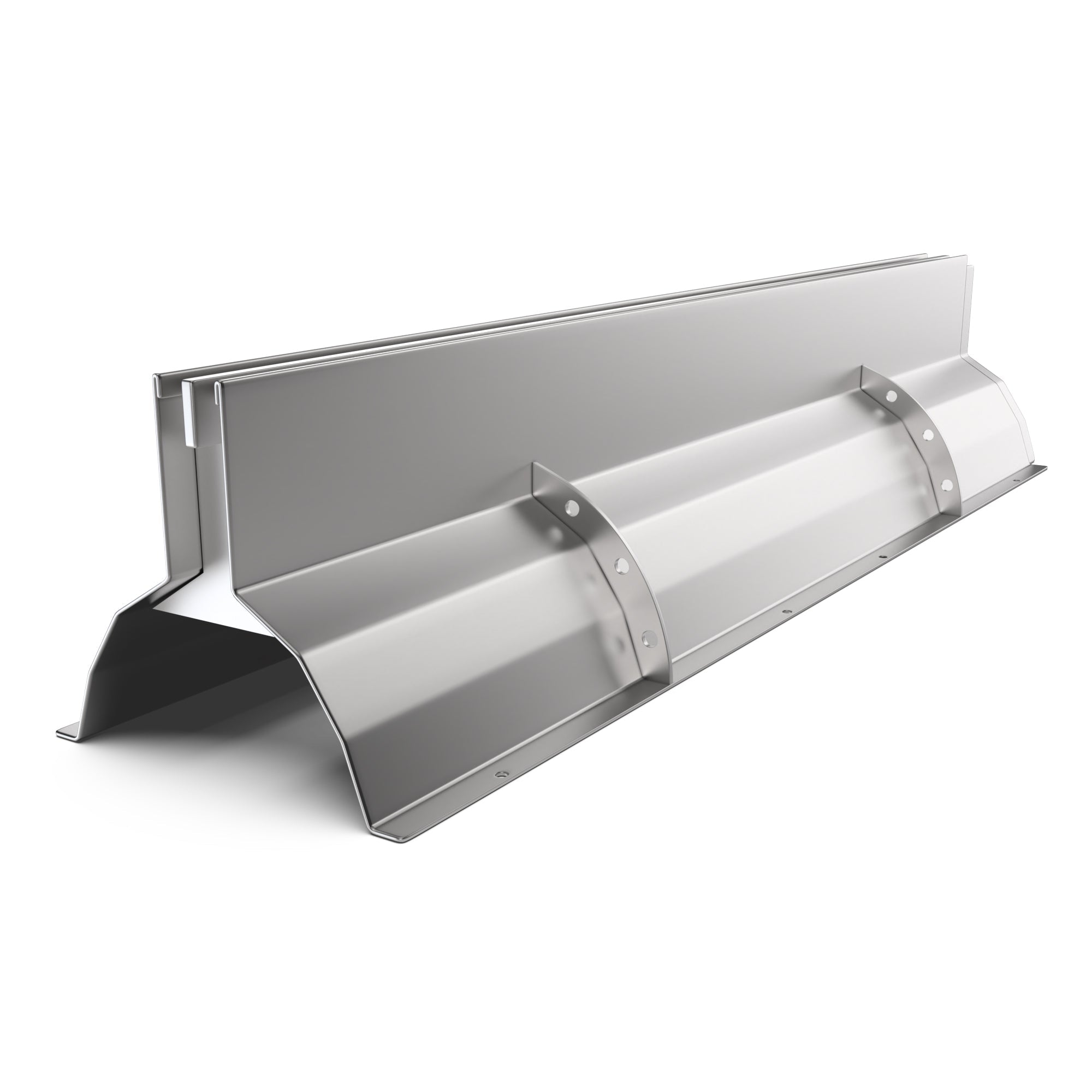

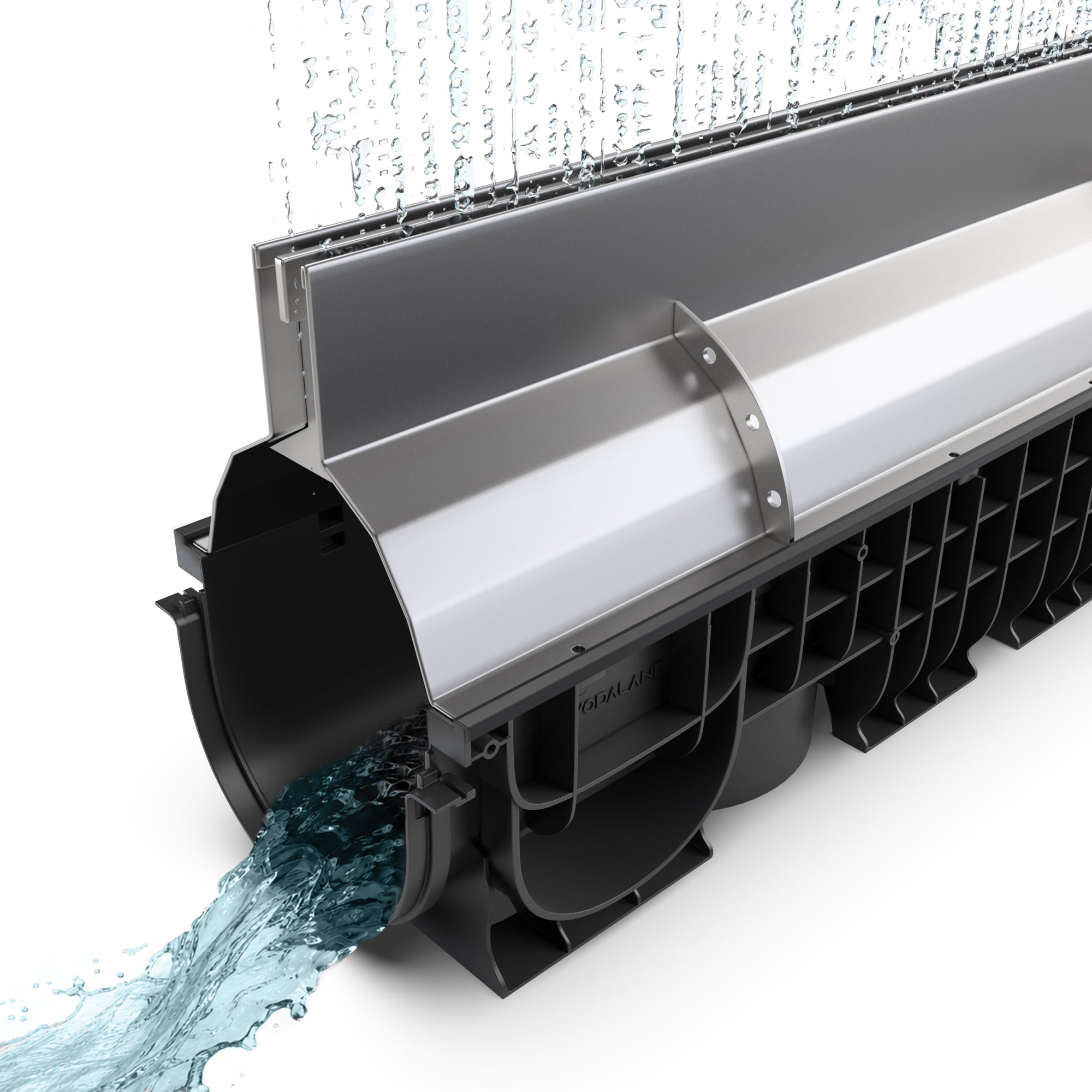

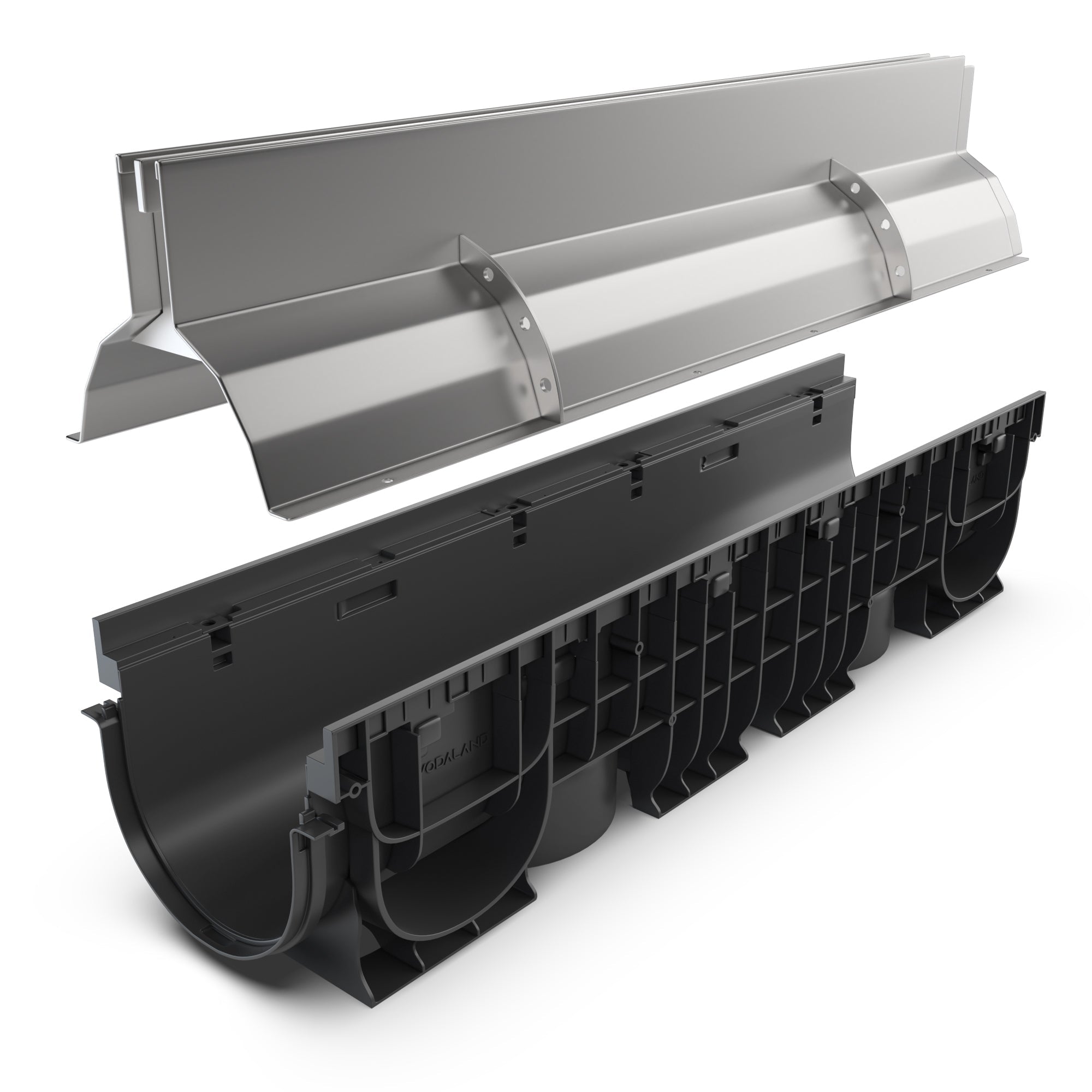

The Omni Slot System was created  to meet the needs for commercial parking lots and large stormwater run off areas without having a large drain grate in the way. This system utilizes its large capacity channel 8”x8” with the vaulted Omni Slot on top adding to its storage and flow rate. This slot system can support up to 55,000 lbs and is made on stainless steel which prevents rust and corrosive damage. The slot has a narrow bar running down the center to comply with ADA standards and maintain safety and accessibility for all.

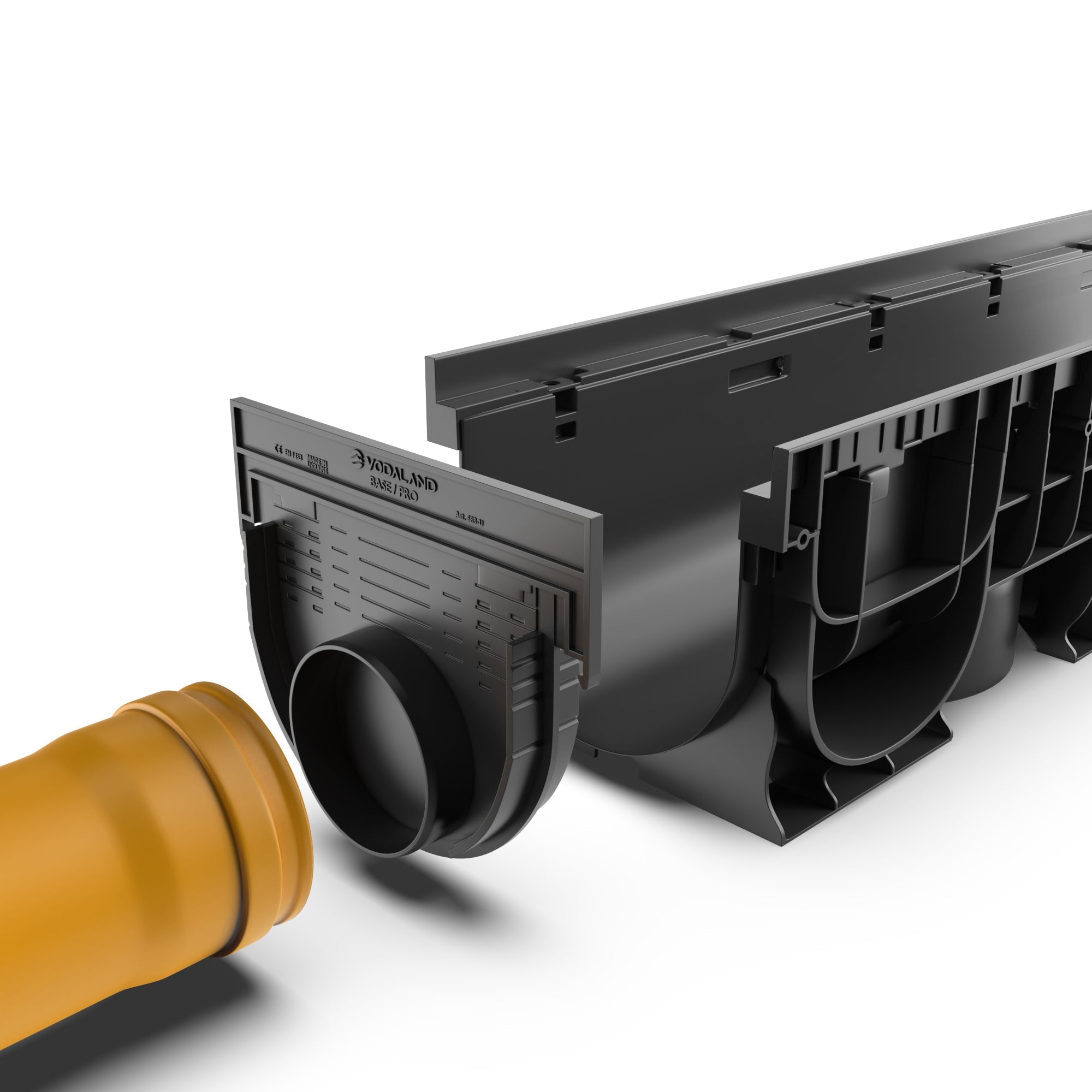

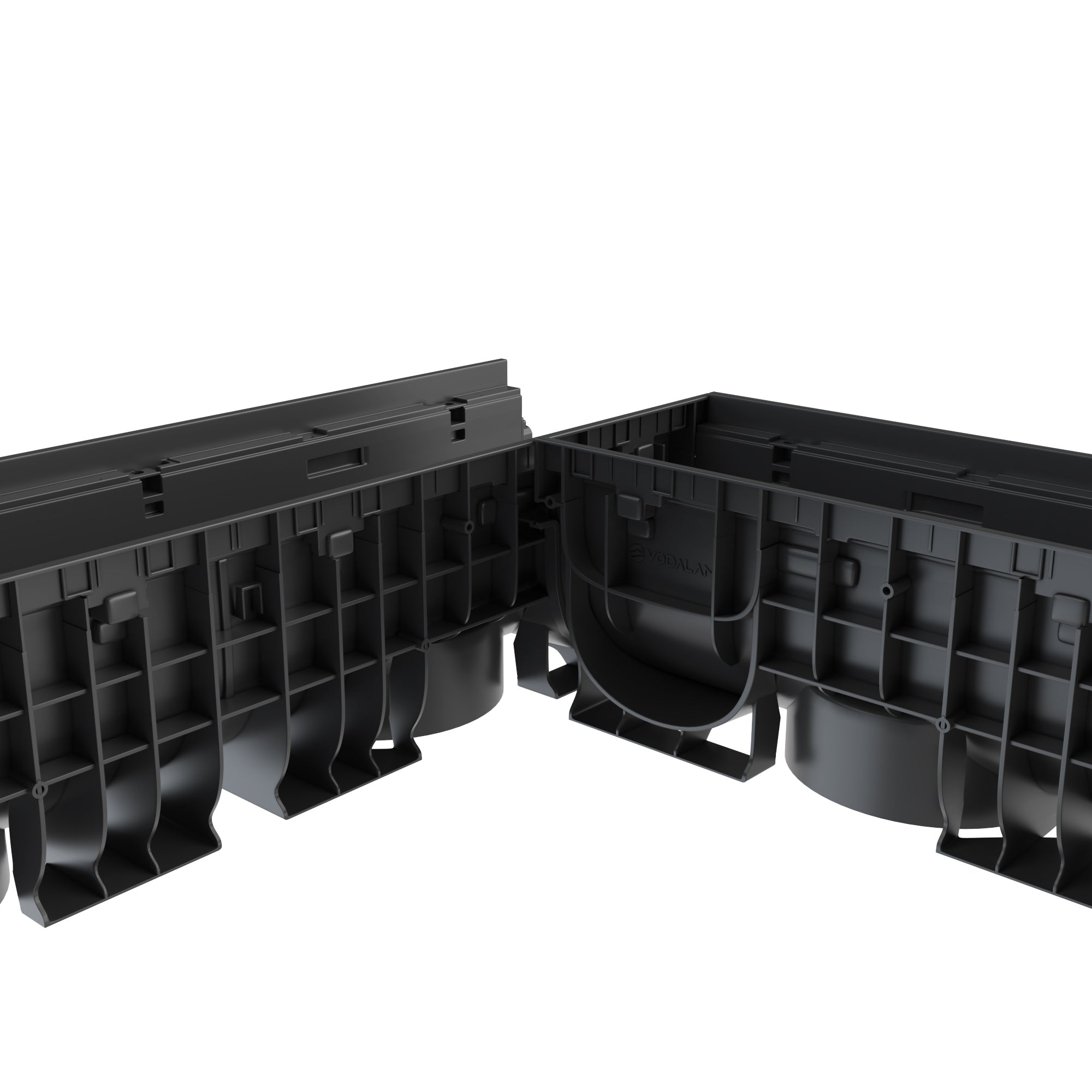

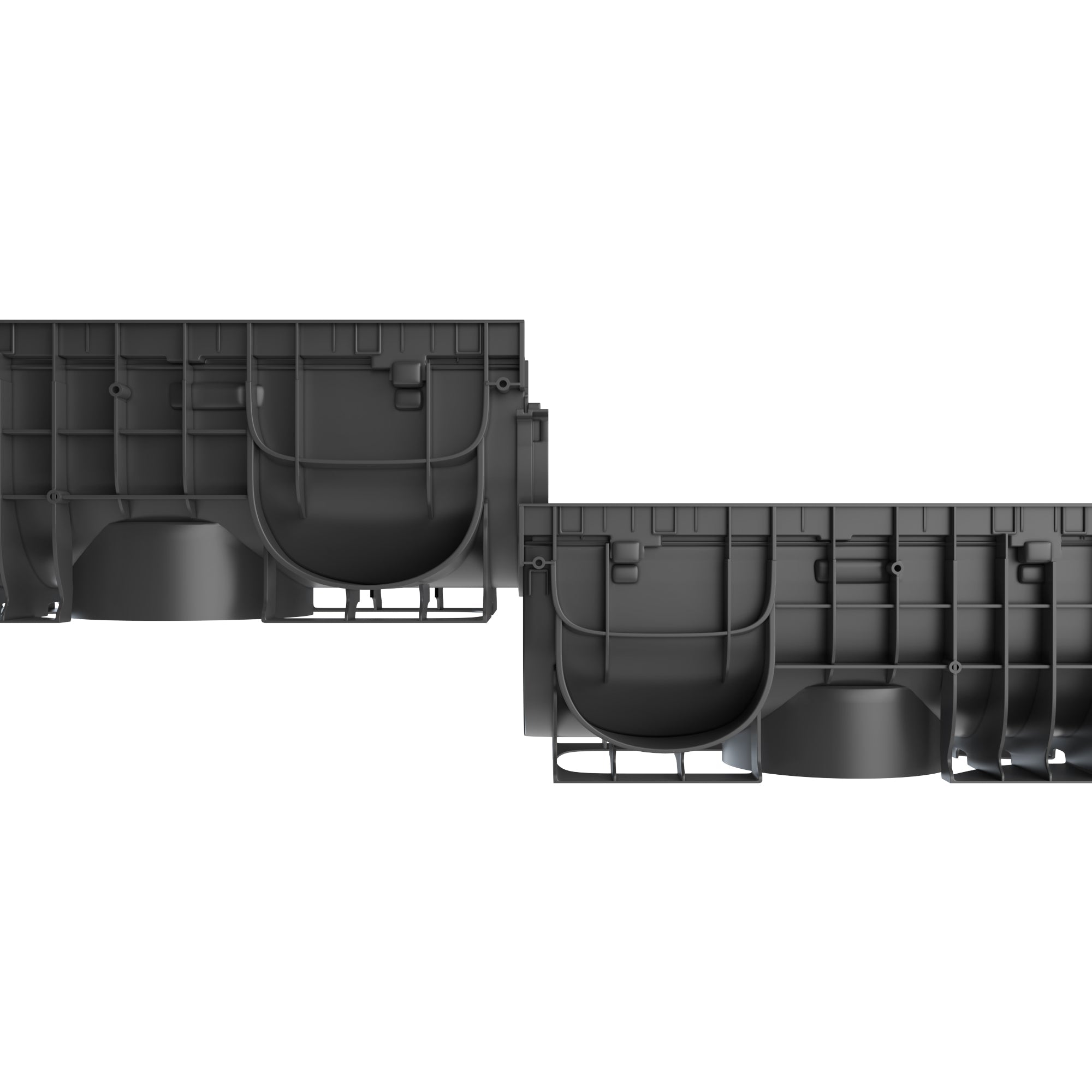

The 8”x8” Base channel this System uses is made of 100% recycled plastic with intuitive design. Made to be cut to different lengths or place outlets in multiple places. This modular system was created with flexibility with your project in mind.

Common Applications:

  • Commercial Garages

  • Large Parking lots

  • Heavy stormwater runoff areas

Technical Specifications

  • Material: PPE Plastic & Stainless Steel

  • Length: 39 inches or 3.3 feet

  • Load Class: C-Load class (55,000lbs)

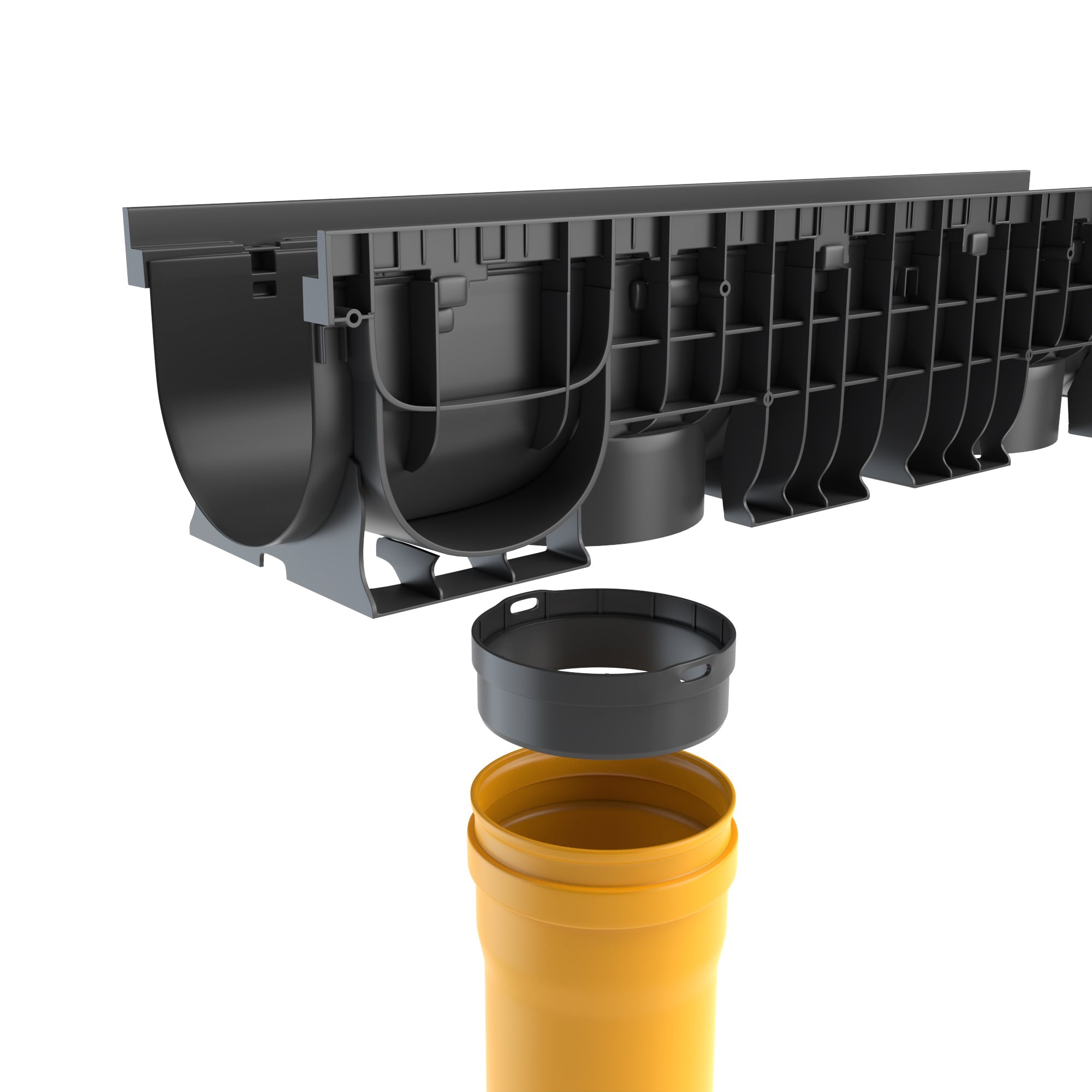

  • Outlet Size: 4 inch

  • Article Number: 999922-200

Like all Vodaland products the Omni Slot System is designed to be problem solving and long lasting. We strive to create the products you can count on.

INCLUDED IN PACKAGE

- 8"x8" Base Channel

1 - Omni Slot

12 - Screws

Installation videos
