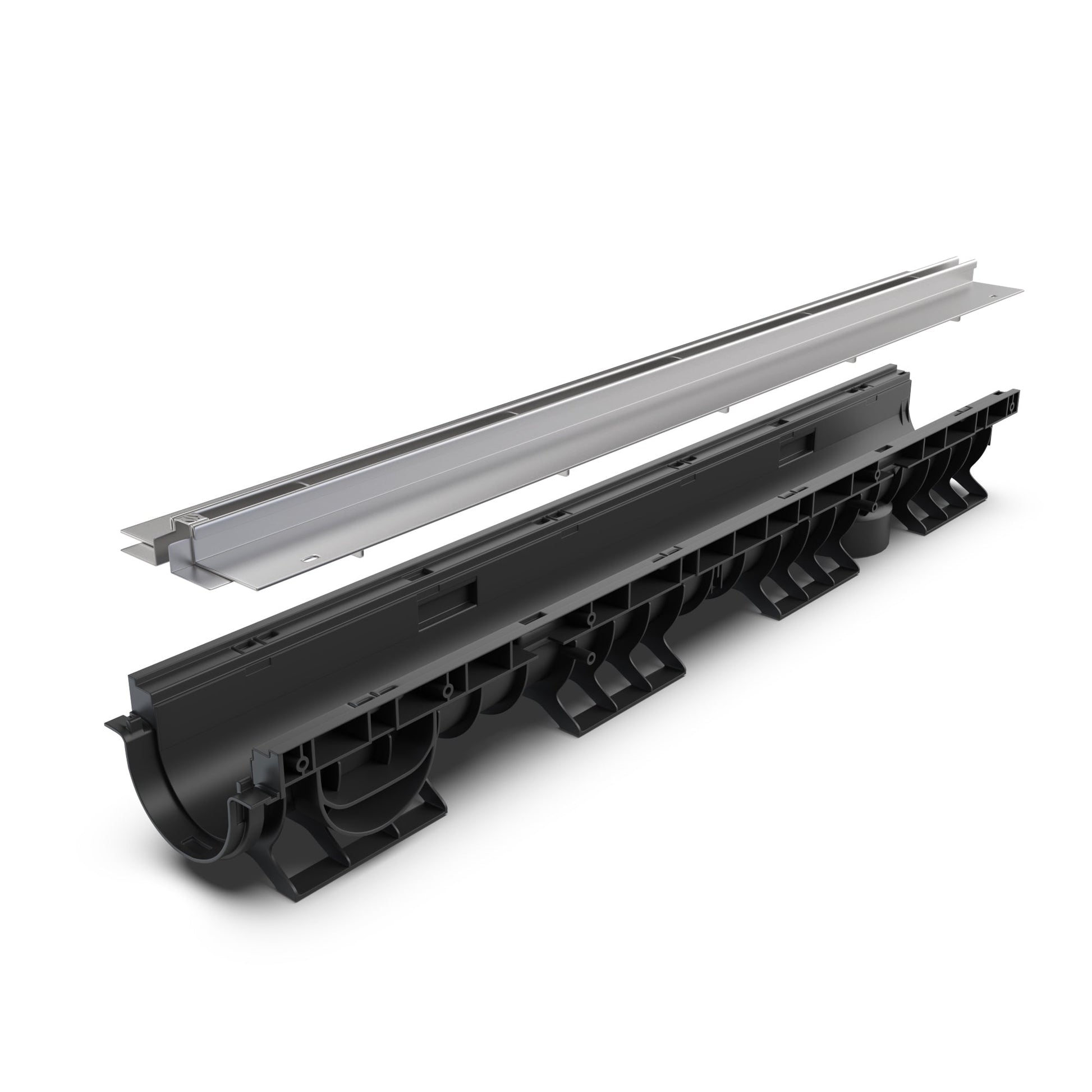

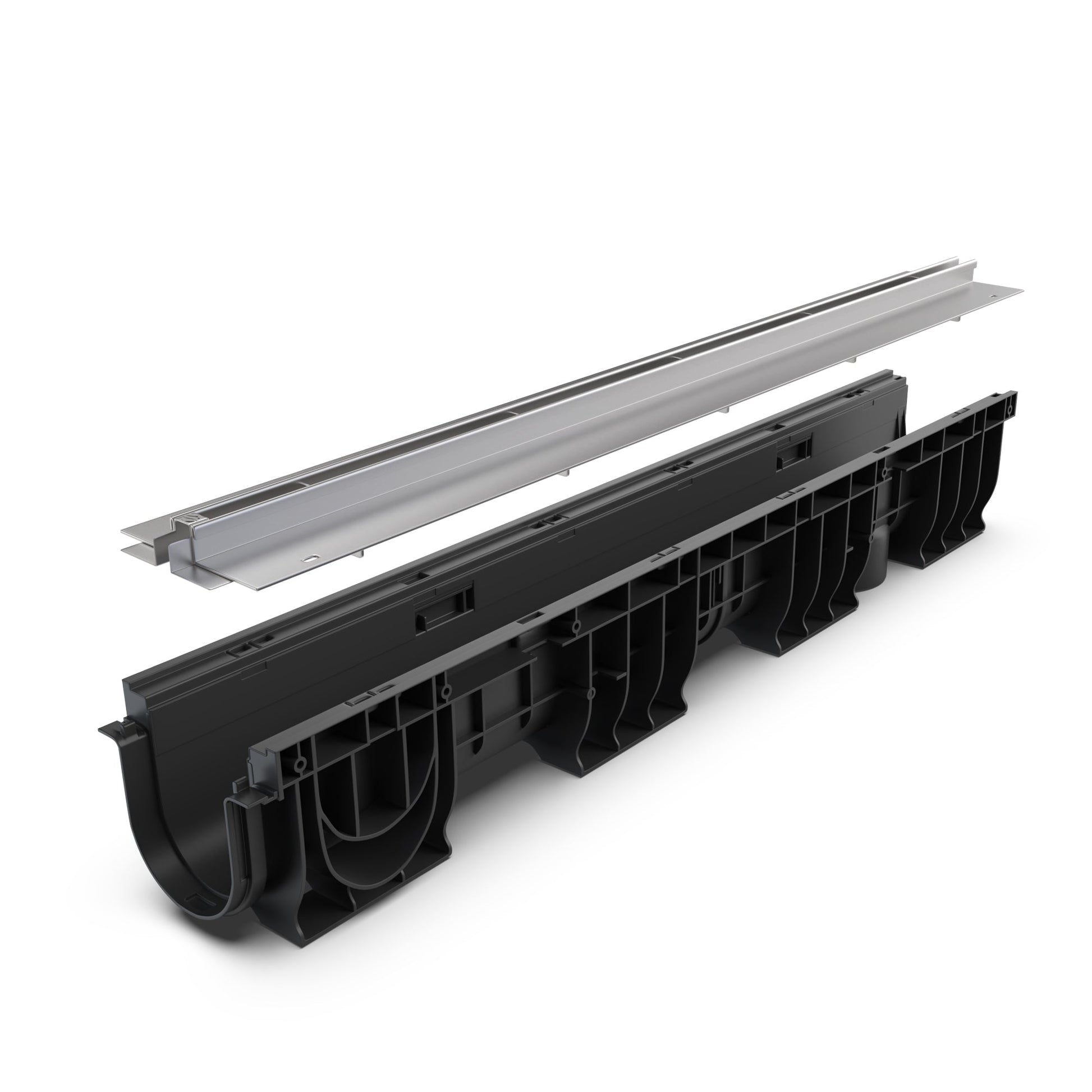

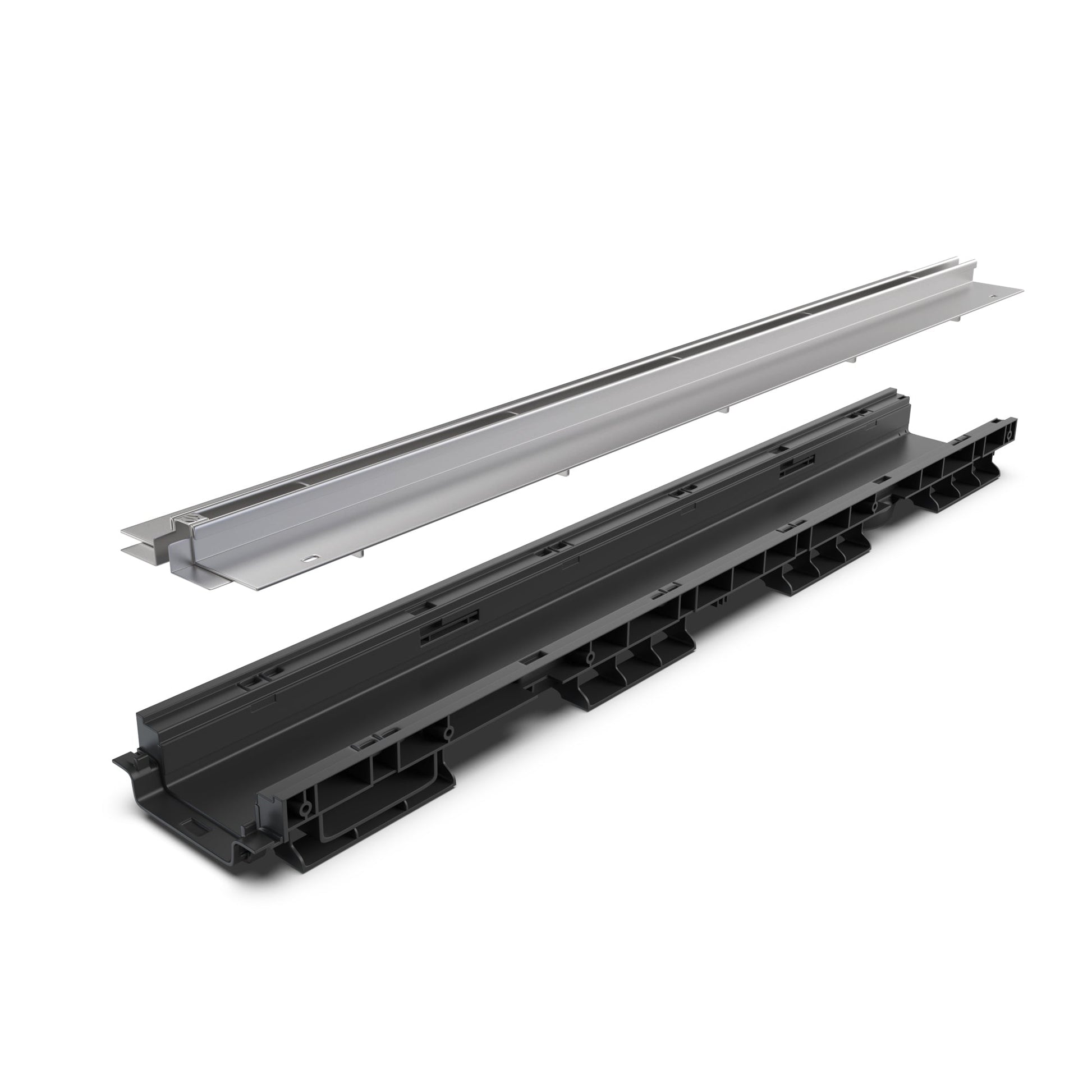

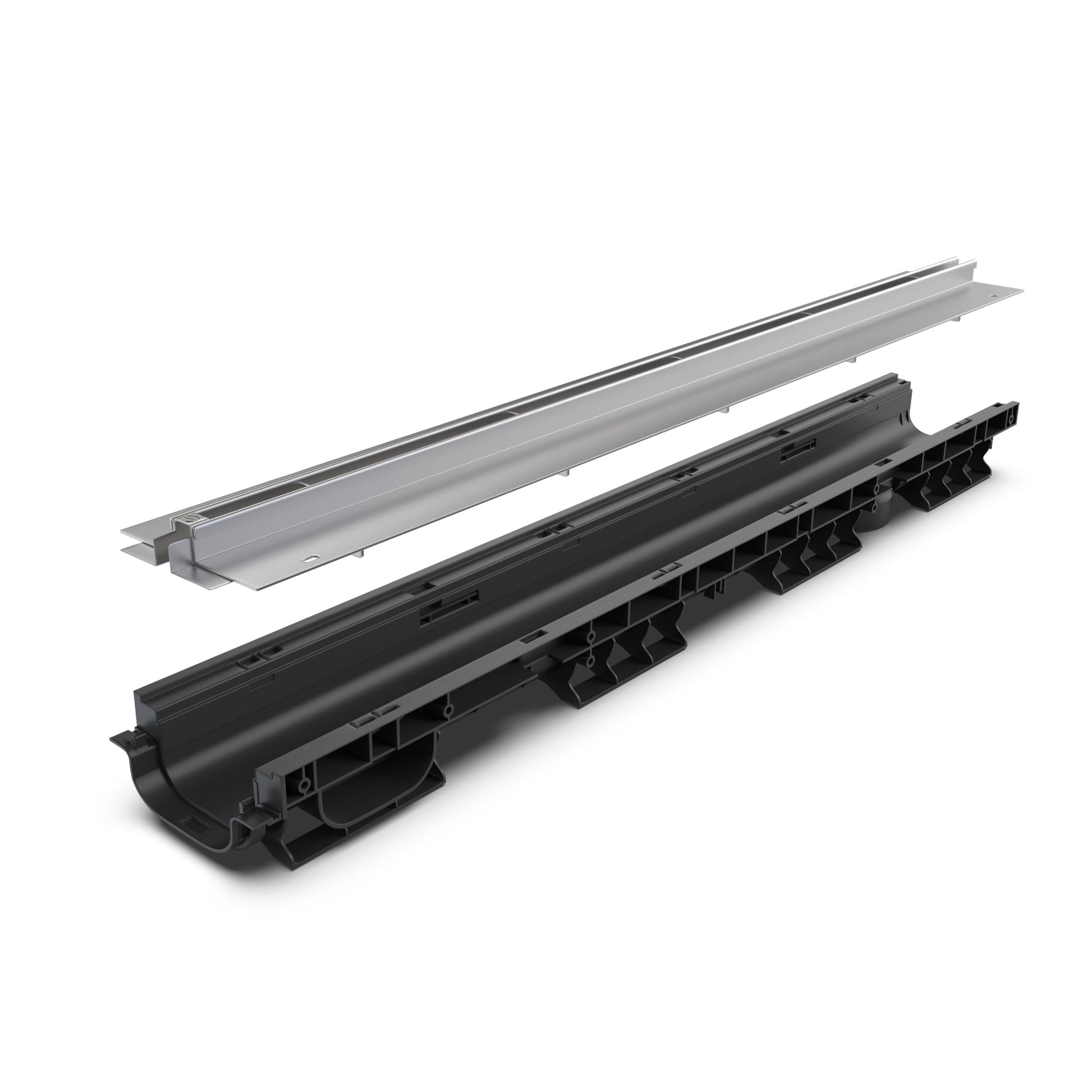

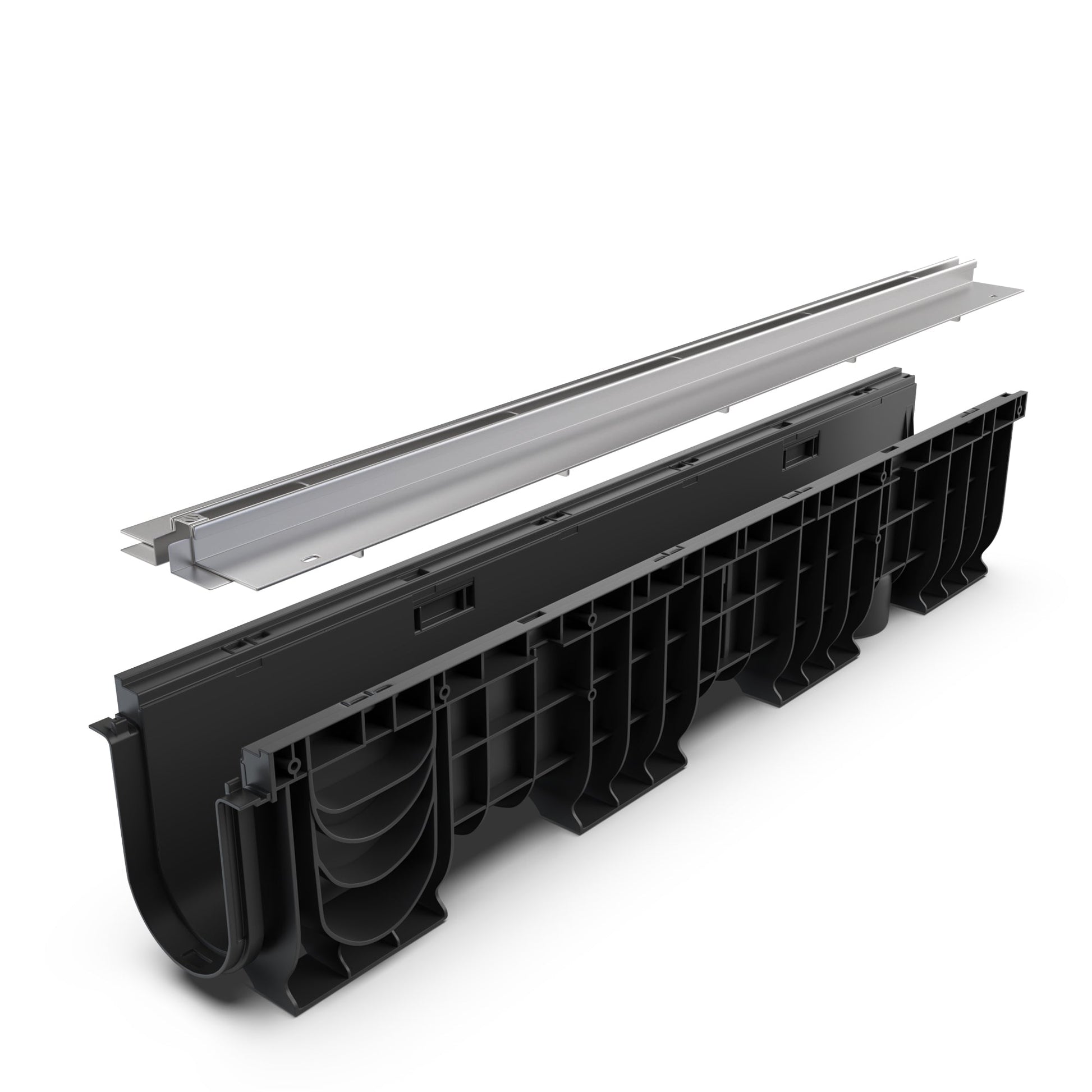

Stainless Steel Micro Slot System

Stainless Steel Micro Slot System

Regular price $259.00
Regular price Sale price $259.00
Sale Sold out
free shipping over $999
3-5 days delivered
View full details
  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • 4" Internal width stainless steel micro slot drain system
  • 5/8" opening with multiple channel depth options
  • 1" Height of slot grate in addition to channel depth
  • Stainless steel is chemical and corrosion resistant
  • Excellent for paver, tile, and concrete pour installations
  • Used in driveways, pools, patios, and heavy traffic areas
  • ADA / Heel Proof cap available as addition for debris protection
  • Perfect for high water volume with little surface area coverage

INCLUDED IN PACKAGE

- Channel Depth of choice

1 - Heavy Duty Stainless Steel Micro Stamped Steel Grating

For more product information please see product description tab above

Downloads
PDF
DWG
BIM
Pre-slope Specification Sheet
PDF :
BIM :
2" Channel Neutral
PDF :
DWG :
3" Channel Neutral
PDF :
DWG :
4" Channel Neutral
PDF :
DWG :
6" Channel Neutral
PDF :
DWG :
8" Channel Neutral
PDF :
DWG :
Grating Specification Sheet
PDF :
DWG :
Installation Guide
PDF :
Supplemental Installation Guide
PDF :

Product Description

Product Description

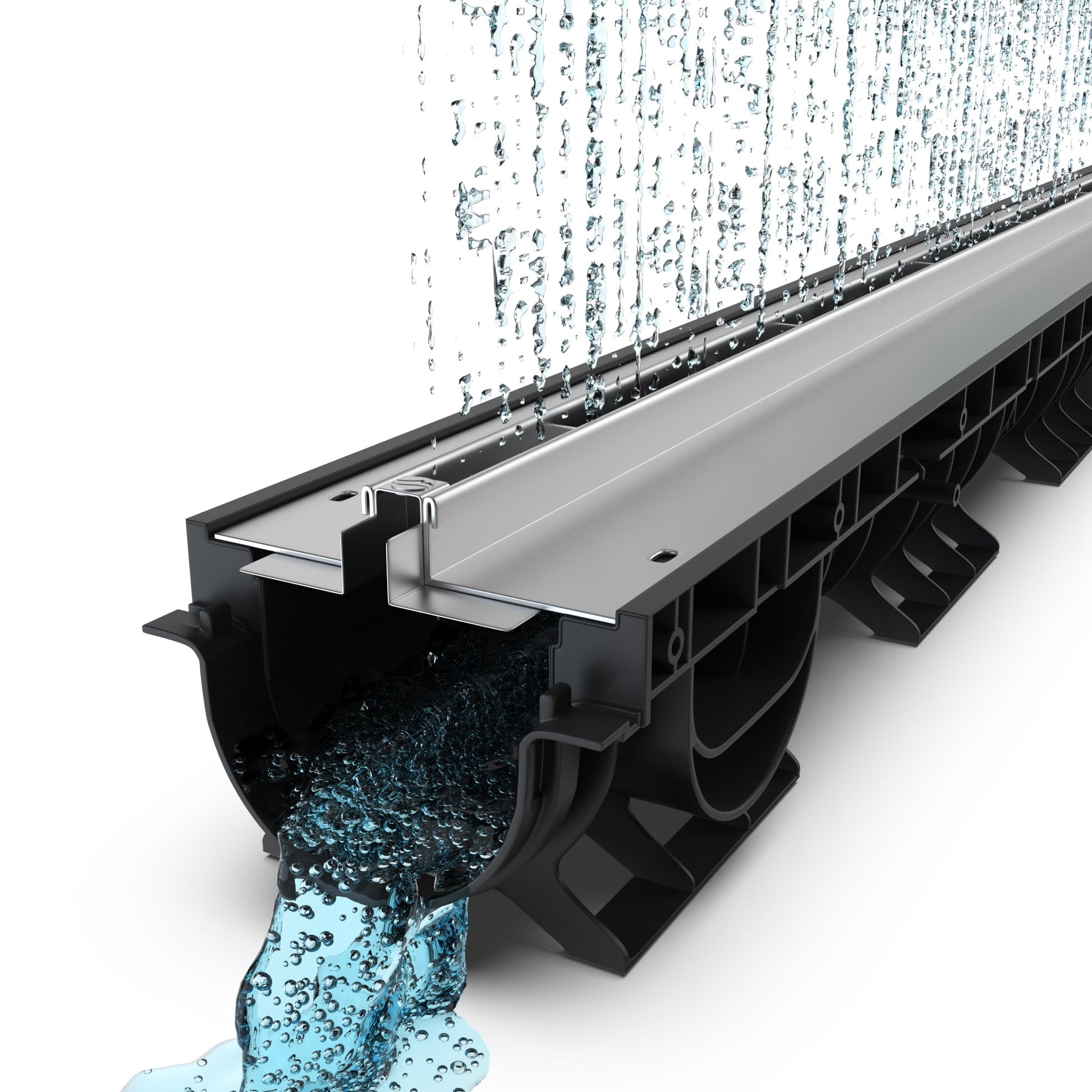

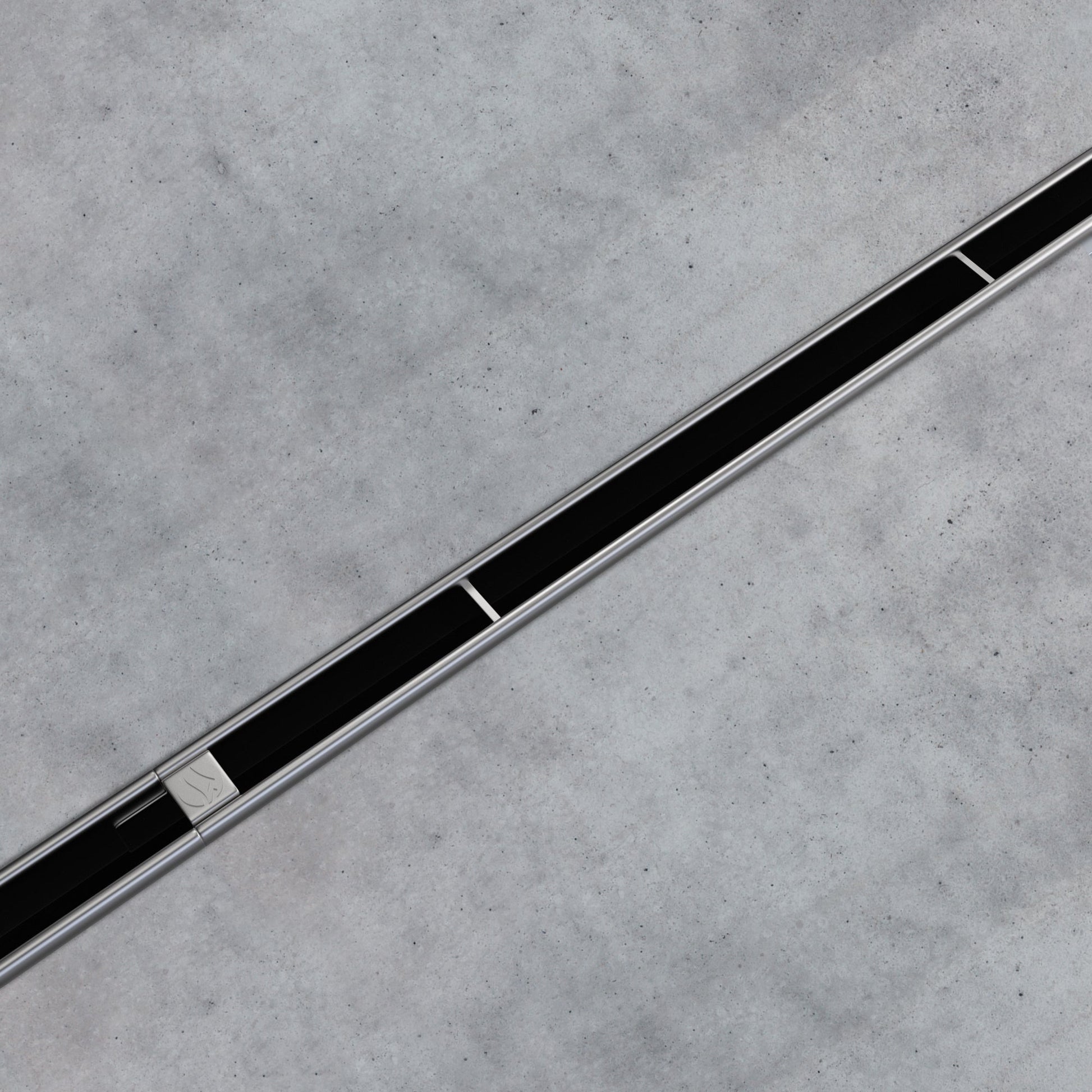

Our Stainless Steel Micro Slot drains are one of a kind. Heavy duty 100% Stainless Steel slot grate rests upon the 4" channel depth of your choice or our Pre Slope 1% Packages!  Connecting to each other with a snap and lock connection no matter the channel depth or channel run length.... The slot grate has an opening of 5/8 inch and widens towards the channel. This is a patent feature that allows debris to pass through the slot and not be stuck. Perfect for pools, porches, and any situation where grating is not necessary. Below are specifications.

With our Pre Slope system you can create a run up to 50 ft in length with a 1% slope. With an option of a 4" outlet on the end no matter the channel run length.

Neutral Channels;

The 2", 3", 4", 6", and 8" Depth channels have bottom outlet option available with 4" Pipe connection.

Each of these systems will also have end cap outlet options available as well.

The 2", 6", and 8" Depth option will use a 4" end cap outlet pipe, while the 3" and 4" Depth option will use a 3" end cap outlet pipe.

PARAMETERS

Channel Length - 3.3 Feet (39 inches) - Connect end to end.

Material ............. PPE Plastic / 304 Stainless Steel

Load Class ....... A-D Load Class

Article Number.......2097-1T-25

INCLUDED IN PACKAGE

- Channel Depth of choice

1 - Heavy Duty Stainless Steel Micro Stamped Steel Grating
