Stainless Steel Pre Slope Channel System 12 Inch

Stainless Steel Pre Slope Channel System 12 Inch

Skip to product information
1 of 6
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads



  • Composed of 100% 304 stainless steel
  • Reversible ADA gratings for anti-slip option on entire system
  • Chemical, acid, and corrosion resistant

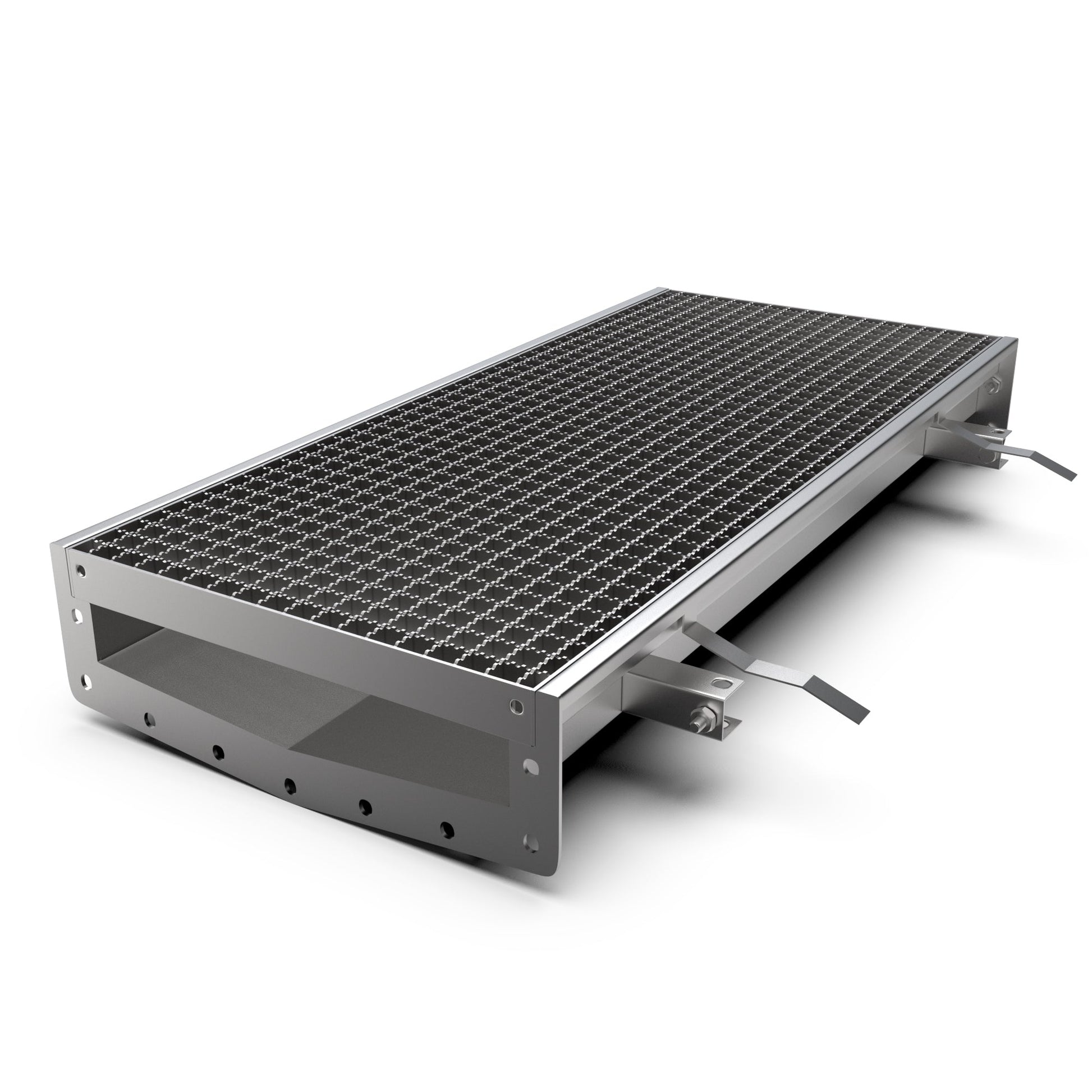

  • Equipped with leveling rebar brackets already on the system

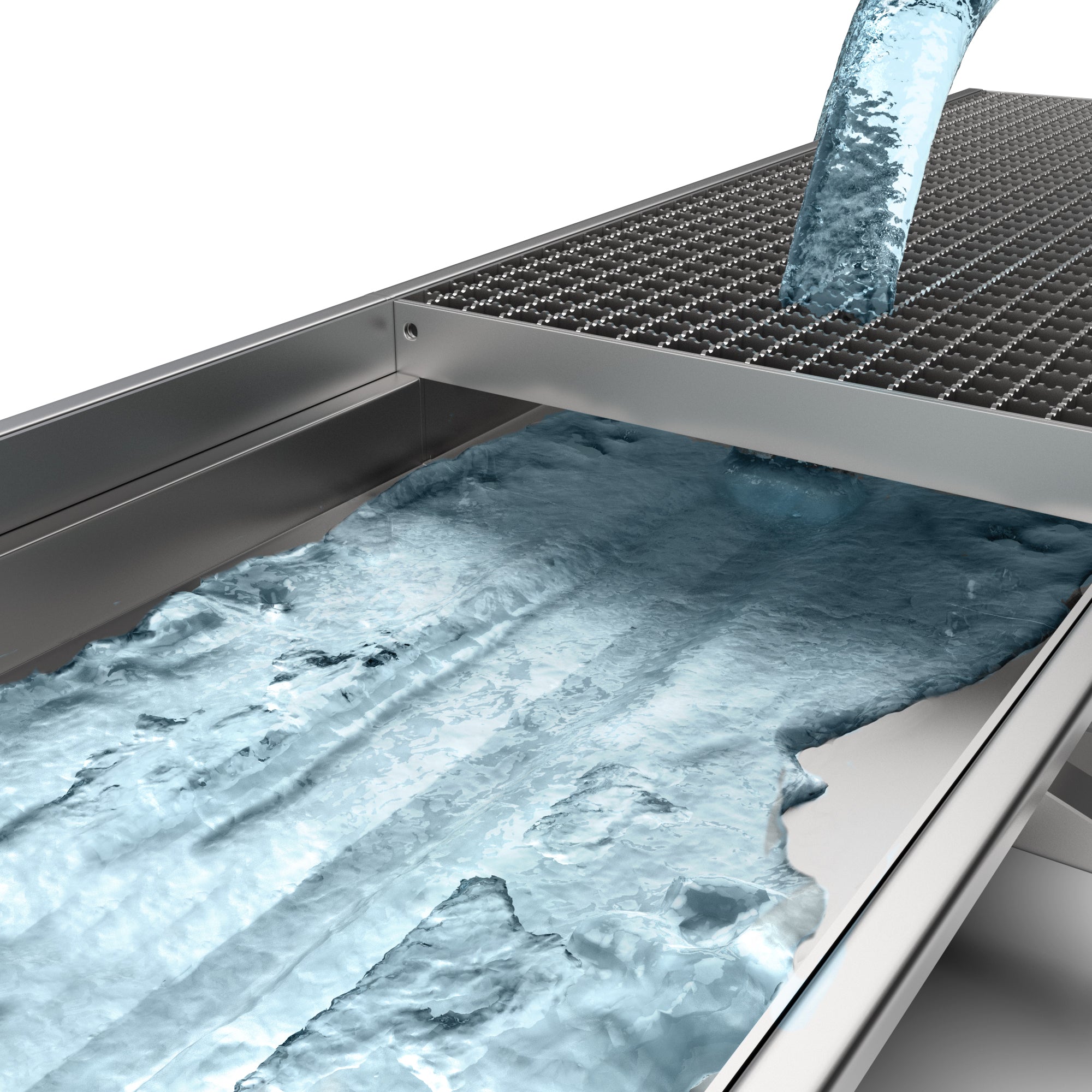

  • V-Convex bottom enables faster water movement
  • Perfect for kitchens, plants, wineries, and sanitary locations
  • C Class load rated for heavy duty load
  • Can be used with our 100% Stainless steel inline basin

We offer in-house engineering services to provide custom technical drawings for precise drain layout designs, ensuring optimal performance and seamless integration.

INCLUDED IN PACKAGE

1 - Number of Channels needed for length

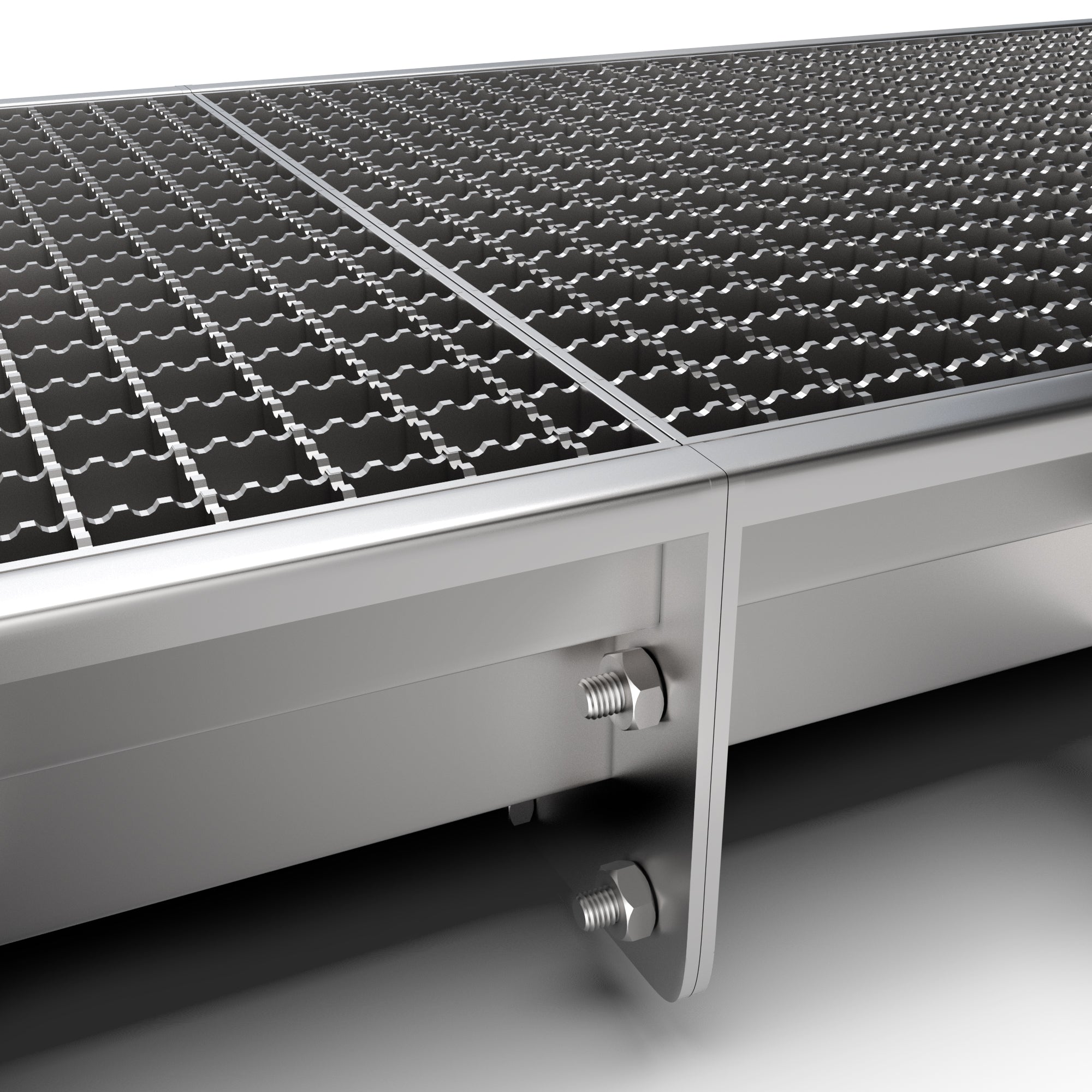

- 100% Stainless Steel Bolts and fasteners for connections

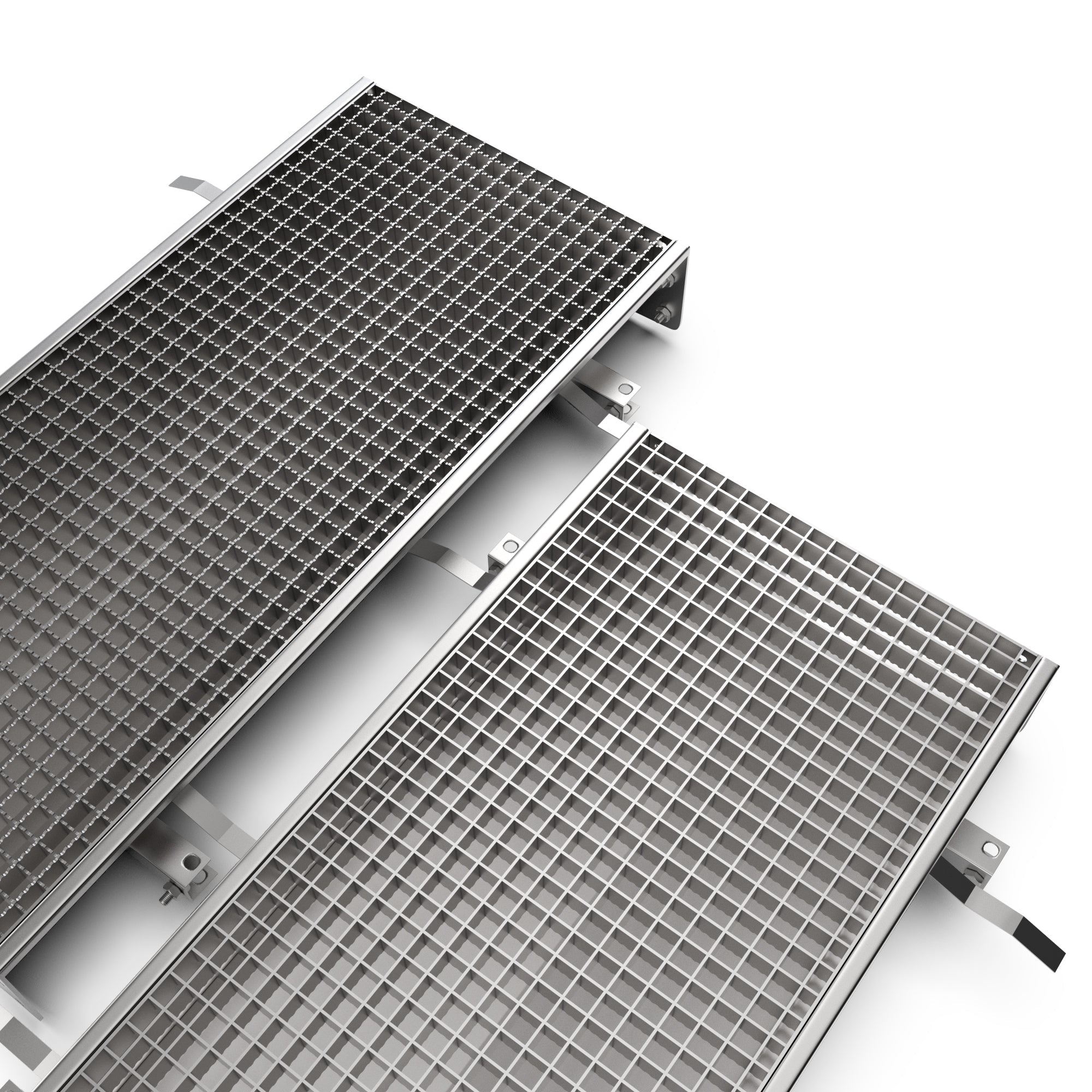

3 - 1 Unit per channel of reversible grating (100% Stainless steel - one side is anti-slip , other side is mesh pattern as per specification sheets below)

** if any requests are to be made, please contact us directly, or specify in notes during checkout, we are here to completely accommodate you**

For more product information please see product description tab above

Downloads
PDF
DWG
BIM
Specification Sheet
PDF :
DWG :
Grate Specification Sheet
PDF :
Outlet End Cap Specification Sheet
PDF :
Flow Rates
PDF :
Installation Guide
PDF :
Supplemental Installation Guide
PDF :
System Layout
PDF :

Product Description

Product Description

Stainless Steel Pre Sloped System 12 Inch

This Stainless Steel Pre Sloped 12 Inch System is designed to manage water while providing a clean style making it ideal for pedestrian-friendly spaces as well as demanding commercial or industrial areas.

Key Features:
Made from 304 Stainless Steel - Rust and corrosion-resistant for long-term outdoor use
Load Class C Rated - Light to heavy duty applications
Chemical, Corrosion, and UV Resistant - Prevent corrosion from many substances
ADA Compliant Design - Ensures safe, trip-free walking surfaces

Expanded Product Overview:
Strong, durable, and engineered for heavy use - the Stainless Steel Pre Sloped 12 Inch System delivers discreet drainage without sacrificing performance. Ideal for commercial and industrial environments. Its simple grate openings capture water efficiently while maintaining a clean, modern aesthetic. Made from high-quality materials for strength and durability, the Stainless Pre Sloped System is the go-to solution for subtle surface drainage that you can rely on.

Common Applications:
Kitchens and Food Processing Plants
Wineries and Breweries
Sanitary locations

Technical Specifications:
Material: 304 Stainless Steel
Length: 39.375”
Width: 14.125”
Load Rating: C Class (Heavy Duty)

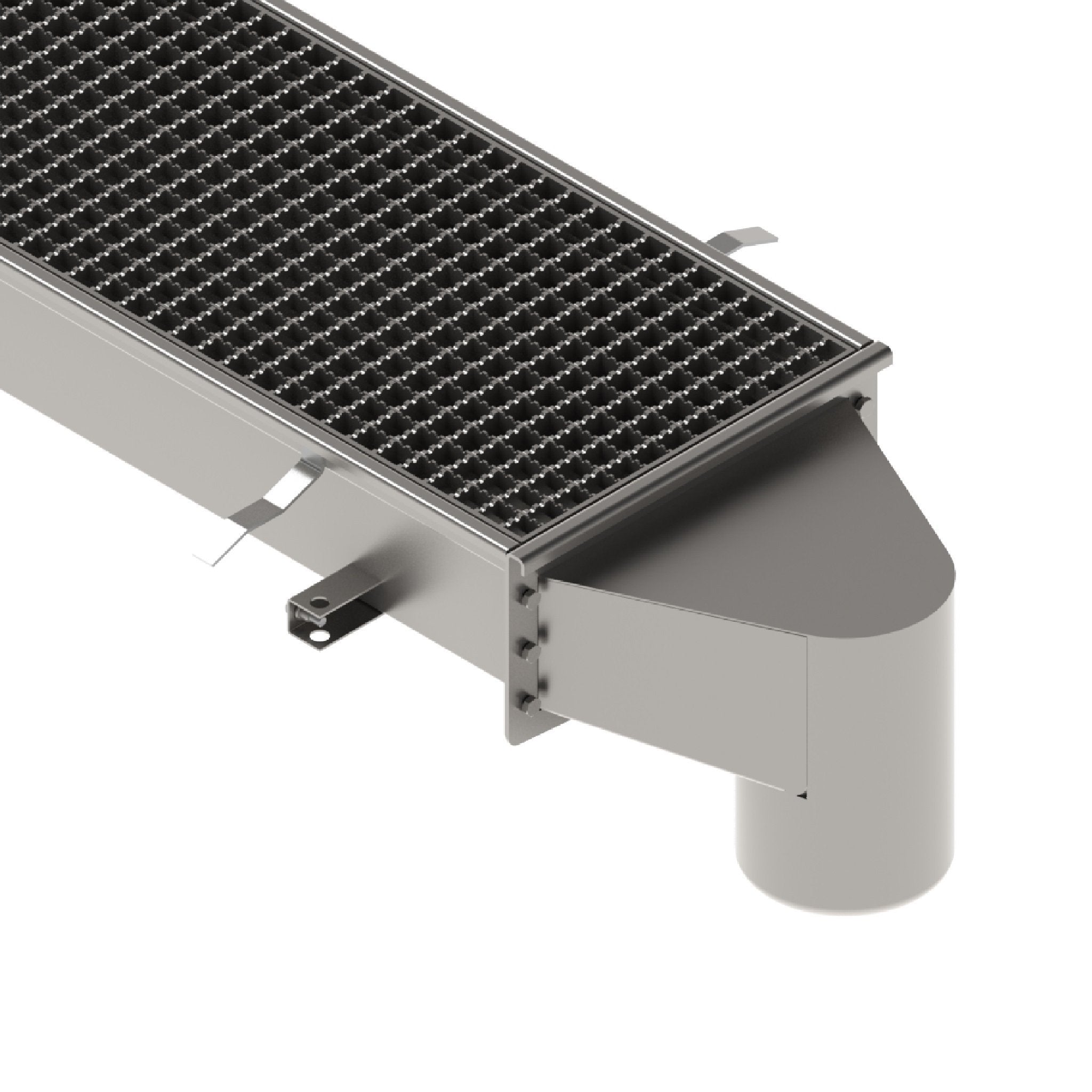

Optional Accessories: End caps and outlets, Inline Basin with 6” Bottom Outlet

Technical Resources:

Vodaland systems are designed with performance, durability, and style in mind. Our products perform under pressure, install with ease, and ship quickly. Vodaland is the dependable choice for long-term results.

** if any requests are to be made, please contact us directly, or specify in notes during checkout, we are here to completely accommodate you**
