Stainless Steel Slope INLINE Basin

Stainless Steel Slope INLINE Basin

Skip to product information
1 of 4
View full details

Product Details

  • Specifications and Downloads
  • Product Description

Specifications and Downloads

Specifications and Downloads

Make sure to choose the channel connection size to the stainless pre slope system you are working with.

  • Can also be used as stand alone basin

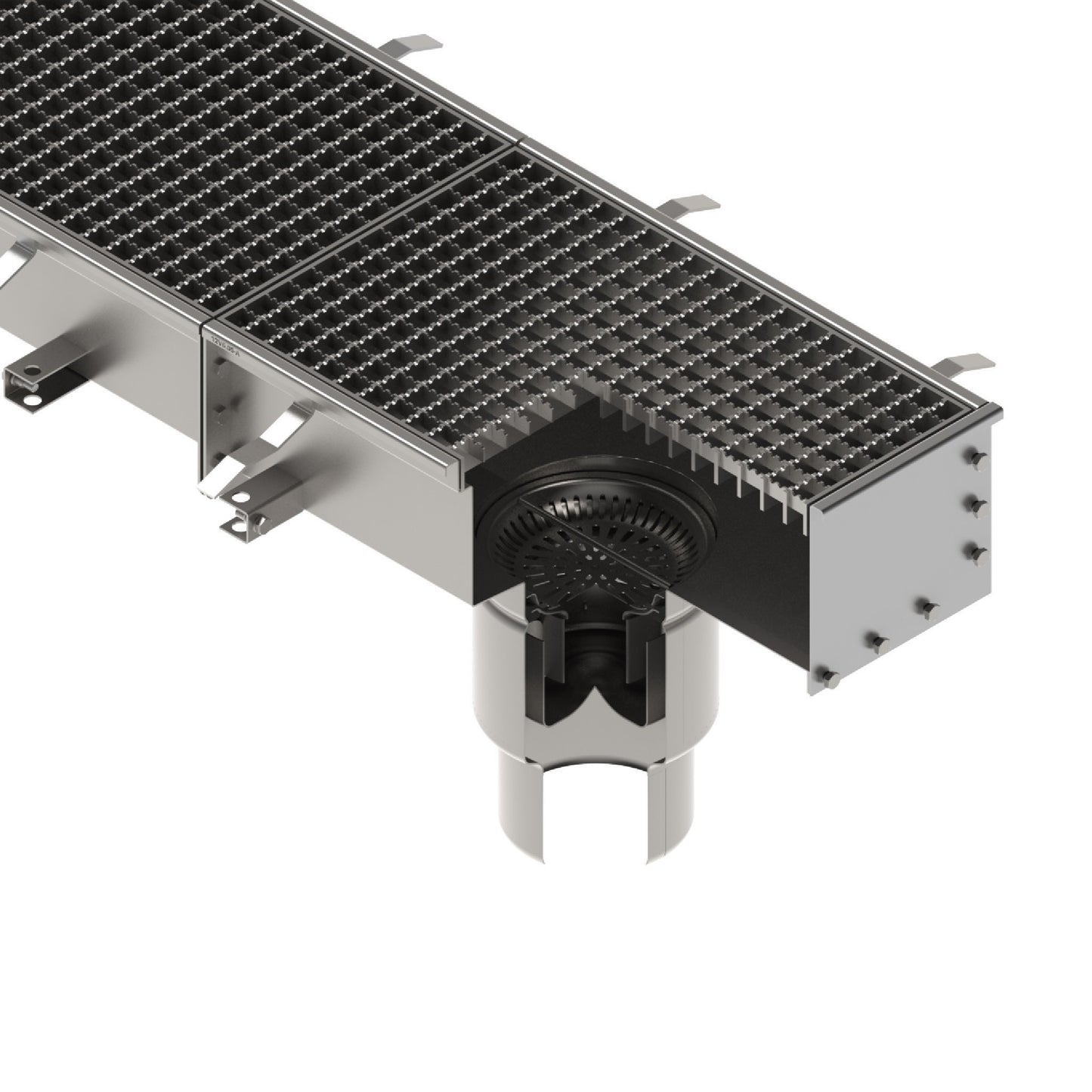

  • Comes with hydro lock to keep out gas, debris, and sediment
  • 4" bottom outlet connection
  • Reversible ADA grating with anti-slip option
  • Chemical and corrosion resistant
  • Heavy duty load rated

INCLUDED IN PACKAGE

1 - Inline basin

- 100% Stainless Steel Bolts and fasteners for connections

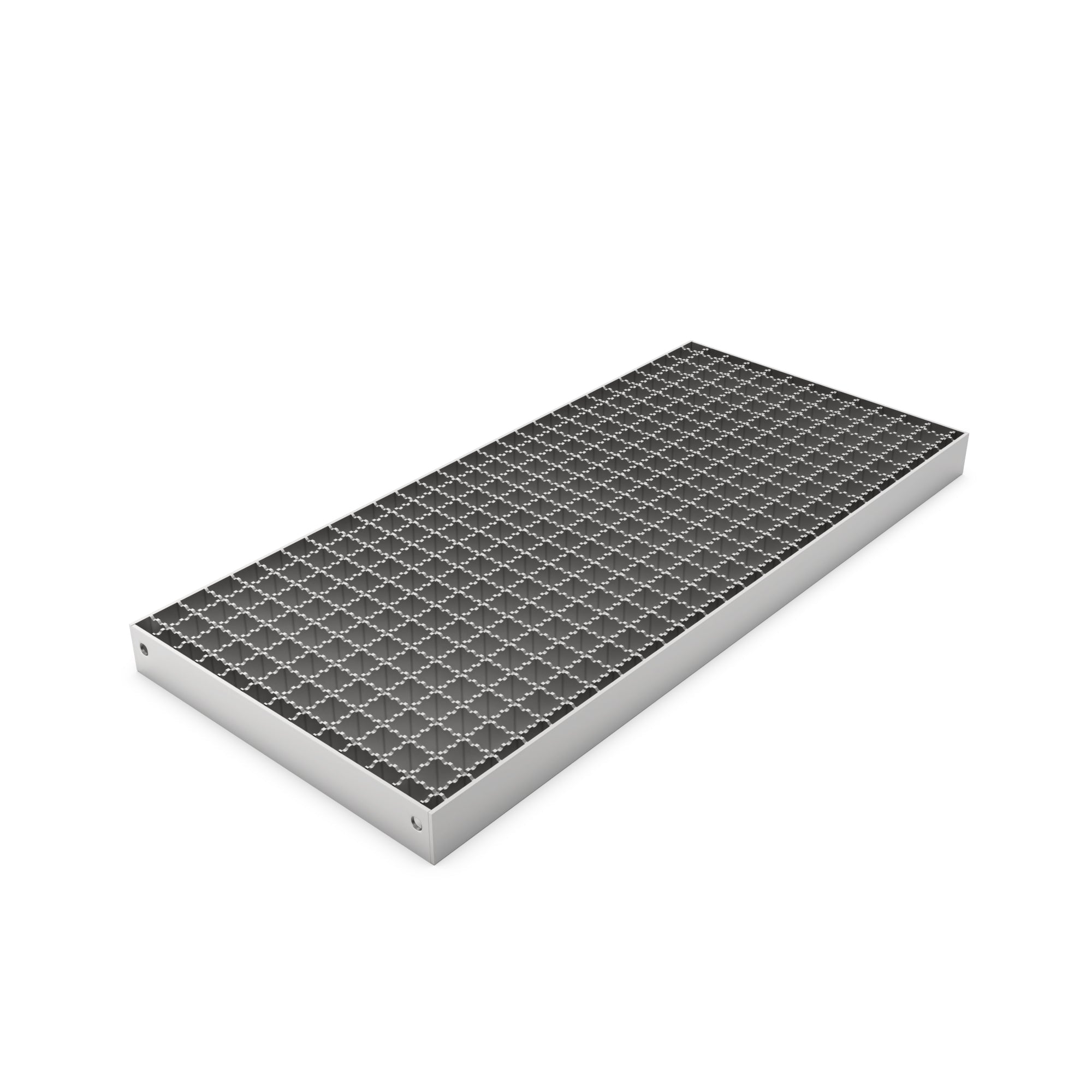

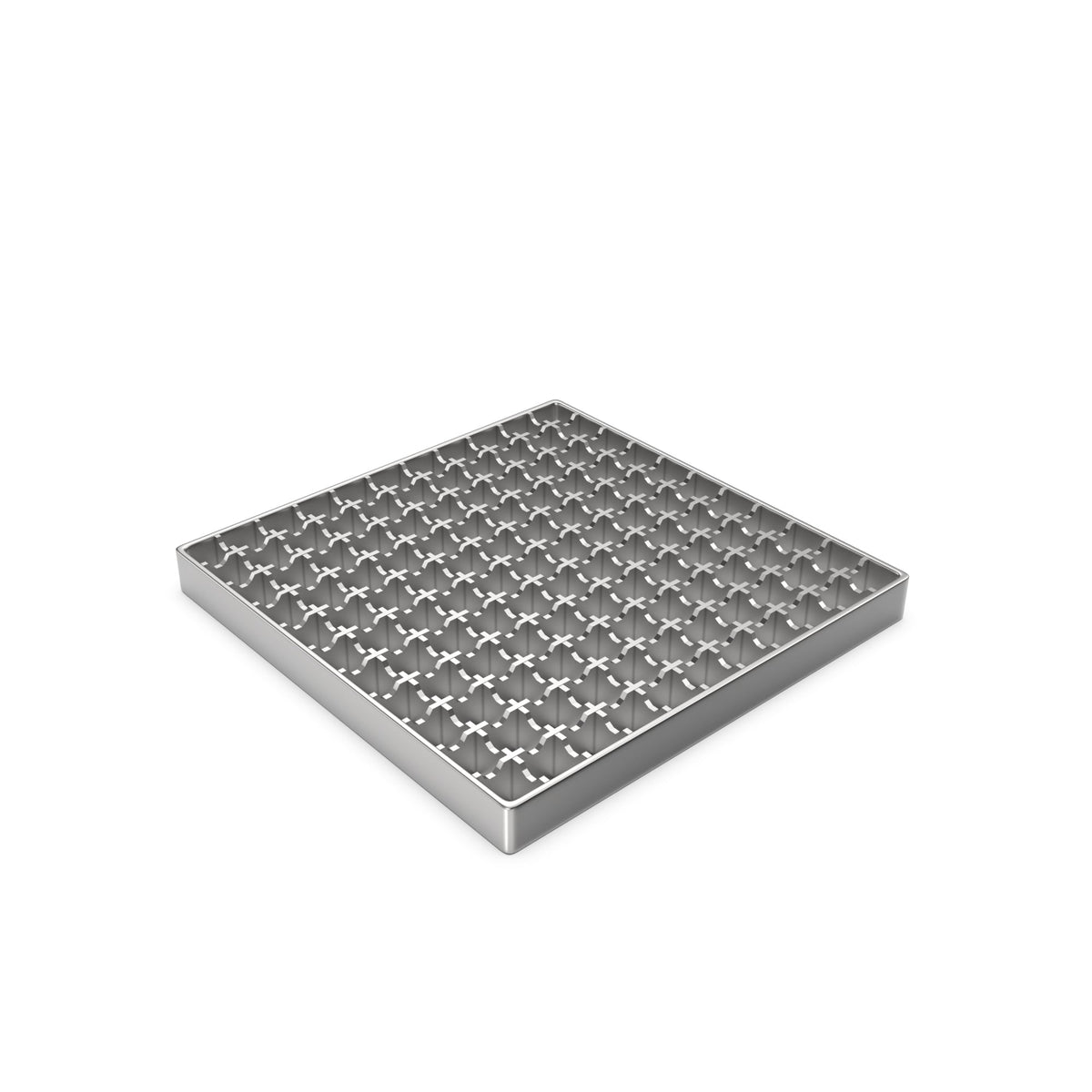

3 - 1 Unit of reversible grating (100% Stainless steel - one side is anti-slip , other side is mesh pattern as per specification sheets below)

** if any requests are to be made, please contact us directly, or specify in notes during checkout, we are here to  accommodate you**

For more product information please see product description tab above

Downloads
PDF
DWG
BIM
4 Inch Channel Basin Specification Sheet
PDF :
DWG :
8 Inch Channel Basin Specification Sheet
PDF :
DWG :
12 Inch Channel Basin Specification Sheet
PDF :

Product Description

Product Description

Stainless Steel Pre Sloped Inline Basin

This Stainless Steel Pre Sloped Inline Basin is designed to manage water while providing a clean style making it ideal for pedestrian-friendly spaces as well as demanding commercial or industrial areas.

Key Features:
Made from 304 Stainless Steel - Rust and corrosion-resistant for long-term outdoor use.
Load Class C Rated - Light to heavy duty applications.
Chemical, Corrosion, and UV Resistant - Prevent corrosion from many substances

Expanded Product Overview:

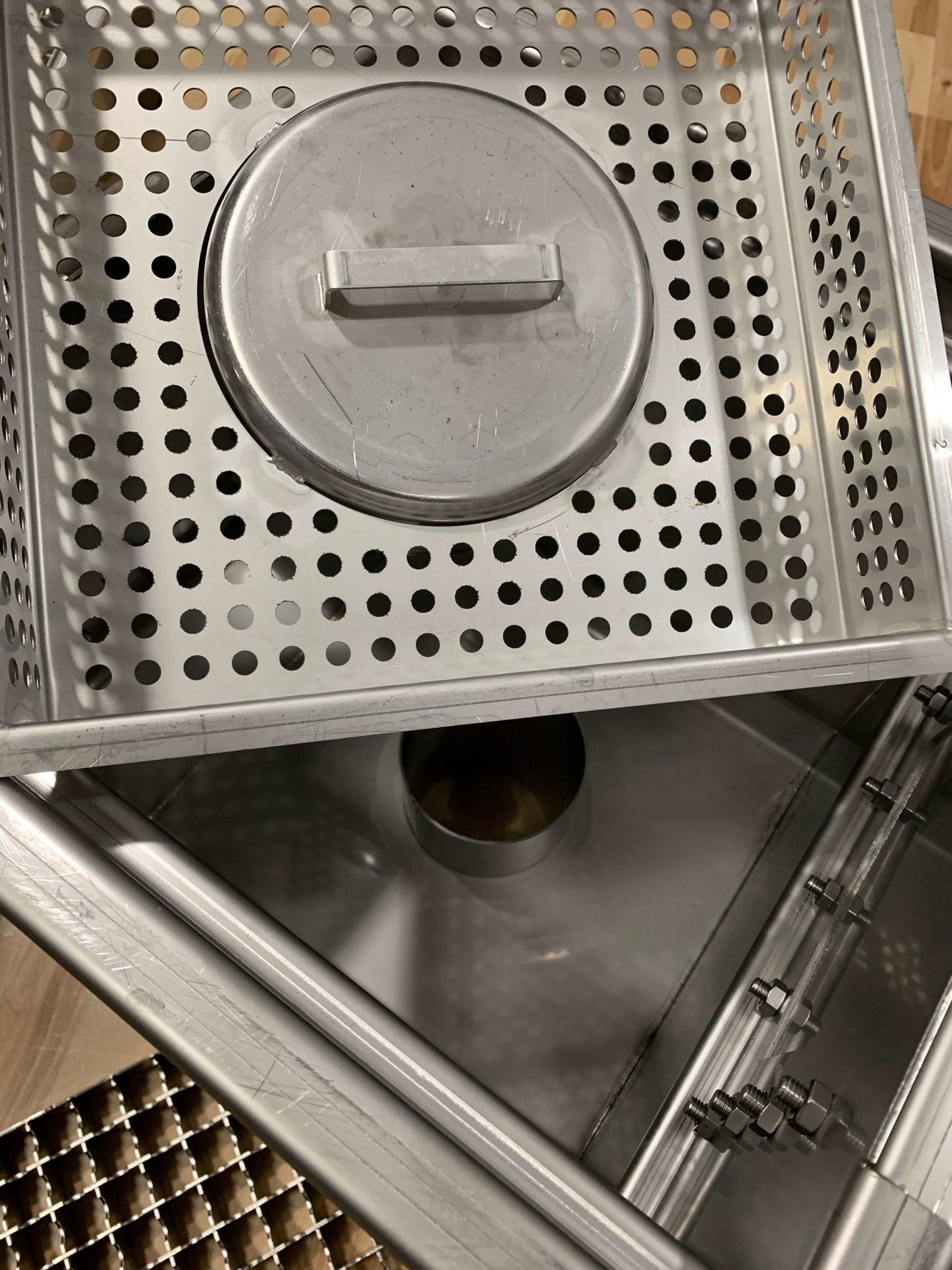

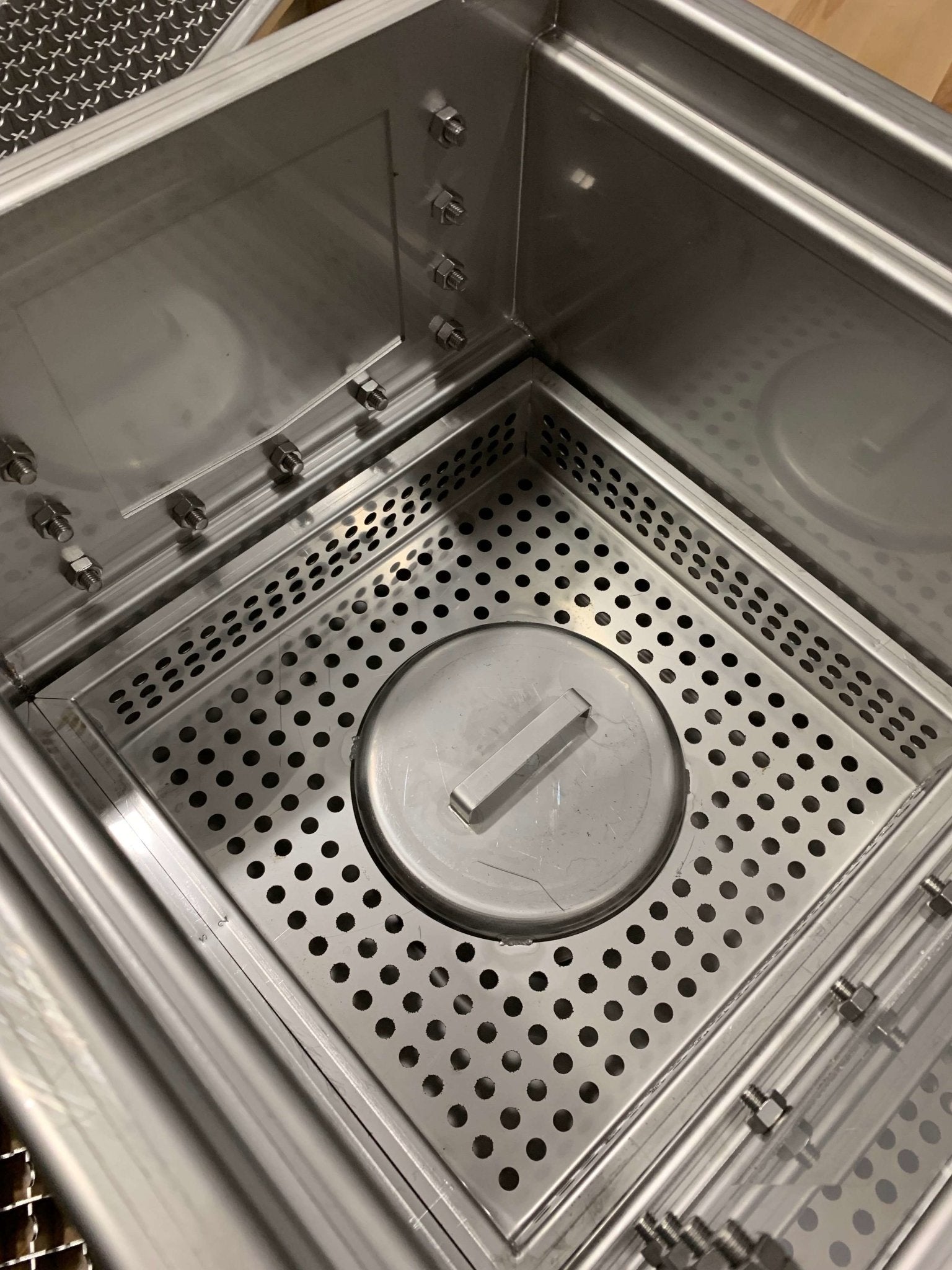

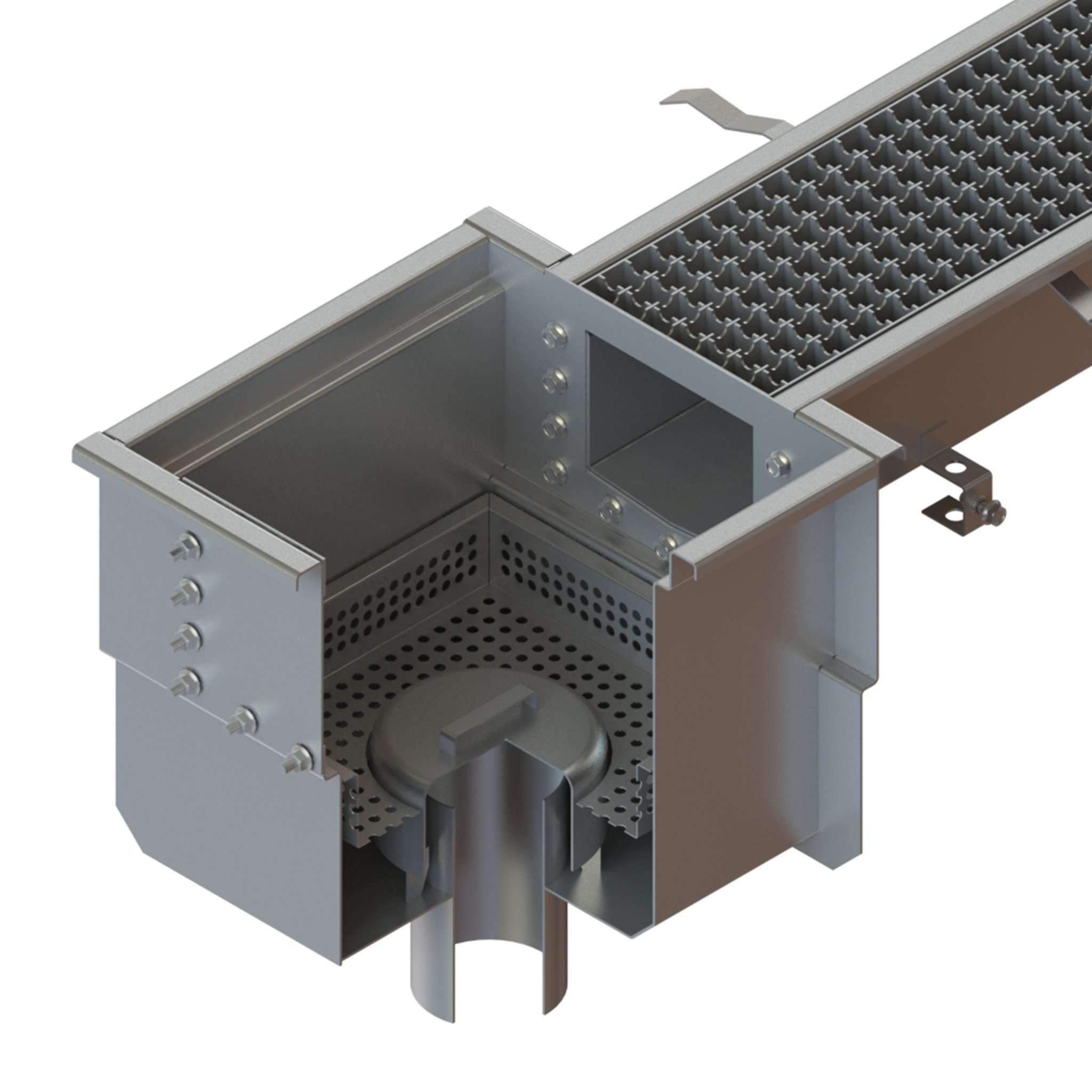

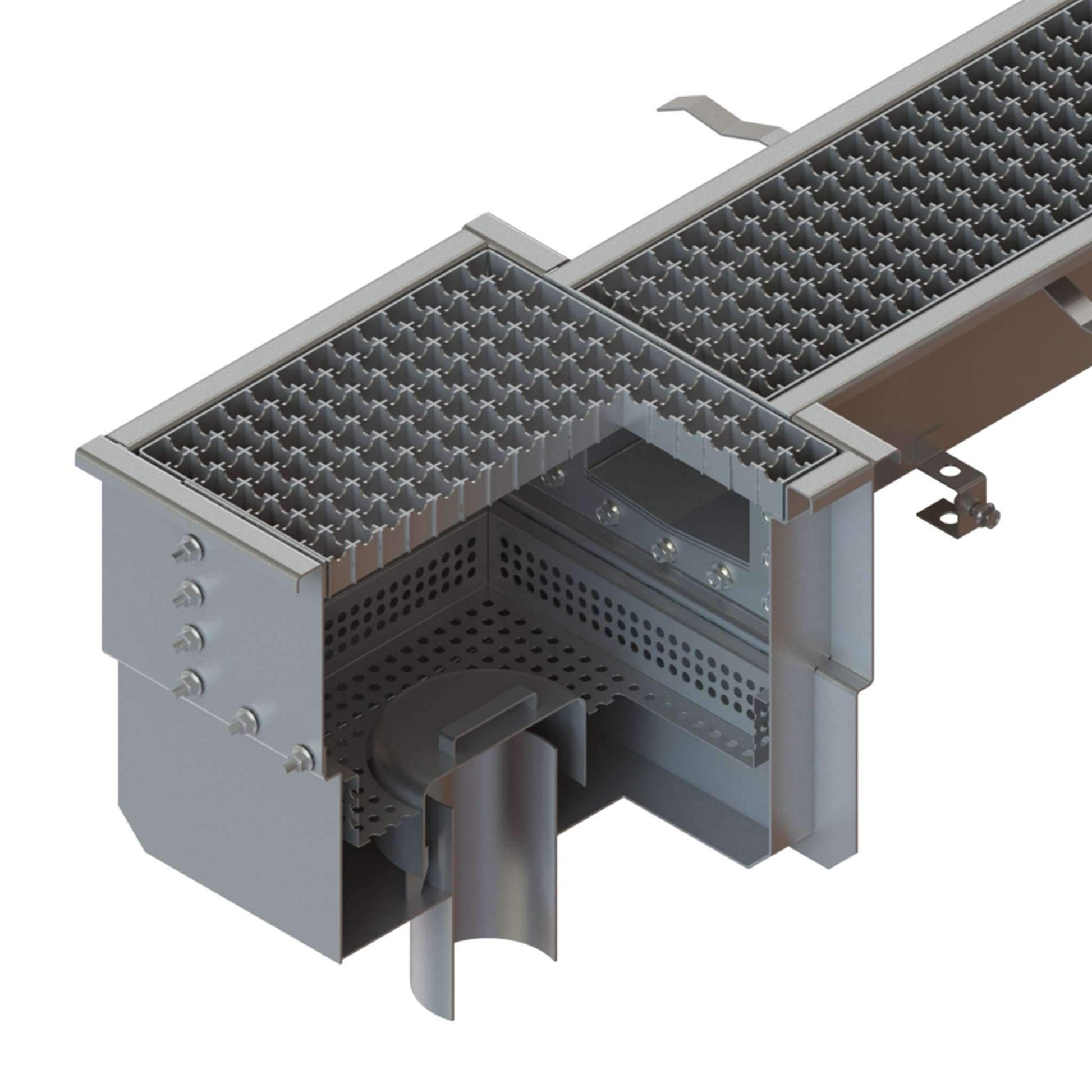

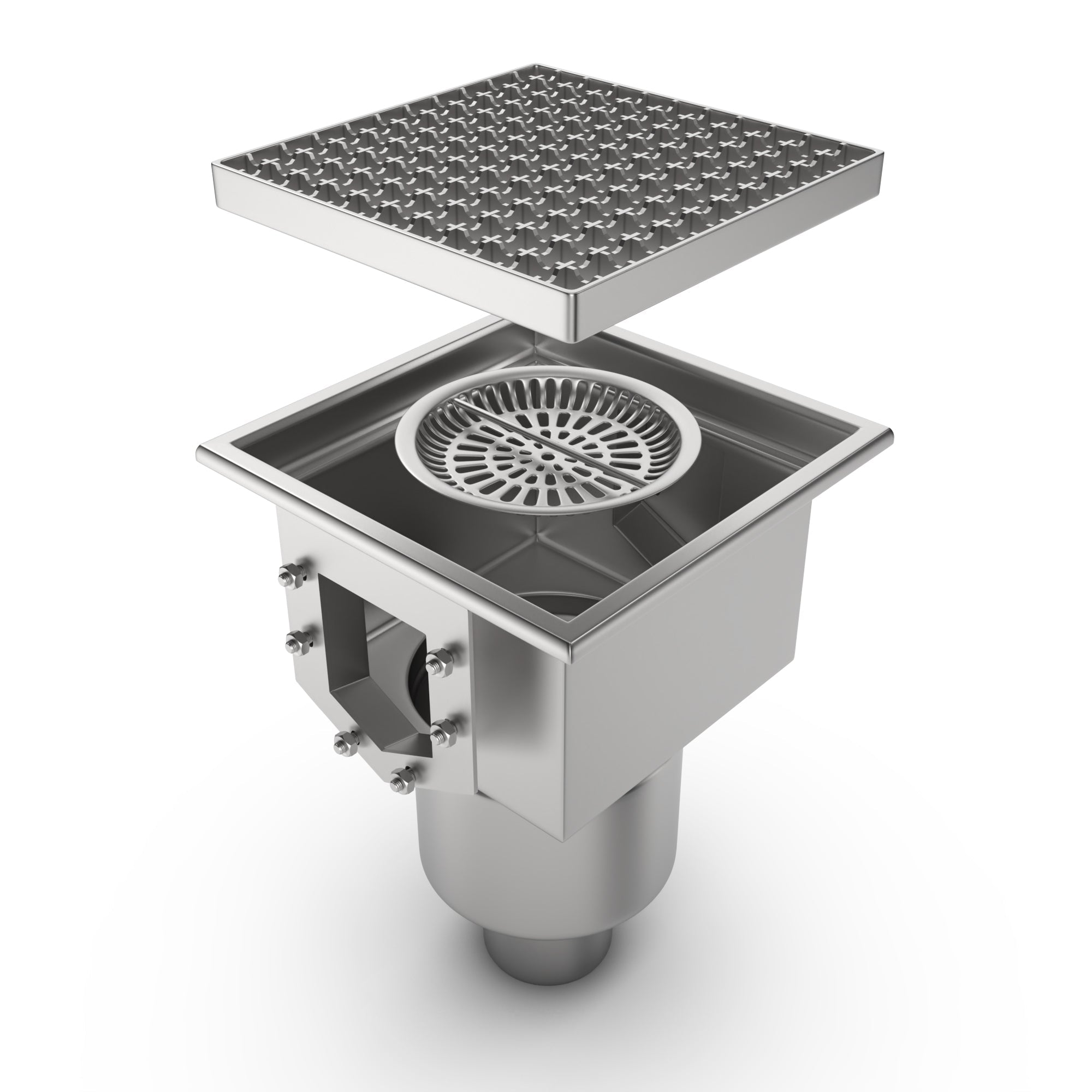

Strong, durable, and engineered for heavy use - the Stainless Steel Pre Sloped 4 Inch System delivers discreet drainage without sacrificing performance. Ideal for commercial and industrial environments. This basin features a debris basket as well as a foul air trap to ensure debris collection and odor prevention. Its simple grate
openings capture water efficiently while maintaining a clean, modern aesthetic. Made from high-quality materials for strength and durability, the Stainless Pre Sloped System is the go-to solution for subtle surface drainage that you can rely on.

Common Applications:
Kitchens and Food Processing Plants
Wineries
Sanitary locations

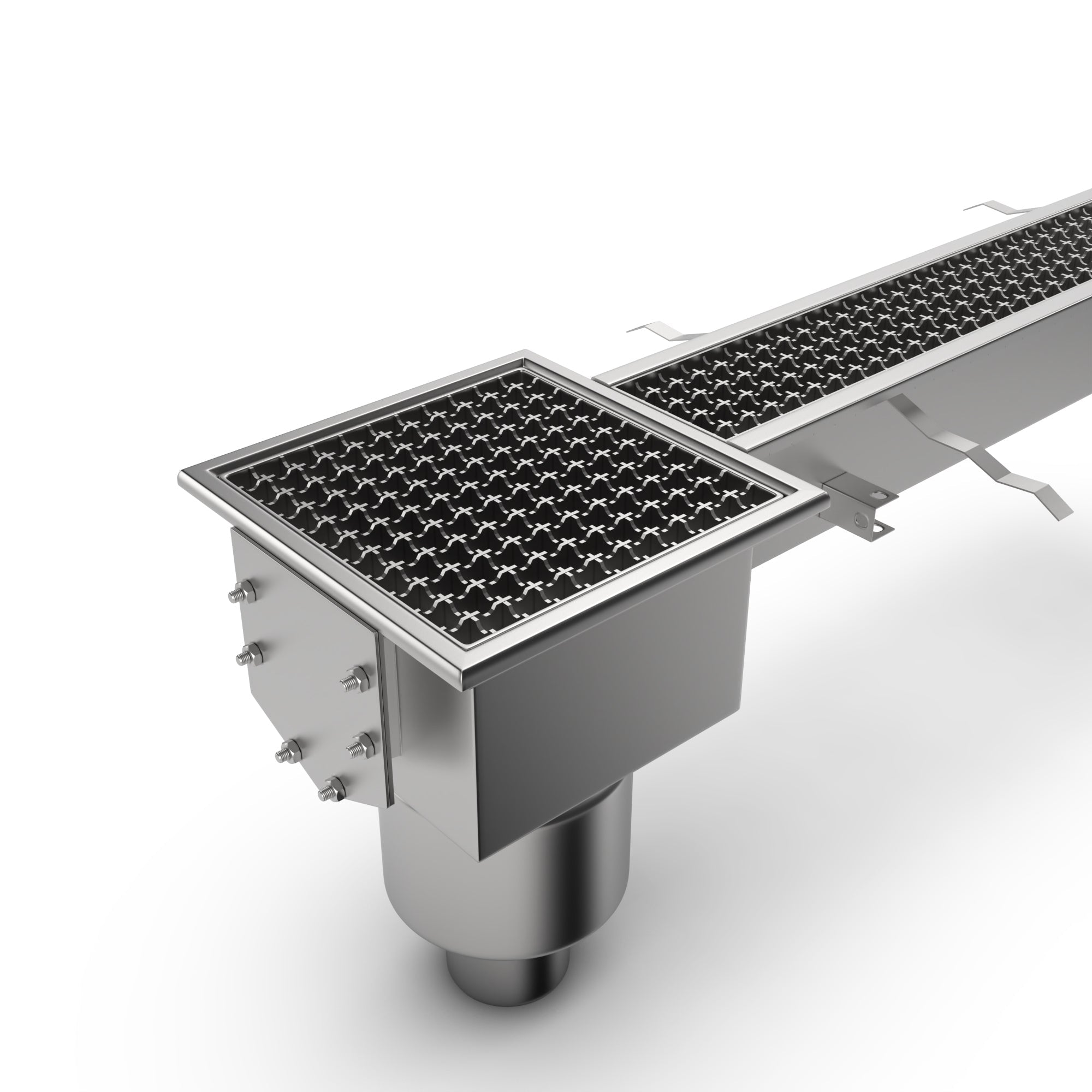

Technical Specifications - 4 Inch Basin:
Material: 304 Stainless Steel
Length: 11.875”
Width: 11.875”
Height: 13.625”
Load Rating: C Class (Heavy Duty)

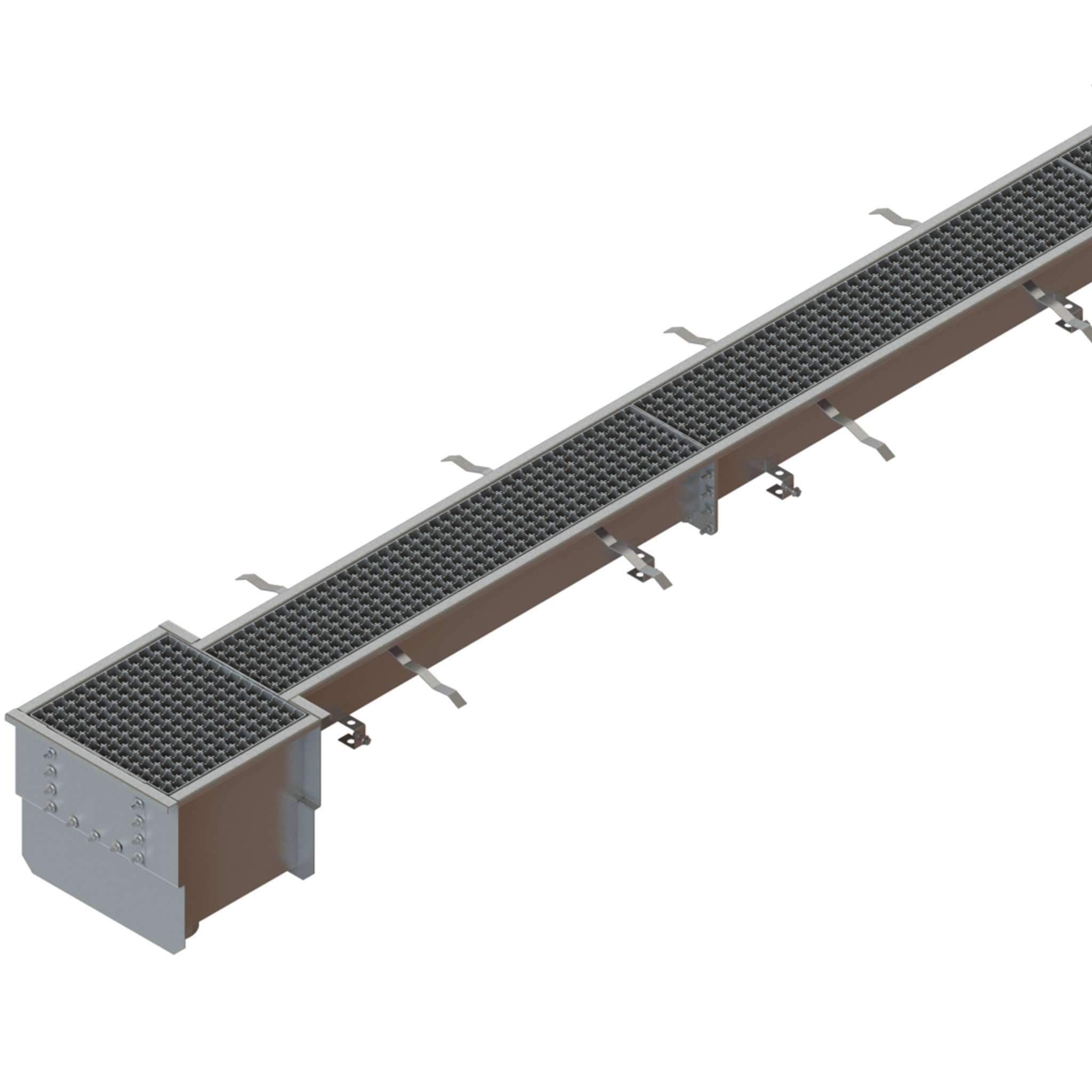

Compatible System: Stainless Steel Pre Slope System 2 Inch, Stainless Steel Pre Slope System 4 Inch

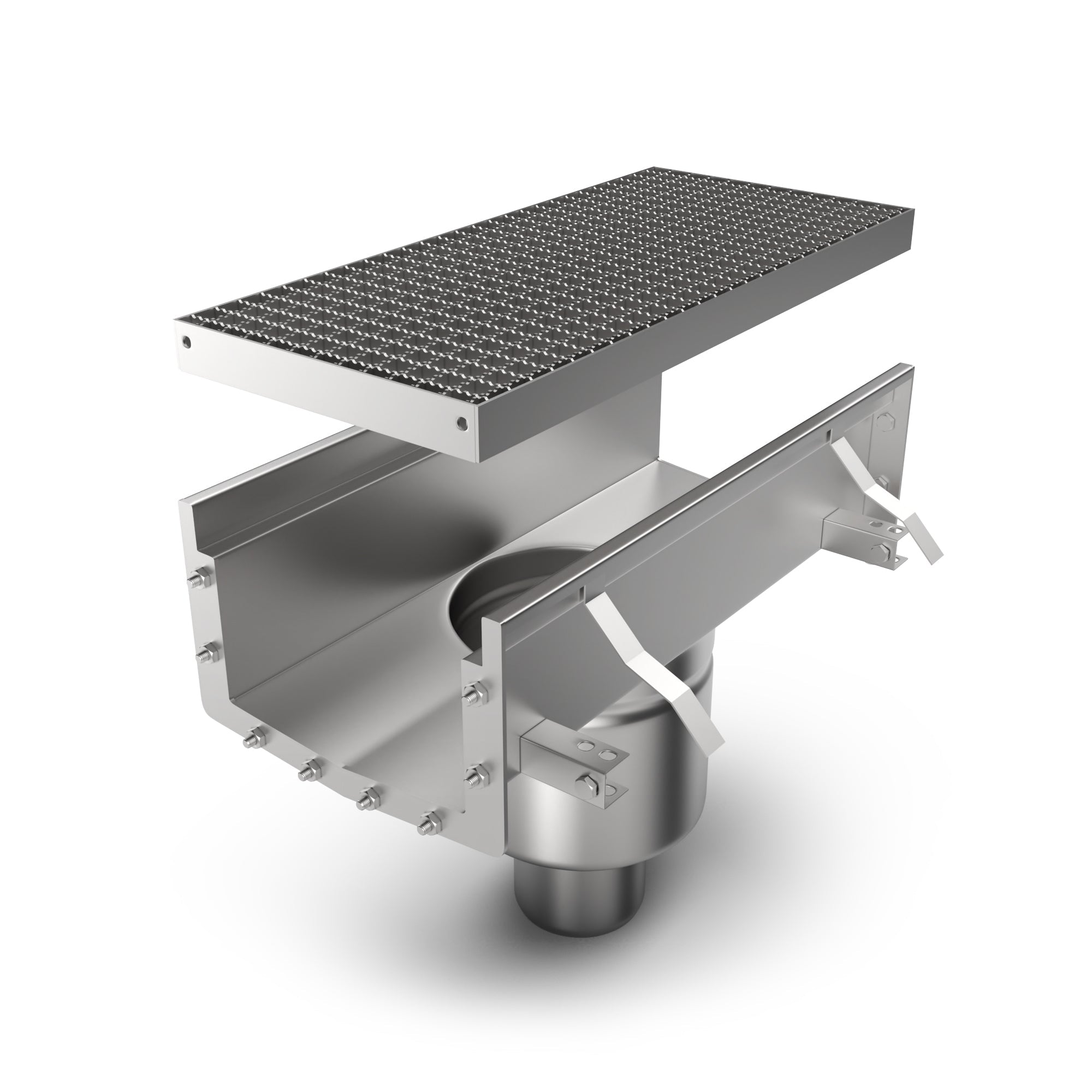

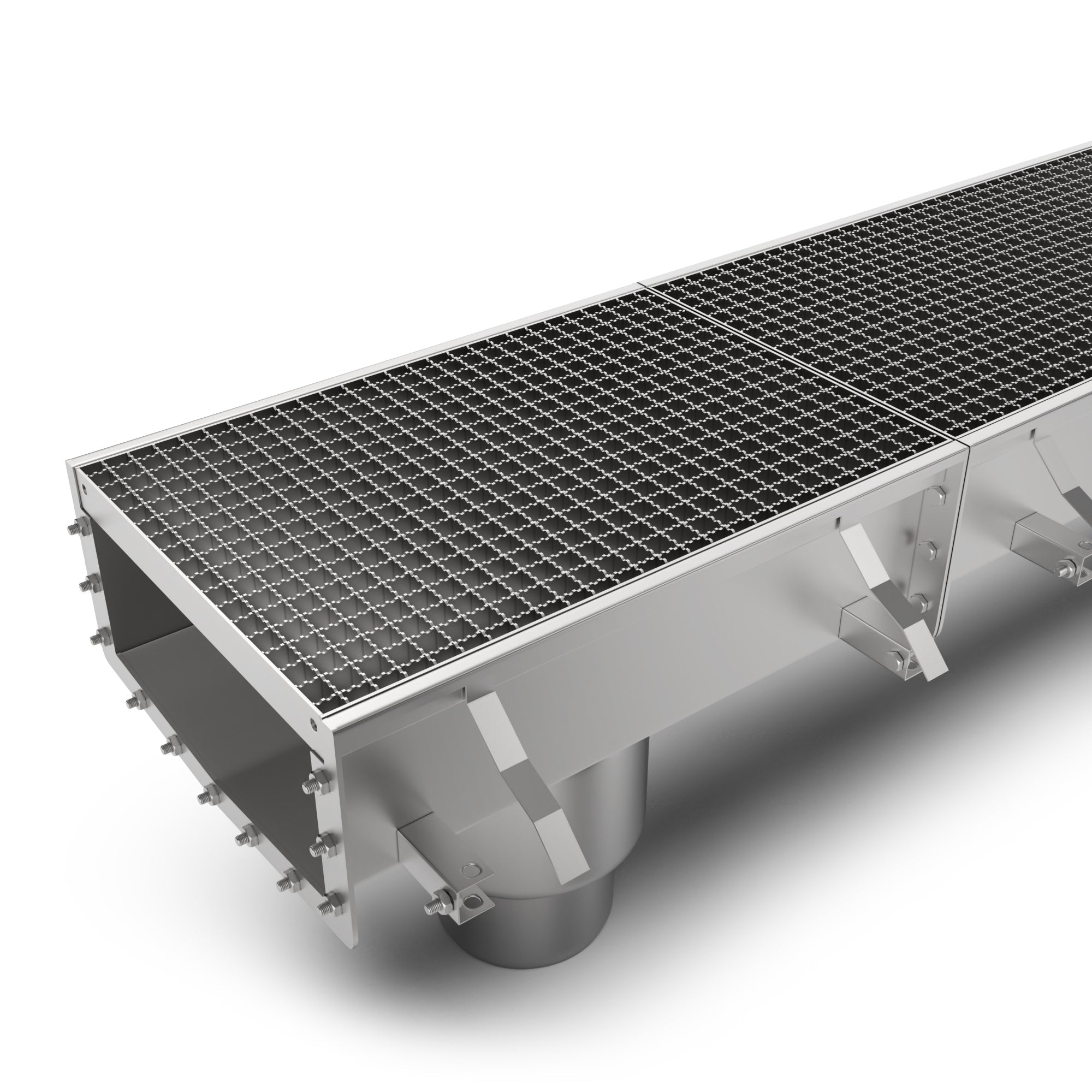

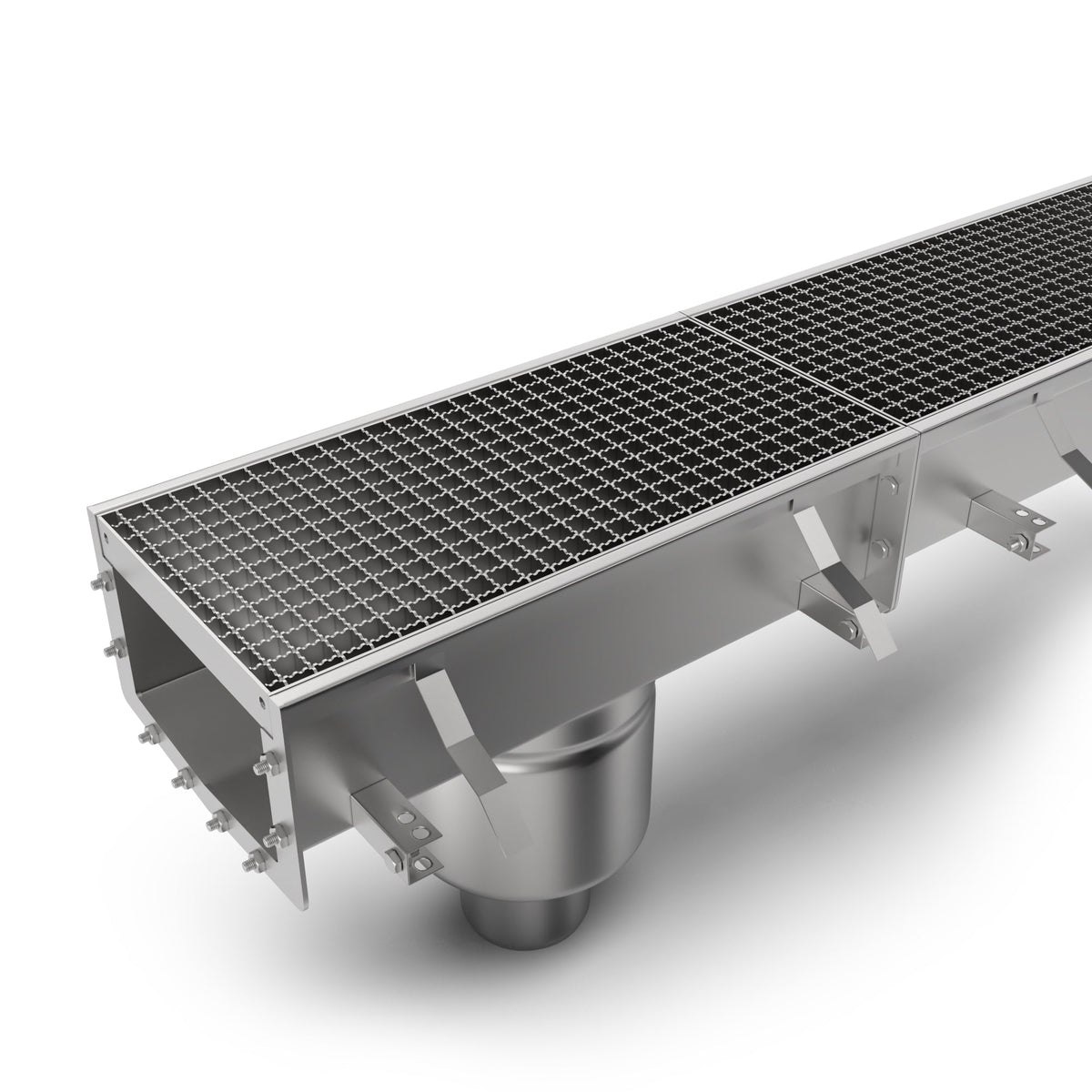

Technical Specifications - 8 Inch Basin:
Material: 304 Stainless Steel
Length: 19.625”
Width: 10.25”
Height: 12.25”
Load Rating: C Class (Heavy Duty)
Compatible System: Stainless Steel Pre Slope System 8 Inch
