Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

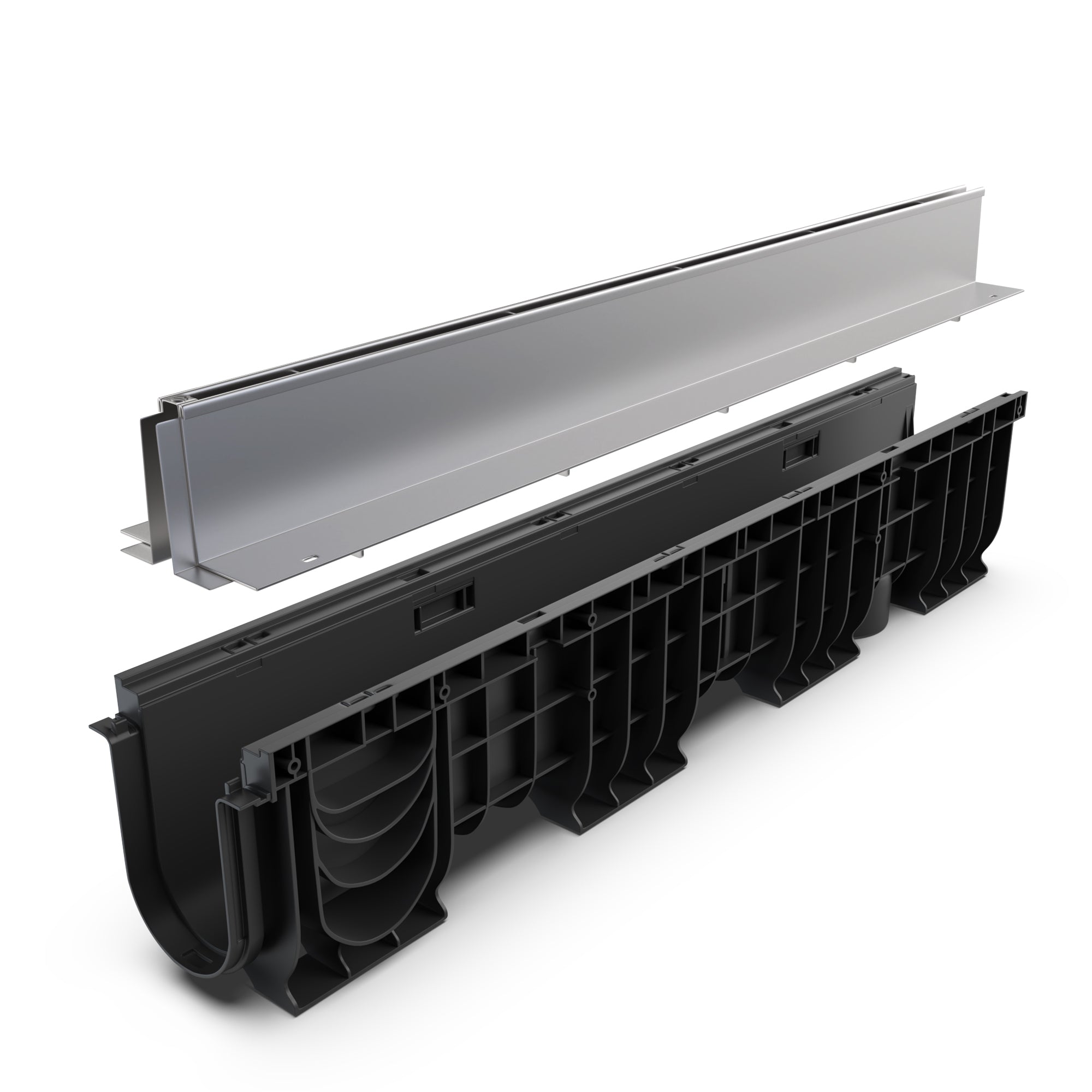

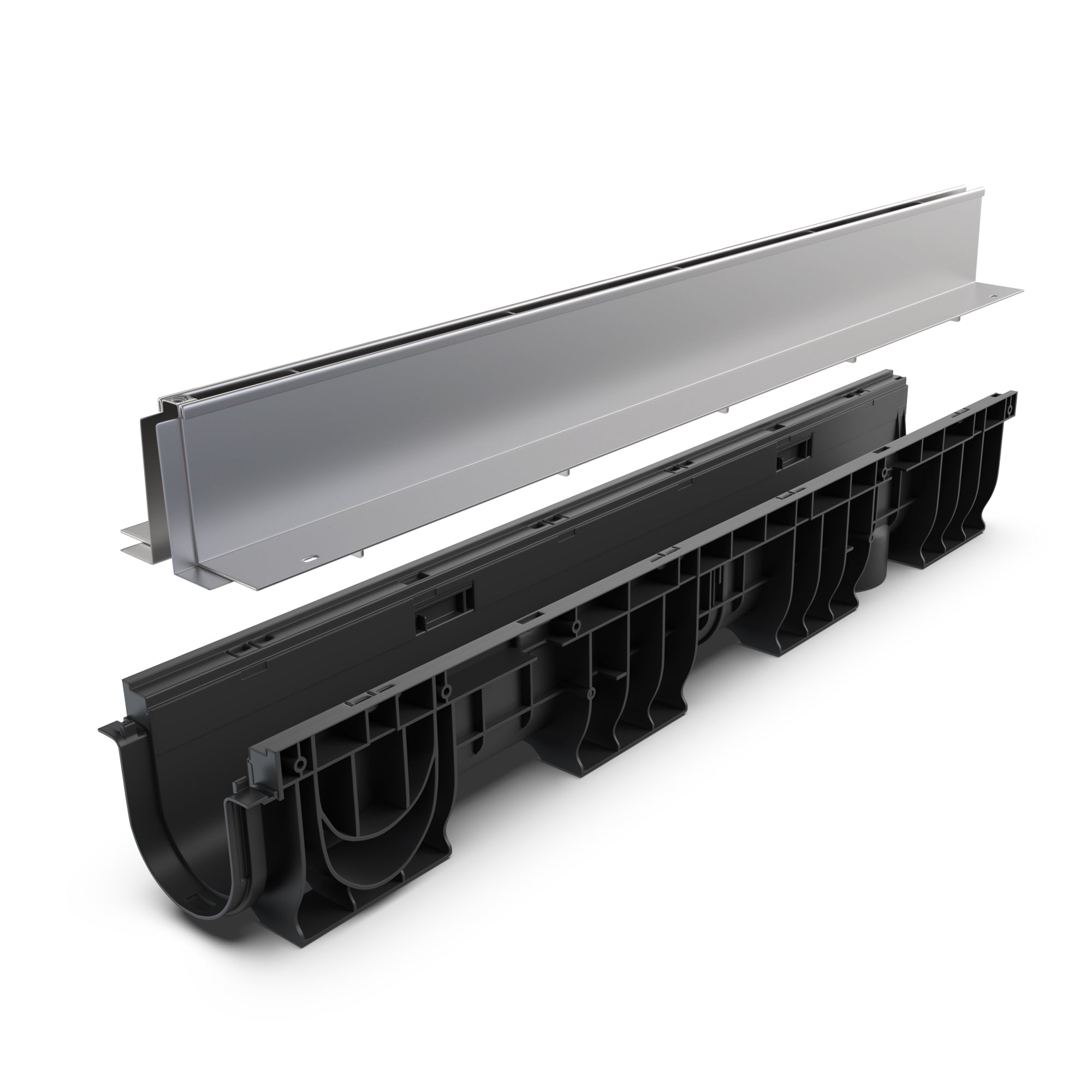

  • 5/8" Opening with multiple channel depth options
  • 4" Height of slot grate in addition to channel depth
  • Stainless steel is chemical and corrosion resistant
  • Excellent for paver, tile, and concrete pour installations
  • Used in driveways, pools, patios, and heavy traffic areas
  • ADA / Heel Proof cap available as addition for debris protection

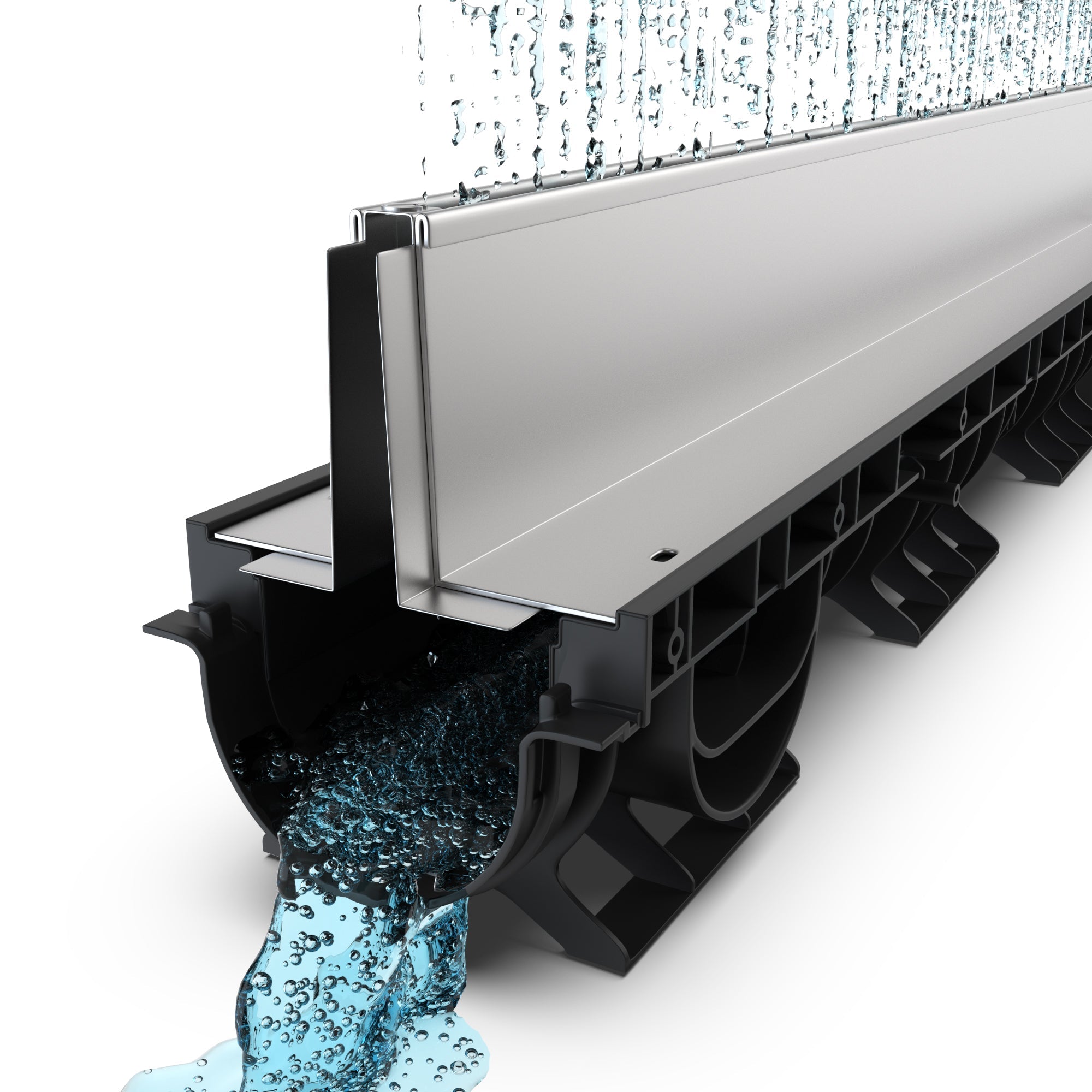

  • Perfect for high water volume with little surface area coverage

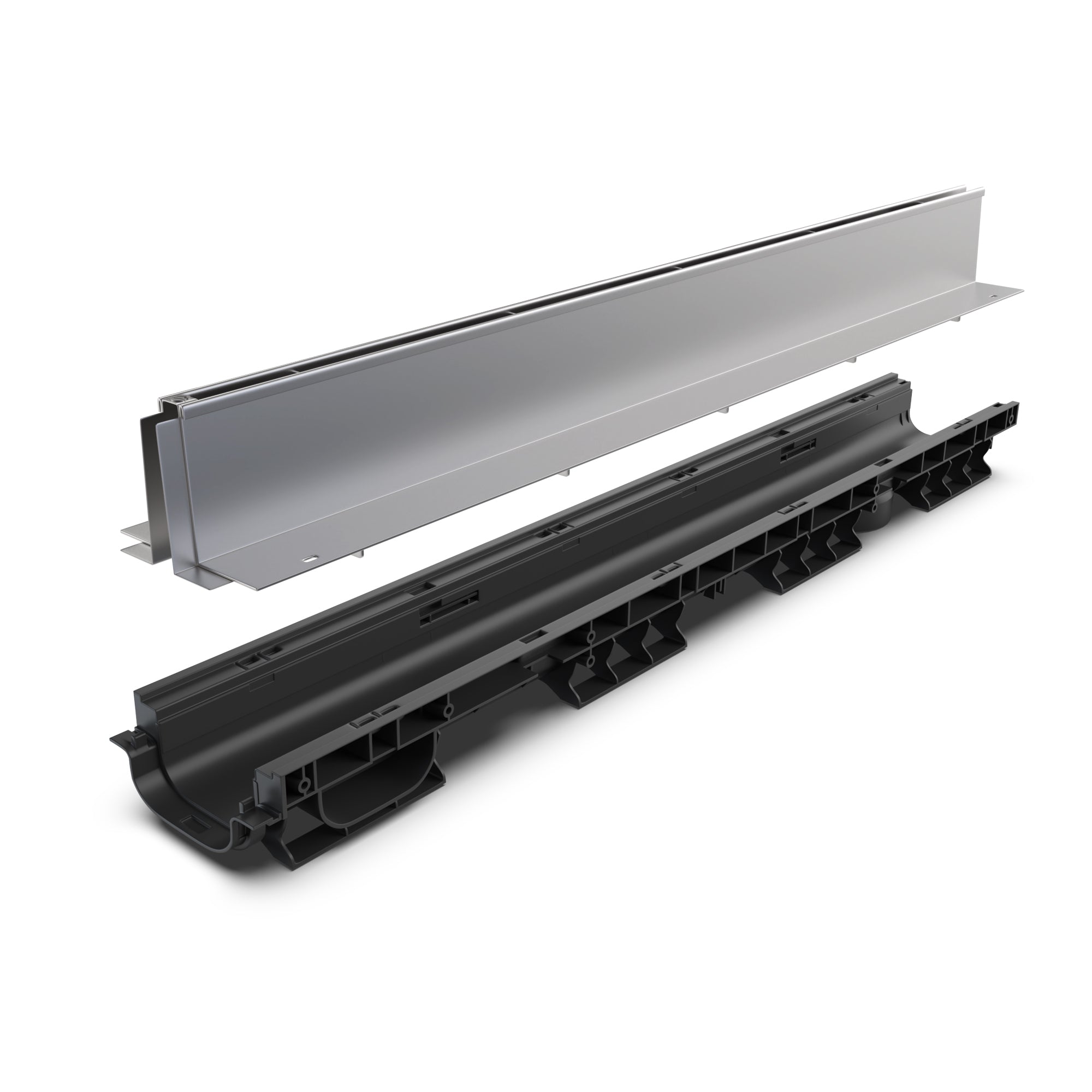

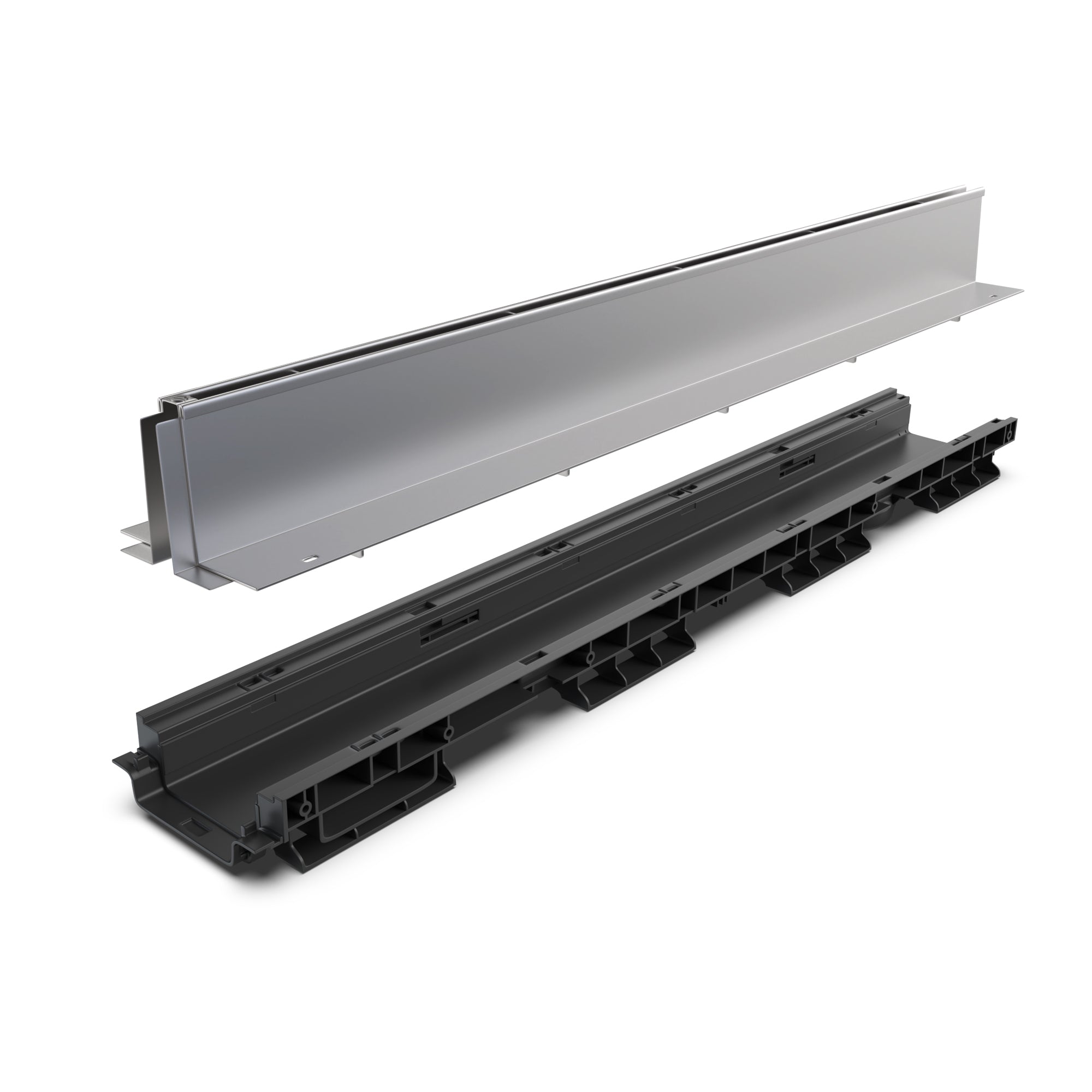

INCLUDED IN PACKAGE

- Channel depth of choice

1 - Heavy duty stainless steel slot grating

For more product information please see product description tab above



Downloads
PDF
DWG
BIM
Grating Specification
PDF :
DWG :
Pre-slope Specification Sheet
PDF :
BIM :
2" Channel Neutral
PDF :
DWG :
3" Channel Neutral
PDF :
DWG :
4" Channel Neutral
PDF :
DWG :
6" Channel Neutral
PDF :
DWG :
8" Channel Neutral
PDF :
DWG :
Installation Guide
PDF :
Supplemental Installation Guide
PDF :

Product Description

Product Description

Stainless Steel Slot Drain System | A-D Load Class |

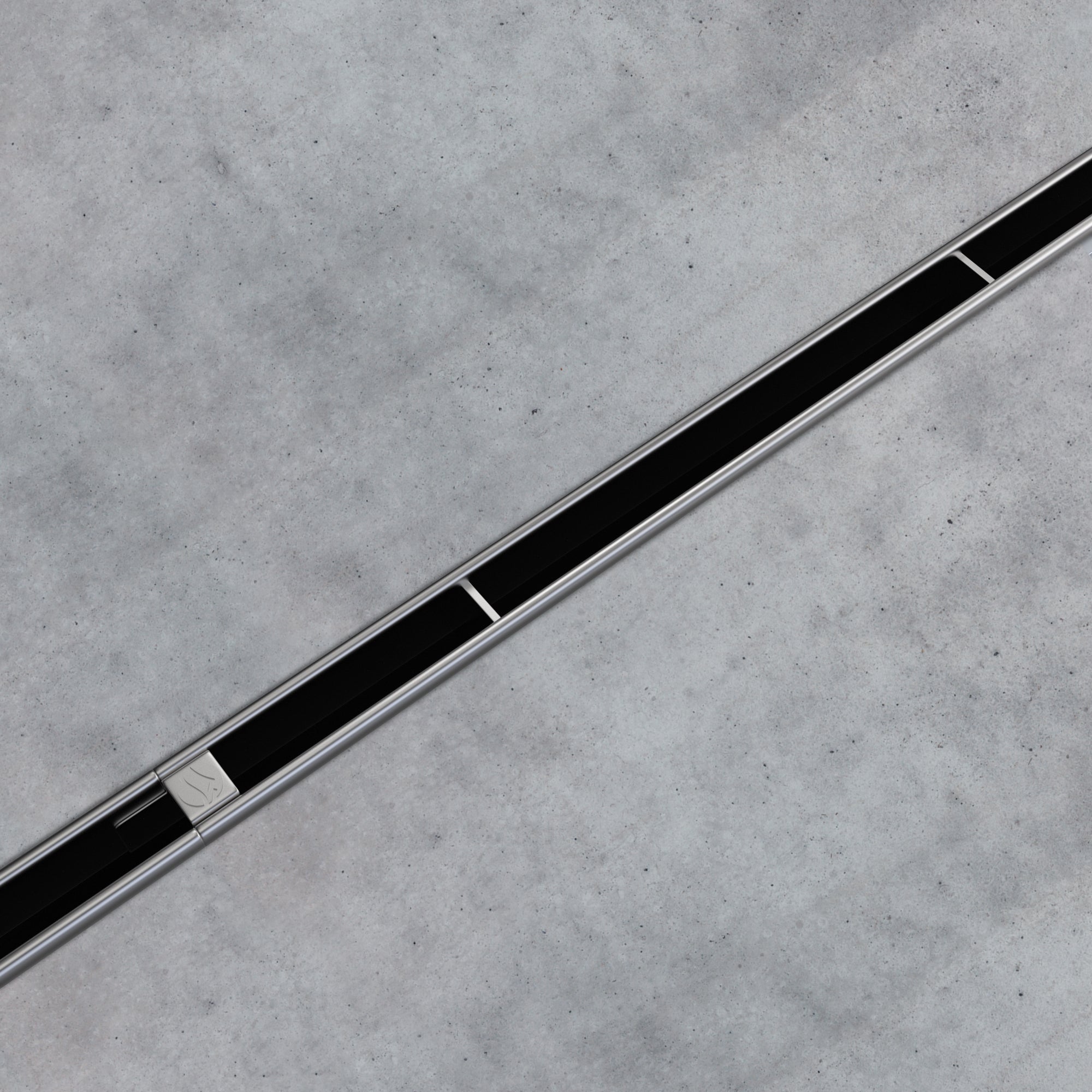

Vodaland designed the Stainless Steel Standard Slot System to provide a modern and low profile finish, as well as durable and corrosion resistant material made system. A surface level slot drain system that serves such aesthetic is excellent for pool side, patios, porches, and more.

Key Features:
304-Grade Stainless Steel - Provides durability and corrosion resistance
ADA Compliant - Ensures safety for both residential and commercial applications
A-D Load Class Rated - Can withstand up to 89,000 LBS per EN 1433 (400KN)
Compatible with any 4” Base Plastic Channel Drain
Slot Grate Cover - ADA/Heel Proof cover for additional safety and debris protection

Expanded Product Overview:
The Stainless Steel Standard Slot System is an excellent drainage system that allows you to have a modern and low profile finish. A system that offers compatibility with Vodaland’s 4” Channel Drain System. Allowing you to have options for both Pre Slope or Neutral drainage systems.

A durable and chemical resistance system that is made out of 100% 304-Grade Stainless Steel material. Perfect system for both residential and commercial applications that is also ADA compliant (American with Disabilities Act), suitable for pools, patios, walkways, and even driveway projects as it can also withstand up to 89,000 LBS (A-D Load Classification).

Common Application:
Patios
Pool
Porches
Driveways
Any Commercial Application

Technical Specifications:
Material: 304-Grade Stainless Steel Grate
Channel Length: 3.3 FT (39 Inches)
Slot Width: 5/8” Internal & 1” External
Slot Grate Height: 3 ⅞” Inches
Load Class: A-D Load Classification (per EN 1433)

Vodaland delivers reliable and high performance water solution systems. From the design that suits your needs to a system that exceeds your expectations. Backed by expert engineers and trusted professionals nationwide. Systems that are designed and certified to meet the demands of every project so you can build with confidence.
