Worn and Torn - 4" PRO Channel
Worn and Torn - 4" PRO Channel
- Scratched, dirty or damaged but functional
- 50% off!
- No Returns / Non-Refundable
- Limited Quantity
- Sold as is
- Scratched, dirty or damaged but functional
- 50% off!
- No Returns / Non-Refundable
- Limited Quantity
- Sold as is
FAQ’s

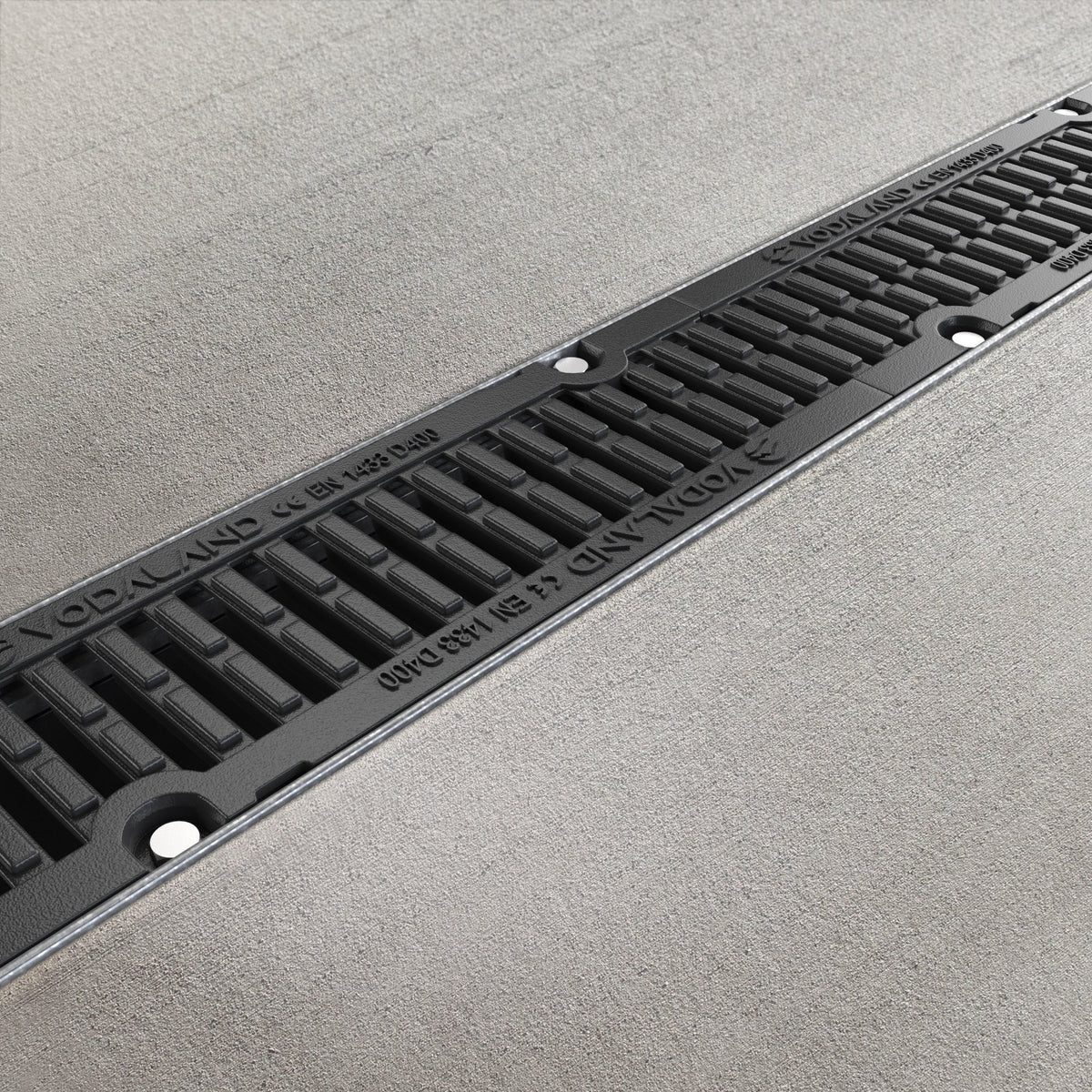

3D Model of our 4" PRO Channel System
Zoom in, out, and rotate to see our channel system at all angles. This 3d render is currently showing our 8 inch channel depth option.
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads
Attention customers: Please be advised that the products available for sale in this area may exhibit signs of damage, dirt, scratches, or previous use, but remain fully functional and usable. These items are being sold at a discounted rate and are offered on an "as is" basis with no exceptions. Kindly note that these products are non-returnable. We appreciate your understanding
- 4" internal width - reinforced trench drain system
- Extreme heavy duty load class for all traffic ratings
- Galvanized steel reinforced system with bolt down gratings
- Heavy Duty Ductile Cast Iron Grating
- 4" PVC or corrugated pipe outlet option out of the bottom
INCLUDED IN PACKAGE
- Channel Depth of your choice with Ductile Cast Iron Grates.
For more product information please see product description tab above
Product Description
Product Description
Attention customers: Please be advised that the products available for sale in this area may exhibit signs of damage, dirt, scratches, or previous use, but remain fully functional and usable. These items are being sold at a discounted rate and are offered on an "as is" basis with no exceptions. Kindly note that these products are non-returnable. We appreciate your understanding
4 inch internal Pro Channel is 39 inches in length and will withstand heavy load ratings for your project. Furnished with bolted in ductile cast iron grate, side steel reinforcements and tongue and groove connections for easy installation.
PARAMETERS
Article Numbers
0802013043 - 8" Channel Depth
0801513043 - 6" Channel Depth
0801213043 - 4" Channel Depth
0801013043 - 3" Channel Depth
0800613043 - 2" Channel Depth
Material ........ PPE - Galvanized Steel - Ductile Cast Iron
Dimensions .. 39.4"L x 6.3"W
Weight .......... Dependent on Depth selected - check Spec sheet
Load Class ... D400 Load Class - 88,000 LBS
FEATURES
- Side Steel Reinforcements
- Bolted Down Ductile Cast Iron Grating
- Side and Bottom PVC Knockouts
- Right 90 Degree Turns on both ends of the channel
INCLUDED IN PACKAGE
- Channel Depth of your choice with Ductile Cast Iron Grates.
COMES WITH TWO END CAPS
