20" MEGA Channel

20" MEGA Channel

Skip to product information
1 of 4
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

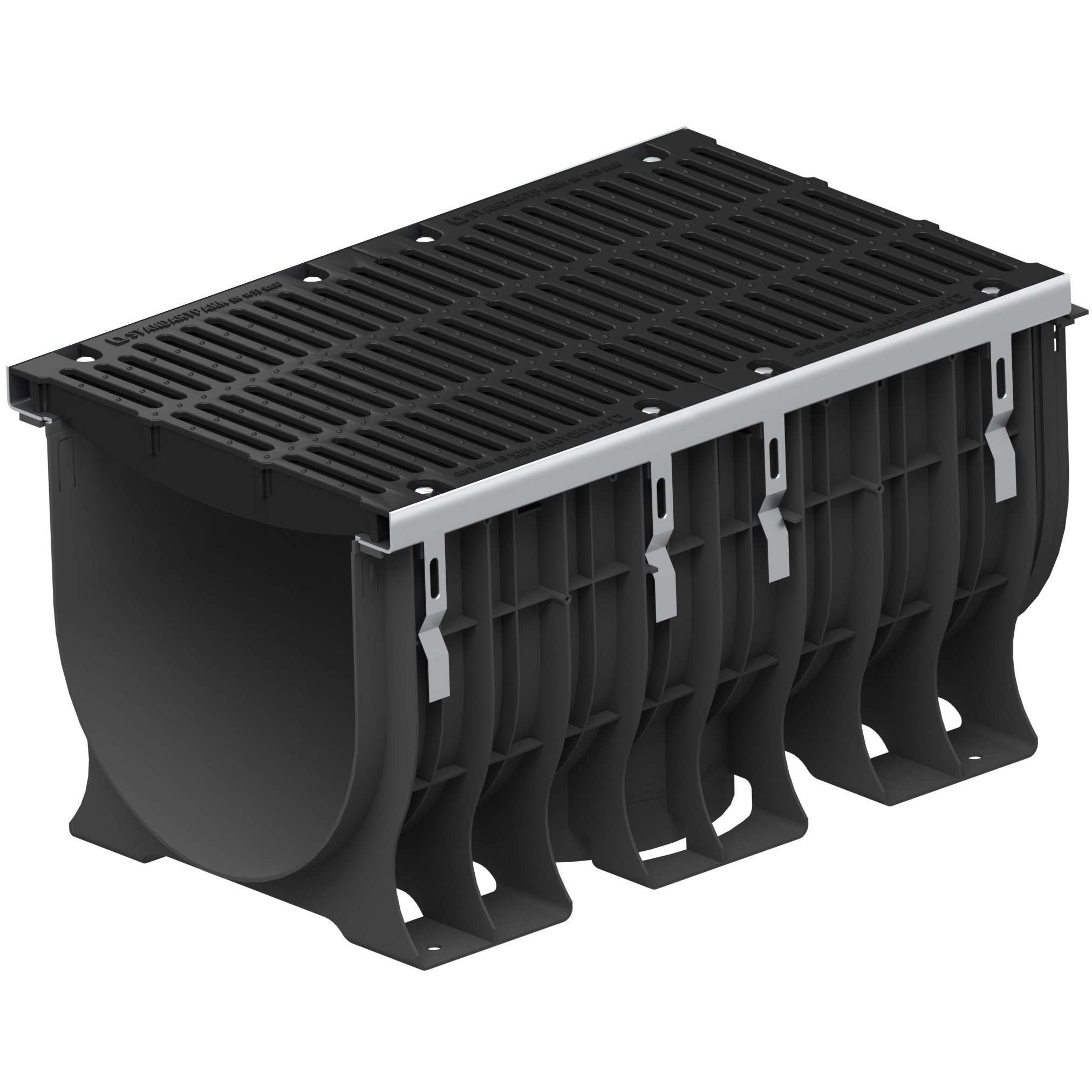

  • 20" internal - 24" external trench drain system

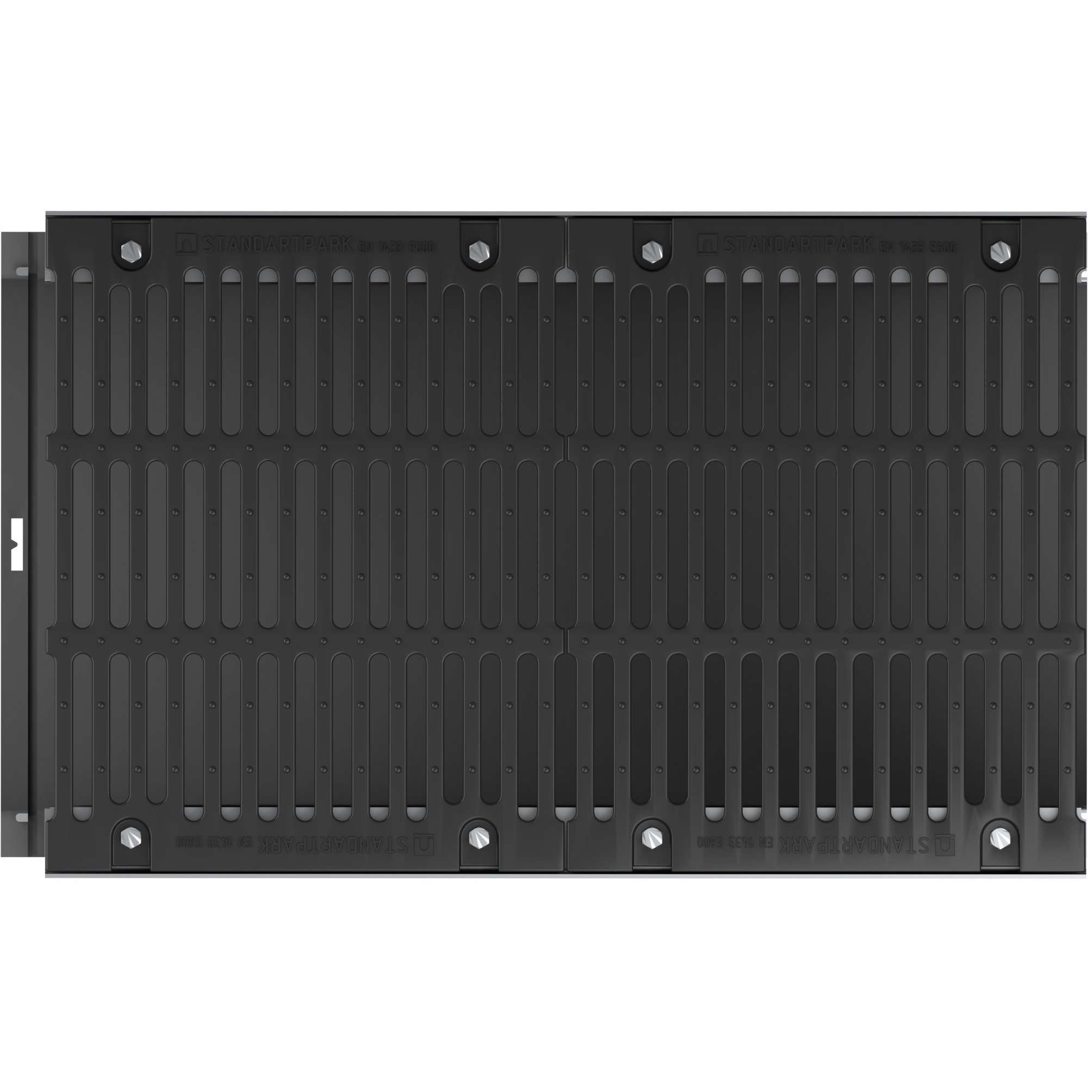

  • Galvanized reinforced rails with heavy duty cast iron grating.
  • E Class - extra heavy duty load rated system
  • Tongue and snap connection to create longer runs
  • Outlet options off the end cap as well as under the system
  • Slide and lock connection for secure installation

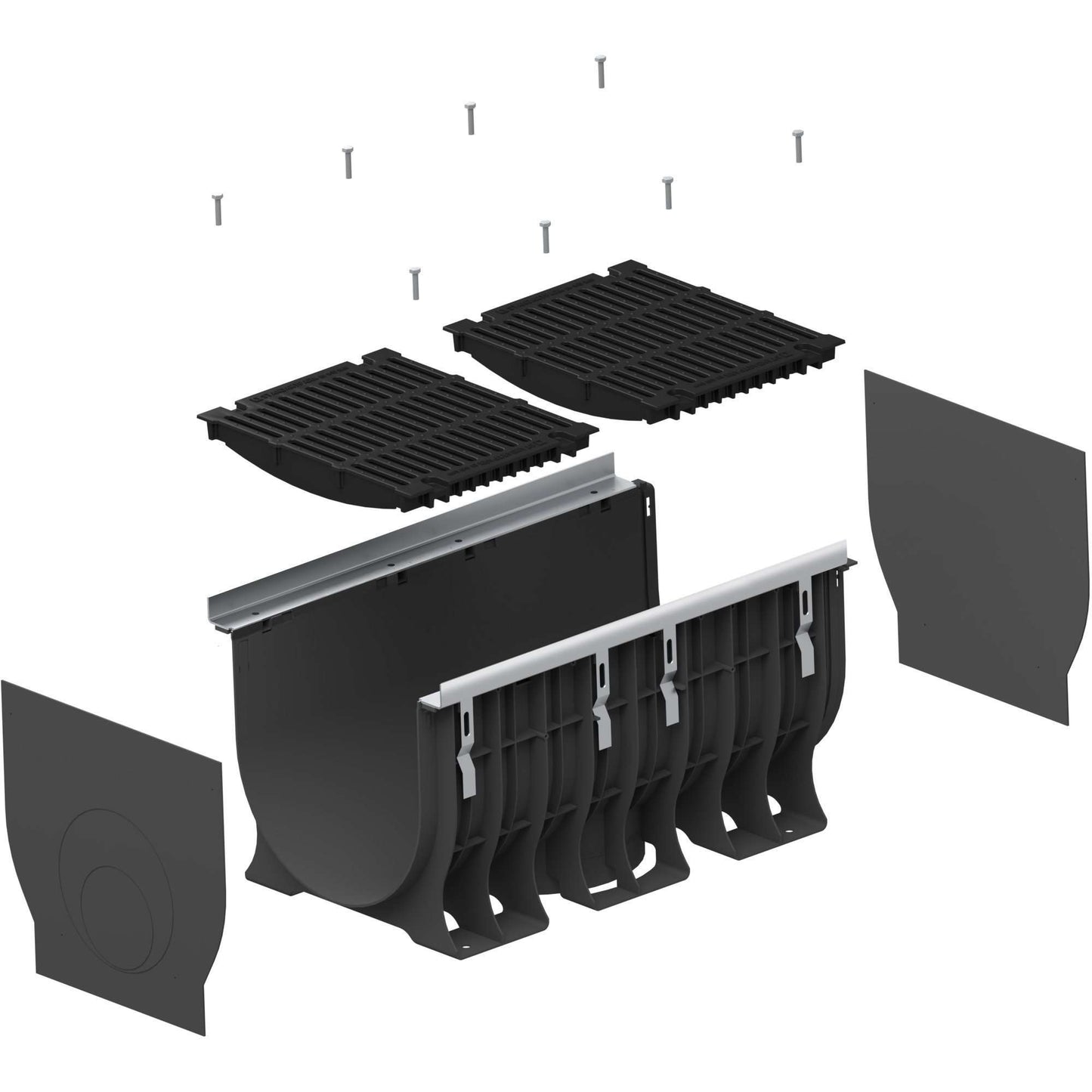

INCLUDED IN PACKAGE

- 20" Mega Channel

- End Caps

For more product information please see product description tab above



Downloads
PDF
DWG
BIM
Specification Sheet
PDF :
DWG :
Installation Guide
PDF :

Product Description

Product Description

20” MEGA Channel System

This Heavy Duty trench drain system is designed to provide drainage for commercial or
industrial spaces with abundant water flow.

Key Features:

Supports up to 134,800 LBS per sq. ft. - Provides strength for roads, parking lots,
garages, and heavy duty traffic areas.

Tongue-and-Snap Connection - Seamless Connections between channels

Environment Friendly - PPE Plastic Channels (Polyphenylene Ether, 100% recycled
plastic)

Steel Reinforcements - Added edging to provide durability for high performance

Multiple Outlet Connections - Outlet end cap with two cutouts (7 ⅞” or 12 ⅜”) or
bottom outlet option

Expanded Product Overview:

Our 20” MEGA channel comes with a 100% recycled plastic channel body, heavy duty cast iron gratings and steel reinforcements. The reinforced steel edge supports extra heavy duty traffic whether it is needed for a large parking lot, warehouse, or large commercial area.
This is a neutral channel system (non-pre sloped) that is designed to withstand great load capacities while also supporting large amounts of drainage. This system has the adaptability to cater to your application with the option to use either end outlets or bottom outlets.

Common Applications:

Parking Garages

Parking Lots

Warehouses

Industrial Settings

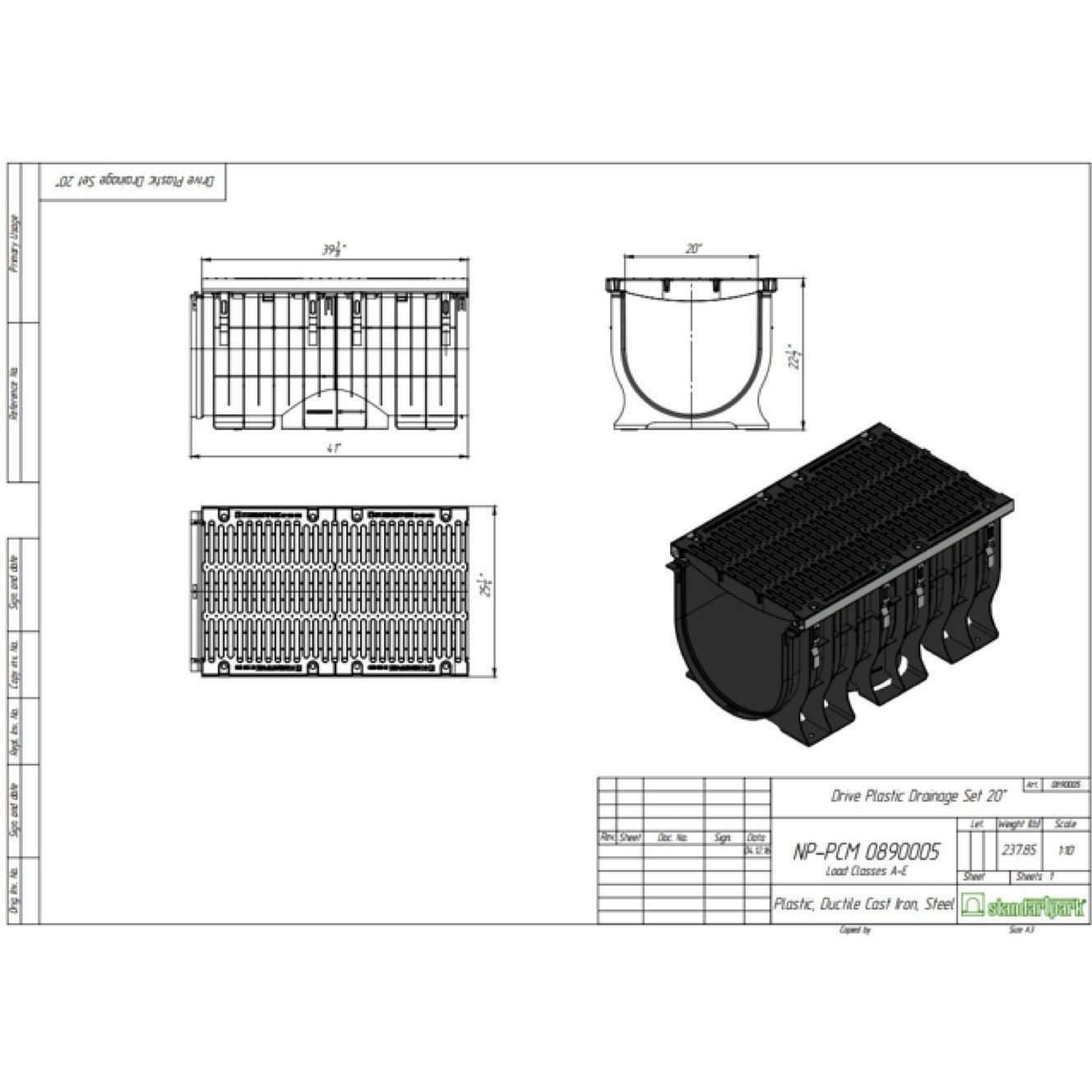

Technical Specifications:
Material - PPE Plastic / Galvanized Steel Reinforcements / Ductile Cast Iron

Length - 3.3 Feet (39.4”)

Width - 20” Internal Width - 25 ” External Width

Load Class - E (Extra Heavy Duty)

Article Number - 0890005-UA

Like all Vodaland products this heavy duty system is designed to provide a long lasting, highly durable drainage solution.
