Polymer Concrete Catch Basin 15x20
Polymer Concrete Catch Basin 15x20
- 07770
- Connects to 6, 8, 10, & 12 inch PVC or Corrugated Pipe
- Polymer Concrete / Cast Iron / Galvanized Steel
- Includes Sediment Basket to Remove Debris
- Spec Sheets Available Under Downloads
- 07770
- Connects to 6, 8, 10, & 12 inch PVC or Corrugated Pipe
- Polymer Concrete / Cast Iron / Galvanized Steel
- Includes Sediment Basket to Remove Debris
- Spec Sheets Available Under Downloads
- Specifications and Downloads
- Product Description
- Installation videos
Specifications and Downloads
Specifications and Downloads

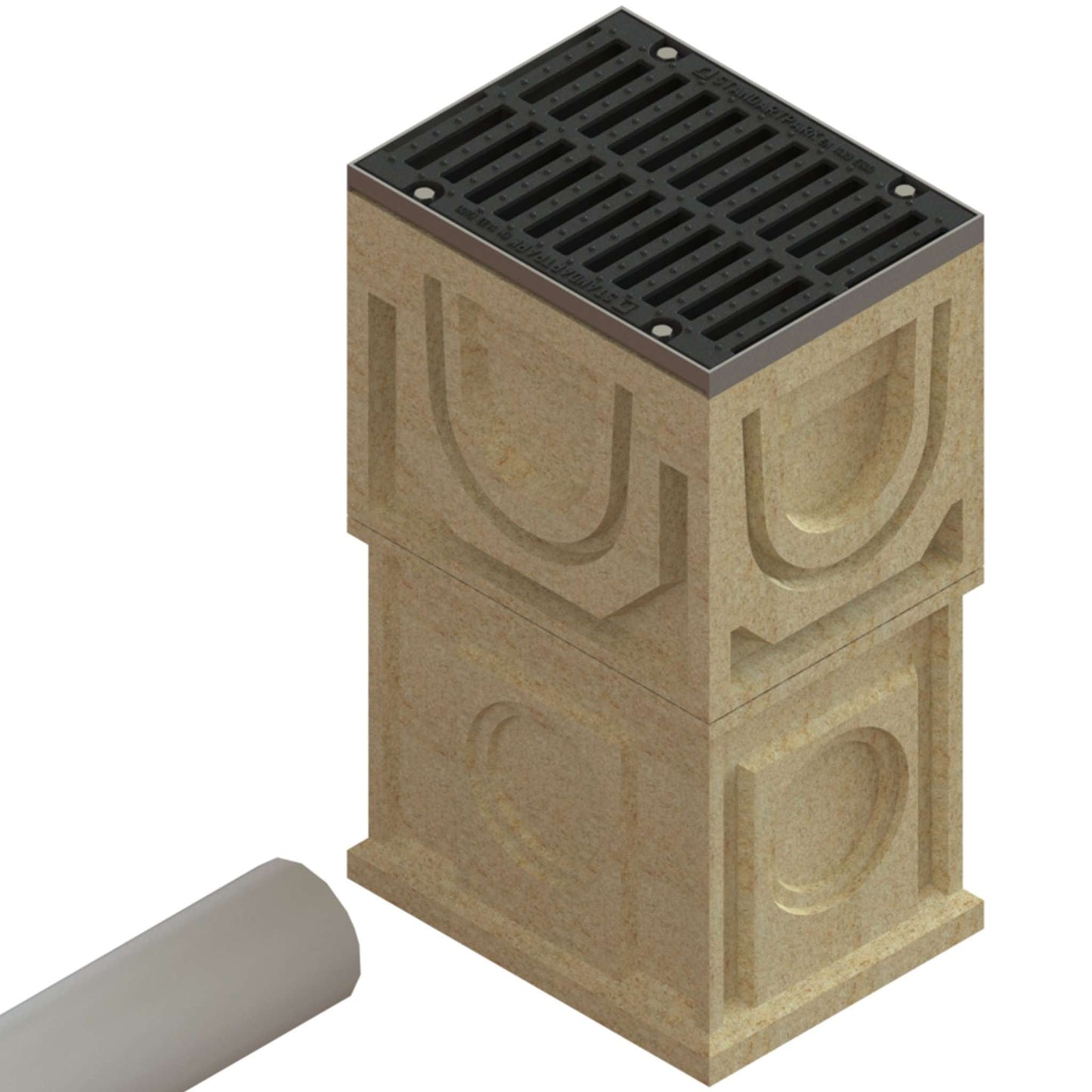

- 15"x20"x36" Polymer Concrete Catch Basin with Sediment Trap

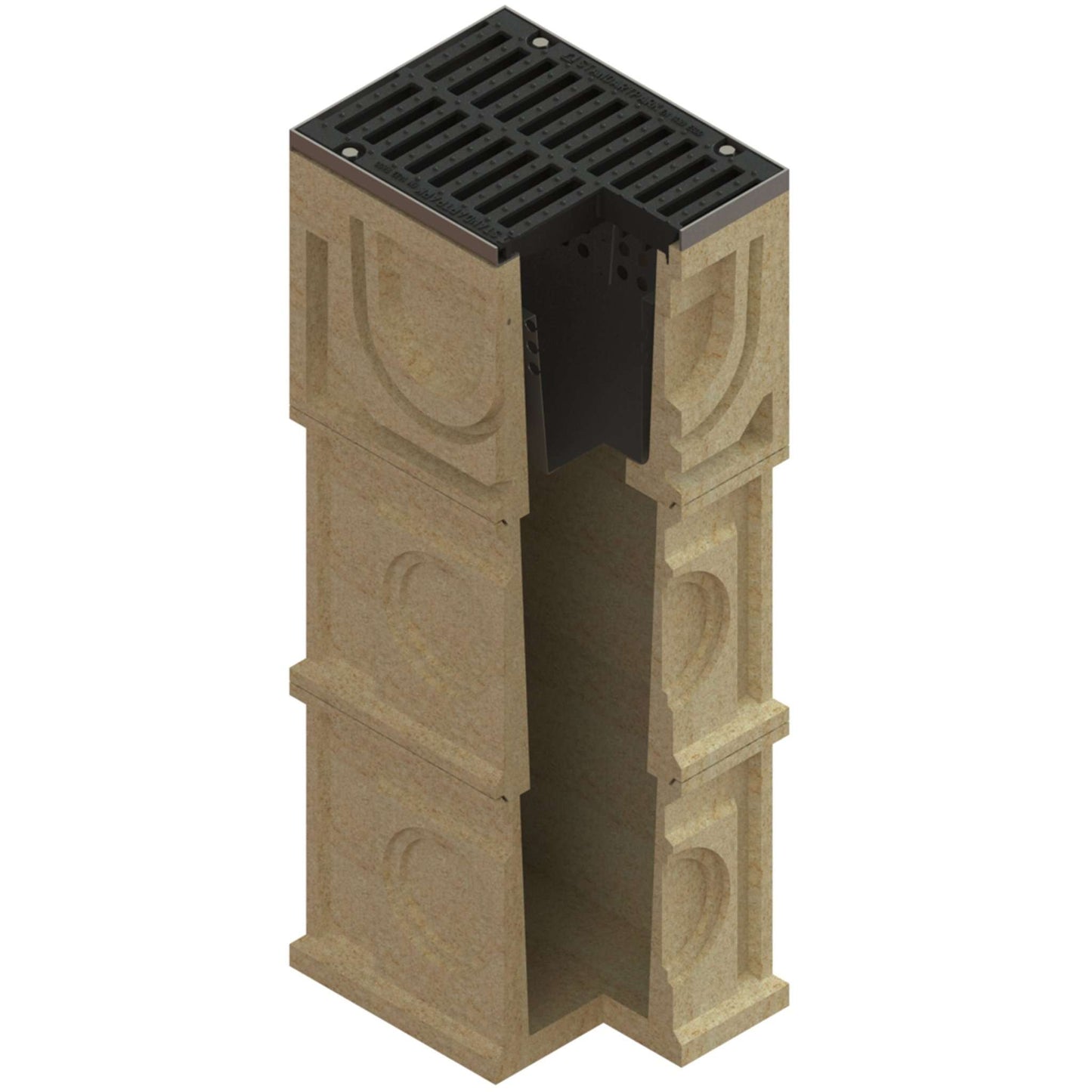

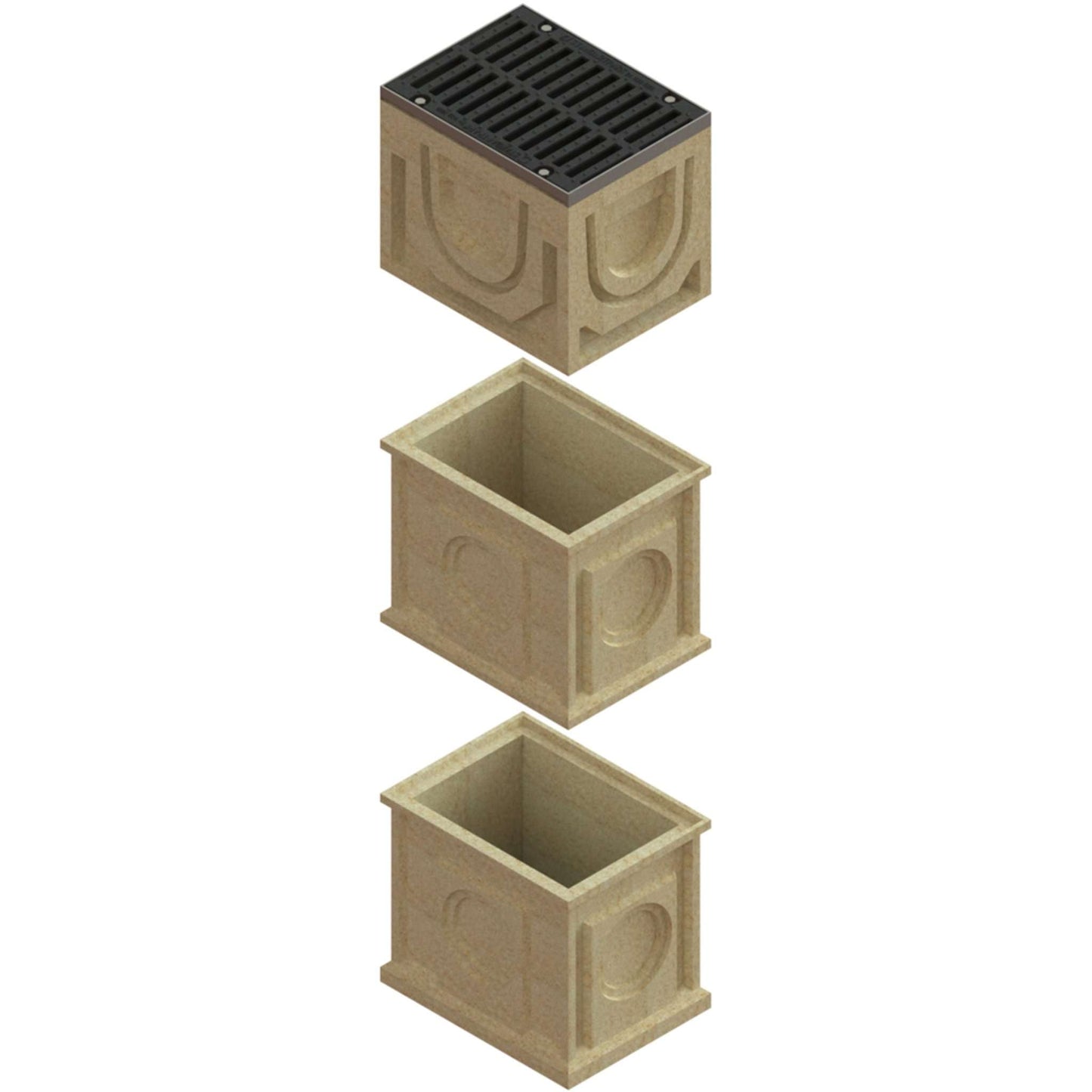

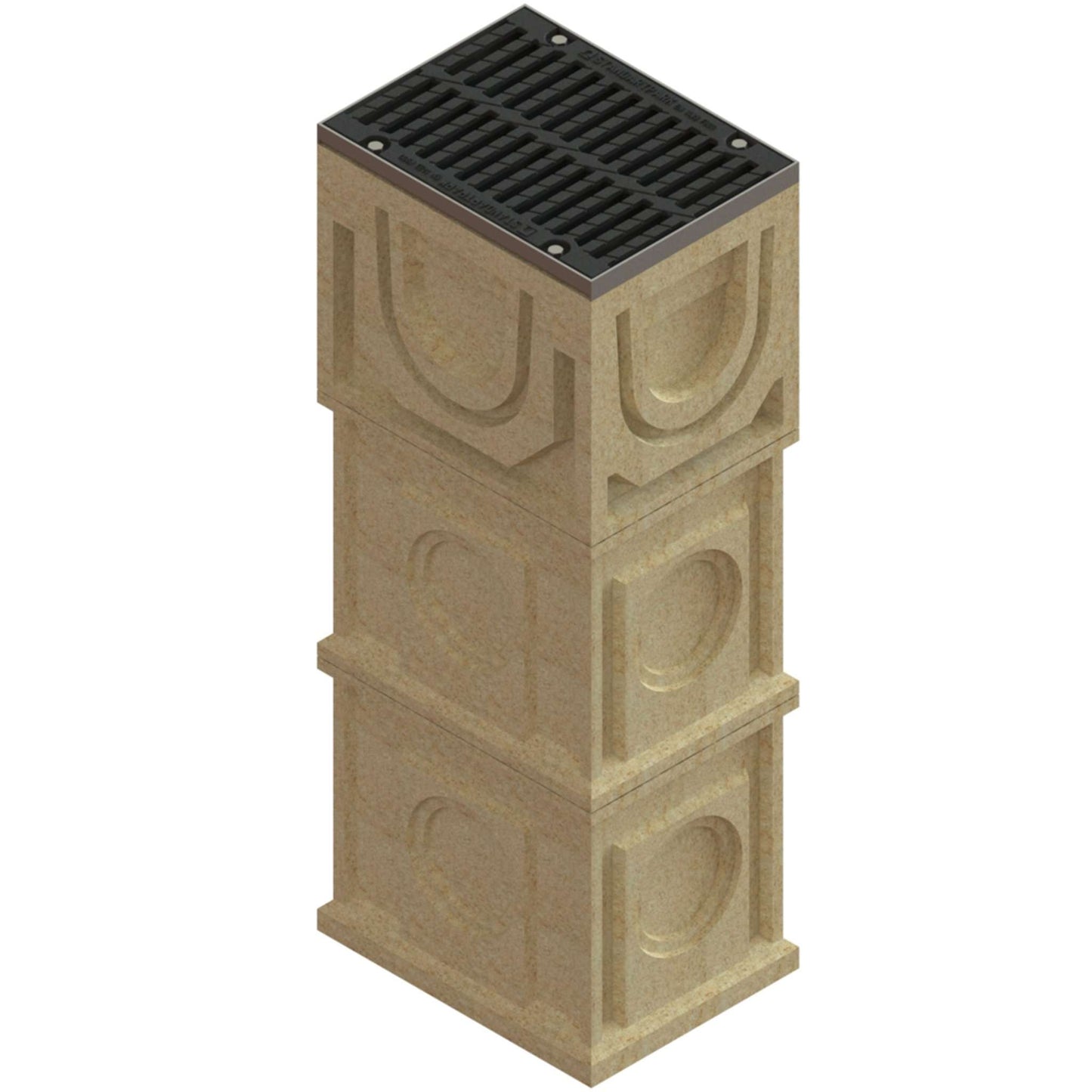

- Comes in two and three tier configuration options
- Connects to 6,8,10, and 12 inch PVC or Corrugated pipe
- Heavy Duty Grating and Steel Reinforcements
- Sediment basket included
- Perfect for no concrete installation if needed.
For more product information please see product description above
Product Description
Product Description
Our new 15x20 inch, Polymer Concrete Catch Basin is perfect for a quick one time installation for an extremely durable solution without the need for a concrete pour. Comes with two options of 2 tier and 3 tier for depth. Excellent solution for a gravel driveway, retrofit, or a deep solution. The basin is 15x20 inches edge to edge perimeter. Includes a sediment basket as well as grating, frame and comes fully assembled. Outlet connection to be cut and attached to any pipe size up to 12 inches.

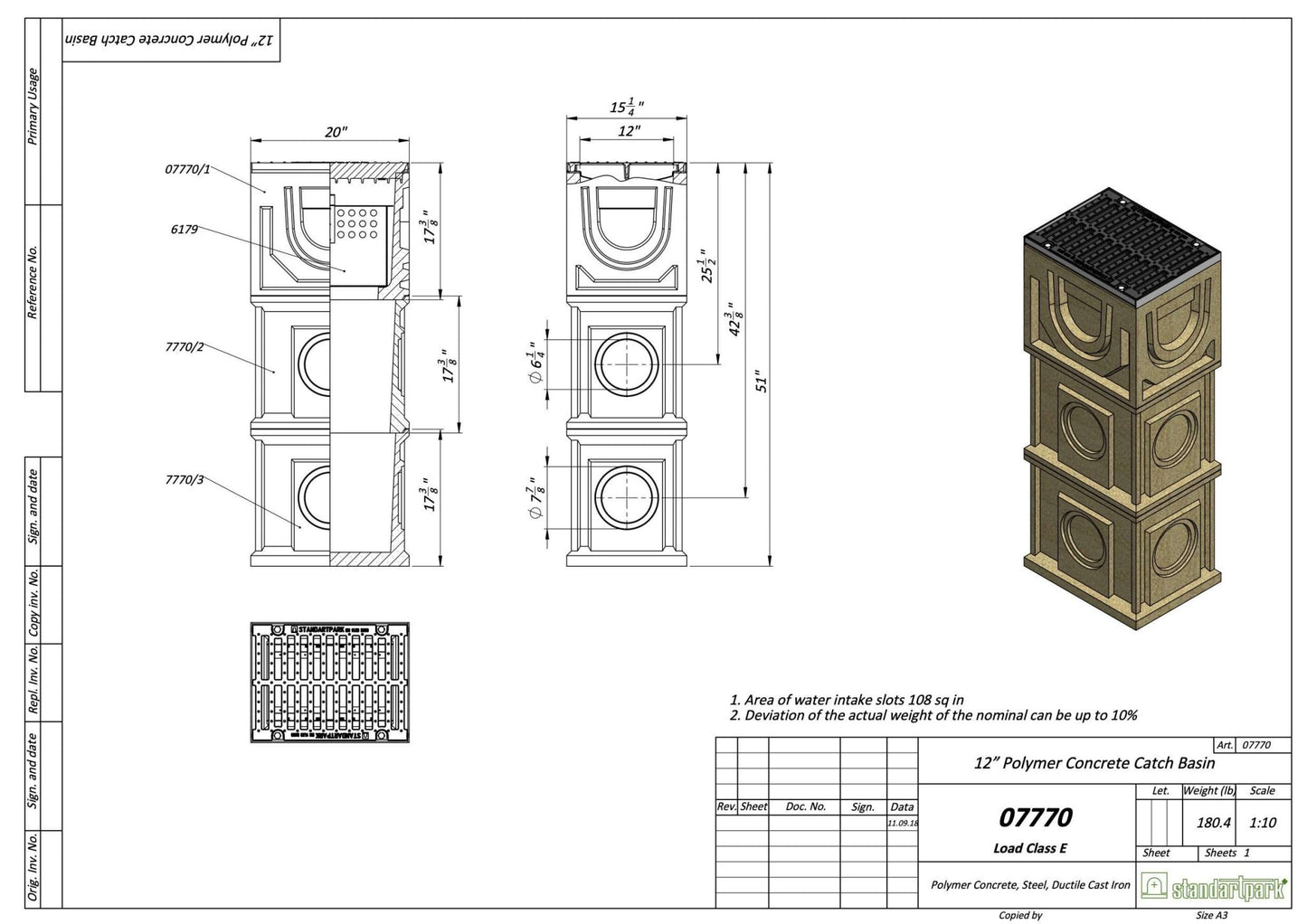

PARAMETERS
Article ................................ 07770
Material ............................. Polymer Concrete - Cast Iron - Galvanized Steel
Dimensions (2 Tier) ...........20" L x 15" W x 36" H
Dimensions (3 Tier) ...........20" L x 15" W x 54" H
Load Class ........................ E - 132,000 LBS
INCLUDED IN PACKAGE
1 - Two Tier or Three Tier Catch Basin
1 - Ductile Cast Iron Grate
1 - Debris Basket
