Triple Slot System

This 304 Stainless Steel Triple Slot System is designed to provide ADA-compliant drainage for both public and commercial drainage projects.

Key Features:
● Made from 304 Stainless Steel - Rust and corrosion resistant for long lasting
performance.
● ADA Compliant - Ensures safe and trip-free walking surfaces.
● Supports up to 28,100 LBS per sq. ft. - Provides strength for light vehicular traffic.

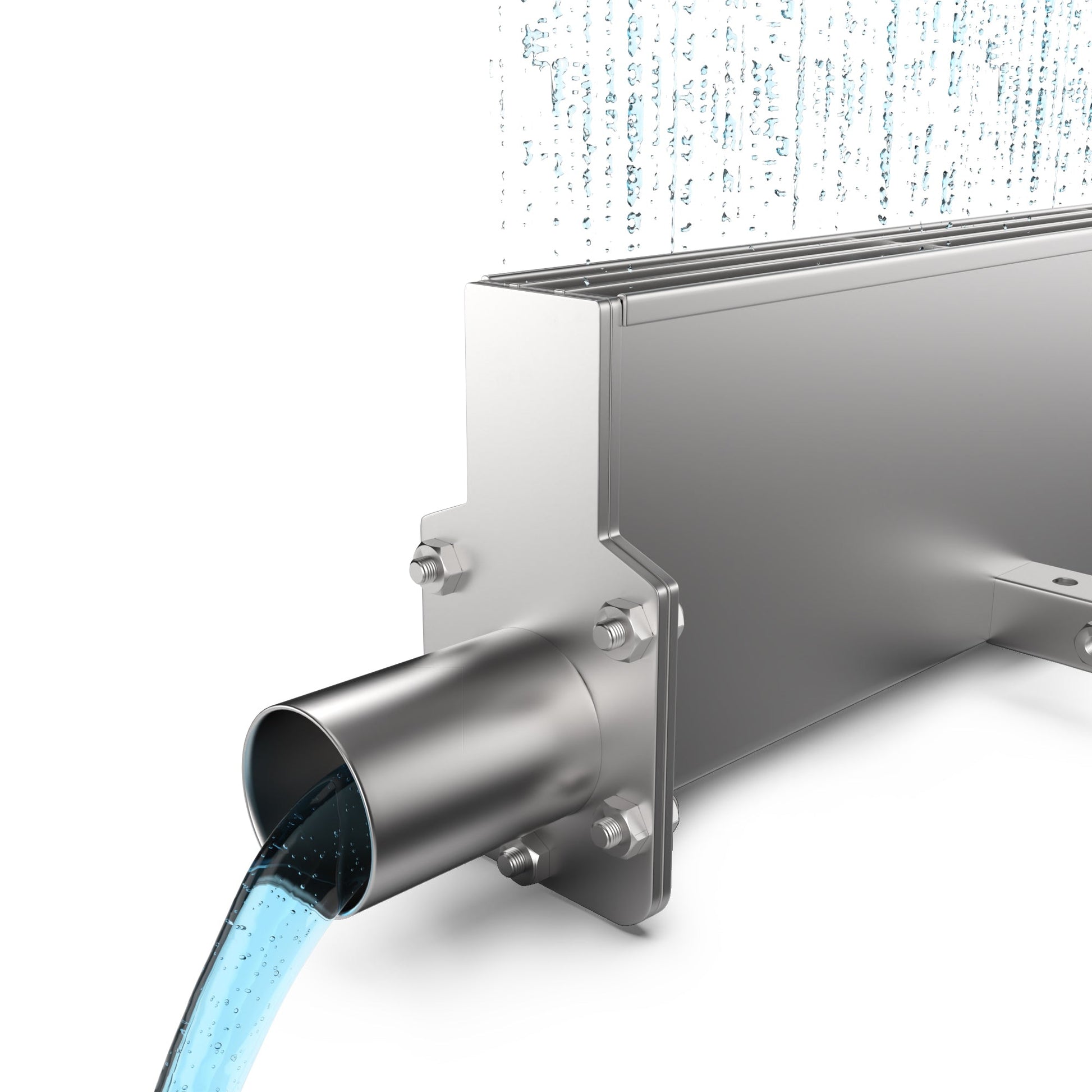

● Convex Bottom - Ensures efficient water movement through the channel.

Expanded Product Overview:
Built to withstand light vehicular traffic, this stainless steel Triple Slot System is manufactured from 304-grade stainless steel. This is a neutral channel drain system (non-pre sloped) that is physically lightweight, ensures efficient drainage with its convex bottom, and prevents costly water damage. It is designed for pool installations, patios, sidewalks, and driveways. This system is low profile, providing both functionality and aesthetics. With three ½” inch slot openings, this system provides a compliant drainage system that ensures safety without sacrificing aesthetics or durability.

Common Applications:

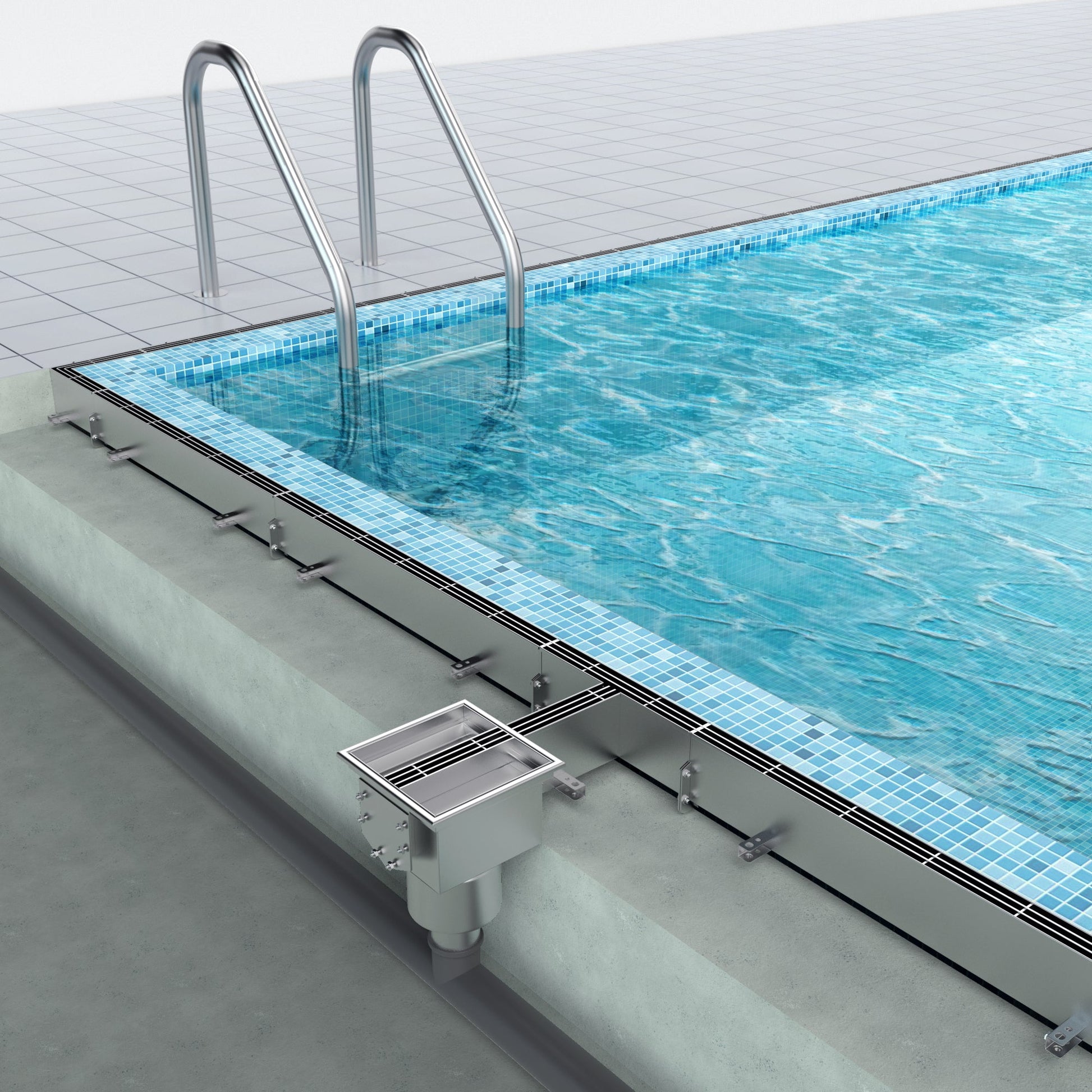

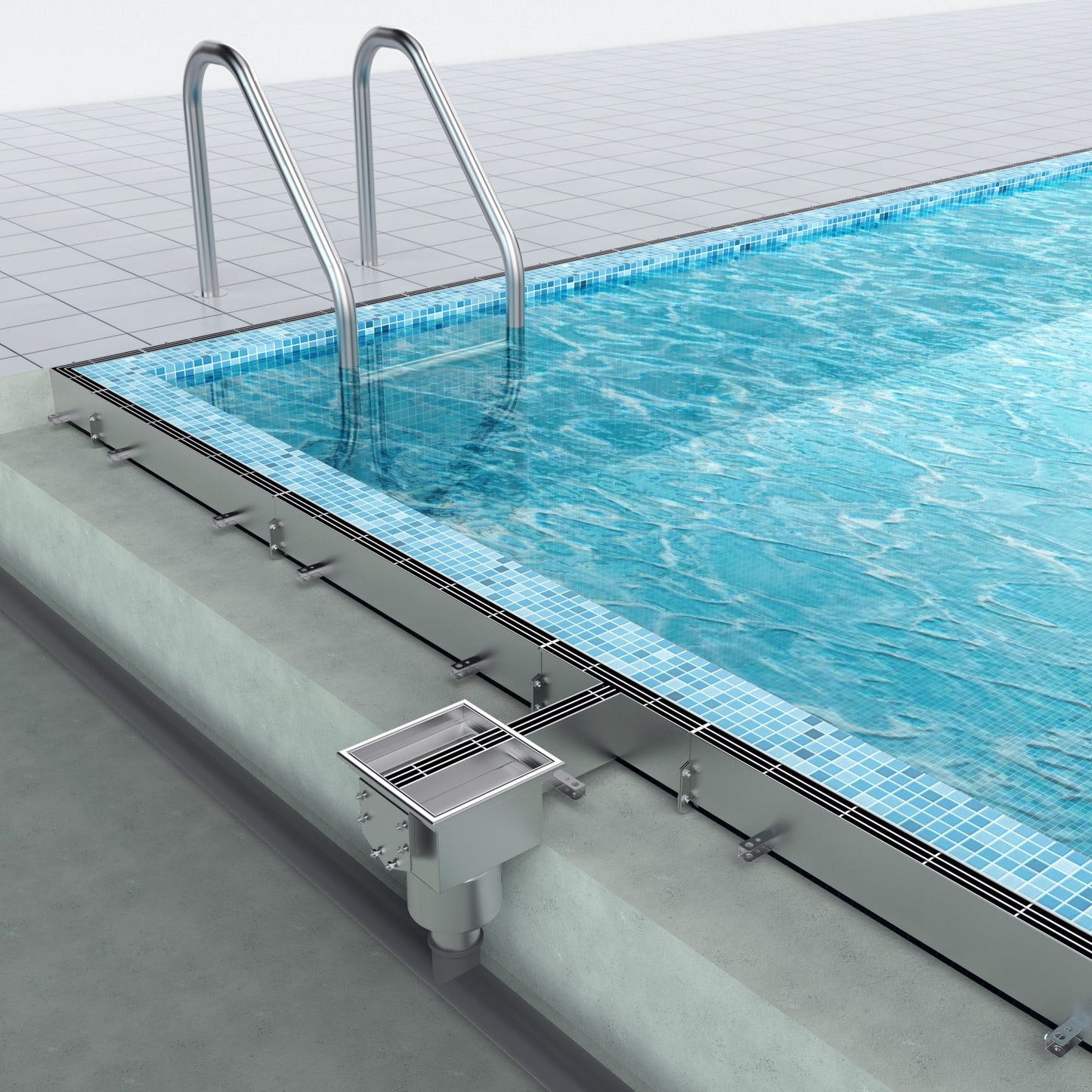

● Pool Installations
● Patios
● Sidewalks
● Driveway

Technical Specifications:
● Material - 304 Stainless Steel
● Length - 3.3’
● Width - 1 ¾” Width
● Load Class - B (Light Vehicular Traffic)
● Compliance - ADA Compliant
● Article Number - 994016

Technical Resources: Load Class Compliance

Vodaland delivers reliable and high performance water solution systems. From the design that suits your needs to a system that exceeds your expectations. Backed by expert engineers and trusted professionals nationwide. Systems that are designed and certified to meet the demands of every project so you can build with confidence.
