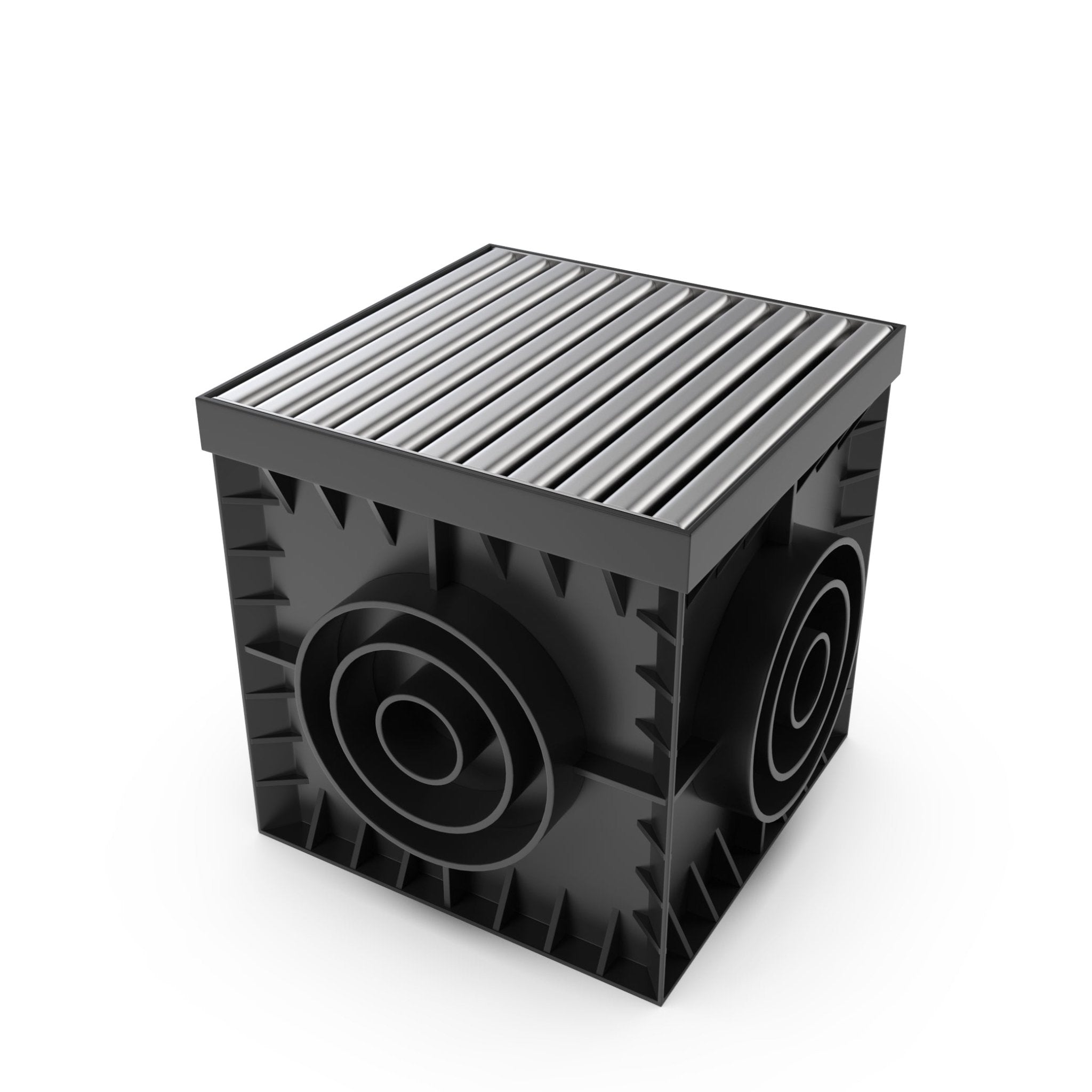

12x12 Catch Basin Stainless Steel ADA / HEEL Proof Grate Package

12x12 Catch Basin Stainless Steel ADA / HEEL Proof Grate Package

Skip to product information
1 of 6
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • Stainless steel heel proof A class rated system
  • Outlet options for 2,3,4 and 6 inch outlets on all four sides
  • Optional riser available if needed
  • Grating is rated for vehicle traffic (when surrounded by concrete)
  • ADA and Heel Proof Compliant

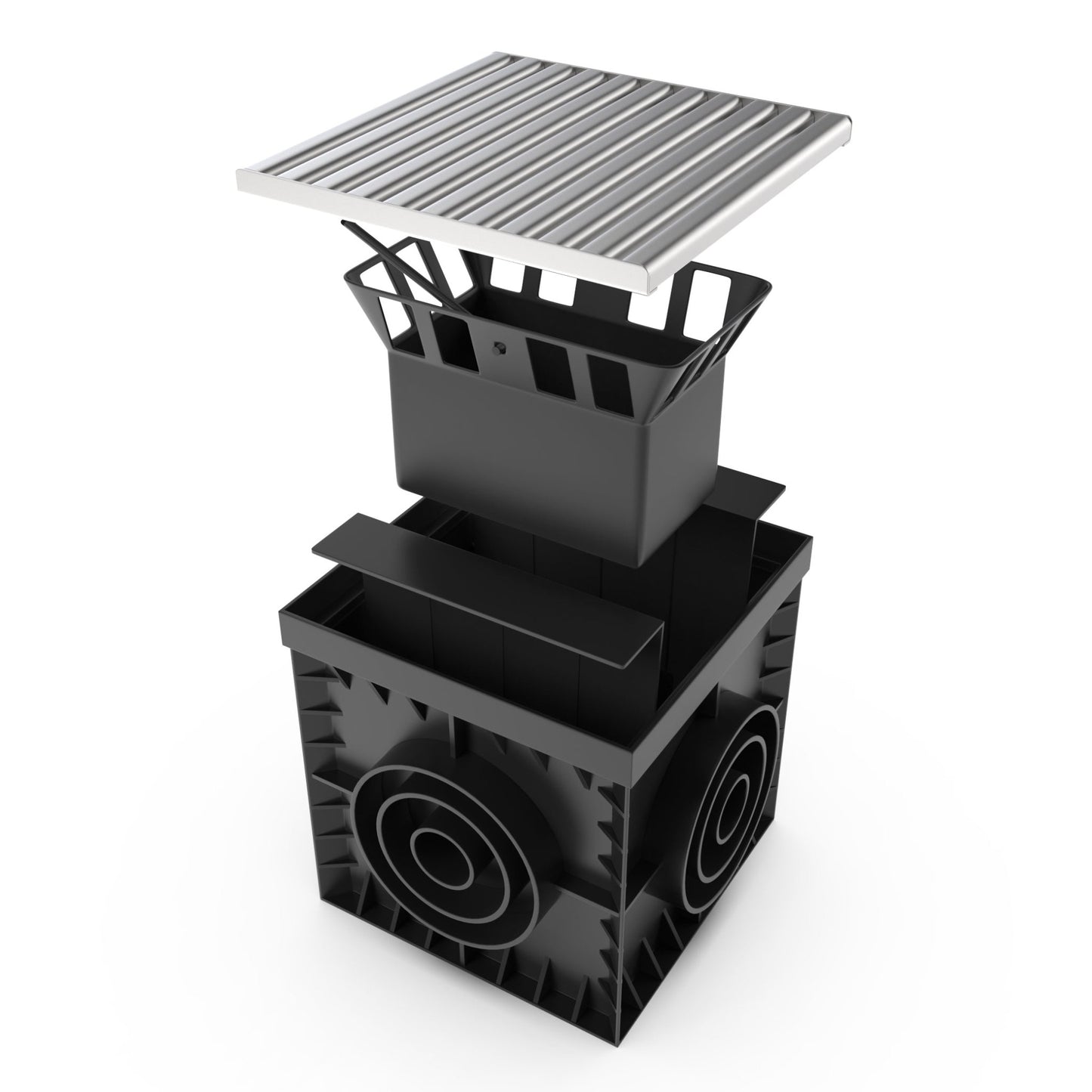

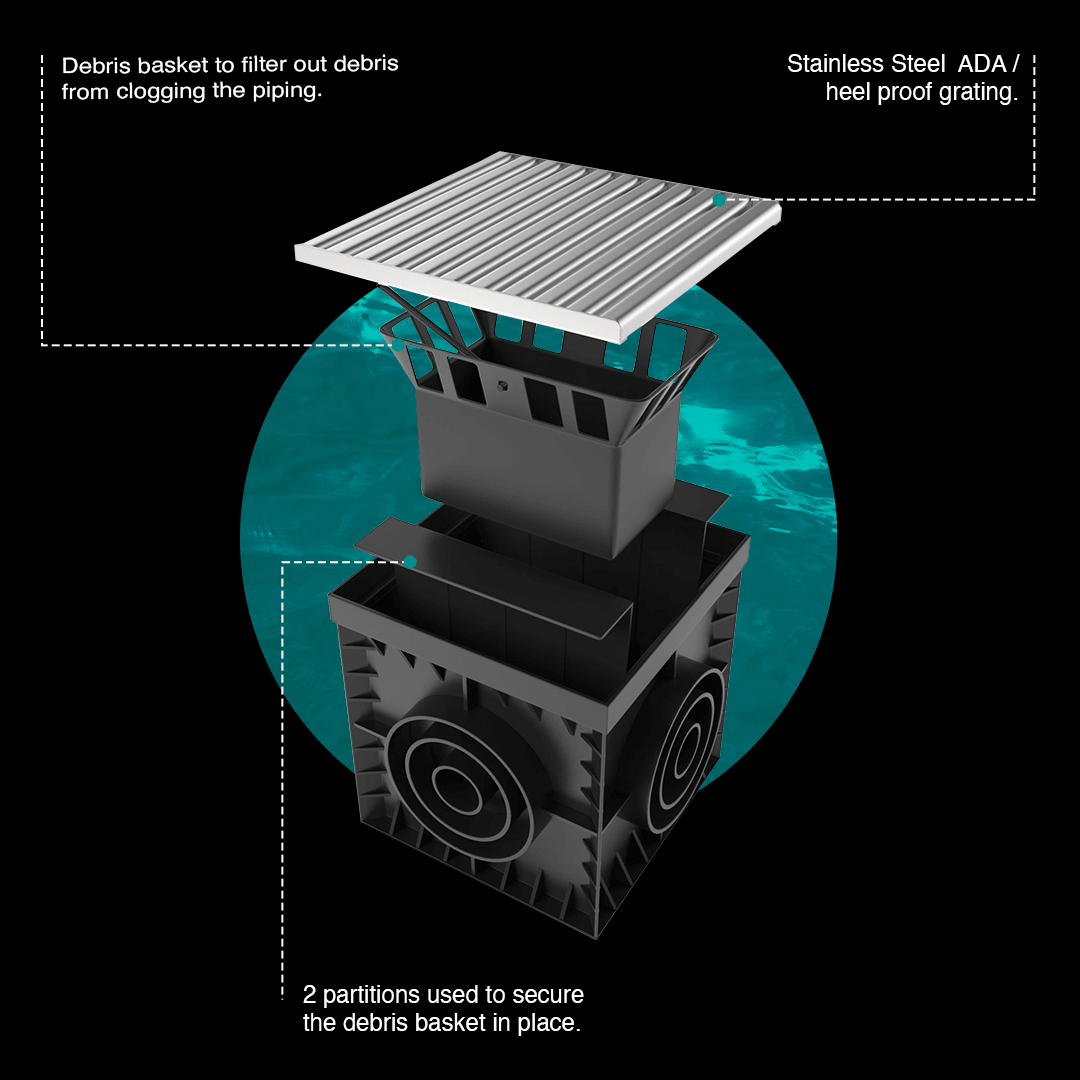

INCLUDED IN PACKAGE

1 - 12x12 Catch Basin

- Stainless Steel ADA / Heel Proof Grate

- Debris Basket

- Partitions

For more product information please see product description tab above

Downloads
PDF
DWG
BIM
Basin Specification Sheet
PDF :
DWG :
Grate Specification Sheet
PDF :
DWG :
Installation Guide
PDF :

Product Description

Product Description

12x12 Catch Basin Stainless Steel ADA / HEEL Proof Grate Package

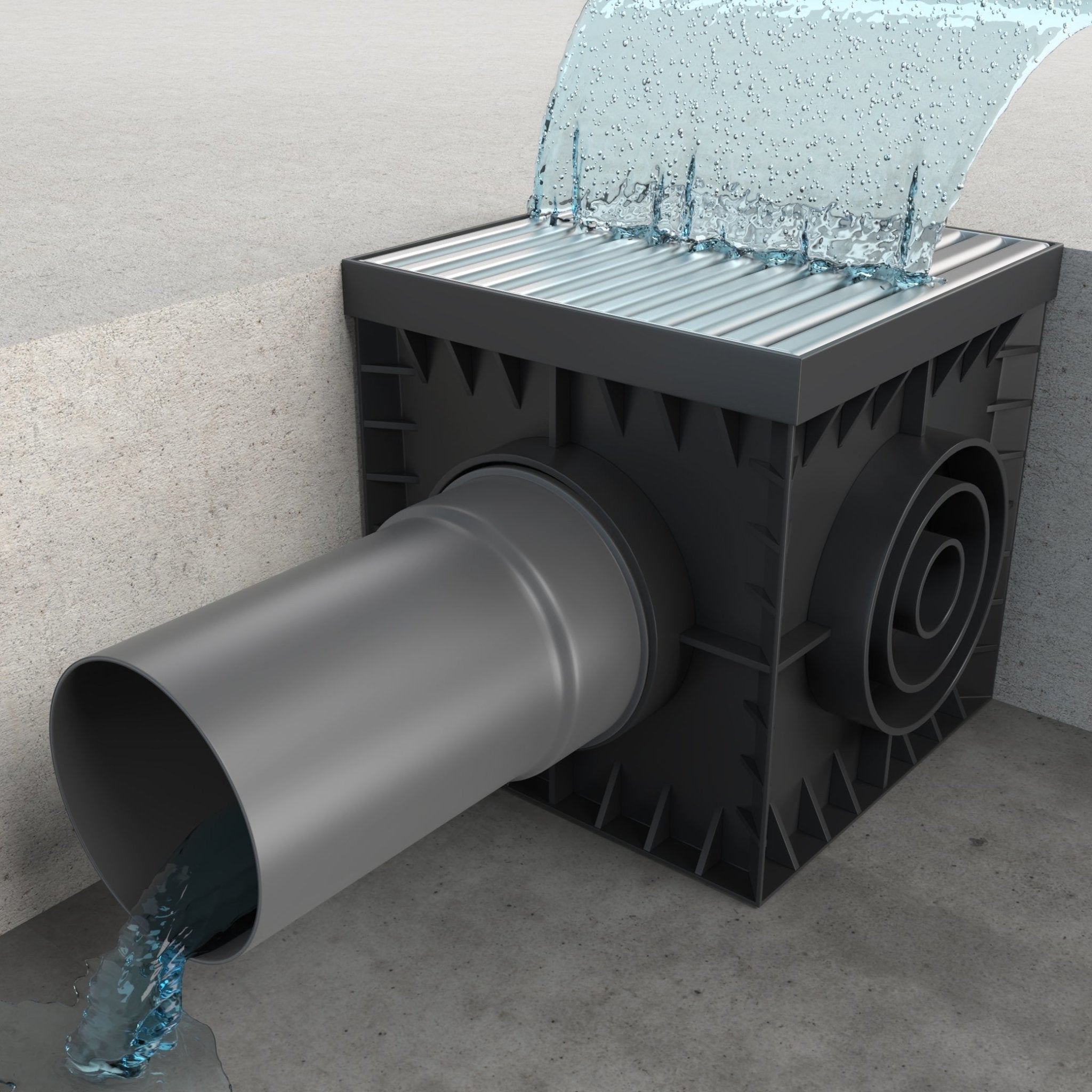

A Catch Basin Package designed to provide a one point drainage solution in patios, porches, walkways and more while being ADA Compliant and Heel Proof.

Key Features:
A load Class - Supports up to 3,372 lbs per foot

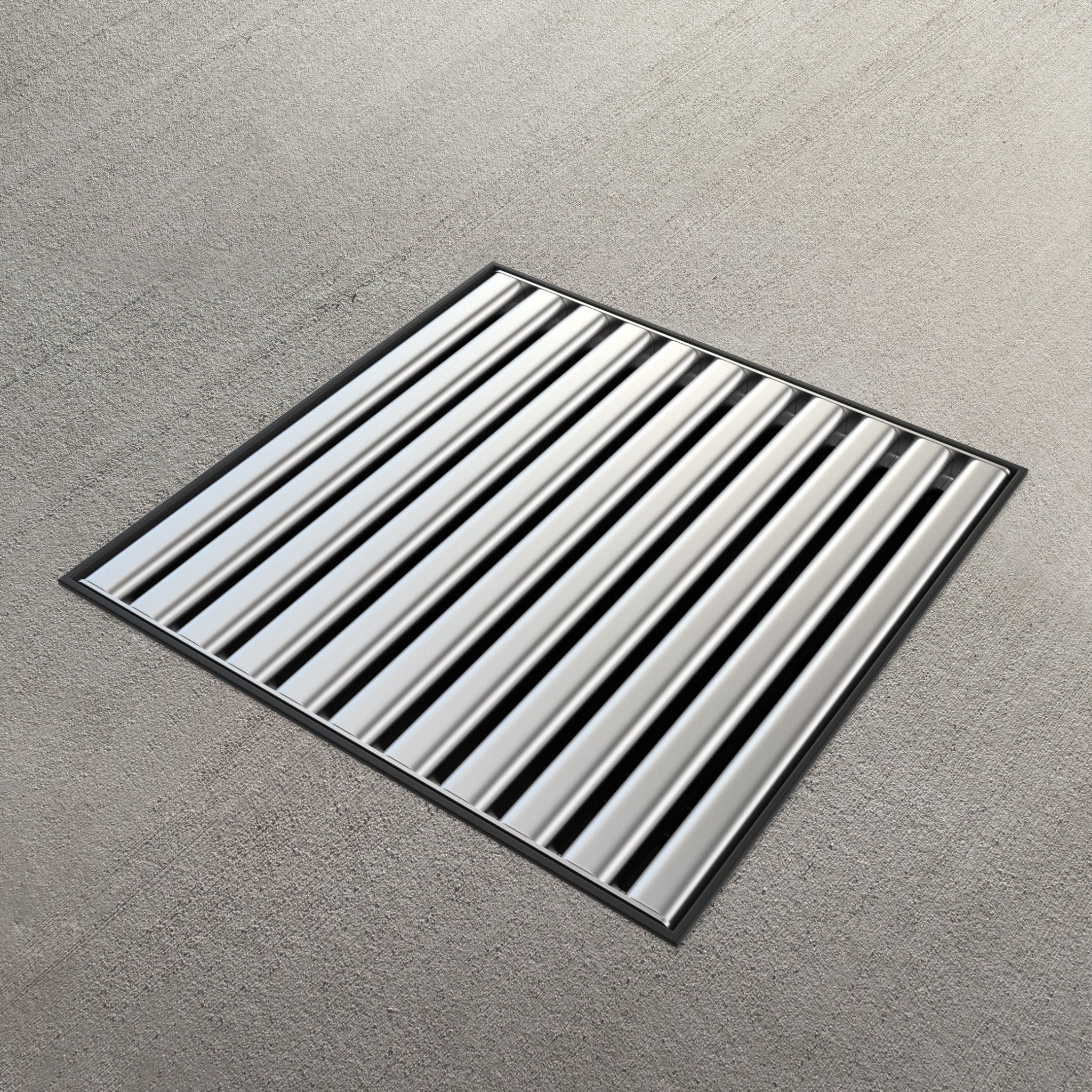

ADA Compliant/Heel Proof - Ensures a safe, trip free surface

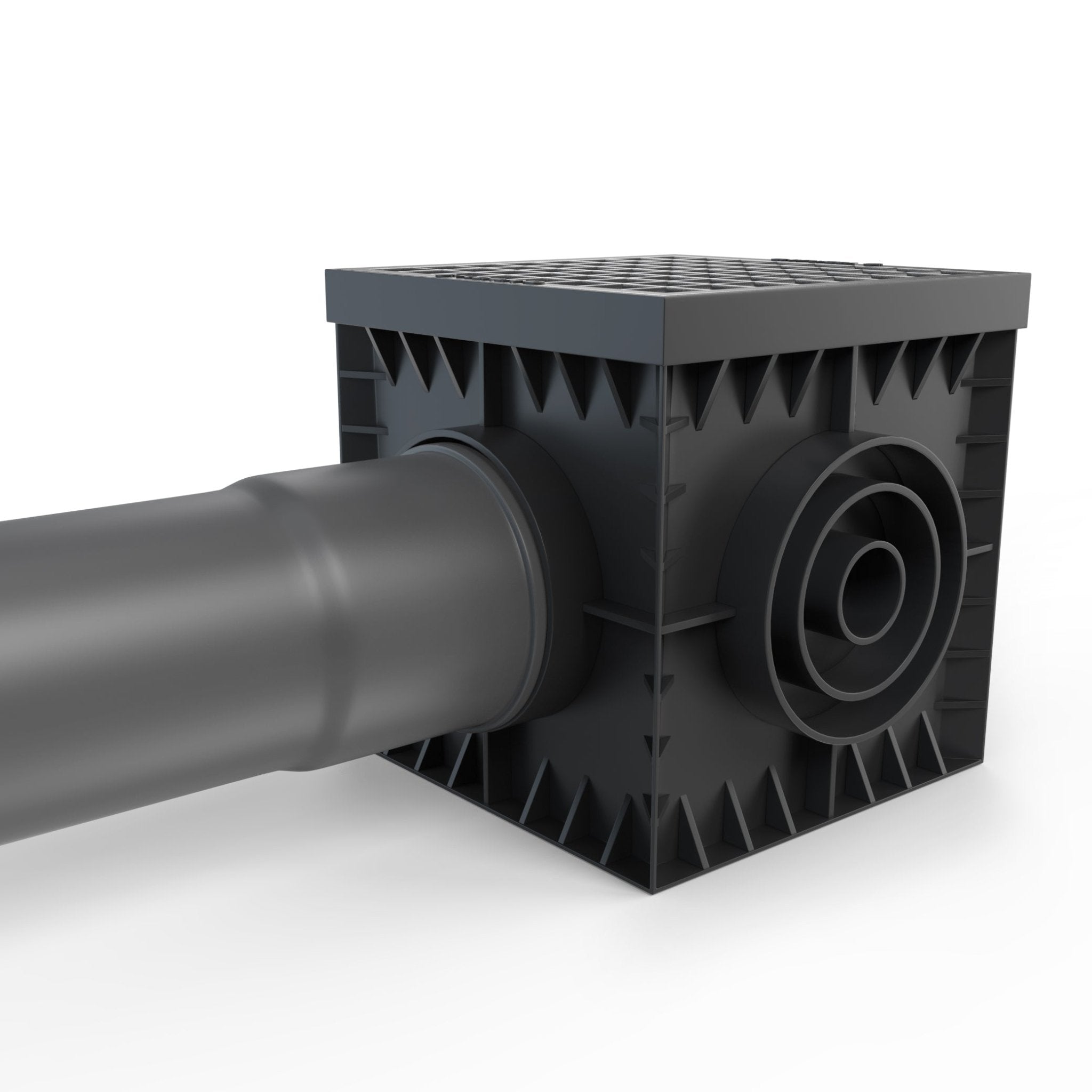

Multiple Connection Sizes- Connects to 2,3,4, and 6 inch piping on all 4 sides

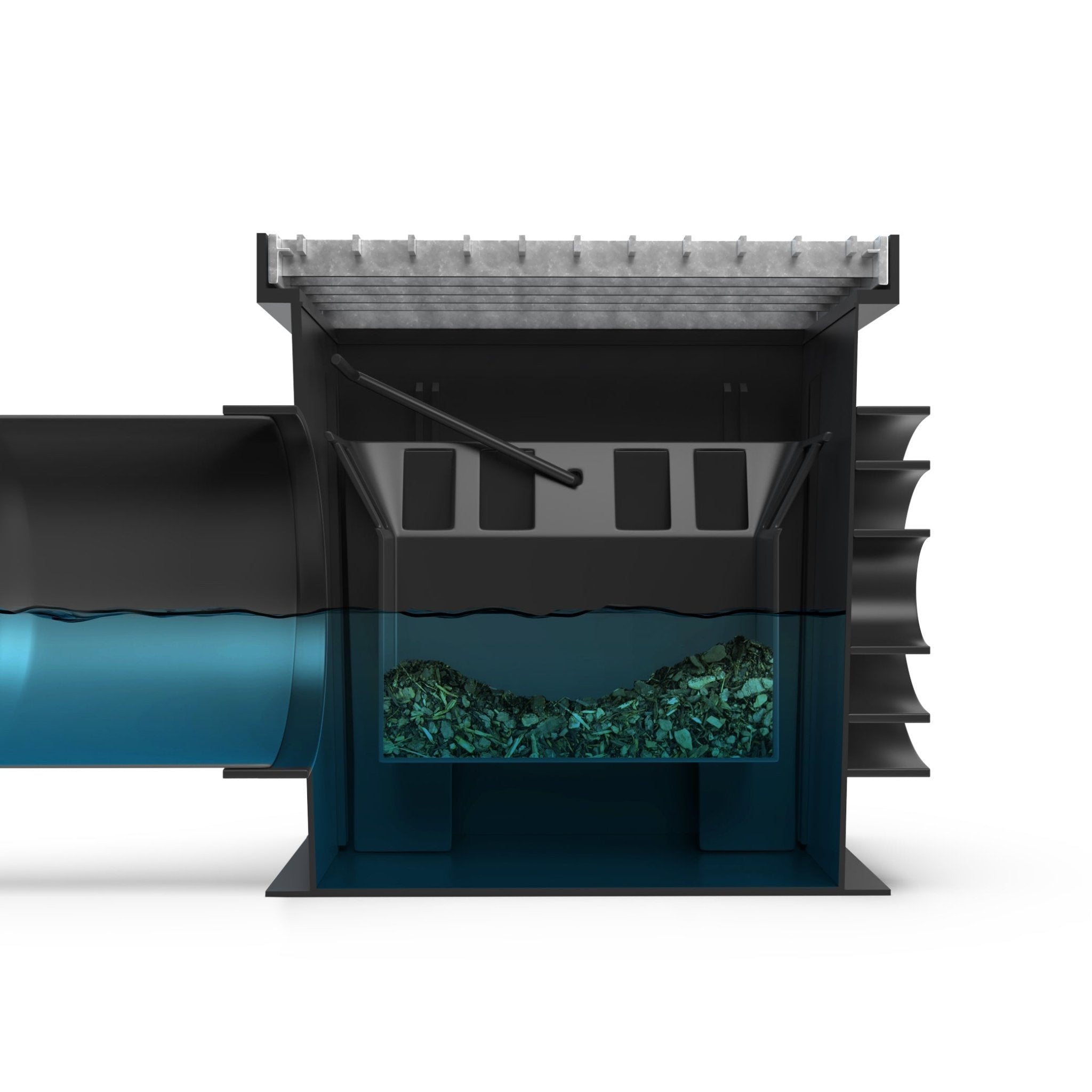

Debris Basket- Plastic Debris basket to catch leaves and debris
Removable Grate- Easy access to debris basket

The 12x12 Catch Basin Stainless Steel ADA / HEEL Proof Grate Package is designed to fit and work with all your drainage needs. In addition to 2", 3",4" and 6" pipe outlet connections, the 12x12 Catch Basin Stainless Steel ADA / HEEL Proof Grate Package will come with two partitions and a debris basket to catch those leaves and debris from getting into your system. We pride ourselves with our unique grating options and style.

Common Installations:
Patios
Porches
Walkways

Technical Specifications:
Size- 12" L x 12" W x 12" H
Material- PPE Plastic Basin/304 Stainless Steel Grate
Load Class- A-Load Class
Outlet Size- 2", 3",4" and 6"

Technical Resources: Load Class Compliance

INCLUDED IN PACKAGE

1 - 12x12 Catch Basin

- Stainless Steel ADA / Heel Proof Grate

- Debris Basket

- Partitions
