12x12 Fillable Slot Basin Package

12x12 Fillable Slot Basin Package

Skip to product information
1 of 4
View full details

Product Details

  • Specifications and Downloads
  • Product Description
  • Installation videos

Specifications and Downloads

Specifications and Downloads

  • Stainless steel heel proof C class rated system
  • Outlet options for 2,3,4 and 6 inch outlets on all four sides
  • Optional riser available if needed
  • Grating is rated for vehicle traffic (when surrounded by concrete)
  • ADA and Heel Proof Compliant

INCLUDED IN PACKAGE

1 - 12x12 Catch Basin

- Stainless Steel Fillable Slot Grate

- Debris Basket

- Partitions

For more product information please see product description tab above

Downloads
PDF
DWG
BIM
Basin Specification Sheet
PDF :
DWG :
Slot Grate Specification Sheet
PDF :
Installation Guide
PDF :

Product Description

Product Description

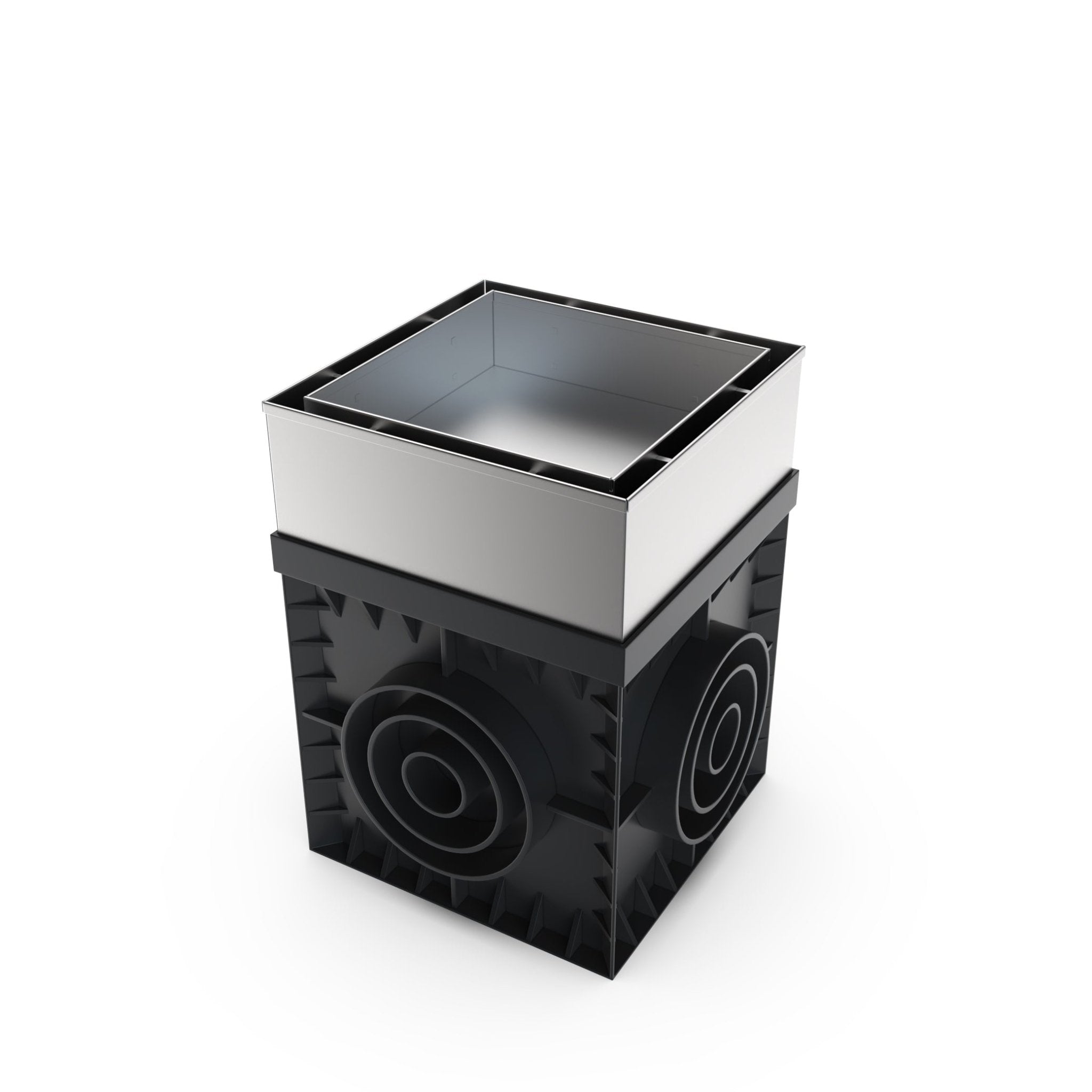

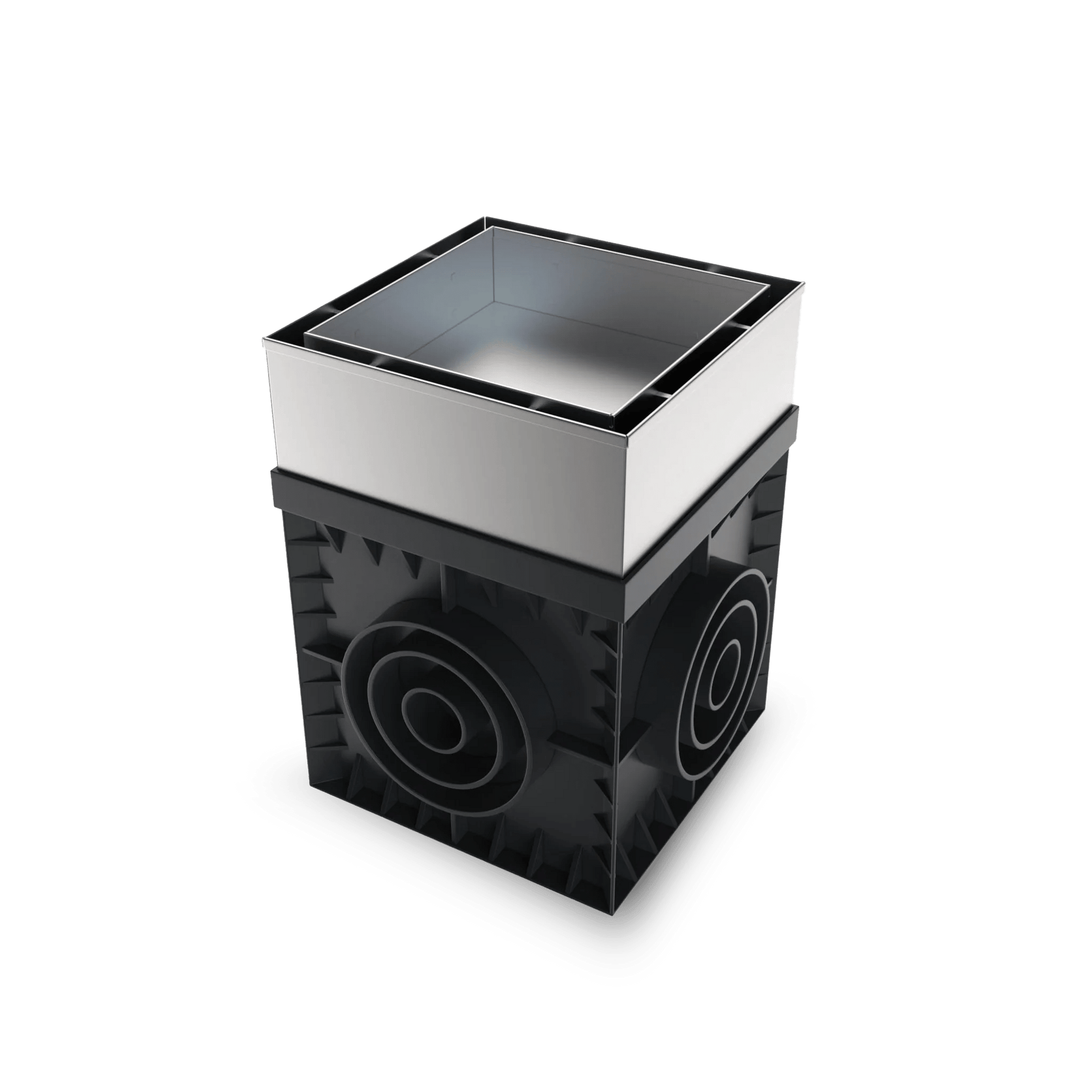

12x12 Fillable Slot Basin Package

A heavy duty Catch Basin Package designed to provide a one point drainage solution in driveways, garages, parking lots, walkways, and more.

Key Features:
C load Class - Supports up to 56,200 lbs per foot
ADA Compliant- Ensures a safe, trip free surface
Multiple Connection Sizes- Connects to 2,3,4, and 6 inch piping on all 4 sides
Debris Basket- Plastic Debris basket to catch leaves and debris
Removable Grate- Easy access to debris basket

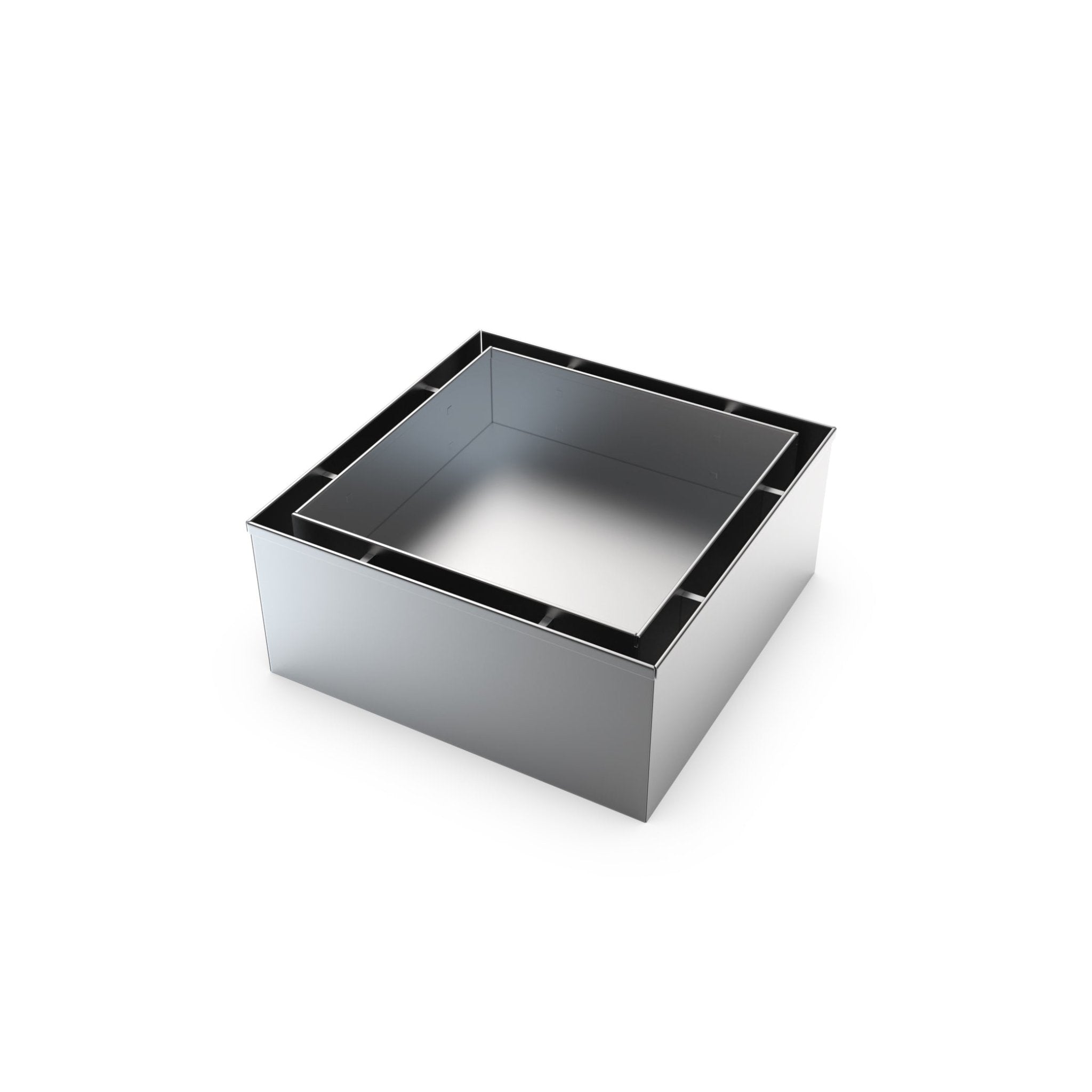

Fillable Grate- Can be blended in w/surroundings

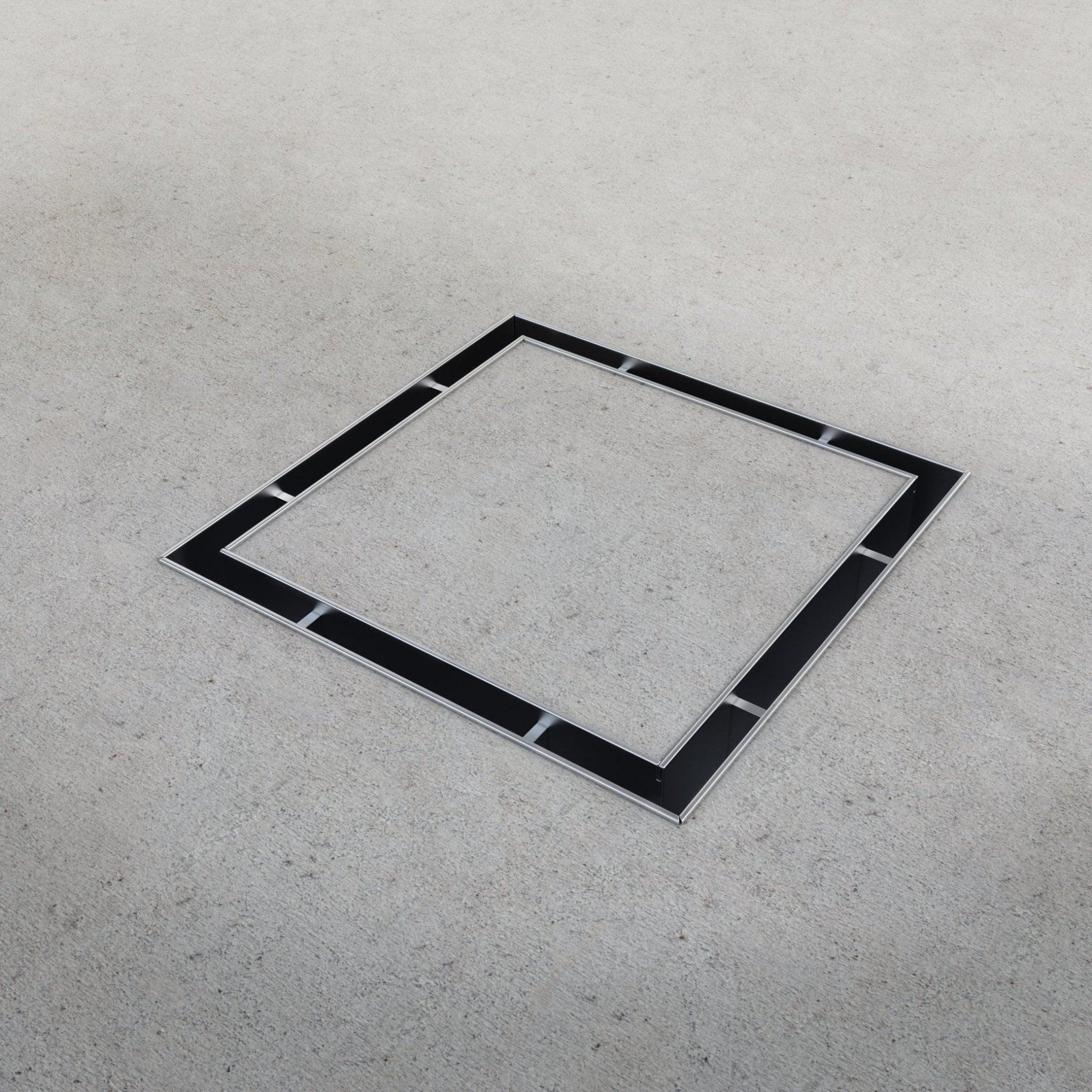

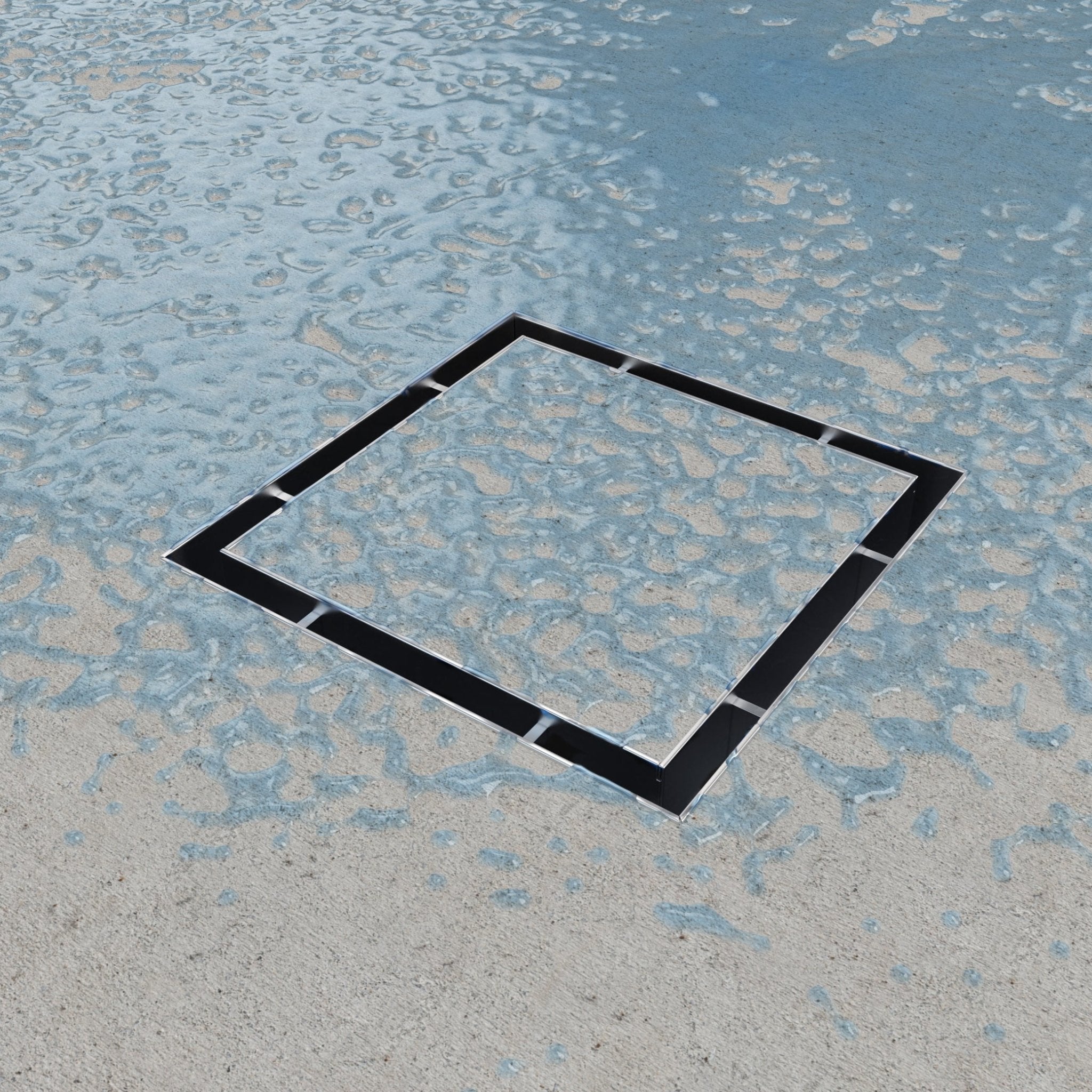

The 12x12 Fillable Slot Basin Package is designed to fit and work with all your drainage needs. In addition to 2", 3",4" and 6" pipe outlet connections, the 12x12 Fillable Slot Basin Package will come with two partitions and a debris basket to catch those leaves and debris from getting into your system. This Stainless Steel Grating is fillable and designed to create a discrete but functional catch basin. The center of this grating can be filled with concrete, gravel, or anything else to help it blend in with the surroundings. We pride ourselves with our unique grating options and style.

Common Installations:
Driveways
Garages
Parking Lots
Walkways

Technical Specifications:
Size- Basin: 12" L x 12" W x 12" H, Grate: 11x11,x 4 ⅞” - ⅝ ” Opening
Material- PPE Plastic Basin/304 Stainless Steel Fillable Grate
Load Class- C Load Class
Outlet Size- 2", 3",4" and 6"

Technical Resources: Load Class Compliance
